Taipeng TPPER94033 User manual

10’x10’ Curved Roof Pergola
Model #TPPER94033
INSTALLATION GUIDE

A1
A1
Operation
1
□
A1 B1
AA
DD
C1
Pipe Skirt
A2 B2 C2
AA
EE

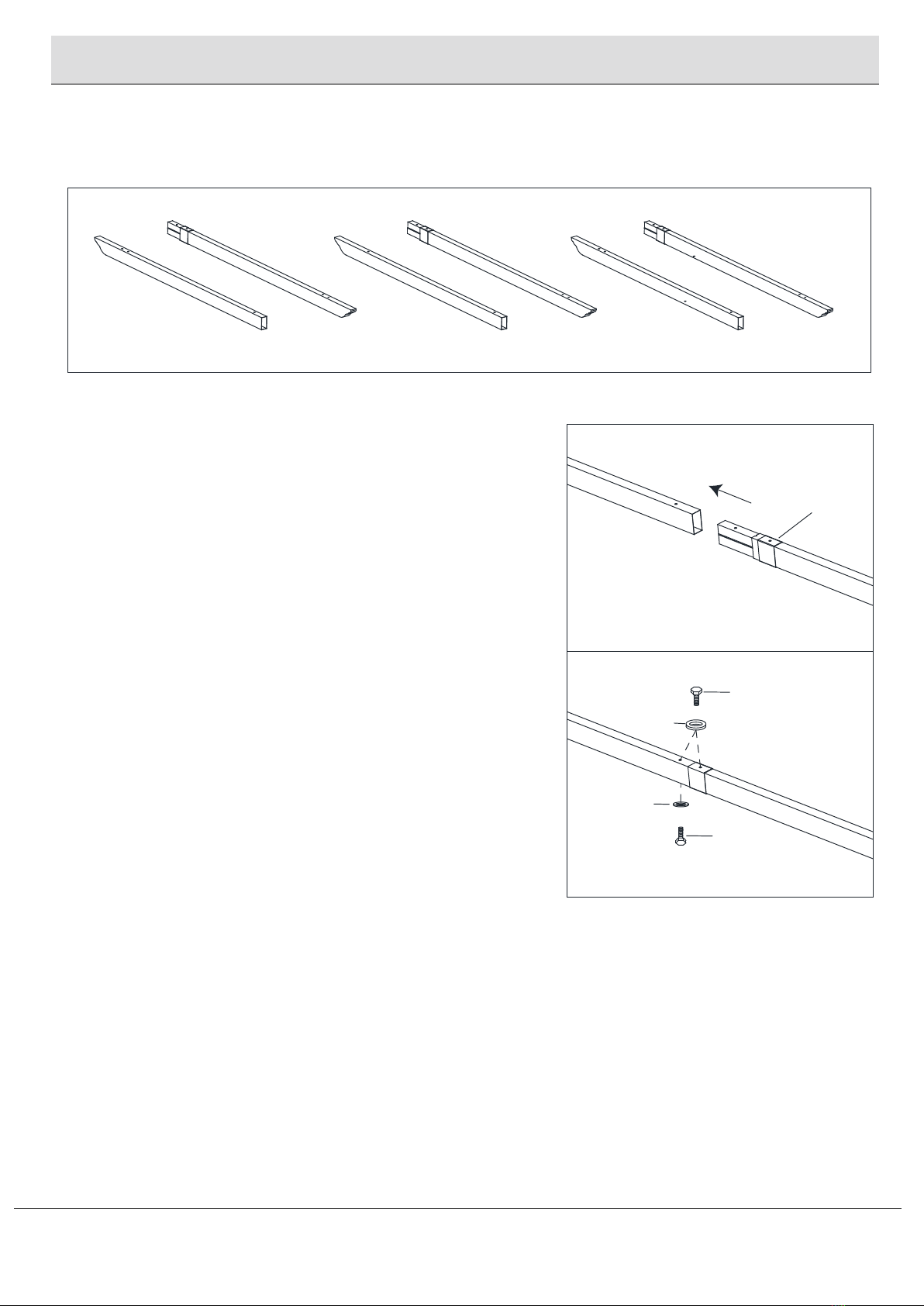

Set aside all rafter pieces.Assemble the left rafter
by inserting the left rafter,male (A1) into the left
rafter,female (A2).Secure the top of the joined
rafter with a plastic washer (DD) and M6*15 mm
bolt (AA).
Secure the bottom of the rafter with a washer (EE)
and M6*15 mm bolt (AA). Slide the preassembled
pipe skirt on the joined rafter.Secure pipe skirt
with a washer (DD) and M6*15 mm bolt (AA).
Repeat this process for the five center fafters
using the center rafters,male (B1) and center
rafters,female (B2).Repeat this process for the
right rafter using the right rafter,male (C1) and
right rafter,female (C2).
8
1

2
□
D1
D2
E1
E2
AA
DD
EE
9
Operation (continued)
Set aside all beam. Assemble the rear beam
by inserting the rear beam, male (D1) into
the rear beam, female (D2). Secure the of
the joined beam with a plastic washer (DD)
and M6*15 mm bolt (AA). Secure the
bottom of the beam with a washer (EE) an
M6*15 mm bolt (AA).
Repeat this process for the front beam
using the front beam, male (E1) and front
beam, female (E2).
AA
2

□
I
J
J
K
AA EE
H
H/I
10
3
Operation (continued)
AA
EE
Slide one post skirt (J) onto each post 1 (H)
and post 2 (I).
Attach one plate (K) to each post 1 (H) and
post 2 (I). Secure each with washers (EE)
and M6*15 mm bolt (AA).
3

□
D1 D2
DD
BB
H
I
11
4
Operation (continued)
Attach rear beam (D1/D2) to post 1 (H)
and post 2 (I). Secure with plastic
washers (DD) and M6*95 mm bolts
(BB).
Repeat for front beam (E1/E2).
4

12
5
□
A1
H
I
A2
Operation (continued)
DD
BB
Attach left rafter (A1/A2) to the top
of the beam and post assembly.
Secure on both sides with plastic
washers (DD) and M6*95mm bolt
(BB).
Repeat for right rafter (C1/C2).
5

□
D1/E1
B1
B2
D2/E2
13
6
Operation (continued)
DD
BB
Slide the pipe skirt on the center of the beam
(D1D2/E1E2) as shown, then attach center
rafter (B1/B2) to the top center of the beam.
Secure with plastic washer (DD) and M6*95
mm bolt (BB).
Repeat for four remaining center rafters
(B1/B2).
6

□
L1
L1
L1
L2
L2
L2
AA
AA
AA
AA
EE
EE
14
7
Operation (continued)
EE
EE
Attach a brace (L1/L2) to the pergola
assembly as shown. Secure with washers
(EE) and M6*15 mm bolt (AA).
Repeat for remaining braces (L1/L2).
7

□
15
8
Operation (continued)
N
N
N
M
M
AA
AA
AA
EE
EE
M
AA
EE
EE
Attach a brace (N/M) to the pergola
assembly as shown. Secure with
washers (EE) and M6*15 mm bolts
(AA).
Repeat for remaining brace (N/M).
8

□
16
9
Operation (continued)
G1
G1/G2
G2
F
Insert rod, male (G1) into rod, female
(G2). Insert rod assembly into canopy
(F). Repeat for remaining rod
assembly.
9

□
17
10
Operation (continued)
F
F
Place canopy (F) over pergola. Tie corners of canopy
(F) to each post.
10

□
11
18
Operation (continued)
Insert stakes (FF) into plate (K). Place
post skirt (J) over plate (K). Repeat for
remaining stakes (FF) and post skirts (J).
FF
K
J
11
