iw62 S Subwoofer
Tannoy adopts a policy of continuous improvement and product specification is subject to change iW62TS Subwoofer data file issue:1.06 // 15.01.08

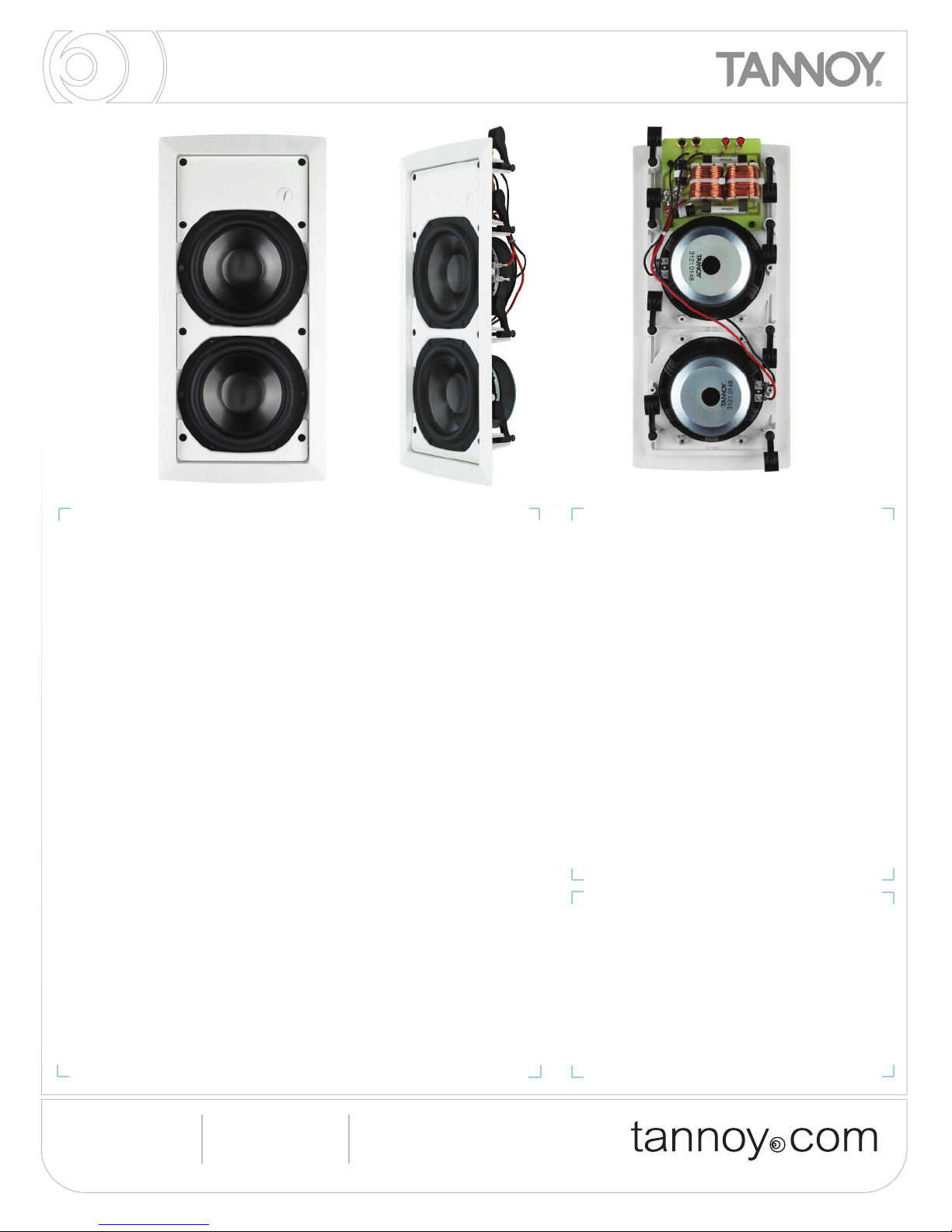

A high performance in wall subwoofer, the iw62 TS is designed to augment the low
frequency output of an in wall system installation. It uses the same construction and
mechanical installation method to ensure it is a perfect match, both acoustically and
visually, to the Tannoy full range in wall units.
The iw62 TS is unique in that it can operate in either passive or active mode, selectable by
a switch on the front baffle. In active mode an external controller can be used to manage
low frequency extension, the application of equalisation and allowing the crossover point to
be tailored to the rest of the system and room. Additionally the iw62 TS will operate in
stereo or mono mode; easily converted by means of link wires on the circuit board.
Designed to partner the Tannoy iw6 DS, iw6 TDC and iw62 TDC full range in wall
loudspeaker products, the iw6s TS in wall subwoofer is equipped with two 165mm (6.50”)
long throw multi fibre, paper pulp bass drivers to deliver effective low frequency
reinforcement; rated from 29Hz - 110Hz in passive mode with a continuous power handling
of 200W RMS.
The driver and passive frequency dividing network are mounted in an injection moulded,
paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material.
The excellent structural integrity, when combined with the secure polycarbonate,
self-aligning eight clamp mounting system, ensures a performance enhancing rigid acoustic
coupling with the wall surface. This provides an immensely stable platform for the drivers to
deliver optimum performance. Robust, gold plated spring loaded terminals enable rapid
connection with optimum input signal integrity.
Complementing any style of decor, the perforated metal grille and discreet moulded baffle
can be painted to blend seamlessly with any install environment. This in-wall subwoofer is
capable of delivering impressive results in large residential and commercial applications;
such as small entertainment venues, restaurants, bars, public buildings, board rooms, AV
installations and business music systems.
A steel back can is available as an optional accessory.
Product Description
• Unique application flexibility - easy configuration
possible for active, passive, mono or stereo modes
• Designed to partner the Tannoy iw6 DS, iw6 TDC
and iw62 TDC full range in-wall loudspeaker products
• The two 165mm (6.50”) bass drivers in the iw62 TS
deliver effective low frequency reinforcement from
29Hz - 110Hz in passive mode continuous power
handling 200W RMS
• 2nd order low pass crossover in passive mode -
determined by external controller in active mode
• Simple and effective eight clamp mounting system -
self aligning for easy installation and removal
• Four spring loaded gold terminals - cut links to drive in
stereo mode
• Ideally suited to larger installations where higher
power premium performance in multi room distributed
audio and av systems, small venues, restaurants,
bars, business music systems and a vast array of
other public building installations.
• Grille and baffle can be painted to suit any décor
• Foreground music & paging systems
• Multi-room audio systems
• Home theatre
• Business music systems
• Boardrooms and offices
• Retail environments
• Public address systems
• Reception and waiting rooms
• Airport, convention centres and hotels
Features
Applications

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
iw62 S Subwoofer
Tannoy adopts a policy of continuous improvement and product specification is subject to change iW62TS Subwoofer data file issue:1.06 // 15.01.08
ECHNICAL SPECIFICA IONS
Frequency Response (-3dB) (1) 29Hz - 110kHz passive
(determined by controller in active mode)
Frequency Range (-10dB) (1) 29Hz passive
(determined by controller in active mode)
Recommended Ampplifer Power100 - 400
Power Handling
Average 200W
Programme 400W
Peak 800W
Sensitivity 2.83 Volts @ 1 metre
Half Space 94dB
Maximum SPL@ 1 metre
Average 117dB
Peak 123dB
Impedance 8 Ohms stereo, 4 Ohms mono
Driver Complement 2 x 165mm (6.50”) multi fibre
paper pulp cone, long throw
Crossover Passive, 110Hz
Active : determined by controller
Notes:
(1) Average over stated bandwidth. Measured at 1 metre on axis.
(2) Unweighted pink noise input, measured at 1 metre in an anechoic chamber
A full range of measurements, performance data, CLF and Ease™ Data can be
downloaded from www.tannoy.com
Full independent verification of published specifications carried out by NWAA Labs,
California can also be obtained from the downloads section of www.tannoy.com
Tannoy operates a policy of continuous research and development. The introduction
of new materials or manufacturing methods will always equal or exceed the
published specifications, which Tannoy reserves the right to alter without prior
notice. Please verify the latest specifications when dealing with critical applications.
Finish White - paintable
Connectors Gold plated spring terminals
Dimensions
Front Baffle 474.50 x 227mm (18.63 x 8.93”) (H x W x D)
Front of baffle to 108mm (4.25” )
rear of magnet
Mounting panel 25mm (1.00”)
thickness
Rec. in-wall 30 litres (1.1 cu. ft.)
Mounting Volume
Mounting Depth 99mm (3.90”)
Weight (each) 6.5kg (16.3lbs)
Optional Accessories Pre-installation ring, Back can
System iw62 S Subwoofer Construction
8000 3770 iw62 TS White 1
PAR NUMBER PACKED QUAN I YCOLOURMODEL NAME
Ordering Information

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
iw62 S Subwoofer
Tannoy adopts a policy of continuous improvement and product specification is subject to change iW62TS Subwoofer data file issue:1.06 // 15.01.08
DIMENSIONAL SKE CHES
TEMPLATE HOLE CUTOUT SIZE - 430mm x 193mm [16.93" x 7.60"]
227.0
[8.94"]
473.5
[18.64"]
186.5
[7.34"]
5.0
[0.20"]
98.9
[3.89"]
186.5
[7.34"]
425.0
[16.73"]
i
98.9mm
(3.89”)
5.0mm
(0.20”)
186.5mm
(7.34”)
473.5mm
(18.64”)
425.0mm
(16.73”)
227.0mm
(8.94”)
TEMPLATE HOLE CUTOUT SIZE - 430mm x 193mm [16.93” x 7.60”]

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
iw62 S Subwoofer
Tannoy adopts a policy of continuous improvement and product specification is subject to change iW62TS Subwoofer data file issue:1.06 // 15.01.08

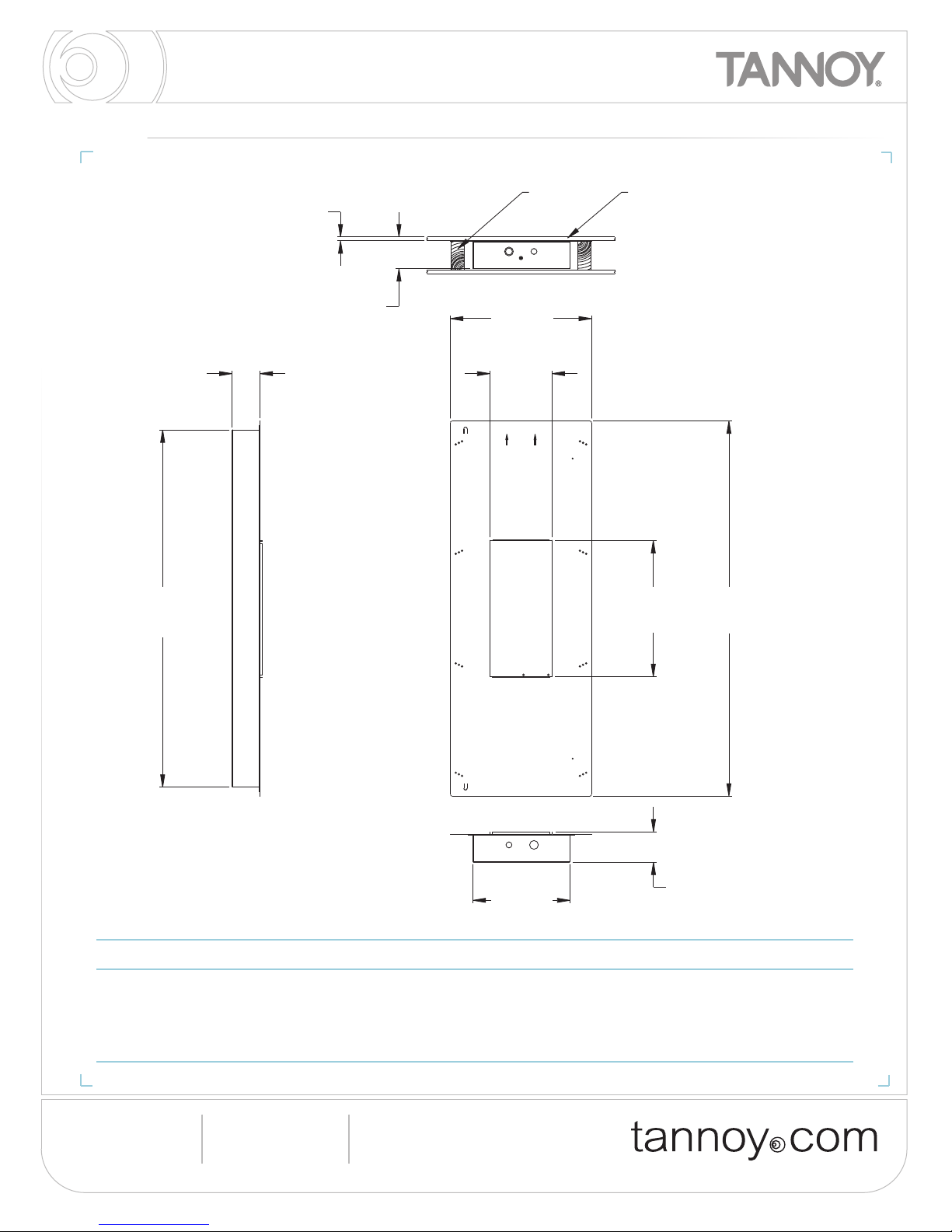

IN WALL BACK CAN ACCESSORY
1200.0
[47.24"]
451.0
[17.76"]
89.1
[3.51"]
1143.0
[45.00"]
310.0
[12.20"]
436.0
[17.17"]
199.0
[7.83"]
12.5 min
[0.49" min]
101.6 min
[4.00" min]
STUD WALL COVERING MATERIAL
FITTED AFTER BACK CAN HAS
BEEN INSTALLED IN POSITION.
96.7
[3.81"]
TOP
8000 4220 iw62 TDC/TS Back Can Unpainted Steel 1 9.50 gs (20.90lbs)
8000 4240 iw62 TDC/TS Transformer Back Can Unpainted Steel 1 10.50 gs (23.1lbs)
8000 4260 Pre-install mounting ring for iw62 TDC/TS -- -
PACKED
WEIGH
PACKED
QUAN I Y
BAFFLE / GRILLE
COLOUR
MODEL NAMEPAR NUMBER
Ordering Information
WALL COVERING MATERIAL
FITTED AFTER BAC CAN HAS
BEEN INSTALLED IN POSITION.
STUD
12.5 min
0.49” min
101.6 min
4.00” min
1200.0mm
47.24”
89.1mm
3.51”
451.0mm
17.76”
199.0mm
7.83”
436.0mm
17.17”
1143.0mm
45.00”
310.0mm
12.20”
96.7mm
3.81”

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
iw62 S Subwoofer
Tannoy adopts a policy of continuous improvement and product specification is subject to change iW62TS Subwoofer data file issue:1.06 // 15.01.08
The in wall subwoofer speaker shall consist of two 165mm (6.50") low frequency transducers.
Performance of the iw62 TS shall meet or exceed the following criteria: Frequency response measured at 1 metre on axis with a swept sine wave shall be
29Hz - 110Hz± 6dB, sensitivity shall be at least 92dB or 2.83V @ 1 metre with minimal loss accounted for. Impedance of the drivers shall be 8 Ohms in
stereo mode and 4 Ohms in mono configuration. The average power handling shall be 200W.
Utilising an eight way clamping mechanism the baffle shall be constructed from moulded ABS and supplied with a perforated metal grille, both components
shall be paintable. The system shall not exceed the following dimensions: 474.50 x 227 x 108mm (18.63 x 8.93 x 4.25”) (H x W x D).
The mounting depth shall not exeed 99mm (3.90”).
The Tannoy in wall subwoofer system shall be... the iw62 TS.
