Tansun Quartzheat SOR 215IPD UK-M User manual

F o l l o w i n g i n f o r m a t i o n i s o n l y f o r E U - m e m b e r s t a t e s :
The use of this symbol indicates that this product may not be treated as household waste. By ensuring this
product is disposed of correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of this product. For
more detailed information about recycling of this product, please contact your local council, your household
waste disposal service or the shop where you purchased the product.
©Tansun Limited 2013 Part No. 042221-M Issue. 1
Reference Manual
Monaco
Double
UK & EUROPEAN MODELS:
SOR 215IPD UK-M,
SOR 215IPD EU-M.
Spectrum House, Unit 1 Ridgacre Road,
West Bromwich, West Midlands, B71 1BW, England.
Tel: [phone] - Fax: [phone]
Email: [email protected]om - Website: www.tansun.com

Ca ut ion
When using Tansun electrical heaters, basic precautions should always be
followed to reduce the risk of fire, electric shock, and injury to persons,
including the following:
Read all instructions before using this heater.
• Before using this appliance:
- Check that the voltage indicated on the type plate corresponds to the
mains supply voltage.
- Ensure that the heater has been securely fastened in it
s final mounting
position.
• Do not locate the heater immediately below a socket outlet.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
un
derstand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• Children of less than 3 years should be kept away unless continually
supervised.
• Children aged from 3 years and less than 8 years shall only switch on/
off the appliance provided that it has been placed or installed in its
in
tended normal operating position and they have been given
supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children aged from 3 years and
less than 8 years shall not plug in, regulate and clean the appliance or
perform user maintenance.
• CAUTION - Some parts of the product can become very hot and
cause burns. Particular attention has been given where children
and vulnerable people are present.
• Remove the plug from the mains socket (or disconnect pole switch)
during installation, cleaning and/or replacing the element and always
ensure that the element is cool.
2

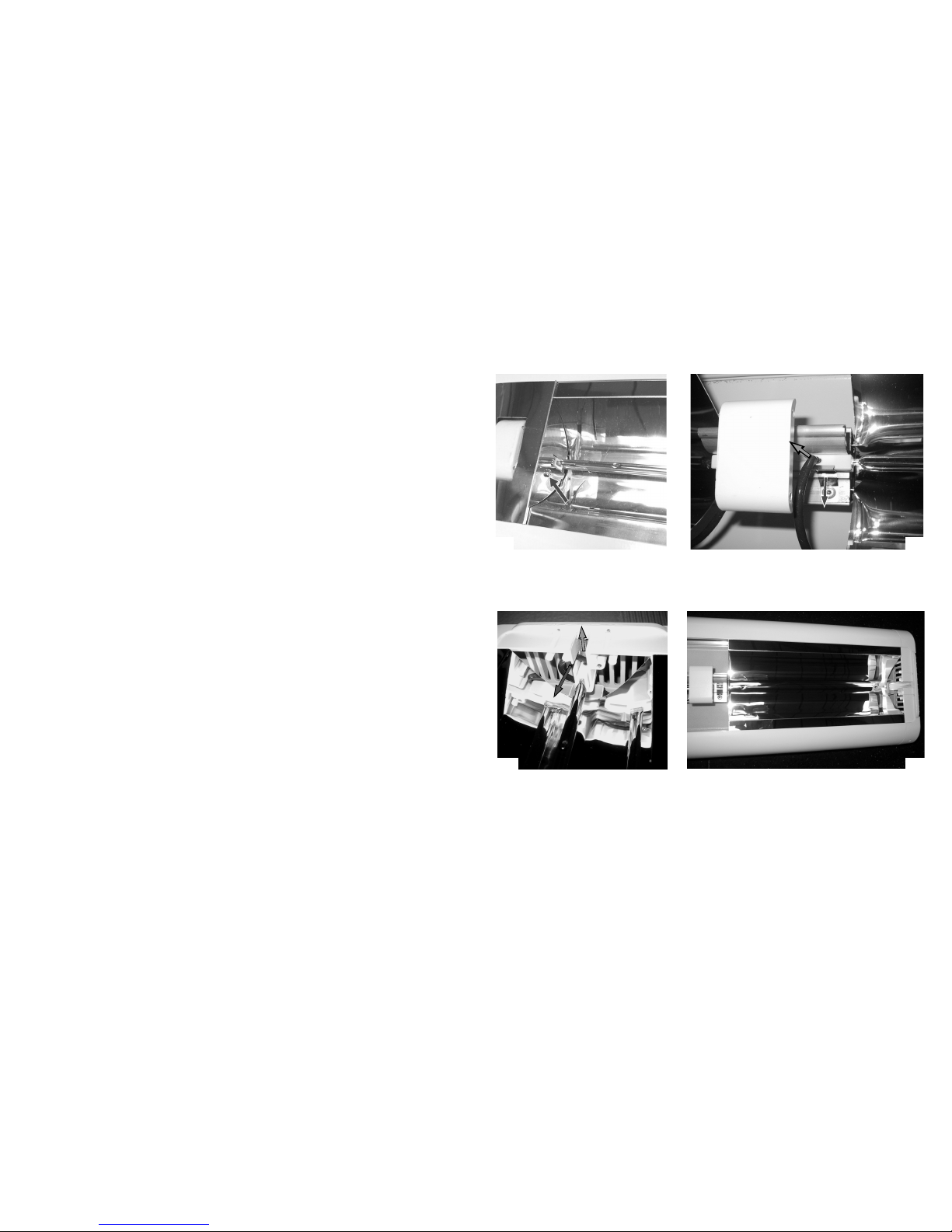

7. Remove the screw (Fig. K) from the side reflector and lift it up away from the heater to remove it.
8. Remove the screws from both sides of the middle reflector and lift it up to remove it (Fig. L).
9. The emitter can be released from the middle emitter holder by prising back the spring clip and lifting up enough to clear the
released clip as shown in Fig. M.
11. The emitter should now be removed from the heater as shown in Fig. O.
12. Refit new emitter(s) in reverse order ensuring that no wires get trapped and all screws are fully tightened.
Fig. L
10. At the opposite end of the emitter the wire should be pulled out of the side slot and the emitter can be lifted up completely (Fig. N).
The wires should be gently pulled so they come out from behind the reflector.
Fig. OFig. N
Fig. M
7

R e p l a c i n g t h e E m i t t e r
If you are in any doubt about following the procedure below, please contact us for technical assistance. The mains power
should be disconnected before any attempts are made to replace the emitter. The following should be carried out with
compliance to the latest IEE regulations. If you are unfamiliar with installing such fixtures, contact a qualified electrician to
carry out. Please read the notes on page 5 with regards to handling and buying a replacement emitter before proceeding.
1. Ensure the heater and emitter are cool and the power supply is disconnected by removing the plugs from the socket outlet - both
plugs must be removed even if only one emitter is to be replaced.
2. Remove the screws from the terminal box at the back of the emitter you wish to replace and lift off the lid - see Fig. E.
3. Disconnect the emitter from the connector blocks by unscrewing the screws highlighted above in Fig. F and remove the white
coloured emitter wires from the terminal block.
4. At the back of the heater, remove the plate holding the terminal box by removing the two fixing screws as shown in Fig. G.
Fig. E Fig. F
5. Pull the emitter wires one at a time through the plate to remove as shown in Fig. H.
6. At the front of the heater, the guard in front of the emitter you are replacing should be removed by gently pulling it away from the
heater so it prises out of its locating holes at each end (Fig. J).
Fig. G
Fig. J Fig. K
Fig. H
6
• Do not use an extension cord with this product because the extension
cord may overheat and cause a risk of fire.
• Keep the mains supply cord away from the body of the heater which will
get hot during use.
• Arrange the mains supply cord so it cannot be tripped over or damaged.
• Do not cover or obstruct the heater while it is in use.
• Do not insert any object through any slot or opening in the heater.
• Do not use if a guard is not present.
• Do not install less than the minimum mounting distance from the floor.
• WARNING: This heater is not equipped with a device to control the
room temperature. Do not use this heater in small rooms when they are
occupied by persons not capable of leaving the room on their own,
unless constant supervision is provided.
• Do not touch the heater when it is turned on, as the body gets hot.
• Do not use the heater in a bathroom,
laundry areas and similar
locations. Never locate the heater where it may fall into a bathtub or
other water container.
• Do not use in explosive atmospheres.
• A heater has hot parts inside. Do not use it in areas where petrol, paint,
or flammable liquids are used or stored.
• WARNING: This appliance must be connected to a supply that is
earthed!
I M P O R TA N T -
S AV E T H E S E I N S T R U C T I O N S F O R F U T U R E R E F E R E N C E
Ris k of Fire
Keep combustible materials such as furniture, papers, clothes and curtains
at least 1.8m (6 feet) from the front of the heater and away from the sides
and rear. If the heater is to be used outside, we recommend that a
waterproof or indoor socket outlet is used.
3

Fig. A
I n t r o d u c t i o n
The Monaco Double heater produces radiant heat like the sun, warming people and objects rather than the air in between. It is
mounted on an adjustable bracket that allows the heat to be directed exactly where it is required. Its attractive, lightweight design
means that it is effective yet unobtrusive. The Monaco Double is designed for indoor and outdoor use so is therefore weatherproof.
Please read the following instructions carefully before use. The safety of this heater is guaranteed only by its correct usage in
accordance with these instructions, therefore it is recommended that they are retained for future reference.
S p e c i f i c a t i o n
T a b l e 1 . U K a n d E u r o p e a n ( * U K A N D E U ) H e a t e r s
Use MCB Type 3 or C.
Model SOR 215IPD *-M
Voltage 230V
No. of Emitters x Power 2 x 1500W
Total Power 3000W
Current per Emitter 6.5A
Total Current of Unit 13.0A
Min. mounting height from floor 3.0m
Min. distance from ceiling 0.5m
Min. distance from side wall 1.0m
Dimensions - L x H x D 790mm X 228mm X 142mm
Weight 5.6kg
Ingress Protection IP55
I n s t a l l a t i o n
 Warning - this appliance must be connected to an earthed supply.
 The Monaco heater is fitted with 2 x supply cords and moulded plugs, therefore it is unnecessary to open the terminal box in order
to carry out normal installation of this product and should not be interfered with.
 All installations must be in accordance with the latest I.E.E safety regulations or equivalent.
 We recommend using a RCD where applicable.
 If hard wiring, a large double pole switch with a 3.0mm contact disconnection should be fitted.
 If the supply cord becomes damaged, it must be replaced by the manufacturer, its service agent or a similar qualified person in
order to avoid a hazard.
 Please observe the minimum safe distance between the heater body and any inflammable surfaces.
 When the electrical connection is outside, it is recommended that a waterproof socket is used for the connection/terminal.
Otherwise, the plug should be connected to a socket indoors.
 If in any doubt, please contact a suitably qualified electrician.

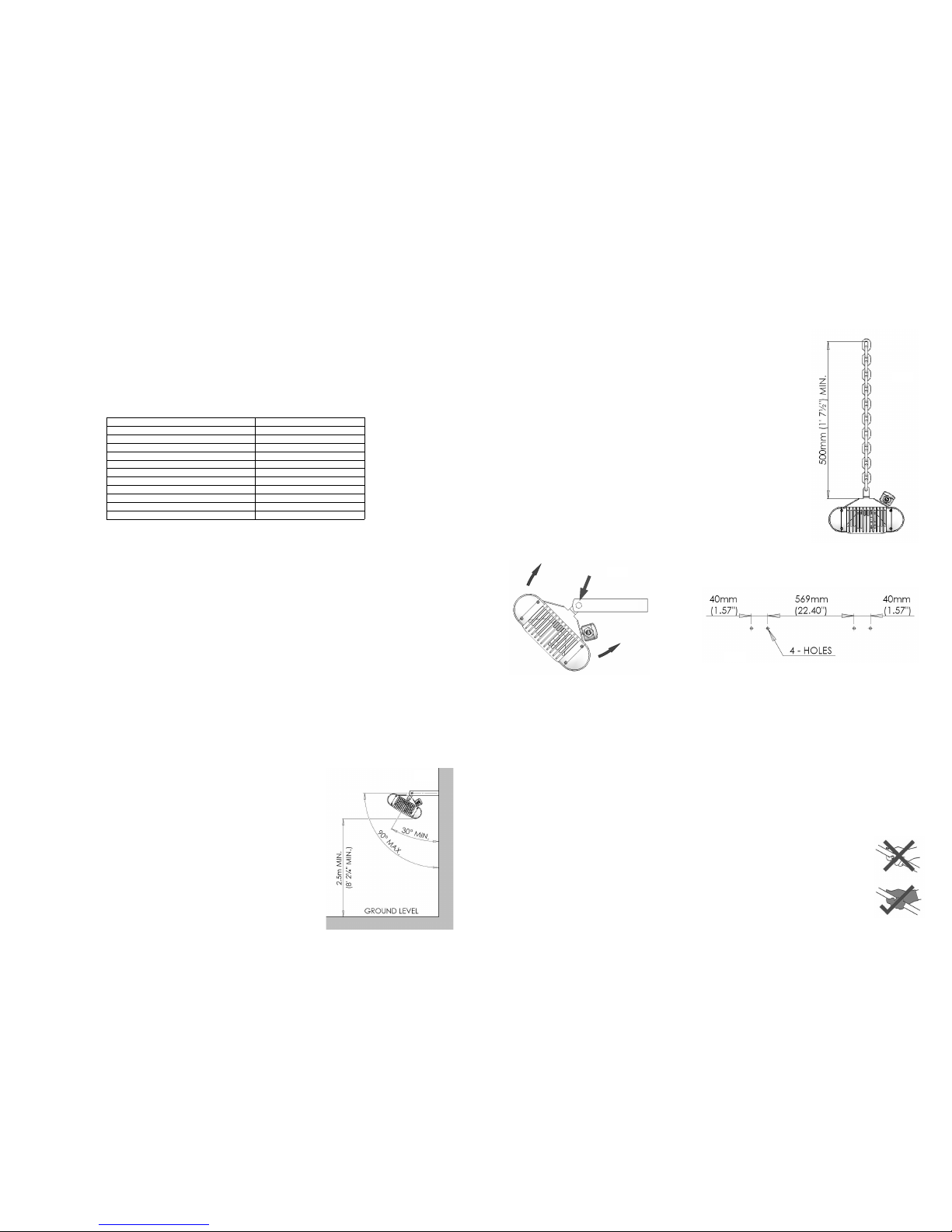

M o u n t i n g (Wall Mounting or Chain Hanging)
• The Monaco Double heater should only be wall mounted in a horizontal manner or
hung from a ceiling from chains (not supplied).
• When wall mounting the Monaco Double heater in a horizontal manner, do not position
the heater at an angle more than 90°and less than 30°as shown in Fig. A.
• When ceiling hanging the Monaco Double heater, ensure the minimum distance from
the ceiling is adhered to as shown in Fig. B.
• Always allow the heater to cool before attempting to reposition/move. Never attempt to
move the heater while it is switched on!
continued...
4
• Observe the minimum safe distance between the heater body and inflammable surfaces
and objects when mounting.
• Please refer to Table 1 for the recommended positioning of the heater with regards to
minimum distances. Do not install the heater in a corner!
• Keep out of the reach of children.
1. When wall mounting, securely fasten the L-shaped wall brackets to the mounting
surface using both of the fixing holes in the short part of the bracket (see Fig. D for
mounting hole centres). Please refer to Table 1 for recommended positioning of the
heater. Please note. Wall fixings are not supplied. They should be selected to
substantially support the weight of the installation. If in doubt contact a professional for
advice! When hanging from a ceiling two equal length and gauge chains are required
and should be selected with fixings that are more than adequate to hold the weight of
the heater. Again, if in doubt contact a professional for advice!
2. The heater should be mounted with the terminal box at the bottom of the heater when
being wall mounted.
3. When wall mounting, fix in the required angular position by tightening the fixing bolts
on the brackets at the rear of the heater as shown in Fig. C. The heater should face
directly down when hanging.
4. Secure the supply cable so it is not resting on the body or obstructing the air-vents.
Always isolate the heater from the mains supply when adjusting the position.
Fig. C
Fig. B
Fig. D
M a i n t e n a n c e
In the event of heater failure, or for spare parts or advice, please contact the manufacturer in the first instance.
 Disconnect from the mains before commencing any maintenance procedure including cleaning.
 To ensure optimum heat effectiveness, it is recommended that that the guard is removed and the reflector is wiped with a lint-free
cloth should the reflector show considerable signs of dust or dirt.
H a n d l i n g t h e R e p l a c e m e n t E m i t t e r
Your new quartz emitter should not be handled with bare hands.
Remove finger marks with a soft cloth and methylated spirits or rubbing alcohol. Finger marks will burn into the
quartz glass causing it to fail prematurely.
Y o u r R e p l a c e m e n t E m i t t e r
It is very important that your replacement emitter is exactly the same as the one it was supplied with. Failure to fit
the exact same type could cause the heater to fail or even become dangerous especially when used in an outdoor
environment.
Please contact Tansun Limited to purchase your replacement emitter and state the model number of the heater you
wish to fit the emitter to.
5
