Target LCD Multizone CC16G60DAB User manual

ELECTRIC BLANKET
INSTRUCTIONS
LCD Multizone
Note: The specifications and/or components of this product are subject to change without prior notice
Model Numbers
CC16G60DAB -
Queen
CC16i60DAB -
King

Page 2 of 15
Rev 3
1IMPORTANT SAFEGUARDS ................................................................ 3
2Connecting the Controller/s................................................................. 5
3Securing Your Electric Blanket ........................................................... 6
4Features ................................................................................................. 7
5Using The Controller ............................................................................ 8
5.1 Heat Settings – LCD screen ......................................................................... 9
5.2 Foot and Body Zone Setting ........................................................................ 9
5.3 Timer Settings – 12 Segments ................................................................... 11
6Overheat Protection............................................................................11
7Recommended Cleaning Instructions .............................................. 12
7.1 Treatment For Localised Soiling ............................................................... 12
7.2 Hand Washing (Recommended)................................................................ 12
7.3 Machine Washing........................................................................................ 13
7.4 Drying........................................................................................................... 13
8Servicing Your Blanket and Controller/s.......................................... 14
9Electrical Schematic Diagram ...........................................................14
10 Troubleshooting..................................................................................14
10.1 Troubleshooting Table ............................................................................... 15

Page 3 of 15
Rev 3
Thank you for purchasing our Electric Blanket. Each unit is manufactured to
ensure safety and reliability. Before using for the first time, please read the
instruction manual carefully and keep it for future reference.
1 IMPORTANT SAFEGUARDS
•Before connecting and switching on the blanket, ensure that the voltage indicated on the rating
label corresponds to the mains voltage in your home.
•Read the instructions carefully, in conjunction with the illustrations, before fitting the blanket and
using for the first time.
•If the cord of this blanket is damaged, unplug and discontinue use of the product immediately
then contact the manufacturer.
•Check daily that your blanket is flat, fully spread out and secured before switching it on.
Failure to observe these instructions will result in overheating. This will activate the
overheat safeguard system, thus leaving the blanket inoperative.
Misuse of this blanket will invalidate your warranty.
•Use as an under-blanket only.
•These blankets are not recommended for futons.
•When storing the blanket, allow it to cool down before folding. Fold or roll neatly but not tightly
without sharp bends in the heating elements and store where no other heavy objects will be
placed upon it.
•The blanket should not be used on an adjustable bed. However, if the blanket is used on an
adjustable bed, check that the blanket and cord do not become trapped or rucked, for example, in
hinges.
•The blanket is not to be used by young children unless the controls have been pre-set by a parent
or guardian, or unless the child has been adequately instructed on how to operate the controls
safely.
•This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
•Make sure that the heating area (on any side of the bed) does not fall over the edge of the
mattress, that the attachments are adequate and suited to the mattress, and that the instructions
are read before using the blanket.
•This blanket is not intended for use by young children or infirm persons without adequate
supervision.
•Electric blankets are intended for human use only. Not for animals and pets
•Prolonged application at the highest heat setting can result in skin burns.

Page 4 of 15
Rev 3
•Do not tuck the edges of the blanket in.
•Do not use the blanket rucked or folded.
•Keep the control away from an open window.
•Do not use pins as these may damage the electric wiring.
•Be sure that this blanket is used only on an alternating current supply circuit of the correct
voltage.
•The flexible supply cord and switch must, as far as practicable, be kept outside of the bed covers.
Do Not Cover the Controller.
•Do not switch the power on if the blanket is wet or in a folded state.
•Switch off the power outlet and remove the plug from the mains when the blanket is not in use.
•Bed clothes should not be folded back when the blanket is switched on. Do not leave heavy
objects on the bed, e.g. folded blankets, suitcases etc. when the unit is switched on as this will
trigger the over temperature device and render the blanket PERMANENTLY inoperable. This may
also invalidate the warranty.
•Arrange the blanket so that the elements are not under the pillows and/or bolsters.
•Do not dry-clean this blanket. Cleaning liquid may have a damaging effect on the insulation
covering of the heating unit. Follow washing directions located on the blankets rating label. (Foot
end of the blanket) and in this Instruction Manual.
•Persons suffering from bed-wetting should not use this blanket.
•If any abnormality or defect in operation is observed, discontinue its use immediately and consult
the distributor regarding its examination and/or repair.
•The blanket should be examined frequently for signs of wear, either of the blanket, controller or
flexible cord. If wear is visible or if any abnormality or defect in operation in the blanket is
observed, discontinue use immediately and consult a qualified and registered person for service.
•The blanket must not be used over or under a water bed.
•Depending on the controller type, you may notice a blue flash in the switch when moving from
one setting to another. This is NOT dangerous and is caused by the copper parts making contact.
•It is recommended that your electric blanket is inspected by a qualified and registered person
after 3 years of use.
•This blanket is intended for domestic use only. It is not intended for use in hospitals or the like.
•Switch off from the power outlet and remove plug when the blanket is not in use.
•Only use the controller/s supplied with this blanket.
•Never leave an electrical appliance unattended when switched on.

Page 5 of 15
Rev 3

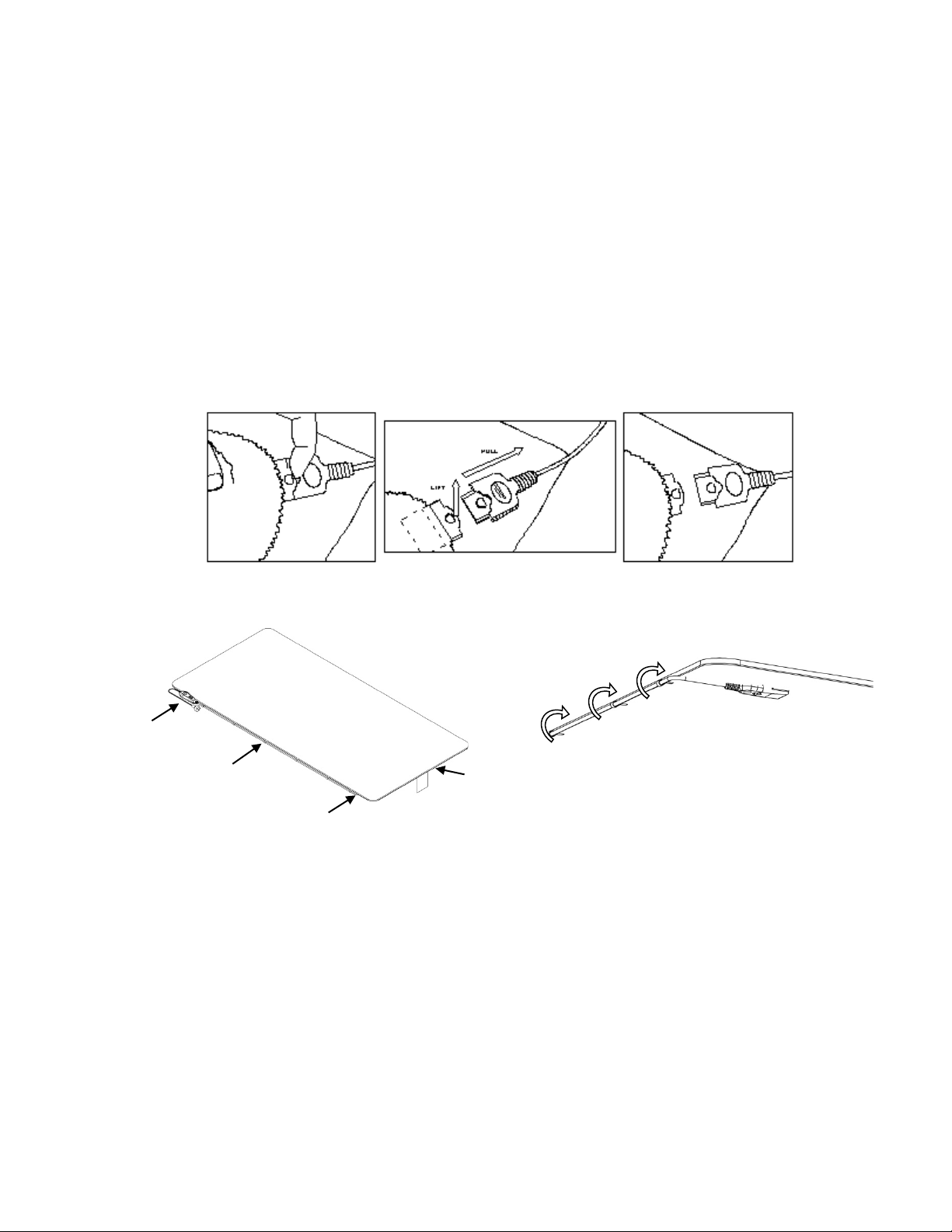

2 Connecting the Controller/s
Turn Off Power and Remove the Plug from the Wall Socket
*The controller socket/s are located on the underneath of the blanket*
•To fit the controller plug, simply hold the socket with one hand and push the
controller plug all the way until the locking tab locates over the lug on top of the
controller plug.
•To remove the controller, lift the locking tab up with your finger and pull the
controller plug directly out. Do Not Pull the controller cable and Do Not try and
pull the controller plug out without lifting the locking tab as you will damage the
socket.
•Run the controller cable along the inner side of the blanket and hold in place with
the Hook and Loop fasteners.
•Feed the power plug and controller out through the slit in the side skirt at the
head end.
•Do Not fold, roll or kink the cable. Allow the cable to hang freely.
•Ensure the cable is not pulled so tight that it bends hard at the blanket connector
end.
NOTE: Ensure that the electric blanket is sized to suit your mattress i.e. queen
sized electric blanket must be used on a queen sized mattress. Do not use a
single bed blanket on a double, queen or king size mattress. The blanket top
must not hang over the edges of the mattress.
Controller
Hook & Loop
Fasteners
Foot End
Detachable Plug and
Socket under Blanket
Roll the Hook and Loop fasteners
around the cable to secure in place

Page 6 of 15
Rev 3
FAILURE TO FOLLOW THESE FITTING INSTRUCTIONS MAY TRIGGER THE
OVERHEAT PROTECTION SYSTEM AND RENDER THE BLANKET
PERMANENTLY INOPERATIVE. THIS MAY INVALIDATE THE WARRANTY.
3 Securing Your Electric Blanket
Note: Your electric blanket must be placed directly onto the mattress.
If using a mattress protector, this goes over the electric blanket.
IMPORTANT:
•With the controller/s exiting out the side of the skirt, place the blanket onto the
mattress with the controller connection/s at the Foot End of the bed.
NOTE: Electric blankets MUST NOT be used on top of the user (as with a
normal blanket), instead they must be firmly secured to the mattress.
•Fit the side skirts around the edges of the mattress then use the elastic skirt to
ensure that the blankets fits snugly around the sides and underneath the
mattress.
•Spread the skirt around the mattress edge ensuring even tension and making
sure the blanket is placed evenly over the mattress then ensure that the blanket
is flat and crease free.
Note: Care should also be taken if you are using a continental quilt because heat
will build up more quickly than with other bed coverings. A short period may only
be needed to reach maximum temperature depending on the insulation density of
your quilt. This also applies if using additional bed blankets
Head
Foot

Page 7 of 15
Rev 3
•The blanket top should not be tucked in at the sides.
•Make your bed in the usual manner.
•When you are satisfied that the blanket is fitted correctly, plug the controller/s into
the wall power socket and turn on.
IMPORTANT: DO NOT COVER THE CONTROLLERS AT ANY TIME
NOTE: This label is attached to the blanket to remind you of the correct direction
in which the blanket must be fitted to the mattress.
Please remove and discard the label prior to making your bed.
4 Features
•This electric blanket is manufactured with two separate heating zones, being the
Upper Body Zone and the Lower Foot Zone.
•You can independently heat either just your body, just your feet, or both together.
•You are also able to set different temperatures between the Body and Foot Zone.

Page 8 of 15
Rev 3
5 Using The Controller
•Use your Electric Blanket with Detachable Controller Model GW281 Only.
•Do not use any other controller for this blanket.
•The push buttons will be illuminated when pressed and the backlight will time out
after approximately 5 to 10 seconds.
NOTE: Ensure the On / Off Switch, located on the back of the controller, is in
the ON position.
Turn off and unplug the blanket when not in use for prolonged periods.
Never leave an electrical appliance unattended when switched on.
LCD
Display
Body Zone
Temperature
Button
Power ON / OFF
Switch
Timer
Button
Foot Zone
Temperature
Button
Timer Segments
Body Zone Icon
Foot Zone Icon
Heat Setting

Page 9 of 15
Rev 3
5.1 Heat Settings – LCD screen
oF Will appear on the LCD display when connected to available
power supply or when the controller has reached its preset
time off.
A1 to A5 are suitable for all night use, A1 being the lowest through to
A5 the highest recommended all night setting. Press the
Temperature Select button to change setting.
P6 to P8 are preheating heat settings and are suitable to warm the
mattress prior to going to bed. Press the Temperature Select
button to change setting.
DO NOT leave the blanket set and on the preheat settings while you are in the bed.
Turn off and unplug the blanket when not in use for prolonged periods.
Never leave an electrical appliance unattended when switched on
The controller also has a pre-heat facility in order for you to warm your bed prior to
getting in to it.
The time taken to pre-heat the bed will depend on the ambient temperature of the
bedroom and whether an electric blanket has been used to air the bed on a regular
basis.
At normal ambient temperature you should allow approximately 20 - 40 minutes on
the levels “P6 to P8” setting indicated on the LCD screen.
A cold room or bed that has not been used for some time will require a greater
length of time on the pre-heat.
5.2 Foot and Body Zone Setting
•This electric blanket is manufactured with two separate heating zones,
being the Upper “Body Zone” and the Lower “Foot Zone”.
You can independently heat either just your body, just your feet, or both
together.
You are also able to set different temperatures between the Body and Foot
Zone.
•To set the body and foot zones, ensure the blanket is fitted to the bed with
the controller socket/s located at the foot end of the bed and the controller
run up the side of the bed and exiting out the skirt at the head end.

Page 10 of 15
Rev 3
•Ensure the main switch, located on the back of the controller, is in the On
position.
•When you first supply power to the controller, the controller display will
show “oF’ meaning “Off”.
BODY
•To set the required temperature for the Body Zone, press the Body Zone
button. The display will Blink showing the Body icon on the LCD display.
•Press the Body Zone button again (within 3 seconds) and the display will
show the Body icon (meaning the display is shown for the Body Zone), Heat
setting A1(for the Body Zone) and the timer segments will default to 12
Hours (until auto Off - for both Body and Foot Zone)
Note: The Body Zone button must be pressed the second time within 3
seconds otherwise it will revert back to the “oF” setting.
•Press the Body Zone button again and A2 will display, and so on through
A1 – A5 (all night settings) then P6 – P8 (preheat settings) then to oF (Off)
After setting the Body Zone, you can now set the Foot Zone.
FOOT
•To set the required temperature for the Foot Zone, press the Foot Zone
button. The display will Blink showing the Foot icon on the LCD display.
•Press the Foot Zone button again (within 3 seconds) and the display will
show the Foot icon (meaning the display is shown for the Foot Zone), Heat
setting A1 (for the Foot Zone) and the timer segments will default to 12
Hours (until auto Off - for both Body and Foot Zone)
Note: The Foot Zone button must be pressed the second time within 3
seconds otherwise it will revert back to the “oF” setting.
•Press the Foot Zone button again and A2 will display, and so on through A1
– A5 (all night settings) then P6 – P8 (preheat settings) then to oF (Off)
NOTE:
If you do not wish to heat your body, but wish to heat your foot area only,
ensure the Body Zone is set to “oF”
If you do not wish to heat your feet, but wish to heat your body area only,
ensure the Foot Zone is set to “oF”
