Targus Click N Type
for Toshiba Pocket PC
USER’S GUIDE
Making Your Mobile Life Easier.
Making Your Mobile Life Easier.
Visit our Web site at: www.targus.com
Features and specifications are subject to change without notice. ©2002 Targus Corp.
400-0097-001A

2
Targus Click N Type
Congratulations on your purchase of the Targus Click N Type.
The Click N Type is a convenient and ultra-portable keyboard
and mouse for your PDA.
With the Click N Type you can:
•Enter text directly into your PDA.
•Use the 8-way navigation button to simulate mouse movement.
•Take a keyboard and mouse with you whenever you travel with
your PDA.
In addition to this user’s guide, this package contains the Targus
Click N Type and the driver software CD-ROM.
Installing the Driver
To install the driver software for the Click N Type, you need:
•A desktop or notebook computer with the Windows®95/98/
Me/2000/XP or Windows NT®4.0 operating system
•Microsoft®ActiveSync®3.1 or higher on your computer (for
copying files to your PDA). For the most current version of
Microsoft ActiveSync, go to: http://www.microsoft.com/mobile
•At least 30K bytes of free memory on your PDA.

3
1Connect your PDA to your computer, if it’s not already
connected, and synchronize to back up your files.
2Disable any previously installed keyboard software on your
PDA.
3Insert the driver software CD-ROM into your computer’s
CD-ROM drive.
4If setup doesn’t begin automatically, click Start, Run, then
enter D:\Setup.exe (where D: is the path of your CD-ROM
drive) and then click OK.
The Installing Applications screen appears.
Sample Installing Applications screen
5Click Yes.
6Follow the on-screen instructions to complete installation.
When installation is complete, the Click N Type icon appears
in the Start Menu on your PDA. You can now connect the
Click N Type to your PDA.

4
Connecting the Click N Type to
Yo u r P D A
Once you have installed the driver, you can connect the Click N
Type to your PDA. To do this:
1 Turn off your PDA (if it’s turned on).
2 Hold your PDA in one hand and the Click N Type in your
other hand.

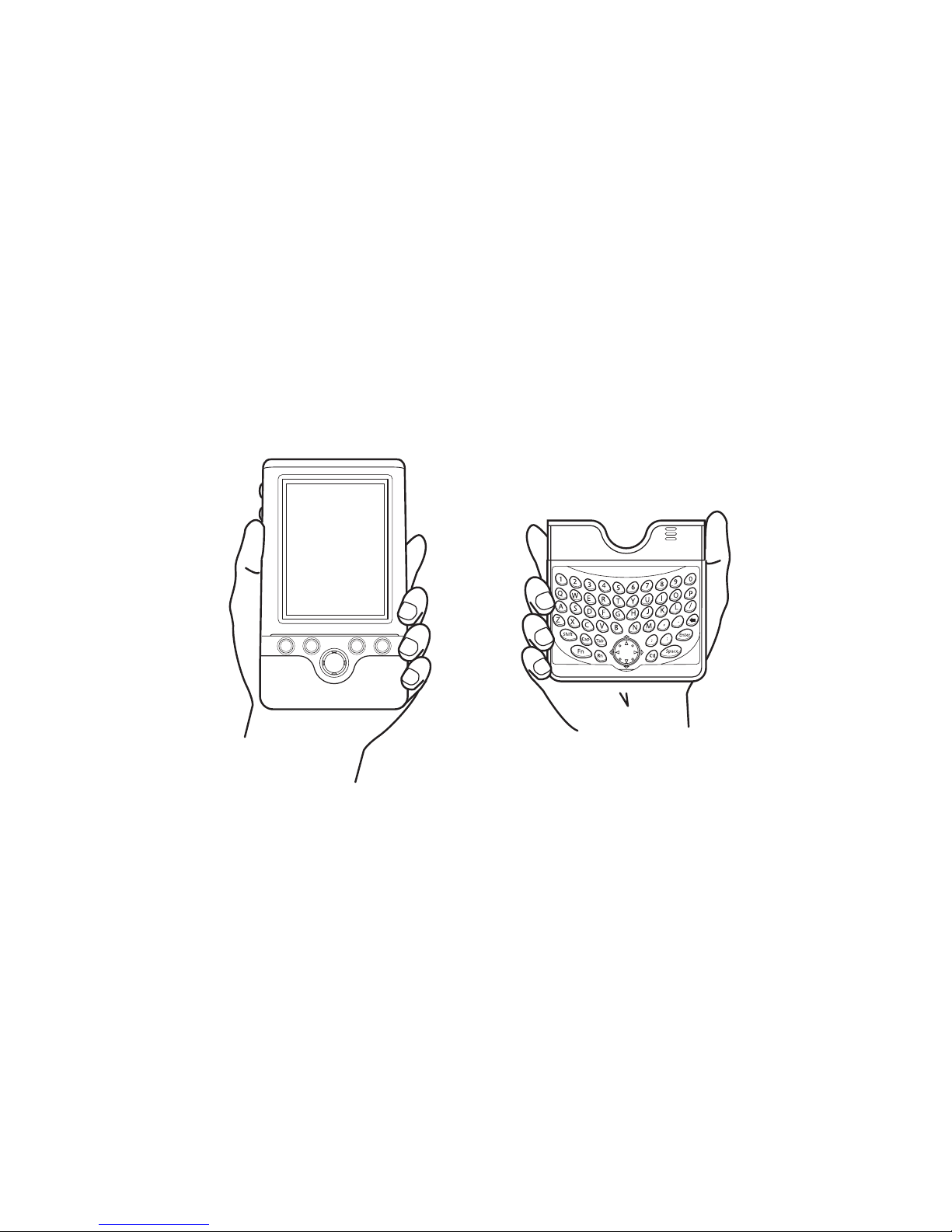

Holding your PDA and the Click N Type

5
3 Align your PDA with the keyboard connector, located at the
top of the Click N Type.
Aligning your PDA with the keyboard connector
4 Gently slide your PDA into the keyboard connector until you
hear a “click.”
CAUTION: Always use the keyboard connector as a guide
when connecting and disconnecting your PDA to avoid
possible damage to your device or the Click N Type.

6
Disconnecting the Click N Type
To disconnect the Click N Type from your PDA:
1 Turn off your PDA (if it’s turned on).
2 Press the eject buttons, located on either side of the
keyboard, and gently pull your PDA away from the Click N
Type, sliding it out of the keyboard connector.
Using the Click N Type
NOTE: The Click N Type does not require batteries. Instead, it
runs off of a small amount of power, which it draws directly
from your PDA.
Enabling the Click N Type
After installing the driver and connecting the Click N Type to
your PDA, you can enable the keyboard through the main
application screen.
To enable the Click N Type, tap Start, then Click N Type.

7
The main application screen appears and you are now ready to
customize and use the Click N Type.
Sample main application screen

8
Customizing the Click N Type Options
Once you enable the Click N Type, you can view and customize
its options through the Options menu on the main application
screen.
To customize the Click N Type options:
1TapStart, Click N Type, then Options.
The Options menu appears.

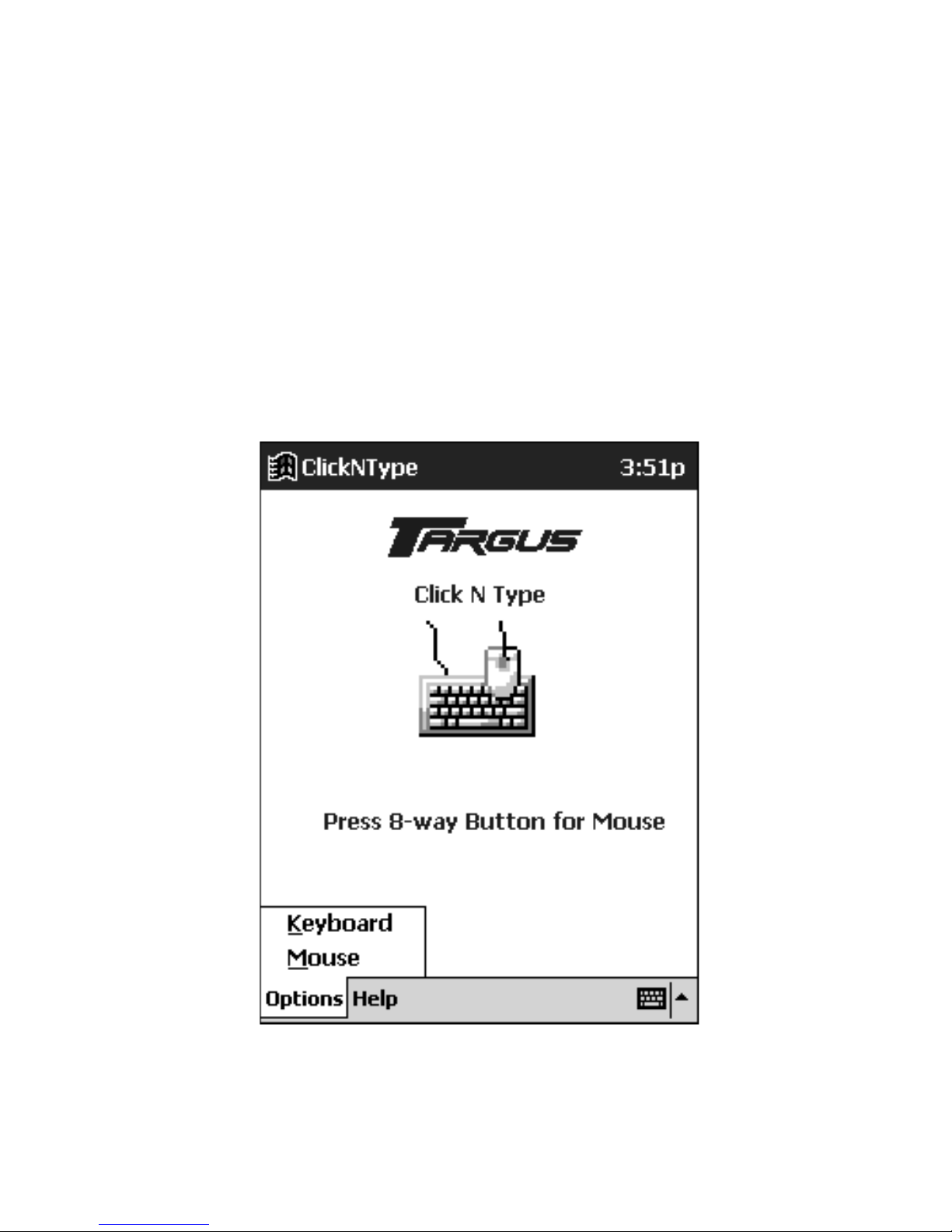

Sample main application screen, Options menu
2 Select the option you want to view or customize.

9
NOTE: To access the About and Help options, tap Help instead
of Options on the main application screen.
The available options are:
• About Shows the software version and copyright
• Help Lists the online Help topics
• Keyboard Specifies the keyboard repeat rate settings
• Mouse Specifies the mouse speed settings
About
The About screen allows you to view the software version and
copyright information. To access the About screen, from the
Click N Type application, select Help, then About.
Help
The Help screen displays the online help topics. To access the
Help screen, from the Click N Type application, select Help, then
Help again.
Find the topic you want to learn more about and select the link to
view more information.

10
(Keyboard) Buttons
The Buttons screen allows you to regulate the keystroke repeat
function. To access the Buttons screen, select the Up/Down
Control tab.

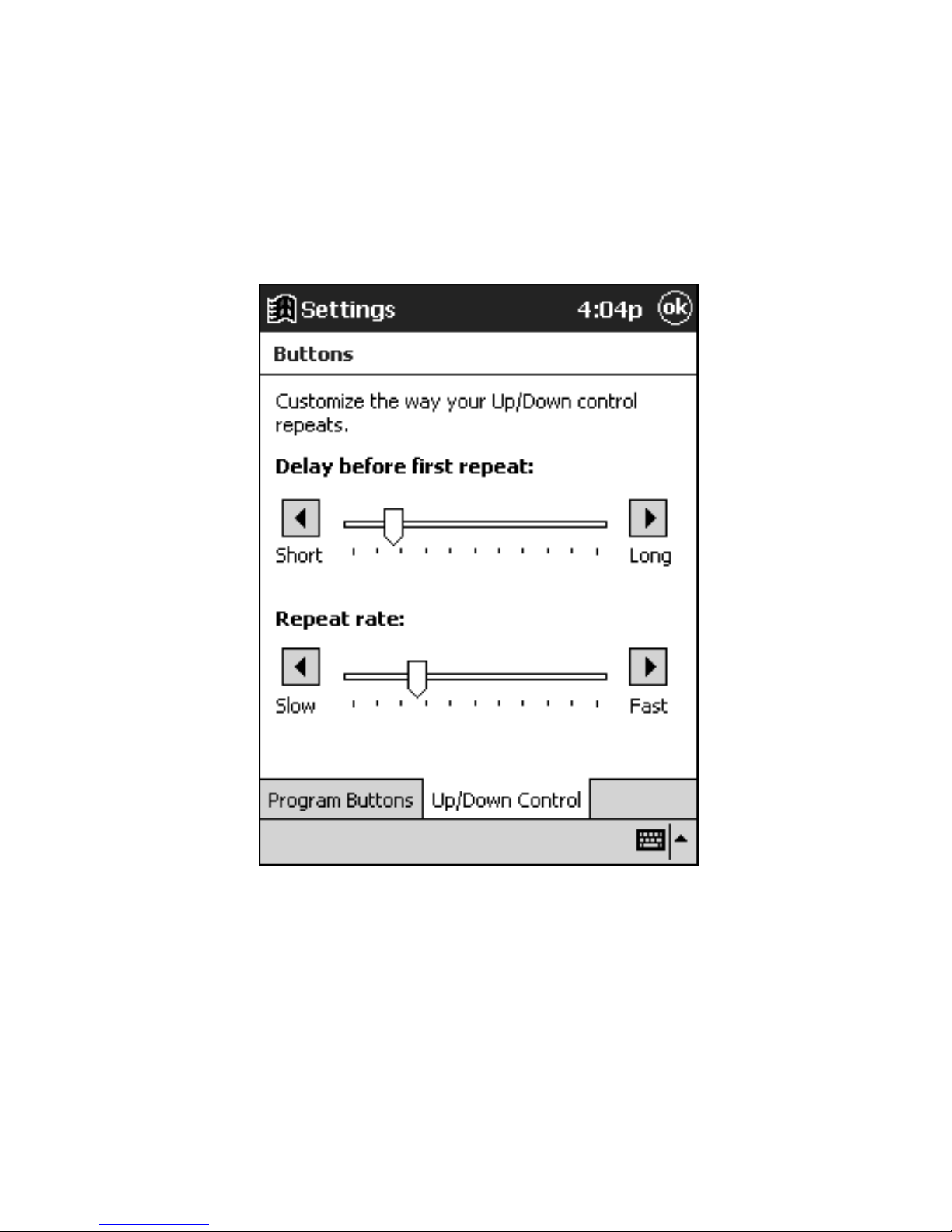

Sample Buttons screen
•Delay before first repeat: allows you to set the length of time
before a letter, number or other character begins to repeat when
you press and hold a key. The settings range is short to long.
