Taylor 0738 User manual

Model 0738
Counter Top Heat Treatment
Soft Serve Freezer
Original Operating Instructions
087827-M
January, 2020 (Original Publication)
(Updated 8/4/2020)
OPERATOR’S
MANUAL

Complete this page for quick reference when service is required:
Taylor distributor:
Address:
Phone:
Fax:
E-mail:
Service:
Parts:
Date of Installation:
Information found on the data label:
Model Number:
Serial Number:
Electrical Specs: Voltage Cycle
Phase
Maximum Fuse Size: A
Minimum Wire Ampacity: A
Note: Continuing research results in steady improvements; therefore, information in this manual is subject
to change without notice.
Note: Only instructions originating from the factory or its authorized translation representative(s) are
considered to be the original set of instructions.
© 2020 Taylor Company (Revision Draft 07/02/2020)
087827-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this
work may be a violation of Copyright Law of the United States of America and other countries, could
result in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may
result in further civil and criminal penalties.
All rights reserved.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

087827-M i
Table of Contents
Section 1: To the Installer
Installer Safety
1-1
Site Preparation
1-1
Air Cooled Units
1-2
Water Connections
1-2
Electrical Connections
1-2
Beater Rotation
1-3
Refrigerant
1-4
Indications for decommissioning
1-4
Section 2: To the Operator
Operator Information
2-1
Working limits
2-1
Compressor Warranty Disclaimer
2-2
Section 3: Safety
Installer Information
3-1
To Operate Safely
3-1
Unit Warning Labels
3-2
Section 4: Operator Parts Identification
Main View
4-1
Multi spout door Assembly
4-2
Mix Pump Assembly
4-3
Tune Up Kit
4-4
Brush Assembly
4-5
Section 5: User Interface
Simbol Definitions
5-2
LCD Display
5-2
Indicator Icons on the Display and Buttons
5-2
Operating Screen Description
5-3
Main Power Switch OFF
5-3

ii 087827-M
Main Power Switch ON
5-4
Heat Cycle
5-4
Freezer Locks
5-4
Manager’s Menu
5-5
Manager Menu Options
5-6
Section 6: Operating Procedures
Assembly
6-1
Sanitizing
6-7
Priming
6-7
Daily Closing Procedures
6-8
Daily Opening Procedures
6-9
Manual Brush-Cleaning
6-9
Disassembly
6-10
Adjustments
6-12
Section 7: Operator Checklist
Troubleshooting Bacterial Count
7-1
Regular Maintenance Checks
7-2
Section 8: Troubleshooting Guide
Section 9: Parts replacement Schedule
Section 10: Limited Warranty on Equipment
Section 11: Limited Warranty on Parts

1
Section 1 To the Installer
To the Installer Model 0738 1-1
The following information has been included in the
manual as safety and regulatory guidelines. For
complete installation instructions, please see the
Installation Checklist.
Installer Safety
IMPORTANT! In all areas of the
world, the machine should be installed
in accordance with existing local
codes. Please contact your local authorities if you
have any questions.
Care should be taken to ensure that all basic
safety practices are followed during the
installation and servicing activities related to the
installation and service of Taylor machines.
•Only authorized Taylor service personnel
should perform installation and repairs on the
machine.
•Authorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the
industry standards on lockout/tagout
procedures before beginning any installation or
repairs.
•Authorized service personnel must ensure
that the proper personal protective equipment
(PPE) is available and worn when required
during installation and service.
•Authorized service personnel must remove
all metal jewelry, rings, and watches before
working on electrical equipment.
DANGER! The main power supply(s)
to the machine must be disconnected
prior to performing any repairs. Failure
to follow this instruction may result in
personal injury or death from electrical shock or
hazardous moving parts, as well as poor
performance or damage to the machine.
Note: All repairs must be performed by a Taylor
service technician.
WARNING! This machine has many
sharp edges that can cause severe injuries.
Site Preparation
Review the area where the machine will be
installed before uncrating the machine. Make sure
that all possible hazards to the user and the
machine have been addressed.
WARNING! Only install this machine
in a location where its use and
maintenance is restricted to trained
personnel. Failure to comply may result in
personal injury.
For Indoor Use Only: This machine is designed
to operate indoors under normal ambient
temperatures of 70°F to 75°F (21°C to 24C).
The freezer has successfully performed in high
ambient temperatures of 104°F (40°C) at
reduced capacities.
IP Code = 23
WARNING! This machine must NOT
be installed in an area where a water
jet or hose can be used. Never use a
water jet or hose to rinse or clean this machine.
Using a water jet or hose on or around this
machine may result in the electrocution of the
user or damage to the machine.
CAUTION! This machine must be
installed on a level surface to avoid the
hazard of tipping. Extreme care should
be taken in moving this machine for any reason.
Two or more persons are required to safely move
this machine. Failure to comply may result in
personal injury or machine damage. Uncrate the
machine and inspect it for damage. Report any
damage to your Taylor distributor.
Air-Cooled Units
Do not obstruct air intake and discharge openings;
a minimum 3 in. (75 mm) air space is required on
both sides and 1 in. (25 mm) at rear. This will allow
for adequate air flow across the condenser. Failure

1
TO THE INSTALLER
1-2 Model 0738 To the installer
FOLLOW YOUR LOCAL ELECTRICAL CODES!
to allow adequate clearance can reduce the
refrigeration capacity of the freezer and possibly
cause permanent damage to the compressor.
Water Connections
Water-Cooled Machines Only
An adequate cold water supply must be provided
with a hand shutoff valve. On the underside rear of
the base pan, two 3/8 in. I.P.S. water connections
for inlet and outlet have been provided for easy
hookup. Water lines connected to the machine
should have 1/2 in. (13 mm) inside diameters.
(Flexible lines are recommended, if local codes
permit.) Depending on local water conditions, it
may be advisable to install a water strainer to
prevent foreign substances from clogging the
automatic water valve. There will be only one
water-in and one water-out connection. Do not
install a hand shutoff valve on the water-out line!
Water should always flow in this order: first,
through the automatic water valve; second,
through the condenser; and third, through the
outlet fitting to an open trap drain.
IMPORTANT! A backflow prevention
device is required on the incoming
water connection side. Please see the
applicable national, state, and local codes for
determining the proper configuration.
Electrical Connections
Each machine requires one power supply for
each data label on the machine. Check the data
label(s) on the freezer for branch circuit
overcurrent protection or fuse, circuit ampacity,
and other electrical specifications. Refer to the
wiring diagram provided inside the electrical box
for proper power connections.
In the United States, this machine is intended to
be installed in accordance with the National
Electrical Code (NEC) ANSI/NFPA 70-1987.
The purpose of the NEC code is the practical
safeguarding of persons and property from
hazards arising from the use of electricity. This
code contains provisions considered necessary
for safety. Compliance therewith and proper
maintenance will result in an installation
essentially free from hazard!
In all other areas of the world, this machine
should be installed in accordance with the
existing local codes. Please contact your
local authorities.
WARNING! This machine must be
properly grounded! Failure to do so
can result in severe personal injury
from electrical shock!
IMPORTANT! This machine is
provided with an equipotential
grounding lug that is to be properly
attached to the rear of the frame by the
authorized installer. The installation location is
marked by the equipotential bonding symbol
(5021 of IEC 60417-1) on the removable panel
and the machine’s frame.

1
TO THE INSTALLER
To the Installer Model 0738 1-3
NOTICE!
•Stationary machines which are not equipped
with a power cord and a plug or another
device to disconnect the machine from the
power source must have an all-pole
disconnecting device with a contact gap of at
least 0.125 in. (3 mm) installed in the external
installation.
•Machines that are permanently connected to
fixed wiring and for which leakage currents
may exceed 10 mA, particularly when
disconnected or not used for long periods, or
during initial installation, shall have protective
devices to protect against the leakage of
current, such as a GFI, installed by the
authorized personnel to the local codes.
•Supply cords used with this machine shall be
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve
conductors from strain, including twisting, at
the terminals and protect the insulation of the
conductors from abrasion.
•If the supply cord is damaged, it must be
replaced by the manufacturer, service agent, or
a similarly qualified person, in order to avoid a
hazard.
Electrical Hookup Installation
CAUTION! Avoid injury.
•Make sure the machine is
electrically disconnected.
•Remove the appropriate panel and locate
the small electrical box at the base of the
machine.
•Remove the factory-installed cord and
strain relief bushing.
•Route incoming permanent wiring
through the 7/8 in. (22 mm) hole in
base pan.
•Connect two power supply leads. Attach
ground (earth) wire to the grounding lug
inside the electrical box.
•Make sure the machine is properly
grounded before applying power.
Beater Rotation
NOTICE! Beater rotation must be
counterclockwise as viewed looking into the
freezing cylinder.
The following procedures should be
performed by a Taylor service technician.
To correct rotation on a three-phase
machine, interchange any two incoming
power supply lines at freezer main terminal
block only.
To correct rotation on a single-phase machine,
change the leads inside the beater motor.
(Follow the diagram printed on the motor.)
Electrical connections are made directly to the
terminal block in the splice boxes that are
mounted mid-level on the frame channel on the
sides of the freezer.

1
TO THE INSTALLER
1-4 Model 0738 To the installer
Refrigerant
CAUTION! This machine contains
fluorinated greenhouse gases (F-Gas) to
provide refrigeration using a hermetically sealed
circuit or within foam insulation. This machine's
type of gas, quantity, Global Warming Potential
(GWP), and CO2 tonnes equivalent information is
recorded on the unit's data-label. The refrigerant
used is generally considered non-toxic and non-
flammable. However any gas under pressure is
potentially hazardous and must be handled with
caution.
NEVER fill any refrigerant cylinder completely with
liquid. Filling the cylinder to approximately 80%
will allow for normal expansion.
CAUTION! Use only approved
refrigerant listed on the machine's data-
label or authorized through a
manufacturer's technical bulletin. The use of any
other refrigerant may expose users and operators
to unexpected safety hazards.
WARNING! Refrigerant liquid sprayed
onto the skin may cause serious damage to
tissue. Keep eyes and skin protected. If refrigerant
burns should occur, flush the area immediately
with cold water. If burns are severe, apply ice
packs and contact a physician immediately.
NOTICE! Taylor reminds technicians to
be aware of government laws regarding
refrigerant recovery, recycling, and reclaiming
systems. If you have any questions regarding
these laws, please contact the factory service
department.
Indications for Decommissioning
IMPORTANT! If the crossed-out waste
container symbol is affixed to this
product, it signifies that this product is
compliant with the EU Directive as well as other
similar legislation in effect after August 13, 2005.
Therefore, it must be collected separately after
its use is completed, and cannot be disposed as
unsorted municipal waste.
The user is responsible for delivering the
product to the appropriate collection facility, as
specified by your local code.

2
Section 2 To the Operator
To the Operator Model 0738 2-1
Operator Information
The Model 0736 soft serve freezer has been
carefully engineered and manufactured to give
you dependable operation.
This machine is suitable for food mixtures heat
treatment, storage and batch, according to use
allowed by law.
This machine, when properly operated and cared
for, will produce a consistent quality product. Like
all mechanical products, it will require cleaning
and maintenance. A minimum amount of care and
attention is necessary if the operating procedures
outlined in this manual are followed closely.
IMPORTANT! This manual should be
read before operating or performing
any maintenance on your machine.
The Model 0738 will not eventually compensate
and correct for any errors during the setup or
filling operations. Thus, the initial assembly and
priming procedures are of extreme importance. It
is strongly recommended that personnel
responsible for the machine's operation, both
assembly and disassembly, go through these
procedures together in order to be properly
trained and to prevent misunderstandings.
In the event you should require technical
assistance, please contact your local authorized
Taylor Distributor.
Note: Your Taylor warranty is valid only if the
parts are authorized Taylor parts purchased from
the local authorized Taylor distributor, and only if
all required service work is provided by a Taylor
service technician. Taylor reserves the right to
deny warranty claims on machines or parts if
unapproved parts or incorrect refrigerant were
installed in the machine, system modifications
were performed beyond factory
recommendations, or it is determined that the
failure was caused by abuse, misuse, neglect, or
failure to follow all operating instructions. For full
details of your Taylor warranty, please see Limited
Warranty on Machines on page 10-1 and Limited
Warranty on Parts on page 11-1.
Note: Constant research results in steady
improvements; therefore, information in this
manual is subject to change without notice
Working Limits
Do not use the machine with inconstant power
supplies or +/- 10% beyond the value indicated
on the plate or with the power cable damaged;
Do not use the machine in explosive
atmospheres;
Do not wash the machine with high-pressure
water jets or with harmful substances;
Do not expose the machine to excessive
heat or humidity.
Do not use unbalanced mixtures and/or
amounts which do not comply with the
specifications carried on the packs.
Usage not expressly indicated in this manual
is to be considered improper and therefore
must be strictly avoided.
The manufacturer will not be held liable for direct
or indirect harm to persons or animals or damage
to objects caused by improper use of the
machine.

2
TO THE OPERATOR
2-2 Model 0738 To the Operator
Compressor Warranty Disclaimer
The refrigeration compressor on this machine is
warranted for the term stated in the Limited
Warranty section in this manual. However, due to
the Montreal Protocol and the U.S. Clean Air Act
Amendments of 1990, many new refrigerants are
being tested and developed, thus seeking their
way into the service industry.
Some of these new refrigerants are being
advertised as drop-in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this machine's refrigeration
system, only the refrigerant specified on the
affixed data label should be used.
The unauthorized use of alternate refrigerants will
void your Taylor compressor warranty. It is the
machine owner's responsibility to make this fact
known to any technician he employs.
It should also be noted that Taylor does not
warrant the refrigerant used in its products. For
example, if the refrigerant is lost during the course
of ordinary service to this machine, Taylor has no
obligation to either supply or provide its
replacement either at billable or unbillable terms.
Taylor does have the obligation to recommend a
suitable replacement if the original refrigerant is
banned, obsolete, or no longer available during
the 5-year warranty of the compressor.
Taylor will continue to monitor the industry and
test new alternates as they are being developed.
Should a new alternate prove, through our testing,
that it would be accepted as a drop-in
replacement, then the above disclaimer would
become null and void. To find out the current
status of an alternate refrigerant as it relates to
your compressor warranty, call the local Taylor
distributor or the Taylor factory. Be prepared to
provide the model/ serial number of the machine
in question.

3
Section 3 Safety
Safety Model 0738 3-1
Installer Information
We at the Taylor Company are concerned about
the safety of the operator when he or she comes
into contact with the freezer and its parts. Taylor
has gone to extreme efforts to design and
manufacture built-in safety features to protect both
you and the service technician. As an example,
warning labels have been attached to the machine
to point out safety precautions to the operator.
DANGER! Failure to adhere to the
following safety precautions may result
in severe personal injury or death.
Failure to comply with these warnings may also
damage the machine and/or its components. Such
damage may require component replacement and
service repair expenses.
To Operate Safely
NOTICE! DO NOT operate the machine
without reading the Operator Manual.
Failure to follow this instruction may
result in machine damage, poor machine
performance, health hazards, or personal injury.
WARNING! Avoid injury.
•DO NOT allow untrained personnel to
operate this machine.
•DO NOT put objects or fingers in
the door spout.
•DO NOT operate the machine unless all
service panels and access doors are
restrained with screws.
•DO NOT remove the machine door or
beater assembly unless the main power
switch is in the OFF position.
Failure to follow these instructions may result in
severe personal injury from hazardous moving
parts.
WARNING! This machine has
many sharp edges that can cause
severe injuries.
•DO NOT put objects or fingers in
the door spout. Failure to follow this
instruction may result in
contaminated product or personal
injury from blade contact.
•USE EXTREME CAUTION when
removing the beater assembly. The
scraper blades are very sharp and
may cause injury.
IMPORTANT! Access to the service
area of the machine is restricted to
persons having knowledge and
practical experience with the machine, in
particular as far as safety and hygiene are
concerned.
CAUTION! This machine must be
installed on a level surface to avoid the
hazard of tipping. Extreme care should
be taken in moving this machine for any reason.
Two or more persons are required to safely move
this machine. Failure to comply may result in
personal injury or machine damage.
WARNING! Avoid injury.
•DO NOT operate the machine unless it is
properly grounded.
•DO NOT operate machine with larger
fuses than specified on the data label.
•All repairs must be performed by an
authorized Taylor service technician.
•The main power supplies to machine must
be disconnected prior to performing
repairs.
•For Cord-Connected Machines: Only
authorized Taylor service technicians or
licensed electricians may install a plug or
replacement cord on the machine.

3
SAFETY
3-2 Model 0738 Safety
•Stationary machine which are not equipped
with a power cord and a plug or another
device to disconnect the machine from the
power source must have an all-pole
disconnecting device with a contact gap of
at least 0.125 in. (3 mm) installed in the
external installation.
•Machines that are permanently connected
to fixed wiring and for which leakage
currents may exceed 10 mA, particularly
when disconnected or not used for long
periods, or during initial installation, shall
have protective devices to protect against
the leakage of current, such as a GFI,
installed by the authorized personnel to the
local codes.
•Supply cords used with this machine shall
be oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or
other equivalent synthetic elastomer-
sheathed cord (code designation 60245
IEC 57) installed with the proper cord
anchorage to relieve conductors from
strain, including twisting, at the terminals
and protect the insulation of the conductors
from abrasion.
•If the supply cord is damaged, it must be
replaced by the manufacturer, service
agent, or a similarly qualified person, in
order to avoid a hazard.
Failure to follow these instructions may result in
electrocution. Contact your local Taylor distributor
for service.
CAUTION! This machine is designed
to maintain product temperature under
41°F (5°C). Any product being added
to this machine must be below 41°F (5°C). Failure
to follow this instruction may result in health
hazards and poor machine performance.
Do not obstruct air intake and discharge
openings: A minimum of 6 in. (152 mm) on both
sides, and 0 in. (0 mm) in the rear is required.
Install the skirt provided on the right side of the
unit. Failure to follow this instruction may cause
poor freezer performance and damage to the
machine. This freezer is designed to operate
indoors under normal ambient temperatures of
70°F to 75°F (21°C to 24°C). The freezer has
successfully performed in high ambient
temperatures of 104°F (40°C) at reduced capacity.
Do not run the machine without product. Failure to
follow this instruction can result in damage to the
machine.
Noise Level: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of
3.3 ft. (1.0 m) from the surface of the machine and
at a height of 5.25 ft. (1.6 m) from the floor.

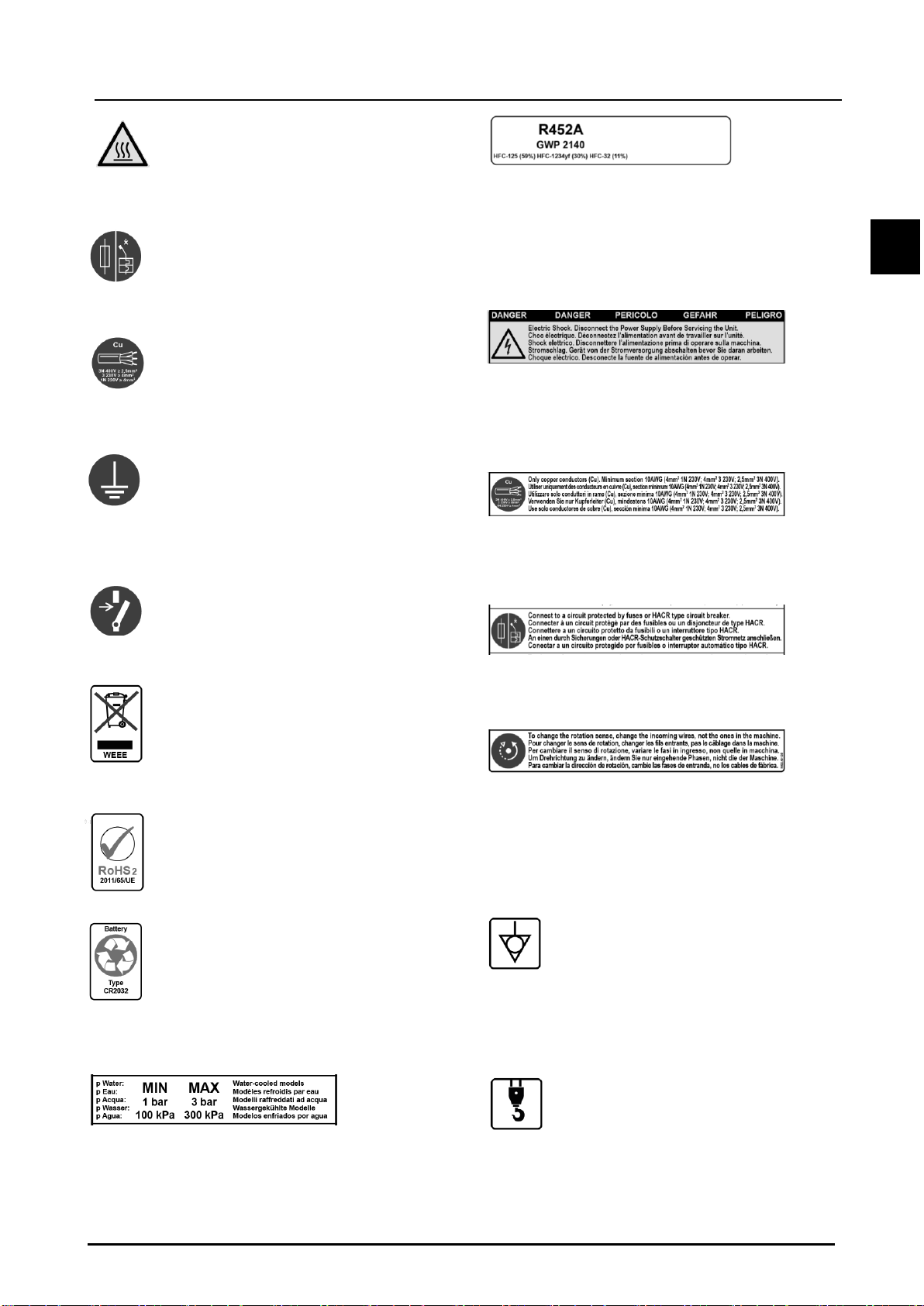

Machine Warning Labels
General Safety
Rear Panel Warning Label
Do not operate the freezer without reading this
Operator’s Manual
This unit has many sharp edges that can cause
severe injuries. Do not touch with hands, clean
with brush/vacuum cleaner.
Only authorized Taylor service personnel should
perform installation and repairs on this machine.
DANGER: High Voltage inside: danger of
electrocution. Disconnect the power supply
before servicing the machine.
CAUTION: Hazardous moving parts; the machine
can start automatically. Do not operate with
panels removed, disconnect the electrical supply
before servicing the machine.

3
SAFETY
Safety Model 0738 3-3
DANGER: Hot parts, risk of burns. Hot product,
do not draw during heating treatment.
ATTENTION: Connect to a circuit protected by
fuses or HACR type circuit breaker..
ATTENTION: Only copper conductors (Cu).
Minimum section 10AWG (4mm21N 230V; 4mm2
3 230V; 2.5mm23N 400V)
ATTENTION: This equipment must be properly
grounded! Failure to do so can result in severe
personal injury from electrical shock!
ATTENTION: Disconnect the power supply
before servicing the machine.
For decommissioning, comply with the standards
in force in the country where it is used
This machine is Rohs 2 compliant.
Battery type CR2032 inside. For
decommissioning, comply with the standards in
force in the country where it is used.
Water pressure limits (for water cooled models
only).
Use only R452A refrigerant that conforms to
the AHRI Standard 700 specification.
Electrical Box Warning Label
Danger: High Voltage inside; danger of
electrocution. Disconnect the Power Supply
Before Servicing the Unit.
ATTENTION: Only copper conductors (Cu).
Minimum section 10AWG (4mm21N 230V; 4mm2
3 230V; 2.5mm23N 400V).
ATTENTION: Connect to a circuit protected by
fuses or HACR type circuit breaker.
To correct rotation on a three-phase machine,
interchange any two incoming power lines at the
machine main terminal block only.
Equipotential point label
Carry out an equipotential bonding, using the
screw place below the frame of the unit.
Lifting point label
Lift equipment hooking points. Position the lifting
equipment only in the relevat points.

3
SAFETY
3-4 Model 0738 Safety
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of
1.0 meter from the surface of the machine and at
a height of 1.6 meters from the floor.

4
Section 4 Operator Parts Identification
Operator Parts Identification Model 0738 4-1
Main View
ITEM
DESCRIPTION
PART NO.
11
BLADE-SCRAPER
087732
12
BEATER-2-LITER
087733
13
SEAL-BEATER-DRIVE-SHAFT
087734
14
AGITATOR-HOPPER
087735
15
CAP-AGITATOR
087875
16
TUBE-DELIVERY-LEFT
088831
17
COUPLING-FEED-TUBE
087738
18
O-RING
087762
19
DUCKBILL-VALVE
087742
20
TUBE-DELIVERY-RIGHT
088830
ITEM
DESCRIPTION
PART NO.
1
COVER-HOPPER
087716
2
SCREW-MOUNTING-COLLAR
087720
3
PAN-DRIP
088853
4
SHELF-TRAY-DRIP
087725
5
TRAY-DRIP
087726
6
SHIELD-SPLASH
087727
7
BEATER-AUGER
087728
8
BAFFLE-DOOR
087729
9
O-RING-BAFFLE
087730
10
BEARING-DOOR-BAFFLE
087731
5
4
2
1
15
14
16
19
2
6
9
8
10
11
12
13
3
18
18
17
18
7
20

4
OPERATOR PARTS IDENTIFICATION
4-2 Model 0738 Operator Parts Identification
Multi Spout Door Assembly
ITEM
DESCRIPTION
PART NO.
8
DOOR-FREEZER
088846
9
NUT-STUD-DOOR
087748
10
O-RING-HANDLE-PIN
087749
11
SCREW-ADJUSTMT-HANDLE
087750
12
SPACER-SCREW-ADJUSTMT
087751
13
HANDLE-BODY
087752
14
O-RING
087753
15
O-RING-DRAW-VALVE-MIX
088849
ITEM
DESCRIPTION
PART NO.
1
HANDLE-DRAW-BLACK
087740
2
VALVE-DRAW
087741
3
VALVE-DRAW-MIX
088848
4
O-RING-DRAW-VALVE
087743
5
O-RING-DOOR-LARGE
087744
6
O-RING-DOOR-SMALL
087745
7
PIN-DRAW-HANDLE-SS
088847
-
-
-
2
3
2
8
10
12
11
4
4
15
4
4
7
9
14
6
13
1
5

4
OPERATOR PARTS IDENTIFICATION
Operator Parts Identification Model 0738 4-3
Mix Pump Assembly
ITEM
DESCRIPTION
PART NO.
1
COVER-PUMP
087754
2
O-RING-PUMP-COVER
087755
3
GEAR-DRIVEN
087756
4
GEAR-DRIVING
087757
5
BODY-PUMP
087758
6
O-RING-PUMP
087759
7
VALVE-PUMP
087765
ITEM
DESCRIPTION
PART NO.
8
SPRING-REGULATOR
087761
9
O-RING
087739
10
TUBE-REGULATOR
087763
11
NUT-STUD-PUMP
087764

4
OPERATOR PARTS IDENTIFICATION
4-4 Model 0738 Operator Parts Identification
Tune Up Kit
ITEM
DESCRIPTION
PART NO.
1
TUNE UP KIT
087774
2
O-RING
087739
3
O-RING-PUMP
087759
4
O-RING-BAFFLE
087730
5
O-RING-DRAW-VALVE
087743
6
DUCKBILL-VALVE
087742
7
VALVE-PUMP
087765
8
SEAL-BEATER-DRIVE-SHAFT
087734
-
-
-
ITEM
DESCRIPTION
PART NO.
9
BEARING-DOOR-BAFFLE
087731
10
CAP-AGITATOR
087875
11
O-RING-HANDLE-PIN
087749
12
O-RING
087753
13
O-RING-DOOR-SMALL
087745
14
O-RING-PUMP-COVER
087755
15
O-RING-DOOR-LARGE
087744
16
TOOL-O-RING-REMOVAL
48260-F
17
O-RING-DRAW-VALVE-MIX
088849
11
6
14
1
15
2
2
x4
1
12
13
0
3
x2
5
x2
7
8
9
10
4
16
1
17

4
OPERATOR PARTS IDENTIFICATION
Operator Parts Identification Model 0738 4-5
Brush Assembly
ITEM
DESCRIPTION
PART NO.
1
BRUSH-ASSY
87805
2
BRUSH-BIG
87713-C
3
BRUSH-MEDIUM
87713-B
4
BRUSH-SMALL
87713-A
ITEM
DESCRIPTION
PART NO.
1
2
3
4

4
OPERATOR PARTS IDENTIFICATION
4-6 Model 0738 Operator Parts Identification
