Taylor C723 User manual

OPERATOR’S 
MANUAL
Model C723
Soft Serve Freezer
3/18/11 (Original Publication)
(Updated 8/20/2020)
Original Operating Instructions
069127-M

Complete this page for quick reference when service is required:
Taylor distributor: __________________________________________________________
Address:_________________________________________________________________
Phone: __________________________________________________________________
Service: _________________________________________________________________
Parts: ___________________________________________________________________
Date of Installation: ________________________________________________________
Information found on the data label:
Model Number: ___________________________________________________________
Serial Number: ____________________________________________________________
Electrical Specs: Voltage__________________ Cycle____________________
Phase____________________________________________
Maximum Fuse Size: _______________________________________________________
Minimum Wire Ampacity: ____________________________________________________
Note: Continuing research results in steady improvements; therefore, information in this manual is subject to change
without notice.
Note: Only instructions originating from the factory or its authorized translation representative(s) are considered to be
the original set of instructions.
© March 2011 Taylor Company
(Updated 8/20/2020)
069127-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be
a violation of Copyright Law of the United States of America and other countries, could result in the awarding of
Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal
penalties. All rights reserved.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

Table of Contents
069127-M i
Section 1: To the Installer
Installer Safety ............................................................................................................1-1
Site Preparation ..........................................................................................................1-1
Air-Cooled Machines...................................................................................................1-1
Water Connections......................................................................................................1-2
Electrical Connections.................................................................................................1-2
Beater Rotation ...........................................................................................................1-3
Optional Carts .............................................................................................................1-3
Refrigerant ..................................................................................................................1-4
Section 2: To the Operator
Section 3: Safety

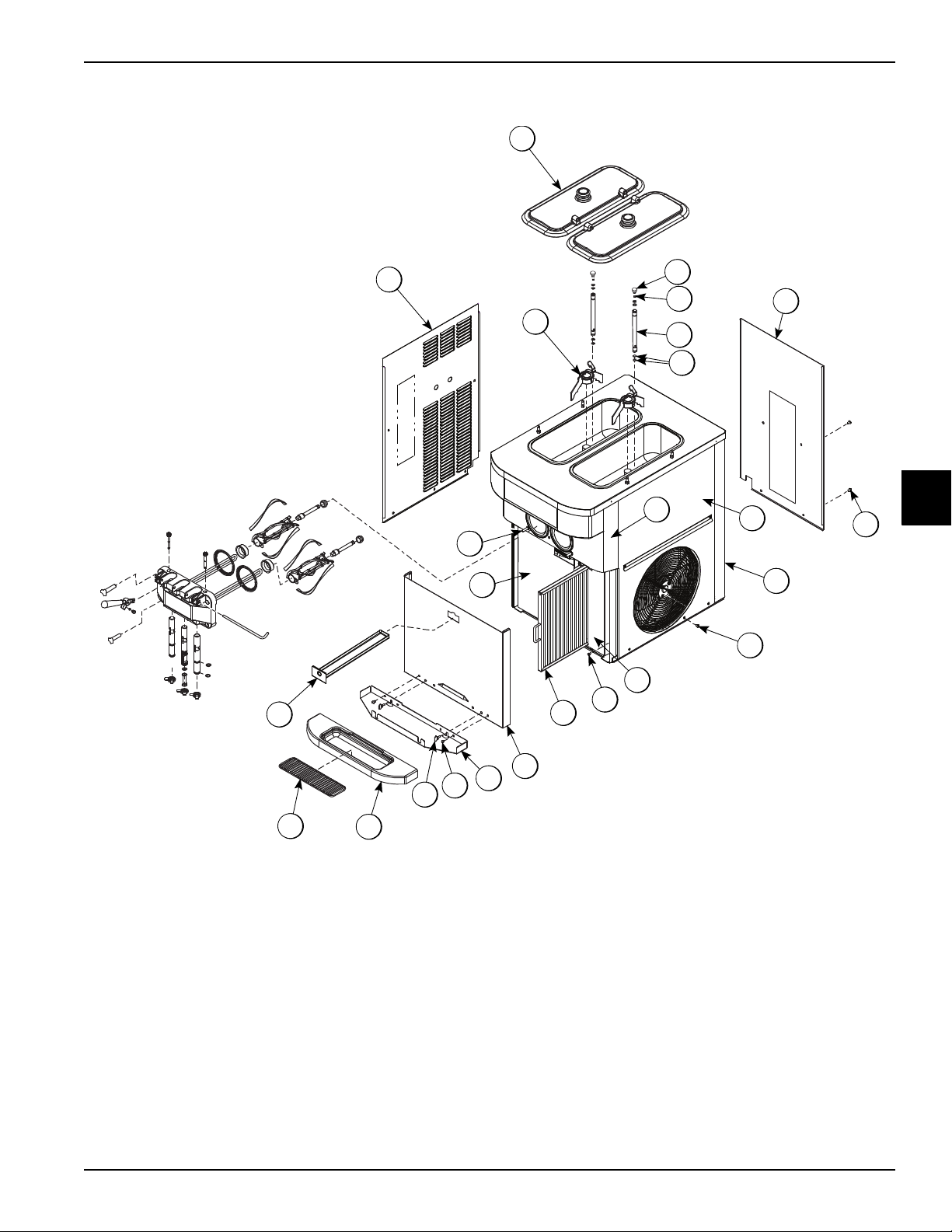

Section 4: Operator Parts Identification
Model C723.................................................................................................................4-1
Model C723 - Factory Equipped With Agitator............................................................4-3
Model C723 - Door and Beater Assembly...................................................................4-5
Optional Carts .............................................................................................................4-6
Accessories.................................................................................................................4-7
Brushes.......................................................................................................................4-8
Section 5: User Interface
Model C723.................................................................................................................5-1
Symbol Definitions ......................................................................................................5-2
Operating Screen Descriptions ...................................................................................5-5
Manager's Menu .........................................................................................................5-6
Section 6: Operating Procedures
Assembly.....................................................................................................................6-1
Sanitizing.....................................................................................................................6-5
Priming........................................................................................................................6-6
Closing Procedure.......................................................................................................6-7
Draining Product From the Freezing Cylinder.............................................................6-7
Rinsing ........................................................................................................................6-8
Hopper Cleaning .........................................................................................................6-8
Disassembly................................................................................................................6-9
Manual Brush-Cleaning...............................................................................................6-9

ii 069127-M
Table of Contents
Section 7: Operator Checklist
During Cleaning and Sanitizing .................................................................................. 7-1
Troubleshooting Bacterial Count ................................................................................ 7-1
Regular Maintenance Checks..................................................................................... 7-1
Winter Storage............................................................................................................ 7-2
Section 8: Troubleshooting Guide
Section 9: Parts Replacement Schedule
Section 10: Limited Warranty on Equipment
Section 11: Limited Warranty on Parts

Section 1
1-1
Model C723
To the Installer
1
To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For complete
installation instructions, please see the Installation
Checklist.
Installer Safety
IMPORTANT! In all areas of the world,
machines should be installed in accordance with existing
local codes. Please contact your local authorities if you
have any questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and service
of Taylor®machines.
• Only Taylor service personnel should perform
installation, maintenance, and repairs on Taylor
machines.
• Authorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for industry
standards on lockout/tagout procedures before
beginning any installation or repairs.
• Authorized service personnel must ensure that
the proper personal protective equipment (PPE)
is available and worn when required during
installation and service.
• Authorized service personnel must remove all
metal jewelry, rings, and watches before
working on electrical equipment.
DANGER! The main power supply(s) to the
machine must be disconnected prior to performing any
installation, maintenance, or repairs. Failure to follow this
instruction may result in personal injury or death from
electrical shock or hazardous moving parts, as well as
poor performance or damage to the machine.
Note: All repairs must be performed by a Taylor service
technician.
WARNING! This machine has many sharp
edges that can cause severe injuries.
Site Preparation
Review the area where the machine will be installed
before uncrating the machine. Make sure all possible
hazards to the user or machine have been addressed.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
Air-Cooled Machines
The Model C723 air-cooled machine requires a minimum
of 6 in. (152 mm) on the left and right sides and 0 in. on
the back. The Model C723 equipped with top air
discharge requires 6 in. (152 mm) on the left side, 0 in.
on the right side, and 0 in. on the back.
This will allow for adequate airflow across the condenser.
Failure to allow adequate clearance can reduce the
refrigeration capacity of the freezer and possibly cause
permanent damage to the compressor.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of 
70°F to 75°F (21°C to 24°C). The freezer has
successfully performed in high ambient temperatures of
104°F(40°C) at reduced capacities.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.

1-2
TO THE INSTALLER
Model C723 To the Installer
1
CAUTION! This machine must be installed on
a level surface to avoid the hazard of tipping. Extreme
care should be taken in moving this machine for any
reason. Two or more persons are required to safely move
this machine. Failure to comply may result in personal
injury or damage to the machine.
The authorized installer should inspect the machine and
promptly report any damage to the local authorized
Taylor distributor.
This machine is made using USA sizes of hardware. All
metric conversions are approximate and vary in size.
Water Connections
(Water-Cooled Machines Only)
An adequate cold water supply must be provided with a
hand shutoff valve. On the back, right side of the
machine, two 3/8 in. (9.5 mm) I.P.S. water connections
for inlet and outlet are provided for easy hookup.
Permanently connect the machine using 1/2 in. (12.7
mm) inside diameter water lines. (Flexible lines are
recommended, if local codes permit.) Depending on local
water conditions, it may be advisable to install a water
strainer to prevent foreign substances from clogging the
automatic water valve. There will be only 1 water-in and 1
water-out connection. Do not install a hand shutoff valve
on the water-out line! Water should always flow in this
order: first, through the automatic water valve; second,
through the condenser; and third, through the outlet
fitting to an open trap drain.
IMPORTANT! A backflow prevention device is
required on the incoming water connection side. Please
see the applicable national, state, and local codes for
determining the proper configuration. Water pressure to
the unit must not exceed 150 psi (1034 kPa).
Electrical Connections
IMPORTANT! In the United States, this
machine is intended to be installed in accordance with
the National Electrical Code (NEC), ANSI/NFPA 701987.
The purpose of the NEC code is the practical
safeguarding of persons and property from hazards
arising from the use of electricity. This code contains
provisions considered necessary for safety.
In all other areas of the world, the machine should be
installed in accordance with the existing local codes.
Please contact your local authorities if you have any
questions.
Each machine requires one power supply for each data
label on the machine. Check the data label(s) on the
machine for branch circuit overcurrent protection or fuse,
circuit ampacity, and other electrical specifications.
See the wiring diagram provided inside the electrical box
for proper power connections.
WARNING! This machine must be properly
grounded. Failure to do so can result in severe personal
injury from electrical shock.
IMPORTANT! This machine is provided with
an equipotential grounding lug that is to be properly
attached to the rear of the frame by the authorized
installer. The installation location is marked by the
equipotential bonding symbol (5021 of IEC 60417-1) on
the removable panel and the frame.
WARNING! Avoid injury.
•DO NOT operate the machine unless it is
properly grounded.
•DO NOT operate the machine with fuses larger
than specified on the machine's data label.
• All repairs should be performed by an
FOLLOW YOUR LOCAL ELECTRICAL CODES.

TO THE INSTALLER
1-3
Model C723
To the Installer
1
authorized Taylor service technician.
• The main power supplies to the machine must
be disconnected prior to performing installation,
repairs, or maintenance.
•For Cord-Connected Machines: Only Taylor
service technicians or licensed electricians may
install a plug or replacement cord on the
machine.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by the authorized personnel to
local codes.
• Stationary machines that are not equipped with
a power cord and a plug or another device to
disconnect the appliance from the power source
must have an all-pole disconnecting device with
a contact gap of at least 0.125 in. (3 mm) in the
external installation.
• Supply cords used with this machine shall be 
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by the manufacturer, service agent, or
a similarly qualified person to avoid a hazard.
• Secure supply cord ground lead to machine in a
location where if the cord is pulled the main
power leads become taut before the ground
lead can break loose.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
distributor for service.
Beater Rotation
NOTICE! Beater rotation must be
counterclockwise as viewed looking into the freezing
cylinder.
To correct the rotation on a three-phase machine,
interchange any two incoming power supply lines at the
freezer main terminal block only. To correct rotation on a
single-phase machine, exchange leads inside the beater
motor. (Follow the diagram printed on the motor.)
Electrical connections are made directly to the terminal
block provided in the main control box, located behind
the service panel.
It is recommended that beater rotation adjustment be
performed by a Taylor service technician.
Optional Carts
There are 2 optional carts available.
1. C20600-AFB: ADA-compliant height cart, not
equipped with a door.
2. C20600-000: Standard height cart with reversible
front door panel and rear panel.
Note: If the door is required on the rear of the cart
instead of the front, the front door panel and the rear
panel can be reversed. To reverse these panels,
remove the five screws on each panel. Reverse and
reinstall the panels, making sure all screws are
reinstalled.
IMPORTANT! For safety purposes, the
freezer must be bolted to the cart using all four bolts.
Failure to comply could result in personnel injury and
equipment damage.

1-4
TO THE INSTALLER
Model C723 To the Installer
1
Refrigerant
CAUTION! This machine contains fluorinated
greenhouse gases (F-Gas) to provide refrigeration using
a hermetically sealed circuit or within foam insulation.
This machine's type of gas, quantity, Global Warming
Potential (GWP), and CO2tonnes equivalent information
is recorded on the machine's data label. The refrigerant
used is generally considered nontoxic and
nonflammable. However any gas under pressure is
potentially hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with liquid.
Filling the cylinder approximately 80% will allow for
normal expansion.
CAUTION! Use only approved refrigerant
listed on the machine's data label or authorized through a
manufacturer's technical bulletin. The use of any other
refrigerant may expose users and operators to
unexpected safety hazards.
WARNING! Refrigerant liquid sprayed onto the
skin may cause serious damage to tissue. Keep eyes
and skin protected. If refrigerant burns should occur,
flush the area immediately with cold water. If burns are
severe, apply ice packs and contact a physician
immediately.
NOTICE! Taylor reminds technicians to be
aware of government laws regarding refrigerant recovery,
recycling, and reclaiming systems. If you have any
questions regarding these laws, please contact the
factory service department.
IMPORTANT! Refrigerants and their
associated lubricants may be extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed
15 minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.

Section 2
2-1
Model C723
To the Operator
2
To the Operator
Your freezer has been carefully engineered and
manufactured to give you dependable operation.
This machine, when properly operated and cared for, will
produce a consistent quality product. Like all mechanical
products, it will require cleaning and maintenance. A
minimum amount of care and attention is necessary if the
operating procedures outlined in this manual are followed
closely.
IMPORTANT! This manual should be read
before operating or performing any maintenance on the
machine.
Your Taylor machine will NOT compensate for and/or
correct any errors made during setup or filling operations.
Thus, the initial assembly, setup, and priming procedures
are of extreme importance. It is strongly recommended
that all personnel responsible for the machine's
operation, including assembly and disassembly, go
through these procedures together to be properly trained
and to make sure that all personnel understand their role
in using and maintaining the machine.
If you should require technical assistance, please contact
your local authorized Taylor distributor.
Your Taylor warranty is valid only if the parts are
authorized Taylor parts, purchased from the local
authorized Taylor distributor, and only if all required
service work is provided by an authorized Taylor service
technician. Taylor reserves the right to deny warranty
claims on machines or parts if unapproved parts or
incorrect refrigerant were installed in the machine,
system modifications were performed beyond factory
recommendations, or it is determined that the failure was
caused by abuse, misuse, neglect, or failure to follow all
operating instructions. For full details of your Taylor
warranty, please see the Limited Warranty section in this
manual.
Note: Constant research results in steady
improvements; therefore, information in this manual is
subject to change without notice.
IMPORTANT! If the crossed-out waste
container symbol is affixed to this machine, it signifies
that this machine is compliant with the EU Directive as
well as other similar legislation in effect after August 13,
2005. Therefore, it must be collected separately after its
use is completed and cannot be disposed as unsorted
municipal waste. The user is responsible for delivering
the product to the appropriate collection facility as
specified by your local code.
For additional information regarding applicable local
laws, please contact the municipal facility and/or local
distributor.

2-2
TO THE OPERATOR
Model C723 To the Operator
2
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this machine are
warranted for the term stated in the Limited Warranty
section in this manual. However, due to the Montreal
Protocol and the U.S. Clean Air Act Amendments of
1990, many new refrigerants are being tested and
developed, thus seeking their way into the service
industry. Some of these new refrigerants are being
advertised as drop-in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this machine's refrigeration system,
only the refrigerant specified on the affixed data label
should be used. The unauthorized use of alternate
refrigerants will void your Taylor compressor warranty. It
is the machine owner's responsibility to make this fact
known to any technician he or she employs.
It should also be noted that Taylor does not warrant the
refrigerant used in its equipment. For example, if the
refrigerant is lost during the course of ordinary service to
this machine, Taylor has no obligation to either supply or
provide its replacement either at billable or non-billable
terms. Taylor does have the obligation to recommend a
suitable replacement if the original refrigerant is banned,
obsoleted, or no longer available during the 5-year
warranty of the compressor.
Taylor will continue to monitor the industry and test new
alternates as they are being developed. Should a new
alternate prove, through our testing, then it would be
accepted as a drop-in replacement, then the above
disclaimer would become null and void. To find the
current status of an alternate refrigerant as it relates to
your compressor warranty, call the local Taylor distributor
or the Taylor factory. Be prepared to provide the 
model/serial number of the machine in question.

Section 3
3-1
Model C723
Safety
3
Safety
We at Taylor Company are concerned about the safety of
the operator when he or she comes in contact with the
freezer and its parts. Taylor has gone to extreme efforts
to design and manufacture built-in safety features to
protect both operators and service technicians. As an
example, warning labels have been attached to the
freezer to further point out safety precautions to the
operator.
DANGER! Failure to adhere to the following
safety precautions may result in severe personal injury or
death. Failure to comply with these warnings may
damage the machine and its components. Component
damage will result in part replacement expense and
service repair expense.
NOTICE! DO NOT operate the machine
without reading the Operator’s Manual. Failure to follow
this instruction may result in machine damage, poor
machine performance, health hazards, or personal injury.
IMPORTANT! This machine is to be used only
by trained personnel. It is not intended for use, cleaning,
or maintenance by children or people with reduced
physical, sensory, or mental capabilities or lack of
experience and knowledge, unless given supervision or
instruction concerning the use of the machine by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the
machine.
IMPORTANT! This machine is provided with an
equipotential grounding lug that is to be properly
attached by the authorized installer to either the rear of
the frame or the underside of the base pan near the entry
hole for incoming power. The installation location is
marked by the equipotential bonding symbol (5021 of
IEC 60417-1) on both the removable panel and the
machine’s frame, as well as on the diagram.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
WARNING! Avoid injury.
•DO NOT operate the machine unless it is
properly grounded.
•DO NOT operate the machine with fuses larger
than specified on the machine's data label.
• All repairs should be performed by an
authorized Taylor service technician.
• The main power supplies to the machine must
be disconnected prior to performing installation,
repairs, or maintenance.
•For Cord-Connected Machines: Only Taylor
service technicians or licensed electricians may
install a plug or replacement cord on the
machine.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by the authorized personnel to
local codes.

3-2
SAFETY
Model C723 Safety
3
• Stationary machines that are not equipped with
a power cord and a plug or another device to
disconnect the appliance from the power source
must have an all-pole disconnecting device with
a contact gap of at least 0.125 in. (3 mm) in the
external installation.
• Supply cords used with this machine shall be 
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by the manufacturer, service agent, or
a similarly qualified person to avoid a hazard.
• Secure supply cord ground lead to machine in a
location where if the cord is pulled the main
power leads become taut before the ground
lead can break loose.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
distributor for service.
WARNING! Avoid injury.
•DO NOT allow untrained personnel to operate
this machine.
•DO NOT operate the machine unless all service
panels and access doors are fastened with
screws.
•DO NOT remove any internal operating parts
(including, but not limited to the freezer door,
beater, or scraper blades) unless all control
switches are in the OFF position.
Failure to follow these instructions may result in severe
personal injury, especially to fingers or hands, from
hazardous moving parts.
WARNING! This machine has many sharp
edges that can cause severe injuries.
•DO NOT put objects or fingers in the door
spout. This may contaminate the product and
cause severe personal injury from blade
contact.
•USE EXTREME CAUTION when removing the
beater assembly. The scraper blades are very
sharp.
•USE EXTREME CAUTION when handling the
cup/cone dispenser (if supplied with machine).
Two people are required to handle the cup/cone
dispenser. The appropriate type of protective
gloves must be worn and the mounting holes
must NOT be used to lift or hold the dispenser.
Failure to follow these instructions can result in personal
injury or damage to the machine.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
IMPORTANT! Access to the service area of
the machine is restricted to persons having knowledge
and practical experience with the appliance, as far as
safety and hygiene are concerned.
CAUTION! This machine must be placed on a
level surface. Extreme care should be taken when
moving for any reason. Two or more persons are
required to safely move this machine. Failure to comply
may result in personal injury or damage to the machine.

SAFETY
3-3
Model C723
Safety
3
NOTICE! Cleaning and sanitizing schedules
are governed by your federal, state, or local regulatory
agencies and must be followed accordingly. Please refer
to the cleaning section of this manual for the proper
procedure to clean this machine.
Do not obstruct air intake and discharge openings: 
The Model C723 air-cooled requires a minimum of 
6 in. (152 mm) on the left and right sides and 0 in. on the
back. The Model C723 equipped with top air discharge
requires 6 in. (152 mm) on the left side, 0 in. on the right
side, and 0 in. on the back.
This will allow adequate airflow across the condenser.
Failure to allow adequate clearance can reduce the
refrigeration capacity of the freezer and possibly cause
permanent damage to the compressor.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of 
70°F to 75°F (21°C to 24°C). The machine has
successfully performed in high ambient temperatures of
up to 104°F (40°C) at reduced capacities.
Do not run the machine without product. Failure to follow
this instruction can result in damage to the machine.
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of 
39 in. (1.0 m) from the surface of the machine and at a
height of 63 in. (1.6 m) from the floor.

3-4
SAFETY
Model C723 Safety
3
Notes:

Section 4
4-1
Model C723
Operator Parts Identification
4
Operator Parts Identification
Model C723
Figure 4-1
1
16
2
3
4
5
6
9
21
7
8
9
18
19
17
10a
10b
10c
11
12
13
15
20

4-2
OPERATOR PARTS IDENTIFICATION
Model C723 Operator Parts Identification
4
Model C723 Exploded View Parts Identification
Item Description Part No.
1 Cover-Hopper 041682-BLA
2 Orifice 022465-100
3 O-ring-3/8 OD X .070W 
(100 to Bag)
016137
4 Tube A.-Feed-SS-5/32 Hole X29429-2
5 O-ring-.643 OD X .077W 
(50 to Bag)
018572
6 Panel-Rear 069340
7 Panel A.-Side Right X68854
8 Panel A.-Front X81843
9 Screw-1/4-20X3/8 SLTD 011694
10 Panel A.-Shelf 
(Includes Items 10a -10c)
X81840
10a Panel A.-Front-Lower X81841
10b Shelf-Drip Tray 080782
Item Description Part No.
10c Screw-1/4-20X3/8 SLTD 011694
11 Screw-Wing Head 081582
12 Tray-Drip 080781
13 Shield-Splash-Wire 046177-SP
14 Pan A.-Drip 15 1/8 Long X51601
15 Stud-Nose Cone 055987
16 Panel-Side Left 068851
17 Filter Assembly X81440
17a Filter-Air-18.28X15.5X.70 052779-15
18 Cover-Access-Front-R. 068844
19 Screw-10X3/8 Slotted Hex 015582
20 Cover-Access-Left 081834
21
Trim-Rear Corner-R 068847
Trim-Rear Corner-L 080238

OPERATOR PARTS IDENTIFICATION
4-3
Model C723
Operator Parts Identification
4
Model C723 - Factory Equipped With Agitator
Figure 4-2
1
16 2
3
4
5
6
9
7
22
9
18
19
17
10a
10b
10c
11
13
14
20
15
8
21
12

4-4
OPERATOR PARTS IDENTIFICATION
Model C723 Operator Parts Identification
4
Model C723 Factory Equipped with Agitator Exploded View Parts Identification
Item Description Part No.
1 Cover-Hopper-14 Qt-Gray 041682-GRY
2 Orifice 022465-100
3 O-ring-3/8 OD X .070W 
(100 to Bag)
016137-SER
4 Tube A.-Feed-SS-5/32 Hole X29429-2
5 O-ring-.643 OD X .077W 
(50 to Bag)
018572-SER
6 Panel-Rear 069340
7 Panel A.-Side Right X68854
8 Panel A.-Front X81843
9 Screw-1/4-20X3/8 SLTD 011694
10 Panel A.-Shelf 
(Includes Items 10a -10c)
X81840
10a Panel A.-Front-Lower X81841
10b Shelf-Drip Tray 080782
Item Description Part No
10c Screw-1/4-20X3/8 SLTD 011694
11 Screw-Wing Head 081582
12 Tray-Drip 080781
13 Shield-Splash-Wire 046177-SP
14 Pan A.-Drip 15 1/8 Long X51601
15 Stud-Nose Cone 055987
16 Panel-Side Left 068851
17 Filter A. X81440
18 Cover-Access-Front-R. 081833
19 Screw-10X3/8 Slotted Hex 015582
20 Cover-Access-Left 081834
21 Agitator 056592-SP
22
Trim-Rear Corner-R 068847
Trim-Rear Corner-L 080238

OPERATOR PARTS IDENTIFICATION
4-5
Model C723
Operator Parts Identification
4
Model C723 - Door and Beater Assembly
Figure 4-3
1
2
34
5
678
9
20a
10
10
14
13
12
15
16
17
18
19
20
11
Item Description Part No.
1 Plug-Prime Twin 059936
2 O-ring-1/2OD X .070W (50 to Bag) 024278
3 Gasket-Door HT 4"-Double 048926
4 Bearing-Front 050216
5 Beater A.-2.8QT-Helicore X35466
6 Blade-Scraper-Plastic 035480
7 Shaft-Beater 054194
8 Seal-Driveshaft 032560
9 Pin-Handle-Twin 059894
10 Valve A.-Draw X69615
11 O-ring-7/8 OD X .103W SIL 083693
Item Description Part No.
12 Cap-Design 1.010"ID-6 Point 014218
13 Seal-Draw Valve-Large H-ring 034698
14 Valve A.-Draw-Center X62218
15 Nut-Stud-Black 2.563 Long 058764
16 Screw-Adjustment-5/16-24 056332
17 O-ring-1/4 OD X .070W 50 
(25 to Bag)
015872
18 Handle A.-Draw X56421-1
19 Nut-Stud-Black 3.250 Long 058765
20 Door A.-*SH BAF*W/PRG X68889-SER
20a Baffle A.-Short 4 IN X50883

4-6
OPERATOR PARTS IDENTIFICATION
Model C723 Operator Parts Identification
4
Optional Carts
Figure 4-4
Note: ADA-compliant height cart, not equipped with a door.
Note: Standard height cart with reversible front door panel
and rear panel.
123
4
5
2
4
6
1
2
34
5
65
7
Cart A.-ADA (X69400) Cart A.-Std (X69425)
Item Description Part No.
1 Screw-10-32X1/2 SLTD Truss 037734
2 Panel-Front/Rear-ADA 069402
3 Caster-3" SWV 3/4-10 Stem 
w/Brake
030307
4 Panel-Side-Cart 069403
5 Caster-3" SWV 3/4-10 Stem 021279
Item Description Part No.
1 Panel A.-STD Cart-Front X69426
2 Door A.-STD Cart X69295
3 Screw-10-32X1/2 SLTD Truss 037734
4 Handle-STNLS Flush Pull 019043
5 Caster-3" SWV 3/4-10 Stem 
w/Brake
030307
6 Panel-Side-STD Cart 069428
7 Panel-Rear-STD Cart 069429
