Taylor PH61 User manual

OPERATOR’S 
MANUAL
Model PH61
Heat Treatment Shake Freezer
8/1/07 (Original Publication)
(Updated 8/21/2020)
Original Operating Instructions
048119-M

Complete this page for quick reference when service is required:
Taylor distributor: __________________________________________________________
Address:_________________________________________________________________
Phone: __________________________________________________________________
Service: _________________________________________________________________
Parts: ___________________________________________________________________
Date of Installation: ________________________________________________________
Information found on the data label:
Model Number: ___________________________________________________________
Serial Number: ____________________________________________________________
Electrical Specs: Voltage__________________ Cycle__________
Phase__________________________________
Maximum Fuse Size: ______________________________________________________ A
Minimum Wire Ampacity: ___________________________________________________ A
Note: Continuing research results in steady improvements; therefore, information in this manual is subject to change
without notice.
Note: Only instructions originating from the factory or its authorized translation representative(s) are considered to be
the original set of instructions.
© 2008 Taylor Company
048119-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be
a violation of copyright law of the United States of America and other countries, could result in the awarding of
statutory damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal
penalties. All rights reserved.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

Table of Contents
048119-M i
Section 1: To the Installer
Installer Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Air-Cooled Machines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Water Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Electrical Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Beater Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Section 2: To the Operator
Compressor Warranty Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Section 3: Safety
Section 4: Operator Parts Identification

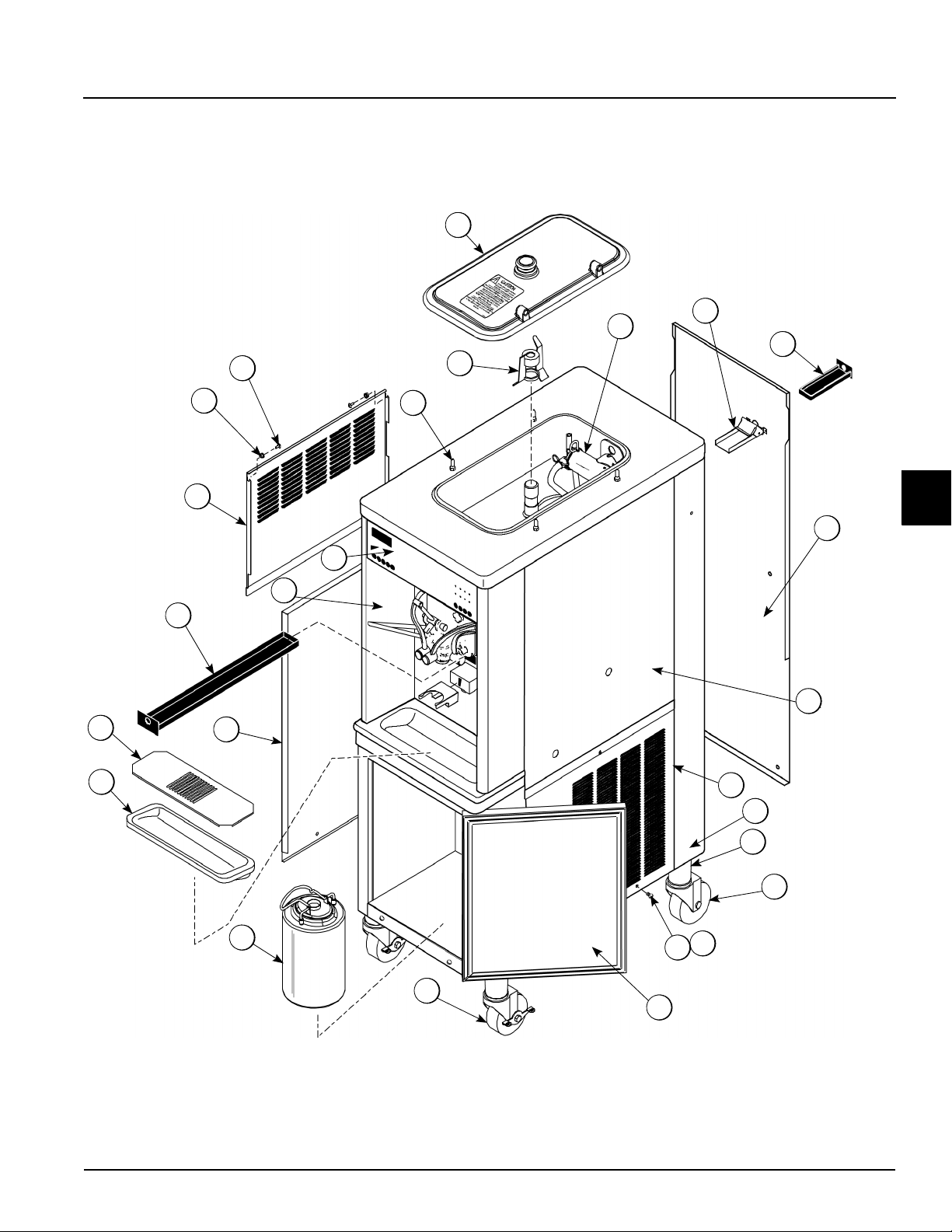

Model PH61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Beater and Door Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
X57028-14 Pump A.—Mix Simplified . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

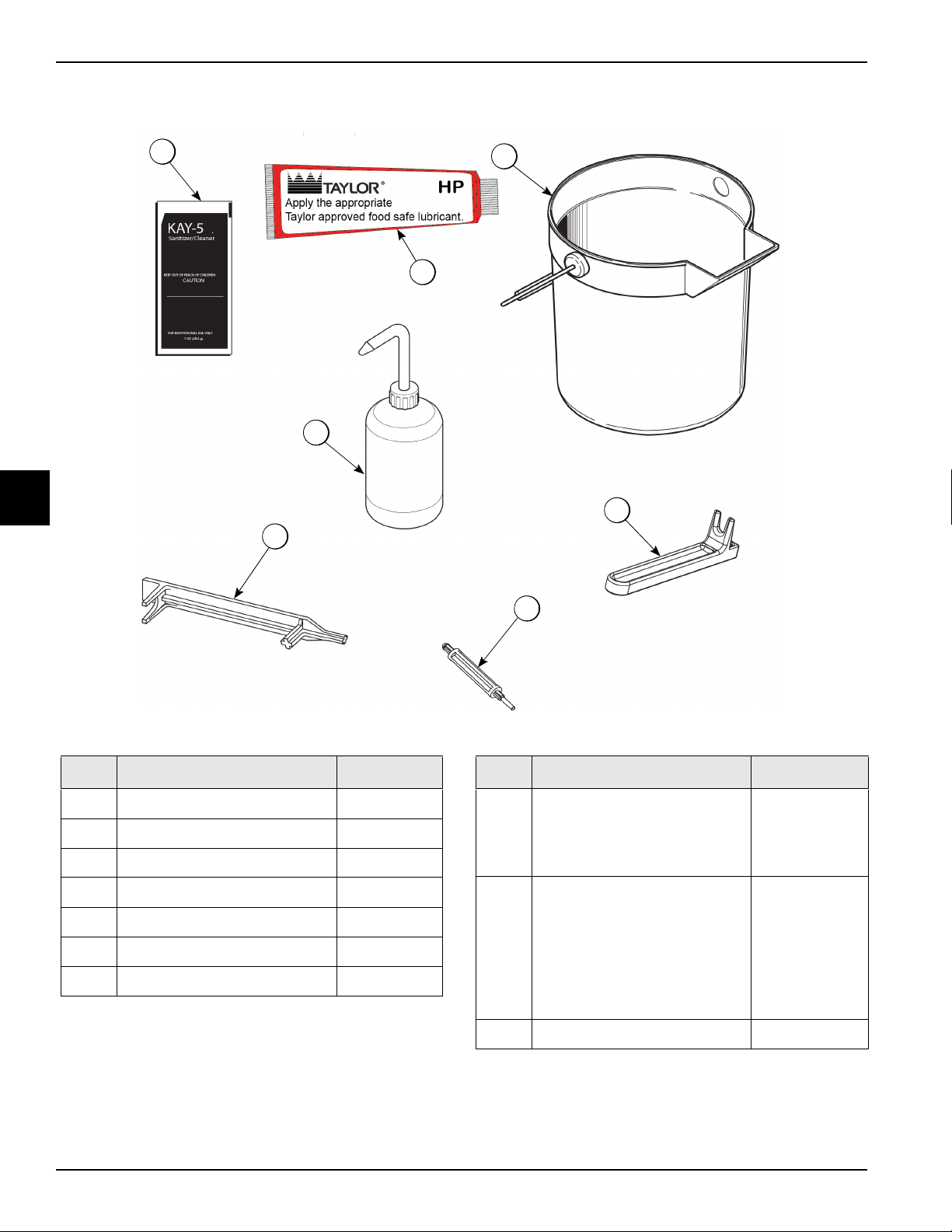

X44127 Brush A.—Package-HT-SS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Syrup Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Section 5: User Interface
Symbol Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Liquid Crystal Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Reset Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Operating Screen Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Operator Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

ii 048119-M
Table of Contents
Section 6: Operating Procedures
Equipment Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Freezing Cylinder Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Mix Hopper Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Sanitizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-8
Priming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-9
Daily Closing Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
Daily Opening Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
Syrup System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
Closing Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17
Draining Product from the Freezing Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-18
Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-18
Cleaning and Sanitizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-19
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-19
Brush Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21
Sanitizing the Syrup Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-22
Section 7: Operator Checklist
During Cleaning and Sanitizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Troubleshooting Bacterial Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Regular Maintenance Checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Winter Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Section 8: Troubleshooting Guide
Section 9: Parts Replacement Schedule
Section 10: Limited Warranty on Equipment
Section 11: Limited Warranty on Parts

Section 1
1-1
Model PH61
To the Installer
1
To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For complete
installation instructions, please see the Installation
Checklist.
Installer Safety
IMPORTANT! In all areas of the world, the
machine should be installed in accordance with existing
local codes. Please contact your local authorities if you
have any questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and service
of Taylor machines.
• Only Taylor service personnel should perform
installation and repairs on the machine.
• Authorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the industry
standards on lockout/tagout procedures before
beginning any installation or repairs.
• Authorized service personnel must ensure that
the proper personal protective equipment (PPE)
is available and worn when required during
installation and service.
• Authorized service personnel must remove all
metal jewelry, rings, and watches before
working on electrical equipment.
DANGER! The main power supply(s) to the
machine must be disconnected prior to performing any
installation, maintenance, or repairs. Failure to follow this
instruction may result in personal injury or death from
electrical shock or hazardous moving parts, as well as
poor performance or damage to the machine.
All repairs must be performed by a Taylor service
technician.
WARNING! This machine has many sharp
edges that can cause severe injuries.
Site Preparation
Review the area where the machine will be installed
before uncrating the machine. Make sure all possible
hazards to the user or equipment have been addressed.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of
70°F to 75°F (21°C to 24°C). The freezer has
successfully performed in high ambient temperatures of
104°F (40°C) at reduced capacities.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
CAUTION! This machine must be installed on
a level surface to avoid the hazard of tipping. Extreme
care should be taken in moving this machine for any
reason. Two or more persons are required to safely move
this machine. Failure to comply may result in personal
injury or damage to the machine.
The authorized installer should inspect the machine and
promptly report any damage to the local authorized
Taylor distributor.
This machine is made using USA sizes of hardware. All
metric conversions are approximate and vary in size.
!

1-2
TO THE INSTALLER
Model PH61 To the Installer
1
Air-Cooled Machines
Do not obstruct air intake and discharge openings:
Air-cooled units require a minimum of 6 in. (152 mm) of
clearance around all sides of the freezer. Failure to allow
adequate clearance can reduce the refrigeration capacity
of the freezer and possibly cause permanent damage to
the compressors.
Water Connections
(Water-Cooled Machines Only)
An adequate cold water supply must be provided with a
hand shutoff valve. On the rear of the machine, two 3/8
in. I.P.S. water connections for inlet and outlet are
provided for easy hookup. Permanently connect the
machine using 1/2 in. (12.7 mm) inside diameter water
lines. (Flexible lines are recommended, if local codes
permit.) Depending on local water conditions, it may be
advisable to install a water strainer to prevent foreign
substances from clogging the automatic water valve.
There will be only one water-in and one water-out
connection. Do not install a hand shutoff valve on the
water-out line. Water should always flow in this order:
first, through the automatic water valve; second, through
the condenser; and third, through the outlet fitting to an
open trap drain.
IMPORTANT! A backflow prevention device is
required on the incoming water connection side. Please
see the applicable national, state, and local codes for
determining the proper configuration. Water pressure to
the unit must not exceed 150 psi (1034 kPa).
Electrical Connections
IMPORTANT! In the United States, this
machine is intended to be installed in accordance with
the National Electrical Code (NEC), ANSI/NFPA 701987.
The purpose of the NEC code is the practical
safeguarding of persons and property from hazards
arising from the use of electricity. This code contains
provisions considered necessary for safety.
In all other areas of the world, the machine should be
installed in accordance with the existing local codes.
Please contact your local authorities if you have any
questions.
Each machine requires one power supply for each data
label on the machine. Check the data label(s) on the
machine for branch circuit overcurrent protection or fuse,
circuit ampacity, and other electrical specifications.
See the wiring diagram provided inside the electrical box
for proper power connections.
WARNING! This machine must be properly
grounded. Failure to do so can result in severe personal
injury from electrical shock.
IMPORTANT! An equipotential grounding lug is
provided with this machine. Some countries require the
grounding lug to be properly attached to the rear of the
frame by the authorized installer. The installation location
is marked by the equipotential bonding symbol (5021 of
IEC 60417-1) on both the removable panel and the
machine's frame.
IMPORTANT!
• Stationary machines which are not equipped
with a power cord and a plug or another device
to disconnect the machine from the power
source must have an all-pole disconnecting
device with a contact gap of at least 0.125 in.

(3 mm) in the external installation.
• Machines that are permanently connected to

TO THE INSTALLER
1-3
Model PH61
To the Installer
1
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by authorized personnel to local
codes.
• Supply cords used with this machine shall be

oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by a Taylor service technician to avoid
a hazard.
• Secure supply cord ground lead to machine in a
location where if the cord is pulled the main
power leads become taut before the ground
lead can break loose.
Beater Rotation
NOTICE! Beater rotation must be clockwise as
viewed looking into the freezing cylinder.
To correct the rotation on a three-phase machine,
interchange any two incoming power supply lines at the
freezer main terminal block only. To correct rotation on a
single-phase machine, exchange leads inside the beater
motor. (Follow the diagram printed on the motor.)
Electrical connections are made directly to the terminal
block provided in the main control box, located behind
the service panel.
It is recommended that beater rotation adjustment be
performed by a Taylor service technician.
Refrigerant
CAUTION! This machine contains fluorinated
greenhouse gases (F-Gas) to provide refrigeration using
a hermetically sealed circuit or within foam insulation.
This machine’s type of gas, quantity, Global Warming
Potential (GWP), and CO2tonnes equivalent information
is recorded on the machine’s data label. The refrigerant
used is generally considered nontoxic and
nonflammable. However any gas under pressure is
potentially hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with liquid.
Filling the cylinder approximately 80% will allow for
normal expansion.
CAUTION! Use only approved refrigerant
listed on the machine's data label or authorized through a
manufacturer's technical bulletin. The use of any other
refrigerant may expose users and operators to
unexpected safety hazards.
WARNING! Refrigerant liquid sprayed onto the
skin may cause serious damage to tissue. Keep eyes
and skin protected. If refrigerant burns should occur,
flush the area immediately with cold water. If burns are
severe, apply ice packs and contact a physician
immediately.
NOTICE! Taylor reminds technicians to be
aware of and in compliance with local government laws
regarding refrigerant recovery, recycling, and reclaiming
systems. For information regarding applicable local laws,
please contact your local authorized Taylor distributor.
IMPORTANT! Refrigerants and their
associated lubricants may be extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.

1-4
TO THE INSTALLER
Model PH61 To the Installer
1
Notes:

Section 2
2-1
Model PH61
To the Operator
2
To the Operator
The freezer you have purchased has been carefully
engineered and manufactured to give you dependable
operation. When properly operated and cared for, it will
produce a consistent quality product. Like all mechanical
products, this machine will require cleaning and
maintenance. A minimum amount of care and attention is
necessary if the operating procedures outlined in this
manual are followed closely.
Note: When your machine is delivered or if it has been
in the OFF position for more than 24 hours, disassemble
the freezer following the procedures found on page 6-19.
Follow the assembly procedures on page 6-1 to
reassemble your machine.
Note: The machine must be disassembled, cleaned,
sanitized, and lubricated every two weeks.
During the heat treatment process, the product is brought
to a temperature sufficient to destroy bacteria and is
returned to a standby temperature.
The special control system will ensure that the product is
heated and maintained at the set temperature for the full
30 minutes. This time is required to ensure that bacteria
is destroyed. 
If the freezer was unable to complete the heating cycle,
the screen will read HEAT TREAT CYCLE FAILURE -
FREEZER LOCKED - PRESS SEL KEY.
If this is the case, or if you require technical assistance,
please contact your local authorized Taylor distributor.
Note: Your Taylor warranty is valid only if the parts are
authorized Taylor parts, purchased from the local
authorized Taylor distributor, and only if all required
service work is provided by an authorized Taylor service
technician. Taylor reserves the right to deny warranty
claims on units or parts if Taylor-unapproved parts or
incorrect refrigerant were installed in the unit, system
modifications were performed beyond factory
recommendations, or it is determined that the failure was
caused by abuse, misuse, neglect, or failure to follow all
operating instructions. For full details of your Taylor
warranty, please see the Limited Warranty section in this
manual.
Note: Constant research results in steady
improvements; therefore, information in this manual is
subject to change without notice.
IMPORTANT! This manual should be read
before operating or performing any maintenance on the
machine.
Your Taylor machine will NOT compensate for and/or
correct any errors made during the setup or filling
operations. Thus, the initial assembly, setup, and priming
procedures are of extreme importance. It is strongly
recommended that all personnel responsible for the
machine's operation, including assembly and
disassembly, go through these procedures together in
order to be properly trained and to make sure that all
personnel understand their role in using and maintaining
the machine.
In the event you should require technical assistance,
please contact your local authorized Taylor distributor.
IMPORTANT! If the crossed-out wheeled-bin
symbol is affixed to this machine, it signifies that this
machine is compliant with the EU Directives as well as
other similar end-of-life legislation in effect after August
13, 2005. Therefore, it must be collected separately after
its use is completed and cannot be disposed as unsorted
municipal waste.
The user is responsible for delivering the machine to the
appropriate collection facility, as specified by your local
code.
For additional information regarding applicable local
disposal laws, please contact the municipal waste facility
and/or local authorized Taylor distributor.
ALWAYS FOLLOW LOCAL HEALTH CODES.

2-2
TO THE OPERATOR
Model PH61 To the Operator
2
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this machine are
warranted for the term stated in the Limited Warranty
section in this manual. However, due to the Montreal
Protocol and the U.S. Clean Air Act Amendments of
1990, many new refrigerants are being tested and
developed, thus seeking their way into the service
industry. Some of these new refrigerants are being
advertised as drop-in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this machine's refrigeration system,
only the refrigerant specified on the affixed data label
should be used. The unauthorized use of alternate
refrigerants will void your Taylor compressor warranty. It
is the machine owner's responsibility to make this fact
known to any technician he/she employs.
It should also be noted that Taylor does not warrant the
refrigerant used in its equipment. For example, if the
refrigerant is lost during the course of ordinary service to
this machine, Taylor has no obligation to either supply or
provide replacement refrigerant either at billable or
unbillable terms. Taylor will recommend a suitable
replacement if the original refrigerant is banned,
obsoleted, or no longer available during the 5-year Taylor
warranty of the compressor.
From time-to-time Taylor may test new refrigerant
alternates. Should a new refrigerant alternate prove,
through Taylor's testing, that it would be accepted as a
drop-in replacement for this machine, the disclaimer in
this Compressor Warranty Disclaimer section will not
apply to the use of the alternate refrigerant approved by
Taylor.
To find out the current status of an alternate refrigerant as
it relates to your compressor warranty, call Taylor or your
local authorized Taylor distributor. Be prepared to provide
the model/serial number of the machine in question.
Note: Continuing research results in steady
improvements; therefore, information in this Operator
Manual is subject to change without notice.

Section 3
3-1
Model PH61
Safety
3
Safety
We at Taylor Company are concerned about the safety of
the operator at all times when they are coming in contact
with the machine and its parts. Taylor makes every effort
to design and manufacture built-in safety features to
protect both operators and service technicians.
Installing and servicing refrigeration machines can be
hazardous due to system pressure and electrical
components. Only trained and qualified service
personnel should install, repair, or service refrigeration
equipment. When working on refrigeration equipment,
observe precautions noted in the literature, tags, and
labels attached to the unit and other safety precautions
that may apply. Follow all safety code requirements.
Wear safety glasses and work gloves.
DANGER! Failure to adhere to the following
safety precautions may result in severe personal injury or
death. Failure to comply with these warnings may also
damage the machine and/or its components. Such
damage may require component replacement and
service repair expenses.
NOTICE! DO NOT operate this machine
without reading this manual. Failure to follow these
instructions may result in machine damage, poor
dispenser performance, health hazards, or personal
injury.
IMPORTANT! This machine is to be used only
by trained personnel. It is not intended for use, cleaning,
or maintenance by children or people with reduced
physical, sensory, or mental capabilities, or lack of
experience and knowledge, unless given supervision or
instruction concerning the use of the machine by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the
machine.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
WARNING! Avoid injury.
•DO NOT operate the machine unless it is
properly grounded.
•DO NOT operate the machine with fuses larger
than specified on the machine's data label.
• All repairs should be performed by an
authorized Taylor service technician.
• The main power supplies to the machine must
be disconnected prior to performing installation,
repairs, or maintenance.
•For Cord-Connected Machines: Only Taylor
service technicians or licensed electricians may
install a plug or replacement cord on the
machine.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by the authorized personnel to
local codes.
• Stationary machines that are not equipped with
a power cord and a plug or another device to
disconnect the appliance from the power source
must have an all-pole disconnecting device with
a contact gap of at least 0.125 in. (3 mm) in the
external installation.
• Supply cords used with this machine shall be 
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.

3-2
SAFETY
Model PH61 Safety
3
• If the supply cord is damaged, it must be
replaced by the manufacturer, service agent, or
a similarly qualified person to avoid a hazard.
• Secure supply cord ground lead to machine in a
location where if the cord is pulled the main
power leads become taut before the ground
lead can break loose.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
distributor for service.
IMPORTANT! An equipotential grounding lug is
provided with this machine. Some countries require the
grounding lug to be properly attached to the rear of the
frame by the authorized installer. The installation location
is marked by the equipotential bonding symbol (5021 of
IEC 60417-1) on both the removable panel and the
machine's frame.
WARNING! Avoid injury.
•DO NOT allow untrained personnel to operate
this machine.
•DO NOT put objects or fingers in the door spout.
•DO NOT operate the machine unless all service
panels and access doors are fastened with
screws.
•DO NOT remove the machine door or beater
assembly unless the control switches are in the
OFF position.
Failure to follow these instructions may result in severe
personal injury, especially to fingers or hands, from
hazardous moving parts.
WARNING! This machine has many sharp
edges that can cause severe injuries.
•DO NOT put objects or fingers in the door
spout. This may contaminate the product and
cause severe personal injury from blade
contact.
•USE EXTREME CAUTION when removing the
beater assembly. The scraper blades are very
sharp.
•USE EXTREME CAUTION when handling the
cup/cone dispenser (if supplied with machine).
Two people are required to handle the cup/cone
dispenser. The appropriate type of protective
gloves must be worn and the mounting holes
must NOT be used to lift or hold the dispenser.
Failure to follow these instructions can result in personal
injury or damage to the machine.
WARNING! DO NOT attempt to draw product or
disassemble the machine during the Heat Treatment
cycle (if equipped). The product is hot and under extreme
pressure. Severe burns from hot product may result if this
instruction is not followed.
CAUTION! This machine must be placed on a
level surface. Extreme care should be taken when
moving for any reason. Two or more persons are
required to safely move this machine. Failure to comply
may result in personal injury or damage to the machine.
DANGER! Some consumers are highly allergic
to strawberries. In some severe cases, allergic reactions
to strawberries can cause death.
When blending natural strawberry products, make sure
excess product is removed from the pitcher to eliminate
product carryover.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
NOTICE! Cleaning and sanitizing schedules
are governed by your federal, state, or local regulatory
agencies and must be followed accordingly. Please refer
to the cleaning section of this manual for the proper
procedure to clean this machine.

SAFETY
3-3
Model PH61
Safety
3
CAUTION! This machine is equipped with a
refrigerated cabinet designed to maintain product
temperature at or below 41°F (5°C). Before replenishing
the mix supply, the product must be refrigerated at or
below 41°F (5°C). Failure to follow this instruction may
result in health hazards and poor freezer performance.
DO NOT run the machine without product. Failure to
follow this instruction can result in damage to the
machine.
DO NOT obstruct air intake and discharge openings. A
minimum of 3 in. (76 mm) air clearance on both sides of
the machine is required. It is recommended to place the
rear of the machine against the wall to prevent the
recirculation of warm air. Failure to follow this instruction
may cause poor freezer performance and damage to the
machine.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of
70°F to 75°F (21°C to 24°C). The machine has
successfully performed in high ambient temperatures of
up to 104°F (40°C) at reduced capacities.
Noise Level: Airborne noise emission does not exceed
78 dB(A) when measured at a distance of 39 in. (1.0 m)
from the surface of the machine and at a height of 62 in.
(1.6 m) from the floor.

3-4
SAFETY
Model PH61 Safety
3
Notes:

Section 4
4-1
Model PH61
Operator Parts Identification
4
Model PH61
Figure 4-1
1
2
6
4
5
25
24
23
19
18
17
22
16
26
3
7
11
8
9
12
13
15
14
10
21
20
Operator Parts Identification

4-2
OPERATOR PARTS IDENTIFICATION
Model PH61 Operator Parts Identification
4
Model PH61 Parts Identification
Item Description Part No.
1 Kit A.-Cover-Hopper X65369
2 Agitator A.-Mix Hopper-20 X44797
3 Pump A.-Mix Simplified Shake
(See Page 4-5)
X57028-14
4 Pan-Drip HT 048204
5 Panel-Rear· 048203
6 Guide A.-Drip Pan X45386
7 Panel-Side-Upper-Right 056013
8 Trim-Rear Corner R. 045517
Trim-Rear Corner L. 045516
9 Adaptor A.-Caster X18915
10 Caster-4" SWV 5/8 Stem 018794
11 Panel-Lower Side R. PH61 034680
12 Screw-1/4-20X3/8 SLTD RND 011694
13 Fastener-Clip 1/4-20 U-Type 045865
Item Description Part No.
14 Caster-4" SWV 5/8 Stem W/Brake 034081
15 Door A.-Syrup Cabinet X45325
16 Tank-SYR-4·QT 045533
17 Tray-Drip 14-7/8L X 5-1/8 SG 013690
18 Shield-Splash 18" 022763
19 Pan A.-Drip X28142
20 Panel A.-Front X55436
21 Decal-Dec-Taylor 052280
22 Panel A.-Lower Side X24397
23 Panel-Side-Upper-Left 056012
24 Washer-Plastic Pivot 013808
25 Screw-10-24x1/2 Torx 002077
26 Pin-Retaining-Hopper Cover 043934

OPERATOR PARTS IDENTIFICATION
4-3
Model PH61
Operator Parts Identification
4
Beater and Door Assembly
Figure 4-2
6
2
17
7
3
1
8
4
9
10
5
19
18 11
14
13
15
16
12

4-4
OPERATOR PARTS IDENTIFICATION
Model PH61 Operator Parts Identification
4
Beater and Door Assembly Parts Identification
Item Description Part No.
1 Shaft-Beater-7 Qt. Fluted 050985
2 Blade-Scraper 041103
3 Seal-Drive Shaft 032560
4 Bearing-Front 055605
5 O-ring - Freezer Door 033493
6 Door A.-1 SPT-4 FLV-HT X55724-SER
7 Handscrew (Stud Nut) 034034
8 O-ring - Pivot Pin 016272
9 Pin A.-Pivot X22820
10 Handle-Draw Valve 034003
Item Description Part No.
11 Valve A.-Draw X42210
12 O-ring - Draw Valve 020571
13 Seal-Spinner Shaft 084696
14 Spinner-Driven 034054
15 Blade A.-Spinner X41895
16 Cap-Restrictor 033107
17 Beater A.-Shake X50958
18 Plug-Syrup Hole 026278
19 O-ring 024278

OPERATOR PARTS IDENTIFICATION
4-5
Model PH61
Operator Parts Identification
4
X57028-14 Pump A.—Mix Simplified
Figure 4-3
41
214
10 d
11
8
10 b
10 a
10
9
12
13
7
6
4
3
85
10 c
Item Description Part No.
1-7 Pump A.-Mix Simplified Shake X57028-14
1 Cylinder-Pump Hopper Shake 057944
2 Pin-Retaining X55450
3 Piston-Pump-Simplified 053526
4 O-ring-Pkg *50 per Bag* 020051
5 Cap-Valve Body Shake 056873-14
6 Gasket-Simplified Pump Valve 086097
7 Adaptor-Mix Inlet-Shake- Blue 054944
8 O-ring Pkg 016132
9 Pin-Cotter-Hairpin-1/8 Dia 044731
Item Description Part No.
10 Shaft A.-Drive-Mix Pump- Hopper X41947
10a Crank-Drive-Hopper Mix Pump 039235
10b Shaft-Drive-Mix Pump-Hopper 041948
10c O-ring-Pkg *25 per Bag* 048632
10d O-ring-Pkg *25 per Bag* 008904
11 Clip-Retainer-Mix Pump 044641
12 Tube A.-Feed-Hopper- Shake X56522
13 Ring-Check-Feed-Tube 056524
14 Sleeve A.-Mix Pump X44761

4-6
OPERATOR PARTS IDENTIFICATION
Model PH61 Operator Parts Identification
4
Accessories
Figure 4-4
*Not Shown
2
4
1
6
3
7
5
Item Description Part No.
1 Sanitizer Stera Sheen Green 055492
2 Lubricant-Taylor Hi-Perf. 048232
3 Pail-10 Qt. 013163
4 Bottle A.-Squeeze X45080
5 Tool-Shaft-Drive Pump HPR/LVB 047919
6 Tool-Shaft-Drive Pump HPR 057167
7 Tool-Seal-Install/Remove 035460
Item Description Part No.
* Kit A.-Parts Tray SIMPL PMP
(Consists of 056525 & 044118
Trays - see parts list, page No
Tag )
X58447
* Kit A.-Accessory PH61
Consists of:
X44797 Agitator, 
X54704 Cap, 
033107 Cap Restrictor, 
041923 O-Ring
054916 Blade Agitator
X66408
* Kit-Tune Up SIMPL Pump X49463-63
