Taylor 60 User manual

OPERATOR’S 
MANUAL
Model 60 and 62
Shake Freezers
Original Operating Instructions
051059-M 4/00 (Original Publication)
(Updated 3/27/2020)

Complete this page for quick reference when service is required:
Taylor distributor: __________________________________________________________
Address:_________________________________________________________________
Phone: __________________________________________________________________
Service: _________________________________________________________________
Parts: ___________________________________________________________________
Date of Installation: ________________________________________________________
Information found on the data label:
Model Number: ___________________________________________________________
Serial Number: ____________________________________________________________
Electrical Specs: Voltage__________________ Cycle__________
Phase__________________________________
Maximum Fuse Size: ______________________________________________________ A
Minimum Wire Ampacity: ___________________________________________________ A
Note: Continuing research results in steady improvements; therefore, information in this manual is subject to change
without notice.
Note: Only instructions originating from the factory or its authorized translation representative(s) are considered to be
the original set of instructions.
© March 2000 Taylor Company (Original Publication)
(Updated 3/27/2020)
051059-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be
a violation of Copyright Law of the United States of America and other countries, could result in the awarding of
Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal
penalties. All rights reserved.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

Table of Contents
051059-M i
Section 1: To the Installer
Installer Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Air-Cooled Machines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Water Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Electrical Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Section 2: To the Operator
Compressor Warranty Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Section 3: Safety
Section 4: Operator Parts Identification

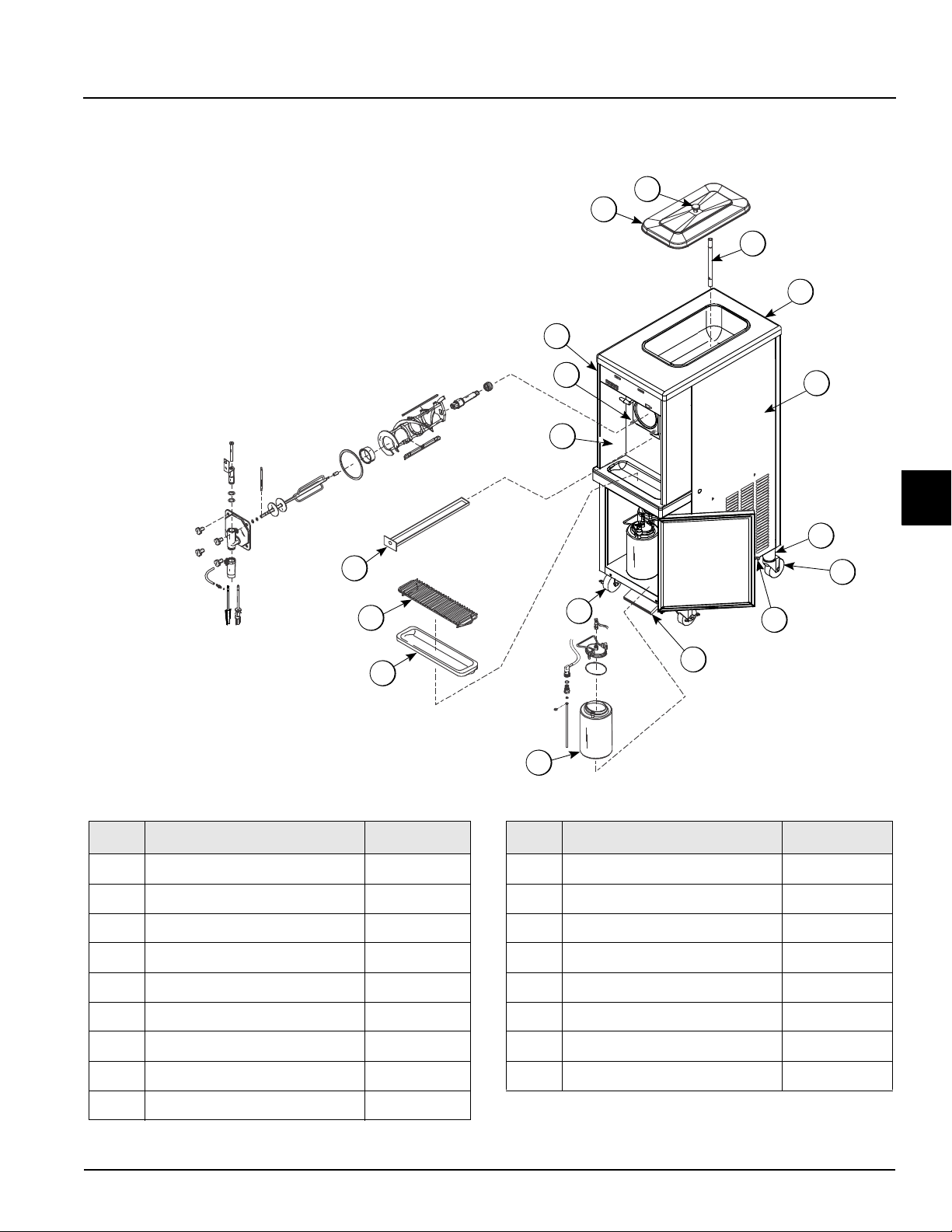

Model 60 Exploded View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Model 62 Exploded View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

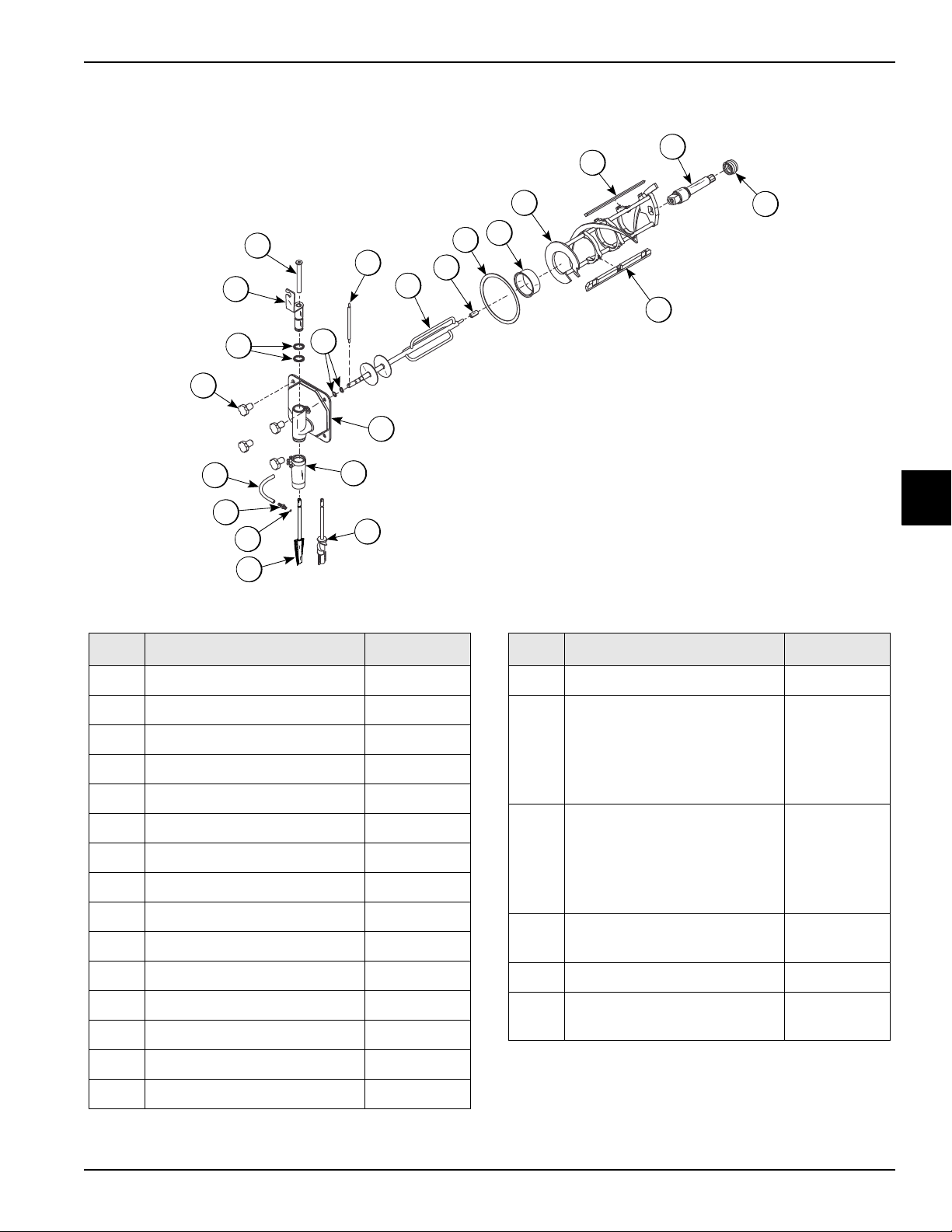

Door and Beater Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Section 5: User Interface
Symbol Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Control Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Dial Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
Indicator Light—MIX LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Indicator Light—MIX OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Reset Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Consistency Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Spinner Rinse Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Auto Lift Switch (Model 60 Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Foot Pedal (Model 60 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Flavor Selector Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

ii 051059-M
Table of Contents
Section 6: Operating Procedures
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Sanitizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6
Priming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7
Syrup System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Drawing Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Closing Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
Draining Product From the Freezing Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
Brush-Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
Sanitizing Syrup System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
Section 7: Operator’s Checklist
During Cleaning and Sanitizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Troubleshooting Bacterial Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Regular Maintenance Checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Winter Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Section 8: Troubleshooting Guide
Section 9: Parts Replacement Schedule
Section 10: Limited Warranty on Equipment
Section 11: Limited Warranty on Parts

Section 1
1-1
Models 60 and 62
To the Installer
1
To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For complete
installation instructions, please see the installation
checklist.
Installer Safety
IMPORTANT! In all areas of the world,
machines should be installed in accordance with existing
local codes. Please contact your local authorities if you
have any questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing of Taylor machines.
• Only Taylor service technicians should perform
installation, maintenance, and repairs on Taylor
machines.
• Taylor service technicians should consult OSHA
Standard 29CFRI910.147 or the applicable
code of the local area for industry standards on
lockout/tagout procedures before beginning any
installation or repairs.
• Taylor service technicians must ensure that the
proper personal protective equipment (PPE) is
available and worn when required during
installation and service.
• Taylor service technicians must remove all
metal jewelry, rings, and watches before
working on electrical equipment.
DANGER! The main power supply(s) to the
machine must be disconnected prior to performing any
installation, maintenance, or repairs. Failure to follow this
instruction may result in personal injury or death from
electrical shock or hazardous moving parts, as well as
poor performance or damage to the machine.
WARNING! This machine has many sharp
edges that can cause severe injuries.
Site Preparation
Review the area where the machine will be installed
before uncrating it. Make sure all possible hazards to the
user or machine have been addressed.
Uncrate the machine and inspect it for damage. Report
any damage to the Taylor distributor.
This machine is made in the USA and uses USA
hardware sizes. All metric conversions are approximate.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of
70°F to 75°F (21°C to 24°C). The freezer has
successfully performed in high ambient temperatures of
104°F (40°C) at reduced capacities.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
CAUTION! This machine must be installed on
a level surface to avoid the hazard of tipping. Extreme
care should be taken in moving this machine for any
reason. Two or more persons are required to safely move
this machine. Failure to comply may result in personal
injury or machine damage.

1-2
TO THE INSTALLER
Models 60 and 62 To the Installer
1
Air-Cooled Machines
Do not obstruct air intake and discharge openings:
Air-cooled machines require a minimum of 6 in. (152 mm)
of clearance around all sides and 7- 1/2 in. (191 mm) on
the bottom to allow for adequate airflow across the
condenser. Failure to provide this clearance can reduce
the refrigeration capacity of the freezer and possibly
cause permanent damage to the compressor.
Water Connections
(Water-Cooled Machines Only)
An adequate cold water supply must be provided with a
hand shutoff valve. On the underside rear of the base
pan, two 3/8 in. I.P.S. water connections for inlet and
outlet have been provided for easy hookup. The 1/2 in.
inside diameter water lines should be connected to the
machine. (Flexible lines are recommended, if local codes
permit.) Depending on local water conditions, it may be
advisable to install a water strainer to prevent foreign
substances from clogging the automatic water valve.
There will be only one water-in and one water-out
connection. Do not install a hand shutoff valve on the
water-out line. Water should always flow in this order:
first, through the automatic water valve; second, through
the condenser; and third, through the outlet fitting to an
open trap drain.
IMPORTANT! A backflow prevention device is
required on the incoming water connection side. Please
see the applicable national, state, and local codes for
determining the proper configuration.
Electrical Connections
In the United States, this machine is intended to be
installed in accordance with the National Electrical Code
(NEC), ANSI/NFPA 70-1987. The purpose of the NEC
code is the practical safeguarding of persons and
property from hazards arising from the use of electricity.
This code contains provisions considered necessary for
safety. In all other areas of the world, machines should
be installed in accordance with the existing local codes.
Please contact your local authorities.
Each freezer requires one power supply. Check the data
label on the freezer for branch circuit overcurrent
protection or fuse, circuit ampacity, and electrical
specifications. Refer to the wiring diagram provided
inside of the control box for proper power connections.
WARNING! This machine must be properly
grounded. Failure to do so can result in severe personal
injury from electrical shock.
IMPORTANT! This machine is provided with
an equipotential grounding lug that is to be properly
attached to the rear of the frame by the authorized
installer. The installation location is marked by the
equipotential bonding symbol (5021 of IEC 60417-1) on
the removable panel and the frame.
IMPORTANT!
• Stationary machines which are not equipped
with a power cord and a plug or another device
to disconnect the machine from the power
source must have an all-pole disconnecting
device with a contact gap of at least 0.125 in.

(3 mm) in the external installation.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by authorized personnel to local
codes.
• Supply cords used with this machine shall be

oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.

If the supply cord is damaged, it must be
replaced by a Taylor service technician to avoid
a hazard.
FOLLOW YOUR LOCAL ELECTRICAL CODES.

TO THE INSTALLER
1-3
Models 60 and 62
To the Installer
1
Beater Rotation
NOTICE! Beater rotation must be clockwise as
viewed looking into the freezing cylinder.
To correct the rotation on a three-phase machine,
interchange any two incoming power supply lines at the
freezer main terminal block only.
To correct rotation on a single-phase machine, exchange
leads inside the beater motor. (Follow the diagram
printed on the motor.)
Electrical connections are made directly to the terminal
block provided in the main control box, located on the
right side of the machine.
It is recommended that beater rotation adjustment be
performed by a Taylor service technician.
Refrigerant
CAUTION! This machine contains fluorinated
greenhouse gases (F-Gas) to provide refrigeration using
a hermetically sealed circuit or within foam insulation.
This machine’s type of gas, quantity, Global Warming
Potential (GWP), and CO2tonnes equivalent information
is recorded on the machine’s data label. The refrigerant
used is generally considered nontoxic and
nonflammable. However any gas under pressure is
potentially hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with liquid.
Filling the cylinder approximately 80% will allow for
normal expansion.
CAUTION! Use only approved refrigerant
listed on the machine's data label or authorized through a
manufacturer's technical bulletin. The use of any other
refrigerant may expose users and operators to
unexpected safety hazards.
WARNING! Refrigerant liquid sprayed onto the
skin may cause serious damage to tissue. Keep eyes
and skin protected. If refrigerant burns should occur,
flush the area immediately with cold water. If burns are
severe, apply ice packs and contact a physician
immediately.
NOTICE! Taylor reminds technicians to be
aware of and in compliance with local government laws
regarding refrigerant recovery, recycling, and reclaiming
systems. For information regarding applicable local laws,
please contact your local authorized Taylor distributor.
IMPORTANT! Refrigerants and their
associated lubricants may be extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.

1-4
TO THE INSTALLER
Models 60 and 62 To the Installer
1
Notes:

Section 2
2-1
Models 60 and 62
To the Operator
2
To the Operator
The freezer you have purchased has been carefully
engineered and manufactured to give you dependable
operation. The Taylor Models 60 and 62, when properly
operated and cared for, will produce a consistent quality
product. Like all mechanical products, these machines
will require cleaning and maintenance. A minimum
amount of care and attention is necessary if the operating
procedures outlined in this manual are followed closely.
This Operator’s Manual should be read before operating
or performing any maintenance on your machine.
Taylor Models 60 and 62 will not eventually compensate
for and correct any errors during the setup or filling
operations. Thus, the initial assembly and priming
procedures are of extreme importance. It is strongly
recommended that personnel responsible for the
machine’s operation, both assembly and disassembly, go
through these procedures together to be properly trained
and to make sure that no confusion exists.
If you require technical assistance, please contact your
local Taylor distributor.
Note: Your Taylor warranty is valid only if the parts are
authorized Taylor parts, purchased from the local
authorized Taylor distributor, and only if all required
service work is provided by a Taylor service technician.
Taylor reserves the right to deny warranty claims on
machines or parts if non-Taylor-approved parts or
incorrect refrigerant were installed in the machine,
system modifications were performed beyond factory
recommendations, or it is determined that the failure was
caused by abuse, misuse, neglect, or failure to follow all
operating instructions. For full details of your Taylor
warranty, please see the Limited Warranty section in this
manual.
IMPORTANT! If the crossed-out wheeled bin
symbol is affixed to this machine, it signifies that this
machine is compliant with the EU directives as well as
other similar end-of-life legislation in effect after August
13, 2005. Therefore, it must be collected separately after
its use is completed and cannot be disposed as unsorted
municipal waste.
The user is responsible for delivering the machine to the
appropriate collection facility as specified by your local
code.
For additional information regarding applicable local
disposal laws, please contact the municipal waste facility
and/or local authorized Taylor distributor.
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this machine are
warranted for the term stated in the Limited Warranty
section in this manual. However, due to the Montreal
Protocol and the U.S. Clean Air Act Amendments of
1990, many new refrigerants are being tested and
developed, thus seeking their way into the service
industry. Some of these new refrigerants are being
advertised as drop-in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this machine’s refrigeration system,
only the refrigerant specified on the affixed data label
should be used. The unauthorized use of alternate
refrigerants will void your Taylor compressor warranty. It
is the machine owner’s responsibility to make this fact
known to any technician they employ.
It should also be noted that Taylor does not warrant the
refrigerant used in its machines. For example, if the
refrigerant is lost during the course of ordinary service to
this machine, Taylor has no obligation to either supply or
provide its replacement either at billable or unbillable
terms. Taylor does have the obligation to recommend a
suitable replacement if the original refrigerant is banned,
obsoleted, or no longer available during the 5-year
warranty of the compressor.
The Taylor Company will continue to monitor the industry
and test new alternates as they are being developed.
Should a new alternate prove, through our testing, that it
would be accepted as a drop-in replacement, then the
above disclaimer would become null and void. To find out
the current status of an alternate refrigerant as it relates
to your compressor warranty, call the local Taylor
distributor or the Taylor factory. Be prepared to provide
the model and serial number of the machine in question.

2-2
TO THE OPERATOR
Models 60 and 62 To the Operator
2
Notes:

Section 3
3-1
Models 60 and 62
Safety
3
Safety
We at Taylor Company are concerned about the safety of
the operator when he or she comes in contact with the
freezer and its parts. Taylor has gone to extreme efforts
to design and manufacture built-in safety features to
protect both the operator and the service technician. As
an example, warning labels have been attached to the
freezer to further point out safety precautions to the
operator.
DANGER! Failure to adhere to the following
safety precautions may result in severe personal injury or
death. Failure to comply with these warnings may also
damage the machine and/or its components. Such
damage may require component replacement and
service repair expenses.
NOTICE! DO NOT operate the machine
without reading the Operator’s Manual. Failure to follow
this instruction may result in machine damage, poor
machine performance, health hazards, or personal injury.
IMPORTANT! This machine is to be used only
by trained personnel. It is not intended for use by children
or people with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge, unless
given supervision or instruction concerning the use of the
machine by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the machine.
IMPORTANT! This machine is provided with
an equipotential grounding lug that is to be properly
attached to the rear of the frame by the authorized
installer. The installation location is marked by the
equipotential bonding symbol (5021 of IEC 60417-1) on
the removable panel and the frame.
WARNING! Avoid injury.
•DO NOT operate this machine unless it is
properly grounded.
•DO NOT operate this machine with fuses larger
than specified on the data label.
•DO NOT operate this machine unless all service
panels and access doors are attached with
screws.
• All repairs must be performed by an authorized
Taylor service technician.
• The main power supplies to the machine must
be disconnected prior to performing any repairs.
• Only Taylor service technicians or licensed
electricians may install a plug or replacement
cord on this machine.
• Stationary machines which are not equipped
with a power cord and a plug or other device to
disconnect the machine from the power source
must have an all-pole disconnecting device with
a contact gap of at least 1/8 in. (3 mm) installed
in the external installation.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices such
as a GFI to protect against the leakage of
current installed by the authorized personnel to
the local codes.
• Supply cords used with this machine shall be 
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion. If the supply cord is damaged, it must
be replaced by the manufacturer, service agent,
or similarly qualified person to avoid a hazard.
Failure to follow these instructions may result in severe
injury or death from electrocution.

3-2
SAFETY
Models 60 and 62 Safety
3
WARNING! DO NOT use a water jet to clean
or rinse the machine. Failure to follow these instructions
may result in serious electrical shock.
WARNING! Avoid injury.
•DO NOT allow untrained personnel to operate
this machine.
•DO NOT operate the machine unless all service
panels and access doors are fastened with
screws.
•DO NOT remove any internal operating parts
(including, but not limited to the freezer door,
beater, or scraper blades) unless all control
switches are in the OFF position.
Failure to follow these instructions may result in severe
personal injury, especially to fingers or hands, from
hazardous moving parts.
WARNING! This machine has many sharp
edges that can cause severe injuries.
•DO NOT put objects or fingers in the door
spout. This may contaminate the product and
cause severe personal injury from blade
contact.
•USE EXTREME CAUTION when removing the
beater assembly. The scraper blades are very
sharp.
Failure to follow these instructions can result in personal
injury or damage to the machine.
IMPORTANT! Access to the service area of
the machine must be restricted to persons having
knowledge and practical experience with the machine, in
particular as far as safety and hygiene are concerned.
CAUTION! This machine must be placed on a
level surface. Use caution when moving the machine.
Failure to comply may cause the machine to tip over and
result in personal injury.
NOTICE! Cleaning and sanitizing schedules
are governed by your federal, state, or local regulatory
agencies and must be followed accordingly. Please refer
to the cleaning section of this manual for the proper
procedure to clean this machine.
CAUTION! This machine is designed to
maintain product temperature under 41°F (5C). Any
product being added to this machine must be below 41F
(5C). Failure to follow this instruction may result in
health hazards and poor machine performance.
Do not obstruct air intake and discharge openings:
Counter Models: 6” (152 mm) minimum airspace on both
sides. Place the rear of the machine against the wall to
prevent recirculation of warm air.
Console Models: 3” (76 mm) minimum airspace on each
side and rear of machine when air deflector is employed.
Failure to allow adequate clearance can reduce the
refrigeration capacity of the freezer and possibly cause
permanent damage to the compressor.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of 
70ºF to 75ºF (21ºC to 24ºC). The freezer has
successfully performed in high ambient temperatures of
104ºF (40ºC) at reduced capacities.
Do not run the machine without product. Failure to follow
this instruction can result in damage to the machine.
Noise Level: Airborne noise emission does not exceed
78 dB(A) when measured at a distance of 
39 in. (1.0 m) from the surface of the machine and at a
height of 63 in. (1.6 m) from the floor.

Section 4
4-1
Models 60 and 62
Operator Parts Identification
4
Model 60 Exploded View
Figure 4-1
1
2
5
3
10
13
11
9
1a
4
7
6
8
12
14
15
16
Item Description Part No.
1 Cover A.- Hopper- Std. X38458- SER
1a Knob-Mix Cover 025429
2 Tube- Feed- 1/4 Hole 015176-5
3 Panel- Rear w/Louvers 026980-SP
4 Panel-Side 067722
5 Adaptor A.- Caster X18915
6 Caster- Swv 5/8 Stem 4” Wheel 034081
7 Screw- 1/4- 20 x 3/8 Rhm- Stnls 011694
8 Pedal A.- Foot X48826
Item Description Part No.
9 Caster- 4” Swv 5/8 Stem w/Brake 034081
10 Tank- SYR- 4 Qt 045533
11 Tray- Drip 14.8 046275
12 Shield- Splash-Wire 13- 11/16 L 046177
13 Pan- Drip 19- 1/2 Long 035034
14 Panel A.- Front X46634
15 Stud- Nose Cone 5/16- 18 011390
16 Panel - Side 067721
Operator Parts Identification

4-2
OPERATOR PARTS IDENTIFICATION
Models 60 and 62 Operator Parts Identification
4
Model 62 Exploded View
Figure 4-2
1a
1
10
5
7
8
2
3
4
6
9
11
12
Item Description Part No.
1 Cover A.- Hopper- Std. X38458- SER
1a Knob-Mix Cover 025429
2 Tube- Feed- 1/4 Hole 015176-5
3 Panel-Rear 039021
4 Panel-Side-Right 085411
5 Skirt-Air Flow 049069
6 Leg-4” SS w/O-ring 013458
Item Description Part No.
7 Panel A.-Front X49996-1
8 Tray-Drip 16-7/8 L x 5-1/8 020157
9 Shield-Splash 022765
10 Pan-Drip 19-1/2 Long 035034
11 Stud-Nose Cone 5/16-18 x 3/8-1 011390
12 Panel A.-Side Left X85409

OPERATOR PARTS IDENTIFICATION
4-3
Models 60 and 62
Operator Parts Identification
4
Door and Beater Assembly
Figure 4-3
Items 19, 20, 21, and 17 used on Model 60 only
*Bulk Part Number is R30314
**Not Shown
14
13
12
8
7
3
2
10
1
4
12
5
6
11
15
17
18
19
20
21
9
16
Item Description Part No.
1 Nut-Stud 021508
2 O-ring- 1- 1/16 OD X .139W 084545
3 Valve A.-Draw X46671
4 Bearing-Spinner 017032
5 O-ring-.291 ID x .080W 018550
6 Arm-Torque 014500
7 Torque A. X17381
8 Bearing-Guide 014496
9 Gasket-Door 016672
10 Bearing-Front 013116
11 Beater A.-7QT-1 Pin X46233
12 Blade-Scraper-Plastic 9-13/16L 084950
13 Shaft-Beater 035527
14 Seal- Drive Shaft 032560
15 Door A.-Partial-1 SPT X17373-SER
Item Description Part No.
16 Housing-Spinner *4 SPIG 017269
17 Blade A.-Spinner 8-3/8”
(Not used in 006227CANH,
006233CANH, 006027CANH,
006033CANH, 0H6027CWMK and
0H6033CWMK)
X35570
18 Blade A.-Spinner (Used in
006227CANH, 006233CANH,
006027CANH, 006033CANH,
0H6027CWMK and
0H6033CWMK only)
X16961
19 O-ring-5/16 OD x .070W
(Model 60)
016272
20 Fitting-QD Male Insert (Model 60) 036296
*21 Tube-Vinyl 3/16ID x 1/16 Wall
(Model 60)
020940-6

4-4
OPERATOR PARTS IDENTIFICATION
Models 60 and 62 Operator Parts Identification
4
Accessories
Figure 4-4
*Not used on chocalate
8
4
3
1a
1
7
6
5
1c
21b
4a
4b
6b
6a
1d
Item Description Part No.
1 Tank-SYR-4 Qt. 045533
1a Cover-Tank 8 Qt. w/Inlet FTG. 035759-1
1b Tip-Nylon-White Translucent 042747
1c O-ring-3.437 ID x .275 W 016037
1d O-ring-.291 ID x .080 W 018550
2 Plug-Q.D. CO2 1/8 MP 021077
3 Socket-Q.D. CO2 90 1/4 Barb 021524
4 Socket-Q.D. Liq.- 90 1/4 Barb 021026
Item Description Part No.
*4a Restrictor-Syrup 025816
4b Gasket-Rubber 023551
5 O-ring-5/8 OD x .103 W 016030
6 Plug-Q.D. Liq. 3/4-18 FP 021081
6a Valve A.-Q.D. Plug 021081-2
6b Insert 021081-1
7 Decal-Set 4 Syrup Flavor 021523
8 Decal-Syrup Tank Instruction 045533-1

Section 5
5-1
Models 60 and 62
User Interface
5
User Interface
Figure 5-1
2
1
3
4
5
6
7
Item Description
1Auto Lift Switch
2Flavor Selector Switches
3Indicator Lights
4Dial Light
Item Description
5 Spinner Rinse Switch
6Control Switch
7Consistency Control (Switch- Torque)

5-2
USER INTERFACE
Models 60 and 62 User Interface
5
Symbol Definitions
To better communicate in the international arena, many
of our operator switches and buttons use symbols to
indicate their functions. Your Taylor machine is designed
with these international symbols.
The following chart identifies the symbol definitions:
= ON/AUTO
= OFF
= MIX Button
= WASH
= MIX LOW
= MIX OUT
= HEAT MODE
= FILL Button
= RINSE Button
Control Switch
The center position is OFF. The left position is WASH,
which activates the beater motor only. The right position
is AUTO. It activates the beater motor and the
refrigeration system. To activate the refrigeration system,
raise the draw arm momentarily.
Dial Light
A red dial light is on the right side of the control switch.
When the control switch is in the AUTO position, this light
will come on, indicating that the refrigeration system is
operable.
Indicator Light—MIX LOW
The MIX LOW indicator light is on the front of the
machine directly above the flavor selector switch. When
the light flashes, it indicates that the mix hopper has a
low supply of mix and should be refilled as soon as
possible. If mix is not added, a starved freezing cylinder
will cause damage to the beater, blades, and driveshaft.
Indicator Light—MIX OUT
A MIX OUT indicator light is on the front of the machine
directly above the control switch. When the light is on, the
machine will shut down to prevent a starved freezing
cylinder.
Reset Mechanism
CAUTION! DO NOT use metal objects to press
the RESET button. Failure to follow this instruction may
result in electrocution.
The reset protects the beater motor from overloading. If
an overload occurs, the reset mechanism will trip. To
properly reset the freezer, set the control switch to OFF.
Lift up the right upper-side panel and press the RESET
button firmly. Turn the control switch to WASH and
observe the freezer’s performance. Return the control
switch to the AUTO position to resume normal operation.
If the reset mechanism should trip again, contact your
Taylor distributor to resolve the problem.
Figure 5-2

USER INTERFACE
5-3
Models 60 and 62
User Interface
5
Consistency Control
The viscosity (thickness) of the shake is controlled by a
sensing device called the consistency control. The
consistency control knob is below the control switch. To
achieve a thicker shake, turn the knob clockwise. For a
thinner shake, turn the knob counterclockwise.
The refrigeration system must cycle on and off two or
three times before an accurate consistency can be
evaluated.
See Figure 5-1 on page 5-1.
Spinner Rinse Switch
The spinner rinse switch is next to the consistency
control knob. To clean syrup residue from the spinner
housing:
1. Place the control switch in the AUTO position.
2. Hold a cup under the spinner housing.
3. Press the spinner rinse switch. Water will flow until
the switch is released.
4. Release the switch when the housing has been
thoroughly rinsed.
See Figure 5-1 on page 5-1.
Auto Lift Switch (Model 60 Only)
The auto lift switch is below the flavor selector switch.
The auto lift switch may be used to draw product. Press
the switch. Just before the desired level in the cup is
reached, release the switch. The draw arm will lower the
draw valve and the product will stop flowing.
See Figure 5-1 on page 5-1.
Foot Pedal (Model 60 Only)
The foot pedal is on the lower front of the machine. The
foot pedal may be used to draw product from the Model
60. Press the foot pedal. Just before the desired level in
the cup is reached, release the foot pedal. The draw arm
will lower the draw valve and the product will stop
flowing.
Figure 5-3
Flavor Selector Switch
The flavor selector switch consists of four flavor buttons.
The left button (CHERRY) controls the No. 1 tank and its
lines. The second button (STRAW) from the left controls
the No. 2 tank and its lines. The third button (CHOC) from
the left controls the No. 3 tank and its lines. The right
selector button (VAN) is the Off button and may be used
to dispense unflavored product as a vanilla shake.
See Figure 5-1 on page 5-1.

5-4
USER INTERFACE
Models 60 and 62 User Interface
5
Notes:
