Taylor C001 User manual

OPERATOR’S 
MANUAL
Model C001 and C002
Custard Freezers
5/28/08 (Original Publication)
(Updated 8/18/2020)
Original Operating Instructions
055073-M

Complete this page for quick reference when service is required:
Taylor distributor: __________________________________________________________
Address:_________________________________________________________________
Phone: __________________________________________________________________
Fax: ____________________________________________________________________
E-mail: __________________________________________________________________
Service: _________________________________________________________________
Parts: ___________________________________________________________________
Date of Installation: ________________________________________________________
Information found on the data label:
Model Number: ___________________________________________________________
Serial Number: ____________________________________________________________
Electrical Specs: Voltage__________________ Cycle____________________
Phase____________________________________________
Maximum Fuse Size: ______________________________________________________ A
Minimum Wire Ampacity: ___________________________________________________ A
Note: Continuing research results in steady improvements; therefore, information in this manual is subject
to change without notice.
Note: Only instructions originating from the factory or its authorized translation representative(s) are

considered to be the original set of instructions.
© 2008 Taylor Company
(Updated 8/18/2020)
055073-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be
a violation of Copyright Law of the United States of America and other countries, could result in the awarding of
Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal
penalties. All rights reserved.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072

Table of Contents
055073-M i
Section 1: To the Installer
Installer Safety ........................................................................................................1-1
Site Preparation ......................................................................................................1-1
Air-Cooled Machines...............................................................................................1-2
Water Connections..................................................................................................1-2
Electrical Connections.............................................................................................1-2
Dasher (Beater) Rotation ........................................................................................1-3
Refrigerant ..............................................................................................................1-3
Section 2: To the Operator
Section 3: Safety
Section 4: Operator Parts Identification
C001 Exploded View...............................................................................................4-1
C002 Exploded View...............................................................................................4-3
Dasher (Beater) and Door Assembly ......................................................................4-5
Accessories.............................................................................................................4-6
Section 5: User Interface
C001........................................................................................................................5-1
C002........................................................................................................................5-2
Symbol Definitions ..................................................................................................5-3
Section 6: Operating Procedures
Assembly.................................................................................................................6-1
Sanitizing.................................................................................................................6-4
Priming for Continuous Run....................................................................................6-4
Stopping a Continuous Run for a Short Period of Time..........................................6-5
To Restart the Continuous Run:..............................................................................6-5
Closing Procedure...................................................................................................6-6
Draining Product From the Freezing Cylinder.........................................................6-6
Rinsing ....................................................................................................................6-6
Cleaning..................................................................................................................6-6
Disassembly............................................................................................................6-7
Brush-Cleaning .......................................................................................................6-7
Section 7: Important: Operator Checklist
During Cleaning and Sanitizing...............................................................................7-1
Troubleshooting Bacterial Count.............................................................................7-1
Regular Maintenance Checks.................................................................................7-2
Winter Storage ........................................................................................................7-2

ii 055073-M
Section 8: Troubleshooting Guide
Section 9: Parts Replacement Schedule
Section 10: Limited Warranty on Machines
Section 11: Limited Warranty on Parts

Section 1
1-1
Models C001 and C002
To the Installer
1
To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For complete
installation instructions, please see the Installation
Checklist.
Installer Safety
IMPORTANT! In all areas of the world,
machines should be installed in accordance with existing
local codes. Please contact your local authorities if you
have any questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and service
of Taylor machines.
• Only Taylor service personnel should perform
installation and repairs on the machine.
• Authorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the industry
standards on lockout/tagout procedures before
beginning any installation or repairs.
• Authorized service personnel must ensure that
the proper personal protective equipment (PPE)
is available and worn when required during
installation and service.
• Authorized service personnel must remove all
metal jewelry, rings, and watches before
working on electrical equipment.
DANGER! The main power supply(s) to the
machine must be disconnected prior to performing any
repairs. Failure to follow this instruction may result in
personal injury or death from electrical shock or
hazardous moving parts, as well as poor performance or
damage to the machine.
WARNING! This machine has many sharp
edges that can cause severe injuries.
Site Preparation
Review the area where the machine will be installed
before uncrating. Make sure that all possible hazards to
the user and the machine have been addressed.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of 
70°F to 75°F (21°C to 24C). The freezer has
successfully performed in high ambient temperatures of
104°F (40°C) at reduced capacities.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
CAUTION! This machine must be installed on
a level surface to avoid the hazard of tipping. Extreme
care should be taken in moving this machine for any
reason. Two or more persons are required to safely move
this machine. Failure to comply may result in personal
injury or machine damage.
Uncrate the machine and inspect it for damage. Report
any damage to your Taylor distributor.
This machine is made in the USA and uses USA
hardware sizes. All metric conversions are approximate.
!

1-2
TO THE INSTALLER
Models C001 and C002 To the Installer
1
Air-Cooled Machines
Do not obstruct air intake and discharge openings.
Air-cooled machines require a minimum of 3 in. (76 mm)
of clearance around all sides of the freezer. Install the
deflector provided to prevent recirculation of warm air.
Failure to allow adequate clearance can reduce the
refrigeration capacity of the freezer and possibly cause
permanent damage to the compressors.
Water Connections
(Water-Cooled Machines Only)
An adequate cold water supply must be provided with a
hand shut-off valve. On the underside rear of the base
pan, two 1/2 in. (13 mm) I.P.S. water connections for inlet
and outlet have been provided for easy hook-up. 
Permanently connect the machine using 1/2 in. 
(12.7 mm) inside diameter water lines. (Flexible lines are
recommended, if local codes permit.) Depending on local
water conditions, it may be advisable to install a water
strainer to prevent foreign substances from clogging the
automatic water valve. There will be only one water-in
and one water-out connection. Do not install a hand
shut-off valve on the water-out line. Water should always
flow in this order: first, through the automatic water valve;
second, through the condenser; and third, through the
outlet fitting to an open trap drain.
IMPORTANT! A backflow prevention device is
required on the incoming water connection side. Please
see the applicable national, state, and local codes for
determining the proper configuration. Water pressure to
the unit must not exceed 150 psi (1034 kPa).
Electrical Connections
IMPORTANT! In the United States, this
machine is intended to be installed in accordance with
the National Electrical Code (NEC), ANSI/NFPA 701987.
The purpose of the NEC code is the practical
safeguarding of persons and property from hazards
arising from the use of electricity. This code contains
provisions considered necessary for safety.
In all other areas of the world, the machine should be
installed in accordance with the existing local codes.
Please contact your local authorities if you have any
questions.
Each machine requires one power supply for each data
label on the machine. Check the data label(s) on the
machine for branch circuit overcurrent protection or fuse,
circuit ampacity, and other electrical specifications.
See the wiring diagram provided inside the electrical box
for proper power connections.
WARNING! This machine must be properly
grounded! Failure to do so can result in severe personal
injury from electrical shock!
IMPORTANT! This machine is provided with
an equipotential grounding lug that is to be properly
attached to the rear of the frame by the authorized
installer. The installation location is marked by the
equipotential bonding symbol (5021 of IEC 60417-1) on
the removable panel and the frame.
!
FOLLOW YOUR LOCAL ELECTRICAL CODES.

TO THE INSTALLER
1-3
Models C001 and C002
To the Installer
1
WARNING! Avoid injury.
•DO NOT operate the machine unless it is
properly grounded.
•DO NOT operate the machine with fuses larger
than specified on the machine's data label.
• All repairs should be performed by an
authorized Taylor service technician.
• The main power supplies to the machine must
be disconnected prior to performing installation,
repairs, or maintenance.
•For Cord-Connected Machines: Only Taylor
service technicians or licensed electricians may
install a plug or replacement cord on the
machine.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by the authorized personnel to
local codes.
• Stationary machines that are not equipped with
a power cord and a plug or another device to
disconnect the appliance from the power source
must have an all-pole disconnecting device with
a contact gap of at least 0.125 in. (3 mm) in the
external installation.
• Supply cords used with this machine shall be 
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by the manufacturer, service agent, or
a similarly qualified person to avoid a hazard.
• Secure supply cord ground lead to machine in a
location where if the cord is pulled the main
power leads become taut before the ground
lead can break loose.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
distributor for service.
Dasher (Beater) Rotation
NOTICE! Dasher (beater) rotation must be
clockwise as viewed looking into the freezing cylinder. As
a safety feature, the dasher will not operate without the
freezer door in place.
Note: The following procedures must be performed
by a Taylor service technician.
To correct the rotation on a three-phase machine,
interchange any two incoming power supply lines at
freezer main terminal block only.
To correct rotation on a single-phase machine, change
the leads inside the dasher motor. (Follow the diagram
printed on the motor.)
Electrical connections are made directly to the terminal
block. The terminal block is provided in the control box
located behind the lower front panel.
Refrigerant
CAUTION! This machine contains fluorinated
greenhouse gases (F-Gas) to provide refrigeration using
a hermetically sealed circuit or within foam insulation.
This machine's type of gas, quantity, Global Warming
Potential (GWP), and CO2tonnes equivalent information
is recorded on the machine's data-label. The refrigerant
used is generally considered nontoxic and
nonflammable. However any gas under pressure is
potentially hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with liquid.
Filling the cylinder approximately 80% will allow for
normal expansion

1-4
TO THE INSTALLER
Models C001 and C002 To the Installer
1
CAUTION! Use only approved refrigerant
listed on the machine's data label or authorized through a
manufacturer's technical bulletin. The use of any other
refrigerant may expose users and operators to
unexpected safety hazards.
WARNING! Refrigerant liquid sprayed onto the
skin may cause serious damage to tissue. Keep eyes
and skin protected. If refrigerant burns should occur,
flush the area immediately with cold water. If burns are
severe, apply ice packs and contact a physician
immediately.
NOTICE! Taylor reminds technicians to be
aware of and in compliance with local government laws
regarding refrigerant recovery, recycling, and reclaiming
systems. For information regarding applicable local laws,
please contact your local authorized Taylor distributor.
IMPORTANT! Refrigerants and their
associated lubricants may be extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.
!
!

Section 2
2-1
Models C001 and C002
To the Operator
2
To the Operator
The freezer you have purchased has been carefully
engineered and manufactured to give you dependable
operation. The Taylor freezer, when properly operated
and cared for, will produce a consistent quality product.
Like all mechanical products, this machine will require
cleaning and maintenance. A minimum amount of care
and attention is necessary if the operating procedures
outlined in this manual are followed closely.
This Operator’s Manual should be read before operating
or performing any maintenance on your machine.
Your Taylor freezer will not eventually compensate and
correct for any errors during the setup or filling
operations. Thus, the initial assembly and priming
procedures are of extreme importance. It is strongly
recommended that all personnel responsible for the
machine’s operation review these procedures in order to
be properly trained and to make sure that there is no
confusion.
In the event you should require technical assistance,
please contact your local authorized Taylor distributor.
Note: Your Taylor warranty is valid only if the parts are
authorized Taylor parts, purchased from the local
authorized Taylor distributor, and only if all required
service work is provided by an authorized Taylor service
technician. Taylor reserves the right to deny warranty
claims on machines or parts if non-Taylor approved parts
or incorrect refrigerant were installed in the machine,
system modifications were performed beyond factory
recommendations, or it is determined that the failure was
caused by abuse, misuse, neglect, or failure to follow all
operating instructions. For full details of your Taylor
warranty, please see the Limited Warranty section in this
manual.
IMPORTANT! If the crossed-out wheeled-bin
symbol is affixed to this machine, it signifies that this
machine is compliant with the EU directives as well as
other similar end-of-life legislation in effect after August
13, 2005. Therefore, it must be collected separately after
its use is completed and cannot be disposed as unsorted
municipal waste.
The user is responsible for delivering the machine to the
appropriate collection facility, as specified by your local
code.
For additional information regarding applicable local
disposal laws, please contact the municipal waste facility
and/or local authorized Taylor distributor.

2-2
TO THE OPERATOR
Models C001 and C002 To the Operator
2
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this machine are
warranted for the term stated in the Limited Warranty
section in this manual. However, due to the Montreal
Protocol and the U.S. Clean Air Act Amendments of
1990, many new refrigerants are being tested and
developed, thus seeking their way into the service
industry. Some of these new refrigerants are being
advertised as drop-in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this machine's refrigeration system,
only the refrigerant specified on the affixed data label
should be used. The unauthorized use of alternate
refrigerants will void your Taylor compressor warranty. It
is the machine owner's responsibility to make this fact
known to any technician he/she employs.
It should also be noted that Taylor does not warrant the
refrigerant used in its machines. For example, if the
refrigerant is lost during the course of ordinary service to
this machine, Taylor has no obligation to either supply or
provide its replacement either at billable or non-billable
terms. Taylor does have the obligation to recommend a
suitable replacement if the original refrigerant is banned,
obsoleted, or no longer available during the five year
warranty of the compressor.
Taylor Company will continue to monitor the industry and
test new alternates as they are being developed. Should
a new alternate prove, through our testing, then it would
be accepted as a drop-in replacement, then the above
disclaimer would become null and void. To find the
current status of an alternate refrigerant as it relates to
your compressor warranty, call the local Taylor distributor
or the Taylor factory. Be prepared to provide the 
model/serial number of the machine in question.

Section 3
3-1
Models C001 and C002
Safety
3
Safety
We at Taylor Company are concerned about the safety of
the operator when he or she comes in contact with the
freezer and its parts. Taylor has gone to extreme efforts
to design and manufacture built-in safety features to
protect operators and the service technicians. As an
example, warning labels have been attached to the
freezer to further point out safety precautions to the
operator.
DANGER! Failure to adhere to the following
safety precautions may result in severe personal injury or
death. Failure to comply with these warnings may also
damage the machine and/or its components. Such
damage may require component replacement and
service repair expenses.
NOTICE! DO NOT operate the machine
without reading the Operator’s Manual. Failure to follow
this instruction may result in machine damage, poor
machine performance, health hazards, or personal injury.
IMPORTANT! This machine is to be used only
by trained personnel. It is not intended for use, cleaning,
or maintenance by children or people with reduced
physical, sensory, or mental capabilities or lack of
experience and knowledge, unless given supervision or
instruction concerning the use of the machine by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the
machine.
IMPORTANT! This machine is provided with
an equipotential grounding lug that is to be properly
attached to the rear of the frame by the authorized
installer. The installation location is marked by the
equipotential bonding symbol (5021 of IEC 60417-1) on
the removable panel and the frame.
WARNING! This machine must NOT be
installed in an area where a water jet or hose can be
used. NEVER use a water jet or hose to rinse or clean
the machine. Failure to follow this instruction may result
in electrocution.
WARNING! Avoid injury.
•DO NOT operate the machine unless it is
properly grounded.
•DO NOT operate the machine with fuses larger
than specified on the machine's data label.
• All repairs should be performed by an
authorized Taylor service technician.
• The main power supplies to the machine must
be disconnected prior to performing installation,
repairs, or maintenance.
•For Cord-Connected Machines: Only Taylor
service technicians or licensed electricians may
install a plug or replacement cord on the
machine.
• Machines that are permanently connected to
fixed wiring and for which leakage currents may
exceed 10 mA, particularly when disconnected
or not used for long periods, or during initial
installation, shall have protective devices to
protect against the leakage of current, such as a
GFI, installed by the authorized personnel to
local codes.
• Stationary machines that are not equipped with
a power cord and a plug or another device to
disconnect the appliance from the power source
must have an all-pole disconnecting device with
a contact gap of at least 0.125 in. (3 mm) in the
external installation.
• Supply cords used with this machine shall be 
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
!

3-2
SAFETY
Models C001 and C002 Safety
3
the proper cord anchorage to relieve conductors
from strain, including twisting, at the terminals
and protect the insulation of the conductors from
abrasion.
• If the supply cord is damaged, it must be
replaced by the manufacturer, service agent, or
a similarly qualified person to avoid a hazard.
• Secure supply cord ground lead to machine in a
location where if the cord is pulled the main
power leads become taut before the ground
lead can break loose.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
distributor for service.
WARNING! Avoid injury.
•DO NOT allow untrained personnel to operate
this machine.
•DO NOT put objects or fingers in the door spout.
•DO NOT operate the machine unless all service
panels and access doors are restrained with
screws.
•DO NOT remove the machine door or beater
assembly unless the control switches are in the
Off position.
Failure to follow these instructions may result in
contaminated product or severe personal injury to fingers
or hands from hazardous moving parts.
WARNING! This machine has many sharp
edges that can cause severe injuries.
•DO NOT put objects or fingers in the door
opening. This may contaminate the product and
cause severe personal injury from blade
contact.
•USE EXTREME CAUTION when removing the
beater assembly. The scraper blades are very
sharp and may cause injury.
CAUTION! This machine must be placed on a
level surface. Failure to comply may result in personal
injury or machine damage.
WARNING! Only install this machine in a
location where its use and maintenance is restricted to
trained personnel. Failure to comply may result in
personal injury.
NOTICE! Cleaning and sanitizing schedules
are governed by your federal, state, or local regulatory
agencies and must be followed accordingly. Please see
the cleaning section of this manual for the proper
procedure to clean this machine.
CAUTION! This machine is designed to
maintain product temperature under 41°F (5C). Any
product being added to this machine must be below 41F
(5C). Failure to follow this instruction may result in
health hazards and poor machine performance.
Do not obstruct air intake and discharge openings: 
3 in. (76 mm) minimum air space on all sides. Install the
deflector provided to prevent recirculation of warm air.
Failure to follow this instruction may cause poor freezer
performance and damage to the machine.
For Indoor Use Only: This machine is designed to
operate indoors, under normal ambient temperatures of 
70°F to 75°F (21°C - 24°C). The machine has
successfully performed in high ambient temperatures of
up to 104°F (40°C) at reduced capacities.
Do not run the machine without product. Failure to follow
this instruction can result in damage to the machine.
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of 39 in.
(1.0 m) from the surface of the machine and at a height of
62 in. (1.6 m) from the floor.
!
!

Section 4
4-1
Models C001 and C002
Operator Parts Identification
4
Operator Parts Identification
C001 Exploded View
Figure 4-1
1
2
3
456a 6b
6c
6
8
22
10
21
11
9
12
11
13
14
15
16
17
18
19
20
6e
6d
7

4-2
OPERATOR PARTS IDENTIFICATION
Models C001 and C002 Operator Parts Identification
4
C001 Exploded View Parts Identification
*Panel A.-Upper Front (Panel Only) = X66550
Item Description Part No.
1 Pan-Drip 11-5/8 Long 027503
2 Gasket-Hopper Cover 055356
3 Cover-Hopper-Large 054732
4 Cover-Hopper-Small 054733
5 Bushing-Cover-Hopper 054734
6 Control A.-Flow Reg. X59788
6a Knob-Inner-Reg. Tube 059785
6b O-ring-12.42 mm ID X 1.4 mm 062451
6c Pin-Quick Release 3/16 X 1 S 027813
6d Tube-Inner-Regulator 059787
6e Regulator A.-Flow Outer 059784
7 Trim-Rear Corner L. 067971
8 Panel-Rear 066551
9 Trim-Rear Corner R. 067972
10 Filter-Air-18.00LX13.50HX.70 052779-3
Item Description Part No.
11 Screw-1/4-20X3/8 SLTD RND 011694
12 Adaptor A.-Caster X18915
13 Panel-Side-Right * A/C 067968
14 Nut-10-32 Whiz Flange 
Locknut
020983
15 Deflector-Blower Exhaust 047912
16 Caster-4” SWV 5/8 Stem w/Brake 034081
17 Panel-Lower Front 066544
18 Panel-Side-Left *A/C 067967
19 Bumper 054487
20 Chute-Custard-Long 054633
*21 Panel A.-Front-Complete X66542-27
22 Stud-Freezer 034035

OPERATOR PARTS IDENTIFICATION
4-3
Models C001 and C002
Operator Parts Identification
4
C002 Exploded View
Figure 4-2
1
22
2
324
5a
5d
5b
5c
5e
6
4
1
7
8
23
18
9
10
11
12
13
14
15
16
17
21
19
20
5

4-4
OPERATOR PARTS IDENTIFICATION
Models C001 and C002 Operator Parts Identification
4
C002 Exploded View Parts Identification
*Panel A.-Upper Front (Panel Only) = X66493
Item Description Part No.
1 Panel-Side Top 029978
2 Cover-Hopper-Large 054732
3 Cover-Hopper-Small 054733
4 Trim-Rear Corner Left 054458
5 Control A.-Flow Reg. X59788
5a Knob-Inner Reg. Tube 059785
5b O-ring-12.42 ID X 1.4 W 062451
5c Pin-Quick Release 3/16 X 1 027813
5d Tube-Inner Regulator 059787
5e Regulator A.-Flow-Outer 059784
6 Panel-Rear 053782
7 Panel-Upper Side Right 054449
8 Pan-Drip 11-5/8 Long 027503
9 Trim-Rear Corner Right 054459
10 Panel A.-Side Right X66497
11
Nut-10-32 Whiz Flange Locknut 020983
Item Description Part No
12
Deflector-Blower Exhaust 047912
13
Caster-4” SWV 5/8 Stem 
w/Brake
034081
14 Adaptor·A.-Caster X18915
15 Panel-Front-Lower 066507
16 Panel A.-Side Left X66496
17 Bumper-Front 054487
*18 Panel A.-Front-Complete X66509-27
19 Stud-Freezer 034035
20 Panel-Upper Side Left 054448
21 Chute-Custard-Long 054633
22 Gasket-Hopper Cover 055356
23 Filter-Air 18 L X 13.5 H .70W 052779-3
24 Bushing-Cover-Hopper 054734

OPERATOR PARTS IDENTIFICATION
4-5
Models C001 and C002
Operator Parts Identification
4

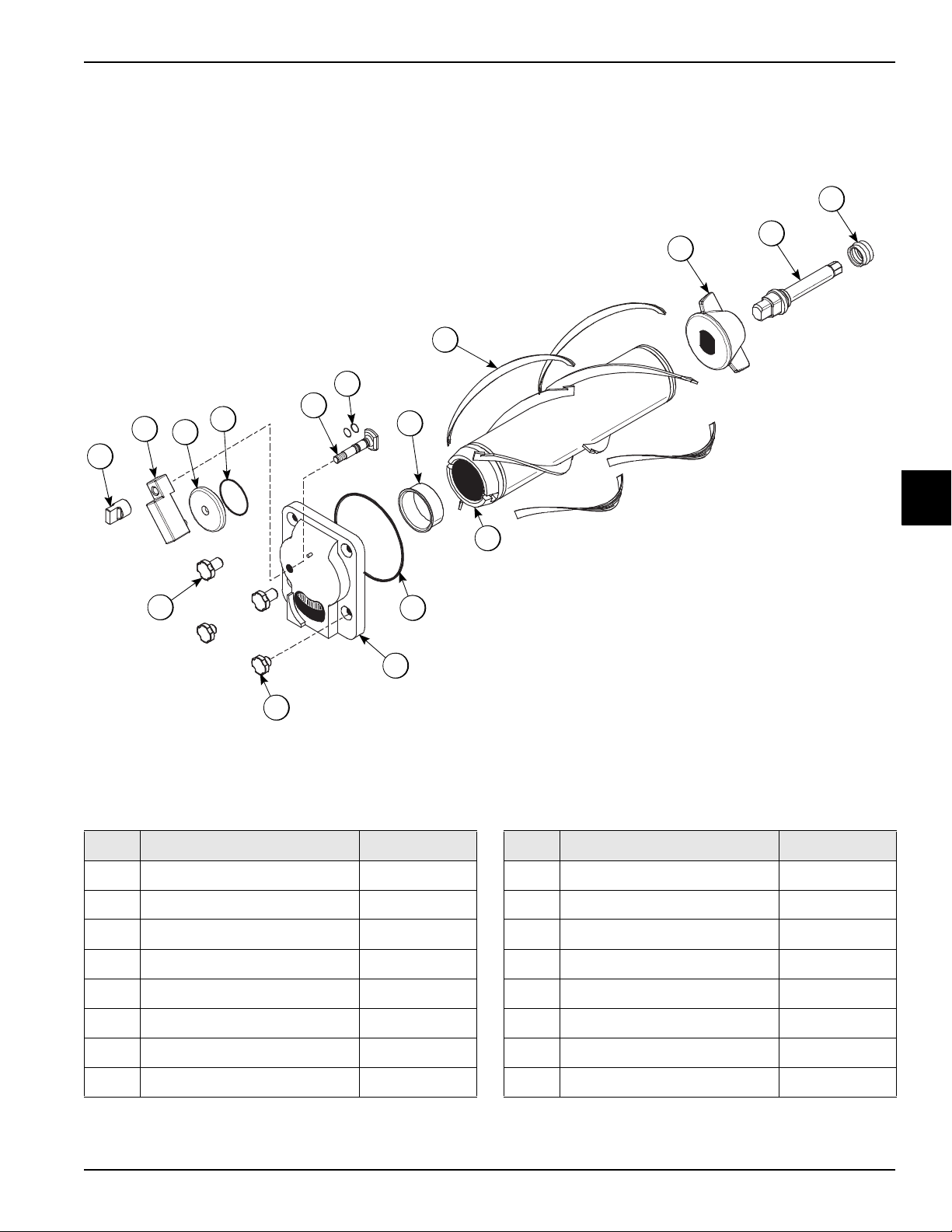

Dasher (Beater) and Door Assembly
Figure 4-3
1
2345
6
7
8
12
13
14
15
16
910
11
Item Description Part No.
1 Cap-Door-Stem 055179
2 Arm-Handle 055183
3 Plate-Draw 054445
4 O-ring-2-3/4 OD X .139W-70 055182
5 Screw-Door-Stem 055180
6 O-ring-.563 OD X .070W-#013 043758
7 Bearing-Front 013116
8 Blade-Scraper 054485
Item Description Part No.
9 Baffle-Short 054481
10 Shaft-Dasher Drive 054484
11 Seal-Driveshaft 032560
12 Dasher A.-Complete X54483
13 O-ring-6 IN OD X 5 3/4 ID X 1/8 033493
14 Door-C002 X55178-SER
15 Nut-Stud 034034
16 Nut-Stud 021508

4-6
OPERATOR PARTS IDENTIFICATION
Models C001 and C002 Operator Parts Identification
4
Accessories
Figure 4-4
Apply the appropriate
Taylor approved food safe lubricant.
1
2
4
3
5
6
7
8
Item Description Part No.
1 Sanitizer- Stera Sheen 055492
2 Lubricant- Taylor 4 oz. 047518
3 Kit A.- Tune Up X54630- 1
4 Pail- 10 Qt. 013163
Item Description Part No.
5 Brush- Rear Bearing 013071
6 Brush- Double Ended 013072
7 Brush- Mix Pump Body 023316
8 Brush- Draw Valve 013073

Section 5
5-1
Models C001 and C002
User Interface
5
User Interface
C001

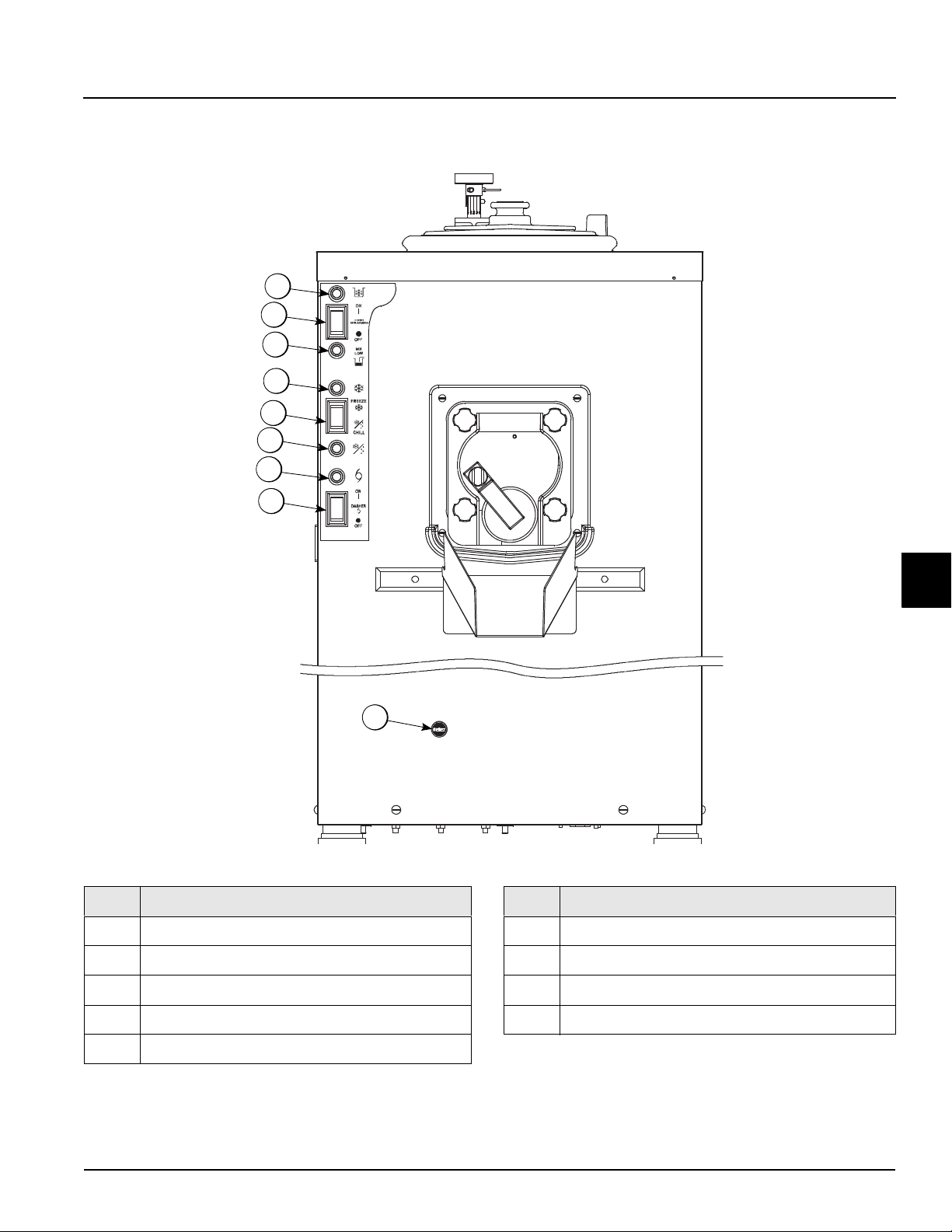

Figure 5-1
1
2
3
4
5
6
7
8
9
Item Description
1 Light- Hopper Refrigeration
2 Switch- HOPPER REFRIGERATION ON/OFF
3 Light- MIX LOW
4 Light- Freeze Mode
5 Switch- FREEZE/CHILL Mode
Item Description
6 Light- Chill Mode
7 Light- Dasher
8 Switch- DASHER ON/OFF
9 Button-RESET

5-2
USER INTERFACE
Models C001 and C002 User Interface
5
C002

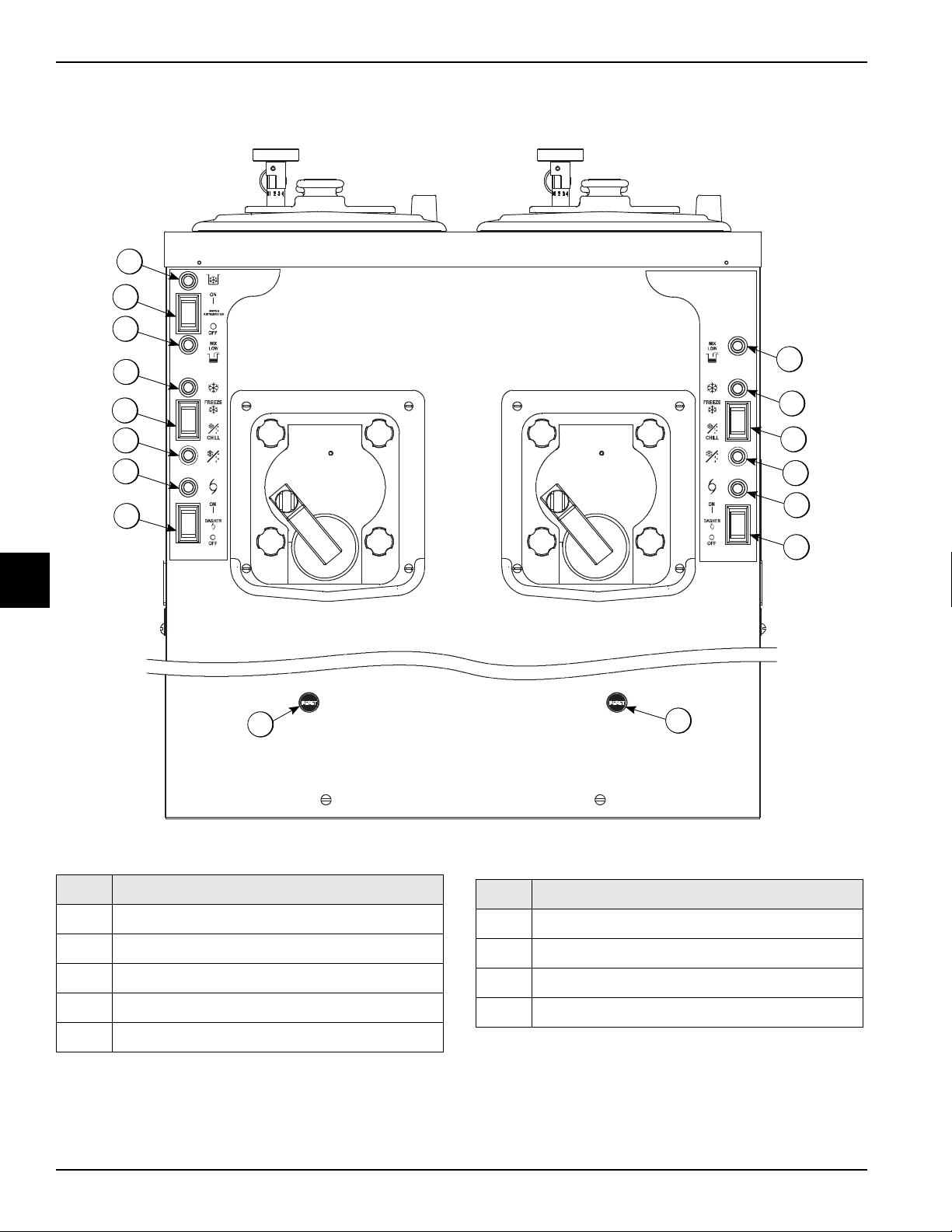

Figure 5-2
1
2
3
4
5
6
7
8
3
4
5
6
7
8
9
9
Item Description
1 Light- Hopper Refrigeration
2 Switch- HOPPER REFRIGERATION ON/OFF
3 Light- MIX LOW
4 Light- Freeze Mode
5 Switch- FREEZE/CHILL Mode
Item Description
6 Light- Chill Mode
7 Light- Dasher
8 Switch- DASHER ON/OFF
9 Button- RESET
