SPECIFICATIONS
Model TE30WD
Capacity
0-10 lb x 0.05 oz/10-30 lb x 0.1 oz
0-5 kg x 0.002 kg(2 g)/5-15 kg x 0.005 kg (5 g)
30 lb x 1/8 oz
Weight Unit
lb:oz(decimals)/lb:oz(fractions)/kg
LCD Readout
1”LCD readout
Dimensions
14” x 14” x 1.6”
Buttons
ON/OFF, HOLD, Unit, Tare, Channel
Power
Supply
10-AA batteries(6 for base,4 for remote, not
included.)
2 120V AC adapters 1 for base,
1 for remote (included)
Operation
Temperature
32°F / 104°F (0℃/ 40℃)

3
DISPLAY
BUTTON DESCRIPTION
Press to turn the scale ON or OFF.
Press to ‘Tare’ (zero) the weight of
any item while weighing.
Press to ‘Hold’ the weight on the
screen.
Press to switch between lb:oz and kg
units of measurement.
Press to reset the scale to zero(TARE
function)if the scale does not show
zero automatically.
Icon flashes when scale is ready for a
weighing.
Stability display:
If the display shows‘o’,the weight is
stable on the scale. If the display
shows ‘ ’, the weight is unstable.
The ‘Hold’weighing function is
active.
kg ←→ lb:oz
Indicates the Weighing unit [kg ←→
lb:oz].
Stored ‘Tare’ value.
Touch-free taring field.
-/ o on base
On (-) /Off (o) switch for scale
base.

4
PREPARING SCALE FOR WEIGHING
Before Weighing

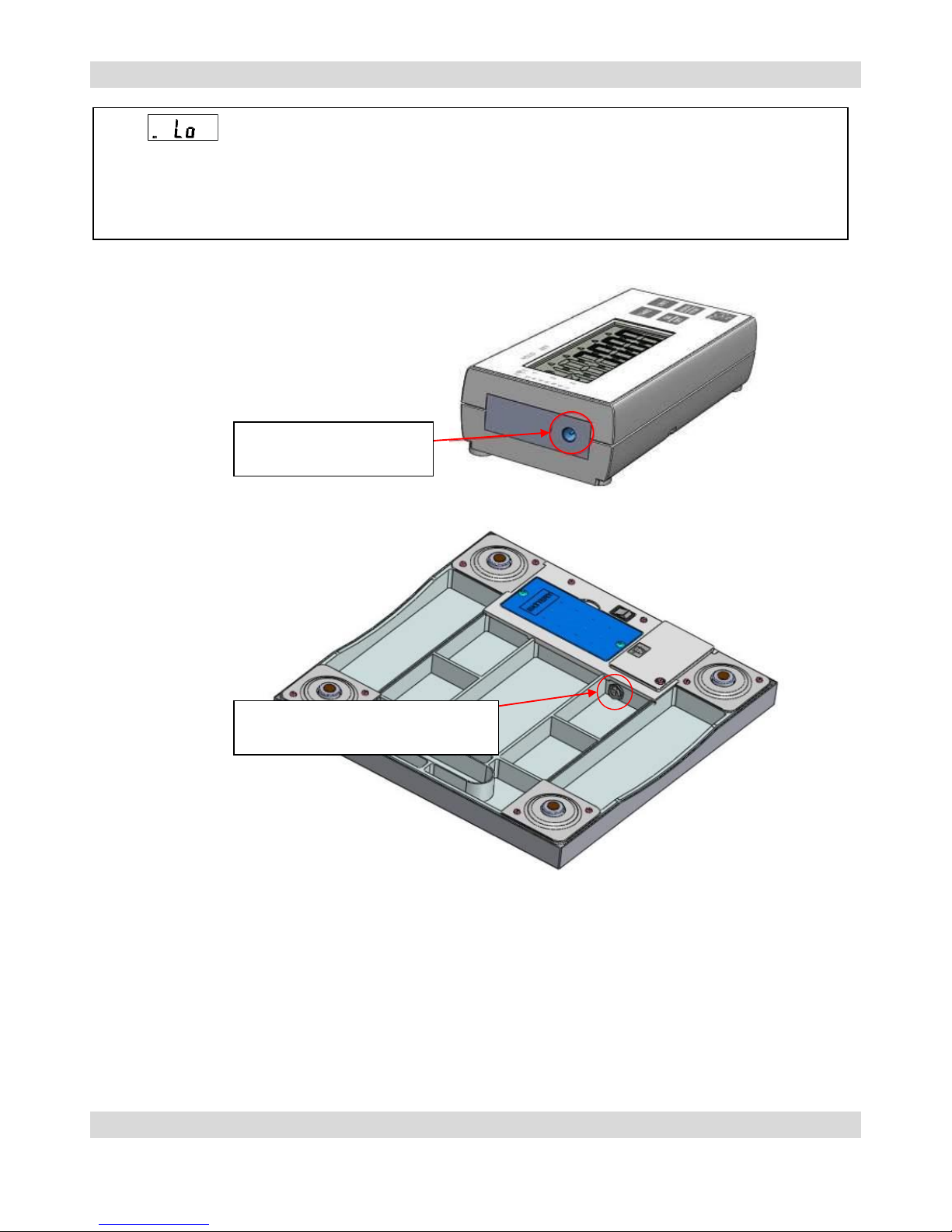

1. Please select the scale’s channel to match the wireless
display. (The scale’s channel indicator is located on the
scale’s base; please remove the rubber stopper to access
the channel indicator.)For example: If the wireless
display is using Channel-1, select Channel-1 for the
scale.(Please see Page 6 for instructions for selecting
platform channels.)
2. Press the ON/OFF button to turn on the scale.
3. Please make sure that the distance between the scale
base and the wireless display is within 30 feet (10
meters).
Note: If the scale’s channel is not same as the wireless
display, ‘88888’will appear on the display. Set the scale
and wireless display to the same channel.
Weighing
1.Press the ON/OFF button to turn on the scale.
2.‘88888’appears on the screen, then ‘0’and ‘ ’will
flash. The scale is ready for weighing.
*NOTE- If the “88888” display does not show ‘01, press the
button to change the wireless display’s channel to
match the scale’s channel. For example: If the scale’s
channel is set to Channel-1, please select Channel-1 for
the wireless display also.

5
CHANGING THE WIRELESS DISPLAY’S CHANNEL
Press the button to select the wireless display
channel.
Channel numbers (1, 2, 3) are shown on the left hand side
of the display. When a channel is selected,a triange icon
points to the selected channel. For example- If Channel-1
is selected, the triange icon points to ‘1’.
Channel 1
Channel 2
Channel 3

6
SELECTING THE SCALE PLATFORM’S CHANNEL
To select the scale platform’s channel, first turn off the

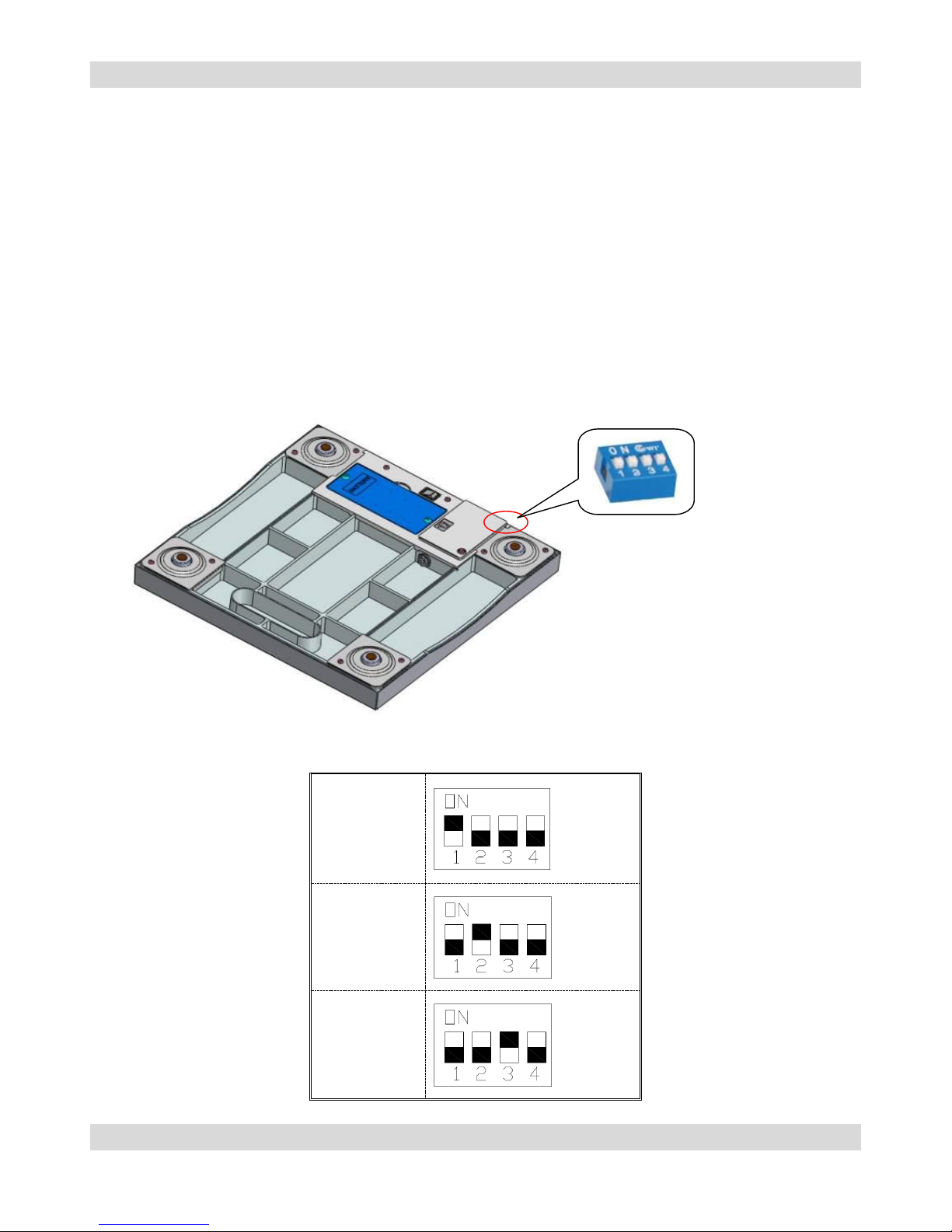

scale base and wireless display units. Then use the dip switch,
which is located on the bottom of the scale under the rubber
stopper. The dip switch has four pins marked ‘1, 2, 3, 4’
(Pin-4 is not active; only 3 channels are available for use.)
To select a channel, move the pin toward the ‘ON’ mark
(pictured below). For example- To select Channel-1 for the
scale, move Pin-1 towards the ‘ON’mark. Turn on the scale
base first, then the wireless display for use.
The dip switch is on the bottom of the scale platform under
the rubber stopper.
Channel
1
Channel
2
Channel
3

7
USING THE TARE FUNCTION
The Tare Function allows the user to zero the scale to cancel
out the weight of a container, thus giving the weight of the
item being weighed.
Press the ON/OFF button to turn on the scale.
Place the containter on the scale platform.
Press the ‘TARE’button after the weight stabilizes and
stable sign displays.
The display will reset to ‘0’.
Place the item to be weighed on the platform(without
removing the ‘tared’container).
OR
Touch Free Tare Function:This scale is equipped with ‘Photo
eye mechanism’for a touch free ‘TARE’ function. Simply pass
your hand over the ‘Photo eye’ sensor and the scale will tare
the weight.
Place the container to be tared on the scale platform.
Pass your hand over the sign on the indicator.
The display will reset to ‘0’.
Place the next item to be weighed on the scale platform.
To reset the ‘TARE’ to zero, remove the tared container from
the platform and press the ‘TARE’ button, or pass your hand
over the sign.

8
ACTIVATING/ DEACTIVATING TOUCH LESS TARE FEATURE
FUNCTION SETTINGS
Function
Description
Default
(Units): lb , kg
lb
(Auto off Time): 120 sec/ 180 sec/ 240
sec/ 300 sec/ OFF
(Hold range): 2d/ 5d/ 10d/ 15d
(Touch less feature): on , off
To confirm the settings and end the procedure
The start icon(*) is
the default value
Press to move right
or down as shown in
setup flowchart.

9
TABLE-TOP STAND AND WALL MOUNTS
You may stand the scale platform on a table.
Adjust the angle of the wireless display for easy viewing.
Table top display:
Wall display:
The wireless display may be mounted to a wall. Use the
mounting material included.
1.Screw the screws to the
wall as shown.
2.Push the wireless
display onto the well.
