TCL P445BFB User manual
P445BFB
P445BFW
P445BFS
P445BFN
P445BFC
P445BFG
Frost-free Refrigerator Operating Instructions
■Please carefully read the operation instructions before powering on, and keep them
safe for future reference.
■The products may subject to changes without notice.
1
Contents
1.This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.Children should be supervised to ensure that they do not play with the appliance.
2.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
3.This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
4.WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
5.WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
6.WARNING: Do not damage the refrigerant circuit.
7.WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
8.Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
9.This appliance is intended to be used in household and similar applications such as
— Staff kitchen areas in shops, offices and other working environments;
— Farm houses and by clients in hotels, motels and other residential type environments;
— Bed and breakfast type environments;
— Catering and similar non-retail applications.
Congratulations on purchasing this TCL refrigerator. We hereby express our thanks.
P2
P7
P8
P9
P11
P10
P12
P13
P15
P15
P14
P16
Safety instructions ------------------------------------------------------------------------
Product introduction ----------------------------------------------------------------------
Handling and placement -----------------------------------------------------------------
Preparations prior to use ----------------------------------------------------------------

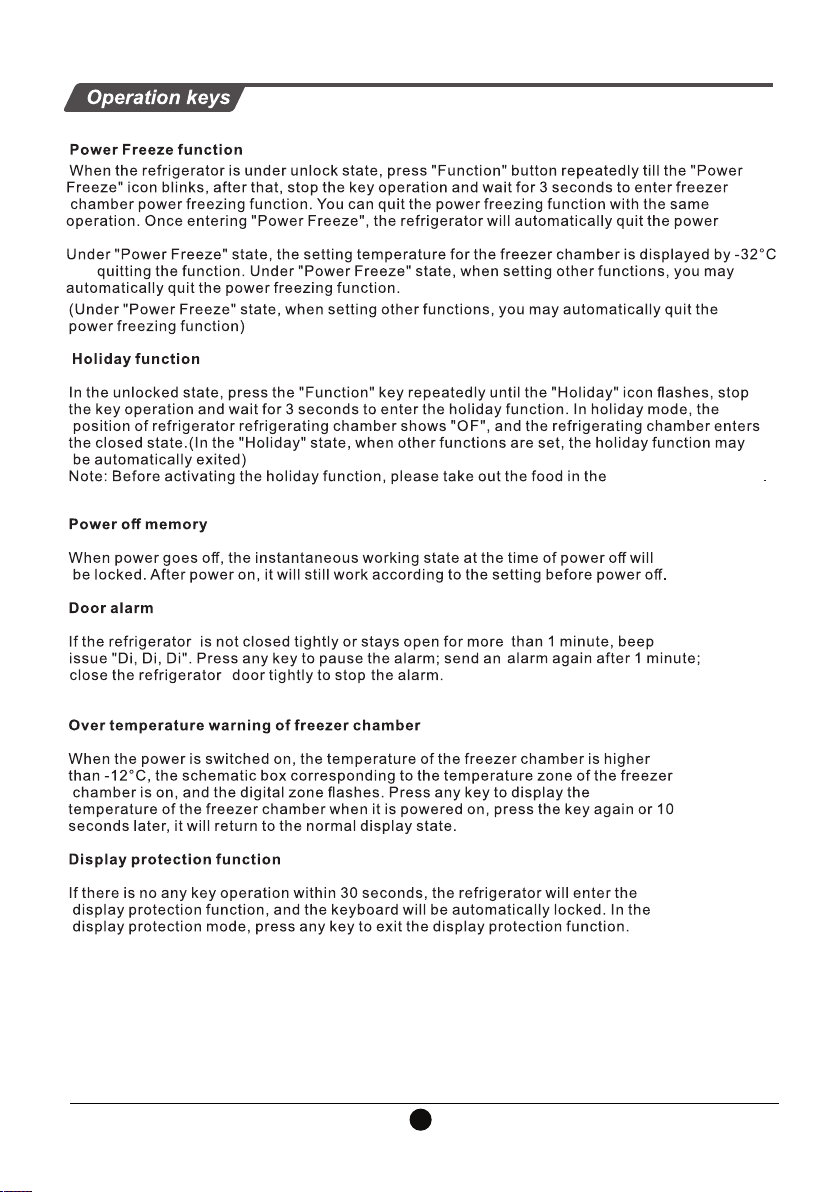

Operation keys ----------------------------------------------------------------------------
Operation and diagram of display board --------------------------------------------
Food storage -------------------------------------------------------------------------------
Ice-making ----------------------------------------------------------------------------------
Door Reversal-------------------------------------------------------------------------------------
Operation notes -----------------------------------------------------------------------------
Care and maintenance ------------------------------------------------------------------
Failure analysis -------------------------------------------------------------------------
Non-failures -------------------------------------------------------------------------------
Technical parameter -------------------------------------------------------------------
P14
P13
2
&
「
3
Risk of fire/flammable materials
Do not place multiple portable socket outlets (power boards)
or power supplies at the rear of the appliance.
34
& Safety information
Daily use
Care and cleaning
& Safety information
Installation
Service
Q
G
Energy saving
5
& Safety info rmation
Environment Protection
Pacging marials
Disposal of the applian
3. R
WARNING: RISK OF CHILD ENTRAPMENT
Child entrapment and suffocation are not problems of the past. Junked or abandoned
refrigeration products are still dangerous- even if they sit for a "just a few days". If you are
getting rid of your old appliance, please follow the below instructions to help prevent
accidents.
Before You Throw Away Your Old Refrigeration Product:
- Take off the doors
- Leave the shelves in place so that children may not easily come inside.
6
Upper Freezer
Lighting Strip
Refrigeration Air
Fruit and Vegetable
Half-Bottle Shelf
Bottle Shelf
Duct Back Plate
Drawer Component
Crisper Drawer Cover
Drawer
Lower Freezer
Middle Freezer
Drawer
Drawer
7
Product specifications subject to change.
8
Handling and placement
The refrigerator shall be
placed in an environment
which is dry, has good
ventilation, far from direct
sunshine and heat source.
>30cm
>10cm >10cm
The refrigerator shall be
placed on a flat and firm
surface. If the ground is not
flat, adjust the adjusting leg
to keep it level.
Never place the refrigerator
into a very cold environment
that may get frozen.
Do not operate the refrigerator on the foam
base it was shipped on. This will help heat
dissipation and reduce the risk of fire.
689 703 690
9
The appliance should be located in the coolest area of the room, away from heat producing appliances or
heating ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the
compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down
on frost build-up inside the appliance.
Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with
cold air circulation, making the appliance less efficient.
Organize and label food to reduce door openings and extended searches. Remove as many items as needed
at one time, and close the door as soon as possible.
Please refer to the product introduction picture on page 5 for the placement of accessories.
Preparations prior to use
1. Remove fixing tape 2. Connect to power 3. Store food after
connecting to power
for 2-3 hours
Wipe with
warm and
wet cloth
In hot summer, 24 hours are
needed to fully freeze the food.
Check the refrigerating condition
on the second day.
Do not open the
doors frequently
to save electricity.
The plastics deodorant will disappear
automatically after freezing for a while.
1.Remove all packing materials such as adhesive tape, plastic bags, etc., especially the foam base.
2.Use a warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent
can be added to warm water).
3. After leveling and cleaning the refrigerator, keep it upright for about 2 hours before plugging in
the power for the first time.Let the refrigerator run for 2 to 3 hours before storing foods.
10
Operation and diagram of the electronic control panel
5,
11
Powering on for the first time
any
refrigerator chamber
freezing function after it is under in high freezing status for 4 hours.
12
until
Foods storage
refrigerator chamber (2℃~8℃)
--The refrigerator chamber is mainly used for storing short-term foods, like milk, eggs and bottled
drink.
--Vegetables, melons and fruits shall be put into the fruit and vegetable box to prevent water loss.
--The cooked foods shall be put into the refrigerator after packaging with the preservative bags, to
prevent the back from frosting and the power from increasing.
freezer chamber (-24℃~-15℃)
--The freezer chamber is used for the foods to be stored for long-term.
--Fish and meat to be frozen shall be cut into small pieces, packaged with preservative bags
separately and then put into the frozen drawer.
--The glass container or the sealed container filled with liquid shall not be stored in the freezer
chamber, to prevent the risk of burst due to freezing.
--The fresh foods shall not be stored together with the frozen foods.
--Do not place food close to inside wall in freezer lest food and wall should be frozen together.
13
Fill the ice tray with water , then place it in the freezer. When
the water in the ice try turns to ice, twist the ice tray and drop
the ice into a container.
Door Reversal
For Door Reversal, please contact TCL Customer service for detailed instruction
14
It is suggested to maintain the refrigerator once per month;
--Unplug the power plug to prevent from electric shock;
--Use wet cloth or neutral detergent (cleanser essence to wipe off
the oil contamination and other dirt. Then completely wipe off the
detergent.
--Do not use alkaline detergent, soap powder, gasoline and
alcohol, talcum powder etc.; otherwise the coats or plastics may
be damaged;
--Regularly clean the refrigerator body and clear the ground dust
to keep the refrigerator clean.
Inspections after maintenance:
1. Whether there are damages to the power cord and plug;
2.Whether there is dust on the power plug;
3. Whether there isabnormal heat on the plug;
4. Whether the socket is loose;
5.Whether the plug is totally inserted.
Note:
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
Care and maintenance
Please use neutral
detergent
Neut ral detergent
To remove, gently squeeze from both sides at the same
time and make sure the clips are dislodged, and then slowly lift out.
shelf
15
Temperature difference,and thus the light case will have condensation
Phenomenon:Heat on two sides and spacing part surface between refrigerating
P445BFB
T
I
416L
310L
106L
/
220-240V~50Hz
1.6A
273kWh/y
2W
72kg
703x689x1725
R600a,56g
39dB(A)
P445BFW
T
I
416L
310L
106L
/
220-240V~50Hz
1.6A
273kWh/y
2W
72kg
703x689x1725
R600a,56g
39dB(A)
P445BFS
T
I
416L
310L
106L
/
220-240V~50Hz
1.6A
273kWh/y
2W
72kg
703x689x1725
R600a,56g
39dB(A)
P445BFN
T
I
416L
310L
106L
/
220-240V~50Hz
1.6A
273kWh/y
2W
72kg
703x689x1725
R600a,56g
39dB(A)
P445BFC
T
I
416L
310L
106L
/
220-240V~50Hz
1.6A
273kWh/y
2W
72kg
703x689x1725
R600a,56g
39dB(A)
P445BFG
T
I
416L
310L
106L
/
220-240V~50Hz
1.6A
273kWh/y
2W
72kg
703x689x1725
R600a,56g
39dB(A)
P445BFB
Lower Drawer of the Freezer
3
1
Ice-making box
1
2
Egg box
Bottle Rack
Operating instruction
1
1
1
Middle Drawer of the Freezer
Fruit and Vegetable Drawer Component
Upper Drawer of the Freezer
1
1
crisper drawer cover
1
Half-Bottle Rack
2
P445BFW
3
1
1
2
1
1
1
1
1
1
2
P445BFS
3
1
1
2
1
1
1
1
1
1
2
P445BFN
3
1
1
2
1
1
1
1
1
1
2
P445BFC
3
1
1
2
1
1
1
1
1
1
2
P445BFG
3
1
1
2
1
1
1
1
1
1
2
Refrigerating shelf
Weight
Dimension(mm)
16
