TCL
SERVICE MANUAL
L32E4200/MS306DPA
1ǃCautionĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ
2ǃSpecificationĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ
3ǃAlignment ProcedureĂĂĂĂĂĂĂ Ă ĂĂĂĂĂĂĂĂĂĂĂ Ă
4ǃBlock DiagramĂĂĂĂĂĂĂĂĂĂĂĂĂ ĂĂĂĂĂĂĂĂĂĂ
5ǃSchematic DiagramĂĂĂĂĂĂĂĂĂ ĂĂĂ ĂĂĂĂĂĂĂĂĂ
ǃExplode View DiagramĂĂĂĂĂĂĂĂ ĂĂĂĂĂĂĂĂĂĂĂĂ
This manual is the latest at the time of printing, and does not
include the modification which may be made after the printing, by
the constant improvement of product

CA UTION: TO RE DUCE THE RIS K OF
ELECTR ICA L SHOCK, DO NOT RE MOVE
COVER (OR BACK). NO USER SERVICEABLE
PAR TS INS IDE . RE FER SER VIC ING TO
QUALIFIE D SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CA U T ION
RISK
RISK OF
ELECTRI
ELECTRIC
SHOCK
SHOCK DO
NOT
NOT
OPEN.
OPEN.
2
dangerous
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
SCHNEIDER ELECTRONICS GMBH-GERMANY
1. CAUTION


1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and
Instructions marked on the audio equipment.
1. Read Instructions-All the safety and operating instructionsshouldbe read before the productis operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
3
SCHNEIDER ELECTRONICS GMBH-GERMANY
IMPORTANT SAFETY INSTRUCTIONS
FOR YOUR PERSONAL SAFETY
3

11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Ar ticle 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.

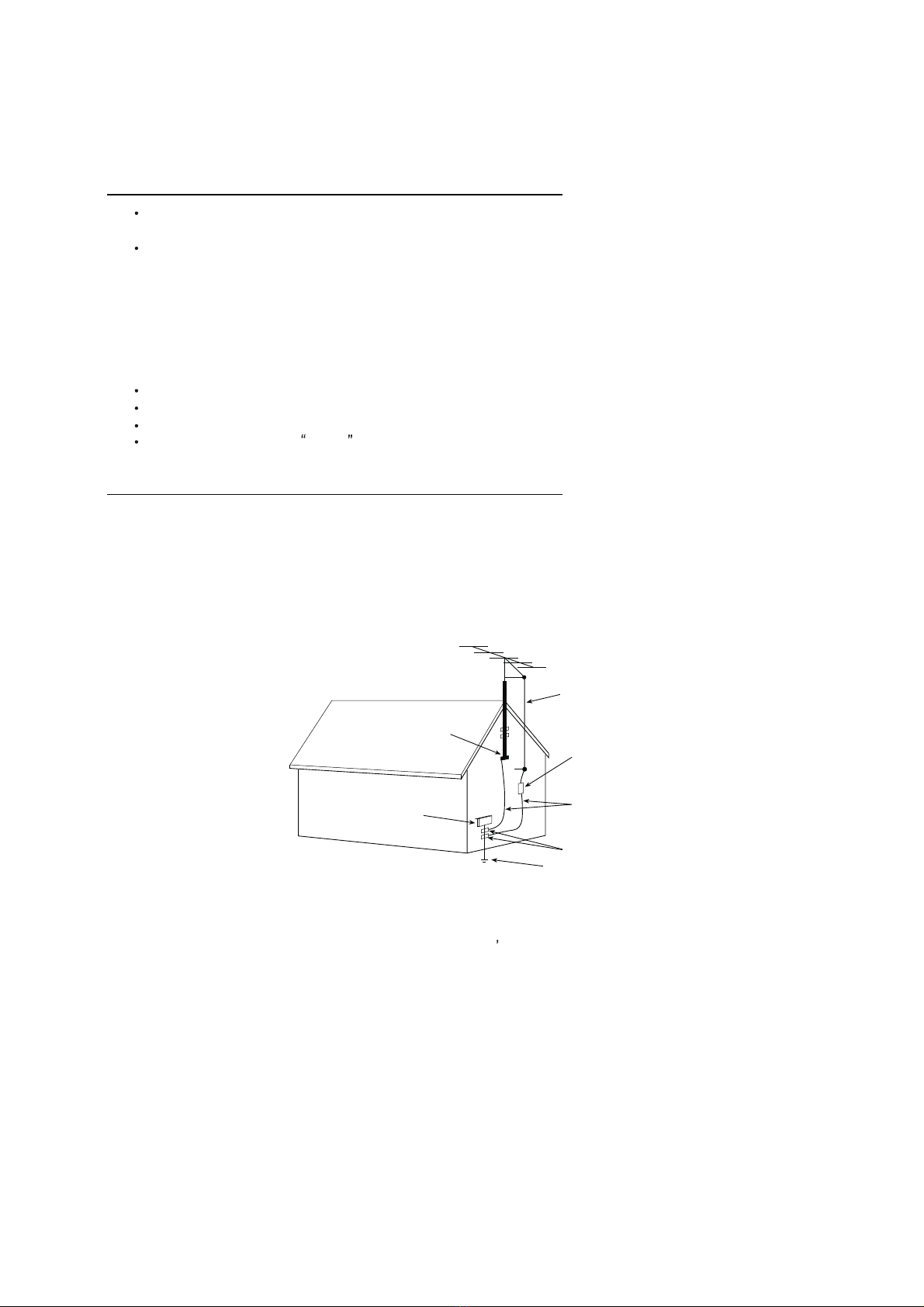

ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s
4
SCHNEIDER ELECTRONICS GMBH-GERMANY
PROTECTION AND LOCATION OF YOUR SET
PROTECTION AND LOCATION OF YOUR SET
4

18. This television set should be operated only from the type of power source indicated on the marking label.If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
21. If you are unable to restore normal operationby followingthe detailedprocedurein your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
24. Do not use attachments not recommendedby the television set manufacturer as they may cause hazards.
25. When replacementparts are required, be sure the service technicianhas used replacementparts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
off
5
SCHNEIDER ELECTRONICS GMBH-GERMANY
OPERATION OF YOUR SET
IF THE SET DOES NOT OPERATE PROPERLY
FOR SERVICE AND MODIFICATION
5

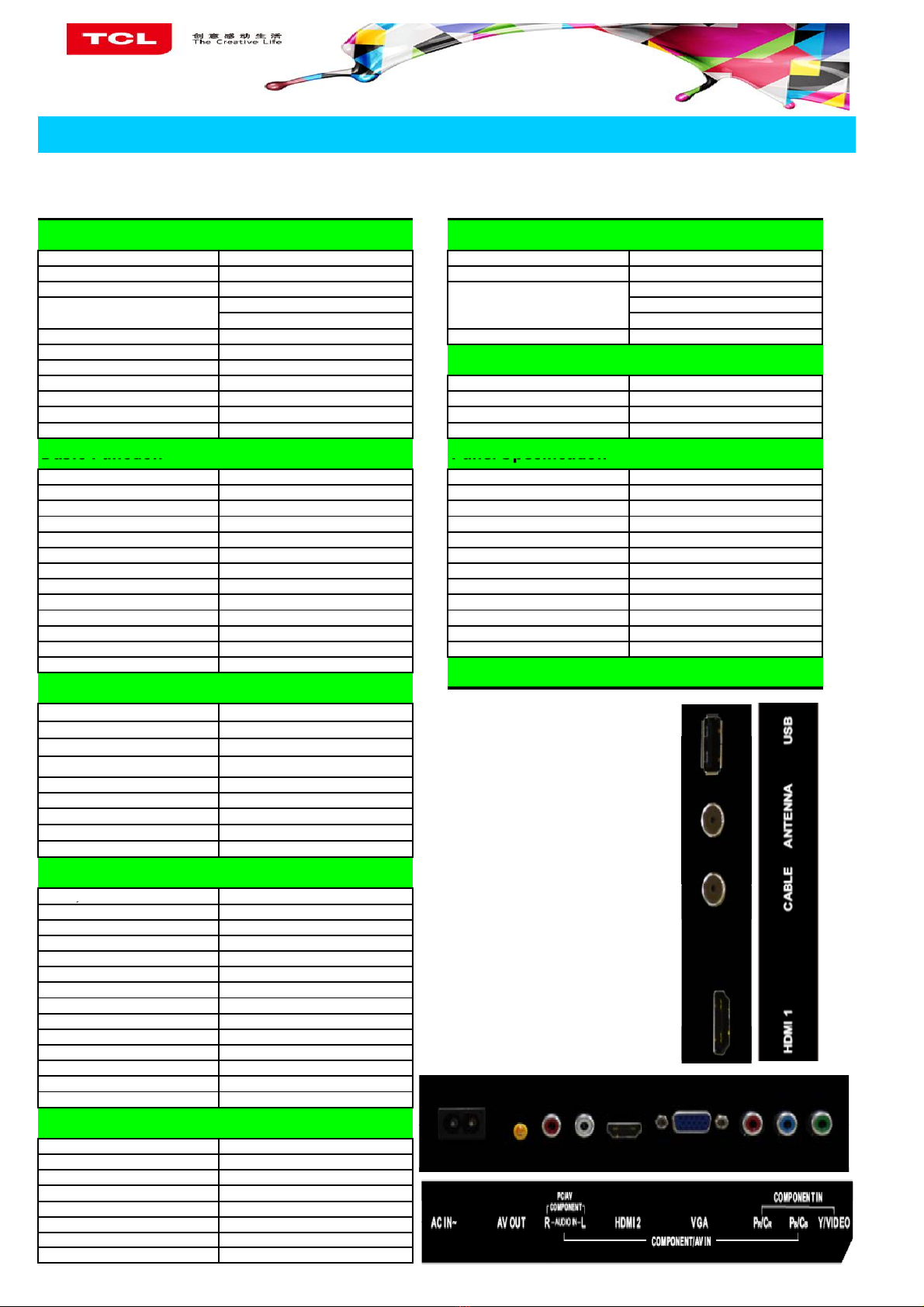

PRODUCT SPECIFICATION RELEASE
Model: L32E4200/MS306DPA LA/CS2
Product Type LCD TV Music MP3
Chassis MS306DPA Picture JPEG、BMP、PNG
OSD Language English/Portuguese/Spanish H.264、MPEG4、MPEG2
NTSC-M,PAL M/N
Basic Information
Model:
L32E4200/MS306DPA
-
LA/CS2
Version：1.0 Issued On: 2014-06-07
Video
Media Format
TV System
ISDB-T
AV System PAL、NTSC File TXT
Channels(Analog) Antenna：2～69；CATV：1～125
DTV Channels(Digital) Antenna：7～69
Power Supply AC 110V-240V 50/60Hz Component Video Format YPBPR：up to 1080P
Power Consumption（TV On）45W DVI Video Format Up to XGA for HDMI-PC
Power Consumption（Standby）≤0.5W HDMI Video Format up to 1080P
Certification CB PC Compatibility Up to SXGA
Signal Format Capability
TV
System
Basic Function Panel S
p
ecification
EPG Yes(at DTV) Backlight Unit LED
Subtitle --- Panel supplier CSOT(ST3151A04-3)
Parental Control Yes(at DTV) Aspect Ratio 16:9
Lock Yes Panel Size (inch) 32"
V-Chip --- Display Resolution 1366*768
CCD (Closed Caption) Yes Brightness (cd/m2)(typ.) 250
Sleep Timer Yes Contrast Ratio 4000:1
Teletext --- Response Time (G to G) 6.5ms
Nicam --- Viewing Angle (H/V) 178°/178°
Basic
Function
Panel
Specification
Nicam Viewing Angle (H/V) 178 /178
MTS Yes Life Time(Typ.) ＞30,000hrs
Screen Saver Yes Color 16.7M(8bit)
System Update Yes Refresh Rate 60Hz
Hotel Mode Optional(In factory mode)
Side
Natura Light Technology ---
REC (PVR) Yes(at DTV)
GINGA ---
Special Function Terminals
Analog / Digital Signal Receiver Yes
MHL ---
Game Yes
Startup Setting ---
Card Reader ---
On/Off Timers Yes
DCC（Dynamic Contrast Control）---
y
Backlight Adjustable Yes (0~100)
Color Temperature Medium/Warm/Cool
Picture Mode Standard/Dynamic/Mild/User
Picture Size Auto/4:3/16:9 /Zoom1/Zoom2/Panorama
DLTI Yes
DCTI Yes
Comb Filter 3D
Dynamic Noise Reduction Yes
Adaptive Deinterlacing 3D
Motion Compensation
Yes
Down
Motion Compensation Yes
D
own
Dynamic Skin Correction Yes
Black Stretch Yes
Blue Stretch Yes
Speakers Integrated speakers (Bottom side)
Audio Power Output（THD=7%）2×5W
Smart Volume Yes(ON/OFF)
Smart Audio Movie/Sports/Standard/Music/User
Sound
Smart
Audio
Movie/Sports/Standard/Music/User
Sound Control Volume, Balance,5 Band EQ
Surround Sound Yes
Sound Scene ---
DD (Dolby Digital ) Yes

Mechanical ID Picture
Unit:mm
15.4
80
18.
15.4
734.5
80
18.5
431.5481
Mechanical Ke
y
S
p
ecification
Carton Dimensions LxWxH（mm）851*136*531
Container Loading---20 feet（pcs）472
Container Loading---40 feet（pcs）1004
Remote ID Picture
379 162
g
p
Container Loading--40 feet High（pcs）1180
Net Weight With Stand（Kg）４．５
Net Weight Without Stand（Kg）－－－
Gross Weight With Packaging（Kg）5.8
VESA Mounting Dimensions LxH（mm）200X150
Operation Manual English(Default) Wall Mount WMB233
Optional Accessories
Essential Accessories（Default）
Remote Control and batteries RC200(TCL LOGO,with two batteries)
Base Stand Integrated Packaging
AC power cord 1 pc
Adapt Cable Wire For AV Or YPBPR ---
Drafted
b
LiYaJian Approved by:
Desi
g
n and s
p
ecifications are sub
j
ect to chan
g
e without notice
!

第1页共 11 页
TCL 集团多媒体电子全球制造中心
IPC 设计中心
Alignment Procedure
MS306 Series
MODEL：MS306/MS306B/MS306C/MS306D/MS306G
MS306P/MS306BP/MS306CP/MS306DP
VERSION：V3.0
PREPARED BY : Gongjunzan / Zhangjin DATE : 2014-1-24
AP PROVED BY : DATE :
文件编号：IPC/SJ/FK02-2013
序号：

第2页共 11 页
History Description of major changes Release
Date
Changed by
V1.0 2013-04-28
V2.0 Add usb update table on Page 10 2013-12-28 Zhangjin
V3.0 Add USB port number set on Page 7 2014-1-24 Gongjunzan
1.Overview
MS306 series chassis is designed for Asia Pacific/South America market.
Both Full HD panel and HD panel can be compatible. The signal sources
includeTV,AV,YPBPR/YCBCR,VGA,HDMI and USB. For YPBPR,HDMI source ,Format
up to 1080p can be supported; USB support image, audio and video(up to
H.264)playing; The whole process of alignment includes ADC calibration
and White Balance adjustments.
2.Factory Menu
1、Methods of Entering
Method 1：Using the remote ,enter the “Picture” submenu in the OSD;
choosing the “contrast” item and press the 9,7,3 and 5 in series,
Factory Menu will appear in the left top of screen
Method 2：Press RETURN button when FACTORY HOTKEY is enabled(ON).
2. General introduction
FACTORY MENU
ITEMS Default
Setting Description Status
1-FAC HOTKEY OFF
Factory hotkey Switch
(OFF/ON).Should be OFF after factory
alignment
OK

第3页共 11 页
2-WARM UP OFF
OFF：The set would enter standby mode
after 15 minutes without input
signal；
ON ： Aging mode. Aging time will
display on the left bottom of screen.
OK
3-ADC ADC calibration（refer as follow） OK
4-WHITE BALANCE White Balance data adjustment（refer
as follow）
The balance data is set by PE before
the mass production. Do not need
adjust.
OK
5-SHOP DO Reset the set after production
alignment;(This operation will
remove all unnecessary factory value;
The factory hotkey will be turn off)
OK
6-NVM reset DO System initialization. Restore all
data except the White Balance and ADC
data ;Only for R&D.
OK
7-SET FAC CH DO Preset specific factory channels for
specific factory. Press left and
right button to select the factory,
and then press OK to confirm.
OK
8-POWER ON LAST ON: Always turns on TV when AC power
on
STB：Always goes to standby mode when
AC power on
LAST：Restore the status before the
last AC power off
OK
9-USB UPDATE USB update，（refer as follow） OK
10
ReloadEFBItem…
This item only factory used，
Note: Below the factory menu, some model information are showed, including
software version, Project Name, SIACP Version, and SW release time.
ADC Submenu:
ITEMS Default
Setting
Description Status

第4页共 11 页
Source RGB/YPbP
r
(HD)
Sources need calibration. RGB means PC and
YPbPr(HD) means YPbPr
OK
R-GAIN 4478 R-GAIN OK
G-GAIN 4478 R-GAIN OK
B-GAIN 4478 R-GAIN OK
R-OFFSET 2048 B-OFFSET OK
G-OFFSET 2048 B-OFFSET OK
B-OFFSET 2048 B-OFFSET OK
AUTO ADC WAIT/OK With appropriate pattern (mentioned below)
inputted, press left or right key to start auto
calibration.
OK
WHITE BALANCE Submenu
ITEMS Default
Setting
Description Statu
s
Source Current
Source
Current Source( TV,AV1/AV2/YPbPr, HDMI need
adjustment)
OK
COLOR TEMP NORMAL Medium/Cool/Ware OK
R-GAIN 128 R-GAIN OK
G-GAIN 128 G-GAIN OK
B-GAIN 128 B-GAIN OK
R-OFFSET 128 R-OFFSET OK
G-OFFSET 128 G-OFFSET OK
B-OFFSET 128 B-OFFSET OK
WB INIT DO ONLY FOR TCL R&D OK
The first step is to adjust HDMI.
3.Design Menu
1、Methods of Entering：
Method 1：Using the remote, enter the “Picture” submenu in the OSD; choosing
the “contrast” item and press the 1,9,5,and 0 in series ,Design Menu will
appear in the left top of screen.
Method 2: Press RETURN button when DESIGN HOTKEY is enabled (ON).
2、General introduction
DESIGN MENU

第5页共 11 页
ITEMS Default
Setting
Description Status
1-DESIGN
HOTKEY
OFF ON/OFF OK
2-FACTORY
MENU
ON/OFF OK
3-SHOP INIT Default setting submenu after production
alignment refer to **
OK
4-OTHER Other set .Only for TCL R&D OK
5-SERVICE
MENU
After service menu description OK
6-PARAM
SETTING
Parameter setting submenu OK
7-HOTEL
MENU
Hotel submenu（not adjust） OK
SHOP INIT submenu
ITEMS Default
Setting
Description Status
Volume 30 0-100 adjustable OK
PIC MODE STANDARD Standard/Bright/Mild/User OK
SOUND MODE STEREO Movie/Sports/Standard/Music/User OK
Channel --- --- OK
Language English Up to 10 languages optional OK
COLOR SYS AUTO AUTO、PAL、 SECAM OK
SOUND SYS DK DK、BG、I、MN OK
PRESET CH 1 0-199 adjustable OK
COLOR TEMP NORMAL Medium/Cool/Ware OK
Other
ITEMS Default
Setting
Description Status
VIF1 VIF adjust （not adjust） OK

第6页共 11 页
VIF2 VIF adjust （not adjust） OK
VIF3 VIF adjust （not adjust） OK
QMAP ADJUST >>> PQ debug （not adjust） OK
SSC >>> SSC adjust OK
DBC ENABLE DBC adjust（not adjust） OK
BP （not adjust） OK
CP （not adjust） OK
DBC MODE （not adjust） OK
MIU DQS0 11 （not adjust）
MIU DQS1 10（not adjust）
PARAM SET SETTING
ITEMS Default
Setting
Description Status
Brightness
Curve Brightness curve. Exclusively used by R&D OK
Contrast
Curve Contrast curve. Exclusively used by R&D OK
Saturation
Curve Saturation curve. Exclusively used by R&D OK
Hue Curve Hue curve. Exclusively used by R&D OK
Sharpness
Curve Sharpness curve. Exclusively used by R&D OK
Volume
Curve Volume curve. Exclusively used by R&D OK
BackLight
Curve BackLight curve. Exclusively used by R&D OK
OverScan Exclusively used by R&D
4、Service Menu
1、Methods of Entering
Using the remote, enter the “Picture” submenu in the OSD; choosing the
“contrast” item and press the 9,7,0 and 5 in series, Service Menu will appear in
the left top of screen
SERVICE MENU：

第7页共 11 页
ITEM Defau
lt
Setti
ng
Description Status
SW NO Software Version OK
DATE Date and time of software releasing OK
Project Name Module name OK
SIACP VERSION SIACP VERSION OK
Chassis MS306 Chassis name OK
PANEL NAME P/N of panel OK
NG
PROJECT ID >>> Select panel ID Number OK
CONFIG >>> Project Select submenu
USB UPDATE >>> USB UPDATE ok
HOTEL ENABLE
OFF
HOTEL MENU SWITCH NOT
USE
ReloadEFBItem Do Only for factory adjust OK
CONFIG submenu
ITEM Default
Setting
Description Status
Erase HDCP Key Do Only for R&D OK
Reset HDCP Key Do Only for R&D OK
UsbHdcpkey
Update
Do Only for R&D OK
USBPortNumset 1 USB port number set (1 or 2) OK
5. Debugging
5.1. General Steps of debugging
According to the requirement of the order, below steps are needed for
appropriate setting.
1) Enter the Factory Menu, enable FAC HOTKEY.
2) Check Project ID and the version of software, release date displayed
at the bottom of Factory Menu.
3) Enter Design Menu, choose SERVICE MENU->Project ID, choose
corresponding Project ID number of the product (Refer to the
“V6-PROJECT -ID0**”in the BOM list).

第8页共 11 页
4) Return to Factory Menu, check the Product model.
5) Choose Factory Menu->NVM RESET and press the right button of the
remote and wait until prompt OK appears.
6) Restart the set
7) According to the requirement of the order, Set the items of SHOP
INIT and Hotel Menu etc.
8) After aging under normal temperature, calibrate ADC and adjust
white balance.
9) Choose Factory Menu ->SHOP and press the button of remote to
initialize the set.
Note: After step 9, Hotel Menu will be disabled by default. Therefore,
if the order requires hotel function, it is necessary to enable hotel
function by set Design MENU->Service Menu->HOTEL ENABLE to ON.

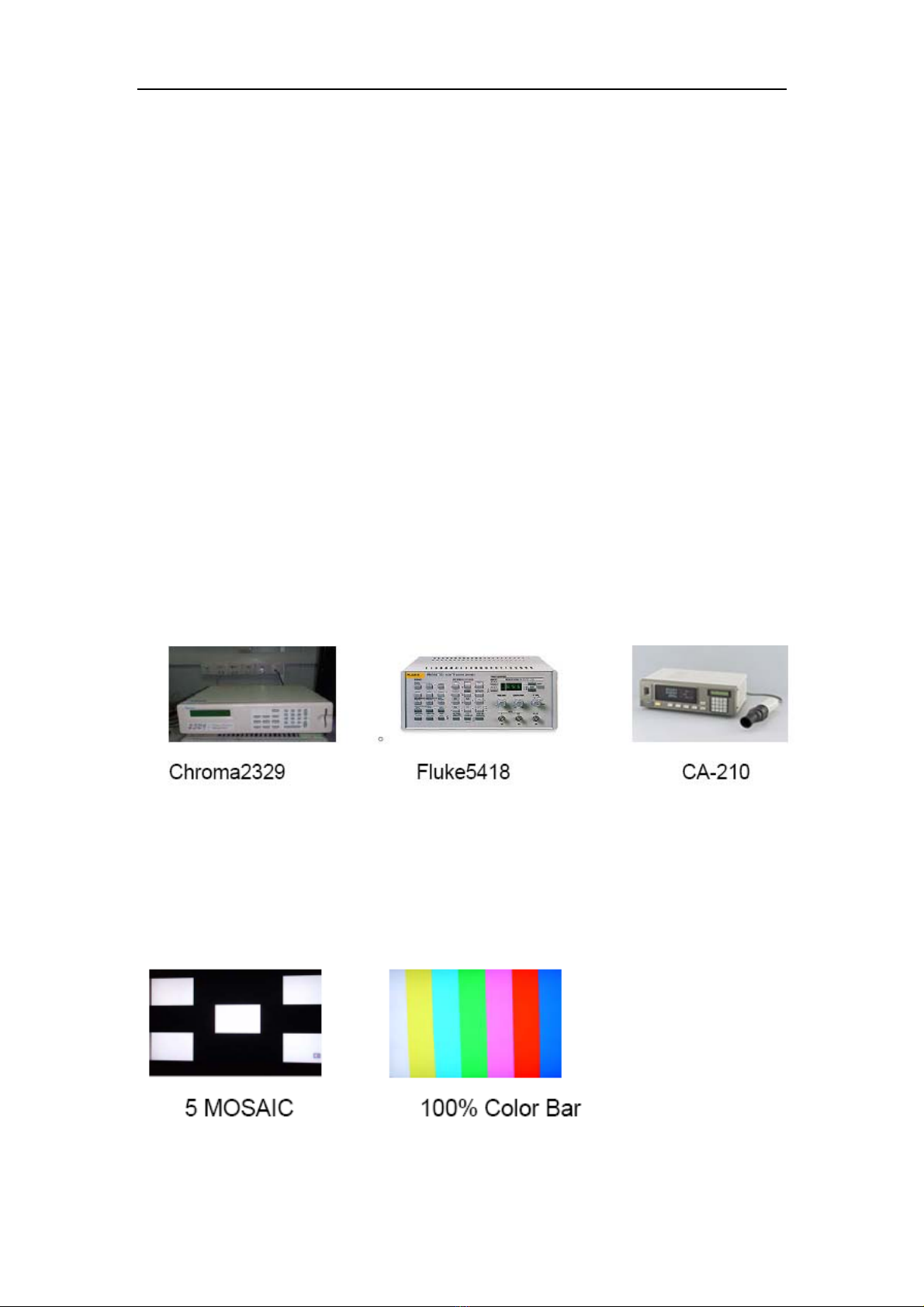

5.2. Equipments
·Color Analyzer CA-210.
·Video Pattern Generator Chroma2329.
·Color TV Pattern Generator PM5418/Fluke5418.
·VGA cable , AV(RCA) cable ,YPBPB (RCA) cable, HDMI cable etc.
5.3. ADC Calibration
5.3.1. Signal and generator
PC: Chroma2329 Pattern 42,Timing 14(1024X768@60Hz 5 MOSAIC)
YPBPR: Chroma2329 pattern 103, Timing 79(100% Color Bar,720p)
5.3.2. Steps of Calibration:
1). Access to the Factory menu->ADC

第9页共 11 页
2). select RGB source and see the 5 MOSAIC appear on the screen
3). Select AUTO ADC , Press the right button on the your remote to calibrate
the ADC automatically.
4). Select YPBPR source and Repeat step 5.3 .

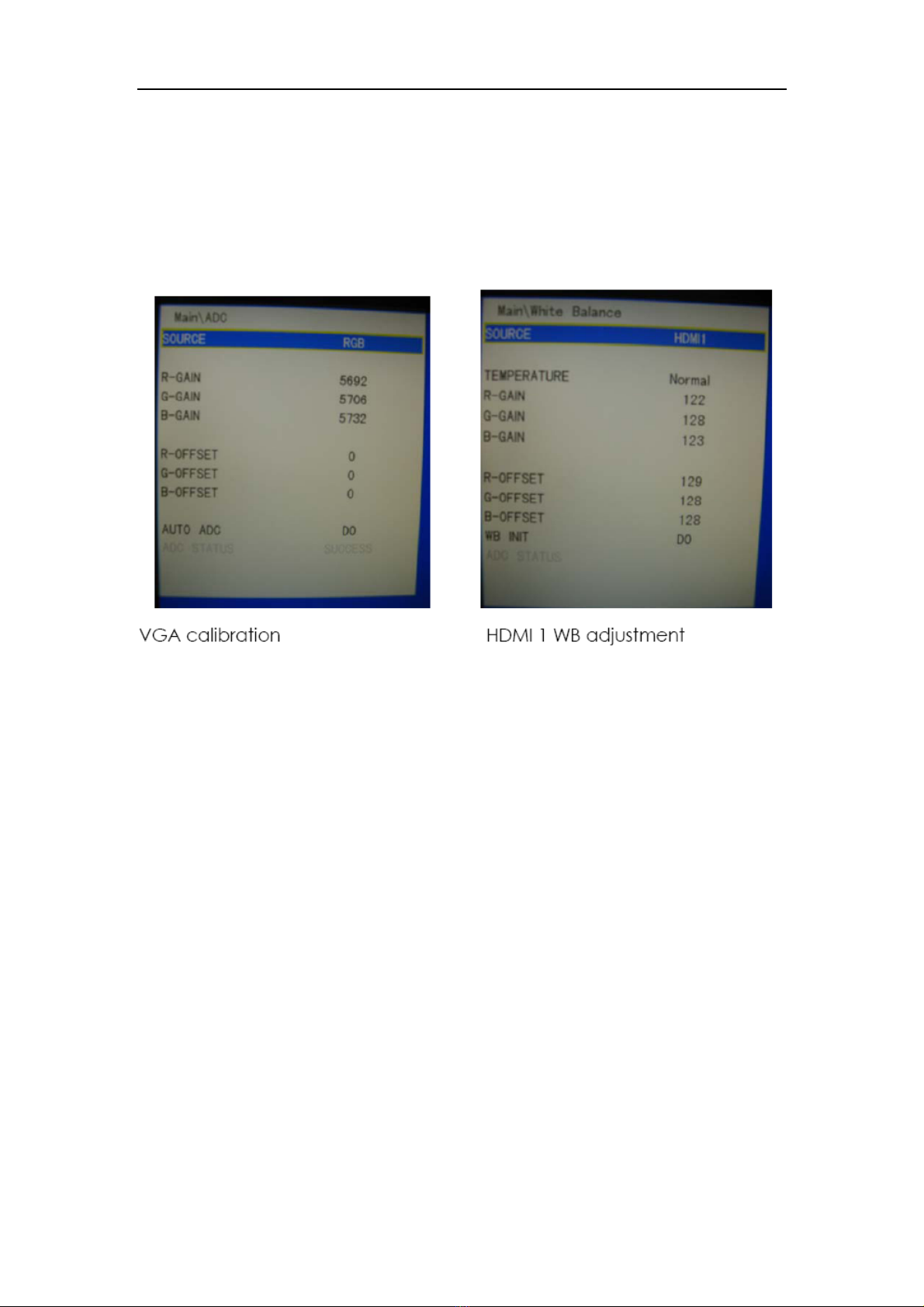

When the OK appears the calibration has been finished successfully.
5.4. White Balance adjustments (Manual)
Before adjustment ,you must make sure the ADC status(only PC and YPbPr)
is “success”and Color Analyzer has been calibrated .Only
AV1,YPbPr,PC,HDMI1 need to be adjusted. HDMI1 should be the first.
5.4.1. Signal and generator
The pattern of the signal should be used are White (Chroma2329 pattern
113) and Grey (pattern 114).
The format of signal are respectively 720P for HDMI1 (Chroma2329
Timing 69),PAL (Chroma2329 Timing38) for AV1,1024X768@60Hz(Chroma2329
Timing14) for VGA and 720P(Chroma2329 Timing79) for YPbPr.
5.4.2. Steps of adjustment
1).Enter the factory menu-> White Balance, select source HDMI 1 and
Normal Temperature.
2).Input grey signal in 720p format.
3).Change R-OFFSET and B-OFFSET to make sure the value of color
coordination equal to (X=0.280 +/-0.015;Y=0.290 +/-0.015).
4).Input white signal in 720p format.
5). Change R-GAIN and B-GAIN to make sure the value of color
coordination equal to (X=0.280 +/-0.015;Y=0.290 +/-0.015).

第10 页共 11 页
6).Repeat step 2—5 until both of the value of color coordination of
white and grey equal to (X=0.280 +/-0.015;Y=0.290 +/-0.015).
For COOL and WARM color temperature, just repeat step 2—5.The color
coordination we recommend for COOL and WARM color temperature is
respectively(X=0.270 +/-0.015;Y=0.270 +/-0.015) and
(X=0.300 +/-0.015;Y=0.305 +/-0.015).
After the adjustment of HDMI1, you can switch to other source AV, PC
and YPbPr and repeat step 1—6 to do the WB adjustment.
Note: For some small size LED panel,the color coordination of
specifications is not X=0.280/Y=0.290,and we recommend you adopt the
values from panel specifications.
5.5. ADC Calibration and White Balance Adjustment (automatic)
The process of adjusting ADC and White Balance automatically is out
of the range of this file, Please refer to the relevant technical file
of HuiZhou factory of TCL.
6.Chip list of software programming before SMT
Following chips must be programmed before SMT by tools
Position Chip type Software description
U202 EN25Q32 HDMI HDCP Key, System Software etc.
7.Software update
Method of SW update:
1） Download the bin file to the root directory of your USB device (Do
not change the file name); Then insert the USB device to USB interface
of TV set.
MS306 Series with its upgrade file corresponding relation as thetable
below show:
Chassis Name Sales
area Upgrade filename Remark
AP MS306_AP_TCL.bin
MS306/MS306P LA MS306_LA_TCL.bin
MS306B/MS306BP AP MS306B_TCL.bin DVB-T2
MS306C/MS306CP AP MS306C_TCL.bin DVB-T
MS306D/MS306DP LA MS306D_TCL.bin
ISDB-T(Name of Brazil
version will be changed
after its updating )
MS306G LA MS306G_TCL.bin DVB-T2

第11 页共 11 页
2） Upgrading method 1
1，using the remote, enter the “Picture” submenu of the OSD; choosing
the “contrast” item and press 9,7,3 and 5 in series, Factory Menu will
appear in the left top of screen.
2,Select the “USB UPDATE” item , press left or right key to enter the
update box;
3,Select “YES” of the dialog box and press OK button to start the update,

第12 页共 11 页
you will see a progress box on the screen.
4,After updating , the set will reset automatically.
3）Upgrading method 2
1，Press the “MEUN”button of Remote Control, then select the“Software
Update(U..>” item in “Option”sub-menu, press left or right key to
enter the update box.
2，Press left button Select “YES” of the dialog box and to start the
update, you will see a progress box on the screen.

第13 页共 11 页
3，After updating , the set will reset automatically.
8, Project ID selecting
1) Press the Menu button of remote control, then select Contrast item
of Picture submenu; press 1,9,5,0 consecutively, there you go the
Design Menu.
2) Select the SERVICE MENU item, press OK and RIGHT button of the remote
to enter submenu,
3) Select the PROJECT ID item, press OK or RIGHT button of the remote
to enter the submenu;
4) Press the right or left button of the remote to select the ID you want;
5) After ID selection, press MENU button of the remote to exit DESIGN
MENU.
6) Finally, do AC power on/off.
