Product information
IP Video Streamer
FBI6110

2 03/2013
TCS TürControlSysteme AG, TCS Hotline Germany: [email protected] Subject to technical changes.
PI_FBI6110-uk 2 A
Table of contents
Scope of delivery...............................................................................................................3
Safety instructions.............................................................................................................3
General safety regulations ...............................................................................................3
Installation –protective measures....................................................................................3
Terms..................................................................................................................................3
Technical data....................................................................................................................4
Indication and operation elements...................................................................................4
Device overview.................................................................................................................5
Intended use.......................................................................................................................5
Short description...............................................................................................................5
Connect the lines...............................................................................................................6
Note..................................................................................................................................6
Connection lines to the TCS system ................................................................................6
Connect the device...........................................................................................................6
Wiring diagram with SIP-Gateway....................................................................................7
Connection diagram.........................................................................................................7
Commissioning..................................................................................................................8
Error detection and indication...........................................................................................8
Decommissioning..............................................................................................................8
Settings...............................................................................................................................9
Reload to factory settings.................................................................................................9
Start browser: connection establishment PC –IP Video Streamer...............................9
Prepare the network connection.......................................................................................9
Live transmission ............................................................................................................10
Image reproduction .........................................................................................................12
Settings.............................................................................................................................12
Video..............................................................................................................................13
Network..........................................................................................................................14
General ..........................................................................................................................15
Video sources ................................................................................................................16
Control............................................................................................................................17
Time/date.......................................................................................................................18
Change the password......................................................................................................19
Password Administrator..............................................................................................19
Password User ...........................................................................................................19
Forgot password?...........................................................................................................20
Password Administrator..............................................................................................20
Password User ...........................................................................................................20
Send short message........................................................................................................21
Short message to a group..............................................................................................21
Short message to all devices .........................................................................................21
Accessibility from the internet .......................................................................................23
Setup with static IP address...........................................................................................23
Setup with dynamic IP address and usage of a DynDNS service ..................................23
IT safety .........................................................................................................................24
Useful notes .....................................................................................................................24
How is the IP address of the PC/Laptop identified? .......................................................24
How is ensured if the IP address of the Video Streamer is already used?.....................24
FAQ...................................................................................................................................25
Spare parts, accessory....................................................................................................26

03/2013 3
TCS TürControlSysteme AG, TCS Hotline Germany: [e-mail] Subject to technical changes.
PI_FBI6110-uk 2 A
Conformity........................................................................................................................26
Information on disposal..................................................................................................26
Warranty...........................................................................................................................26
Notes.................................................................................................................................27
Service..............................................................................................................................28
Scope of delivery
1 x FBI6110-0400 (with SD card 2 GB)
product information
Safety instructions
General safety regulations
!
Attention! Mounting, installation, commissioning and repair of electronic devices have
to be carried out only by qualified electricians. Thus, the current standards for the in-
stallation of door communication systems must be observed.
For working on systems with main connection of 230 V alternating voltage, the safety regu-
lations according to DIN VDE 0100 must be observed.
When installing TCS:BUS®systems, the general safety regulations for telecommunication
systems according to VDE 0800 (and EN60950 safety standard for information technology
equipment must be observed. Inter alia:
separated conduit of heavy and low current lines,
minimum distance of 10 cm in case of a common conduit,
use of separators between heavy and low current lines within shared cable ducts,
use of standard communication lines, e.g. J-Y (St) Y with 0.8 mm diameter,
existing lines (modernisation) with deviating cross-sections can be used in compliance
with the loop resistance.
Installation –protective measures
!
With suitable measures to protect against lightning, it has to be ensured that a voltage
of each 32 V DC is not exceeded at the connections.
Terms
MJPG
MJPEG (Motion JPEG) is a codec, where every single image is
compressed as JPEG image with a compression rate of 1:5 to
1:13. The quality of MJPEG is-independent of movement.
Ring buffer
A ring buffer stores data continuously in a determined period of
time and overwrites this data again after the preset time is up in
order to provide storage space for new data.

4 03/2013
TCS TürControlSysteme AG, TCS Hotline Germany: [email protected] Subject to technical changes.
PI_FBI6110-uk 2 A
Technical data
supply voltage: +26 V ±8 % (power supply and control unit)
housing: DIN-rail housing 6 SU for DIN-rail mounting
DIN EN 50022
weight 180 g
acceptable ambient temperature: 0 °C ... +40 °C
input current: I(a) = 0.2 mA, I(P) = 110 mA
max. input current: I(Pmax) = 135 mA
input impedance: 100 Ohm balanced
6-wire technique necessary!
Indication and operation elements
Term
Function
LED, green:
indication for operational
readiness
ON: device is ready for operation
blinks: during start and update procedure
LED, yellow:
error indication network
and SD card
flashes: error in the network connection
or SD card is missing or defect
LED, red:
error indication TCS:BUS
flashes: error in the connection to the TCS:BUS®
RJ45 socket LAN 1
RJ45 socket LAN 2
each with LED, yellow
and LED, green
connection to the network
connection to the SIP-Gateway (if used)
LED, yellow: indicates data current
LED, green: ON, if the FBI6110 is connected to the
network resp. with the SIP-Gateway
push button reset
push button WE
to reset the FBI6110
to reload the factory setting of the FBI6110

03/2013 5
TCS TürControlSysteme AG, TCS Hotline Germany: [e-mail] Subject to technical changes.
PI_FBI6110-uk 2 A
Device overview
………….
Intended use
The FBI6110 is a Linux-based web server to connect TCS video systems to network.
It is suitable for DIN-rail mounting according to DIN EN 50022.
Short description
browser-based usage and configuration, no programme and driver installation neces-
sary (condition: JavaScript and Java)
triggering of control functions with status indication via web interface
video transmission via JPEG stream, MJPG (up to 10 simultaneous accesses)
resolution color: 320 x 240 pixel
image transmission rate from 1 to 10 images per second, can be adjusted
automatic image storage in case of a door call on SD carte (enclosed in the delivery)
storage of max. 100 still images with date and time in ring buffer
password protected against unauthorised configuration
push button reset
connection terminal
TCS:BUS and Video
connection network
J1: matching
resistor
Indication for opera-
tional readiness (LED,
green)
push button reload to
factory setting
error indication
network and SD card
(LED, yellow)
error indication
TCS:BUS®(LED,
red)
SD card slot
connection SIP-Gateway

6 03/2013
TCS TürControlSysteme AG, TCS Hotline Germany: [email protected] Subject to technical changes.
PI_FBI6110-uk 2 A
error indication, optical (LED)
integrated two-wire video receiver for direct connection to TCS video systems
RJ45 socket for connection to the network (10/100 Base-TX)
RJ45 socket to connect a SIP-Gateway via an integrated switch
browser-based possibilty to send short messages to video indoor stations (ecoos™
IVW221x, sky™IVW2221 or skyline™IVW3012).
Connect the lines
Note
!
Use a small screwdriver to connect lines and to avoid damaging the device.
Connection lines to the TCS system
acceptable cross-section (diameter)
0.08 … 0.82 mm2(Ø 0.32 … 1.0 mm)
max. number of wires per terminal contact
each 2 x Ø 0.8 mm or 3 x Ø 0.6 mm
Connect the device
Connect the device according to the wiring diagram.
Establish a connection between the socket LAN1 at the Video Streamer and your net-
work with a standard network cable.

03/2013 7
TCS TürControlSysteme AG, TCS Hotline Germany: [e-mail] Subject to technical changes.
PI_FBI6110-uk 2 A
Wiring diagram with SIP-Gateway
Connection diagram
floor push
button
network

8 03/2013
TCS TürControlSysteme AG, TCS Hotline Germany: [email protected] Subject to technical changes.
PI_FBI6110-uk 2 A
Commissioning
!
First install the system completely, than connect it to the mains voltage!
V1 and V2 must not be connected with the P-, a- or b-wire.
When connecting the video wires V1 (+) and V2 (−) the polarity must be observed. If
you see a distorted picture after the commissioning, switch off the device and ex-
change the wires for the video signal.
Ensure that the SD card is plugged accordingly to the marking on the type label in the
SD slot. The SD card is necessary for the storage of all configuration data and images.
The card must always be in the device.
!
For a safe functionality, only the enclosed SD card is to be used.
The SD card can be ordered as spare part directly at TCS (see Spare parts, acces-
sory, page 26).
Switch on the mains voltage, the Video Streamer starts automatically. The LED indica-
tion (green) blinks for around 10 seconds and shines. The device is now ready for oper-
ation.
Error detection and indication
Errors when connecting the cables are signaled by flashing of the LED indication (red or
yellow). The optical error indication stays active until the error is corrected.
error causes
indication
error mode
our solution
a- and P-wire are mixed or
short-circuited
LED, flashes red
Exchange a- and P-wire or correct short-circuit,
LED expices.
a-wire not connected or not
supplied
Connect the a-wire or establish power supply, LED
expices.
error to the network connec-
tion or SD card is missing
LED, flashes yellow
Check the connection to the network, the SD card
is plugged in and whether the PC is operating.
Decommissioning
For certain activities on the system such as maintenance, the Video Streamer must be
removed from operation:
Switch off the power supply of the system.

03/2013 9
TCS TürControlSysteme AG, TCS Hotline Germany: [e-mail] Subject to technical changes.
PI_FBI6110-uk 2 A
Settings
Reload factory settings
!
When reset to factory settings, only the IP settings and passwords are reset to factory
setting.
If the adjusted IP address or the administrator password is not known, the device can be
reset to factory settings:
IP address: 192.168.1.201
subnet mask: 255.255.255.0
user: admin
password: 1234
LED, lights up green
LED, blinks green
LED, blinks fast green
LED, lights up green
press push button reset
to factory setting and
keep it pressed …
keep push button reset
to factory setting
pressed …
…, until the LED blinks
fast, then release it
device is reset to factory
settings
Start browser: establish a connection PC –IP Video Streamer
Prepare the network connection
The PC/Laptop must be equipped with a network connection and it must be located in the
same subnet as the Video Streamer. If your network and the Video Streamer are working
within the 192.168.1 address area (C net), you have direct access to the Video Streamer
(provided that this IP address is not used by another device).
Otherwise, the used PC/laptop has to be switched temporarily to an IP address within the
address area of the FBI6110 in order to establish a connection with the Video Streamer.
To establish/ adjust your network connection, please use the network installation assistant
or the help function of your operating system, keyword: set up network.
If several FBI6110 (in delivery state) are to be installed within one network, the devices
have to be commissioned one after another and a free IP address has to be assigned.
To set up the network connection, you may need administrator rights.
In delivery state, the following is preset at FBI6110:
IP address: 192.168.1.201
subnet mask: 255.255.255.0
user: admin
password: 1234

10 03/2013
TCS TürControlSysteme AG, TCS Hotline Germany: [email protected] Subject to technical changes.
PI_FBI6110-uk 2 A
Live transmission
Open an internet browser.
Enter the IP address in the
address line of the Video
Streamers:
http://192.168.1.201.
The start page of the web in-
terface is called.
Select Live transmission.
The image of the current video
front-door station or camera
appears.
In case of an incoming call, the
image of the calling video
front-door station appears au-
tomatically.
After a door call is realised to the TCS:BUS®an upstream video switch FVU1210 resp.
VSW04 switches to the channel, which was configured with the corresponding AS ad-
dress. The FBI6110 monitors the TCS:BUS®permanently and in this case updates the
indication of the video source within the webinterface when the menu live transmission is
active.
Further, a still picture is recorded automatically and stored on the SD card, if this feature
was activated for this AS address (video source) under Settings.
Operation
button
function
video step
The images of all connected TCS video sources can be switched in se-
quence.
open the
door
Can open the door at the current video front-door station.
store
an image
Manual saving of the currently visible image on the SD card.
The file name is given automatically (format: date_time).
zoom + / −
Zoom in (zoom +) or zoom out (zoom −) the video image in one step.
Switch the camera

03/2013 11
TCS TürControlSysteme AG, TCS Hotline Germany: [e-mail] Subject to technical changes.
PI_FBI6110-uk 2 A
camera selec-
tion list
explanation
Drop-Down-
menu over the
image field (e.g.
post, side en-
trance, …)
Here, all available TCS cameras can be called directly.
The camera selection list shows all video sources, which were acti-
vated in the menu video sources in order to be displayed in the
camera selection list.
You can select the names of the video sources freely
(max. 20 characters).
The order of the cameras is the order in which the cameras were
created in the configuration overview (see Video sources, page. 16).
Trigger the controling
toolbar
explanation
Button 1
…
…
…
…
…
Button 10
With these buttons, a control function can be sent to the TCS:BUS®
and thus, a switching process at another TCS:BUS®device can be
triggered.
The status indication (if available, see graphic below) is influenced by
the control functions, which were sent by the Video Streamer and other
TCS:BUS®devices to the TCS:BUS® .
Operation and indication elements are created by the administrator in
the corresponding configuration menu. (see Control, page 17)
The status indication is updated every 2 seconds.
Status indication
Button 1
Button 1
Button 1
Button 1
Button 1
FBI or
extentTM
FBI or
extentTM
FBS
FBS
BRE
Switching and
switching state 1
ON/OFF
Switching and
switching state 2
OFF/ON
only indication
switching state
ON
only indication
switching state
OFF
switching
without status
indication
Note
Between control functions, which are offered by the TCS:BUS®, also products of the series ex-
tentcan be integrated in the Video Streamer. It is possible to get information on the switching
state between the usual switching acts. The status of the sensors of the extentseries can be
displayed directly on the Video Streamer.

12 03/2013
TCS TürControlSysteme AG, TCS Hotline Germany: [email protected] Subject to technical changes.
PI_FBI6110-uk 2 A
Image reproduction
Note: In every menu, a Back button is
available. By pressing the button you
can go back to the start page.
Select Image reproduction on
the start page.
The image stored last is dis-
played.
Via a drop-down menu above
the image field all available
images can be selected and
displayed according to a
known time and a known date.
The currently displayed image
can be deleted by pressing the
Delete button.
<-back
Note
In case of an incoming door call an image is stored automatically, if the video source was config-
ured for this purpose. Up to 100 images can be stored, older images are deleted automatically.
Settings
Open an internet browser.
Enter the IP address in the
address line of the Video
Streamer:
http://192.168.1.201
The start page is called.
Select Settings.
Enter the user name and the
password (pre-adjusted: ad-
min and 1234) and click OK.
Streamer

03/2013 13
TCS TürControlSysteme AG, TCS Hotline Germany: [e-mail] Subject to technical changes.
PI_FBI6110-uk 2 A

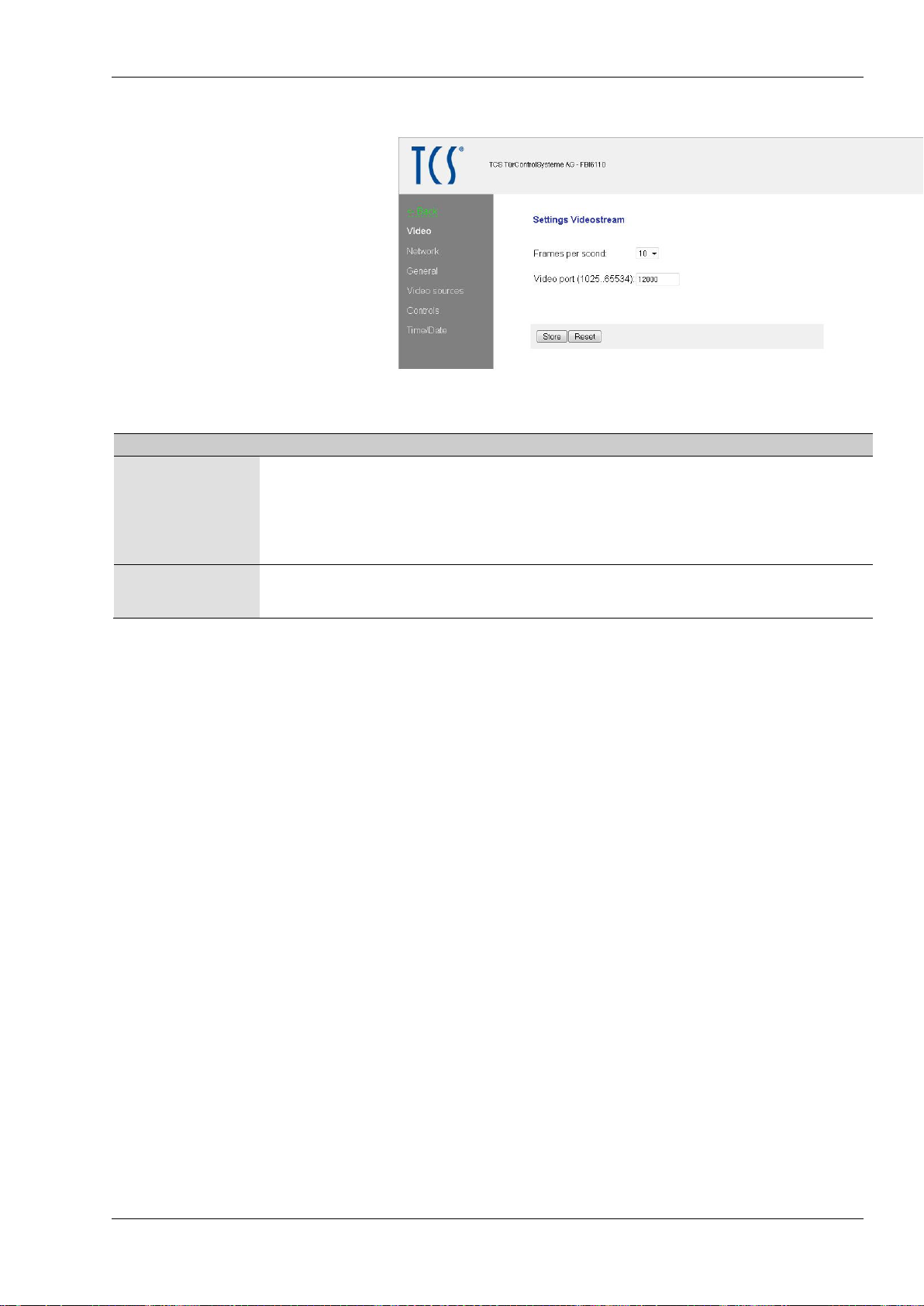

Video
Enter the data.
Confirm with the Save button,
the settings are stored.
The button Reset resets the
content to the last stored
state. The device is not reset
to factory settings.
Parameter
Explanation
number of im-
age per second
Shows, how many images are forwarded as video. Only every x th
image is sent (1 to 10 images /s are possible).
If image errors or image dropouts occur when reproducing the image
within the network or in the Internet, the available bandwidth is not
enough. The refresh rate must be slowed down.
video port
(1025..65534)
Port, over which the video stream is realised.
Ports from 1025 to 65534 are possible. Factory setting= 12000.

14 03/2013
TCS TürControlSysteme AG, TCS Hotline Germany: [email protected] Subject to technical changes.
PI_FBI6110-uk 2 A
Network
Enter the data.
Confirm with the Save button,
the settings are stored.
The button Reset resets the
content to the last stored
state. No reload to factory
setting is realised.
Parameter
Explanation
IP address
Assign a free IP address within xou network to the Video Streamer,
also see Useful , page 24)
subnet mask
Register the associated subnet mask (usually 255.255.255.0)
standard Gate-
way
Enter the internal IP address of your router or server as standard
Gateway.
primary DNS
Enter the internal IP address of your router or server as primary DNS.
secundary DNS
Enter, if available, the internal IP address of your router or server as
secondary DNS.
External IP ad-
dress of the
router with port
External IP address of the router with associated port for the video
transmission, separated by a colon.
Observe our notes on Accessibility from the Internet, page 23.
After a restart, the Video Streamer can be contacted under the configured IP address.
Note
If the IP address was changed manually, the web browser may not be able to display the web page
with the feedback. If this is the case, enter the new IP manually into the browser to get back to the
main page.

03/2013 15
TCS TürControlSysteme AG, TCS Hotline Germany: [e-mail] Subject to technical changes.
PI_FBI6110-uk 2 A
General
Enter the data.
Confirm with the Save button,
the settings are stored.
The button Reset resets the
content to the last stored
state. No factory setting is re-
alised.
Parameter
Explanation
device name
Here, a name can be assigned to the FBI6110 in order to identify the
device. The name appears on the site Live transmission.
language
Via the selection menu Languageyou can select with the current vari-
ant the languages German, English, French, Italian and Spanish.
According to the selection, all menus are converted to the selected
language.
start site: live
transmission
If this option is selected, you will be forwarded automatically to the site
live transmission when entering the IP address of the Video Streamer
in your web browser.
short message
PIN
For sending short messages, it is necessary to enter a PIN (alpha al-
phanumeric) with 4 digits. Here, you can change the PIN. Preset fac-
tory setting: 1234. Also see Send short message, page 21.
firmware and
hardware ver-
sions
Indication of device internal data.

16 03/2013
TCS TürControlSysteme AG, TCS Hotline Germany: [email protected] Subject to technical changes.
PI_FBI6110-uk 2 A
Video sources
By entering the data in this table, video sources to specifically switch on the connected
video cameras are created (max. 16).
Enter a camera name. The
name appears in the camera
selection list.
Confirm with the Save button,
the settings are stored.
The button Reset resets the
content to the last stored
state. No reload to factory
setting is realised.
Parameter
Explanation
name
Name of the camera, as it should be shown in the camera selection
list.
AS address
AS address of the camera to realise a switch-over via the VSW04 or
FVU1220. The AS address is permanently assigned to the button.
Each AS address in the range from 0 to 63 can be assigned only
once.
indication
To activate or deactivate the display of the camera in the camera se-
lection list (menu Live transmission).
image storage
To activate or deactivate die automatic image storage in case of door
calls.

03/2013 17
TCS TürControlSysteme AG, TCS Hotline Germany: [e-mail] Subject to technical changes.
PI_FBI6110-uk 2 A
Control
In the menu Control, displayed buttons and status indications can be configured. For an
implementation within a TCS:BUS®system, the following devices are used (depending on
requirements): FBI4200, BRE2 or FBS1100.
Enter the data.
Confirm with the Save button,
the settings are stored.
The button Reset resets the
content to the last stored
state. No reload to factory
settings is realised.
Parameter
Explanation
name
Unique name to display in the menu: “Live transmission“.
serial number
The serial number of the connected devices resp. function is entered
here.
control function
This number determines the importance and function of the sent or
received control protocol at the TCS:BUS®.
Only to be entered if the BRE is selected.
channel number
The channel number of a connected FBI4200 is entered here. Only to
be entered if the FBI is selected.
type
Three types of devices can be selected: FBI, BRE and FBS (see table
below)
indication
To activate or deactivate the display of the function Name in the menu
Live transmission
Device
type
Entry created
Function
Enter in overview
FBI
button with
status
indication
channel functions with status indi-
cation (parallel run with IMM1100)
channel number,
serial number of the FBI
or extent™
BRE
button
send control function
serial number and con-
trol function number
FBS
status
indication
status indication
(ON = control function 1 or 3,
OFF = control function 2 or 4)
serial number

18 03/2013
TCS TürControlSysteme AG, TCS Hotline Germany: [email protected] Subject to technical changes.
PI_FBI6110-uk 2 A
Time/date
Enter the data.
Confirm with the Save button,
the settings are stored.
The button Reset resets the
content to the last stored
state. No reload to factory
settings is realised.
Parameter
Explanation
time server
Address of the server, which system time is loaded as current time.
Time/date are downloaded automatically via a time server in the inter-
net or in your network (factory setting: ntp1.ptb.de)
time zone
Here, the time zone for the system time can be selected.
The time refers to the standard time GMT. Only GMT is displayed,
summer and winter time are not taken into account.
summer time
automatically
For considering summer and winter time, the option must be activat-
ed.

03/2013 19
TCS TürControlSysteme AG, TCS Hotline Germany: [e-mail] Subject to technical changes.
PI_FBI6110-uk 2 A
Change the password
For safety reasons, it is recommended to change the password.
Password Administrator
Enter your desired password
and repeat the entry.
Confirm with the Save button.
To determine a new adminis-
trator password click on Ad-
ministrator and enter the de-
sired password and repeat
the entry.
Click on Save.
Password User
Ex works, there is no set pass-
word.
Only the administrator can set
the password User. The start
page can be called only after
entering the password.
Enter the required password
and repeat the entry.
Confirm with the Save button.
The administrator can remove
the password:
Saving without filling in the
fields.
You can also remove the administrator password, if there is no need for safety.
Save without filling in the fields.
!
Observe that other persons can manipulate the device without password protection!

20 03/2013
TCS TürControlSysteme AG, TCS Hotline Germany: [email protected] Subject to technical changes.
PI_FBI6110-uk 2 A
Forgot password?
Password Administrator
To ensure the access for the administrator, the device can be reset to factory settings.
!
When resetting to factory settings, only the IP settings and passwords are reloaded to
factory setting.
The network factory settings are:
IP address: 192.168.1.201
Subnet mask: 255.255.255.0
User: admin
Password: 1234
Password User
Only the administrator can change or delete the password User.
