SERVICE MANUAL
Integrated Stereo Amplifier
Effective : July, 2004 S-0120A
CONTENTS
1 SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2
2 IC PIN FUNCTIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・3
3 EXPLODED VIEWS AND PARTS LIST ・・・・・・・・・・・・・・・・・4
4 PC BOARDS AND PARTS LIST ・・・・・・・・・・・・・・・・・・・・・・・・6
NOTES
●PC boards shown are viewed from parts side.
●The parts with no reference number or no parts number in the
exploded views are not supplied.
●As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
●£Parts marked with this sign are safety critical components. They
must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
For Europe
1 SPECIFICATIONS
−2−
Amplifier Section
Power output ..............................45 W + 45 W (6 Ω, 1 kHz, 0.5%)
Total Harmonic Distortion........................0.5% (1 kHz, 6 Ω, 45 W)
S/N Ratio ....................................................PHONO: 70 dB (IHF-A)
AUX, CD, TAPE, TUNER: 95 dB (IHF-A)
CD direct: 95 dB (IHF-A)
Input Sensitivity/Impedance ......................PHONO: 2.6 mV/10 kΩ
AUX, CD, TAPE, TUNER: 180 mV/10 kΩ
Frequency Response..................................................5 Hz - 80 kHz
Tone Control ............................................BASS : ±10 dB (100 Hz)
TREBLE : ±10 dB (10 kHz)
General
Power Requirement ..............................................AC 230 V, 50 Hz
Power Consumption ..............................................................85 W
AC Outlet (total 100 W max.) ..................................unswitched x 1
Dimensions (W x H x D) ................................215 x 312 x 110 mm
Weight (Net)..........................................................................4.2 kg
Operating temperature ................................................+5˚C - +35˚C
Operating humidity..........................5% to 85% (no condensation)
Storage temperature ................................................–20˚C - +55˚C
Standard Accessory........................................Remote Control Unit
Battery (AAA, R03, UM-4) x 2
•Design and specifications are subject to change without notice.
•Weight and dimensions are approximate.
2 IC PIN FUNCTIONS
−3−
Pin No. PIN NAME I/O
1 FUNC MUTE O Function, Mute ON/OFF Output
2 -20dB MUTE O -20dB Mute ON/OFF Output
3 POWER MUTE O Power Mute Output
4 SOURCE REC, OUT O Source recoding Output
5 OPTION
6 OPTION
7 PROTECT IN I Protect Input
8 STAND BY O Stand by LED ON/OFF Output
9 POWER ON/OFF O Power ON/OFF Output
10 AUX O Function, LED ON/OFF Output
11 PHONO O Function, LED ON/OFF Output
12 N/C - Non connection
13 TUNER
14 CD
15 TAPE 1
16 TAPE 2
17 Vss I GROUND
18,19 N/C - Non connection
20 RESET I Divice reset pluse input
21 XL 1 O Crystal Output
22 XL 2 I Crystal Input
23 TAPE 2 1 O TAPE 2 Recording Output
24 TAPE 1 2 O TAPE 1 Recording Output
25,26 KEY OUT O Key matrix signal Output
27,28 KEY IN I Key matrix signal Input
29 TAPE 2 REC IN I TAPE 2 Recording Input
30 TAPE 1 REC IN I TAPE 1 Recording Input
31 SOURCE REC, IN I Source recoding Input
32,34 N/C - Non connection
33 FUNCTION DOWN I Function Down Input
35 FUNCTION UP I Function Up Input
36 BUS IN I System control Input
37 REMOTE IN I Remote control Input
38 N/C - Non connection
39 Vdd I +5V
40 BUS OUT O System control Output
41 N/C - Non connection
42 VOLUME DOWN O Volume DOWN Output
43 VOLUME UP O Volume UP Output
44 CD DIRECT O CD Direct led ON/OFF Output
DESCRIPTION
Option port "HIGH" LEVEL
Function, LED ON/OFF OutputO
I
HVIANAM1224A
−4−
2
1
3
4
5
8
7
6
9
10
11
12
13
14
15
18
16
17
19
20
21
24
23
22
29
25
26
27
32
28
31
33
34
35
36
x7
x4
x4
x3
x3
x3
30
x3
37
38
39
40

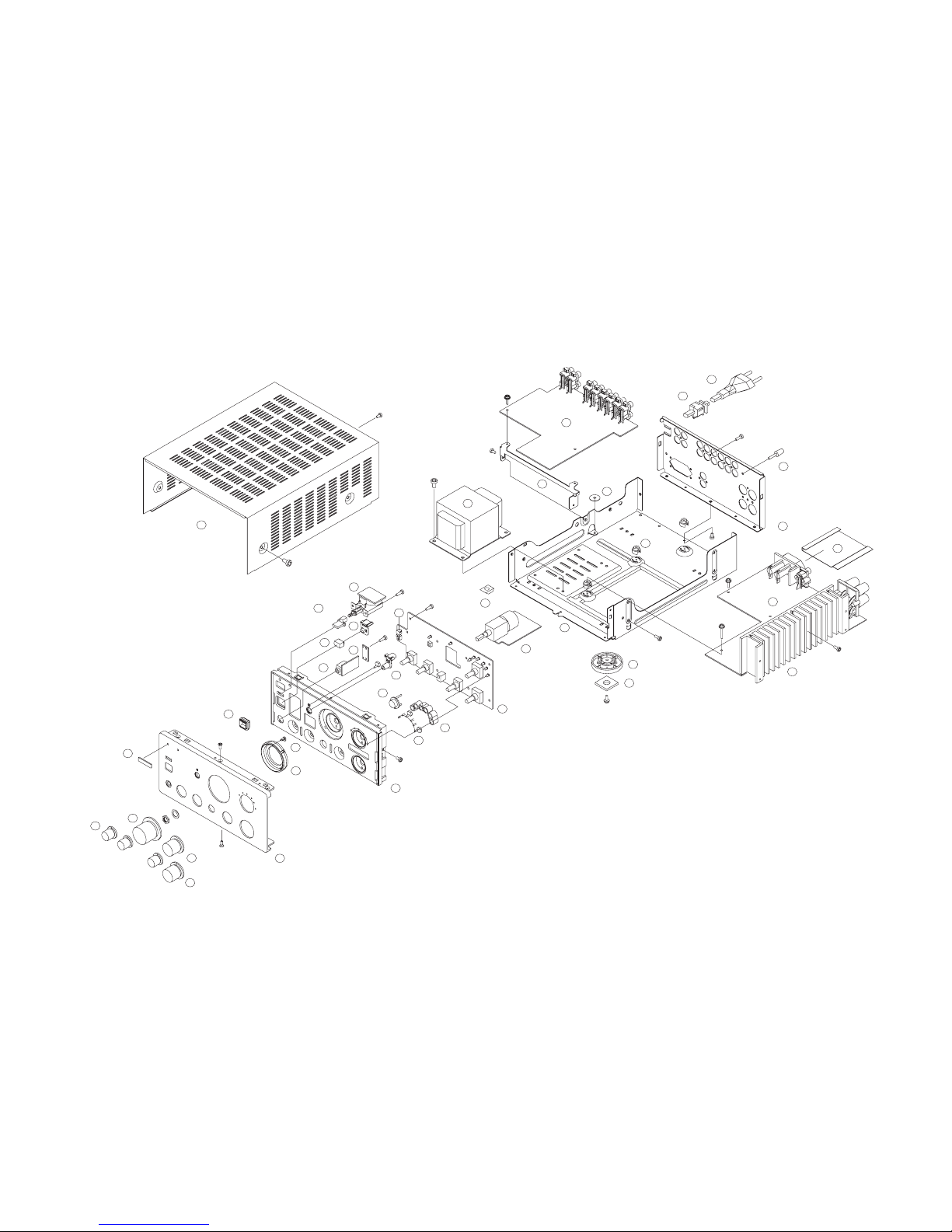

3 EXPLODED VIEWS AND PARTS LIST
−5−
EXPLODED VIEW LIST
REF.NO. PARTSNO. DESCRIPTION REMARKS
1HGK1A103ZA ROTARYKNOBASSY
2HGK1A101ZA VOLUMEKNOBASSY
3HGK1A102ZA INPUTKNOBASSY
4HGK1A102YA RECKNOBASSY
5KGB1A047Z BADGE,TEAC
6CKM1A152ZC35 PANEL,AL
7CGL1A133 INDICATOR,STANDBY
8CGL1A228 INDICATOR,VOLUME
9CGR1A348MBC22 RING,VOLUME
10 CGW1A384M7G5 PANEL,SUB
11 CBC1A098M7G5 KNOB,POWER
12 COP11711B FRONTPCBASSY
13 CBT1A495M7G5 CAP,STANDBY
14 CBT1A483 KNOB,STANDBY
15 COP11711B FRONTPCBASSY
16 COP11711B FRONTPCBASSY
17 CBT1A484M7G5 KNOB,DIRECT
18 CGU1A261A8 WINDOW,SENSOR
19 CGL1A219 INDICATER,STAND‑BY
20 CGW1A384M7‑2 HOLDER,LED
21 COP11711B FRONTPCBASSY
22 COP11711B FRONTPCBASSY
23 CKC1B088S35 CABINET,TOP
24£CLT5P039ZE TRANS,POWER
25 CHG1A113 RUBBER
26 CUA2A157 CHASSIS,BOTTOM
27 CKL2A055H45 FOOT
28 KHG1A050Y CUSHION,FOOT
29 COP11712B INPUTPCBASSY
30 CMD1A356 BRACKET,PCB
31 CHE170 HOLDER,PCB
32 COP11713B AMPPCBASSY
33 CMY2A126 HEATSINK
34 CKF1A152R PANEL,REAR
35 KMA2A001 TERMINAL,GROUND
36£KHR1A028 BUSHING,ACCORD
37£CJA2B043ZA CORD,POWER
38 CMX1A167 INSULATOR
39 CHE1A012 WASHER,FIBER
40 CMD1A376 SUPPORT,LED
F901£KBA2C2000TLEZ FUSE
F902£KBA2C1000TLEZ FUSE
INCLUDED ACCESSORIES
REF.NO. PARTSNO. DESCRIPTION REMARKS
9A10000400 OWNER'SMANUAL,E/F/S
9A10000500 OWNER'SMANUAL,G/I/D
CARTAH300S REMOCONTRANSMITTERASSY
4 PC BOARDS AND PARTS LIST
−6−
INPUT PCB
−7−

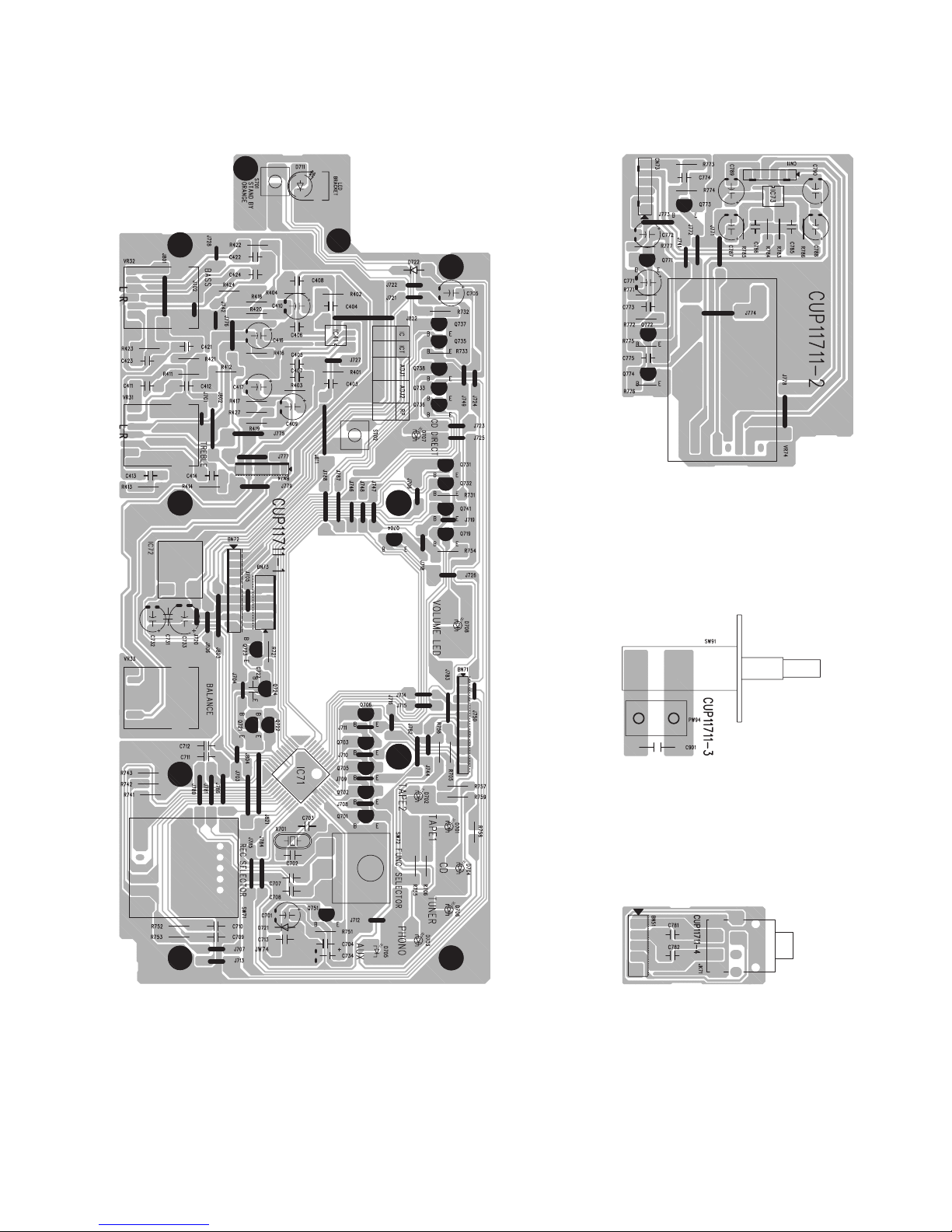

FRONT PCB VR CONTROL PCB
POWER SWITCH PCB
HEADPHONE PCB
−8−
AMP PCB
INPUT PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
COP11712B INPUTPCBASSY
CUP11712Z INPUTPCB
CN14 KJP04GA19ZM WAFER
CN52 KJP04GA01ZM WAFER
CN71 KJP11GA19ZM WAFER
CN74 KJP06GA19ZM WAFER
IC11 HVINJM2068MDTE1 IC,NJM2068
IC12 BVILC4966 IC,LC4966
IC13 BVILC4966 IC,LC4966
IC14 BVILC4966 IC,LC4966
IC15 BVILC4966 IC,LC4966
IC16 BVILC4966 IC,LC4966
IC17 BVILC4966 IC,LC4966
IC18 BVILC4966 IC,LC4966
IC19 HVINJM2068MDTE1 IC,NJM2068
IC20 HVINJM2068MDTE1 IC,NJM2068
IC21 HVINJM2068MDTE1 IC,NJM2068
JK10 CJJ4R014Z JACK,BOARD
JK11 CJJ4R017Z TERMINAL,IN/OUT(G)
JK12 CJJ4P019Z JACK,BOARD
Q101 HVTKTC2874BT TR,KTC2874B
Q102 HVTKTC2874BT TR,KTC2874B
Q103 HVTKTC2874BT TR,KTC2874B
Q104 HVTKTC2874BT TR,KTC2874B
Q107 HVTKRC107MT TR,KRC107M
Q108 HVTKRA107MT TR,KRA107M
Q109 HVTKRC107MT TR,KRC107M
Q111 HVTKRC107MT TR,KRC107M
Q112 HVTKRA107MT TR,KRA107M
Q113 HVTKRC107MT TR,KRC107M
Q114 HVTKRA107MT TR,KRA107M
Q115 HVTKRC107MT TR,KRC107M
Q116 HVTKRA107MT TR,KRA107M
Q211 HVTKRC107MT TR,KRC107M
Q212 HVTKRA107MT TR,KRA107M
Q213 HVTKRC107MT TR,KRC107M
Q214 HVTKRA107MT TR,KRA107M
Q215 HVTKRC107MT TR,KRC107M
Q216 HVTKRA107MT TR,KRA107M
Q217 HVTKRC107MT TR,KRC107M
Q218 HVTKRA107MT TR,KRA107M
Q219 HVTKRC107MT TR,KRC107M
Q220 HVTKRA107MT TR,KRA107M
Q221 HVTKRC107MT TR,KRC107M
Q222 HVTKRA107MT TR,KRA107M
FRONT PCB ASSY (GATHER)
REF.NO. PARTSNO. DESCRIPTION
COP11711B FRONTPCBASSY
CUP11711Z FRONTPCB
CMD1A376 SUPPORT,LED
C901£BCKWKH472ME C,CERAMIC(KHTYPE)
CN11 KJP06GA19ZM WAFER
CN73 KJP06GA19ZM WAFER
D701 CVDLEBBL33T0 LED,BLUE
D702 CVDLEBBL33T0 LED,BLUE
D703 CVDLEBBL33T0 LED,BLUE
D704 CVDLEBBL33T0 LED,BLUE
D705 CVDLEBBL33T0 LED,BLUE
D706 CVDLEBBL33T0 LED,BLUE
D707 CVDLEBBL33T0 LED,BLUE
D708 CVDLEBBL33T0 LED,BLUE
D711 HVD342YCTB7T089 LED,YELLOW
D721 HVD1SS133MT DIODE,1SS133
D722 HVD1SS133MT DIODE,1SS133
IC41 HVINJM2068MDTE1 IC,NJM2068
IC71 HVIANAM1224A IC,ANAM1224A
IC72 KRVHIM602H32 SENSOR,REMOCON
IC73 HVINJM2068MDTE1 IC,NJM2068
JK71 HJJ2E027Z JACK,HEADPHONE
Q701 HVTKRA107MT TR,KRA107M
Q702 HVTKRA107MT TR,KRA107M
Q703 HVTKRA107MT TR,KRA107M
Q704 HVTKRA107MT TR,KRA107M
Q705 HVTKRA107MT TR,KRA107M
Q706 HVTKRA107MT TR,KRA107M
Q719 HVTKRC107MT TR,KRC107M
Q721 HVTKRC107MT TR,KRC107M
Q722 HVTKRA107MT TR,KRA107M
Q723 HVTKRA107MT TR,KRA107M
Q724 HVTKRC107MT TR,KRC107M
Q731 HVTKRA107MT TR,KRA107M
Q732 HVTKRA107MT TR,KRA107M
Q733 HVTKRA107MT TR,KRA107M
Q735 HVTKRA107MT TR,KRA107M
Q736 HVTKRA107MT TR,KRA107M
Q737 HVTKRA107MT TR,KRA107M
Q738 HVTKRC107MT TR,KRC107M
Q741 HVTKRA107MT TR,KRA107M
Q751 HVTKRC107MT TR,KRC107M
Q771 HVTKSB811YT TR,KSB811Y
Q772 HVTKSB811YT TR,KSB811Y
Q773 HVTKSD1021YT TR,KSD1021Y
Q774 HVTKSD1021YT TR,KSD1021Y
S701 CST1A012ZT SW,TACT
S702 CST1A012ZT SW,TACT
SW71 HSR4A003Z SW,ROTARY
SW72 HSR2A006Z VR,ENCODER
SW91£KSH1A001ZV SW,PUSH
VR31 BVV2X01C104Y R,VARIABLE
VR32 BVV2X01C104Y R,VARIABLE
VR33 BVV2X03B104Y R,VARIABLE
VR74 CVV9Y09A104Z VOLUME,MOTOR
X701 HOX04194E120C CRYSTAL
−9−
AMP PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
COP11713B AMPPCBASSY
CUP11713Z AMPPCB
CMY2A126 HEATSINK
C906£HCETSMK63V472 C,ELECT4700UF63V
C907£HCETSMK63V472 C,ELECT4700UF63V
C927£HCEA1EH102E C,ELECT1000UF25V
C928£HCEA1EH102E C,ELECT1000UF25V
CN51 KJP05GA01ZM WAFER
CN72 CJP09GA19ZY WAFER,9PIN
D505 HVDMTZJ15BT DIODE,ZENERMTZJ15BT
D506 HVDMTZJ15BT DIODE,ZENERMTZJ15BT
D543 HVD1SS133MT DIODE,1SS133
D544 HVD1SS133MT DIODE,1SS133
D545 HVD1SS133MT DIODE,1SS133
D546 HVD1SS133MT DIODE,1SS133
D901£HVDPBPC604F DIODE,BRIDGEPBPC604F
D902£HVDW02GF DIODE,BRIDGEW02GF
D903£KVD1N4003ST DIODE,1N4003
D904£KVD1N4003ST DIODE,1N4003
D931 HVDMTZJ13BT DIODE,ZENERMTZJ13BT
D951 HVDMTZJ13BT DIODE,ZENERMTZJ13BT
D961 HVD1SS133MT DIODE,1SS133
ET01 CNE75 PLATE,EARTH
F901 KJCFC5S HOLDER,FUSE
F902 KJCFC5S HOLDER,FUSE
IC61£HVIMC7805C IC,MC7805
JK51 CJJ5P011Z TERMINAL,SPEAKER
JK52 CJJ4N033Z JACK,BOARD
L537 CLEYK1R8KA COIL
L538 CLEYK1R8KA COIL
OL66£KJJ7A021Z ACOUTLET,230V1P
PW91 KJP03GA90ZM WAFER
PW92 KJP03GA01ZM WAFER
PW93 KJP02GA89ZM WAFER
PW94 KJP02KA060ZY WAFER
Q491 HVTKTC2874BT TR,KTC2874B
Q492 HVTKTC2874BT TR,KTC2874B
Q501 HVTKSA992FT TR,KSA992F
Q502 HVTKSA992FT TR,KSA992F
Q503 HVTKSA992FT TR,KSA992F
Q504 HVTKSA992FT TR,KSA992F
Q513 KVTKSC2785YT TR,KSC2785Y
Q514 KVTKSC2785YT TR,KSC2785Y
Q515 KVTKSC2785YT TR,KSC2785Y
Q516 KVTKSC2785YT TR,KSC2785Y
Q517£HVTKTC2026Y TR,KTC2026Y
Q518£HVTKTC2026Y TR,KTC2026Y
Q529£HVTKSC2316YT TR,KSC2316Y
Q530£HVTKSC2316YT TR,KSC2316Y
Q531£HVTKSA916YT TR,KSA916Y
Q532£HVTKSA916YT TR,KSA916Y
Q533£HVTKTD998O TR,KTD998O
Q534£HVTKTD998O TR,KTD998O
Q535£HVTKTB778O TR,KTB778O
Q536£HVTKTB778O TR,KTB778O
AMP PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
Q541 KVTKSA1175YT TR,KSA1175Y
Q542 KVTKSA1175YT TR,KSA1175Y
Q545 HVTKRA107MT TR,KRA107M
Q903 KVTKSC2785YT TR,KSC2785Y
Q904 KVTKSA1175YT TR,KSA1175Y
Q905 KVTKSA1175YT TR,KSA1175Y
Q906 KVTKSC2785YT TR,KSC2785Y
Q907£HVTKSA916YT TR,KSA916Y
Q908£HVTKSC2316YT TR,KSC2316Y
Q931 HVTKRA107MT TR,KRA107M
Q932£HVTKSC2316YT TR,KSC2316Y
Q933 HVTKRC107MT TR,KRC107M
Q941 HVTKRC107MT TR,KRC107M
Q942£HVTKSA916YT TR,KSA916Y
Q943 HVTKRA107MT TR,KRA107M
Q961 HVTKRA107MT TR,KRA107M
Q962 HVTKRC107MT TR,KRC107M
R531£CRG1ANJ181H R,METAL1801W
R532£CRG1ANJ181H R,METAL1801W
R533£CRF5EKR22 R,CEMENT0.225W
R534£CRF5EKR22 R,CEMENT0.225W
R535£CRF5EKR22 R,CEMENT0.225W
R536£CRF5EKR22 R,CEMENT0.225W
R761£CRG1ANJ391H R,METAL3901W
R762£CRG1ANJ391H R,METAL3901W
R921£KRQ1AJR47H R,FUSE0.471W
R922£KRQ1AJR47H R,FUSE0.471W
R961£KRD50FJ100T R,CARBON101/2W
RY51 HSL4A004ZU RELAY
TW91 KJP02KA060ZY WAFER
−10−
86 74 52 31
E
D
C
B
A
Integrated Stereo Amplifier
AA--HH330000mmkk##
1 st Issue; May 2004

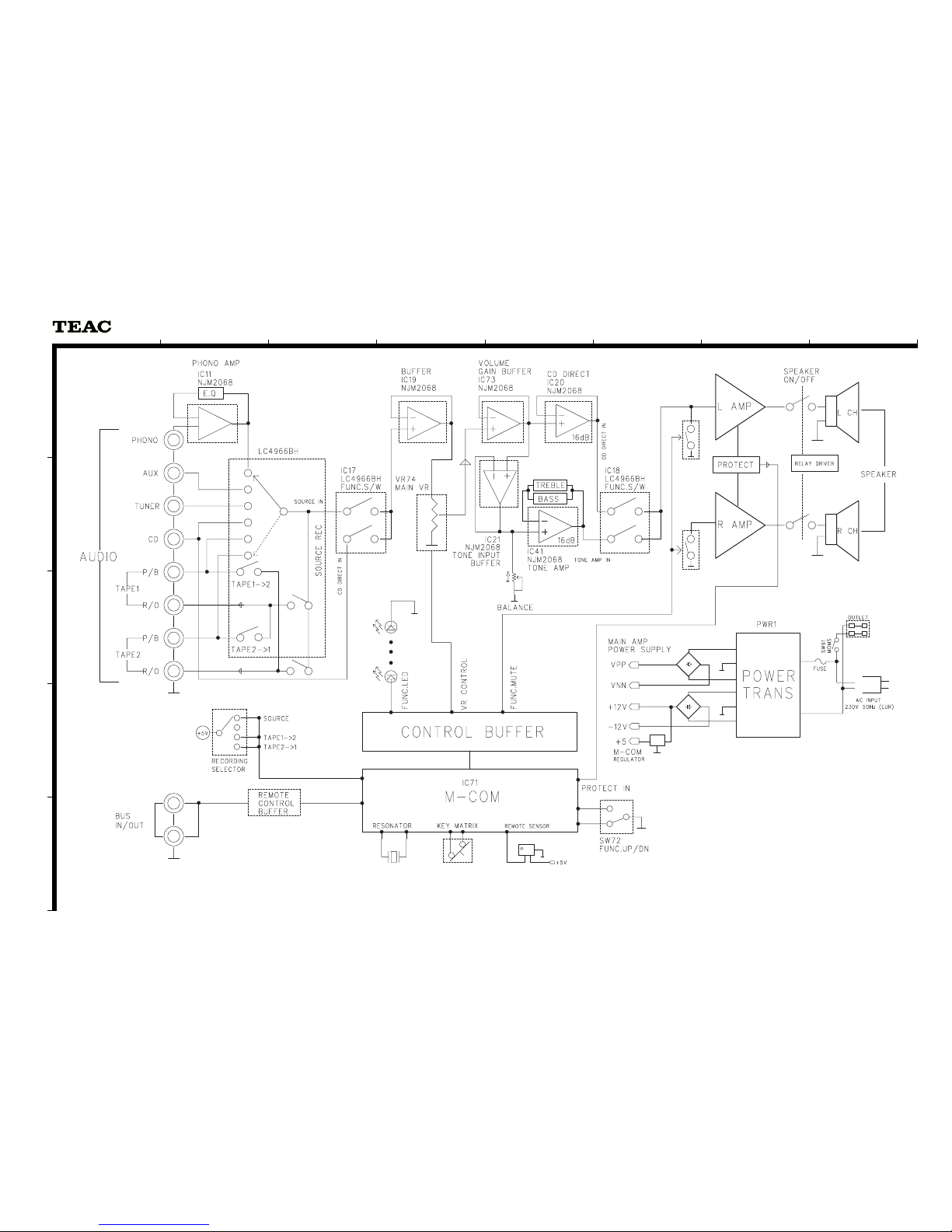

BLOCK DIAGRAM
A-H300mk##
86 74 52 31
E
D
C
B
A
Integrated Stereo Amplifier
AA--HH330000mmkk##
1 st Issue; May 2004

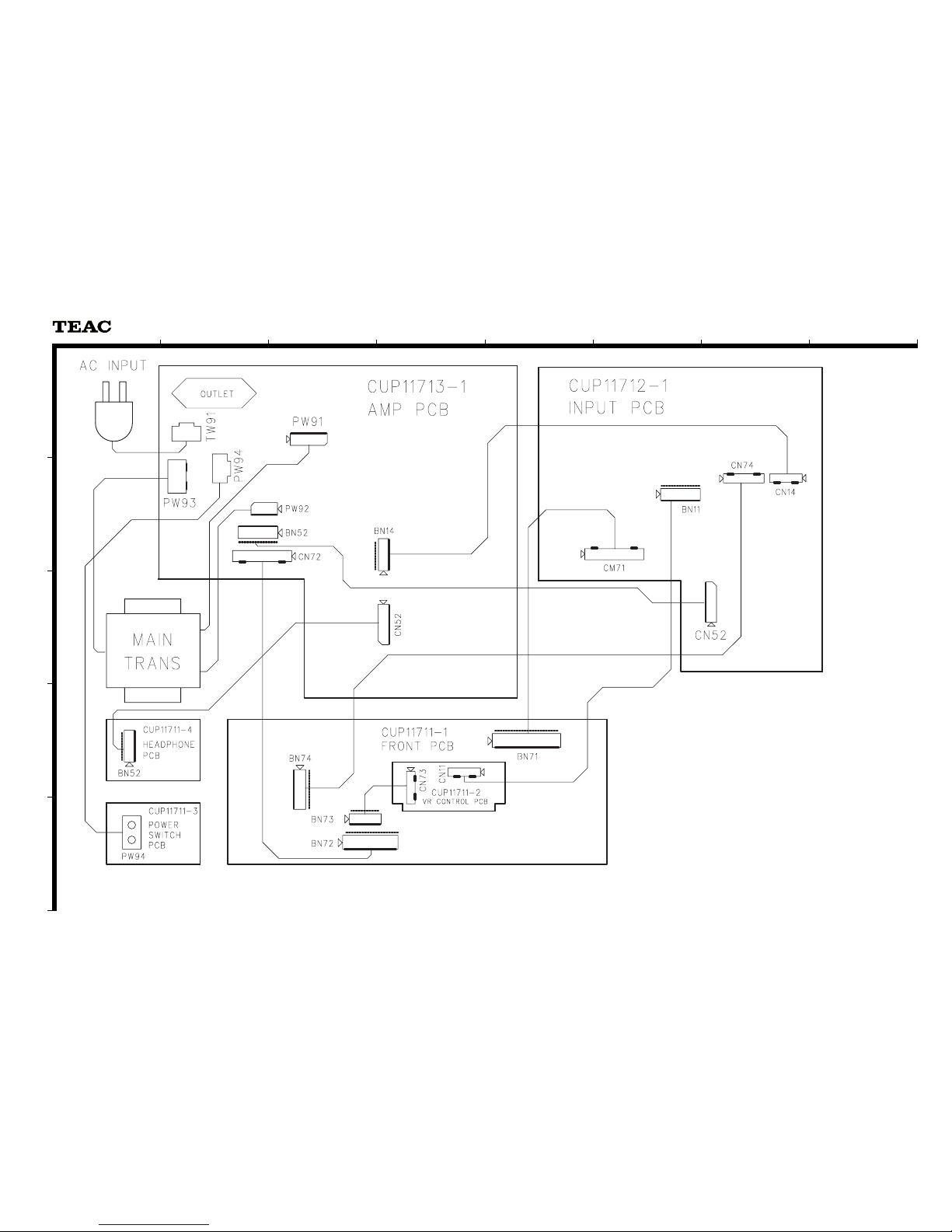

WIRING DIAGRAM
A-H300mk##
86 74 52 31
E
D
C
B
A

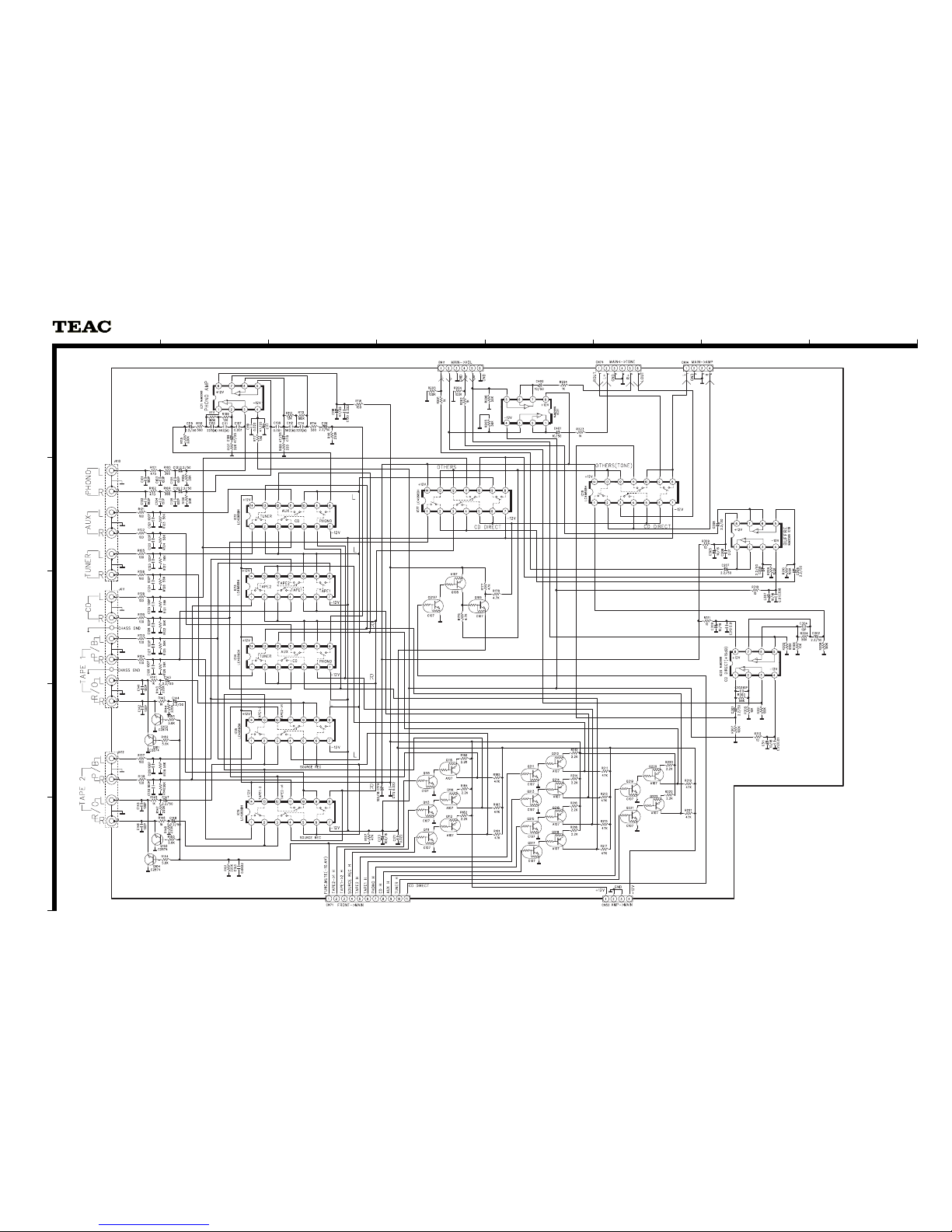

SCHEMATIC DIAGRAM
A-H300mk##
Integrated Stereo Amplifier
AA--HH330000mmkk##
1 st Issue; May 2004
NOTES:
1. Resistor values are in ohms (k=kilo-ohms, M=megohms).
2. Capacitor values are in microfarads (p=picofarads).
3. £Parts marked with this sign are safety critical components.
They must always be replaced with identical components-refer
to the appropriate parts list and ensure exact replacement.
INPUT PCB
86 74 52 31
E
D
C
B
A
SCHEMATIC DIAGRAM
A-H300mk##
FRONT PCB, VR CONTROL PCB, POWER SWITCH PCB, HEADPHONE PCB
Integrated Stereo Amplifier
AA--HH330000mmkk##
1 st Issue; May 2004
NOTES:
1. Resistor values are in ohms (k=kilo-ohms, M=megohms).
2. Capacitor values are in microfarads (p=picofarads).
3. £Parts marked with this sign are safety critical components.
They must always be replaced with identical components-refer
to the appropriate parts list and ensure exact replacement.
86 74 52 31
E
D
C
B
A
SCHEMATIC DIAGRAM
A-H300mk##
AMP PCB
Integrated Stereo Amplifier
AA--HH330000mmkk##
1 st Issue; May 2004
NOTES:
1. Resistor values are in ohms (k=kilo-ohms, M=megohms).
2. Capacitor values are in microfarads (p=picofarads).
3. £Parts marked with this sign are safety critical components.
They must always be replaced with identical components-refer
to the appropriate parts list and ensure exact replacement.
STEREO AMP A-H400 E
U
LEVEL PARTS NO. DESCRIPTION Q'TY
REF
•
NO
.
M
•
R
1 1 9A07341000 SET , AMPLIFIER 1 ANAM
2•2 9A01377200 SCREW KTB3+8JFZ 6 ANAM
3•2 9A01377300 SCREW,KTB3+10GFZ 12 ANAM
4•2 9A01397400 SCREW KTS3+8J 8 ANAM
5•2 9A01532600 SCREW KTB3+6J 7 ANAM
6•2 9A05984300 SCREW KTB4+6FFZ 4 ANAM
7•2 9A06053600 TAPE,BOTH SIDE T-#4970 1 ANAM
8•2 9A06678600 TOP CABINET 1 ANAM
9•2 9A07341300 FRONT PANEL ASS'Y 1 ANAM
10 ••3 9A01377400 SCREW,KTB3+10G 10 ANAM
11 ••3 9A01377600 SCREW,KTWS3+10G 1 ANAM
12 ••3 9A06224200 BADGE,TEAC 1 ANAM
13 ••3 9A06227400 INDICATOR,POWER 0 ANAM
14 ••3 9A06228400 VOLUME CAP ASS'Y (C) 3 ANAM
15 •••4 9A06226100 CAP,VOLUME(C) A4-95-2338 1 ANAM
16 •••4 9A06228500 CAP,VOLUME(C) 1 ANAM
17 ••3 9A06229000 SCREW,SPECIAL 4 ANAM
18 ••3 9A06234700 SCREW KTW3+6F 9 ANAM
19 ••3 9A06677600 SIDE BAR 2 ANAM
20 ••3 9A06697200 HOUSING,VOLUME A4-96-2578 1 ANAM
21 ••3 9A06698400 RING,SHAFT 2 ANAM
22 ••3 9A06863501 WINDOW,SENSOR 1 ANAM
23 ••3 9A06905500 INDICATOR 2 ANAM
24 ••3 9A06905800 VOLUME CAP ASS'Y 1 ANAM
25 •••4 9A06692500 KNOB , VOLUME 1 ANAM
26 •••4 9A06697000 CAP , VOLUME 1 ANAM
27 •••4 9A06906100 PLATE , VOLUME 1 ANAM
28 ••3 9A06905900 VOLUME CAP ASS'Y 1 ANAM
29 •••4 9A06692500 KNOB , VOLUME 1 ANAM
30 •••4 9A06697000 CAP , VOLUME 1 ANAM
31 •••4 9A06906000 PLATE , VOLUME 1 ANAM
32 ••3 9A06906200 HOUSING,VOLUME 1 ANAM
33 ••3 9A07301300 INDICATOR,POWER 1 ANAM
34 ••3 9A07341100 KNOB , POWER 1 ANAM
35 ••3 9A07341200 KNOB , TACT 1 ANAM
36 ••3 9A07341400 PANEL , MOLD 1 ANAM
37 ••3 9A07341900 PANEL , AL 1 ANAM
38 ••3 9A07342100 SUB PCB ASS'Y 1 ANAM
39 •••4 9A04882400 SW,TACT DC-D2100 1 S 101 ANAM
40 •••4 9A05193000 CRYSTAL, 08000E160C 1 X 801 ANAM
41 •••4 9A05316900 JACK HTJ064-05BG 1 JK01 ANAM
42 •••4 9A05329300 WAFER MOLEX 5267-04A 1 CN12 ANAM
43 •••4 9A05337900 R,NETWORK SN8X103J 1 Z 101 ANAM
44 •••4 9A05356300 WAFER 04GA19ZM 1 CN11 ANAM
45 •••4 9A05356300 WAFER 04GA19ZM 1 CN13 ANAM
46 •••4 9A05895700 OUTLET,AC 1 OL11 ANAM
47 •••4 9A05938500 WAFER,3P 2 CN19 .21 ANAM
48 •••4 9A06224700 VR,ENCODOR EC16B1220408A 1 VR95 ANAM
49 •••4 9A06237000 VOLUME, MOTOR RK6312MC282 1 VR96 ANAM
50 •••4 9A06250600 WAFER 02GA19ZM 2 CN16 .18 ANAM
51 •••4 9A06538200 WAFER SYFW800-02P 1 CN99 ANAM
52 •••4 9A06673000 RES,VARIABLE 02C104Y 2 VR92 .93 ANAM
53 •••4 9A06673100 RES,VARIABLE 03B104Y 1 VR94 ANAM
54 •••4 9A06677000 TERMINAL SP 1 JK02 ANAM
55 •••4 9A06757900 SENSOR,REMOCON 1 IC82 ANAM
56 •••4 9A06784700 SW,PUSH (MOMS) 1 SW95 ANAM
57 •••4 9A06906500 JACK , INPUT 0 JK11 ANAM
58 •••4 9A06906700 WAFER 1 CN23 ANAM
1/14
59 •••4 9A06909200 WIRE ASS'Y 1 BN14 ANAM
60 •••4 9A06909300 WIRE ASS'Y 1 BN15 ANAM
61 •••4 9A06909500 WIRE ASS'Y 1 BN17 ANAM
62 •••4 9A06909700 WIRE ASS'Y 0 BN19 ANAM
63 •••4 9A06909900 WIRE ASS'Y 0 BN21 ANAM
64 •••4 9A06910400 WIRE ASS'Y 1 BN94 ANAM
65 •••4 9A07341600 SUB PCB AUTO ASS'Y 1 ANAM
66 ••••5 9A01378600 R,CARBON 1/5W 4.7K 2 R 313 .314 ANAM
67 ••••5 9A01378600 R,CARBON 1/5W 4.7K 2 R 809 .810 ANAM
68 ••••5 9A01378600 R,CARBON 1/5W 4.7K 2 R 811 .812 ANAM
69 ••••5 9A01378600 R,CARBON 1/5W 4.7K 1 R 815 ANAM
70 ••••5 9A01378600 R,CARBON 1/5W 4.7K 1 R 880 ANAM
71 ••••5 9A01378700 R,CARBON 1/5W 47K 2 R 103 .104 ANAM
72 ••••5 9A01378700 R,CARBON 1/5W 47K 1 R 878 ANAM
73 ••••5 9A01378700 R,CARBON 1/5W 47K 2 R 988 .989 ANAM
74 ••••5 9A01378700 R,CARBON 1/5W 47K 1 R 990 ANAM
75 ••••5 9A01379400 R,CARBON 1/5W 6.8K 2 R 309 .310 ANAM
76 ••••5 9A01379600 R,CARBON 1/5W 820 1 R 879 ANAM
77 ••••5 9A01380400 R,CARBON 1/5W 1K 2 R 101 .102 ANAM
78 ••••5 9A01380400 R,CARBON 1/5W 1K 2 R 901 .902 ANAM
79 ••••5 9A01380400 R,CARBON 1/5W 1K 2 R 973 .974 ANAM
80 ••••5 9A01380500 R,CARBON 1/5W 2.2K 1 R 861 ANAM
81 ••••5 9A01380500 R,CARBON 1/5W 2.2K 1 R 951 ANAM
82 ••••5 9A01380600 R,CARBON 1/5W 10K 2 R 805 .806 ANAM
83 ••••5 9A01380600 R,CARBON 1/5W 10K 2 R 807 .808 ANAM
84 ••••5 9A01380600 R,CARBON 1/5W 10K 1 R 816 ANAM
85 ••••5 9A01380600 R,CARBON 1/5W 10K 2 R 820 .821 ANAM
86 ••••5 9A01380600 R,CARBON 1/5W 10K 2 R 834 .835 ANAM
87 ••••5 9A01380600 R,CARBON 1/5W 10K 2 R 838 .839 ANAM
88 ••••5 9A01380600 R,CARBON 1/5W 10K 2 R 840 .841 ANAM
89 ••••5 9A01380600 R,CARBON 1/5W 10K 1 R 842 ANAM
90 ••••5 9A01380600 R,CARBON 1/5W 10K 1 R 977 ANAM
91 ••••5 9A01380600 R,CARBON 1/5W 10K 1 R 983 ANAM
92 ••••5 9A01380600 R,CARBON 1/5W 10K 1 R 986 ANAM
93 ••••5 9A01380700 R,CARBON 1/5W 100K 1 R 837 ANAM
94 ••••5 9A01380900 R,CARBON 1/5W 12K 2 R 311 .312 ANAM
95 ••••5 9A01381300 R,CARBON 1/5W 1.8K 2 R 317 .318 ANAM
96 ••••5 9A01381500 R,CARBON 1/5W 22K 2 R 307 .308 ANAM
97 ••••5 9A01381500 R,CARBON 1/5W 22K 2 R 813 .814 ANAM
98 ••••5 9A01381500 R,CARBON 1/5W 22K 1 R 845 ANAM
99 ••••5 9A01381500 R,CARBON 1/5W 22K 2 R 979 .980 ANAM
100 ••••5 9A01381500 R,CARBON 1/5W 22K 1 R 984 ANAM
101 ••••5 9A01381800 R,CARBON 1/5W 330 1 R 819 ANAM
102 ••••5 9A01390500 DIODE,1N4148MT 2 D 805 .807 ANAM
103 ••••5 9A01398700 R,CARBON 1/5W 3.3K 2 R 321 .322 ANAM
104 ••••5 9A01410500 R,CARBON 1/5W 220 1 R 981 ANAM
105 ••••5 9A01551700 R,CARBON 1/5W 120K 2 R 319 .320 ANAM
106 ••••5 9A03745200 TR,KSR2206TA 2 Q 803 .804 ANAM
107 ••••5 9A03745200 TR,KSR2206TA 1 Q 809 ANAM
108 ••••5 9A03747300 TR,KSB811-YTA 2 Q 805 .806 ANAM
109 ••••5 9A03747300 TR,KSB811-YTA 1 Q 811 ANAM
110 ••••5 9A03811700 TR,KSD1021-YTA 2 Q 807 .808 ANAM
111 ••••5 9A05195000 LED,RED SLR342VCF02 1 D 804 ANAM
112 ••••5 9A05196800 TR,KSC2316-Y-SHTA 1 Q 814 ANAM
113 ••••5 9A05196900 TR,KSR1206TA 1 Q 810 ANAM
114 ••••5 9A05196900 TR,KSR1206TA 2 Q 812 .813 ANAM
115 ••••5 9A05318400 CC, 10000PF Z F 25V 2 C 965 .966 ANAM
116 ••••5 9A05318500 CC, 22000PF Z F 25V 2 C 814 .815 ANAM
117 ••••5 9A05318500 CC, 22000PF Z F 25V 1 C 816 ANAM
118 ••••5 9A05318800 CAP,CERAMIC 1000PF/50V K 1 C 805 ANAM
119 ••••5 9A05319200 CAP,CERAMIC 18PF/50V J 2 C 807 .808 ANAM
120 ••••5 9A05319300 CAP,CERAMIC 180PF/50V K 2 C 803 .804 ANAM
121 ••••5 9A05319300 CAP,CERAMIC 180PF/50V K 1 C 811 ANAM
122 ••••5 9A05328200 HOLDER,FUSE KJCFC5S 2 F 901 ANAM
2/14
123 ••••5 9A05336700 R,CARBON 1/4W 2.2K 2 R 315 .316 ANAM
124 ••••5 9A05890300 LED,YELLOW SLR342YCF02 2 D 810 .811 ANAM
125 ••••5 9A05890300 LED,YELLOW SLR342YCF02 2 D 812 .813 ANAM
126 ••••5 9A05890300 LED,YELLOW SLR342YCF02 2 D 814 .815 ANAM
127 ••••5 9A06671200 SW.TACT EVQ21505R 1 S 824 ANAM
128 ••••5 9A06693400 CAP,ELECT 100/16V 1 C 819 ANAM
129 ••••5 9A06693400 CAP,ELECT 100/16V 2 C 821 .824 ANAM
130 ••••5 9A06694700 CAP,ELECT 1UF/50V 1 C 806 ANAM
131 ••••5 9A06694700 CAP,ELECT 1UF/50V 2 C 817 .818 ANAM
132 ••••5 9A06694700 CAP,ELECT 1UF/50V 1 C 964 ANAM
133 ••••5 9A06695100 CAP,CERAMIC 100PF/50V K 2 C 101 .102 ANAM
134 ••••5 9A06695100 CAP,CERAMIC 100PF/50V K 2 C 901 .902 ANAM
135 ••••5 9A06695200 CAP,CERAMIC 0.01UF/50V Z 2 C 903 .957 ANAM
136 ••••5 9A06763200 CAP,ELECT 1000UF/6.3V 1 C 820 ANAM
137 ••••5 9A06765300 DIODE,MTZJ5.6BT 1 D 816 ANAM
138 ••••5 9A06786000 IC, TMP87PM78F 1 IC81 ANAM
139 ••••5 9A06904500 IC, 74HC138D 1 IC84 ANAM
140 ••••5 9A06904800 CAP,ELECT 47UF/16V 2 C 307 .308 ANAM
141 ••••5 9A06905100 CAP,MYLAR SMALL B1H103JZT 2 C 315 .316 ANAM
142 ••••5 9A06905200 CAP,MYLAR SMALL B1H124JZT 2 C 313 .314 ANAM
143 ••••5 9A06905300 CAP,MYLAR SMALL B1H222JZT 2 C 311 .312 ANAM
144 ••••5 9A06905400 CAP,MYLAR SMALL B1H333JZT 2 C 309 .310 ANAM
145 ••••5 9A07342600 PCB , SUB 1 ANAM
146 •••4 9A07342700 WIRE ASS'Y 1 BN16 ANAM
147 •••4 9A07342800 WIRE ASS'Y 1 BN18 ANAM
148 •••4 9A07342900 WIRE ASS'Y 1 BN20 ANAM
149 •••4 9A07343000 WIRE ASS'Y 1 BN95 ANAM
150 •••4 9A07363500 WIRE ASS'Y 1 BN19 ANAM
151 •••4 9A07363600 WIRE ASS'Y 1 BN21 ANAM
152 •••4 9A07363700 JACK,BOARD 1 JK11 ANAM
153 •2 9A07341700 REAR PANEL ASS'Y 1 ANAM
154 ••3 9A01376900 BUSHING,AC CORD HEYCO(SR- 1 ANAM
155 ••3 9A05328100 CORD,POWER 1 ANAM
156 ••3 9A05353400 FUSE F1.6A 1 F 901 ANAM
157 ••3 9A07341800 PANEL , REAR 1 ANAM
158 •2 9A07342400 BOTTOM CHASSIS ASS'Y 1 ANAM
159 ••3 9A01535800 SCREW,KTB3+8J 2 ANAM
160 ••3 9A05327300 CLAMPER KHR301 4 ANAM
161 ••3 9A05338800 SCREW KTB4+6F 4 ANAM
162 ••3 9A05339100 SCREW KTW3+12J 6 ANAM
163 ••3 9A05339200 SCREW KTW3+8J 4 ANAM
164 ••3 9A05917200 GROUND TERMINAL 1 ANAM
165 ••3 9A05989300 TAPE,HEMELON 4 ANAM
166 ••3 9A06028100 SCREW KTW3+16J 4 ANAM
167 ••3 9A06224100 BOND DN83K(DIABOND) 1 ANAM
168 ••3 9A06229100 MOUNT , PCB A4-92-1728 4 ANAM
169 ••3 9A06229300 CUSHION,FOOT 4 ANAM
170 ••3 9A06315500 FOOT 4 ANAM
171 ••3 9A06907200 TRANS , POWER 1 PWR1 ANAM
172 ••3 9A06908600 CHASSIS , BOTTOM 1 ANAM
173 ••3 9A07342000 MAIN PCB ASS'Y 1 ANAM
174 •••4 9A01388300 TR,KSD288-Y-AB 1 Q 901 ANAM
175 •••4 9A01388300 TR,KSD288-Y-AB 1 Q 905 ANAM
176 •••4 9A01388400 TR,KSA614-Y 1 Q 902 ANAM
177 •••4 9A04875100 COIL, DC-D2100 2 L 501 .601 ANAM
178 •••4 9A04879000 RELAY,OSA-SS-212DM3 1 RY11 ANAM
179 •••4 9A05195800 IC,MC4558S 2 IC22 .23 ANAM
180 •••4 9A05329600 WAFER MOLEX 5267-06A 1 CN92 ANAM
181 •••4 9A05338000 RES,METAL 10 OHM 1W J 1 R 524 ANAM
182 •••4 9A05338000 RES,METAL 10 OHM 1W J 1 R 624 ANAM
183 •••4 9A05338000 RES,METAL 10 OHM 1W J 1 R 915 ANAM
184 •••4 9A05338200 R,METAL OXIDE FILM 1W 390 1 R 527 ANAM
185 •••4 9A05338200 R,METAL OXIDE FILM 1W 390 1 R 627 ANAM
186 •••4 9A05339200 SCREW KTW3+8J 2 ANAM
3/14
187 •••4 9A05353100 DIODE , BRIDGE PBPC604F 1 D 901 ANAM
188 •••4 9A05356300 WAFER 04GA19ZM 2 CN25 .26 ANAM
189 •••4 9A05356500 WAFER MOLEX53014-0710 1 CN15 ANAM
190 •••4 9A05894700 WAFER(5P) 1 CN14 ANAM
191 •••4 9A05896300 R.,0.22-OHM,5W 2 R 521 .522 ANAM
192 •••4 9A05896300 R.,0.22-OHM,5W 2 R 621 .622 ANAM
193 •••4 9A05896400 R.,4.7-OHM,1W 1 R 523 ANAM
194 •••4 9A05896400 R.,4.7-OHM,1W 1 R 623 ANAM
195 •••4 9A05897200 RES,FUSE 0.47-OHM,1W 2 R 903 .904 ANAM
196 •••4 9A05987000 DIODE,BRIDGE W02GF 1 D 902 ANAM
197 •••4 9A05987100 RELAY HR-CR7-DC12V 1 RY10 ANAM
198 •••4 9A06226600 CAP , ELECT 2 C 911 .912 ANAM
199 •••4 9A06226600 CAP , ELECT 2 C 913 .914 ANAM
200 •••4 9A06226700 CE, 1000UF H 25V DC 1 C 930 ANAM
201 •••4 9A06230800 WAFER 1 CN95 ANAM
202 •••4 9A06250800 WAFER MOLEX 5267-08A 1 CN17 ANAM
203 •••4 9A06252900 BRACKET , PCB 2 ET01 .02 ANAM
204 •••4 9A06252900 BRACKET , PCB 1 ET03 ANAM
205 •••4 9A06674900 JACK,BOARD 4R014Z 2 JK22 .23 ANAM
206 •••4 9A06675500 TRANS SUB 1 PW2 ANAM
207 •••4 9A06757700 WAFER 1 CN94 ANAM
208 •••4 9A06759300 WAFER 1 CN93 ANAM
209 •••4 9A06761700 IC, NJU7313L 1 IC21 ANAM
210 •••4 9A06785000 WAFER,MOLEX35328-02 1 CN91 ANAM
211 •••4 9A06904900 ELECT,CAP(1000UF/35V AHS) 2 C 909 .910 ANAM
212 •••4 9A06905000 CAP , ELECT 2 C 907 .908 ANAM
213 •••4 9A06906500 JACK , INPUT 1 JK21 ANAM
214 •••4 9A06906600 JACK , REMOTER 1 JK24 ANAM
215 •••4 9A06907600 HEAT SINK ASS'Y 1 ANAM
216 ••••5 9A01377500 SCREW 6 48 ANAM
217 ••••5 9A05359700 TR, KTB778O 1 Q 509 ANAM
218 ••••5 9A05359700 TR, KTB778O 1 Q 609 ANAM
219 ••••5 9A05359800 TR, KTD998O 1 Q 508 ANAM
220 ••••5 9A05359800 TR, KTD998O 1 Q 608 ANAM
221 ••••5 9A05977200 TR.,2SD1585 1 Q 505 ANAM
222 ••••5 9A05977200 TR.,2SD1585 1 Q 605 ANAM
223 ••••5 9A06066300 COMPOUND,SILICONE 5 ANAM
224 ••••5 9A06907500 SINK , HEAT 1 20 ANAM
225 •••4 9A06908200 RES , METAL OXIDE FILM 1 R 508 ANAM
226 •••4 9A06908200 RES , METAL OXIDE FILM 1 R 608 ANAM
227 •••4 9A06908300 RES , METAL OXIDE FILM 2 R 907 .908 ANAM
228 •••4 9A06908900 WIRE ASS'Y 0 BN11 ANAM
229 •••4 9A06909000 WIRE ASS'Y 1 BN12 ANAM
230 •••4 9A06909100 WIRE ASS'Y 1 BN13 ANAM
231 •••4 9A06910000 WIRE ASS'Y 1 BN23 ANAM
232 •••4 9A06910100 WIRE ASS'Y 1 BN91 ANAM
233 •••4 9A06910200 WIRE ASS'Y 1 BN92 ANAM
234 •••4 9A06910300 WIRE ASS'Y 1 BN93 ANAM
235 •••4 9A07341500 MAIN PCB AUTO ASS'Y 1 ANAM
236 ••••5 9A01378600 R,CARBON 1/5W 4.7K 2 R 911 .912 ANAM
237 ••••5 9A01378700 R,CARBON 1/5W 47K 2 R 205 .206 ANAM
238 ••••5 9A01378700 R,CARBON 1/5W 47K 2 R 219 .220 ANAM
239 ••••5 9A01378700 R,CARBON 1/5W 47K 2 R 221 .222 ANAM
240 ••••5 9A01378700 R,CARBON 1/5W 47K 2 R 223 .224 ANAM
241 ••••5 9A01378700 R,CARBON 1/5W 47K 2 R 225 .226 ANAM
242 ••••5 9A01378700 R,CARBON 1/5W 47K 2 R 227 .228 ANAM
243 ••••5 9A01378700 R,CARBON 1/5W 47K 2 R 229 .230 ANAM
244 ••••5 9A01378700 R,CARBON 1/5W 47K 2 R 237 .238 ANAM
245 ••••5 9A01378700 R,CARBON 1/5W 47K 2 R 301 .302 ANAM
246 ••••5 9A01378700 R,CARBON 1/5W 47K 2 R 303 .304 ANAM
247 ••••5 9A01379000 R,CARBON 1/5W 560 2 R 235 .236 ANAM
248 ••••5 9A01379100 R,CARBON 1/5W 56K 1 R 512 ANAM
249 ••••5 9A01379100 R,CARBON 1/5W 56K 1 R 612 ANAM
250 ••••5 9A01379200 R,CARBON 1/5W 68 1 R 528 ANAM
4/14
251 ••••5 9A01379200 R,CARBON 1/5W 68 1 R 628 ANAM
252 ••••5 9A01379800 R,CARBON 1/4W 10 1 R 514 ANAM
253 ••••5 9A01379800 R,CARBON 1/4W 10 1 R 614 ANAM
254 ••••5 9A01380400 R,CARBON 1/5W 1K 2 R 207 .208 ANAM
255 ••••5 9A01380400 R,CARBON 1/5W 1K 2 R 209 .210 ANAM
256 ••••5 9A01380400 R,CARBON 1/5W 1K 2 R 211 .212 ANAM
257 ••••5 9A01380400 R,CARBON 1/5W 1K 2 R 213 .214 ANAM
258 ••••5 9A01380400 R,CARBON 1/5W 1K 2 R 215 .216 ANAM
259 ••••5 9A01380400 R,CARBON 1/5W 1K 2 R 217 .218 ANAM
260 ••••5 9A01380400 R,CARBON 1/5W 1K 1 R 501 ANAM
261 ••••5 9A01380400 R,CARBON 1/5W 1K 1 R 513 ANAM
262 ••••5 9A01380400 R,CARBON 1/5W 1K 1 R 601 ANAM
263 ••••5 9A01380400 R,CARBON 1/5W 1K 1 R 613 ANAM
264 ••••5 9A01380500 R,CARBON 1/5W 2.2K 1 R 916 ANAM
265 ••••5 9A01380600 R,CARBON 1/5W 10K 1 R 917 ANAM
266 ••••5 9A01380700 R,CARBON 1/5W 100K 1 R 502 ANAM
267 ••••5 9A01380700 R,CARBON 1/5W 100K 1 R 511 ANAM
268 ••••5 9A01380700 R,CARBON 1/5W 100K 1 R 602 ANAM
269 ••••5 9A01380700 R,CARBON 1/5W 100K 1 R 611 ANAM
270 ••••5 9A01380800 R,CARBON 1/5W 120 1 R 504 ANAM
271 ••••5 9A01380800 R,CARBON 1/5W 120 1 R 604 ANAM
272 ••••5 9A01380900 R,CARBON 1/5W 12K 2 R 233 .234 ANAM
273 ••••5 9A01381000 R,CARBON 1/5W 150 1 R 505 ANAM
274 ••••5 9A01381000 R,CARBON 1/5W 150 1 R 605 ANAM
275 ••••5 9A01381100 R,CARBON 1/5W 15K 1 R 503 ANAM
276 ••••5 9A01381100 R,CARBON 1/5W 15K 1 R 526 ANAM
277 ••••5 9A01381100 R,CARBON 1/5W 15K 1 R 603 ANAM
278 ••••5 9A01381100 R,CARBON 1/5W 15K 1 R 626 ANAM
279 ••••5 9A01381400 R,CARBON 1/5W 180K 2 R 231 .232 ANAM
280 ••••5 9A01381500 R,CARBON 1/5W 22K 2 R 327 .328 ANAM
281 ••••5 9A01382100 R,CARBON 1/5W 390 2 R 203 .204 ANAM
282 ••••5 9A01387400 TR,KSA733CYT 1 Q 510 ANAM
283 ••••5 9A01387400 TR,KSA733CYT 1 Q 610 ANAM
284 ••••5 9A01390500 DIODE,1N4148MT 2 D 202 .501 ANAM
285 ••••5 9A01390500 DIODE,1N4148MT 2 D 503 .504 ANAM
286 ••••5 9A01390500 DIODE,1N4148MT 1 D 601 ANAM
287 ••••5 9A01390500 DIODE,1N4148MT 1 D 603 ANAM
288 ••••5 9A01390500 DIODE,1N4148MT 1 D 911 ANAM
289 ••••5 9A01390600 DIODE,1N4148T 1 D 604 ANAM
290 ••••5 9A01398700 R,CARBON 1/5W 3.3K 1 R 525 ANAM
291 ••••5 9A01398700 R,CARBON 1/5W 3.3K 1 R 625 ANAM
292 ••••5 9A01398800 R,CARBON 1/5W 470 2 R 201 .202 ANAM
293 ••••5 9A01398800 R,CARBON 1/5W 470 2 R 329 .330 ANAM
294 ••••5 9A01398800 R,CARBON 1/5W 470 1 R 506 ANAM
295 ••••5 9A01398800 R,CARBON 1/5W 470 1 R 606 ANAM
296 ••••5 9A01398900 R,CARBON 1/5W 5.6K 2 R 247 .248 ANAM
297 ••••5 9A01399600 R,CARBON 1/4W 2.7K 1 R 510 ANAM
298 ••••5 9A01399600 R,CARBON 1/4W 2.7K 1 R 610 ANAM
299 ••••5 9A01410500 R,CARBON 1/5W 220 2 R 239 .240 ANAM
300 ••••5 9A01412900 R,CARBON 1/4W 68 2 R 518 .519 ANAM
301 ••••5 9A01412900 R,CARBON 1/4W 68 2 R 618 .619 ANAM
302 ••••5 9A01544200 R,CARBON 1/5W 27K 2 R 325 .326 ANAM
303 ••••5 9A05194700 DIODE,1N4003ST 1 D 912 ANAM
304 ••••5 9A05194700 DIODE,1N4003ST 1 D 914 ANAM
305 ••••5 9A05196700 TR,KSA916-Y-SHTA 1 Q 507 ANAM
306 ••••5 9A05196700 TR,KSA916-Y-SHTA 1 Q 607 ANAM
307 ••••5 9A05196800 TR,KSC2316-Y-SHTA 1 Q 506 ANAM
308 ••••5 9A05196800 TR,KSC2316-Y-SHTA 1 Q 606 ANAM
309 ••••5 9A05196800 TR,KSC2316-Y-SHTA 1 Q 917 ANAM
310 ••••5 9A05196900 TR,KSR1206TA 0 Q 203 ANAM
311 ••••5 9A05196900 TR,KSR1206TA 1 Q 904 ANAM
312 ••••5 9A05197500 TR,KTD1302T 2 Q 201 .202 ANAM
313 ••••5 9A05318400 CC, 10000PF Z F 25V 1 C 516 ANAM
314 ••••5 9A05318400 CC, 10000PF Z F 25V 1 C 616 ANAM
5/14
Table of contents
Other Teac Amplifier manuals
