Teac AG-790A User manual

Effective : Sep. 2005
NOTES
●
PC boards shown are viewed from parts side.
●
The parts with no reference number or no parts number in the
exploded views are not supplied.
●
As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
●
Parts marked with this sign are safety critical components. They
must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
CONTENTS
1 SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2
3 EXPLODED VIEWS AND PARTS LIST 9
4 PC BOARDS AND PARTS LIST 13
5 REMOTE CONTROL LAYOUT 20
・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
AG-790A Versions
T/C,EUR,UK,230E,HKG
2 IC SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・3
6 INCLUDED ACCESSORIES 21
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
AG-790A
AM/FM STEREO Receiver

1 SPECIFICATIONS
－2－
AG-790A
Amplifier Section
Output Power . . . . . . . . . . . . . . . . . . . . . . . . . .100 + 100 watts RMS (0.9 % THD, 1 kHz, 8 ohms)
Total Harmonic Distortion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.05 % (at 80 watts,1 kHz)
Input Sensitivity/Impedance . . . . . . . . . . . . . . . . . . PHONO: 6.5 mV/22 kohms, LINE: 230 mV/22 kohms
Frequency Response . . . . . . . . . . . . . . . PHONO: 20 Hz to 20 kHz, ±3 dB, LINE: 20 Hz to 35 kHz, –3 dB
Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . . . . . . . PHONO: 75 dB (IHF-A), LINE: 90 dB (IHF-A)
Tone Control . . . . . . . . . . . . . . . . . . . . . . . BASS: ±10 dB at 100 Hz, TREBLE: ±10 dB at 10 kHz
Loudness Control (Volume at –40 dB Position) . . . . . . . . . . . . . . . . . . . . . . . . +4 dB at 100 Hz
FM Tuner Section (Without notes 98.1 MHz, 65 dBf)
Tuning Range . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 MHz to 108.0 MHz (100 kHz steps)[T/C]
87.5 MHz to 108.0 MHz (50 kHz steps)[EUR,UK,230E,HKG]
Usable Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mono: 10 dBμV/m
50 dB Quieting Sensitivity . . . . . . . . . . . . . . . . . . . . . . . Mono: 15 dBμV/m, Stereo: 33 dBμV/m
Capture Ratio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.8 dB
Image Rejection Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 dB
AM Suppresion Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 dB
Harmonic Distortion (1 kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . Mono: 0.5 %, Stereo: 0.5 %
Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Hz to 15 kHz, –3 dB
Stereo Separation (1 kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 dB
Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mono: 70 dB, Stereo: 65 dB
RDS Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .YRS [EUR,UK]
NO[T/C,230E,HKG]
AM Tuner Section
Tuning Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 530 kHz to 1,720 kHz (10 kHz steps)[T/C]
522 kHz to 1,620 kHz, 9 kHz steps [EUR,UK,230E,HKG]
Usable Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 dB/m
Total Harmonic Distortion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 % at 100 dB/m
Signal-to-Noise Ratio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 dB at 100 dB/m
General
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 V AC, 60 Hz [T/C]
230 V AC, 50 Hz [EUR,UK,230E,HKG]
Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 W
AC Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . Unswitched x 2, Total 100 W max (1 A max)
Dimensions (W x H x D). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435 x 144 x 330 mm
Weight (net). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.4 kg
Standard Accessories
AM Loop Antenna x 1
FM Antenna x 1
Owner’s manual x 1
Remote Control Unit x 1
Battery (AA, R6, UM-3) x 2
Design and specifications are subject to change without notice.
Illustrations may differ slightly from production models.

2 IC SPECIFICATIONS
－3－
AG-790A

－4－
AG-790A
TTDDAA77331188DD ((IICC2233))
BBLLOOCCKK DDIIAAGGRRAAMM

－5－
AG-790A
NNJJMM44555566AA ((IICC2255))

－6－
AG-790A
NNJJMM22006688 ((IICC2211,,IICC2222))

－7－
AG-790A
CCDD44006666BB ((IICC2244))

AG-790A
123
1 . E m itte r
2 . C o lle c to r
3 . B a se
1 . E m itte r
2 . C o lle c to r
3 . B a se
1 . E m itte r
2 . C o lle c to r
3 . B a se
1 . E m itte r
2 . C o lle c to r
3 . B a se
K S A 1 1 7 5 Y
2SC2911S
K S C 9 4 5 C Y
K T A 1 2 7 1 Y K T A 2 8 7 4 B
2SA1209S
K R C 1 0 7 M K R A 1 0 7 M
2SC3419Y
1 . E m itte r
2 . C o lle c to r
3 . B a se
T O -1 2 6
T O -9 2 M
2 -8 H 1 A
T O -9 2T O -9 2 S
123 123
123
1 . B a se
2 . C o lle c to r
3 . E m itte r
K T A 1 6 5 9 A Y
K T C 4 3 7 0 A Y K T A 1 0 4 6 Y K T C 2 0 2 6 Y
T O -2 2 0 IS
123
1 . B a se
2 . C o lle c to r
3 . E m itte r
2 S C 4 4 6 8 -O K M
2 S A 1 6 9 5 -O K M
K S C 2 3 1 6 Y
1 . E m itte r
2 . C o lle c to r
3 . B a se
T O -3 PT O -9 2 L
123 1 2 �

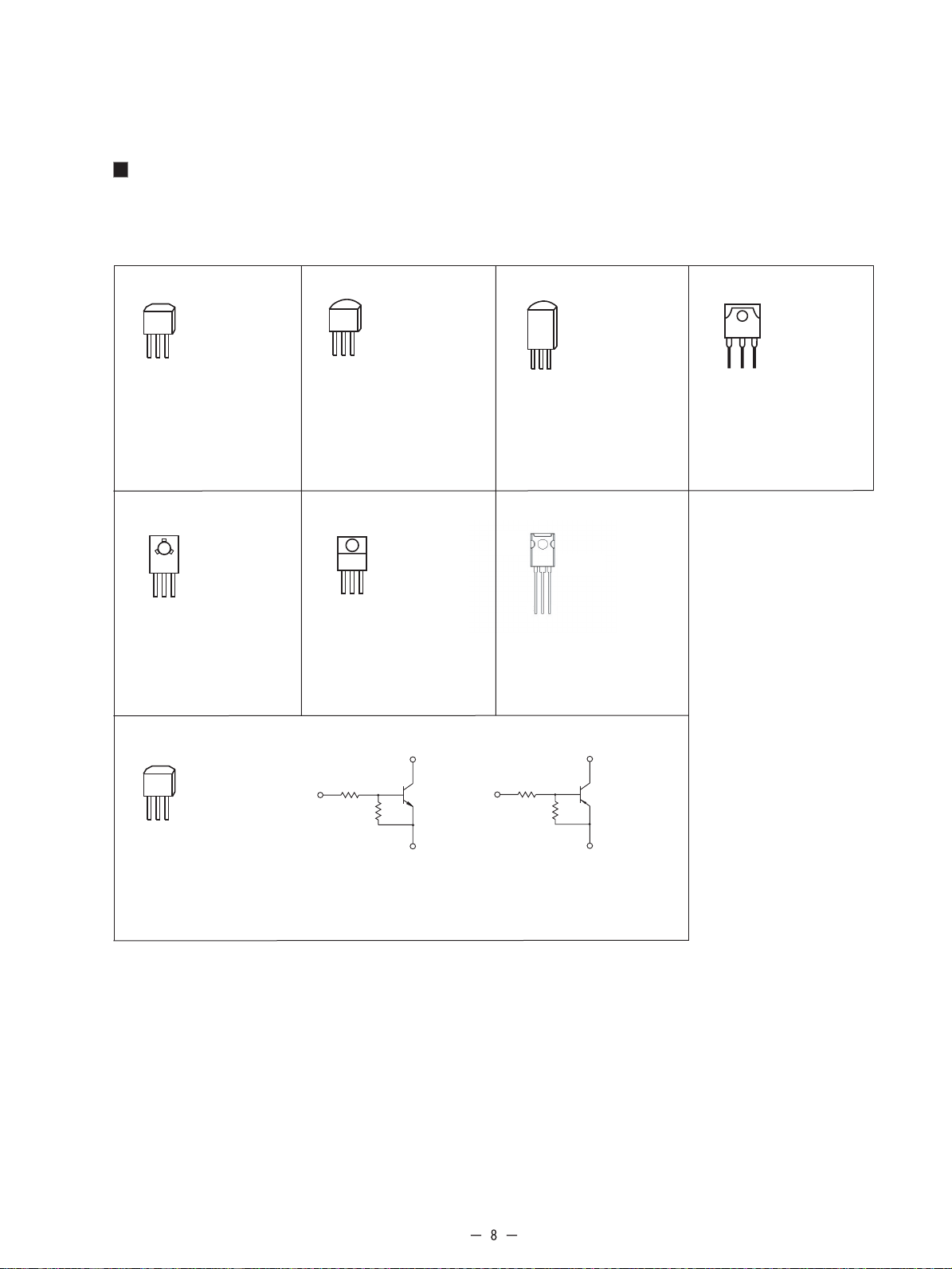

TRANSISTOR, REGULATOR IC BLOCK DIAGRAM
K S B 8 1 1 Y
123
10k
47k
COMMON(+)
OUT
IN 10k
47k
COMMON
OUT
IN

9
AG-790A
S1
S2
S4
S7
S4
S4
S8 S5
S8
S9
S10
S9
S9
S5
S6
25
28
35
36
37
38
34
29
43
33
49
45 46
47
48
AG-790 EXPLODED VIEW [T/C]
x2
S3 x13
x3
x6
x4
x5
x3
x3
x2
x2
x2
x2
x2
x6
x3
x2
x2
x2
x2
x8
x7
S5 x5 S4 x4
x2
S3
S3 x4
16
15
14
13
10
8
7
6
5
4
2
1
9
20
21
39
S4
x2
30
31 32
S1
3
26
S9
S1 x2
27
17
44
40
S4
S3 x2
x2
23
22
S1
26
S9
S11
18
98x2
x2
19
11
12
41
42
24-1
24-2

1 CGU1A375Z WINDOW
2 CBN1A122 KNOB, VOLUME
3 CMC1A140 RING, SHAFT
4 CGX1A369Z SHEET, LED
5 CGX1A370Z SHEET, LED
6 CGB1A165H12 BADGE, TEAC
7 CGW1A405R4ZH10 PANEL, FRONT
8 KHS1A032 TAPE, HEMELON
9 CMD1A563 BRACKET
10 HJJ2E020Z PHONE JACK
11 CUP11805-7 PCB
12 CWE7202100RV WIRE ASS'Y
13 CMK1A010 BRACKET
14 CBT1A991 KNOB, SPEAKER
15 CBC1A152 KNOB, POWER
16 CBT1A992 KNOB, TUNING
17 CMD1A334 BRACKET 1
18 KSH1A001ZV MOMS SWITCH
19 CUP11805-8 PCB
20 CBT1A994 KNOB, BASS
21 CBT1A993Z KNOB, FUNCTION
22 HFLSVA09MS10 FIP
23 CMD1A374 BRACKET, FIP
24-1 CUP11805-1 PCB, FRONT
24-2 CUP11805-2 PCB, FRONT
25 CMY1A256 SINK, HEAT
26 CMD1A417 BRACKET, PCB
27 CUP11805-11 PCB
28 CUP11805-3 PCB
29 CLT5U012ZU TRANS
30 CUP11805-4 PCB
31 CUP11805-6 PCB
32 CUP11085-5 PCB, POWER
33 CMD1A188 BRACKET
34 CHG1A113 RUBBER
35 CUA2A168 CHASSIS, BOTTOM
36 CKL2A042H11 FOOT, FRONT
37 KHG1A050Y CUSHION, FOOT
38 CKL1A012 FOOT, RUBBER
39 TUNNER PACK HNVTFCE1U116A
40 CMD1A571 BRACKET, SUPPORT
41 CUP11086-1 PCB, MAIN
42 CUP11086-2 PCB
43 CHE1A023 MOUNT, PCB
44 CMD1A392 BRACKET, PCB
45 CKF5A172Z PANEL, REAR
46 KMD2A001 TERMINAL, GROUND
47 KHR1A028 BUSHINHG, AC CORD
48 CJA523FBYA CORD, POWER
49 CKC1B098S1 CABINET, TOP
S1 CTB3+8J SCREW
S2 CTB3+10J SCREW
S3 CTB3+10G SCREW
S4 CTB3+6J SCREW
S5 CTB3+8JFZ SCREW
S6 CTB3+10GFZ SCREW
S7 CTB4+8F SCREW
S8 CTB4+6FFZ SCREW
S9 CTW3+8J SCREW
S10 CTW3+16G SCREW
S11 CTWS3+8G SCREW
－10－
EXPLODED VIEW LIST
(AG-790A) [T/C]
AG-790A

1 CGU1A375Z WINDOW
2 CBN1A122 KNOB, VOLUME
3 CMC1A140 RING, SHAFT
4 CGX1A369Z SHEET, LED
5 CGX1A370Z SHEET, LED
6 CGB1A165H12 BADGE, TEAC
7-1 CGW1A405R4YH10 PANEL, FRONT(EUR) [EUR,UK]
7-2 CGW1A405R4ZH10 PANEL, FRONT(230E-N) [230E-N,HKG]
8 KHS1A032 TAPE, HEMELON
9 CMD1A563 BRACKET
10 HJJ2E020Z PHONE JACK
11 CUP11805-7 PCB
12 CWE7202100RV WIRE ASS'Y
13 CMK1A010 BRACKET
14 CBT1A991 KNOB, SPEAKER
15 CBC1A152 KNOB, POWER
16 CBT1A992 KNOB, TUNING
17 CMD1A334 BRACKET 1
18 KSH1A001ZV MOMS SWITCH
19 CUP11805-8 PCB
20 CBT1A994 KNOB, BASS
21 CBT1A993Z KNOB, FUNCTION
22 HFLSVA09MS10 FIP
23 CMD1A374 BRACKET, FIP
24-1 CUP11805-1 PCB, FRONT
24-2 CUP11805-2 PCB, FRONT
25 CMY1A256 SINK, HEAT
26 CMD1A417 BRACKET, PCB
27 CUP11805-11 PCB
28 CUP11805-3 PCB
29 CLT5U012YE TRANS
30 CUP11805-4 PCB
31 CUP11805-10 PCB
32 CUP11805-9 PCB, POWER
33 CHG1A113 RUBBER
34 CUA2A168 CHASSIS, BOTTOM
35 CKL2A042H11 FOOT, FRONT
36 KHG1A050Y CUSHION, FOOT
37 CKL1A012 FOOT, RUBBER
38-1 CNVMB114MA18L TUNNER PACK(EUR) [EUR,UK]
38-2 CNVKSTMB014MA18 TUNNER PACK(230E-N) [230E-N,HKG]
39 CMD1A571 BRACKET, SUPPORT
40 CUP11806-1 PCB, MAIN
41 CUP11806-2 PCB
42 CHE1A023 MOUNT, PCB
43 CMD1A392 BRACKET, PCB
44 CKF4A172Z PANEL, REAR
45 KMD2A001 TERMINAL, GROUND
46 KHR1A028 BUSHINHG, AC CORD
47-1 CJA2B043ZA CORD, POWER [EUR,230E-N]
47-2 CJA2B045ZA CORD, POWER [UK,HKG]
48 CKC1B098S1 CABINET, TOP
S1 CTB3+8J SCREW
S2 CTB3+10J SCREW
S3 CTB3+10G SCREW
S4 CTB3+6J SCREW
S5 CTB3+8JFZ SCREW
S6 CTB3+10GFZ SCREW
S7 CTB4+8F SCREW
S8 CTB4+6FFZ SCREW
S9 CTW3+8J SCREW
S10 CTW3+16G SCREW
S11 CTWS3+8G SCREW
－12－
EXPLODED VIEW LIST
(AG-790A) [EUR,UK,230E-N,HKG]
AG-790A

13
4 PC BOARDS AND PARTS LIST
AG-790A

- 14 -
AG-790A

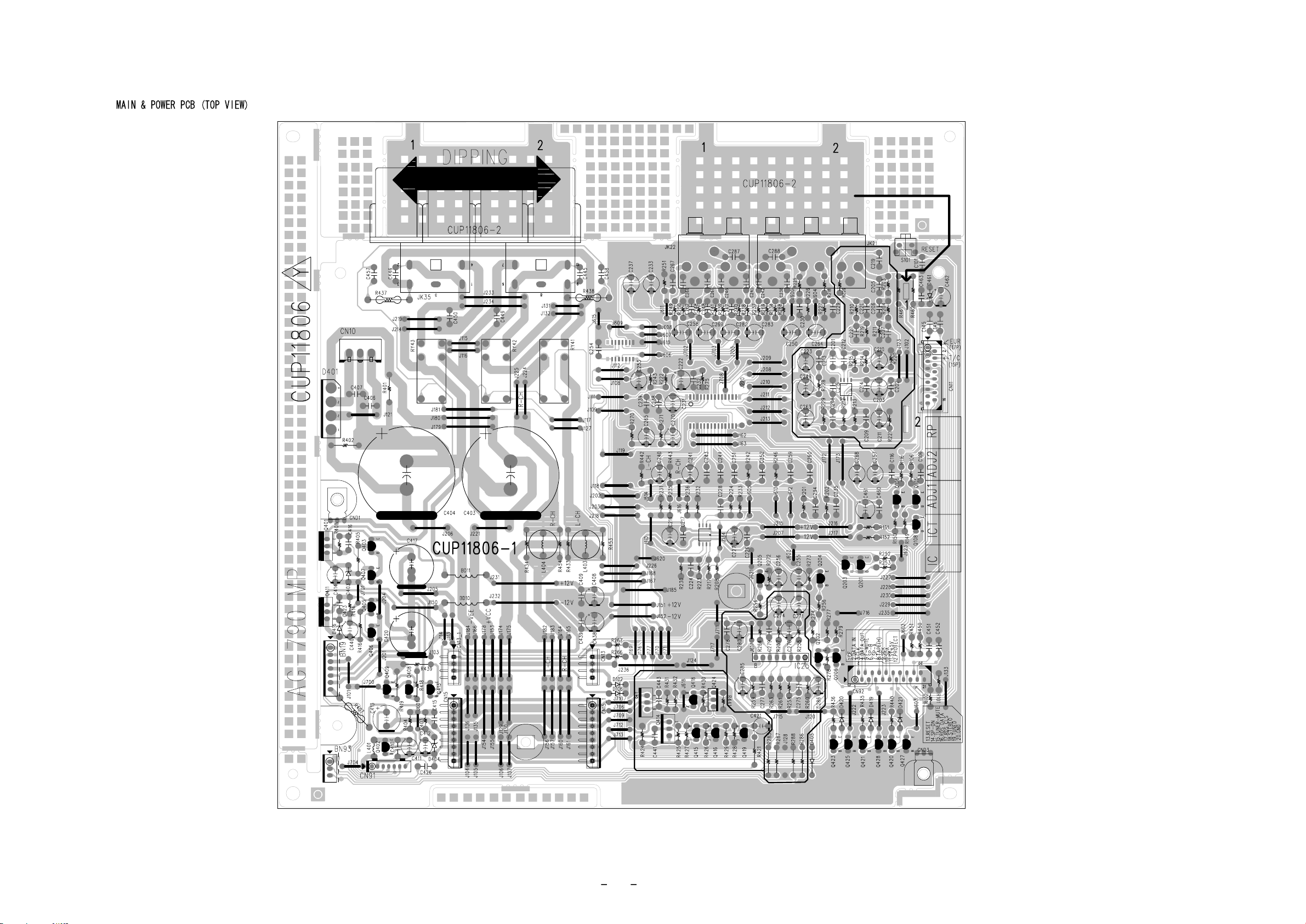

MAIN PCB ASSY (1/3) MAIN PCB ASSY (2/3)
－15－
CUP11806 PCB , MAIN
BD10-11 KLZ9H001Z BEAD , CORE
BN19 CWZAG580BN09 WIRE ASS'Y
BN93 CWZAG580BN93 WIRE ASS'Y
C101,214-215, CCKT1H103ZF CAP , CERAMIC
217,226,254,
278-279,416,
423,451-452
C106,116 HCQI1H102JZT CAP , MYLAR
C145-146 HCBS1H101KBT CAP , CERAMIC
C201-202 CCKT1H102KB CAP , CERAMIC
C203,210-211, CCEA1CH470T CAP , ELECT.
216,223,227,
285-286
C205,219 CCCT1H180JC CAP , CERAMIC
C206-207,220- CCKT1H181KB CAP , CERAMIC
221
C208,212 HCQI1H562JZT CAP , MYLAR
C209,213 HCQI1H223JZT CAP , MYLAR
C222 CCEA1EH331T CAP , ELECT.
C224,228 CCCT1H680JC CAP , CERAMIC
C229-230,234- CCKT1H101KB CAP , CERAMIC
236,242,247-
248,262,267
C231 CCEA1CH100T CAP , ELECT.
C232 CCKT1H473ZF CAP , CERAMIC
C233,237,240- CCEA1HH2R2T CAP , ELECT.
241,249-250,
255-258,263-
264,268-269,
271,274,282-
283
C238-239,445- HCQI1H272JZT CAP , MYLAR
446,449-450
C243-244,251- HCQI1H104JZT CAP , MYLAR
252,259-260
C253,276,280 CCEA1HH100T CAP , ELECT.
C265,270 CCEA1HN2R2T CAP , ELECT.
C275,277 CCKT1H221KB CAP , MYLAR
C287-288 HCBS1H103ZFT CAP , CERAMIC
C403-404 CCET80VKL5682NK CAP , ELECT.(35X40)
C406-407 CCME2A154JXT CAP , METALLIZED FILM
C408,414,438, CCEA1VH100T CAP , ELECT.
440
C409,439,460, CCFT1H104ZF CAP , SEMICONDUCTOR
463
C410,426 HCBS1H104ZFT CAP , CERAMIC
C411 HCEA1CH101T CAP , ELECT.
C412-421,461- CCEA1CH101T CAP , ELECT.
462
C413 CCEA1EH101T CAP , ELECT.
C417 CCEA1EH222E CAP , ELECT.
C420 CCEA1EH102E CAP , ELECT.
C441,443,457- HCQI1H473JZT CAP , MYLAR
458
AG-790A
CN10 KJP03GA90ZM WAFER
CN11 CJP15GA115ZY WAFER , CARD CABLE [TC,HKG,230E-N]
CN11 CJP17GA115ZY WAFER , CARD CABLE [EUR,UK]
CN11 CWC1C4A15B090B CABLE , CARD [TC]
CN11 CWC1C4A15B130B CABLE , CARD [HKG,230E-N]
CN11 CWC1C4A17B120B CABLE , CARD [EUR,UK]
CN13 KJP04GA63ZY WAFER
CN15 KJP09GA63ZY WAFER
CN91 CJP07GA19ZY WAFER
CN92 CJP21GA115ZY WAFER, CARD CABLE
D102,106,405, HVD1SS133MT DIODE
419-421
D401 HVDKBU804F DIODE , BRIDGE
D403,416 HVDMTZJ13BT DIODE , ZENER
D404 HVDMTZJ6.2BT DIODE , ZENER
D461 HVDMTZJ5.1BT DIODE , ZENER
GND1,3 HJT1A025 PALTE , EARTH
IC21-22 HVINJM2068MDTE1 I.C , OP AMP
IC23 HVITDA7318D I.C (VOLUME+FUNCTION)
IC24 HVICD4066BM96 I.C , SWITCH
IC25 HVINJM4556AL I.C , HEADPHONE
JK21 CJJ4R019W JACK , RCA
JK22 CJJ4P014W JACK , RCA
JK35 CJJ5Q006Z TERMINAL , SPEAKER
L401 HLQ02C100KT COIL , AXAIL
L403-404 CLEY0R5KAK COIL , SPEAKER
PCB2 CNVKSTMB014MA TUNER MOUDLE
PCB2 CNVMB014MA18L TUNER MOUDLE
PCB2 HNVTFCE1U116A TUNER MOUDLE
Q105-106,204- HVTKTC2874BT T.R
205
Q106 HVTKTC2874BT T.R
Q108 HVTKSA1175YT T.R
Q201,203,405, HVTKRC107MT T.R
407,419-421,
423
Q202,206,403, HVTKRA107MT T.R
406,413,425,
427-428
Q401 HVTKTC2026Y T.R
Q402 HVTKSC2316YT T.R
Q408-409 HVTKSC945CYT T.R
Q411 HVTKTA1046Y T.R
Q414 HVTKTC4370AY T.R
Q415,424 HVTKTA1268GRT T.R
Q416,418 HVTKTC3200GRT T.R
Q417 HVTKTA1659AY T.R
R101-102,435- CRD20TJ100T RES , CARBON
436,440
R106,116,208, CRD20TJ102T RES , CARBON
217-218,225,
235-236,238-
239,248-249,
270-271
R149-150,201- CRD20TJ222T RES , CARBON

MAIN PCB ASSY (3/3)
－16－
R202,275,404 CRD20TJ222T RES , CARBON
R151,274 CRD20TJ474T RES , CARBON
R152,279 CRD20TJ332T RES , CARBON
R203,209,220- CRD20TJ471T RES , CARBON
221
R204,210 CRD20TJ391T RES , CARBON
R211-219 CRD20TJ223T RES , CARBON
R212,214 CRD20TJ123T RES , CARBON
R213,215 CRD20TJ184T RES , CARBON
R222 CRD20TJ271T RES , CARBON
R223-224,231- CRD20TJ473T RES , CARBON
232,258-259,
261,263,268-
269,272-273
R226-227,240- CRD20TJ104T RES , CARBON
241,250-251
R228-229,255, CRD20TJ101T RES , CARBON
257,403
R230,233,252,
442-443,450- CRD20TJ103T RES , CARBON
451
R234,237 CRD20TJ561T RES , CARBON
R242,246,254, CRD20TJ562T RES , CARBON
256,429,441
R243 CRD20TJ121T RES , CARBON
R253,278 CRD20TJ392T RES , CARBON
R260,264,287- CRD20TJ273T RES , CARBON
288
R266 CRD20TJ121T RES , CARBON
R267 CRD20TJ121T RES , CARBON
R285-286,433- CRD25TJ100T RES , CARBON
434,453-454
R401-402 CRD25TJ153T RES , CARBON
R405-416 CRD25TJ222T RES , CARBON
R407 CRG1ANJ680H RES , METAL OXIDE FILM
R408,414 CRD20TJ153T RES , CARBON
R418-419 CRD25TJ102T RES , CARBON
R421 CRD25TJ103T RES , CARBON
R424,426,430- CRD20TJ333T RES , CARBON
431
R425,432 CRD20TJ560T RES, CARBON
R427 CRD20TJ563T RES, CARBON
R428 CRD20TJ682T RES, CARBON
R437-438 CRG1ANJ100H RES, METAL OXIDE FILM
R439 CRD25TJ561T RES, CARBON
R461-462 CRD25TJ331T RES , CARBON
RY41-43 HSL3A016ZE REALY PCI-212DM
S101 KST1A010Z SW , TACT
T401 CLT5U012YE MAIN TRANS [EUR,UK,HKG,230E-N]
T401 CLT5U012ZU MAIN TRANS [TC]
AG-790A

17
AG-790A
SUB PCB (TOP VIEW)

- 18 -
AG-790A
SUB PCB (VIEW FROM TOP SIDE)

SUB PCB ASSY (1/3) SUB PCB ASSY (2/3)
－19－
CUP11805 PCB, SUB
C314,326 CCKT1H221KB CAP, CERAMIC
C315,318 HCQI1H102JZT CAP, MYLAR
C316,321 CCKT1H471KB CAP, CERAMIC
C317,324 CCCT1H220JC CAP, CERAMIC
C319,325 HCQI1H473JZT CAP, MYLAR
C320,424 CCEA1HH4R7T CAP, ELECT.
C323 CCCT1H050CC CAP, CERAMIC
C328,912-913 CCCT1H270JC CAP, CERAMIC
C332,418,430 CCEA1HH101T CAP, ELECT.
C419,425 CCKT1H223ZF CAP, CERAMIC
C420,427,429 CCEA1HH470T CAP, ELECT.
C421-422 HCQI1H103JZT CAP, MYLAR
C428,915-916 CCKT1H103ZF CAP, CERAMIC
953-954,956
C901 HCBS1H471KBT CAP, CERAMIC
C904,924,951 CCEA1CKS100T CAP, ELECT.
C911,919,927 HCBS1H102KBT CAP, CERAMIC
C948 CCEA1HH1R0T CAP, ELECT.
C955 HCEA0JH102T CAP, ELECT.
C957 HCEA1AH471T CAP, ELECT.
C958-959,966- HCBS1H223ZFT CAP, CERAMIC
967
C960 HCBS1H103ZFT CAP, CERAMIC
C990 HCKWKH472ME CAP, CERAMIC
D307,309 HVDMTZJ27BT DIODE, ZENER
D310-311,924, HVD1SS133MT DIODE
951,954,960
D402,405-409 HVD1N4003ST RECT, DIODE
D410 HVDMTZJ30BT DIODE, ZENER
D411-412 HVD1N4003SRT DIODE
D413 HVDMTZJ6.2BT DIODE, ZENER
D906-910 HVD342VCTB7T089 L.E.D, RED
FIP1 HFLSVA09MS10 F.I.P
IC91 HVITMP87PM78F I.C, O.T.P
Q313-314,319- HVTKTC3200GRT T.R
320
Q315 HVT2SA1209S T.R
Q316 HVTKTC4370AY T.R
Q317 HVT2SC4468-OKM T.R, POWER
Q318 HVT2SC3419Y T.R
Q321 HVT2SC2911S T.R
Q322 HVT2SA1695-OKM T.R. POWER
Q323 HVTKSA1175YT T.R
Q324 HVTKTA1659AY T.R
Q404 HVTKTA1271YT T.R
Q903-904,906- HVTKRA107MT T.R
912
Q951 HVTKSB811YT T.R
RC91 HRVKSM603TH2 REMOCON SENSOR
R325 CRG1ANJ562H RES, MOF
R326-327,338 CRD20TJ332T RES, CARBON
R328-329,334, CRD20TJ122T RES, CARBON
415,965
R330,347 CRD20TJ680T RES, CARBON
R331,335,345 CRD20TJ681T RES, CARBON
R332 CRD20TJ203T RES, CARBON
R333 CRD20TJ302T RES, CARBON
R336 CRD25TJ221T RES, CARBON
R337 CRF5EKR22HX2 RES, CEMENT
R339,342,417, CRD20TJ473T RES, CARBON
904,953,955-
956
R340 CRD20TJ182T RES, CARBON
R341 CRD20TJ243T RES, CARBON
R344 CRD20TJ103T RES, CARBON
R346 CRD20TJ333T RES, CARBON
R409-410,413 KRQ12AJR47H RES, FUSE
R411-412 CRD25TJ560T RES, CARBON
R420 HRDERC12UGK335T RES, CARBON [T/C]
R902,931-934 CRD20TJ102T RES, CARBON
R903,935-938, CRD20TJ223T RES, CARBON
941-942,947-
948
R906-908 CRD20TJ391T RES, CARBON
R909-910 CRD20TJ221T RES, CARBON
R911,919,927 CRD20TF1002T RES, CARBON
R912,920,928 CRD20TF1001T RES, CARBON
R913,921,929 CRD20TF1501T RES, CARBON
R914,922 CRD20TF1801T RES, CARBON
R915,923 CRD20TF2701T RES, CARBON
R916,924 CRD20TF3301T RES, CARBON
R917,925 CRD20TF5601T RES, CARBON
R918,926 CRD20TF7501T RES, CARBON
R939-940 CRD20TJ561T RES, CARBON
R943-946,949 CRD20TJ472T RES, CARBON
R951 CRD20TJ273T RES, CARBON
R952 CRD20TJ104T RES, CARBON
R957 CRD20TJ100T RES, CARBON
R966-967 CRD20TJ272T RES, CARBON
R978 CRD20TJ562T RES, CARBON
BK41 CMD1A188 BRACKET, PCB [T/C]
BK91-92 CMD1A374 BRACKET, FLT
BN13 KJP04HB60ZY HOUSING, ANGLE
BN15 KJP09HB60ZY HOUSING, ANGLE
BN91 CWB2B907250EN WIRE ASS'Y
BN95 CWB1B905100NN WIRE ASS'Y
CN11 CWC1C4A15B090B CABLE, CARD [T/C]
CN19 KJP07GB03ZM WAFER
CN41 KJP02KA060ZY WAFER [T/C]
CN42 KJP02KA060ZY WAFER [EUR, UK, 230E-N, HKG]
CN92 CJP21GB116ZY WAFER
CN92 CWC1C4A21B240A CARD CABLE
CN93 CJP03GA01ZY WAFER
CN94 KJP02GA89ZM WAFER
F401 KBA2C6300TLUZ FUSE [T/C]
F402 KBA2C2500TLUZ FUSE [T/C]
F403 KBA2C2500TLUZ FUSE [EUR,UK,230E-N,HKG]
F404 KBA2C3150TLEZ FUSE [EUR,UK,230E-N,HKG]
FH41-42 KJCFC5S HOLDER, FUSE [T/C]
AG-790A

SUB PCB ASSY (3/3)
－20－
FH43-44 KJCFC5S HOLDER, FUSE [EUR,UK,230E-N,HKG]
J901 C3A206 WIRE, COPPER [EUR,UK]
J901 C3A206 WIRE, COPPER [HKG,230E-N]
J902 C3A206 WIRE, COPPER [T/C]
J902 C3A206 WIRE, COPPER [HKG,230E-N]
J903 C3A206 WIRE, COPPER [T/C]
J903 C3A206 WIRE, COPPER [EUR,UK]
JK91 HJJ2E020Z JACK, HEADPHONE
JW10 CWZAG580W010 WIRE ASS'Y
JW41 CWEE212080VV WIRE ASS'Y (RED)
JW42 CWEE202090VV WIRE ASS'Y (BLACK)
JW91 CWE7202100RV WIRE ASS'Y
JW94 CWZAG790JW94 WIRE ASS'Y [T/C]
JW95 CWZAG790JW94 WIRE ASS'Y [EUR,UK,230E-N,HKG]
L951 HLQ02C100KT COIL , AXAIL
OUL1 CJJ7A015Z AC OUTLET (120V,2P) [T/C]
OUL2 CJJ7A021Z AC OUTLET (230V,1P) [EUR,UK,230E-N,HKG]
S901 HSR2A031Z VR, ENCODER
S911-928 CST1A012ZT SW, TACT
SW91 KSH1A001ZV SW, PUSH (MOMS)
X901 HOX08000E160C CRYSTAL
CJA2B043ZA CORD, POWER [EUR,230E-N]
CJA2E045ZA CORD, POWER [UK,HKG]
CJA523FBYA CORD, POWER [T/C]
CMY1A256 SINK, HEAT
AG-790A
5 REMOTE CONTROL LAYOUT
