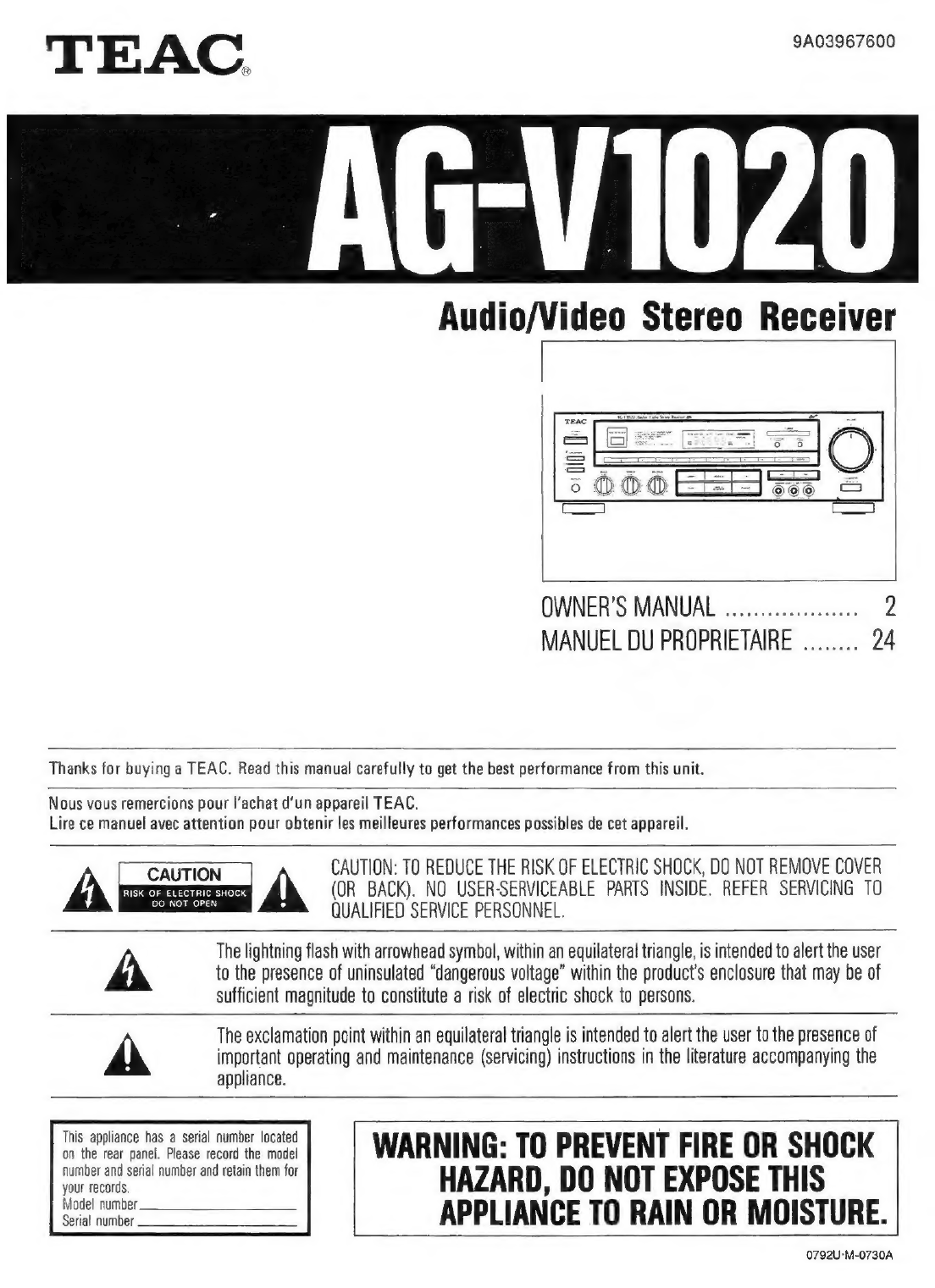

Teac AG-V1020 User manual

T
E;
AC.
9A03967600
AG-V1020
Audio/Video Stereo Receiver
OWNER’S MANUAL «ss... win Dl
MANUEL DU PROPRIETAIRE ........ 04
Thanks for buying a TEAC. Read this manual carefully to get the best performance from this unit.
Nous vous remercions pour l’achat d’un appareil TEAC.
Lire ce manuel avec attention pour obtenir les meilleures performances possibles de cet appareil.
CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
Ag@z=az aa Ah (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED ‘sence PERSONNEL.
to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of
7 The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
A important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
on he er pre Messe ean he motel WARNING: TO PREVENT FIRE OR SHOCK
your eads number and retain them for HAZARD, DO NOT EXPOSE THIS
Saal ner APPLIANCE TO RAIN OR MOISTURE.
0792U-M-0730A

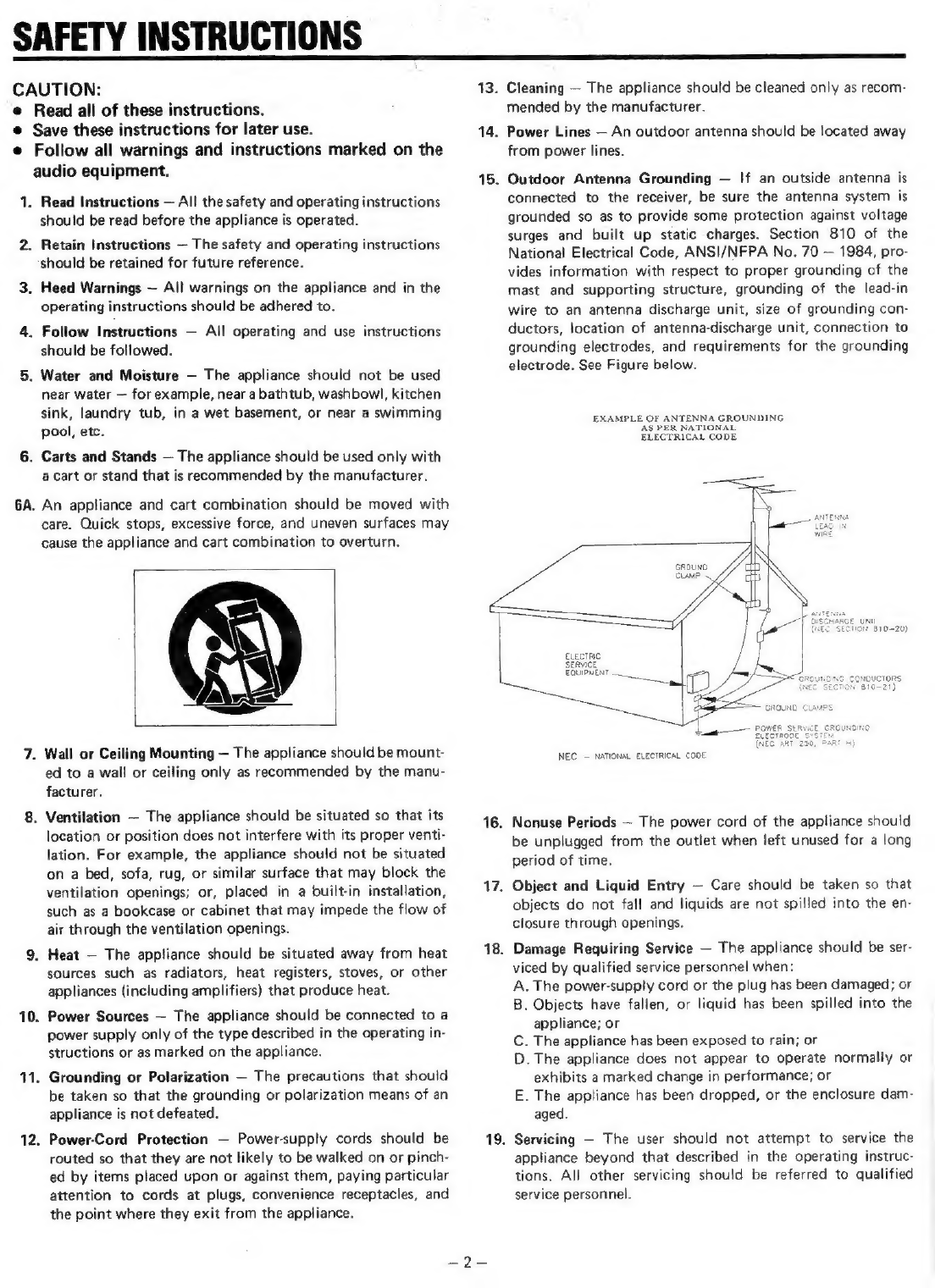

SAFETY INSTRUCTIONS
CAUTION:
1.
2.
3.
6A.
10.
11.
12,
Read all of these instructions.
Save these instructions for later use.
Follow all warnings and instructions marked on the
audio equipment.
Read Instructions — All the safety and operating instructions
should be read before the appliance is operated.
Retain Instructions — The safety and operating instructions
should be retained for future reference.
Heed Warnings — All warnings on the appliance and in the
operating instructions should be adhered to.
. Follow Instructions — All operating and use instructions
should be followed.
. Water and Moisture — The appliance should not be used
near water — for example, near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming
pool, etc.
. Carts and Stands — The appliance should be used only with
a cart or stand that is recommended by the manufacturer.
An appliance and cart combination should be moved with
care. Quick stops, excessive force, and uneven surfaces may
cause the appliance and cart combination to overturn.
. Wall or Ceiling Mounting — The appliance should be mount-
ed to a wall or ceiling only as recommended by the manu-
facturer.
. Ventilation — The appliance should be situated so that its
location or position does not interfere with its proper venti-
lation. For example, the appliance should not be situated
on a bed, sofa, rug, or similar surface that may block the
ventilation openings; or, placed in a built-in installation,
such as a bookcase or cabinet that may impede the flow of
air through the ventilation openings.
. Heat — The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
Power Sources — The appliance should be connected to a
power supply only of the type described in the operating in-
structions or as marked on the appliance.
Grounding or Polarization — The precautions that should
be taken so that the grounding or polarization means of an
appliance is not defeated.
Power-Cord Protection — Power-supply cords should be
routed so that they are not likely to be walked on or pinch-
ed by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and
the point where they exit from the appliance.
13.
14.
15.
16.
17.
18.
19.
Cleaning — The appliance should be cleaned only as recom-
mended by the manufacturer.
Power Lines — An outdoor antenna should be located away
from power lines.
Outdoor Antenna Grounding — If an outside antenna is
connected to the receiver, be sure the antenna system is
grounded so as to provide some protection against voltage
surges and built up static charges. Section 810 of the
National Electrical Code, ANSI/NFPA No. 70 — 1984, pro-
vides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of grounding con-
ductors, location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the grounding
electrode. See Figure below.
EXAMPLE OF ANTENNA GROUNDING
AS PER NATIONAL.
ELECTRICAL CODE
NI
810-20)
ELECTRIC
SERVICE
EQUIPMENT
—— POWER Si
ELECTRO!
(NEC ART
i
NEC — NATIONAL ELECTRICAL CODE
Nonuse Periods — The power cord of the appliance should
be unplugged from the outlet when left unused for a long
period of time.
Object and Liquid Entry — Care should be taken so that
objects do not fall and liquids are not spilled into the en-
closure through openings.
Damage Requiring Service — The appliance should be ser-
viced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the
appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or
exhibits a marked change in performance; or
E. The appliance has been dropped, or the enclosure dam-
aged.
Servicing — The user should not attempt to service the
appliance beyond that described in the operating instruc-
tions. All other servicing should be referred to qualified
service personnel.

PRECAUTIONS
Placement of the Unit
As the unit incorporates a powerful amplifier, heat is
radiated from the back and top of the unit; the
location where the unit is installed should be well
ventilated. Avoid installing where it would be exposed
to high temperatures, direct sunlight, high humidity
and dust. If the wiring is too long, particularly the
speaker cables, it may result in degraded sound. Keep
the connection cables as short as possible.
The receiver draws nominal non-operating power
from the AC outlet with its POWER switch in the
STANDBY position.
Obs! natstrémstallaren skiljer ej hela apparaten
fran natet.
;-For U.S.A
TO THE USER
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against interference in a residential
area. This device generates and uses radio
frequency energy and if not installed and used in
accordance with the instructions, it may cause
interference to radio or TV reception. If this unit
does cause interference with TV or radio
reception you can try to correct the interference
by one or more of the following measures:
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the
equipment and the receiver.
c) Plug the equipment into a different outlet so
that it is not on the same circuit as the
receiver.
If necessary, consult the dealer or an experienced
radio/TV technician for additional suggestions.
CAUTION
Changes or modifications to this equipment not
expressly approved by TEAC CORPORATION for
compliance could void the user's authority to
operate this equipment.
--For CANADA
AC POWER CORD CONNECTION
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
--For CANADA
THIS DIGITAL APPARATUS DOES NOT EXCEED
THE CLASS B LIMITS FOR RADIO NOISE
EMISSIONS FROM DIGITAL APPARATUS AS SET
OUT IN THE RADIO INTERFERENCE
REGULATIONS OF THE CANADIAN DEPART-
MENT OF COMMUNICATIONS.
--For the United Kingdom—————__
IMPORTANT
The wires in this mains lead are coloured in
accordance with the following code:
BLUE: NEUTRAL
BROWN: LIVE
As the colours of the wires in the mains lead of
this apparatus may not correspond with the
coloured markings identifying the terminals in
your plug, proceed as follows:
The wire which is coloured BLUE must be
connected to the terminal which is marked with
the letter N or coloured BLACK. The wire which is
coloured BROWN must be connected to the
terminal which is marked with the letter L or
coloured RED.
In the U.K., this unit is sold without an AC plug.
THE APPLIANCE CONFORMS WITH EEC
DIRECTIVE 87/308/EEC REGARDING
INTERFERENCE SUPPRESSION.
CONFORME AL D.M. 13 APRILE 1989 DIRETTIVA
CEE/87/308.

CONTENTS
SAFETY INSTRUCTIONS..
PRECAUTIONS
CONNECTIONS
System Connections...
VIDEO 2 INPUT Jacks...
Antenna Connections.......
FM Antenna (U.S.A./Canada)
FM Antenna (Europe)
AM Antenna
Speaker Connections
Speaker IMPEDANCE SELECTOR (on Rear Panel

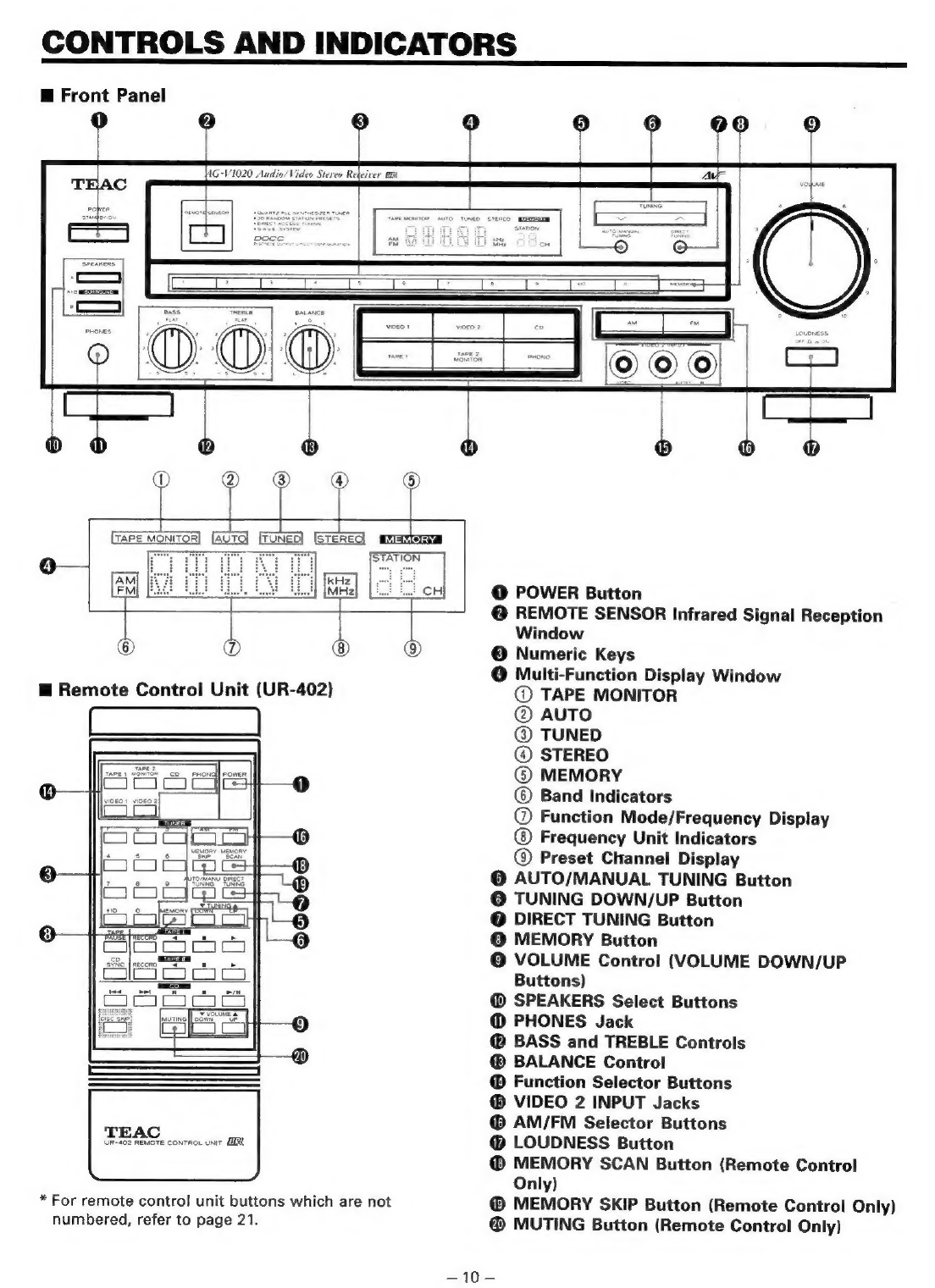

CONTROLS AND INDICATORS...

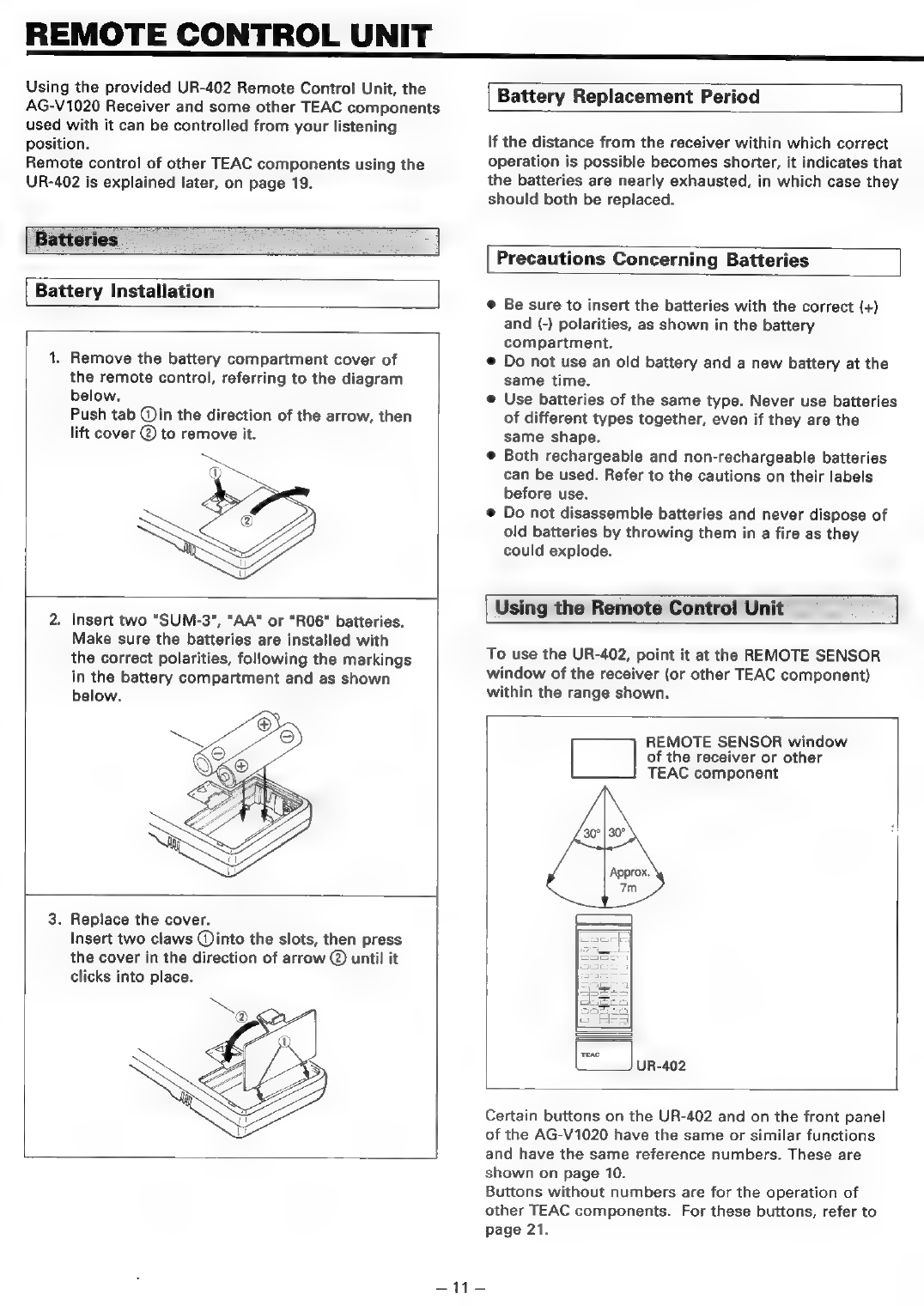

REMOTE CONTROL UNIT.
Batteries.........sssceeees
Battery Installation..
Battery Replacement Period..
Precautions concerning Batteries.
Using the Remote Control Unit...........
Cautions on Use of the Remote Control Unit

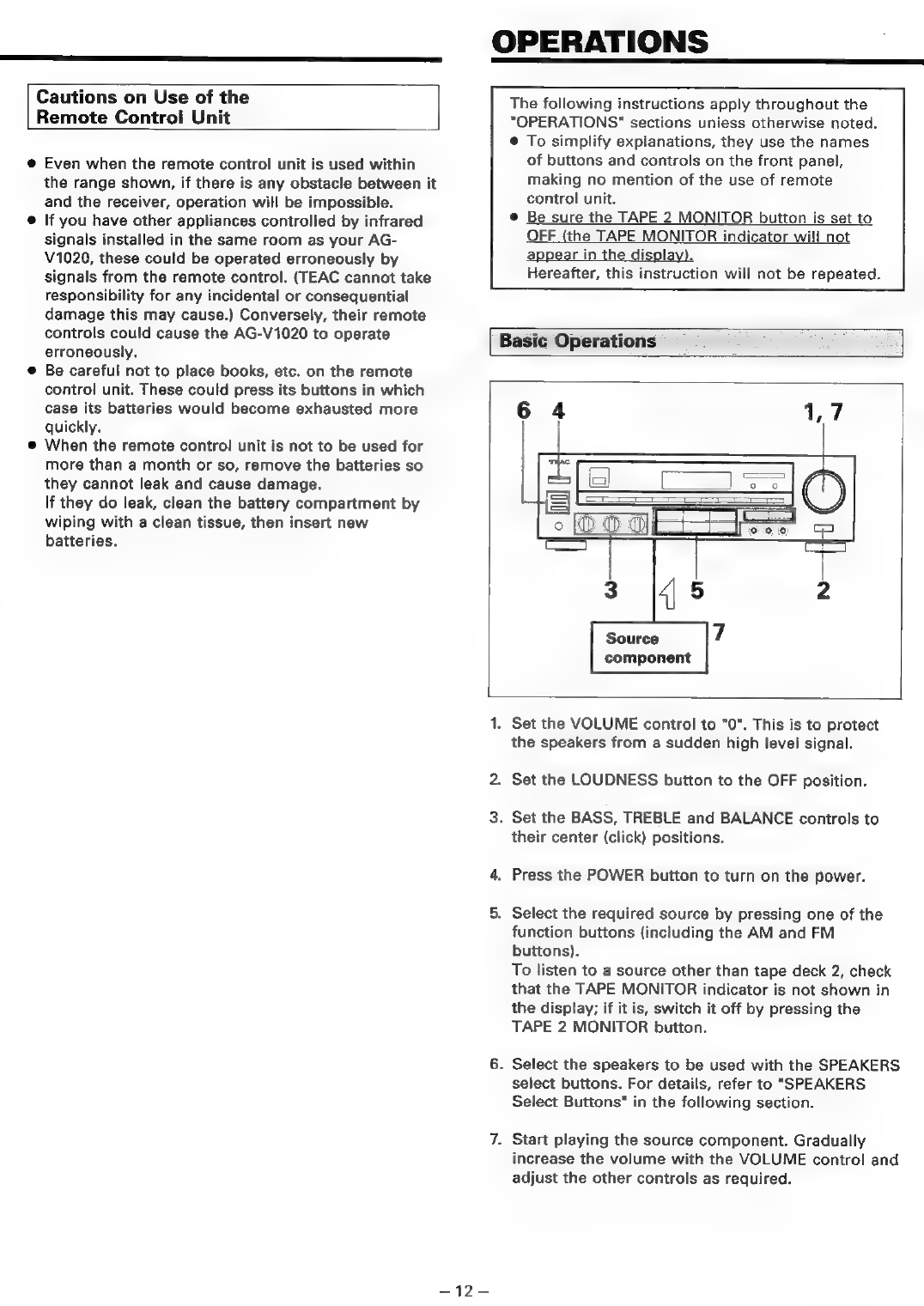

OPERATIONS
Basic Operations..

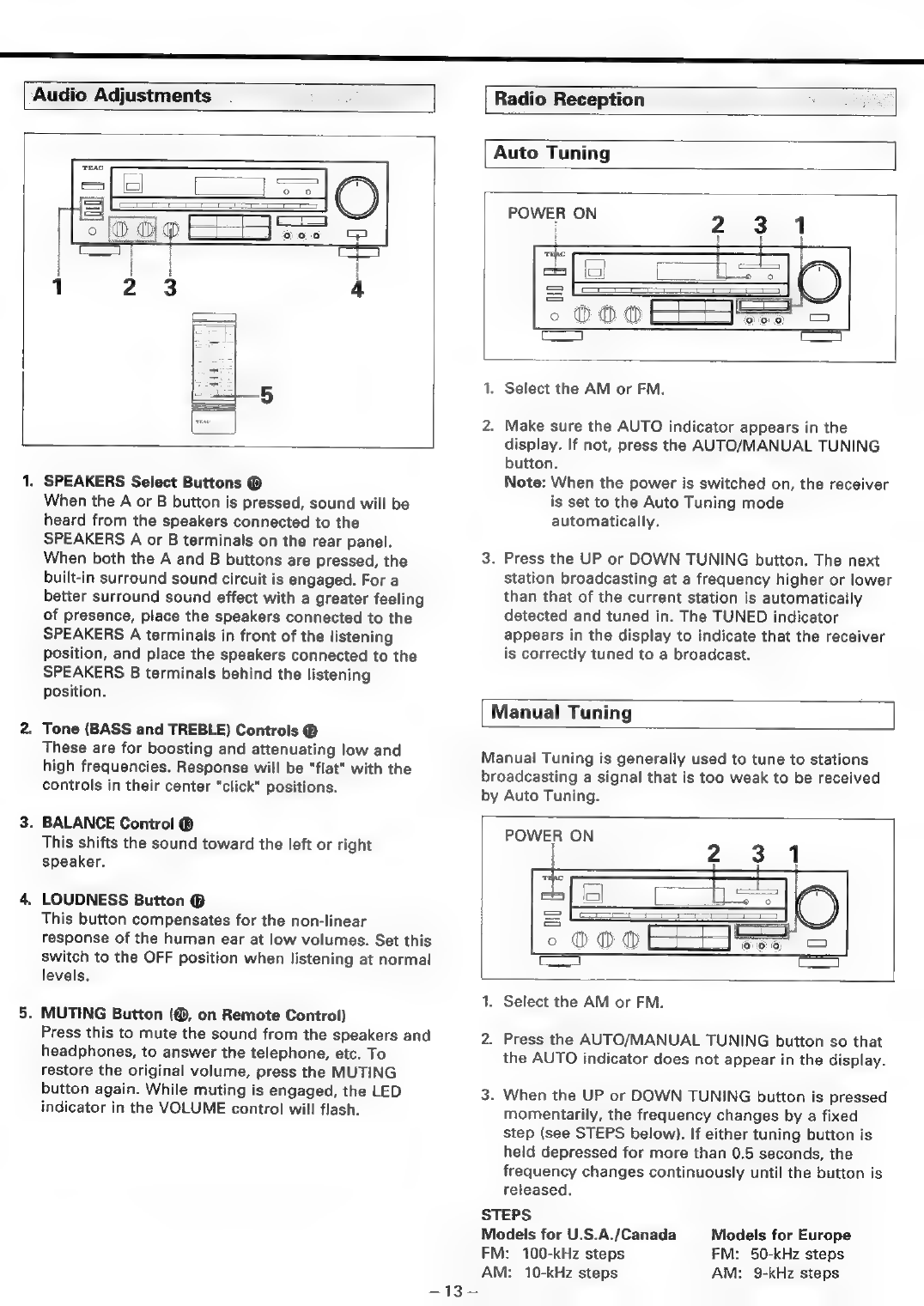

Audio Adjustments.
Radio Reception...
Auto Tuning.
Manual Tuning...

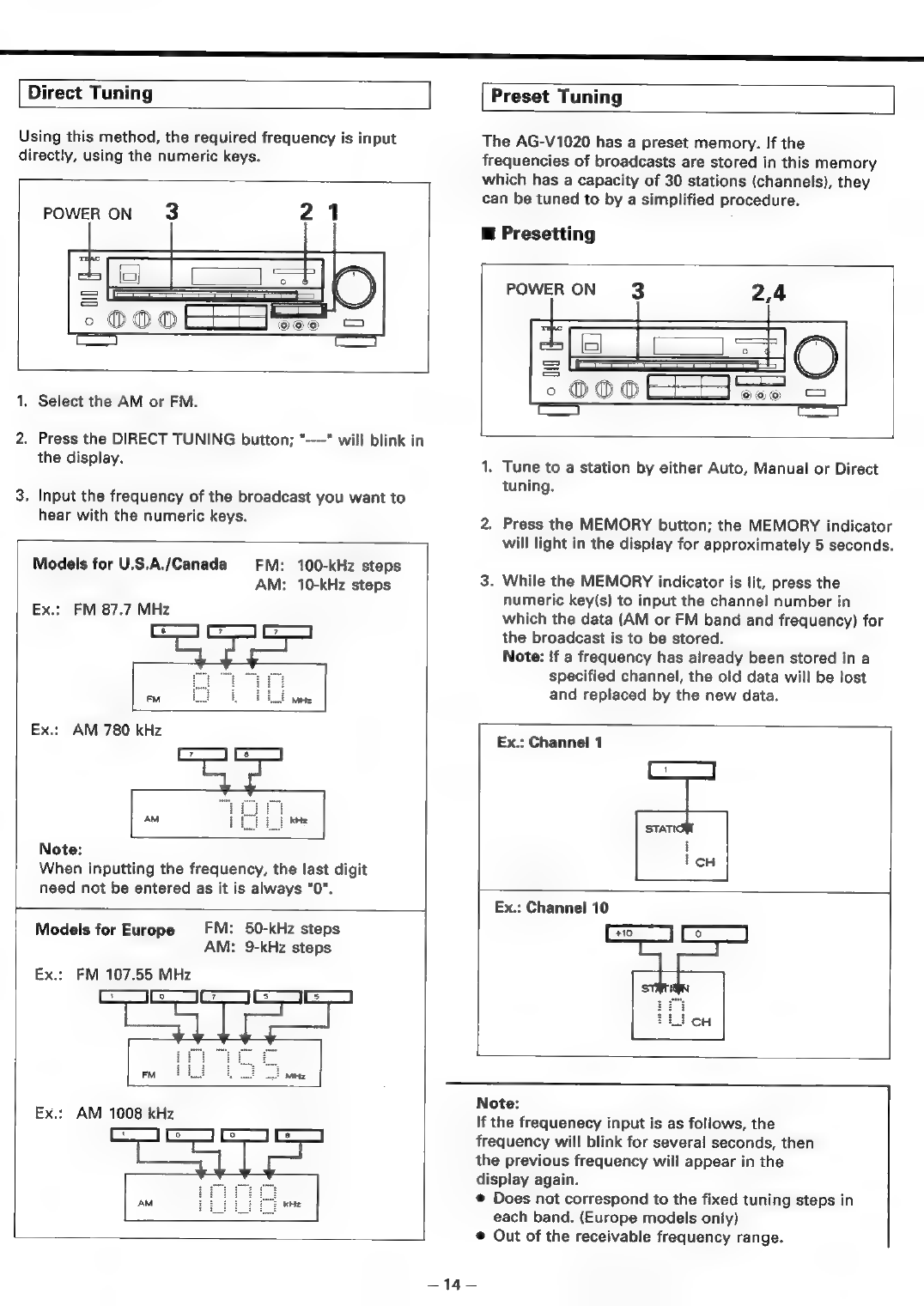

Direct Tuning..
Preset Tuning...
Listening to Records and Compact Discs..
Playing Tapes......
Recording Tapes.
Recording a Source other than Tape.
Tape Dubbing (from Tape Deck 1 to Tape Deck 2)..

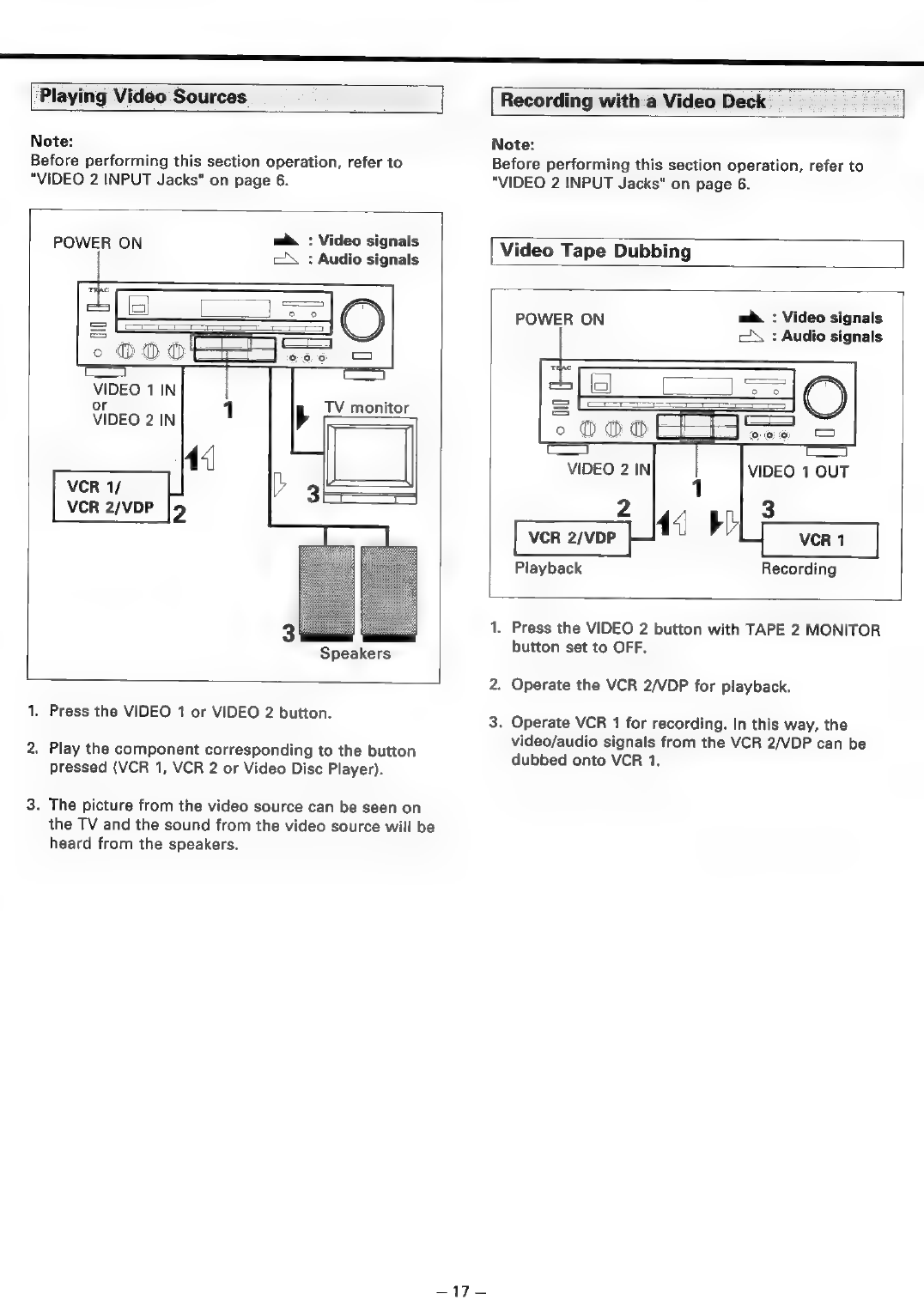

Playing Video Sources
Recording with a Video Deck..
Video Tape Dubbing
S.A.V.E. (Second Audio Source for Video
Editing) SYSTEM Function...
MEMORY BACKUP FUNCTION..

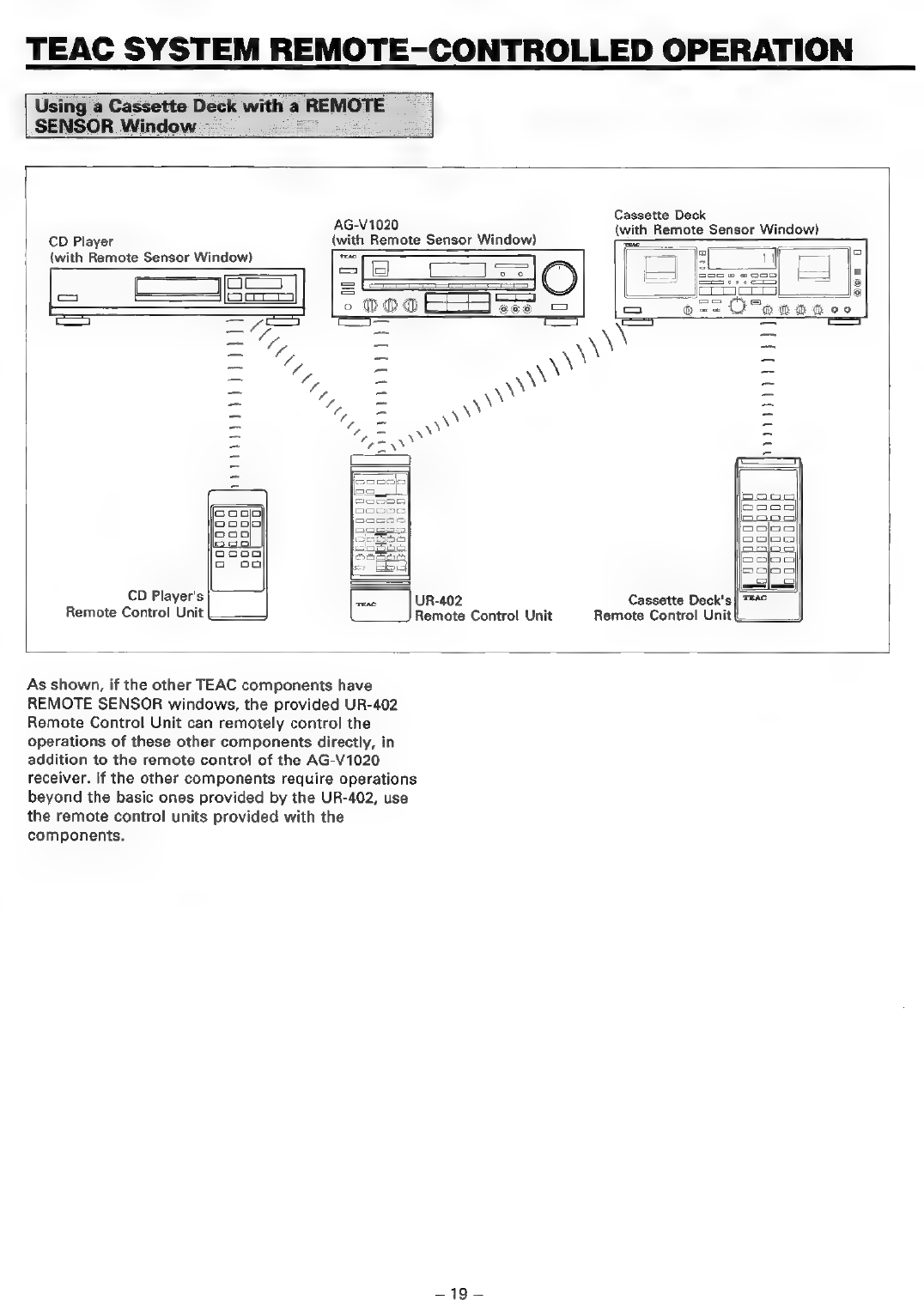

TEAC SYSTEM REMOTE-CONTROLLED OPERATION,
Using a Cassette Deck with a REMOTE SENSOR Window...
Using a Cassette Deck without a REMOTE SENSOR Window
Buttons for the Operation of Other TEAC Components
TROUBLESHOOTING....
SPECIFICATIONS...

CONNECTIONS
© Do not plug the power cords of any components into
AC outlets and do not turn their POWER switches on
until all connections have been performed.

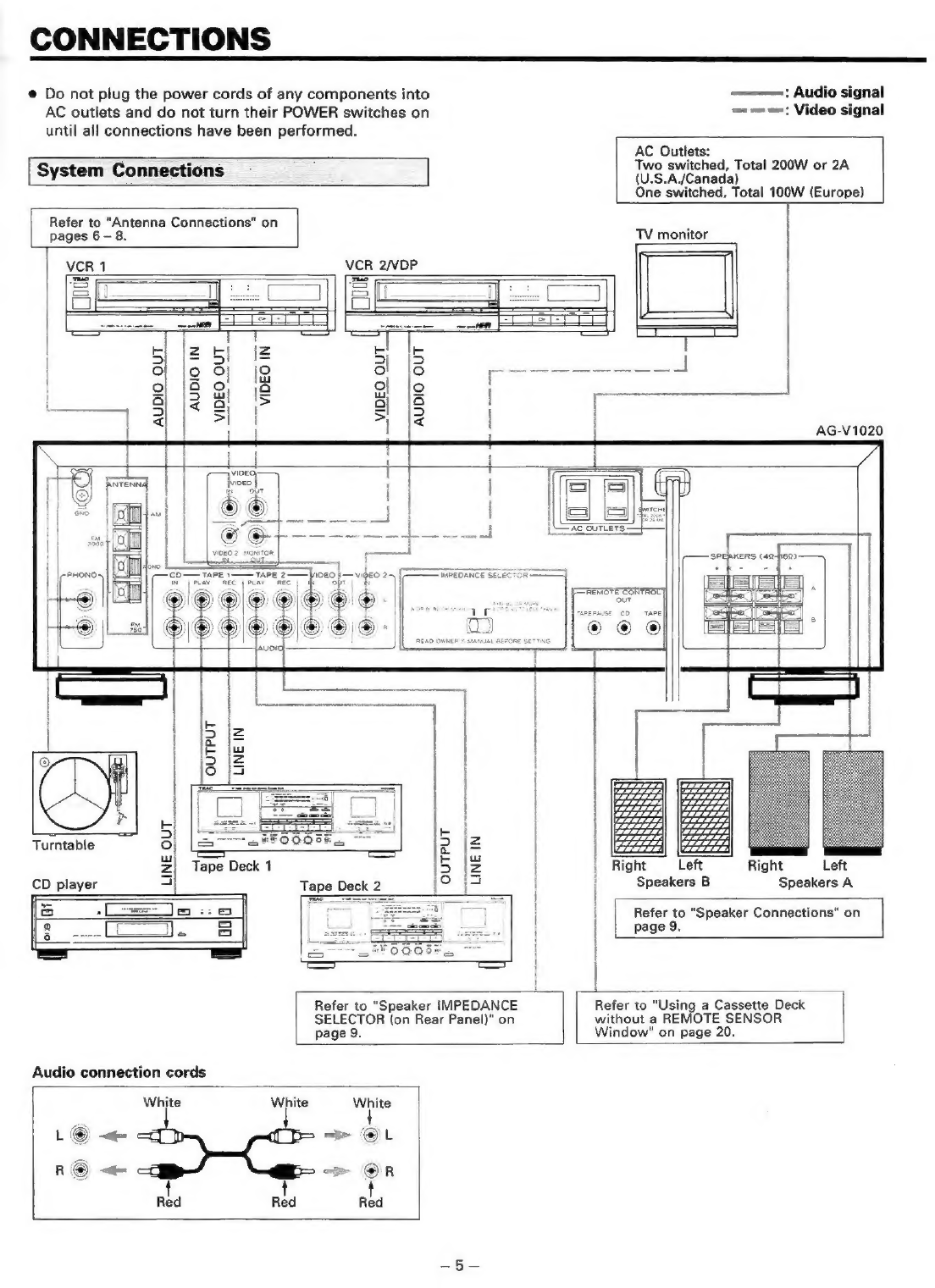

System Connections
a
Refer to "Antenna Connections" on
pages 6 - 8.
VCR 2/VDP
: Audio signal
== ===: Video signal
AC Outlets:
Two switched, Total 200W or 2A
(U.S.A./Canada)
One switched, Total 100W (Europe)
TV monitor
i
a
|
AUDIO OUT
AUDIO IN
VIDEO OUT
VIDEO OU
AUDIO OUT
nae
AG-V1020
——
Te Fs |
0 i (oil al
801 [0]
fo
i
OUTPUT
OUTPUT LINE IN
Left
Speakers B
Right Right Left
Speakers A
Refer to "Speaker Connections" on
page 9.
Refer to "Speaker IMPEDANCE
SELECTOR (on Rear Panel)" on
Refer to "Using a Cassette Deck
without a REMOTE SENSOR
Window" on page 20.
bE
= =)
Turntable °
Ww
é
CD player ot Tape Deck 2
a . mee
© = Se
6 es ae —Je =
page 9.
Audio connection cords
White White White
L@© ~<a =p @L
R© <— => ©R
t t t
Red Red Red

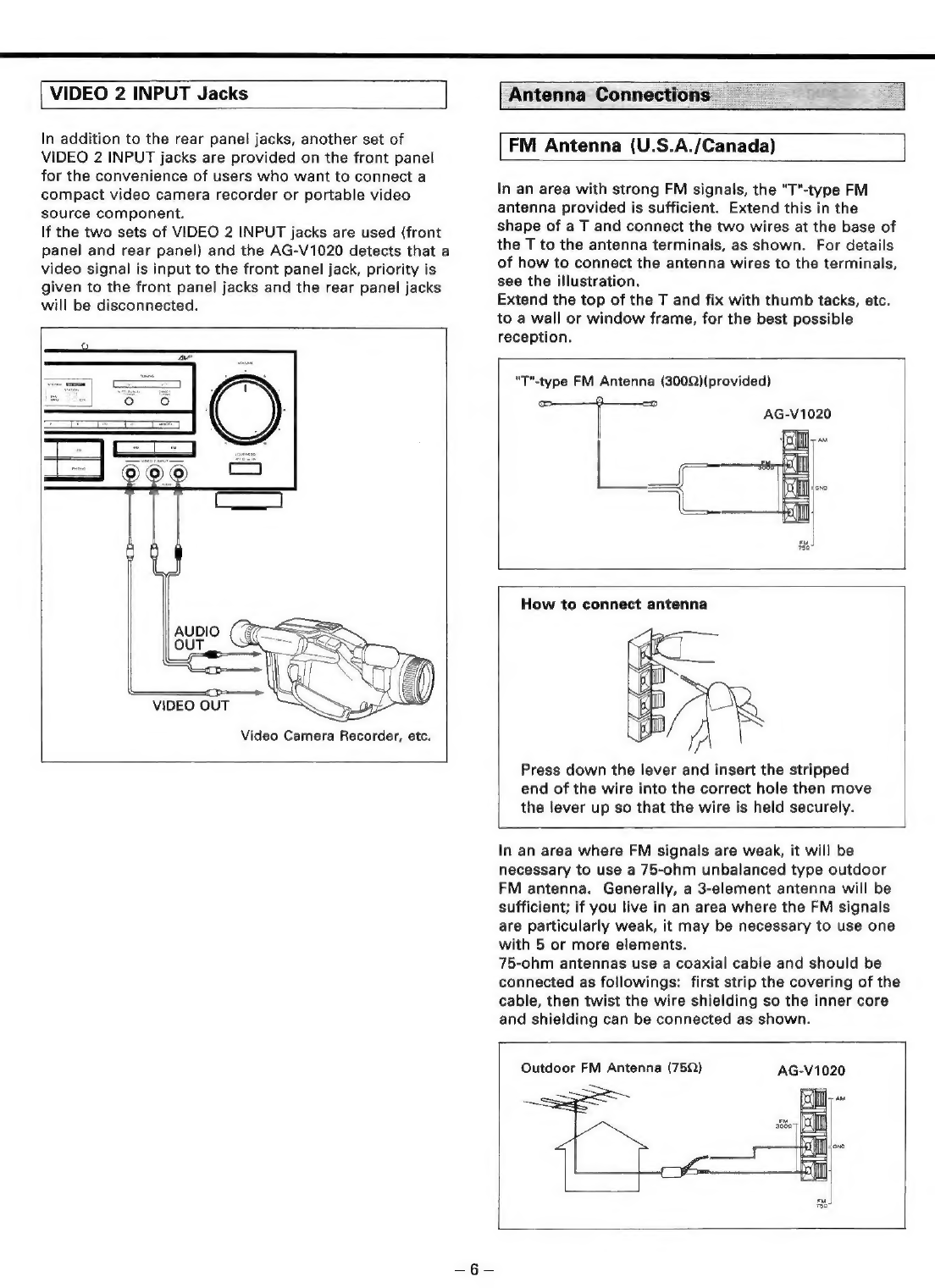

VIDEO 2 INPUT Jacks
Antenna Connections __
In addition to the rear panel jacks, another set of
VIDEO 2 INPUT jacks are provided on the front panel
for the convenience of users who want to connect a
compact video camera recorder or portable video
source component.
If the two sets of VIDEO 2 INPUT jacks are used (front
panel and rear panel) and the AG-V1020 detects that a
video signal is input to the front panel jack, priority is
given to the front panel jacks and the rear panel jacks
will be disconnected.
VIDEO OUT
Video Camera Recorder, etc.
FM Antenna (U.S.A./Canada)
In an area with strong FM signals, the “T"-type FM
antenna provided is sufficient. Extend this in the
shape of a T and connect the two wires at the base of
the T to the antenna terminals, as shown. For details
of how to connect the antenna wires to the terminals,
see the illustration.
Extend the top of the T and fix with thumb tacks, etc.
to a wall or window frame, for the best possible
reception.
"T"-type FM Antenna (300Q)(provided)
at ae
wi
AG-V1020
How to connect antenna
Press down the lever and insert the stripped
end of the wire into the correct hole then move
the lever up so that the wire is held securely.
In an area where FM signals are weak, it will be
necessary to use a 75-ohm unbalanced type outdoor
FM antenna. Generally, a 3-element antenna will be
sufficient; if you live in an area where the FM signals
are particularly weak, it may be necessary to use one
with 5 or more elements.
75-ohm antennas use a coaxial cable and should be
connected as followings: first strip the covering of the
cable, then twist the wire shielding so the inner core
and shielding can be connected as shown.
Outdoor FM Antenna (75Q) AG-V1020

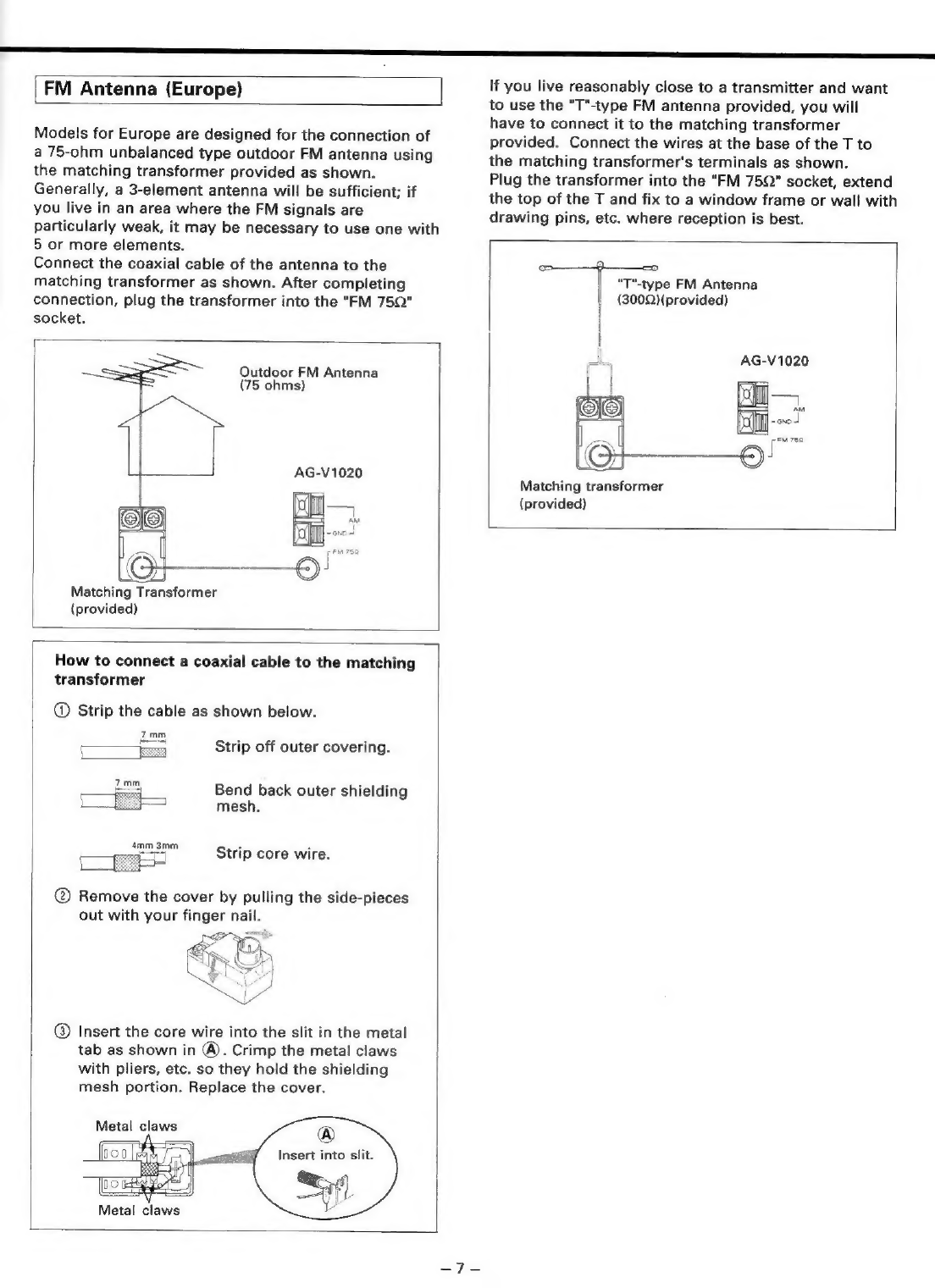

FM Antenna (Europe)
Models
for
Europe
are
designed
for
the
connection
of
a
75-ohm
unbalanced
type
outdoor
FM
antenna
using
the
matching
transformer
provided
as
shown.
Generally,
a
3-element
antenna
will
be
sufficient;
if
you
live
in
an
area
where
the
FM
signals
are
particularly
weak,
it
may
be
necessary
to
use
one
with
5
or
more
elements.
Connect
the
coaxial
cable
of
the
antenna
to
the
matching
transformer
as
shown.
After
completing
connection,
plug
the
transformer
into
the
"FM
752"
socket.
Outdoor FM Antenna
(75 ohms)
AG-V1020
a J
Matching Transformer
(provided)
How to connect a coaxial cable to the matching
transformer
© Strip the cable as shown below.
Strip off outer covering.
Bend back outer shielding
mesh.
4mm 3mm . .
wat | Strip core wire.
y oe
@ Remove the cover by pulling the side-pieces
out with your finger nail.
@® Insert the core wire into the slit in the metal
tab as shown in @). Crimp the metal claws
with pliers, etc. so they hold the shielding
mesh portion. Replace the cover.
Metal claws
®
Insert into slit.
If you live reasonably close to a transmitter and want
to use the "T-type FM antenna provided, you will
have to connect it to the matching transformer
provided. Connect the wires at the base of the T to
the matching transformer's terminals as shown.
Plug the transformer into the “FM 75" socket, extend
the top of the T and fix to a window frame or wall with
drawing pins, etc. where reception is best.
ype FM Antenna
| (3000)provided)
j
|
|
AG-V1020
il —,
- j™ 752
Matching transformer
(provided)

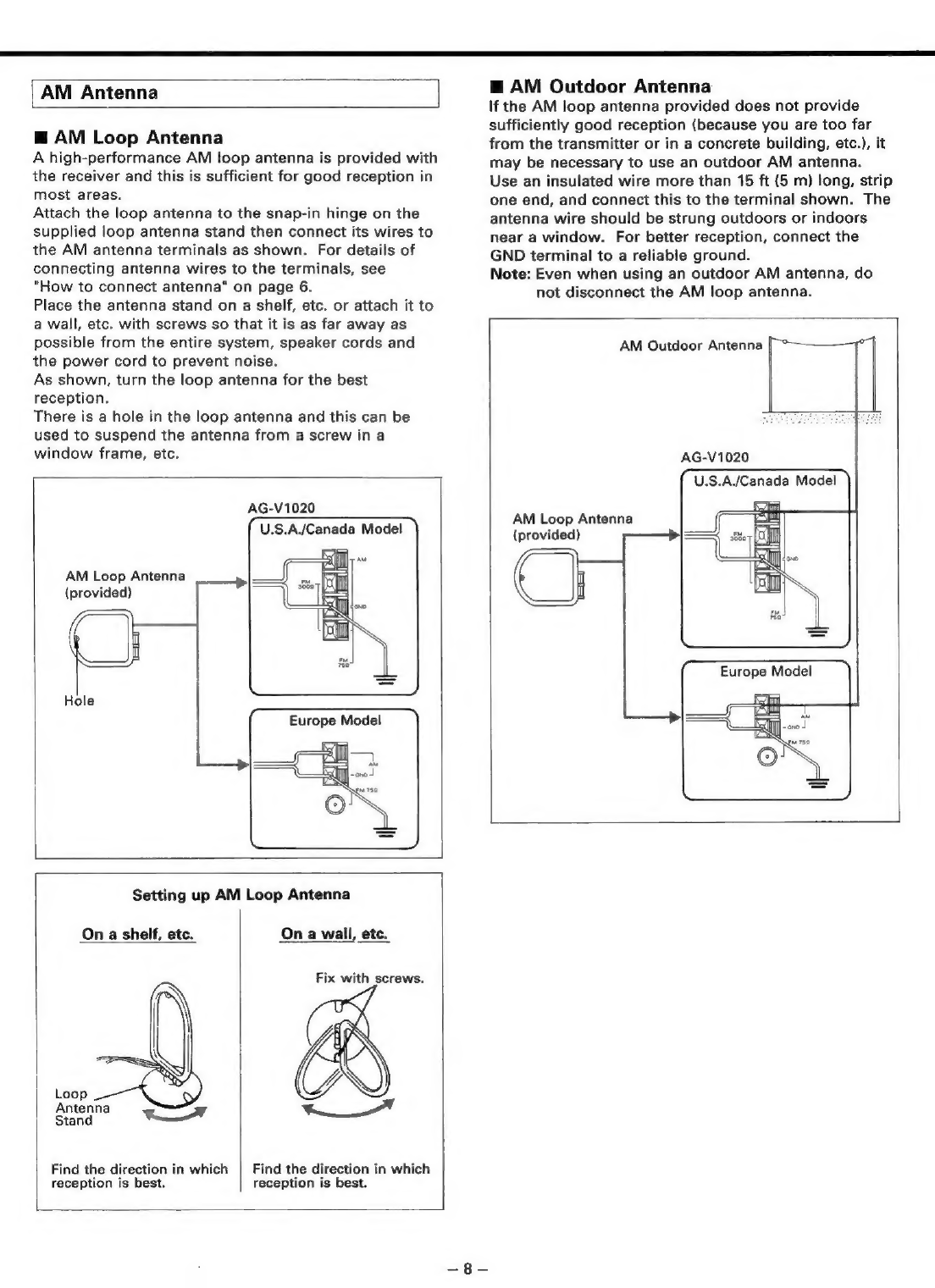

AM Antenna
@ AM Loop Antenna
A high-performance AM loop antenna is provided with
the receiver and this is sufficient for good reception in
most areas.
Attach the loop antenna to the snap-in hinge on the
supplied loop antenna stand then connect its wires to
the AM antenna terminals as shown. For details of
connecting antenna wires to the terminals, see
“How to connect antenna" on page 6.
Place the antenna stand on a shelf, etc. or attach it to
a wall, etc. with screws so that it is as far away as
possible from the entire system, speaker cords and
the power cord to prevent noise.
As shown, turn the loop antenna for the best
reception.
There is a hole in the loop antenna and this can be
used to suspend the antenna from a screw in a
window frame, etc.
AG-V1020
U.S.A./Canada Model
AM Loop Antenna
(provided)
Hole
Setting up AM Loop Antenna
On a shelf, etc. On a wali, etc.
Fix with screws.
Y/
,
Loop
Antenna
Stand
Find the direction in which
reception is best.
Find the direction in which
reception is best.
@ AM Outdoor Antenna
If the AM loop antenna provided does not provide
sufficiently good reception (because you are too far
from the transmitter or in a concrete building, etc.), it
may be necessary to use an outdoor AM antenna.
Use an insulated wire more than 15 ft (5 m) long, strip
one end, and connect this to the terminal shown. The
antenna wire should be strung outdoors or indoors
near a window. For better reception, connect the
GND terminal to a reliable ground.
Note: Even when using an outdoor AM antenna, do
not disconnect the AM loop antenna.
AM Outdoor Antenna
AG-V1020
U.S.A/Canada Model
AM Loop Antenna
(provided)

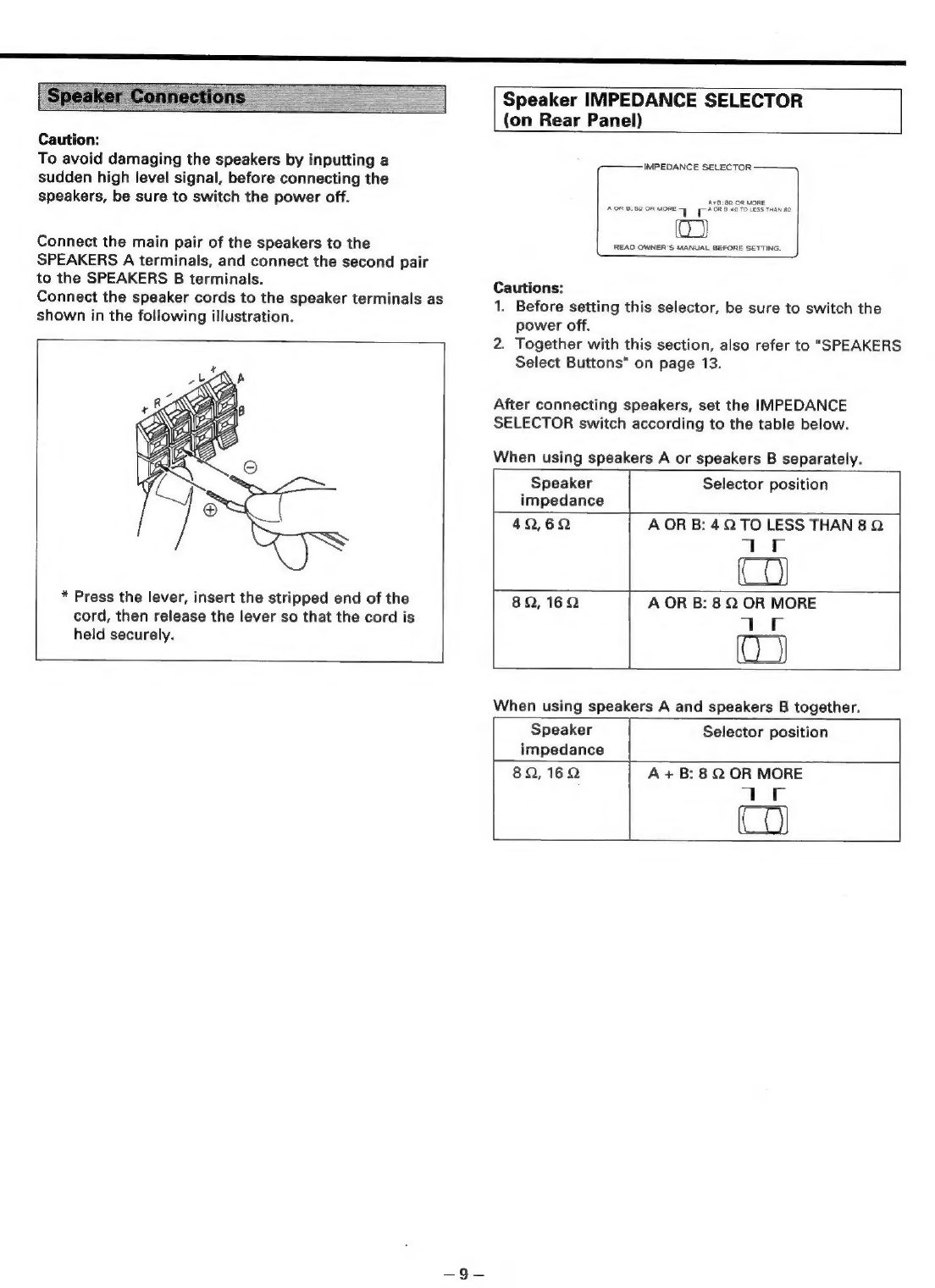

Caution:
To avoid damaging the speakers by inputting a
sudden high level signal, before connecting the
speakers, be sure to switch the power off.
Connect the main pair of the speakers to the
SPEAKERS A terminals, and connect the second pair
to the SPEAKERS B terminals.
Connect the speaker cords to the speaker terminals as
shown in the following illustration.
* Press the lever, insert the stripped end of the
cord, then release the lever so that the cord is
held securely.
Speaker IMPEDANCE SELECTOR
(on Rear Panel)
IMPEDANCE SELECTOR
At: 80 OR MORE
AOR B.eDOR MORE p-AORS aBTOLESS THAN En
(em)
READ OWNER’S MANUAL BEFORE SETTING,
Cautions:
1. Before setting this selector, be sure to switch the
power off.
2. Together with this section, also refer to “SPEAKERS
Select Buttons" on page 13.
After connecting speakers, set the IMPEDANCE
SELECTOR switch according to the table below.
When using speakers A or speakers B separately.
Speaker Selector position
impedance
42,69 A OR B: 42 TO LESS THAN 8 Q
2 ae
82,162 A OR B: 8 Q OR MORE
Te
(on)
When using speakers A and speakers B together.
Speaker Selector position
impedance
8Q, 162 A + B: 8 Q OR MORE
Te
CO)

CONTROLS AND INDICATORS
Front Panel
—8
Litt
[APE MONITOR] [AUTO] [TUNED! [STEREO
STATION:
@ POWER Button
i
@
REMOTE
SENSOR
Infrared
Signal
Reception
Window
© Numeric Keys
© Multi-Function Display Window
@ TAPE MONITOR
@ AUTO
@ TUNED
@ STEREO
@® MEMORY
© Band Indicators
@ Function Mode/Frequency Display
® Frequency Unit Indicators
@ Preset Channel Display
@ AUTO/MANUAL TUNING Button
© TUNING DOWN/UP Button
@ DIRECT TUNING Button
@ MEMORY Button
© VOLUME Control (VOLUME DOWN/UP
Buttons)
@ SPEAKERS Select Buttons
@ PHONES Jack
@ BASS and TREBLE Controls
@® BALANCE Control
@® Function Selector Buttons
® VIDEO 2 INPUT Jacks
@® AM/FM Selector Buttons
Pe
sas
i
@
LOUDNESS
Button
@®
MEMORY
SCAN
Button
(Remote
Control
Only)
*
For
remote
control
unit
buttons
which
are
not
@®
MEMORY
SKIP
Button
(Remote
Control
Only)
numbered,
refer
to
page
21.
@
MUTING
Button
(Remote
Control
Only)
24 =
