teca AHP-1200XP User manual

ProductInformationPacket
ModelAHP-1200XP
NEMA4-X,Class1Div1,SolidStateAirConditioner
forRemoteTemperatureControl
Part#0-3070-2-018
Thankyouforyourpurchase.Informationhasbeenenclosedregardingthe
installation,specifications,andwiringofyoursolid-stateassembly.
Pleasereadandfollowallinstructionscarefullybeforeinstallation.Onlyqualified
techniciansshouldinstallthisequipment.
Ifyouhaveanyquestionsregardingyourequipment,pleasedonothesitateto
callusat773-342-4900,andwewillbehappytoassistyou.Weareopenfrom
8:30am-5:00pmCentralTime.
Includedinthispacketyouwillfind:
InstallationNotesforAirConditioners
VortexAirAmplifierNotes
AssemblyDrawing#1200-B-A232
WiringDrawing#1200-B-E78
MountingCutOutDimension
WarrantyInformation

ImportantInstallationNotesforAir
MountingStyles:
Vertical(Side/Front/Back)Mounting:
Compressedairsupply:
CondensateRemovalSystem:

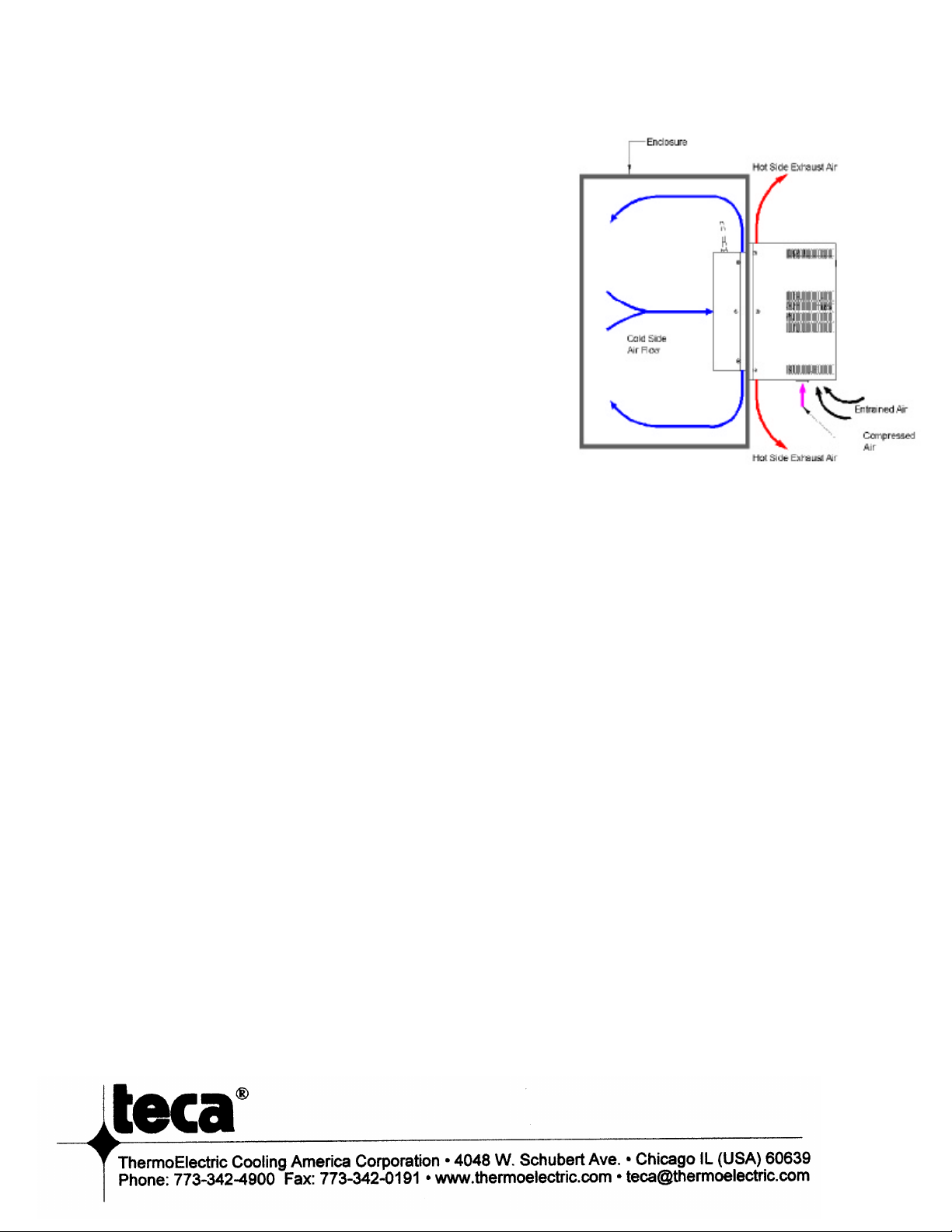

Theonlyrecommendedmountingorientation
forthisproductisverticalmountingwiththecompressedairinput
fittinglookingdownwardasshowninthesketch.Itisimportantto
considerinteriorairflowpatternswhendeterminingthemounting
location.Alsoofimportanceisanunrestrictedflowofambientair
thruthehotsideheatexchanger.Easeofaccessandinspection
mustbeconsideredforthoseapplicationsinparticularlysevere
environmentswhichmayrequireoccasionalmaintenance.
Verticalmountingreferstotheverticaldirectionofthecoldsideor
interiorfinsandisrecommendedforapplicationswithhighhumidity,
poorandincompletecabinetsealsoranyconditionwhichmay
causethecoldsidefinstobemaintainedattemperaturesbelowthe
dewpointforlongperiodsoftimeallowingfortheformationof
condensation.Theverticalfindirectionprovidesadrippath
whereuponcondensationcanbecollectedviaamoistureremoval
system(standardonFHP-units)oradrippanpositionedbelowthe
coldsidefins.Drippansareoptionalforthrumountunits.
Inorderforthisproducttofunction,sufficientamountof
compressedairmustbesuppliedthroughthe 3/8NPTfittingtoVortexAir
Amplifier.ToobtainmaximumperformancefromtheVortexAirAmplifier,accuratemeasurementsofairpressure(psi)
andairvolume(cfm)mustbeobtained.Linepressureof70-90psicanbepresentwithoutsufficientvolume(scfm)ofair.
ToensurethatbothpressureandvolumearepresenttoefficientlyoperatetheVortexAirAmplifier,alinesizeof1/4”
pipeor½”hoseshouldbeusedforapplicationsupto10feetfromthemainheader.Use3/8”pipeor3/4”hoseupto20
feet.and3/4”pipeor1”hoseupto50feet.Donotusecoiledhoseastheverysmallinsidediameter ofthehoselimits
airflow.
Airsuppliesareplaguedwithcondensedwatervaporintheairlines.Thiscondensationleadstorustanddirtinthe
airlines.Alsosomecompressorswillallowoiloroilvaportoenterthelines.SmallorificesintheVortexAirAmplifier
maybecomecloggedwiththerustdirt,andwaterdroplets.A5-micronfilterwillseparate99%oftheforeignmaterial
fromtheairsupplyallowingvirtuallymaintenancefreeoperation.Theuseofanoilfilterwillremovetheoildropletswith
aneffectivefiltrationof0.01ppmforanevencleanerairsupply.
AllFHP-SeriesandAHP-1400airconditionerscontainabuilt-incondensateremovalsystem.Thecondensatekit
consistsofaantifungalspongewithacondensatewick.PVCtubingisalsoprovidedfordrainage.Drippansare
optionalforthrumountunitswhichmustbeevaluatedonanindividualbasis.Equationsdefiningarelationshipbetween
thecoldsidefinandenclosuretemperaturesareprovidedtoassistintheevaluation.
A)
B)

Maintenance:
Cautions:
Notesoncondensation:
Sincethetechnologyissolid-state,themaintenanceisminimal.Theonlymovingpartsarethefans.Itisrecommendedfor
harshordirtyenvironmentsthattheheatsinksbecleanedfromtimetotime.Thiscanbeaccomplishedbydirecting
compressedairovertheexternalfinsoronNEMA4versionsbyhosingtheunitdown.Thiswillincreasetheoveralllife and
performanceofthesystem.
Takecarewhenmountingnottodamagethesealbetweenthehotandcoldsidesinks.Donotattempttomountaunittoa
warpedsurfaceortrytomaketheunitsmountingsurfaceconformtoanunflatsurface.Donotpinchordamageanyleads
whenmounting.Donotovertightenanyinstallationscrew,usereasonableforce.Alwaysmountwithanycondensatedrain
down.Donotcompressthecoldsidebetweenthehotsideandanyothersurface.Donotobstructtheairflowoneitherside.
Whenmountingconsiderthenaturalairflowsoftheenclosure.Connectpoweronlyaftertheinstallationiscomplete.
Condensationoccursatthecoldsidefinswhenthesurfacetemperaturegoesbelowthedewpoint.Toreduceorremove
condensate,considerthefollowing:
•RegulatetheFinTemperatureabovethedewpoint.
•KeepEnclosureClosedandSealedfromOutsideHumidity.
•UseDesiccant(MoistureabsorbingGranules.)
•EmployCondensateRemovalSystem/DripPans.
Ifyouhaveanyquestionsregardingyourinstallation,Pleasefeelfreetocontactourtechnicaldepartmentforassistanceat
773-342-4900.

28 TECA 1-888-TECA-USA (832-2872) www.teca-usa.com
AHP-1200CXP Thermoelectric Air Conditioner
European Air Cooled
Thru Mount
Group II, Catagory 2 [1] G
EExd p d [ia] ia IIB+H2 T4
FEATURES
•Compact, (only 15”L X 7.35”W X 18.4”D)
•Weighs only 39 lbs. (17.7kg)
•Excels in high ambient temperatures
•Environmentally safe
•Vortex Air Amplifier included
•Virtually maintenance-free operation
•Stainless steel exterior housing
•Mounts and operates in any orientation
INCLUDES
•Mounting gasket and hardware
•Power input line cord
•Temperature control
REQUIREMENTS
•Clean and dry compressed air supply
•Purged enclosure
•120 VAC Input voltage
PERFORMANCE CURVE
25°C Ambient 60°C Ambient

29www.teca-eu.com 1-888-TECA-USA (832-2872) TECA
Thru Mount
Group II, Catagory 2 [1] G
EEx p d [ia] ia IIB+H2 T4
307-680 BTU/hr
DIMENSIONS
Air Cooled Air Conditioners
AHP-1200CXP
SPECIFICATIONS VOLTAGE
PERFORMANCE (VAC CURRENT WEIGHT TEMP. OPERATING
MODEL PART NUMBER NOTES RATING 50/60 AMPS. LBS.(KG) CONTROL AMBIENT (°C)
(BTU/HR) HZ)
AHP-1200CXP 0-3070-2-018 Cool Only 307-680 120 4.0 39(17.7) OPT* -20/+40
* Requires 3-32 VDC drive signal
The AHP-1200CXP is TECA’s first solid state air conditioner designed for use in hazardous environments in the
United Kingdom and European Union. The AHP-1200CXP features a unique air moving device that eliminates static
discharge that traditional fans can generate. A compressed air line is required for the air moving device. The
AHP-1200CXP has been successfully implemented with a purged enclosure and other approved equipment in
pharmaceutical, petrochemical and other similar applications.
Directive 94/9/EC with reference to EN50014:1997/A2:1999, EN50016:2002.
Procedure XF011, XF013
Group II, Category 2 [1] G EEx p d [ia] ia IIB+H2 T4 Ta=-20 °C to +40 °C
LISTING & CLASSIFICATION:

2.88
2.88
5.76
3.125
3.125
12XØ0.218
MOUNTINGCUTOUTDIMENSIONS

LIMITEDWARRANTY
IntheeventadefectinmaterialorworkmanshipisdiscoveredinanyofTECA’s
productswithinoneyearafterthedatetheyaredeliveredtoBuyer,:(a)
TECAisnotifiedofthedefectinwritingbycertifiedmailwithin14daysofthe
dateofdiscovery;(b)TECAmaytheneither,atitssolediscretion,inspectthe
productatBuyer’slocation,orrequirethattheproductbemadeavailableat
Buyer’sexpenseatTECA’spremisesforTECA’sinspectionwithin14daysof
thedateofnotification;and(c)theproductsaredefectiveandthedefects
resultfromfaultymaterialsand/orworkmanshipandnotinanywayfrom
accident,misuse,misapplication,mishandling,modification,oralterationbythe
Buyerortheshipper,TECAshall,atitssoleoption,repairorexchange
defectiveproductsfreeofchargetoBuyer,orcredittobuyerthepriceofthe
defectiveproducts.ALLOTHERWARRANTIES,EXPRESSORIMPLIED,ARE
EXCLUDED,INCLUDINGBUTNOTLIMITEDTOTHEIMPLIED
WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULAR
PURPOSE.INNOEVENTSHALLTECABELIABLEFORANYCLAIMBASED
UPONBREACHOFEXPRESSORIMPLIEDWARRANTYORANYOTHER
DAMAGESWHETHERSPECIAL,INDIRECT,INCIDENTAL,
CONSEQUENTIAL,LOSTPROFITS,BUSINESSINTERRUPTION,ORLOSS
OFBUSINESSORCUSTOMERRELATIONSHIPS.
Inordertoreturnmerchandiseforanyreason(repair,replacement,orcredit)a
returnauthorizationnumbermustbeissuedbyTECA.Newmerchandisemay
notbereturnedforcreditbeyond60daysfromshipment.Chargesfor
incidentalorotherdamagesmayalsobemade.Allreturnedgoodsmustbe
sentfreightprepaid.Arestockingchargeof15%willapply.Onspecial
equipmentandcustommodifiedequipmentorders,additionalincremental
cancellationchargesmaybemade.
