teca AHP-1801XM User manual

Product Information Packet
Model AHP-1801XM
Solid State, NEMA 4X, Air Conditioner
with TC-6F Temperature Control
Part # 0-0181-2-008
Thank you for your purchase. Information has been enclosed regarding the
installation, specifications, and wiring of your solid-state assembly.
Please read and follow all instructions carefully before installation. Only qualified
technicians should install this equipment.
If you have any questions regarding your equipment, please do not hesitate to
call us at 773-342-4900, and we will be happy to assist you. We are open from
8:00 am-4:30 pm Central Time.
Included in this packet you will find:
Installation Notes for Air Conditioners
Product Literature and Specifications

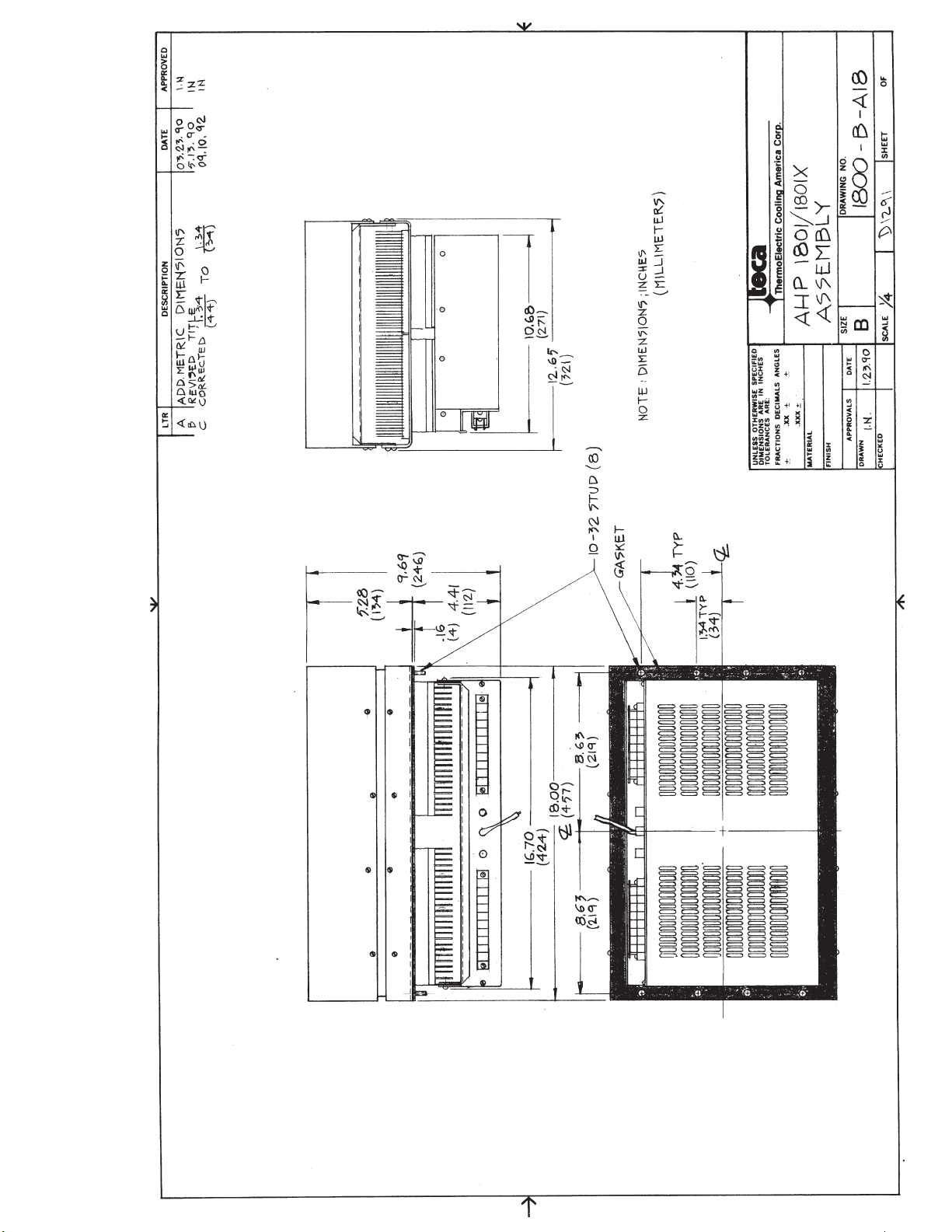

Assembly Drawing # 1800-B-A18

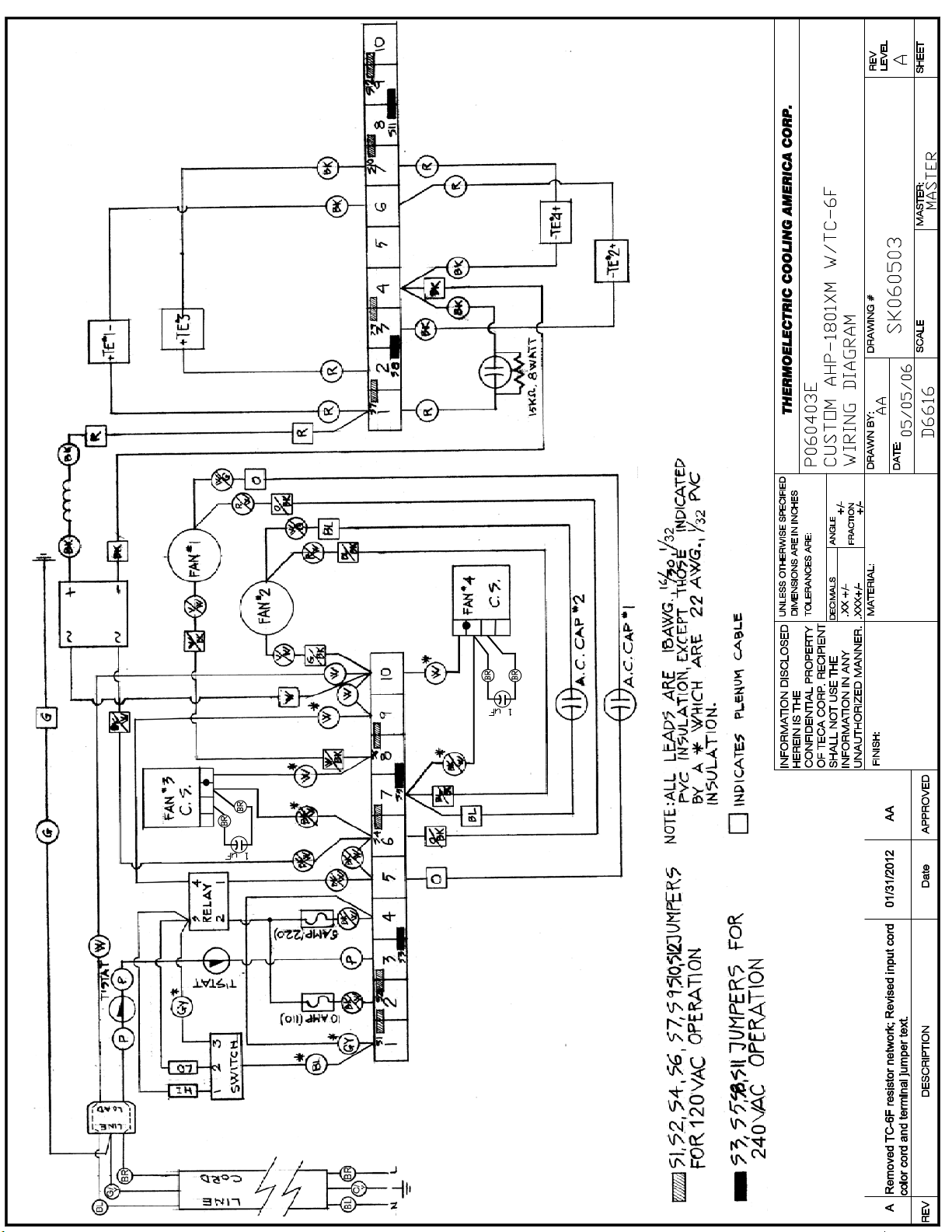

Wiring Drawing # SK060503
Installation Drawing # 1800-A-F49
Temperature Control Information
Warranty Information

Important Installation Notes for Air Conditioners
Seal
Ambient
Air
Pa t h
Enclosure
Internal Air
Path
Mounting Styles:
Vertical (Side/Front/Back) Mounting:
Condensate Removal System:
Top Mounting:
Maintenance:
Cautions:
Notes on condensation:
Both ‘thru mount’ and ‘flush mount’ units can be positioned in
any orientation and on any enclosure surface. It is important to consider interior
air flow patterns when determining the mounting location. Also of importance
is an unrestricted flow of ambient air thru the hot side heat exchanger. Ease
of access and inspection must be considered for those applications in
particularly severe environments which may require occasional
maintenance.
Vertical mounting refers to the vertical direction of the cold side
or interior fins and is recommended for applications with high
humidity, poor and incomplete cabinet seals or any condition which
may cause the cold side fins to be maintained at temperatures
below the dew point for long periods of time allowing for the
formation of condensation. The vertical fin direction provides a drip
path whereupon condensation can be collected via a moisture
removal system (standard on FHP-units) or a drip pan positioned
below the cold side fins. Drip pans are optional for thru mount units.
All FHP-Series and AHP-1400 air conditioners contain a built-in condensate removal system. The condensate kit consists of a
antifungal sponge with a condensate wick. PVC tubing is also provided for drainage. Drip pans are optional for thru mount units
which must be evaluated on an individual basis. Equations defining a relationship between the cold side fin and enclosure
temperatures are provided to assist in the evaluation.
Though often the easiest location to mount it is often the most difficult to protect from condensation in this orientation due to the
fin orientation, gravity and any susceptible components below. If a drip pan is employed by the end user use caution to place
the pan far enough away from the internal fan to minimize the restriction of air flow. The pan should cover the fin ends as well as
the fan area. When there is a choice, the vertical orientation is preferred by most users.
Since the technology is solid-state, there are no filters, compressors, or fluorocarbons to maintain. The only moving parts are
the fans. It is recommended for harsh or dirty environments that the heat sinks be cleaned from time to time. This can be
accomplished by directing compressed air over the external fins or on NEMA 4 versions by hosing the unit down. This will
increase the overall life and performance of the system.
Take care when mounting not to damage the seal between the hot and cold side sinks. Do not attempt to mount a unit to a
warped surface or try to make the units mounting surface conform to an unflat surface. Do not pinch or damage any leads when
mounting. Do not over tighten any installation screw, use reasonable force. Always mount with any condensate drain down.
Do not compress the cold side between the hot side and any other surface. Do not obstruct the airflow on either side. When
mounting consider the natural air flows of the enclosure. Connect power only after the installation is complete.
Condensation occurs at the cold side fins when the surface temperature goes below the dew point. To reduce or remove
condensate, consider the following:
• Regulate the Fin Temperature above the Dewpoint.
• Keep Enclosure Closed and Sealed from Outside Humidity.
• Use Desiccant (Moisture absorbing Granules.)
• Employ Condensate Removal System/Drip Pans.
If you have any questions regarding your installation, Please feel free to contact our technical department for assistance at 773-
342-4900.

AHP-1800 Air Conditioner
Air Cooled 120 VAC, 240 VAC Input
Thru Mount
NEMA-12, 4, 4X
FEATURES
• Compact, (18” L X 12.35” W X 9.69”D)
• Excels in high ambient temperatures
• Environmentally Safe
• Dual voltage versions available, consult factory.
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Versions to withstand corrosive environments,
shock and vibration
• Mounts and operates in any orientation
INCLUDES
• Adjustable temperature control
• Mounting gasket and hardware
• Power input line cord
SPECIFICATIONS
OPERATING OPERATING
PERFORMANCE VOLTAGE CURRENT WEIGHT TEMP. AMBIENT ENCLOSURE AGENCY
MODEL PART NUMBER RATING VAC AMPS. LBS.(KG) CONTROL TEMPERATURE TEMPERATURE APPROVALS
BTU/HR 50/60 HZ RANGE °C RANGE °C
AHP-1800 0-0180-0-000 1035-1180 120 8.0 46(21) TC-6F -40/+65 -10/+60 UL1995/CSA22.2
AHP-1800 0-0150-0-000 1035-1180 120 8.0 46(21) EXT* -40/+65 -10/+60 UL1995/CSA22.2
AHP-1800 0-01F0-0-000 1035-1180 120 8.0 46(21) 85°F (30°C) -40/+65 -10/+60 UL1995/CSA22.2
AHP-1800HC 0-0130-1-000 1035-1180 120 8.0 46(21) TC-3F -40/+65 -10/+60 UL1995/CSA22.2
AHP-1800HC 0-0150-1-000 1035-1180 120 8.0 46(21) EXT* -40/+65 -10/+60 UL1995/CSA22.2
AHP-1802 0-0182-0-000 1035-1180 240 5.0 46(21) TC-6F† -40/+65 -10/+60 UL1995/CSA22.2
AHP-1802 0-0152-0-000 1035-1180 240 5.0 46(21) EXT* -40/+65 -10/+60 UL1995/CSA22.2
AHP-1802 0-01F2-0-000 1035-1180 240 5.0 46(21) 85°F (30°C) -40/+65 -10/+60 UL1995/CSA22.2
AHP-1802HC 0-0132-1-000 1035-1180 240 5.0 46(21) TC-3F -40/+65 -10/+60 UL1995/CSA22.2
AHP-1802HC 0-0152-1-000 1035-1180 240 5.0 46(21) EXT* -40/+65 -10/+60 UL1995/CSA22.2
AHP-1801 0-0181-0-000 1035-1180 120/240 8.0/5.0 46(21) TC-6F† -40/+65 -10/+60 UL1995/CSA22.2
AHP-1801 0-01F1-0-000 1035-1180 120/240 8.0/5.0 46(21) 85°F (30°C) -40/+65 -10/+60 UL1995/CSA22.2
AHP-1801HC 0-0131-1-000 1035-1180 120/240 8.0/5.0 46(21) TC-3F -40/+65 -10/+60 UL1995/CSA22.2
AHP-1800XE 0-0180-4-000 1035-1180 120 8.0 47(21.4) TC-6F -40/+65 -10/+60 UL1995/CSA22.2
AHP-1800XE 0-0150-4-000 1035-1180 120 8.0 47(21.4) EXT* -40/+65 -10/+60 UL1995/CSA22.2
AHP-1800XE 0-01F0-4-000 1035-1180 120 8.0 47(21.4) 85°F (30°C) -40/+65 -10/+60 UL1995/CSA22.2
AHP-1800XEHC 0-0130-5-000 1035-1180 120 8.0 47(21.4) TC-3F -40/+65 -10/+60 UL1995/CSA22.2
AHP-1800XEHC 0-0150-5-000 1035-1180 120 8.0 47(21.4) EXT* -40/+65 -10/+60 UL1995/CSA22.2
AHP-1802XE 0-0182-4-000 1035-1180 240 5.0 52(23.6) TC-6F† -40/+65 -10/+60 UL1995/CSA22.2
AHP-1802XE 0-0152-4-000 1035-1180 240 5.0 52(23.6) EXT* -40/+65 -10/+60 UL1995/CSA22.2
AHP-1802XE 0-01F2-4-000 1035-1180 240 5.0 52(23.6) 85°F (30°C) -40/+65 -10/+60 UL1995/CSA22.2
AHP-1802XEHC 0-0132-5-000 1035-1180 240 5.0 52(23.6) TC-3F -40/+65 -10/+60 UL1995/CSA22.2
AHP-1802XEHC 0-0152-5-000 1035-1180 240 5.0 52(23.6) EXT* -40/+65 -10/+60 UL1995/CSA22.2
AHP-1800X 0-0180-2-000 1035-1180 120 8.0 47(21.4) TC-6F -40/+65 -10/+60 UL1995/CSA22.2
AHP-1800X 0-0150-2-000 1035-1180 120 8.0 47(21.4) EXT* -40/+65 -10/+60 UL1995/CSA22.2
AHP-1800X 0-01F0-2-000 1035-1180 120 8.0 47(21.4) 85°F (30°C) -40/+65 -10/+60 UL1995/CSA22.2
AHP-1800XHC 0-0130-3-000 1035-1180 120 8.0 47(21.4) TC-3F -40/+65 -10/+60 UL1995/CSA22.2
AHP-1800XHC 0-0150-3-000 1035-1180 120 8.0 47(21.4) EXT* -40/+65 -10/+60 UL1995/CSA22.2
AHP-1801X 0-0181-2-000 1035-1180 120/240 8.0/6.0 47(21.4) TC-6F† -40/+65 -10/+60 UL1995/CSA22.2
AHP-1801X 0-01F1-2-000 1035-1180 120/240 8.0/6.0 47(21.4) 85°F (30°C) -40/+65 -10/+60 UL1995/CSA22.2
AHP-1801XHC 0-0131-3-000 1035-1180 120/240 8.0/6.0 47(21.4) TC-3F -40/+65 -10/+60 UL1995/CSA22.2
* Unit is set for 5-32 VDC external signal, relay(s) included Consult factory for shock and vibration models
† Unit evaluated by ETL
18 TECA 1-888-TECA-USA (832-2872) www.teca-usa.com
N
E
M
A
12
N
E
M
A
4
N
E
M
A
4X
OPTIONS
• Other temperature settings for single set point controls
• Custom finishes
catalog 2011 working on.qxp 6/29/2011 11:39 AM Page 18

Equation of line: y=⌬⌬⌻⌻(°C) x=Capacity (Watts)
Ambient Temp 20°C 40°C 60°C
Enclosure Air y=.122x-37.0 y=.122x-39.7 y=.122x-42.3
Cold Sink y=.09x-37.0 y=.09x-39.7 y=.09x-42.3
MOUNTING STYLE
Thru Mount
ENVIRONMENTS SERVED
NEMA-12 IP 52
NEMA-4,4X IP 56
RATING (TRADITIONAL)
1100 BTU/hr @ 0 °F ⌬T
1420 BTU/hr @ +20 °F ⌬T
RATING (DIN 3168)
322 Watts L35 L35
210 Watts L35 L50
See page 10
AHP-1800

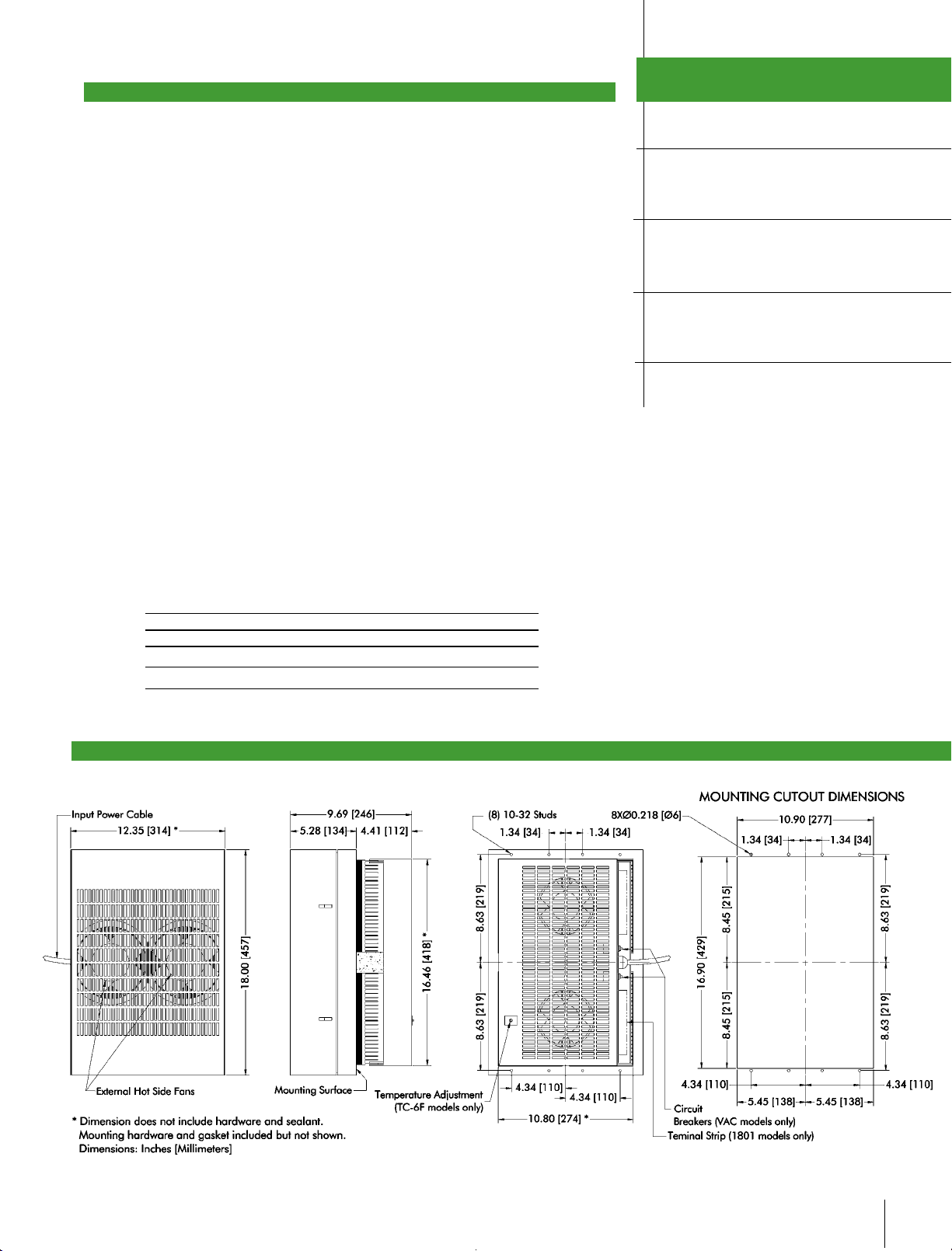

DIMENSIONS
Air Conditioner - Air Cooled
19www.teca-eu.com 1-888-TECA-USA (832-2872) TECA
PERFORMANCE CURVE
PERFORMANCE CURVE
*
*
Air Flow Pattern
catalog 2011 working on.qxp 6/28/2011 1:58 PM Page 19

Einlaßluft, Aria di presa
Intake Air, Air d'entrée,
Isolierstoff, Isolamento
Insulation, Isolation,
Cord, Cable, Kabel, Cablo
Enclosure, Armoire, Gehäuse, Armadi
1.34 [34.0]
4.34 [110.2] 5.45 [138.4]
8.45 [214.6]
8.63 [219.2]
Ø0.22 [Ø5.5]
Mounting, Monture, Montage, Montaggio
Alternate, Alternative,
Alternative, Alternativa
English, Français, Deutsch, Italiano
Dimensions: Inches [Millimeters]
AHP-1800 SERIES
TYPICAL FIELD MOUNTING
1800-A-F49
D6037
MASTER
AA
06/05/03
A
Gasket, Joint,
Dichtung, Guarnizione
Exhaust, Echappement,
Abluft, Scarico
A Added UL489 branch circuit protection note and added 01/24/2012 AA
unqualified operator and supervision note.
Warning - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- UL 489 defines branch circuit protection of no more than 4X the rating of the supplemental protector to be used upstream. We suggest a slow reacting, 10-15 Amps circuit breaker.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Avertissement - Si le cordon d'alimentation est endommagé, il doit être remplacé par le fabricant, son agent de service ou de personne de qualification similaire afin d'éviter un danger.
- UL 489 définit la protection du circuit de pas plus de 4X la cote du protecteur supplémentaire pour être utilisé en amont. Nous suggérons une lente réaction, 10-15 disjoncteurs Amps.
- Cet appareil n'est pas destiné à être utilisé par des personnes (enfants compris) dont les capacités physiques, sensorielles ou mentales, ou le manque d'expérience et de
connaissances, à moins qu'ils aient été donnés de surveillance ou d'instructions concernant l'utilisation de l'appareil par une personne responsable de leur sécurité.
Les enfants doivent être surveillés afin de s'assurer qu'ils ne jouent pas avec l'appareil.
Achtung - Wenn das Netzkabel beschädigt ist, muss es durch den Hersteller, seinen Kundendienst oder eine ähnlich qualifizierte Person, um eine Gefahr zu vermeiden ersetzt werden.
- UL 489 definiert den Schutz der Stromzweige nicht mehr als 4X das Rating der Beschützer weiter flussaufwärts genutzt werden. Wir empfehlen eine langsame Reaktion, 10-15
Ampere-Sicherung.
- Dieses Gerät ist nicht für die Verwendung durch Personen (einschließlich Kinder) mit eingeschränkten physischen, sensorischen oder geistigen Fähigkeiten oder Mangel an Erfahrung
und Wissen, bestimmt, sofern sie eine angemessene Aufsicht oder ausführliche Anleitung zur Benutzung des Geräts durch eine verantwortliche Person für ihre Sicherheit.
Kinder sollten beaufsichtigt werden, um sicherzustellen, dass sie nicht mit dem Gerät spielen.
Attenzione - Se il cavo di alimentazione è danneggiato, esso deve essere sostituito dal produttore, dal suo agente di servizio o da un professionistaalfinedievitare rischi.
- UL 489 definisce il circuito di protezione filiale di non più di 4X il rating del protettore supplementare da utilizzare a monte. Vi suggeriamo una lenta reazione, 10-15 interruttore Amp.
- Questo apparecchio non è destinato all'uso da parte di persone (bambini compresi) con ridotte capacità fisiche, sensoriali o mentali, o mancanza di esperienza e conoscenza, a meno
che non siano sorvegliati o istruzioni per l'uso dell'apparecchio da una persona responsabile della loro sicurezza.
I bambini devono essere supervisionati per assicurarsi che non giochino con l'apparecchio.

LIMITED WARRANTY
In the event a defect in material or workmanship is discovered in any of
TECA’s products within one year after the date they are delivered to Buyer,
: (a) TECA is notified of the defect in writing by certified mail within 14
days of the date of discovery; (b) TECA may then either, at its sole discretion,
inspect the product at Buyer’s location, or require that the product be made
available at Buyer’s expense at TECA’s premises for TECA’s inspection within
14 days of the date of notification; and (c ) the products are defective and the
defects result from faulty materials and/or workmanship and not in any way
from accident, misuse, misapplication, mishandling, modification, or alteration
by the Buyer or the shipper, TECA shall, at its sole option, repair or
exchange defective products free of charge to Buyer, or credit to buyer the
price of the defective products. ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, ARE EXCLUDED, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL TECA BE LIABLE FOR
ANY CLAIM BASED UPON BREACH OF EXPRESS OR IMPLIED
WARRANTY OR ANY OTHER DAMAGES WHETHER SPECIAL, INDIRECT,
INCIDENTAL, CONSEQUENTIAL, LOST PROFITS, BUSINESS
INTERRUPTION, OR LOSS OF BUSINESS OR CUSTOMER
RELATIONSHIPS.
In order to return merchandise for any reason ( repair, replacement, or credit)
a return authorization number must be issued by TECA. New merchandise
may not be returned for credit beyond 60 days from shipment. Charges for
incidental or other damages may also be made. All returned goods must be
sent freight prepaid. A restocking charge of 15% will apply. On special
equipment and custom modified equipment orders, additional incremental
cancellation charges may be made.
and if
then
RETURNED GOODS, RESTOCKING CHARGES
