Techno GR F3S-TGR-SB4-K C Series User manual

F3S-TGR-SBx-KxC series User’s manual
1
F3S-TGR-SB4 – KxC
Type 4 Safety Light Curtain
F3S-TGR-SB2 – KxC
Type 2 Safety Light Curtain
USER'S MANUAL
F3S-TGR-SBx-KxC series User’s manual
2
INTRODUCTION
This instruction Manual describes the F3S-TGR-SBx-KxC Safety Light Curtain
(SLC).
General Safety Requirements
Always heed the following points when using the F3S-TGR-SBx-KxC:
• Read this manual thoroughly to understand and make good use of the
descriptions before installing and operating the product.
• A qualified person should conduct a risk assessment on the machine, and
determine the suitability of this product before installation.
• Keep this Manual at the place where the operator can refer to it whenever
necessary.
• Do not open the housing or make any unauthorised modifications.
• The power supply must be disconnected before proceeding with any
external intervention.
Regulations and Standards
Regulations and Standards
1. The F3S-TGR-SBx-KxC safety light curtains are electro-sensitive
protective equipment (ESPE) in accordance with European Union (EU)
Machinery Directive Annex IV, B, Safety Components and Item 1.
2. The F3S-TGR-SBx-KxC complies with the following regulations and
standards:
(1) EU regulations
Machinery Directive: Directive 98/37/EC
EMC Directive: Directive 89/336/EEC
(2) European standards: EN61496-1, prEN61496-2
3. The F3S-TGR-SBx-KxC received the following approvals from notified
body TÜV Product Service:
EC Type-Examination in accordance with the EU Machinery Directive
TYPE 2 and 4 ESPE (EN61496-1),
TYPE 2 and 4 AOPD (prEN61496-2)
Certificate of a Notified Body for EMC

F3S-TGR-SBx-KxC series User’s manual
3
READ AND UNDERSTAND THIS MANUAL
Please read and understand this manual before storing, installing, operating,
maintaining, or disposing of the product.
Please consult your TECHNO GR representative if you have any questions or
comments.
WARRANTY
TECHNO GR's exclusive warranty is that the products are free from defects in
materials and workmanship for a period of one year (or other period if specified) from
date of sale by TECHNO GR.
TECHNO GR MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR
IMPLIED, REGARDING NONINFRINGEMENT, MERCHANTABILITY, OR FITNESS
FOR PARTICULAR PURPOSE OF THE PRODUCTS.
ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE
HAS DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE
REQUIREMENTS OF THEIR INTENDED USE.
TECHNO GR DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED.
LIMITATION OF LIABILITY
TECHNO GR SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN
ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS
BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY.
In no event shall responsibility of TECHNO GR for any act exceed the individual price
of the product on which liability is asserted.
IN NO EVENT SHALL TECHNO GR BE RESPONSIBLE FOR WARRANTY, REPAIR,
OR OTHER CLAIMS REGARDING THE PRODUCTS UNLESS TECHNO GR'S
ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED,
STORED, INSTALLED, AND MAINTAINED AND NOT SUBJECT TO
CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR
REPAIR.
F3S-TGR-SBx-KxC series User’s manual
4
SUITABILITY FOR USE
TECHNO GR shall not be responsible for conformity with any standards, codes, or
regulations that apply to the combination of products in the customer's application or
use of the product.
At the customer's request, TECHNO GR will provide applicable third party certification
documents identifying ratings and limitations of use that apply to the products.
This information by itself is not sufficient for a complete determination of the suitability
of the products in combination with the end product, machine, system, or other
application or use.
The following are some examples of applications for which particular attention must be
given. This is not intended to be an exhaustive list of all possible uses of the products,
nor is it intended to imply that the uses listed may be suitable for the products:
• Outdoor use, involving potential chemical contamination or electrical
interference or conditions or use not described in this document.
• Nuclear energy control systems, combustion systems, railroad systems,
aviation systems, medical equipment, amusement machines, vehicles, and
installations subject to separate industry or government regulations.
• Systems, machines, and equipment that could present a risk to life or
property.
Please know and observe all prohibitions of use applicable to the products.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK
TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE
HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE TECHNO GR
PRODUCT IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE
WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
NOTE: Some specifications of the products may be changed without any notice.
Special model numbers may be assigned to fix or establish key specifications for your
application on your request.
Please consult with your TECHNO GR representative at any time to confirm actual
specifications of purchased products.

F3S-TGR-SBx-KxC series User’s manual
5
DEFINITION OF SYMBOLS
Information in this manual that is of particular importance can be identified as
follows;
WARNING indicates a potentially hazardous situation, which, if not
avoided, will result in minor or moderate injury, or may result in serious
injury or death. Additionally there may be significant property damage.
CAUTION indicates a potentially hazardous situation, which, if not
avoided, will occasionally result in minor or moderate injury, or result in
physical damage to property.
NOTICE is used to emphasise essential information.
MANUFACTURER: TECHNO-GR s.r.l.
via Torino, 13/15
10046 Poirino (TO) - ITALY
Tel. [phone]
FAX [phone]
E-Mail [email protected]
WWW www.technogr.com
USER’S MANUAL: Version 5 dated 2-2-2006
F3S-TGR-SBx-KxC series User’s manual
6
INDEX
section page
1OPERATION ...................................................................................... 7
2PRECAUTIONS AND CRITERIA FOR INSTALLATION .................. 8
2.1 CALCULATION OF THE MINIMUM DISTANCE FOR INSTALLATION ................. 8
2.2 REFLECTING SURFACES................................................................................... 10
3MECHANICAL ASSEMBLY ............................................................ 13
4CONNECTIONS ............................................................................... 14
4.1 REFERENCES FOR CABLES:............................................................................. 14
4.2 NOTES ON CONNECTIONS................................................................................ 15
5ALIGNMENT PROCEDURE ............................................................ 16
6OPERATING PROCEDURES.......................................................... 17
6.1 SETTING THE INTERNAL DIP-SWITCHES ........................................................ 17
6.1.1 SELECTION OF RESET MODE.................................................................... 17
7MUTING AND OVERRIDE FUNCTIONS......................................... 18
7.1 GENERAL INFORMATION................................................................................... 18
7.2 MUTING FUNCTION ............................................................................................ 18
7.3 PARTIAL MUTING CONFIGURATION................................................................. 19
7.4 CRITERIA FOR INSTALLATION .......................................................................... 20
7.5 TIMING CONSTRAINTS (muting function)........................................................... 25
7.6 Timing constraints (for SLCs with postfix “–MTL” at the ordering code)............... 26
7.7 OVERRIDE ........................................................................................................... 27
7.7.1 ENABLING THE OVERRIDE FUNCTION ..................................................... 27
8LED DIAGNOSTICS ........................................................................ 28
8.1 WHAT THE LEDS MEAN ..................................................................................... 28
9FINAL CHECKS ............................................................................... 29
10 ROUTINE CONTROLS AND MAINTENANCE................................ 29
11 GENERAL INFORMATION AND USEFUL DATA .......................... 30
12 TECHNICAL SPECIFICATIONS...................................................... 31
13 DIMENSIONS ................................................................................... 34
14 NOTE................................................................................................ 36

F3S-TGR-SBx-KxC series User’s manual
7
1 OPERATION
The Safety Light Curtain (SLC) is made up of one active side with
transmitter and receiver optical elements called the transceiver and one
completely passive side, with a mirror system.
The operator has a multifunction pushbutton, which is used for the
following:
• TEST: If pressed during normal operation, it checks if all of the
system, comprising of the SLC and the machine is working.
Pressing the TEST button (opening the contact) basically simulates
the interruption of one or more safety beams and it is possible to
check that the machinery stops in the correct time and
configuration.
• RESTART: If pressed after an intervention by the SLC, (manual
reset condition) the system will be reset.
• ALIGNMENT: If the button is pressed when there is no power supply
to the SLC and then power is restored, whilst the button is being
pressed, it enters alignment mode, i.e. it provides an indication of the
alignment position of the unit by means of two yellow LEDs.
• OVERRIDE: (only present if the muting function is operational) if the
button is pressed within 5 seconds of switching on and it is kept
pressed for at least 5 seconds, the SLC will close the safety outputs
if the beams are interrupted. This condition stops as soon as the
button is released or automatically after 120 seconds.
1. Automatic reset: After the SLC has detected an object, it returns to
normal operation as soon as the object is removed.
2. Manual reset: Normal operating mode is only restored after the object has
been removed and the reset button has been pressed.
To enable the muting function, the LMS muting indicator must be
connected when the SLC is not connected to the power supply, as
shown in section 6, and then the SLC’s power supply must be restored. To
disable the muting function, the LMS muting indicator must be
disconnected when the SLC is not connected to the power supply, and
then the SLC’s power supply restored.
Please remember that by enabling/disabling the muting function the
override function is automatically enabled/disabled.
The outputs are PNP type.
Should the load to be controlled have alternating current or require more
than 500mA consumption, it is necessary to use an external safety relay
module.
F3S-TGR-SBx-KxC series User’s manual
8
2 PRECAUTIONS AND CRITERIA FOR INSTALLATION
The area where the SLC is to be installed must be compatible with the SLC
‘s technical specifications. The temperature of the environment, interference
caused by electromagnetic disturbance and sources of light and such like,
should be assessed a competent person. Please contact the manufacturer
for any information not contained in this manual.
2.1 CALCULATION OF THE MINIMUM DISTANCE FOR INSTALLATION
The safety distance ‘S’ must guarantee that the operator cannot reach the
danger zone before the machinery with the moving parts has stopped. The
formula to calculate the safety distance for multi-beam SLCs is as follows:
S = (K * T) + C
S = safety distance.
T = T1 + T2
where T1 = machinery’s response time in seconds.
T2 = SLC’s response time in seconds.
K = 1600 mm/s (approach speed of the body to the danger zone).
C = 850 mm
S= safety distance.
H1 = the bottom optical beam must not have a height above 400 mm.
H2 = the top optical beam must not be below 900 mm.
Number of beams Heights above the reference plane, e.g. ground in mm
4 (F3S-TGR-SBx-K4C) 300, 600, 900, 1200
3 (F3S-TGR-SBx-K3C) 300, 700, 1100
2 (F3S-TGR-SBx-K2C) 400, 900
Reference from EN999
S
H1
H2

F3S-TGR-SBx-KxC series User’s manual
9
F3S-TGR-SBx-KxC series do not use in a horizontal position
S
H
F3S-TGR-SBx-KxC series User’s manual
10
2.2 REFLECTING SURFACES
Be sure to install the SLC to minimize the effect of reflection from
nearby surfaces. Serious injuries can result if these effects are not
taken into consideration.
Should there be any reflecting surfaces, the distance must be sufficient to
safeguard against passive reflections.
The distance can be calculated following the table below:
where ‘D’ and ‘L’ are expressed in m
reflecting surface
L distance between SLCs Minimum permitted installation
distance D
0.5 to 3 m 0.13m
Over 3 m L/2 x tan5° = L/2 x 0.088 (m)

F3S-TGR-SBx-KxC series User’s manual
11
If several SLCs are used, care must be taken that each SLC does not
interfere with the ones nearby; please install as follows:
Mirror1 SLC1 SLC2 Mirror2
Install the SLC so that they emit in the opposite directions (Staggered)
SLC1 Mirror2 SLC1 Mirror1
Mirror2 SLC2
Mirror1 SLC2
All these installation will prevent mutual interference between SLC.
F3S-TGR-SBx-KxC series User’s manual
12
Insert a non-transparent wall if it is not possible to connect the SLC as
shown previously.
SLC1 Mirror1 wall SLC2 Mirror2
SLC1 wall SLC2
Mirror1 Mirror2
The two bars must be mounted symmetrically as shown in the picture:
Top view

F3S-TGR-SBx-KxC series User’s manual
13
3 MECHANICAL ASSEMBLY
Use the appropriate brackets provided to complete the mechanical
assembly.
The securing brackets nuts cslide in the container’s grooves so the
brackets dcan be placed at an equal distance from each other.
Fixing facilities list
1) Movable nuts (8pcs)
2) Fixing brackets (4pcs)
3)Washer(8pcs)
4)Grower(8pcs)
5)Nut(8pcs)
F3S-TGR-SBx-KxC series User’s manual
14
4 CONNECTIONS
4.1 REFERENCES FOR CABLES:
The test connection must always be executed with a N.C. button or
connected to an automatic device, such as a PLC.
TRANSCEIVER
TRANSCEIVER

F3S-TGR-SBx-KxC series User’s manual
15
4.2 NOTES ON CONNECTIONS
• The transformer needed to power the system must comply with
standard EN 60742 (dual isolation), or with equivalent isolation,
e.g. VDE 0551.
• The control unit must be protected with an external fuse, whose
rated breaking current must be 1A.
• The TEST/RESTART button must be located so that the
operator can see the protected area when restarting, testing or
overriding.
• The external illuminated indicator for muting override enabled
must be located so that it can be seen from all sides of
operation.
• Read the section on the muting function and its use before
locating the sensors for the activation of this function.
• Check that the load does not absorb current in excess of
500mA; in this case a protection device will intervene to limit the
maximum current. If loads with currents in excess of 500mA
and up to 6A alternating current are to be controlled, please
connect an external safety relay module.
• Muting input A and Muting input B can be provided by
mechanical switch, photoelectric sensors, proximities switch,
with closed contact in the presence of the object to be detected.
• The test connection must always be executed with a N.C.
button or connected to an automatic device, such as a PLC.
F3S-TGR-SBx-KxC series User’s manual
16
5 ALIGNMENT PROCEDURE
After completing correct mechanical assembly and connections, as
described in the previous sections, the SLC should be aligned as follows:
• Disconnect the SLC’s power supply.
• Open the test/restart contact.
• Restore the SLC’s power supply.
• Adjust the direction of the SLC by moving the transceiver or the
mirror. The 2 yellow LEDs located on the transceiver will both be
lit when the SLC is aligned correctly. In addiction also the green
guard LED will switch on and the red break LED will switch off
• After aligning the SLC, secure the bolts firmly.
• Disconnect the power supply.
• Restore the SLC’s power supply (with the test contact closed); it
will enter operating mode.
• Complete all the tests described in section 9 (final checks) and
those required for routine maintenance (section 10).

F3S-TGR-SBx-KxC series User’s manual
17
6 OPERATING PROCEDURES
6.1 SETTING THE INTERNAL DIP-SWITCHES
• Disconnect the SLC’s power supply and remove the connector side
of the transceiver, so that you can reach the two banks four-way
dip-switches located there.
• Use a suitably sized screwdriver to set the dip-switches as per the
required configuration according to the following tables.
6.1.1 SELECTION OF RESET MODE
Single switch number 4 Reset
OFF Manual
ON Automatic (Initial setting)
ATTENTION
In every transceiver unit there are two separate dip-switch banks. The
two banks must be set in the same way to get a valid configuration.
Single switch number 3 No function
OFF DEFAULT SETTING
ON NOT ALLOWED
Dip switches number 1 and 2, act on the partial muting configuration.
See “Partial muting configuration” chapter 7.3 on page after next.
F3S-TGR-SBx-KxC series User’s manual
18
7 MUTING AND OVERRIDE FUNCTIONS
7.1 GENERAL INFORMATION
The muting and override functions enable the SLC to be bypassed for
operational requirements. As required by current standards, the SLC is
provided with inputs for the activation of these functions. It should however be
remembered that these functions basically override the system and they
should therefore be used with due care.
7.2 MUTING FUNCTION
As mentioned in the introduction, the muting function can be enabled with any
SLC by simply connecting the LMS muting indicator when the SLC is switched
off.
The presence of this indicator is recognised when the SLC is switched on. If
its presence is detected, the SLC will enable the muting function and if it is not
present the SLC will ignore any request for muting. It is important to note
that if the muting indicator is connected when the SLC is already
connected to the power supply, it will not be recognised and the muting
function will not be enabled. Once enabled, if the LMS muting indicator
develops a fault or is removed without first disconnecting the SLC’s power
supply, it will signal an error with the muting light, as described in section 10.
To disable the muting function, the power supply must be turned on without
the LMS muting indicator connected.
In brief: this function, present on all SLC s, is enabled and disabled by means
of the following simple procedure:
- Disconnect the SLC’s power supply.
- Connect the appropriate LMS muting indicator and the muting
sensors (see section 6)
- Restore the SLC’s power supply.
Bypass the muting function as follows.
- Disconnect the SLC’s power supply.
- Disconnect the LMS muting indicator and the muting sensors (see
section 6)
- Restore the SLC’s power supply.

F3S-TGR-SBx-KxC series User’s manual
19
7.3 PARTIAL MUTING CONFIGURATION.
This feature is available only on the F3S-TGR-SBx-K3C and F3S-TGR-SBx-
K4C models.
It gives the users the opportunity to mute only half of the light curtain. The
other half remains active.
The configuration of this function is done by setting the internal dip switches 1
& 2.
For correct configuration and identification of dip switch and bypassed optics
refer to the following drawing and table.
TX2
RX2
TX1
RX1
CONNECTOR SIDE.
Dip-Switch
1 2 Muted Beams
OFF OFF All 4 optics (Default setting)
OFF ON Only TX1 – RX1
ON OFF Only TX2 – RX2
ON ON NOT ALLOWED
F3S-TGR-SBx-KxC series User’s manual
20
7.4 CRITERIA FOR INSTALLATION
Take adequate care when installing the muting sensors to prevent undesired
requests for muting:
1. Wiring must be done correctly.
2. The muting sensors must recognise the whole length of the material (i.e.
pallets, vehicles...).
3. The sensors must be arranged so that the material is also recognised if it
has to be lifted for processing.
4. The effect of various transportation speeds in the field of muting on the
overall duration of muting must be taken into account, if any.
5. All the safety photocells and muting sensors must be arranged so that
the previous material clears the last muting sensor before the new
material reaches the first sensors
Example of conveyor protection installation, which must allow a box to pass through
but not a person. The SLC Sis connected to the control panel, and A1, A2, B1 and
B2 are sensors used to enable muting. The contacts for these sensors are controlled
on the transceiver unit.
Sensors A1, A2, B1 and B2 can be optical, mechanical or proximity sensors etc., with
closed contact in the presence of the object to be detected.
B1
A2
A
1
B2
Transceiver

F3S-TGR-SBx-KxC series User’s manual
21
The following drawings show several examples of configurations with the
use of the muting function:
Application with four sensors – ‘Bi directional muting’
A2 B2 S B1 A1
D1 D2
D
Electrical connection of muting input
Muting input B (Yellow – 4)
Muting input A (Green – 3)
Input of A1 sensor
Input of A2 sensor
Input of B1 sensor
Input of B2 sensor
+24Vdc
D
a
n
g
e
r
o
u
s
z
o
n
e
F3S-TGR-SBx-KxC series User’s manual
22
Application with four sensors and single direction for material
exit:
B2 A2 S B1 A1
D1 D2
D
Electrical connection of muting input
Muting input B (Yellow – 4)
Muting input A (Green – 3)
Input of A1 sensor
Input of A2 sensor
Input of B1 sensor
Input of B2 sensor
+24Vdc
D
a
n
g
e
r
o
u
s
z
o
n
e

F3S-TGR-SBx-KxC series User’s manual
23

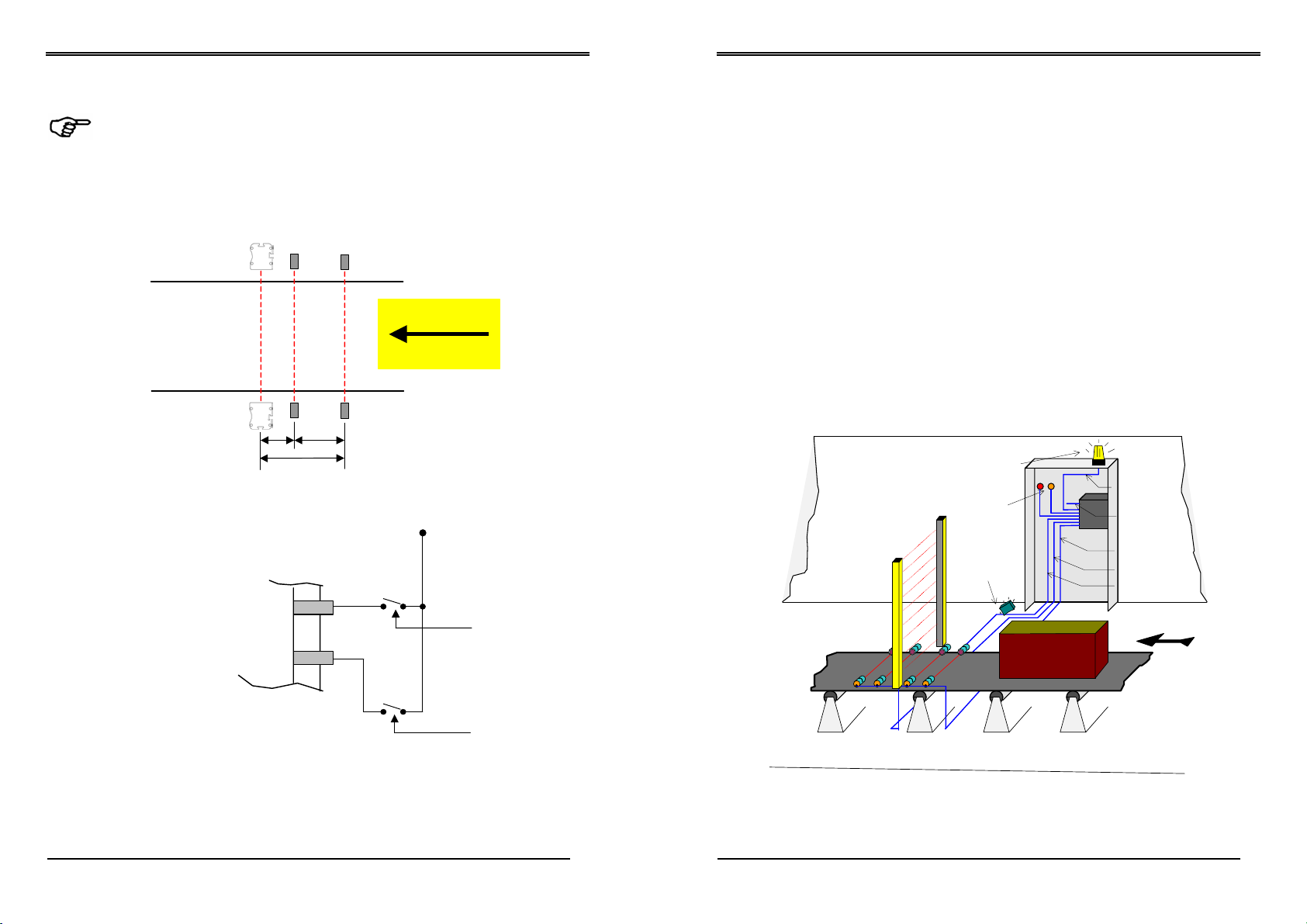

Application with two sensors and single direction for material
exit:
This muting activation sequence is only available for SLCs
with postfix “–MTL” at the ordering code.
S B1 A1
D1 D2
D
Electrical connection of muting input
Muting input B (Yellow – 4)
Muting input A (Green – 3)
Input of A1 sensor
Input of B1 sensor
+24Vdc
D
a
n
g
e
r
o
u
s
z
o
n
e
F3S-TGR-SBx-KxC series User’s manual
24
Where:
D: minimum dimension of package that can cross the SLC.
D1: distance between muting actuator B and SLC.
It MUST be as short as possible.
Minimum distance allowable depends on the speed of
conveyour, the response time of SLC and response time of
muting actuator.
D2: Distance between muting actuator A and muting actuator B.
It must be > 250mm
It also depends on the conveyour speed:
25 > dmax [cm]= v[m/s] * 3[s] * 100
It is necessary that this distance does not allow both sensors to
be activated and thus muting if a person goes through by
accident.
Supply Cable
Cable to lamp
Mutin
g
cable
RX cable
TX cable
Muting
lamp
Start & Test
buttons
Protect
cables

F3S-TGR-SBx-KxC series User’s manual
25
• The TEST/RESTART button must be located so that the operator can
see the protected area when restarting, testing or overriding.
• The external illuminated indicator for muting override enabled must
be located so that it can be seen from all sides of operation.
• If the muting sensors are installed very close to the SLC, care must
be taken that the receivers of the sensors are mounted on the
mirror side of the SLC in order to avoid interference.
• The system is protected against the possibility of faults due to
damage to the wires; however we recommend laying the cables for
all connections in order to avoid damage to the connection cables.
7.5 TIMING CONSTRAINTS (muting function)
a) The muting request must take place with the correct timing
sequence: the Muting A input must be enabled first and then the
Muting B input. The request for the latter must be made within a
maximum of 3 seconds and not before 30 ms (TM) after enabling
Muting A input. Otherwise the muting function will not be enabled.
An incorrect sequence on the muting inputs will not start the muting
process.
b) Muting status can be maintained for an unlimited period of time as
long as the muting signals are valid.
Timing chart
Free
Interrupted
ON
OFF
ON
OFF
ON
OFF
Active
OFF
SLC
OSSD
Muting
Input A
Muting
Input B
Muting
Status
0.03 sec < Tm < 3sec
A muting request cannot be made if the SLC outputs are open, that
is to say when the beams have been interrupted.
F3S-TGR-SBx-KxC series User’s manual
26
7.6 Timing constraints (for SLCs with postfix “–MTL” at the ordering
code)
a) The muting request must take place with the correct timing
sequence: the Muting A input must be enabled first and then
the Muting B input. The request for the latter must be made
within a maximum of 3 seconds and not before 30 ms after the
enabling of the Muting A input. Otherwise the muting function
will not be enabled. An incorrect sequence on the muting inputs
will not start the muting process.
b) There are 5 seconds maximum from the activation of muting to
the package entrance in the protected area by interrupting the
SLC. If this time is exceeded, muting function will stop
immediately.
c) As long as a package interrupts the protected area (at least one
beam), the muting function is maintained
d) Muting status can be maintained for an unlimited period of time
as long as the muting signals are valid.
Timing chart
Free
Interrupted
ON
OFF
ON
OFF
ON
OFF
Active
OFF
SLC
OSSD
Muting
Input A
Muting
Input B
Muting
Status
Ts< 5 sec
0.03 sec < Tm < 3sec

F3S-TGR-SBx-KxC series User’s manual
27
7.7 OVERRIDE
This function makes it possible to override or bypass the system. It
is used to start up the machine after the material has interrupted one
or more of the SLC beams and to free the protected area from any
material that is present in front of the SLC,
If a pallet has stopped in front of the protected area, it will not be
possible to restart the conveyor belt because the SLC detects one or
more beams have been interrupted and therefore will not close the
outputs; therefore the protected area cannot be cleared.
However, it can be cleared if the override function is enabled.
This function can be used for all SLCs with the LMS muting indicator
connected, as described in section 3.
7.7.1 ENABLING THE OVERRIDE FUNCTION
• Switch the appliance off.
• Switch it on again and press the test/restart button within 5
seconds, keeping it pressed for at least 5 seconds.
• The override function is now enabled. The LMS muting
indicator flashes to signal the exclusion of the SLC.
• The maximum duration of the override function is 120 seconds,
after which the SLC is reset, even if the button is kept pressed.
Naturally, if the button is released before this, the override
function will terminate immediately.
F3S-TGR-SBx-KxC series User’s manual
28
8 LED DIAGNOSTICS
8.1 LED’s Description
The operator is able to recognise the operating status of the SLC by
means of five LED located on the transceiver. The status of the LED
indicates the following: (looking at the front of the transceiver from right
to left)
Basic understanding of LED indicators
Normal Operation
LED signal Pattern Description
OSSD ON
OSSD OFF, object in the field
Interlock, waiting for test button pressure
Correctly aligned in aligning procedure
Dust indication, probable lost of signal due to dust on
the front cover
A short circuit on OSSD is present
Disposition of indicator Name of indicator Colour LED signal Pattern
Power Green
Lower Yellow
Guard Green
Break Red
Upper Yellow
ON
OFF
Blinking

F3S-TGR-SBx-KxC series User’s manual
29
Faulty conditions
LED signal Pattern Description
Power supply is too low
Micro controller fault
Fault on output system
Muting lamp connection fault or muting lamp burned
Optical defect
9 FINAL CHECKS
• Check that the area protected by the SLC is free of obstacles.
• Check that the safety outputs open correctly by interrupting the
protection beams (BREAK LED lit, machinery under control stops).
10 ROUTINE CONTROLS AND MAINTENANCE
These checks are recommended and should be carried out on a
regular basis by qualified personnel:
• Check that the SLC remains blocked by inserting an object that
intercepts the beams along the entire length of the protected area.
• Check via the opening of the TEST/RESTART contact, that the
safety relays open (red LED lit and controller machinery stopped).
• Check that it is not possible to access the danger areas of the
machinery from any area that is not protected and that the
minimum distance between the dangerous areas and the SLC is
no less than that calculated as per formulas 4.1 and 4.2.)
• Check that it is not possible for a person to get between the SLC
and the dangerous parts of the machinery.
• Check that there is no external damage to the SLC and/or to the
external electrical connections.
The interval between the above actions depends on the individual
application and the conditions in the environment where the SLC is used.
F3S-TGR-SBx-KxC series User’s manual
30
11 GENERAL INFORMATION AND USEFUL DATA
Everyone MUST be aware of issues regarding safety.
Safety devices are only useful if they are installed correctly according to
the recommendations set down by regulations.
If you are not sure that you are able to install safety devices correctly, you
should contact our service department or have them installed by a
professional.
This appliance is covered by a total warranty for 12 months from the date
of its delivery.
Faults that were clearly caused by damage due to incorrect use, accidental
circumstances or catastrophic events are not covered by the guarantee.
In case of faults, please send the SLC to:
TECHNO-GR
via Torino, 13/15
10046 Poirino (TO) - ITALY
Tel. [phone]
FAX. [phone]
E-Mail [email protected]
A description of the fault found and the period of use must always
accompany the appliance.

F3S-TGR-SBx-KxC series User’s manual
31
12 TECHNICAL SPECIFICATIONS
ITEM SPECIFICATION
Rated operating distance 0,5m … 6,0m K2C model
0,5m … 5,0m K3C and K4C model
Emitted light source Infrared LED (880 nm)
Ambient light immunity According to IEC61496-2
beam pitch (center) F3S-TGR-SBx-K2C-500 Æ500mm
F3S-TGR-SBx-K3C-800 Æ400mm
F3S-TGR-SBx-K4C-900 Æ300mm
number of beams F3S-TGR-SBx-K2C-500 Æ2
F3S-TGR-SBx-K3C-800 Æ3
F3S-TGR-SBx-K4C-900 Æ4
protective height F3S-TGR-SBx-K2C-500 Æ516
F3S-TGR-SBx-K3C-800 Æ816
F3S-TGR-SBx-K4C-900 Æ916
EAA According to IEC 61496-2
Indicators 2 green LEDS
2 yellow LEDS
1 red LED
Dimensions (width x depth)
Length
Profile: 35*45mm
+2mm for connector part
F3S-TGR-SBx-K2C-500: 595 mm
F3S-TGR-SBx-K3C-800: 941 mm
F3S-TGR-SBx-K4C-900: 1041 mm
F3S-TGR-SBx-KxC series User’s manual
32
ITEM SPECIFICATION
Materials
Housing
Front panel
Sealing gasket
Connector parts
Powder-coated aluminum,
Polycarbonate
EPDM (synthesis rubber)
Metal: Galvanized brass
Plastic: PVC
Housing color Yellow, RAL 1023
Connection M12 connector, 8-pole
Operation temperature range - 10 °C ... + 55 °C
Storage temperature range - 25 °C ... + 70 °C
Relative humidity 15 % ... 95 % RH (no condensing)
Enclosure rating (EN 60529) IP 65
Pollution degree II
Installation category II process control equipment
Altitude Up to 2000m
External controls Test/Restart Muting and override
Resistance to
Vibration (to IEC 68-2-6)
Shock (to IEC 68-2-27)
10 – 70 Hz ±1.5mm amplitude, X, Y,
Z directions
30G, 16ms, X, Y, Z direction
Rated operating voltage + 24 V DC, polarized
Operating voltage range +19.2 … 28.8Vdc
Current consumption < 420mA (muting lamp included)
Power-on delay < 800ms
Outputs PNP

F3S-TGR-SBx-KxC series User’s manual
33
ITEM SPECIFICATION
Output circuit protection PNP short circuit protected
Output current 250 mA each OSSD
Max. Capacitive load 200nF (pure capacitive load)
Output voltage drop < 2.0 V
(excl. voltage drop due to cable
extension)
Residual current < 100 µA
Circuit protection Reverse polarity,
Overload
Short-circuit (pulsed)
Input circuit Logical Zero level 0 – 8V
Logical One level 14 – 24Vdc
Input pulse duration Min. 2 cycle time
Response time ≤16ms
Reset time (TOFF ÆTON) (interlock) ≤300ms
Insulation resistance 800 MΩ@ 500Vdc
Dielectric voltage strength 350Vac, 50/60 Hz (1 min)
Configuration Manual reset / Automatic reset
(default)
Operating modes Muting / Override (by wiring setting)
F3S-TGR-SBx-KxC series User’s manual
34
13 DIMENSIONS
All dimensions are shown in millimetres
Mounting bracket

F3S-TGR-SBx-KxC series User’s manual
35
MODEL A B C D E L
F3S-TGR-SBx-K2C-500 500 514 614
F3S-TGR-SBx-K3C-800 118 400 60 340 814 958
F3S-TGR-SBx-K4C-900 118 300 300 300 914 1058
F3S-TGR-SBx-KxC series User’s manual
36
14 NOTE
