TECHWOOD TCG-1501 User manual

1
CONVECTOR HEATER
Instruction manual
Dear consumer, Please read these instructions carefully before use in
order to avoid damage due to incorrect use and to better understand the
functions of this product. Please pay particular attention to the safety
guide.
If you pass the device on to a third party, these Operating Instructions
must also be handed over.
Please keep them for future references.
TCG-1501

2
IMPORTANT SAFEGUARDS
Please read these instructions carefully before use.
Keep present instructions for future references.
Check that your mains voltage corresponds to that stated on
the appliance.
Only use the appliance for domestic purposes and household
or similar applications such as:
- staff kitchen areas, in shops, offices and other working
environments;
- By clients in hotels, motels and other residential type
environments;
- Environment type like :
• Farm Houses • Bed and Breakfast.
Only use the appliance in the way indicated in these
instructions.
Never use this unit near bathtub, shower, wash-hand basins
or other containers with water.
Never use this apparatus near water projections.
Never use this apparatus with the wet hands.
If, unfortunately the apparatus is wet, immediately withdraw
the cord of the socket-outlet.
Inform potential users of these instructions.
Never leave the appliance unsupervised when in use.
The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage caused
by incorrect use or improper handling.
Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.

3
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Children of less than 3 years should be kept away unless
continuously supervised.
Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been placed
or installed in its intended normal operating position and they
have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards
involved.
Children aged from 3 years and less than 8 years shall not
plug in, regulate and clean the appliance or perform user
maintenance.
CAUTION —Some parts of this product can become very hot
and cause burns. Particular attention has to be given where
children and vulnerable people are present.
The heating appliance must not be placed just below an
electrical outlet.
Do not use this heater with a programmer, timer, separate
remote-control system or any other device that switches the
heater on automatically, since a fire risk exists if the heater is
covered or positioned incorrectly. Also do not put anything on
it.
In order to ensure your children‘s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
Caution ! Do not allow small children to play with the foil :
THERE IS A DANGER OF SUFFOCATION !
From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
Never immerse the appliance in water or any other liquid for
any reason whatsoever.
Never place it into the dishwasher.
Never use the appliance near hot surfaces.

4

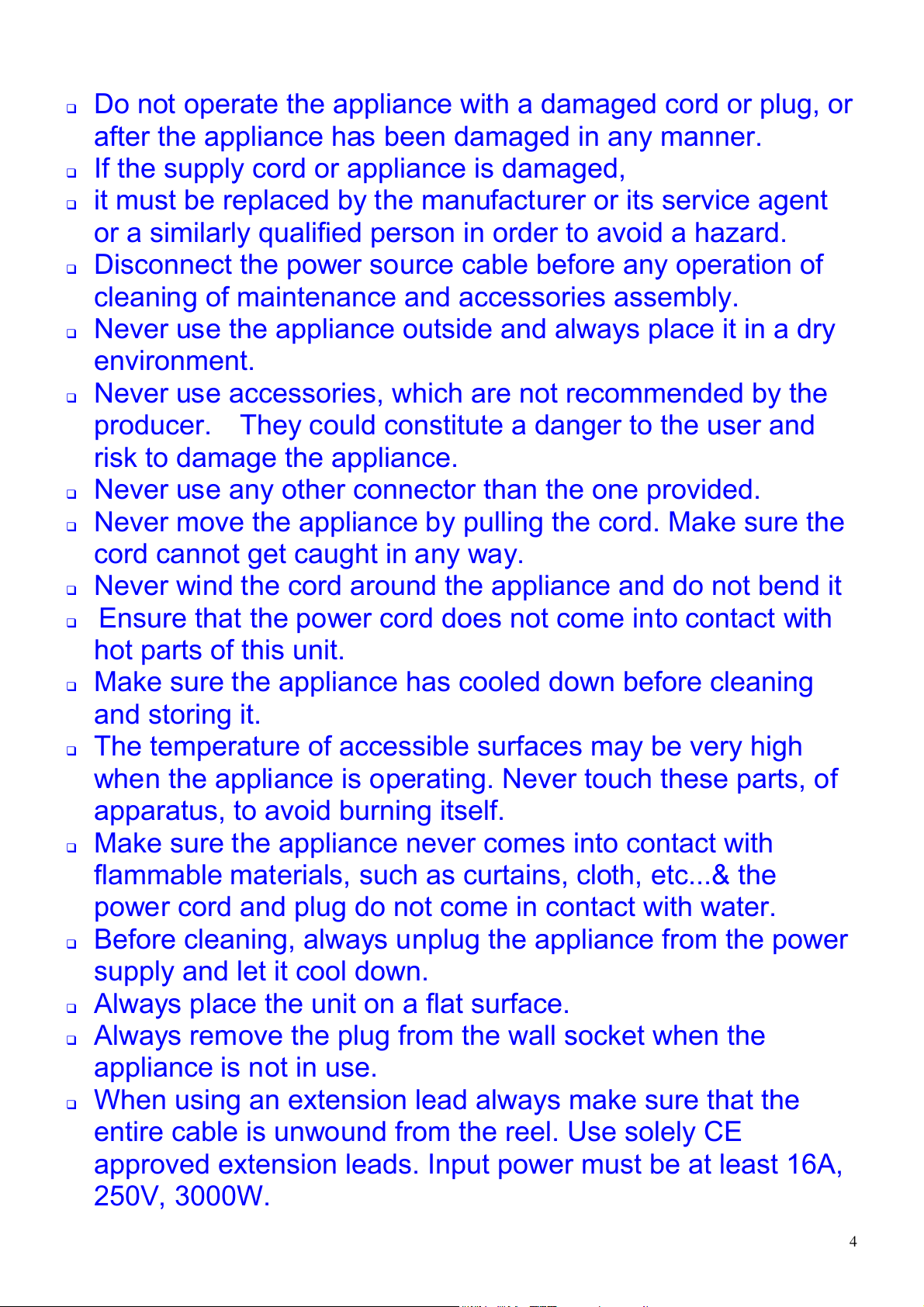

Do not operate the appliance with a damaged cord or plug, or
after the appliance has been damaged in any manner.
If the supply cord or appliance is damaged,
it must be replaced by the manufacturer or its service agent
or a similarly qualified person in order to avoid a hazard.
Disconnect the power source cable before any operation of
cleaning of maintenance and accessories assembly.
Never use the appliance outside and always place it in a dry
environment.
Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and
risk to damage the appliance.
Never use any other connector than the one provided.
Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
Never wind the cord around the appliance and do not bend it
Ensure that the power cord does not come into contact with
hot parts of this unit.
Make sure the appliance has cooled down before cleaning
and storing it.
The temperature of accessible surfaces may be very high
when the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.
Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc...& the
power cord and plug do not come in contact with water.
Before cleaning, always unplug the appliance from the power
supply and let it cool down.
Always place the unit on a flat surface.
Always remove the plug from the wall socket when the
appliance is not in use.
When using an extension lead always make sure that the
entire cable is unwound from the reel. Use solely CE
approved extension leads. Input power must be at least 16A,
250V, 3000W.

5
Incorrect operation and improper use can damage the
appliance and cause injury to the user.
This device, designed for home use, complies with standards
relating to this type of product.
The appliance must be used and rested on a table or flat &
stable surface.
The item must not be left unattended when it is connected to
main supply.
The item is not to be used, if it has been dropped or if there
are visible signs of damage or if it is leaking.
Regarding the instructions for cleaning, thanks to refer to the
below paragraph of the manual.
This appliance is only intended for household use.
(*) Competent qualified person : after sales department of the
producer or importer or any person who is qualified, approved
and competent to perform this kind of repairs.
WARNING: BURN HAZARD.
• During operation, the temperature of the
appliance surface may be hot.
• The heating parts remain hot, long time after
stopping the machine.
• The symbol "Hot Surface" warns the user that
the apparatus walls may become hot, and to take
precautions.
SAFETY INSTRUCTIONS (to be read before operating the
heater)
1. Do not use the heater unless the feet are correctly attached.
2. Indoor use only.
3. Do not place the heater on carpets having a very deep pile.
4. Always unplug the heater when moving it from one location to
another.

6

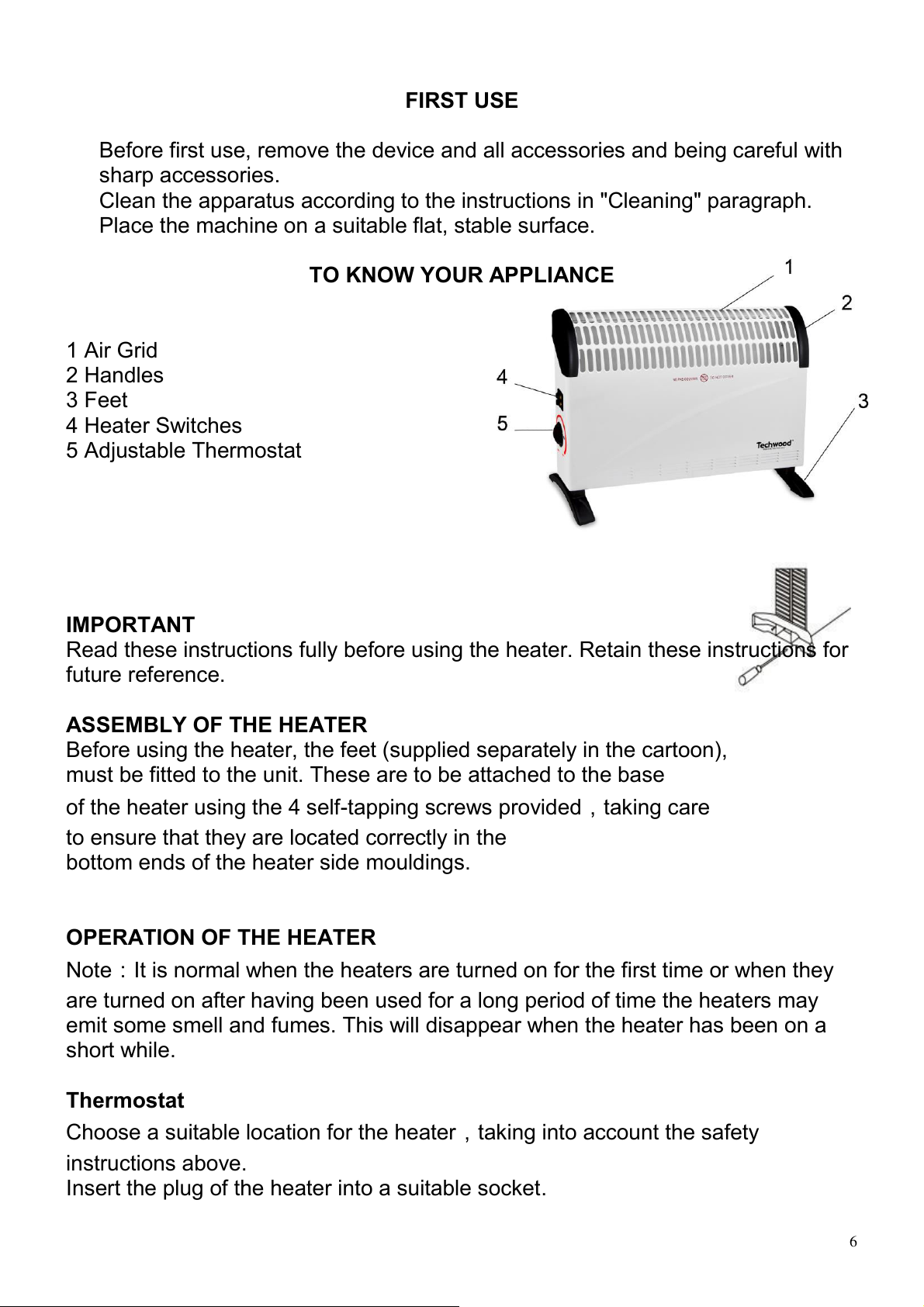

FIRST USE
Before first use, remove the device and all accessories and being careful with
sharp accessories.
Clean the apparatus according to the instructions in "Cleaning" paragraph.
Place the machine on a suitable flat, stable surface.
TO KNOW YOUR APPLIANCE
1 Air Grid
2 Handles
3 Feet
4 Heater Switches
5 Adjustable Thermostat
IMPORTANT
Read these instructions fully before using the heater. Retain these instructions for
future reference.
ASSEMBLY OF THE HEATER
Before using the heater, the feet (supplied separately in the cartoon),
must be fitted to the unit. These are to be attached to the base
of the heater using the 4 self-tapping screws provided，taking care
to ensure that they are located correctly in the
bottom ends of the heater side mouldings.
OPERATION OF THE HEATER
Note：It is normal when the heaters are turned on for the first time or when they
are turned on after having been used for a long period of time the heaters may
emit some smell and fumes. This will disappear when the heater has been on a
short while.
Thermostat
Choose a suitable location for the heater，taking into account the safety
instructions above.
Insert the plug of the heater into a suitable socket.

7

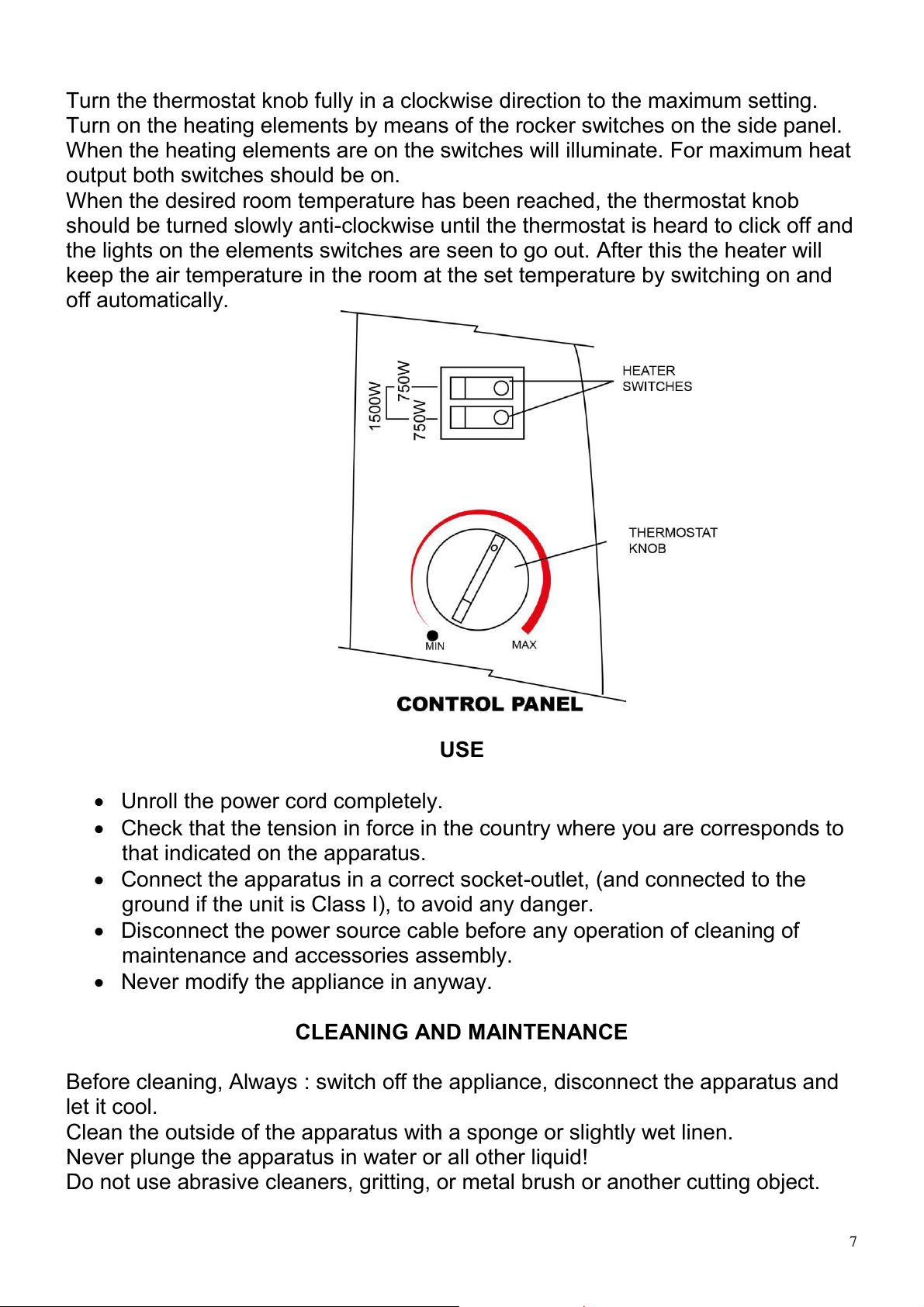

Turn the thermostat knob fully in a clockwise direction to the maximum setting.
Turn on the heating elements by means of the rocker switches on the side panel.
When the heating elements are on the switches will illuminate. For maximum heat
output both switches should be on.
When the desired room temperature has been reached, the thermostat knob
should be turned slowly anti-clockwise until the thermostat is heard to click off and
the lights on the elements switches are seen to go out. After this the heater will
keep the air temperature in the room at the set temperature by switching on and
off automatically.
USE
Unroll the power cord completely.
Check that the tension in force in the country where you are corresponds to
that indicated on the apparatus.
Connect the apparatus in a correct socket-outlet, (and connected to the
ground if the unit is Class I), to avoid any danger.
Disconnect the power source cable before any operation of cleaning of
maintenance and accessories assembly.
Never modify the appliance in anyway.
CLEANING AND MAINTENANCE
Before cleaning, Always : switch off the appliance, disconnect the apparatus and
let it cool.
Clean the outside of the apparatus with a sponge or slightly wet linen.
Never plunge the apparatus in water or all other liquid!
Do not use abrasive cleaners, gritting, or metal brush or another cutting object.

8

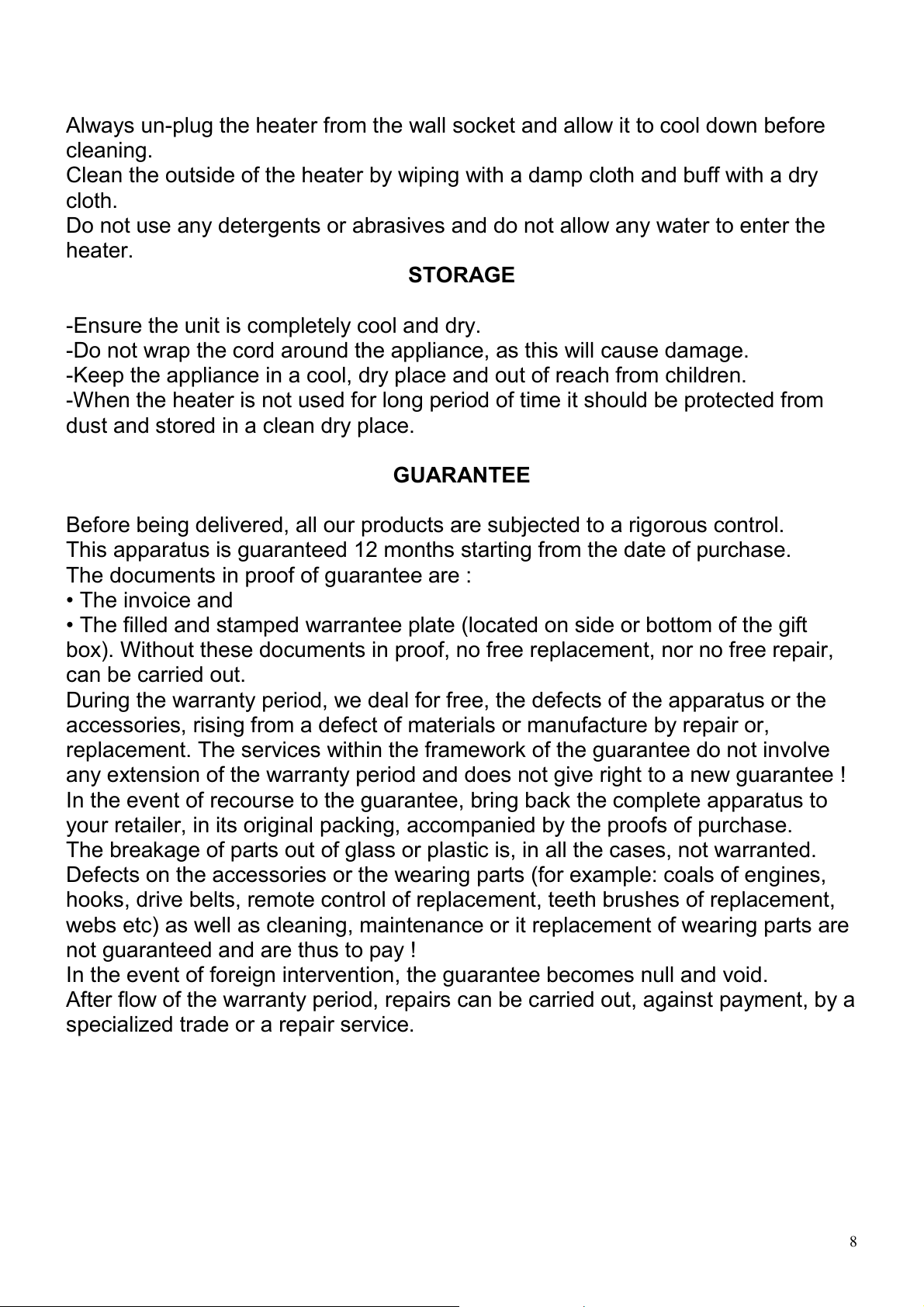

Always un-plug the heater from the wall socket and allow it to cool down before
cleaning.
Clean the outside of the heater by wiping with a damp cloth and buff with a dry
cloth.
Do not use any detergents or abrasives and do not allow any water to enter the
heater.
STORAGE
-Ensure the unit is completely cool and dry.
-Do not wrap the cord around the appliance, as this will cause damage.
-Keep the appliance in a cool, dry place and out of reach from children.
-When the heater is not used for long period of time it should be protected from
dust and stored in a clean dry place.
GUARANTEE
Before being delivered, all our products are subjected to a rigorous control.
This apparatus is guaranteed 12 months starting from the date of purchase.
The documents in proof of guarantee are :
• The invoice and
• The filled and stamped warrantee plate (located on side or bottom of the gift
box). Without these documents in proof, no free replacement, nor no free repair,
can be carried out.
During the warranty period, we deal for free, the defects of the apparatus or the
accessories, rising from a defect of materials or manufacture by repair or,
replacement. The services within the framework of the guarantee do not involve
any extension of the warranty period and does not give right to a new guarantee !
In the event of recourse to the guarantee, bring back the complete apparatus to
your retailer, in its original packing, accompanied by the proofs of purchase.
The breakage of parts out of glass or plastic is, in all the cases, not warranted.
Defects on the accessories or the wearing parts (for example: coals of engines,
hooks, drive belts, remote control of replacement, teeth brushes of replacement,
webs etc) as well as cleaning, maintenance or it replacement of wearing parts are
not guaranteed and are thus to pay !
In the event of foreign intervention, the guarantee becomes null and void.
After flow of the warranty period, repairs can be carried out, against payment, by a
specialized trade or a repair service.

9
SPECIFICATIONS
Power supply 220-240V~ 50/60Hz
Power 1500W
Norm Class I
this unit does not guarantee protection against water. It should not be installed in
a bathroom or near a water source.
The characteristics can change without preliminary preventing
Disconnect the electrical mains supply cable before any maintenance, cleaning
operation and installation of accessories.
The device should not be exposed to moisture or rain.
This device complies with EC directives, it was controlled according to all current
European directives, applicable such as: electromagnetic compatibility (EMC) and
low voltage (LVD).
This device has been designed and manufactured in compliance with the latest
regulations and technical requirements for safety.
This unit is equipped with an electrical outlet with earth and must be
earthed in an according plug.
Note : In the event of question concerning the earth or electric
connection, please consult a qualified personnel.
In the event of short-circuit, earthing reduces the risk of electric
shock while making possible the current to be evacuated by the wire
of ground.
Always unplug the appliance before any cleaning or maintenance
operation and accessories assembly.
CAUTION: In order to minimize the risks of electric shock, In the event of
breakdown, not to open the case but to call upon a qualified technician
for repairs.

10
GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation to read important
things contained in the record.
The symbol "FLASH" is intended to alert the user to the presence of
current within the device. Do not open it, it could constitute a risk of
electric shock.
The symbol "QUESTION MARK" warns the user that important
operating and maintenance are contained in the record.
The symbol "TUB / SHOWER" crossed out means to never use the unit
in a bathroom, a shower in or near water spray. (IP20 Minimum distance
3M.)
The symbol "BIN" crossed out, abbreviation WEEE (Waste of Electrical
and Electronic Equipment) means that at the end of life, it should not be
discarded with household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.
The symbol "STEAM" warns the user that steam can escape from the
unit and to take all necessary precautions. (Risk of burns)
The symbol "CE" is the guarantee of compliance with harmonized
European standards, voluntary, reflecting the essential requirements
into technical specifications. These standards are not mandatory but are
guarantees of compliance with essential requirements.
The symbol "RECYCLING" raise consumer awareness on the need to
recycle its waste. Recycling is a process by which materials that
compose a product in end of life (industrial or household waste) are
reused in whole or part and will be returned to the initial production
cycle.
The symbol "GLASS / FORK" means that the device is compatible and
can come into contact with foodstuffs.
The symbol ROHS (Restriction of use of some Hazardous Substances)
on the Environmental Protection, certifies that for each of the five
hazardous substances • Lead • Mercury • (hexavalent) chromium •
products for protection against flames PBB and PBDE, the peak
concentration is equal to or less than 0.1% of the weight of
homogeneous material, and 0.01% for the 6th • cadmium.

11
The symbol "HOT WALL" warns the user that the walls of the unit can
become very hot, and to take precautions as required.
The symbol "DOUBLE SQUARE" means a double insulated. A basic
insulation and supplementary insulation. This device requires no
connection to the mass of a protective conductor grounded. The
materials are said : double insulation class II.
The symbol "MAN" means that the device can be used on the skin or
human orifices. (Example: Thermometer).
The symbol "TRIMAN" indicates that the consumer is invited to
dispose the product as part of a separate collection (eg recycling bin,
waste, voluntary intake point).
For more information : http://www.quefairedemesdechets.fr
Imported by Sotech International
" LE PERIPOLE " N°C111 à 115
33, Avenue du Marechal de Lattre de Tassigny
94120 Fontenay sous bois - France
MADE IN P.R.C
