TECHWOOD TCG-400 User manual

1
ELECTRIC WALL THERMO CERAMIC HEATER
Instruction manual
Dear consumer, please read these instructions carefully before use in
order to avoid damage due to incorrect use and to better understand the
functions of this product. Please pay particular attention to the safety
guide.
If you pass the device on to a third party, these Operating Instructions
must also be handed over.
Please keep them for future references.
This product is only suitable for well insulated spaces or occasional use.
TCG-400

2
IMPORTANT SAFEGUARDS
❑In order to avoid overheating, do not cover the heater.
❑Please read these instructions carefully before use.
❑Keep present instructions for future references.
❑Check that your mains voltage corresponds to that stated on
the appliance.
❑Only use the appliance for domestic purposes and household
or similar applications such as:
- staff kitchen areas, in shops, offices and other working
environments;
- By clients in hotels, motels and other residential type
environments;
- Environment type like :
• Farm Houses • Bed and Breakfast.
❑Only use the appliance in the way indicated in these
instructions.
❑Do not use this heater in the immediate surroundings of a
bath, a shower or a swimming pool.
❑Never use this apparatus near water projections.
❑Never use this apparatus with the wet hands.
❑If, unfortunately the apparatus is wet, immediately withdraw
the cord of the socket-outlet.
❑Inform potential users of these instructions.
❑Never leave the appliance unsupervised when in use.
❑The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage caused
by incorrect use or improper handling.
❑Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
❑This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the

3
hazards involved.
❑Children shall not play with the appliance.
❑Cleaning and user maintenance shall not be made by
children without supervision.
❑Children of less than 3 years should be kept away unless
continuously supervised.
❑Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been placed
or installed in its intended normal operating position and they
have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards
involved.
❑Children aged from 3 years and less than 8 years shall not
plug in, regulate and clean the appliance or perform user
maintenance.
❑CAUTION —Some parts of this product can become very hot
and cause burns. Particular attention has to be given where
children and vulnerable people are present.
❑The heater must not be located immediately below a socket-
outlet.
❑Do not use this heater with a programmer, timer, separate
remote-control system or any other device that switches the
heater on automatically, since a fire risk exists if the heater is
covered or positioned incorrectly. Also do not put anything on
it.
❑In order to ensure your children‘s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
❑Caution ! Do not allow small children to play with the foil :
THERE IS A DANGER OF SUFFOCATION !
❑From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
❑Never immerse the appliance in water or any other liquid for
any reason whatsoever.
❑Never place it into the dishwasher.

4
❑Never use the appliance near hot surfaces.
❑Do not operate the appliance with a damaged cord or plug, or
after the appliance has been damaged in any manner.
❑If the supply cord or appliance is damaged, it must be
replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
❑Disconnect the power source cable before any operation of
cleaning of maintenance and accessories assembly.
❑Never use the appliance outside and always place it in a dry
environment.
❑Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and
risk to damage the appliance.
❑Never use any other connector than the one provided.
❑Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
❑Never wind the cord around the appliance and do not bend it
❑Ensure that the power cord does not come into contact with
hot parts of this unit.
❑Make sure the appliance has cooled down before cleaning
and storing it.
❑The temperature of accessible surfaces may be very high
when the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.
❑Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc...& the
power cord and plug do not come in contact with water.
❑Before cleaning, always unplug the appliance from the power
supply and let it cool down.
❑Always place the unit on a flat surface.
❑Always remove the plug from the wall socket when the
appliance is not in use.
❑When using an extension lead always make sure that the
entire cable is unwound from the reel. Use solely CE

5
approved extension leads. Input power must be at least 16A,
250V, 3000W.
❑Incorrect operation and improper use can damage the
appliance and cause injury to the user.
❑This device, designed for home use, complies with standards
relating to this type of product.
❑The appliance must be used and rested on a table or flat &
stable surface.
❑The item must not be left unattended when it is connected to
main supply.
❑The item is not to be used, if it has been dropped or if there
are visible signs of damage or if it is leaking.
❑Regarding the instructions for cleaning, thanks to refer to the
below paragraph of the manual.
❑This appliance is only intended for household use.
(*) Competent qualified person : after sales department of the
producer or importer or any person who is qualified, approved
and competent to perform this kind of repairs.
WARNING: BURN HAZARD.
• During operation, the temperature of the appliance surface
may be hot.
• The heating parts remain hot, long time after
stopping the machine.
SAFETY INSTRUCTIONS (to be read before operating the
heater)
1.Do not use the heater unless the feet are correctly attached.
Regarding how to be fixed to the heater, please refer to the
paragraph “TO KNOW YOUR APPLIANCE” of the manual.
2.Indoor use only.
3.Do not place the heater on carpets having a very deep pile.
4.Always unplug the heater when moving it from one location to
another.

6
GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation
to read important things contained in the record.
The symbol "BIN" crossed out, abbreviation WEEE
(Waste of Electrical and Electronic Equipment) means
that at the end of life, it should not be discarded with
household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.
The symbol "DO NOT COVER" warns the user not to
put anything on the device. This could lead to
overheating that is harmful and dangerous.
The symbol "CE" is the guarantee of compliance with
harmonized European standards, voluntary, reflecting
the essential requirements into technical
specifications. These standards are not mandatory
but are guarantees of compliance with essential
requirements.
The symbol ROHS (Restriction of use of some
Hazardous Substances) on the Environmental
Protection, certifies that for each of the five hazardous
substances • Lead • Mercury • (hexavalent) chromium •
products for protection against flames PBB and PBDE,
the peak concentration is equal to or less than 0.1% of
the weight of homogeneous material, and 0.01% for the
6th • cadmium.
The symbol "TRIMAN" indicates that the consumer is
invited to dispose the product as part of a separate
collection (eg recycling bin, waste, voluntary intake
point).

7
For more information : http://www.quefairedemesdechets.fr
WARNING: In order to avoid overheating, do not
cover the heater.”
The symbol "CMIM marking" is the guarantee of compliance
with the harmonized Moroccan Standards, optional, which
translate the essential requirements into technical
specifications. These standards are not mandatory but
guarantee compliance with the essential requirements.
FIRST USE
Before first use, remove the device and all accessories and being careful with
sharp accessories.
Clean the apparatus according to the instructions in "Cleaning and
maintenance" paragraph.
Place the machine on a suitable flat, stable surface.

8

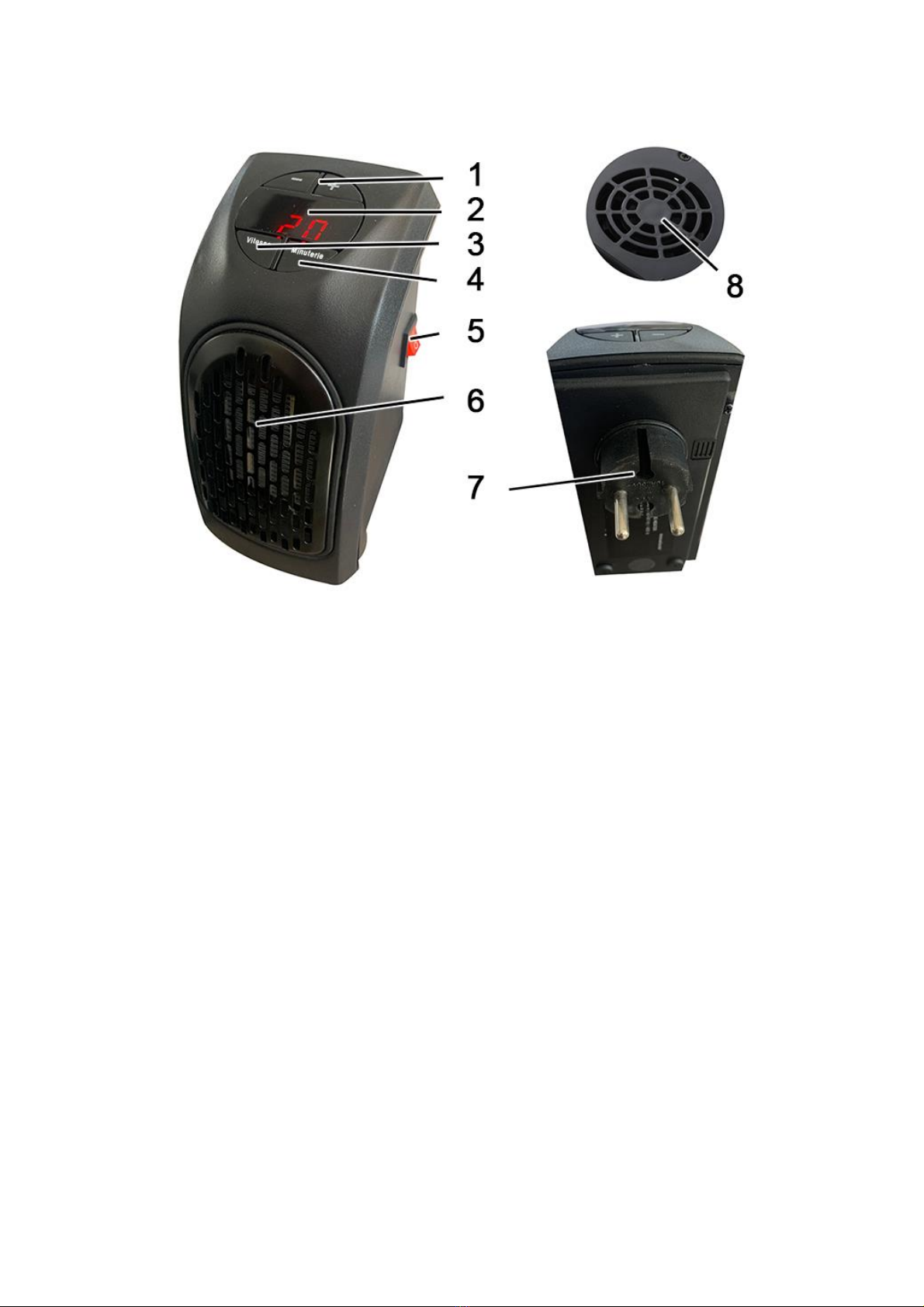

TO KNOW THE APPLIANCE
Control panel
1. Temperature adjustment.
2. Temperature LED display.
3. Speed selector.
4. Timer.
5. On / Off switch.
6. Air outlet grille.
At the back of the device
7. Mains socket, directly on the heater
back side.
Under the device
8. Air inlet grille.
USE
REMINDER
- The positioning of the device, described in this manual, must be respected.
- The air inlet and outlet grids must be completely free.
- No object (wall cover, curtains, etc.) should be less than 90 cm from the device.
- Never cover the thermo-ceramic heater.
•Unroll the power cord completely.
•Check that the tension in force in the country where you are corresponds to that
indicated on the apparatus.
•Connect the apparatus in a correct socket-outlet, (and connected to the ground
if the unit is Class I), to avoid any danger.
•Disconnect the power source cable before any operation of cleaning of
maintenance and accessories assembly.

9
•Never modify the appliance in anyway.
Plug the heater into a 220-240V ~ wall outlet.
Turn on the heater by positioning the "0 / I" button
on "I".
Note: The button is located on the side of the device.
Select the desired temperature.
Use the " + " key to increase the temperature.
Use the " - " key to lower the temperature.
Notes : The temperature appears on the display.
The temperature is adjustable from 15 ° to 32 °.
Select the desired fan speed.
Press the "Speed" button to choose between high
speed (HH) or low speed (LL).
Note : these letters HH or LL appear on the display.
The appliance has a timer that will stop & switch off the unit automatically after the
set period of time.
When the device is plugged in and turned on, press
the " Timer " button to activate it.
Press again the " Timer " button to set the desired
number of hours of use.
You can choose from 1 to 12 hours of use.
Each press increases the programmed time by one
hour.
Notes : The timer function is 12 hours by default.
To cancel the timer, turn off the heater.
To turn off and turn off the heater, Position the On / Off switch
("0 / I" on the "0" position.

10
To avoid burns, wait for the heater to cool completely before disconnecting it from
the power outlet.
Note : Store in a cool, dry place until next use.
CLEANING AND MAINTENANCE
Before cleaning, always switch off the appliance, disconnect the apparatus and let
it cool.
Clean the outside of the apparatus with a sponge or slightly wet linen.
Never plunge the apparatus in water or all other liquid!
Do not use abrasive cleaners, gritting, or metal brush or another cutting object.
CAUTION
DO NOT LET LIQUID ENTER THE HEATER.
IF THE UNIT STOPS WORKING DUE TO OVER HEATING, UNPLUG THE
UNIT FROM THE MAIN POWER, REPLUG IT WITHOUT TURNING IT ON.
STORAGE
- Make sure that the device is completely cool and dry.
- Do not wrap the electric cord around the appliance, as this can damage it.
- Keep the device in a cool, dry place, out of the reach of children.
GUARANTEE
Before being delivered, all our products are subjected to a rigorous control.
This apparatus is guaranteed 24 months starting from the date of purchase of
product by the consumer.
The documents in proof of guarantee are :
• The invoice and
• The filled and stamped warrantee plate (located on side or bottom of the gift
box). Without these documents in proof, no free replacement, nor no free
repair, can be carried out.
During the warranty period, we deal for free, the defects of the apparatus or
the accessories, rising from a defect of materials or manufacture by repair or,
replacement. The services within the framework of the guarantee do not
involve any extension of the warranty period and does not give right to a new
guarantee !
In the event of recourse to the guarantee, bring back the complete apparatus
to your retailer, in its original packing, accompanied by the proofs of purchase.
The breakage of parts out of glass or plastic is, in all the cases, not warranted.
Defects on the accessories or the wearing parts (for example: coals of
engines, hooks, drive belts, remote control of replacement, teeth brushes of

11
replacement, webs etc) as well as cleaning, maintenance or it replacement of
wearing parts are not guaranteed and are thus to pay !
In the event of foreign intervention, the guarantee becomes null and void.
After flow of the warranty period, repairs can be carried out, against payment,
by a specialized trade or a repair service.
SPECIFICATIONS
Power supply 220-240V~ 50-60Hz
Power 400W
Norm Class II
This unit does not guarantee protection against water. It should not be installed in
a bathroom or near a water source.
Made in PRC
The characteristics can change without preliminary preventing
This device complies with EC directives, it was controlled according to all current
European directives, applicable such as: electromagnetic compatibility (EMC) and
low voltage (LVD).
This device has been designed and manufactured in compliance with the latest
regulations and technical requirements for safety.
Always unplug the appliance before any cleaning or maintenance
operation and accessories assembly.
CAUTION: In order to minimize the risks of electric shock, In the event of
breakdown, not to open the case but to call upon a qualified technician
for repairs.
Imported by Sotech International
" LE PERIPOLE " N°A107
33, Avenue du Marechal de Lattre de Tassigny
94120 Fontenay sous Bois - France
The symbol "CMIM marking" is the guarantee of
compliance with the harmonized Moroccan
Standards, optional, which translate the essential
requirements into technical specifications.
These standards are not mandatory but guarantee
compliance with the essential requirements.

12
Pnom 0.4 kW
Pmin 0.4 kW
Pmax,c 0.4 kW
elmax 0.400 kW
elmin 0.400 kW
elSB 0.000 kW
N/A V
N/A V
N/A V
N/A V
V
V
V
V
V
V
V
V
V
V
V
V
NO / NON
Other control options (multiple selections possible)
Autres options de contrôle (sélectionner une ou plusieurs options)
YES / OUI
NO / NON
YES / OUI
Contact details / Coordonnées de contact
Sotech Intertnational
33, Av du Mal de Lattre de Tassigny
94120 Fontenay sous Bois - France
single stage heat output and no room temperature control
contrôle de la puissance thermique àun palier, pas de contrôle de la température de la pièce
Two or more manual stages, no room temperature control
contrôle àdeux ou plusieurs palier manuels, pas de contrôle de la température de la pièce
with mechanic thermostat room temperature control
contrôle de la température de la pièce avec thermostat mécanique
with electronic room temperature control
contrôle électronique de la température de la pièce
electronic room temperature control plus day timer
contrôle électronique de la température de la pièce et programmateur journalier
electronic room temperature control plus week timer
contrôle électronique de la température de la pièce et programmateur hebdomadaire
with black bulb sensor / capteur àglobe noir
room temperature control, with presence detection
contrôle de la température de la pièce, avec détecteur de présence
room temperature control, with open window detection
contrôle de la température de la pièce, avec détecteur de fenêtre ouverte
with distance control option / option contrôle àdistance
with adaptive start control / contrôle adaptatif de l'activation
with working time limitation / limitation de la durée d'activation
manual heat charge control, with integrated thermostat
contrôle thermique manuel de la charge avec thermostat intégré
manual heat charge control with room and/or outdoor temperature feedback
contrôle thermique manuel de la charge avec réception d'informations sur la température de la pièce
et/ou extérieure
electronic heat charge control with room and/or outdoor temperature feedback
contrôle thermique électronique de la charge avec réception d'informations sur la température de la
pièce et/ou extérieure
fan assisted heat output / puissance thermique régulable par ventilateur
Type of heat output/room temperature control (select one)
Type de contrôle de la puissance thermique/de la température de la pièce(sélectionner un seul
type)
Auxiliary electricity consumption / Consommation électrique auxiliaire
At nominal heat output / A la puissance thermique nominale
At minimum heat output / A la puissance thermique minimale
In standby mode / En mode veille
YES / OUI
NO / NON
Type of heat input, for electric storage local space heaters only (select one)
Type d'apport de chaleur, pour les dispositifs de chauffage décentralisés électrique à
accumulation uniquement(sélectionner un seul type)
Maximum continous heat output / Puissance thermique maximale continue
Information requirements for electrical local space heaters
Exigences d'informations applicables aux dispositifs de chauffage décentralisés électriques
Model number/Référence(s) du modèle:
AOT-H801 / TCG-400
Item / Caractéristique
Symbol
Symbole
Value
Valeur
Unit
Unité
Heat output / Puissance thermique
Nominal heat output / Puissance thermique nominale
Minimum heat output (indicative) / Puissance thermique minimale (indicative)
