TECNARIA P560 User manual

OPERATING INSTRUCTION FOR THE SPIT P560 TOOL
with special adaptor (Pin Guide) for CTFS shear connector
LOADING THE PINS
RELOADING
1) Press the button (n° 24) to open the cover (n° 23)
2) Fully open the pin guide (n°1)
3) Place the disc in the housing
4) Close the cover (n° 23)
Cover n° 23
Pin guide n°1
Black cover button n° 24
LOADING THE CARTRIDGES
1
2
3
In order to reload the tool fully extract the pin guide and
repeat the procedure. Each disc contains 10 cartridges
Disk of cartridges
Pin
Viale Pecori Giraldi, 55
36061 Bassano del Grappa (VI) ITALY
www.tecnaria.com [email protected]
TEL: [phone]
FAX. [phone]
NEVER USE THE HAND OR OTHER BODY PART TO PUSH BACK THE pin guide!!
Fully open the pin guide (n°1).
Hold the tool with the pin guide pointing vertically
upwards. Insert the nail into the hole of the pin guide
(head first). A magnet will keep the nail in the correct
position.
Point the tool towards the ground. Now the tool is ready
for firing.
Hold the tool and the connector perpendicular to the
work surface, press firmly against the working surface
and pull the trigger.

38
17
17
1
1
15 14
AB
17
1
14 15
B
During the maintenance operations the tool MUST be
unloaded (and always unloaded when stored in the case).
Make sure that no nails and loads are present
into the tool
The tool must be cleaned periodically
(after approximately 1000 shots).
REPLACE! REPLACE!
15 14
Maintenance of the tool

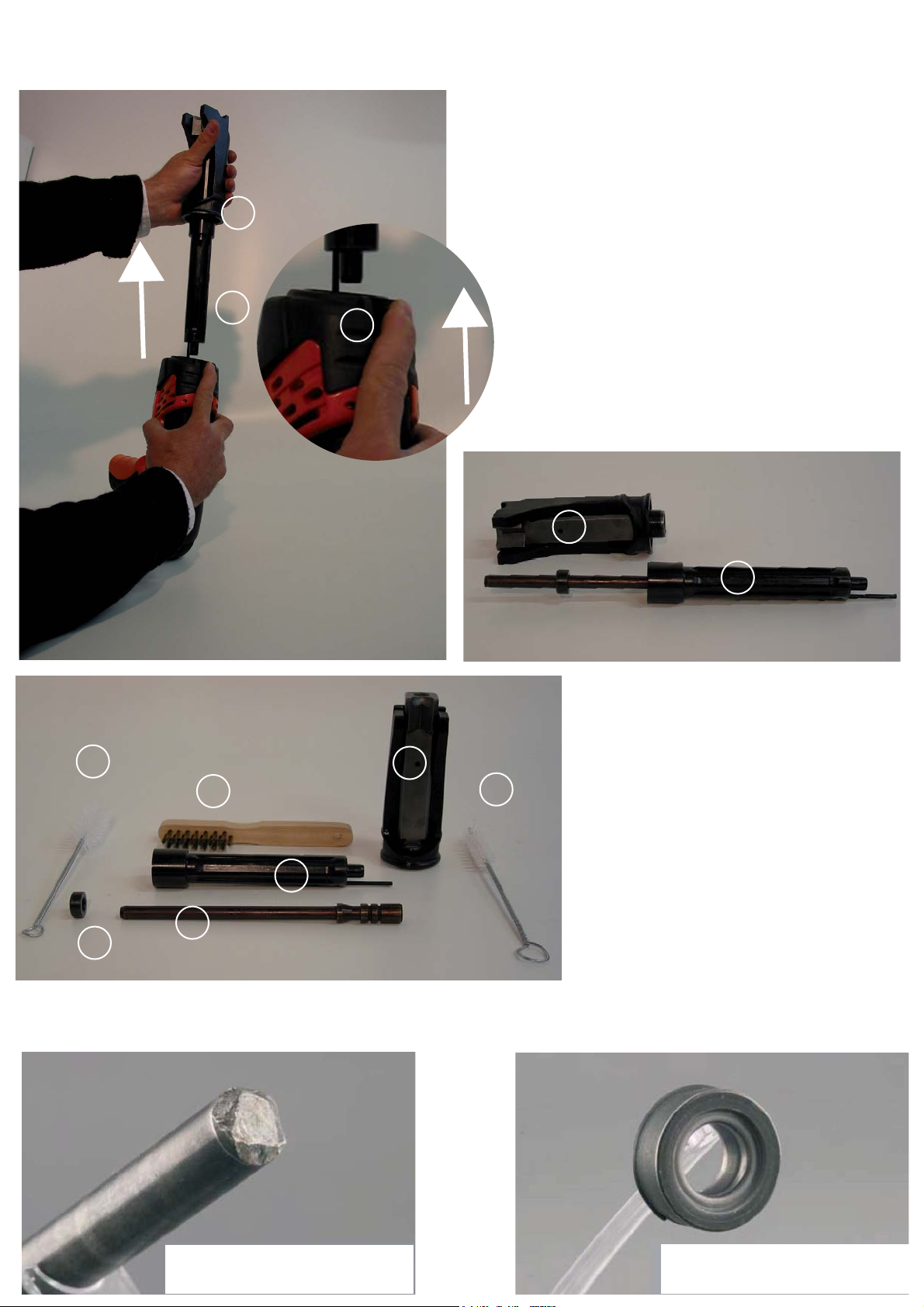

Unscrew the drive pin (1) from the barrel (17)
- Clean with the metallic flat brush (A) the
exterior part of the barrel (17).
- Clean with the bigger round plastic brush (B)
the interior part of the barrel (17) and the
interior part of the body of the tool
- Clean with the smaller round plastic brush (B)
the cartridge chamber positioned in the back
side of the barrel
- Lubricate the cleaned parts lightly using
spray oil (SPIT or equivalent).
Check the condition of the piston (15)
and the condition of the stop ring (14)!
The stop ring (14) MUST be changed when deformed or damaged (see picture).
The piston must be changed when the end part is damaged (see picture).
Extract the piston from the barrel (17) and change it. Do not forget to insert the stop ring (14).
Disassembling the front part of the tool for cleaning:
Push the pin guide (1) back completely, lift the catch
(38) and pull out the front part assembly [pin guide (1)
+ barrel (17)] from the body of the tool.
