TECO TAC9004RC User manual

AIR CURTAIN
IMPORTANT NOTE:
Thank you for selecting a TECO quality Air Conditioner.
Read this manual carefully before installing or operating
your new air conditioning unit. Make sure to save this
manual for future reference.
The design and specifications are subject to change
without prior notice for product improvement. Consult
with the sales agency or manufacturer for details.
User Manual
Models:
TAC9004RC
TAC12004RC
TAC9005RC
TAC12005RC
TAC18005RC

1
CONTENTS
SAFETY PRECAUTIONS...................................................................................... 2
OUTLINES AND DIMENSIONS ............................................................................ 3
INSTALLATION ..................................................................................................... 4
WIRING DIAGRAM ............................................................................................... 6
SPECIFICATIONS................................................................................................. 6
AIR FLOW ADJUSTMENTS.................................................................................. 7
AIR DISTRIBUTION CHART................................................................................. 7
CLEANING AND MAINTENANCE......................................................................... 8
REPAIRS, SERVICE & WARRANTY..................................................................... 8

2
SAFETY PRECAUTIONS
Read the entire manual carefully as it will help to protect your equipment and avoid serious injury.
•Install the air curtain at a place that can withstand its weight.
•Do not install the unit in a place where there is a possibility of flammable gas leaks.
•Always use the specified power supply (voltage and frequency) indicated on the unit.
•Use the correct power socket. Make the connections securely so that any force to the power cord is
not applied to the power socket.
•Always use the correct motor, capacitor, switch, and other accessories specified by TECO.
•When moving and reinstalling the air curtain, consult the dealer or an authorised technician
•If an abnormal situation arises (like a burning smell), immediately turn off the unit and disconnect the
power to avoid electric shock, fire or injury.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the appliance.
•Ensure that the fan is switched off from the supply mains before removing the guard.
•Do not insert fingers, rods or other objects into the air inlet or outlet. This may cause injury, since the
fan may be rotating at high speeds.
•Do not use flammable sprays such as hair spray, lacquer or paint near the unit. This may cause fire or
combustion.
WARNING:
The product must be installed and wired in compliance with the Building and Wiring Code of Australia or
any other similar standards or codes. The customer/contractor is solely responsible for ensuring that the
equipment Installed, complies with any relevant code or standard.

3
OUTLINES AND DIMENSIONS
The air curtain had already designated on the best installment hole on the bottom for the user. Please
loosen the binding screw, separates the bottom from the box body and has been equipped with the
mounting hole on the bottom (Picture 1). When it is installed, the position must be accurate and be
reliable, the method of installation to be as follows:
The external dimensions and install the size (mm):
Model A B C D E F G
TAC9004RC 900 105 230 120 230 212 230
TAC12004RC 1200 105 330 120 330 212 230
TAC9005RC 900 105 230 120 230 212 230
TAC12005RC 1200 105 330 120 330 212 230
TAC18005RC 1800 100 400 400 400 212 230
E&OE

4
INSTALLATION
Fix on the concretes wall
(1) According to the different specification is to be gives the mounting dimensions, chose the position
(picture 2)
(2) Splits out explodes bolt's hole which matches M8 to pull on the position, will pull explodes the bolt to fix
on the concretes wall, simultaneously should protect bolt's swinging radius is 15mm. (picture 3)
(3) With the gasket, the nut fasten the bottom, then install the complete machine (picture 4)
Installation on the wood wall
With the wooden tooth screw fixed firmly the bottom on the good position (picture 5), then installs the
complete machine.

5
Installation Precaution
When installing the air curtain, please note the following, can increases the efficiency of air curtain.
1. Please install on the solid place, prevents the work from vibration, prevents noise which vibration to be
produces.
2. Please install the air curtain on the inside of the room.
3. Do not install the unit in a place where it maybe splashed by water, or exposed to excessive steam,
explosive gas or corrosive gas etc.
4. Width of air curtain/s should be equal to or wider than the width of door.
5. If the width of door wider than the length of air curtain, please use two or more assemblies. In this
situation, please make sure the distance is about 20~40mm.
6. Please install according to the model specification, if the installation position is too high, this will affect
the outcome.
7. When installs the air curtain, make sure the air outlet is right to the bottom of fitting surface.
8. When install the air curtain, please make sure the air curtain hanged the wall plate and the wall cannot
leave space.
9. Air delivery vent should be situated as near the wall as possible.
10. The distance between the air curtain and the ceiling do not be smaller than 30mm.
11. Please make sure the level to install.
Note:
The design and specifications are subject to change without prior notice for product improvement.
Consult with the sales agency or manufacturer for details.

6

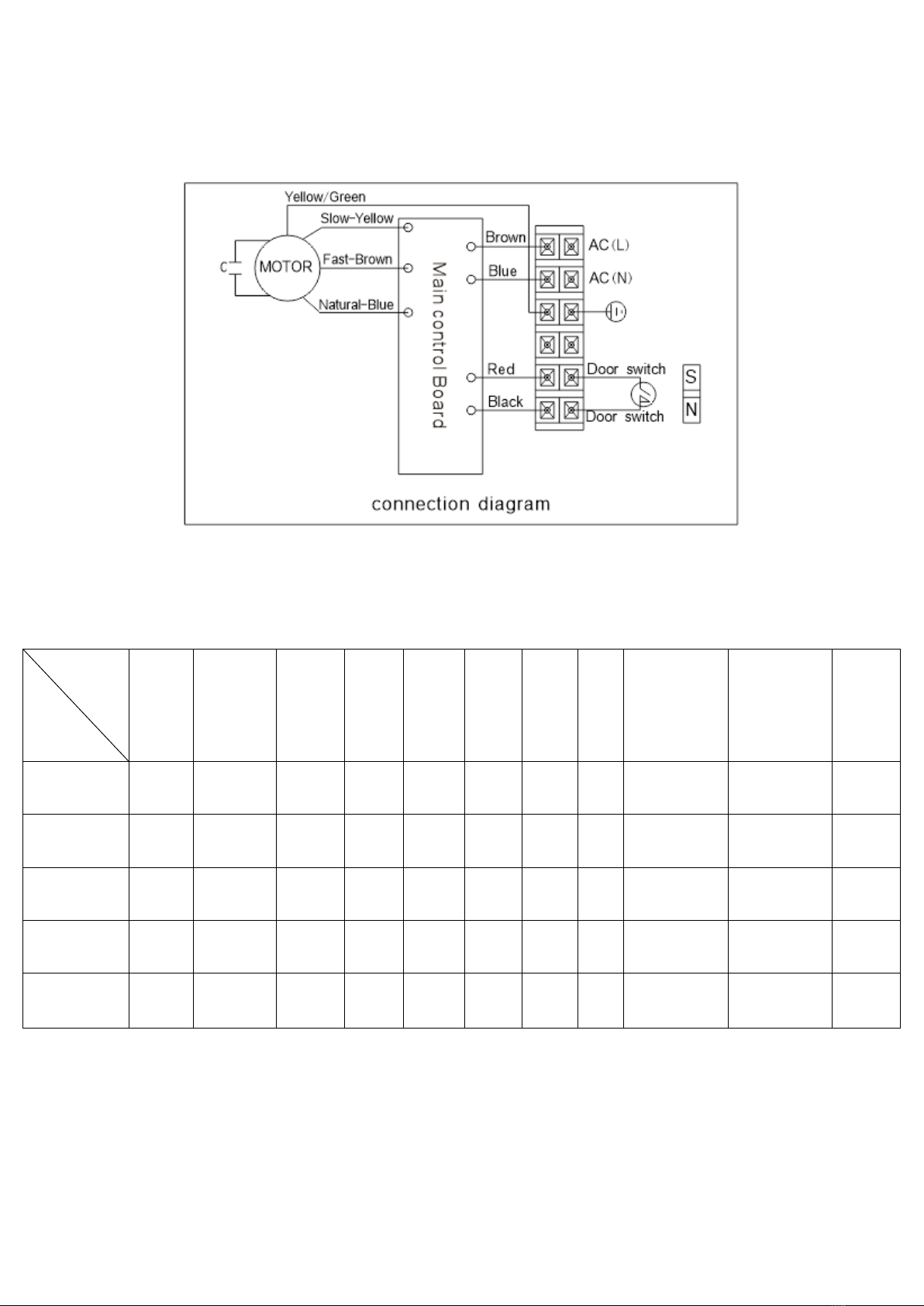

WIRING DIAGRAM
The controlling circuit of the two-speed air curtain protecting machinery (Picture 6).
Picture 6
SPECIFICATIONS
Item
Model
Rated
Voltage
(V)
Rated
Frequency
(Hz)
Specific
ation
(mm)
Max
Input
Power
(w)
Max
Input
Flow
(m³/h)
Max
Wind
Speed
(m/s)
Noise
(dB)
N.W
(kg)
Unit
Size
WxHxD
(mm)
Packing
box
(mm)
Mounting
height
(m)
TAC9004RC 230 50 120 230 1020 14.5 ≤44 16.0 900×230×212 960×290×270 3.5-4.5
TAC12004RC 230 50 120 305 1360 14.5 ≤45 19.5 1200×230×212 1260×290×270 3.5-4.5
TAC9005RC 230 50 120 360 1260 18.0 ≤46 16.5 900×230×212 960×290×270 4.5-5.0
TAC12005RC 230 50 120 495 1680 18.0 ≤47 21.0 1200×230×212 1260×290×270 4.5-5.0
TAC18005RC 230 50 120 750 2520 18.0 ≤53 30.5 1800×230×212 1860×290×270 4.5-5.0
E&OE
Note:
The design and specifications are subject to change without prior notice for product improvement.
Consult with the sales agency or manufacturer for details.

7

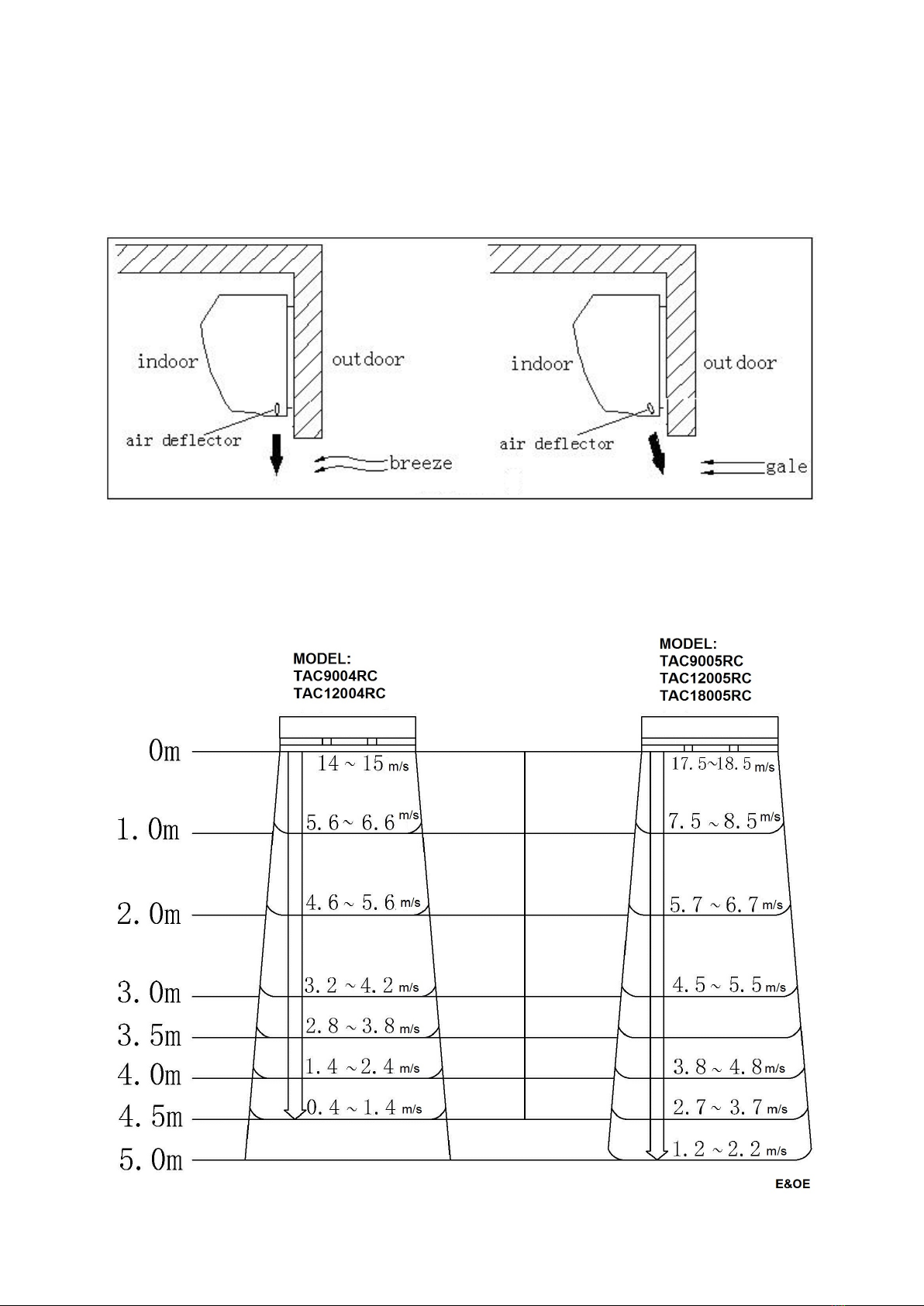

AIR FLOW ADJUSTMENTS
The air deflector of air curtain is adjustable.
The air direction changed depends to the air defector. (Picture 7)
Picture 7
AIR DISTRIBUTION CHART

8
CLEANING AND MAINTENANCE
•Turn off the device and disconnect the power before cleaning. Failure to do so can cause electrical
shock.
•Please use cleaning detergents to clean, and then wipe with a clean soft cloth.
•Do not clean the air curtain with excessive amounts of water.
•Do not clean the air curtain with gasoline, thinner, kerosene, fungicides or metal brush.
•Carry out a normal periodic repairs and maintenance to remove the dirt from air curtain regularly.
•Damaged supply cords to be replaced by the manufacturer, service agent or similarly qualified person
to avoid hazard.
REPAIRS, SERVICE & WARRANTY
It is hazardous for anyone installing, removing, altering, repairing, servicing or testing of this appliance.
Only an Authorized Service Person can carry out servicing or repairs to this appliance.
IF SERVICE IS REQUIRED:
If you have any difficulties with your product, please contact: TECO Australia’s Service on
1300 660 037 (8:30am - 4pm Monday ~ Friday AEST)
For warranty details please visit www.teco.com.au
Service Email: had.[email protected]
Spare Parts: [email protected]
