Teeter Hang Ups F5000 User manual

Spreader Arms
front rear
U.S. and foreign patents apply. Other foreign patents pending.
ASSEMBLYINSTRUCTIONS
F5000TM &
F6000TM
(L)
(R)
DONOTDISCARD- KEEPFORFUTUREREFERENCE.
STEP ONE
Assemble the A-frame Base (F51002)
• OpentheA-frame and make sure that the spreader arms are locked flat.
(SeeFigure1)
Figure 1
ITEMSFORASSEMBLY ITEM #’s
A-frame base F51002
Main shaft w/ front ankle clamp F51039
Table frame with mat F51021 (F5000)
F61021 (F6000)
Hand grips (2) and F51069
1/2” (13mm) hex bolts (6) H11202
Two (2) roller hinges F51064
Two (2) wrenches F51088
Rear bar with ankle clamps F51052
2” (51mm) Hex Bolt / Nut / Washer F51087
Black Rubber Plug F51056
Triangle-head knob F51063
Foot platform F51060
F51002 F51039
F51021 (F5000)
F61021 (F6000)
Bolts may be
packaged
separately or
assembled in
hand grips.
H11202
F51069
F51064
F51088
F51087
F51052
F51060
F51056
F51063
STEP TWO
Install Hand Grips (F51069) on A-frame Base (F51002)
• Placeoneofeachhandgrip(left/right)over the outside edge of the corre-
spondinghinge plate. (See Figure 2)
• Insertthree 1/2” (13 mm) hex bolts(H11202) through thehinge plate into each
hand grip. Use the wrenches provided to tighten the bolts, being careful not to
overtighten.
Carefully remove the individual parts from the carton. You should have all of the items listed below. If any items are missing or damaged, contact
your retailer or customer service directly (See Pg. 4).
Before you begin: These instructions will guide you in properly assembling the unit. Please review all the steps before beginning assembly.
Carefully adhere to the Assembly Instructions and Owner’s Manual to help ensure user safety and product integrity.
NOTE:Boltsmaybe
packagedseparately
orassembledin
handgrips.
Figure 2
PRE-ASSEMBLY
1. It is your responsibility to familiarize yourself with the proper use of the equipment and the inherent risks of inversion, such as falling on your
head or neck, pinching, entrapment or equipment failure.
2. This product is not designed for persons over 6’6” (198 cm) or 300 lbs (136 kg). Structural failure could occur or head/neck may impact floor
during inversion. Serious injury or death could result.
3. DO NOT use the equipment without a licensed physician’s approval and a review of the medical contraindications, as noted in the Owner’s Manual.
4. Failure to assemble and/or use the equipment as directed may void the manufacturer’s warranty on this product and could result in injury or death.
5. DO NOT use the inversion table until you have thoroughly and carefully read the Owner’s Manual, viewed the Instructional Video, reviewed all
other accompanying documents, and inspected the equipment.
6. The steps in the video directly coincide with the steps detailed in these Assembly Instructions.
7. Choose a level surface for assembling and operating the table.
8. Follow each step in sequence. Do not skip ahead.
9. Make sure that all fasteners are secure.
10. PRIOR TO USE, test and inspect the table. Make sure the table rotates smoothly to inverted position and back.
!WARNING
ASSEMBLY

Assembly Instructions #LF5100 Pg. 2
Refer to the Owner’s Manual for an explanation of the hole settings.
We suggest using Setting C to start.
Figure3B
ASSEMBLY
STEP THREE
Install Roller Hinges (F51064) to Table Frame (F51021 or F61021)
• For ease of assembly, rest the table frame against the crossbar at the
frontof theA-frame.
• Open the cam locks on each side of the table frame.
• With the grooved pivot pins facing out, insert the roller hinges into the
brackets on each side of the table frame. (See Figure 3) The roller hinges
will slide between the cam locks and the brackets. (See Figure 3A)
• Make sure that the roller hinges are in the same hole setting on both
sides.
• Push down on the cam lock to secure the hinge. Figure 3B shows the
rollerhinge engaged correctly (inSetting C).
Figure 3
Figure3A
Hinge
into
bracket
Close
cam lock
In Setting C
pivot
pin
STEP FOUR
Attach the Table Frame (F51021 or F61021) to the A-frame (F51002)
• Holdingeachside nearthe rollerhinges, pickup thetable frameand standat
thefrontof theA-frame. Lowereachpivotpin intotheA-framehingeplates at
thesame time.(See Figure 4) Figure4Ashowsthe correctplacement ofthe
pivotpin into the hinge plate.
• Make sure that both pivot pins are seated at the base of the slot in the
hingeplate.
• Check to make sure that the self-locking hooks have closed over both
pivot pins and that the table rotates smoothly.
Figure 4
Figure 4A
STEP FIVE
Insert the Main Shaft (F51039) into the Table Frame (F51021 or F61021)
• Loosenthe de-rattler knob on the mainshafthousing.
• With the height adjustment settings on the main shaft facing up, slide the
end of the main shaft into the blue bushing in the main shaft housing. (See
Figure5)
• Pull out the height selector locking pin to allow the main shaft to slide in
further. For the purpose of easy assembly, slide the main shaft in all the
way and release the pin in the storage setting. (Refer to the Owner’s
Manualfor properheight adjustmentbeforeuse).
• Tightenthe de-rattlerknob.
Figure 5
de-rattler
knob
F5000 F6000
F5000 F6000
F5000 F6000
Failure of the self-locking hooks to close over both pivot pins
is indication of improper assembly and if not corrected,
could result in serious injury or death.
WARNING
!
WARNING
!
Read the Owner’s Manual for information on
selecting the correct user height setting.
Improper settings could result in serious injury or death.
!

Figure 6
Figure 6A
STEP SIX
Rotate the Front Ankle Clamps on the Main Shaft (F51039)
• Pull up on the locking pin for the ankle clamps. (See Figure 6)
• Pull out the spring loaded front ankle clamps until the square tubing is
disengagedfrom the main shaft. Do not overstretchthespring.
• Rotate clamps counterclockwise so that the pin holes face up. (See
Figure6A) Re-engage the square tubing into themain shaft.
ASSEMBLY
STEP SEVEN
Assemble Rear Bar with Ankle Clamps (F51052)
• With the rounded corners of the rear foam ankle piece facing down, insert
the rear bar with one ankle clamp into the large hole at the bottom of the
main shaft. (SeeFigure 7)
• Align the hole in the rear bar with the hole on the main shaft and insert
the Hex bolt (F51087) into the holes from the rear. Install the washer and
nut;tighten with the wrenches provided.
• Sliptheother foam ankle clamp with silver backing (rounded corners
down)onto the rear bar and push the black rubber plug (F51056) into the
bar. See Figure 7A for correct assembly.
Figure 7
Figure 7A
STEP NINE
Attach the Tether Strap to Limit the Degree of Rotation
• Unfold the tether strap and snap it into the U-bar on the underside of the
table frame. (SeeFigure9)
• The tether strap is adjustable to stop the inversion table at any desired
angle.
STEP EIGHT
Assemble Foot Platform (F51060)
• Slide the foot platform into the bottom of the main shaft and adjust to
desiredheight. (See Figure 8) Refer tothe Owner’s Manual forproper user
settingsbefore use.
• Insertthe Triangle-headknob (F51063)through thepredrilled holesand
tighten.
Figure 8
Hook tether
strap here.
Figure 9
Assembly Instructions #LF5100 Pg. 3

Assembly Instructions #LF5100 Pg. 4

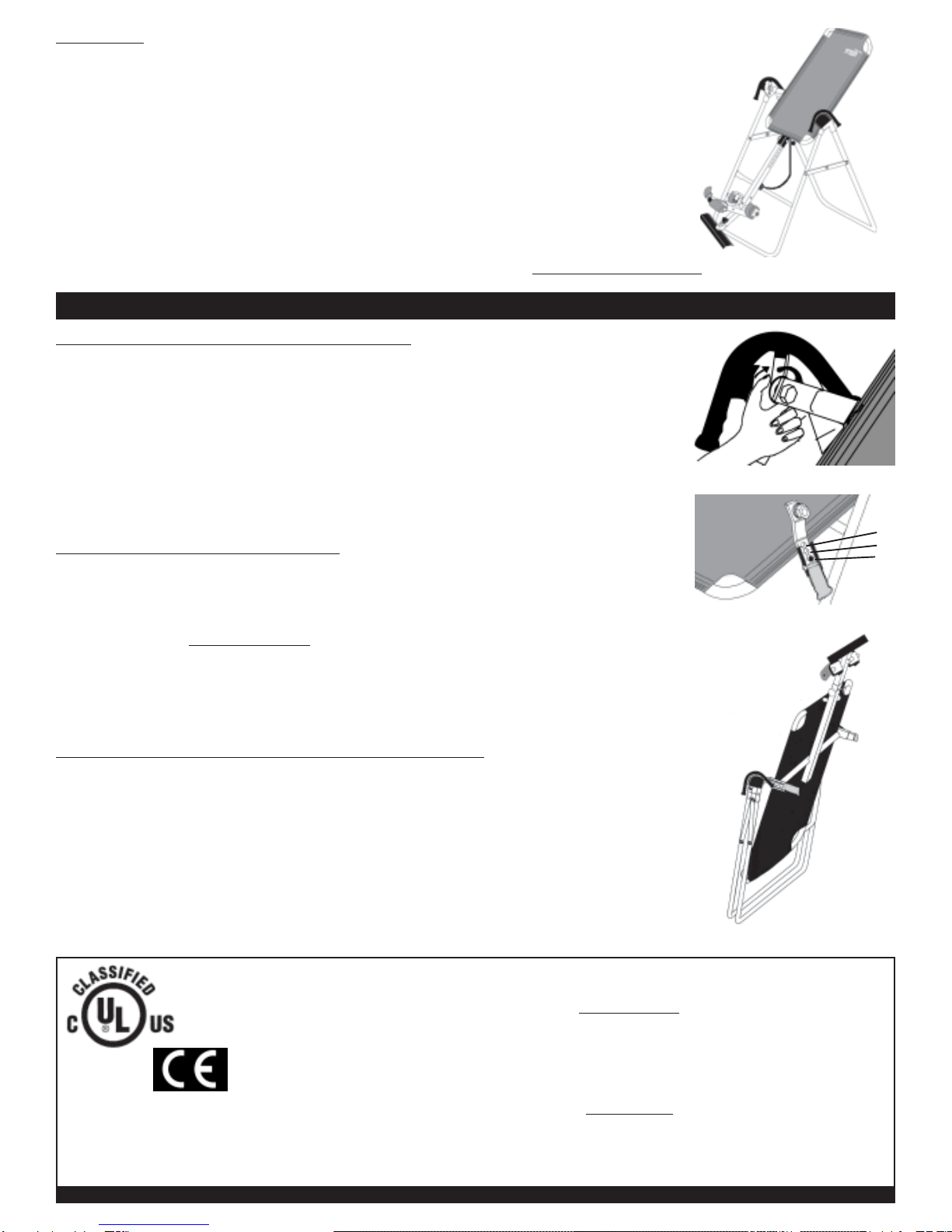

CHANGING THE ROLLER HINGE SETTING
• Stand with your legs on either side of the main shaft.
• Reachunder each rollerhinge with yourindex fingers. Useyour thumbs torelease the
locksover the roller hinges.(See Figure 10)
• Liftboth sides of the tableout of theA-frame at the same time. You may rest the table
onthe crossbar of theA-frame.
• Unlock the cam locks for each roller hinge. Change the roller hinges to the desired
setting (A, B, or C, from most aggressive to least aggressive). (See Figure 11)
• Relock the cam locks. Replace the roller hinges into the hinge plates of theA-frame.
STORING THE INVERSION TABLE
• Loosenthe de-rattler knob.
• Pull the height selector locking pin and slide the main shaft in all the way to the
ankle clamp assembly. Engage the pin in the storage setting.
• Rotate the table opposite from use until the table has turned 180 degrees and rests
against the cross bar on theA-frame.
• The legs of theA-frame base may then be folded together for compact storage.
(See Figure 12). WARNING: This operation may pinch fingers if not done
slowly and carefully.
TABLE MAT: REMOVING / CLEANING / TIGHTENING
• You may find it easier to remove the nylon mat while the table is in its storage position.
• Pull up on the plastic tension clips to loosen the adjustment straps.
• Release one corner at a time, then slide the mat off the frame.
• The mat should be washed in cold on gentle cycle. Replace the mat on the table
frame while still wet.
• If you feel the nylon mat needs to be tightened, pull the adjustment straps on the
back of the mat. Figure 12
For information about the Teeter Hang Ups®5-year warranty, or if you have any problems
assembling the equipment or questions about its use, please contact Customer Service at the
appropriate location below: USA & Canada:
STL International, Inc.
9902 162nd St. Ct. E., Puyallup, WA 98375
Toll Free (Phone) 800-847-0143 (Fax) 800-847-0188
Local (Phone) 253-840-5252 (Fax) 253-840-5757
(email) [e-mail] (web) www.TeeterHangUps.com
International:
Inversion International, Ltd.
PO Box: AP 59245, New Providence Island, Bahamas
(Phone) [phone] (Fax) [phone]
(email) [email protected] (web) www.InversionInternational.com
U.S.andforeignpatentsapply. Otherforeignpatentspending.
TeeterHangUps®isaregisteredtrademarkofSTLInternational,Inc.
andInversionInternational,Ltd.
Specificationssubjecttochangewithoutnotice.
©COPYRIGHT2003,STLInternational,Inc.
InternationalLawProhibitsAnyCopying,11/03-7
Figure 10
Figure 11
* any modification to this device
will void the UL Classification
Classified as Medical
Equipment, part I in accordance
with UL 2601-1 and CAN/CSA
C22.2; General Requirements
for Safety in accordance with
Underwriters Laboratories, Inc.
For additional languages in Spanish, French, Dutch, German, Italian or Portuguese, please contact customer service.
STEP TEN
Testing theAssembly
PRIOR TO USE:
• Test the table by hand for smooth and steady rotation.
• Ensureall fasteners are secure.
You have completed the assembly of your Teeter Hang Ups®Inversion Table.
• Readyour Owner’s Manualthoroughly beforeusingthe inversiontable. Improper
settings could result in serious injury or death.
• For your reference, the table’s serial number can be found at the base of the table
frame on the back.
• Pleasecomplete and mail your warranty card, or submitit on-line at www.teeterhangups.com.
POST ASSEMBLY ADJUSTMENTS 

MAINTENANCE 

