Technogym SELECTION PRO User manual

SELECTION PRO
CONNECTED STRENGTH
LEG CURL
User manual

Leg Curl 2
Contents
Important safety instructions........................................................................................... 3
Personal safety ................................................................................................................... 5
Identication of the manufacturer and equipment ........................................................ 8
Description of the equipment............................................................................................ 9
Technical data....................................................................................................................10
Place of installation ..........................................................................................................11
Fitting the number holder ............................................................................................... 12
Lifting and moving the equipment ................................................................................. 13
Adjusting the equipment.................................................................................................. 15
Routine maintenance.......................................................................................................16
Replacing the padded parts............................................................................................. 17
Replacing the cable...........................................................................................................18
Adjusting the cable tension .............................................................................................20
Removing the rear protective weight stack panel ........................................................ 21
Technical Service ..............................................................................................................23
Storage ...............................................................................................................................24
Disposal .............................................................................................................................25
Using the equipment ........................................................................................................26

Leg Curl 3
Important safety instructions
You should always consult with a qualied and licensed medical professional or healthcare practitioner before starting any nutritional, diet,
stretching or exercise program. You are advised to investigate and inform yourself about any health related actions and choices you make.
Read all instructions before using the equipment. These instructions were written to ensure your safety and to protect the equipment.
Equipment is intended for commercial use.
WARNING
To reduce the risk of injury, take the following precautions.
The products in the Selection range are units of xed weight training equipment units that can be used for body-building or sculpting, physical
activity aimed at keeping in shape, physical education and training for specic competitions and sports.
The equipment must be used by only one user at a time.
Use any equipment only for its intended use as described in the user manual. Only perform the exercises for which the equipment has been
designed, following the instructions given in the manual. Any other use is to be considered improper and therefore dangerous.
Do not use attachments not recommended by the manufacturer.
The equipment must be installed and used in a place in which access and supervision are specically controlled by the owner.
Do not allow unsupervised children close to the equipment.
Close supervision is necessary when any equipment is used by, on or near children or disabled persons.
Never operate any equipment if it has damaged power supply cord, if it is not working properly or if it has been dropped or damaged. In these
circumstances, contact the Technogym Technical Support service.

Leg Curl 4
Important safety instructions
Keep hands away from moving parts.
Never drop or insert any object into any opening.
Do not use outdoors. Do not leave the equipment outdoors, exposed to the elements. Do not expose the equipment to water jets.
The maximum user weight is 397 lb (180 kg).

Leg Curl 5
Personal safety
Completely assemble the equipment before using it.
Maintain the equipment in good working condition.
Before each use check the equipment, check that the cable is correctly routed inside the races of all the pulleys and the state of wear of the
cable. If there are signs of wear, contact the Technogym Technical Support service.
Do not continue to operate the equipment when it is not working properly.
Do not attempt to service the equipment yourself other than the maintenance instructions found in the user manual.
Assemble and operate the equipment on a solid, level surface.
Do not put anything on the frame.
Use of the equipment is subject to a medical examination in relation to the intended type of exercise, and compliance with the conditions of
use indicated by the manufacturer.
Persons suering from certain physical conditions may only use the equipment under the strict supervision of a specialist doctor.
Before starting an exercise, make sure your position on the equipment is correct, and be careful with any components that might constitute
an obstruction.
Wear proper exercise clothing and shoes during a workout: no garments that impede perspiration and no loose clothing. Tie long hair back. Keep
garments or towels away from moving parts.
Choose suitable exercises for your physical characteristics and state of health, starting with light loads.
Do not overexert yourself or work to exhaustion. If you feel any pain or abnormal symptoms, stop your workout immediately and consult your
physician.
Make sure that the load selection pin is fully inserted. Use only the pin provided by the manufacturer. Contact the sta for any questions.
Only remove the pin when the weight stack is in the rest position. The weight stack is in the rest position when both the weights and the
crosspiece are not in the air. If the weight stack is not in the rest position, contact oor sta and do NOT use the equipment.

Leg Curl 6
A
Personal safety
The weight stack is covered externally with protective panels. Do NOT use the equipment is even only one of them is missing.
The instruction label must be applied on each piece of equipment. Technogym declines all responsibility in the event of the equipment being
used before the instruction label has been axed.
When the equipment is being used, DO NOT use the adjustment lever (A), DO NOT make
the adjustment.

Leg Curl 7
Personal safety

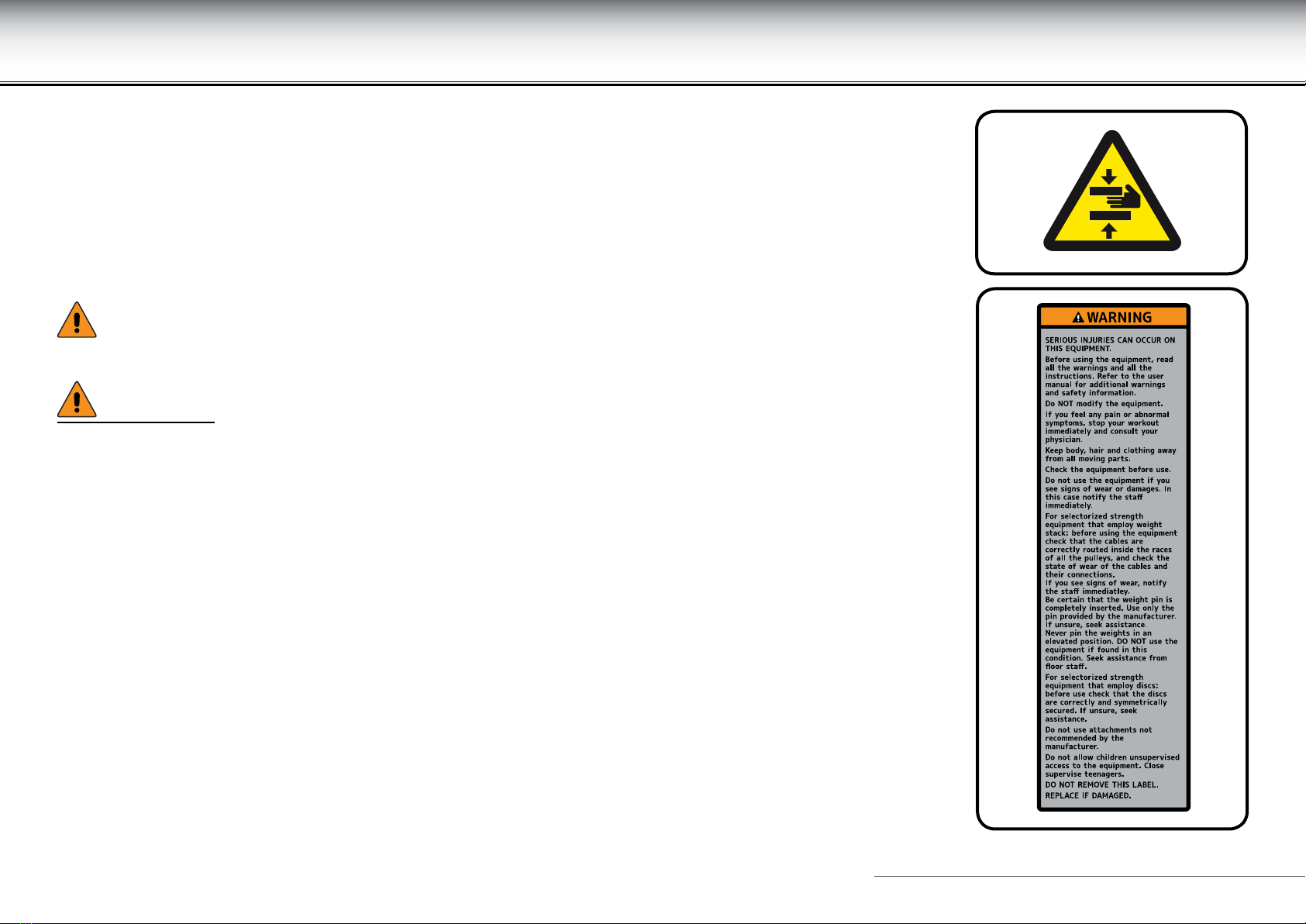

Pay particular attention to the parts of the equipment with labels indicating “BEWARE OF CRUSHING”.
This symbol accompanies safety warnings. It is used to draw attention to potential risks of personal
injury. Pay attention to all safety warnings accompanied by this symbol to avoid possible injury.
WARNINGS
During all operations involving transport, maintenance and cleaning, pay attention to any part of
the equipment where body parts may become trapped.
Attention must be paid to the labels attached to the equipment, as they provide information about
possible risks and hazards.
We recommend immediately replacing the labels when they become damaged or dicult to read.
Technogym is not responsible for any damage due to any failures or damage caused by unauthorized
service, misuse, accident, negligence, improper assembly or installation, debris resulting from
construction activities in the product’s environment, rust or corrosion as a result of the product’s
location, alterations or modications without Technogym’s written authorisation or for failure on your
part to use, operate and maintain the products as set out in this User Manual.

Leg Curl 8
A
B C F
E
D
Identication of the manufacturer and equipment

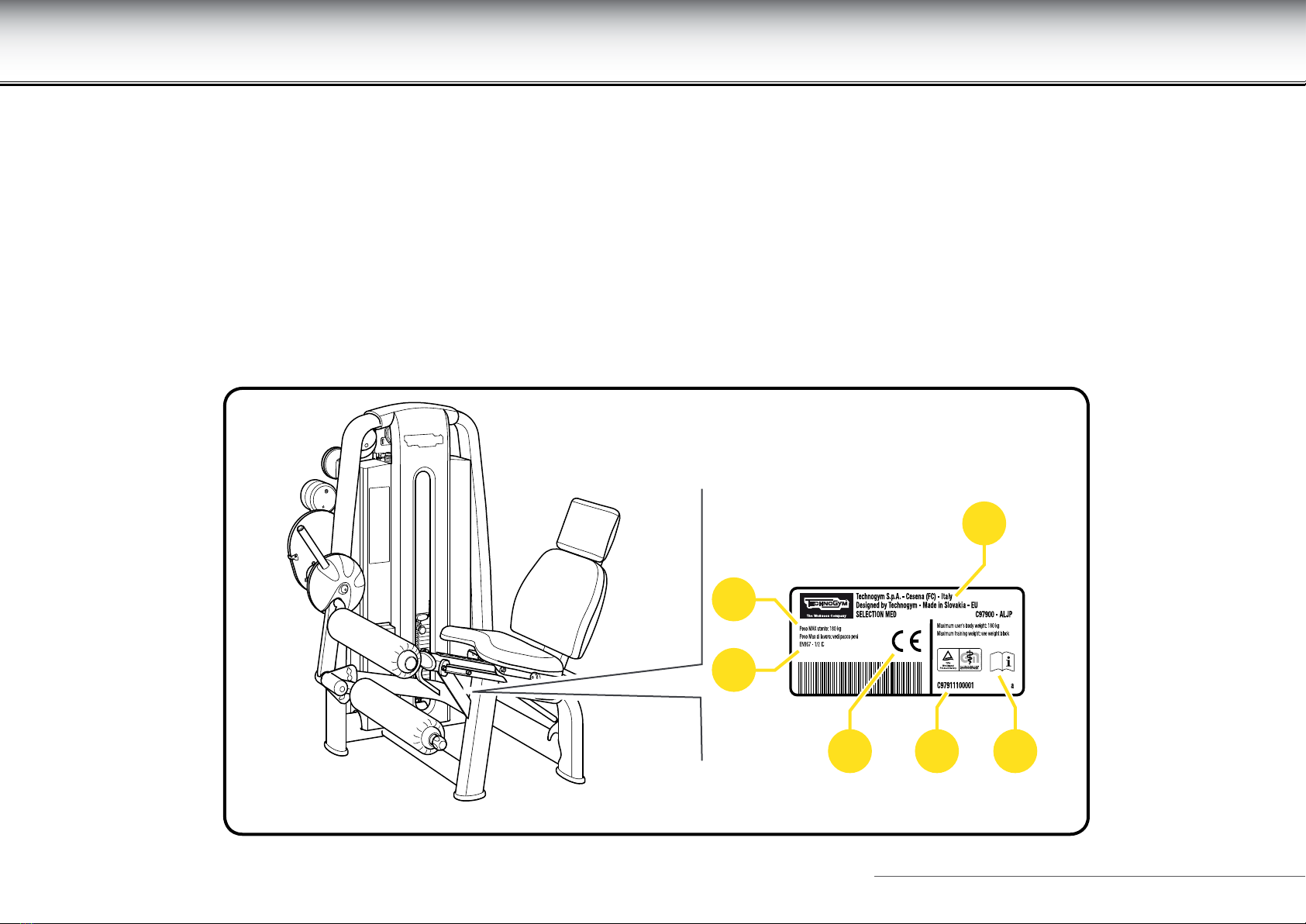

The equipment and manufacturer identication plate, axed on the right side of the seat, gives the following details:
AManufacturer's name and address
BCE Mark
CSerial number
DMaximum user weight
EEquipment classication
FConsultation of user manual required

Leg Curl 9
E
L
G
B
C
D
A
I
F

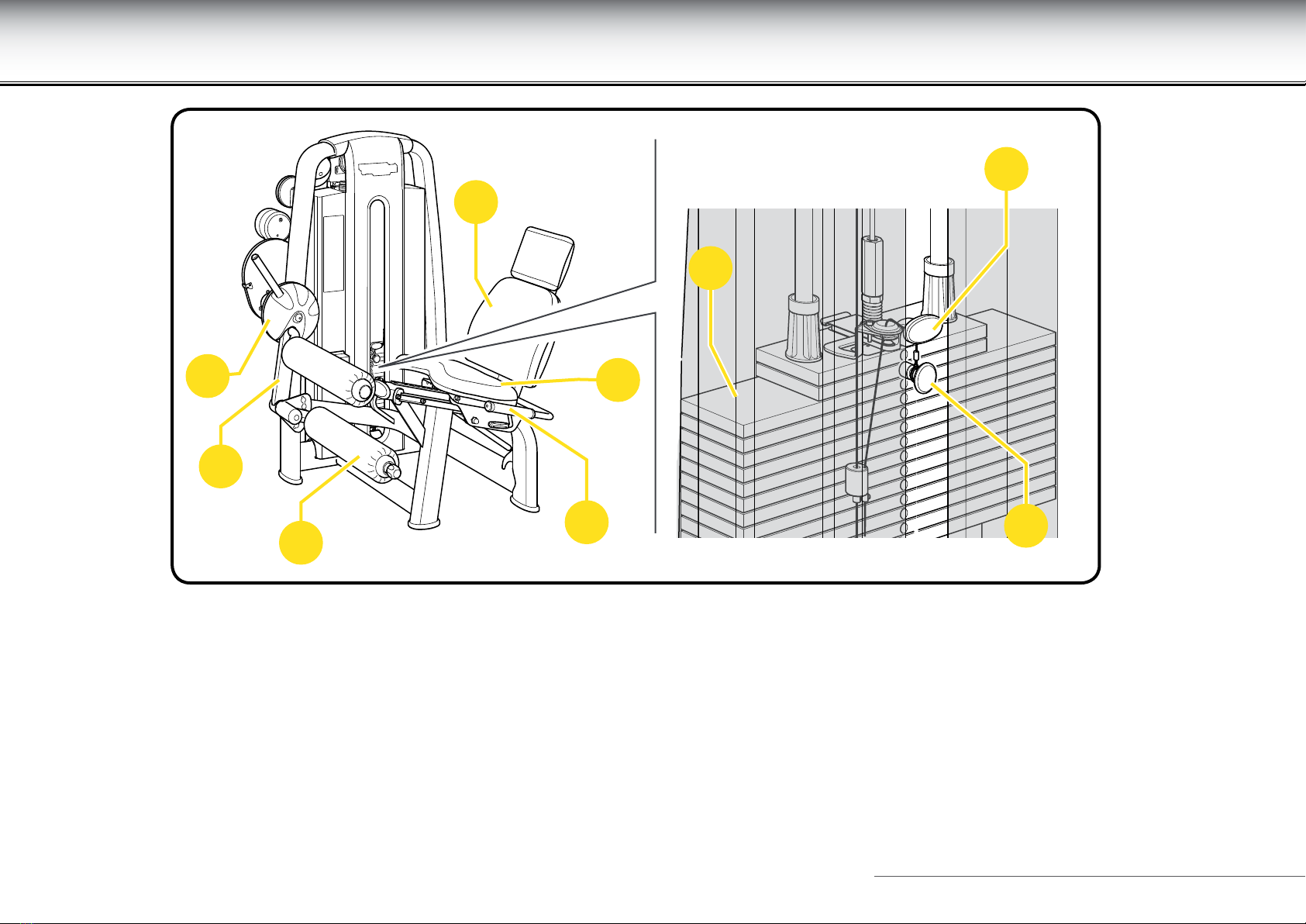

Description of the equipment
A Seat: where the user sits to perform the exercise. It has a backrest (G).
B Exercise lever: operated by the user by means of the roller (D).
C ROM device: allows the starting position to be adjusted, therefore the Range of Motion.
E Weight stack: lever (B), operated by the user, moves the weights along two guide rails by means of a cable. A pin (I) is used to select the
workload, to adjust the exercise eort level. The cursor (L) is used to vary the selected workload by 2.5 kg.
F Side handgrips: the user can enhance the comfort by holding them during the exercise.

Leg Curl 10
260 kg (573 lb) + 290 kg (639 lb)
95 kg (190 lb) + 125 kg (250 lb)
1070 mm (42")
1130 mm (45")
1410 mm (56")
1485 mm (59")
Technical data

Leg Curl 11
Place of installation
To ensure safe, comfortable and eective use of the equipment, the place of installation must comply with certain specic requirements; in
particular, before choosing where to install the equipment we recommended that you check that the following conditions are available:
- a temperature between +10°C and +25°C;
- sucient ventilation to maintain a humidity level between 20% and 90%, when the equipment is in use;
- sucient lighting to make the area a safe and relaxing place to exercise;
- sucient clearance on all sides of the equipment, taking into account its maximum dimensions when in use, to ensure safety;
- a at, stable and vibration-free oor surface, with sucient load bearing capacity for the equipment’s weight.
If the equipment is to be installed in a public recreation area, the place of installation must comply with all the requirements of the regulations
currently in force.
WARNINGS
The equipment must be installed and used in a place where access and supervision are specically controlled by the owner.
When installing the equipment, use suitable personal protective equipment.

Leg Curl 12
A A
B
C
Fitting the number holder
Standing facing the equipment, attach the number holder on the left, on the cover of
the weight pack guide rail.
Proceed as follows to apply the number holder:
- Remove the cover (A).
- Find the place (B) where the two screws are to be inserted.
- Use a drill to complete the holes.
- Ret the cover (A).
- Attach the number holder using the two screws (C).
The number holder is optional.

Leg Curl 13
A
Lifting and moving the equipment
Snap-on castors (optional) must be used to move the equipment.
WARNINGS
Move the equipment very carefully, because it may become unstable and tip over.
Do not use the equipment with the castors tted. The castors are to be used only for
moving the equipment and must be removed before exercising on it.
The castors for moving the equipment snap on under the feet of the equipment, after
it has been raised, and are held in place by the special straps.
Raise the equipment on the weight stack side, using a pallet truck or fork-lift truck;
and for greater safety place a wedge under the frame to keep the equipment raised.
Insert the two xed castors rst on one side and then on the other side of the weight
stack: t castor stems (A) into the holes provided under the equipment feet, then push
hard until they snap in.
WARNINGS
We recommend placing padded material between the frame and the wedge and
between the frame and the machinery used to lift it.
The xed castors must always be placed underneath the weight stack.

Leg Curl 14
Lifting and moving the equipment
Proceeding in the same way, lift the equipment on seat side and insert the swivel castors.
Lastly, lift the equipment again, remove the safety wedges and place the wheels on the oor.
WARNINGS
When moving the equipment, we recommend pushing it only from the weight stack side, and not from any other side.
When lifting the equipment, do not press against the weight stack guard.
Do not use the adjustment lever to try to move the equipment: because it may cause DAMAGE and become unstable.

Leg Curl 15
A
Adjusting the equipment
The equipment must be level for proper operation.

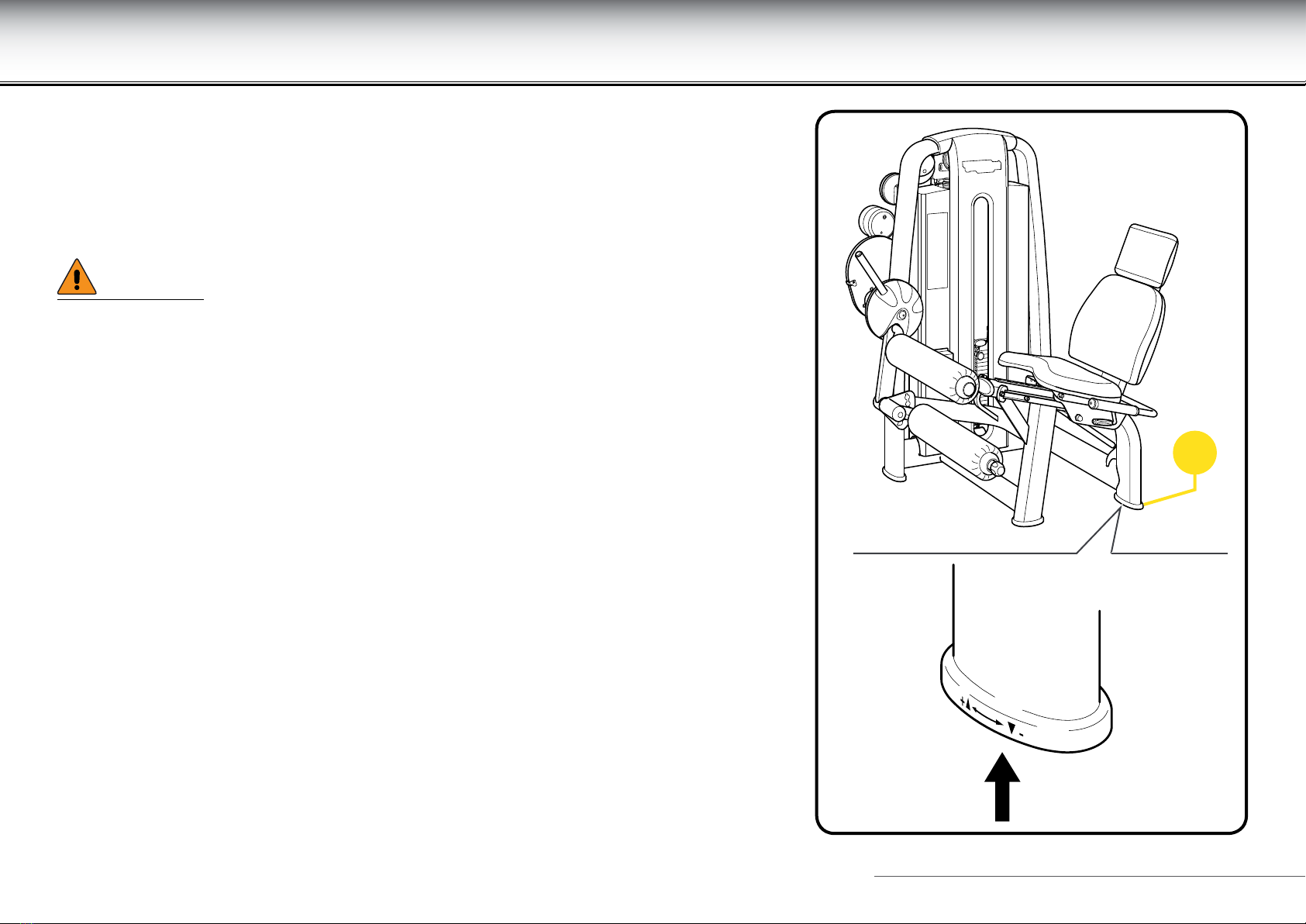

If necessary, use the adjuster screw located under foot (A), clearly indicated by two
raised arrows.
Raise the equipment and adjust the screw until the equipment is level.
WARNING
Given the weight of the equipment, we recommend that it should always be lifted
by more than one person.

Leg Curl 16
Routine maintenance
WARNINGS
The safety of the equipment is assured only on the condition that it is carefully inspected every two weeks for any signs of damage and/or wear.
Replace defective and worn components immediately, or alternatively remove the equipment from service.
The equipment should always be kept clean and free of dust, in compliance with good hygiene practice, especially if it is used in a gym or by
more than one person.
Use a moist cloth or a sponge and mild soap to clean the padded parts.
Wipe the outside of the equipment every week using a damp sponge.
Do not use chemicals or solvents.
WARNING
Be careful not to rub too hard on the drawings and instructions shown on the labels.
Call in the Technogym Technical Support Service for instructions on any maintenance operations not described in this manual.

Leg Curl 17
A
A
DB
C
D
Replacing the padded parts
If any of the padding shows signs of wear, especially in the interests of hygiene, we recommend replacing them completely.
To replace the seat padding, unscrew the screws located on the opposite side of the padding..

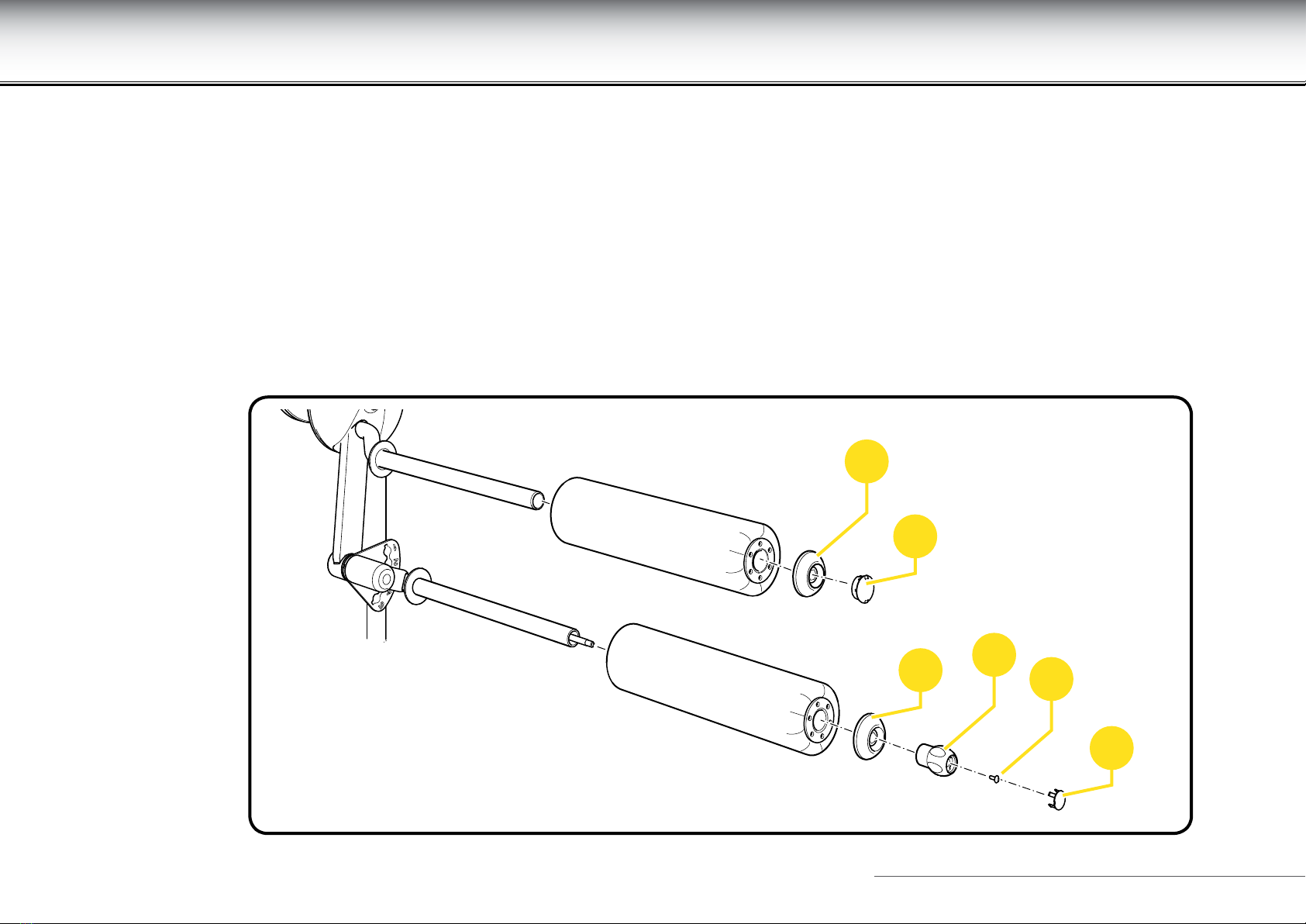

Proceed as follows to replace the rollers:
- remove the cap (A);
- unscrew the screw (B), inside the knob (C), in the lower roller;
- unscrew the caps (D);
- remove the rollers.

Leg Curl 18
A
B
C
Replacing the cable
Cables must always be replaced at the rst sign of wear, even if only the outer rubber
protection is worn.
WARNINGS
Carefully check the state of the cables once a month.
ALWAYS use cables supplied directly by Technogym.
To replace the cable, you must:
- remove the rear protective weight stack panel;
- unscrew screws (A);
- loosen lock nut (B) and loosen adjuster (C);
- remove the weight stack cable from adjuster side;

Leg Curl 19
A
B
C
Replacing the cable
- insert the new cable from the adjuster side (ensuring that it follows the same route
as the original cable, as shown in the illustration);
- tighten screws (A);
- screw in adjuster (C) and screw on lock nut (B);
- ret the protective panel on the weight stack.

Leg Curl 20
A
B
C

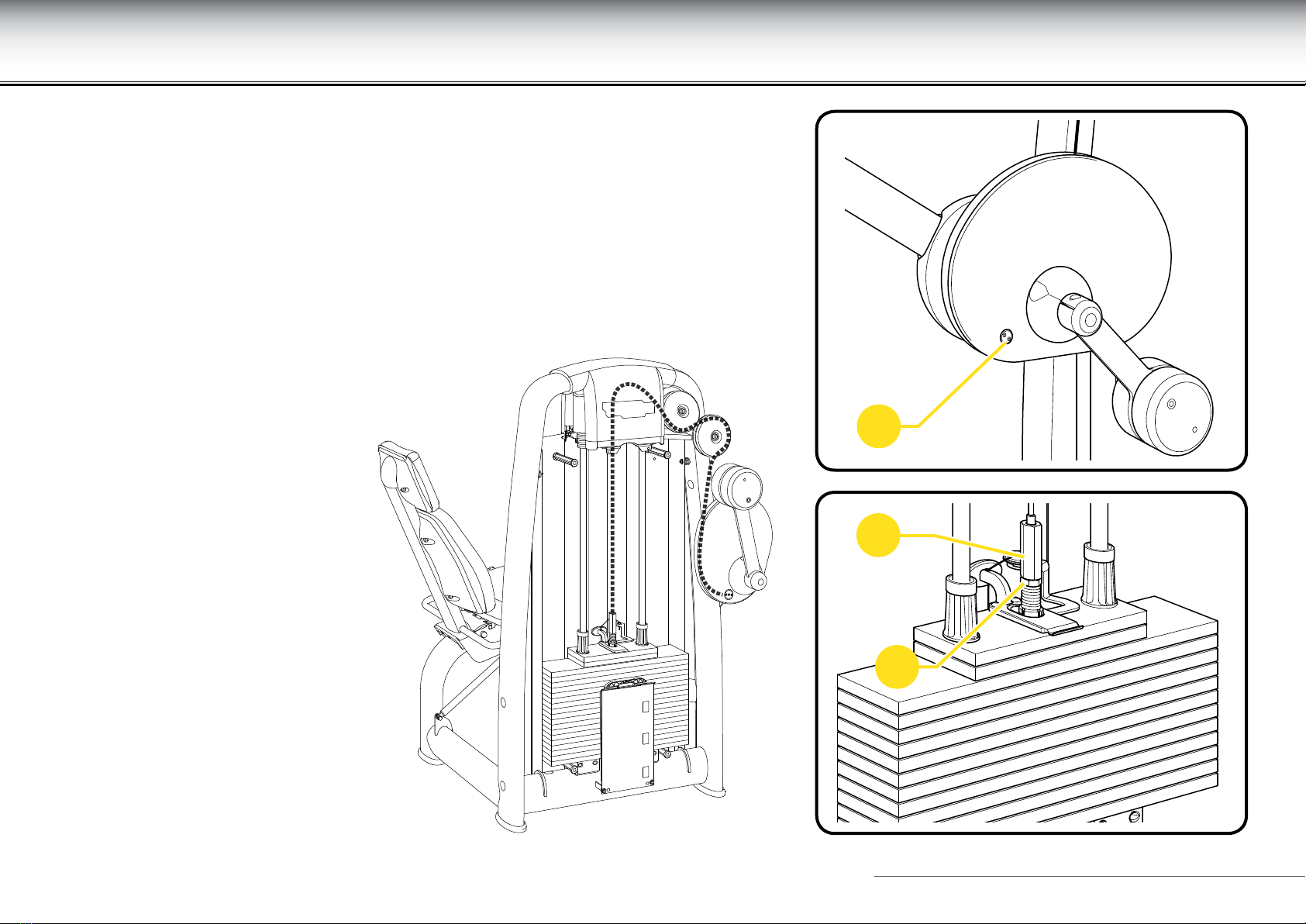

Adjusting the cable tension
Use the adjuster (C) to adjust the tension of the weight stack cable:
- loosen the locknut (B);
- tighten or loosen the adjuster (C) to correctly adjust the cable tension;
- tighten the locknut (B).
WARNING
To pull the cable taut after replacement, it may be helpful, when tightening the
screws (A), to insert a thickness of approx. 10 mm (1/2”) under the rst weight in
the weight stack.
