Teguar TM-5557-22 User manual

FANLESS
TM-5557-22
Medical Panel PC

Table of Contents
2
Table of Contents
Table of Contents ..................................................... 2
General Information................................................ 3
Safety and Maintenance ........................................... 4
Regulatory Information ........................................... 6
Product Overview .................................................... 8
Package Contents ..................................................................8
Features ................................................................................8
Font View .............................................................................. 9
Top View ............................................................................... 9
Bottom View......................................................................... 10
Left and Right Views............................................................. 11
Rear View ............................................................................. 12
Switching On the Device.......................................... 13
Specications.......................................................... 14
Dimensions .......................................................................... 15
22" Medical Panel Computer | TM-5557-22
Healthcare Workstation Computer

3
General Information
General Information
Revision History
Date Version Updates
2018/09 1.0 First Release
Trademark Recognition
All product names and trademarks used in this user’s guide are properties of their
respective owners.
Intended Use
Thank you for choosing the TM-5557-22 unit. This device is intended to serve as a
display in a healthcare institution for general use by the medical personnel. It can be
mounted on the wall, placed on the medication cart, or any other flat surface for easy
access and control.
IMPORTANT! In critical diagnostic decision making the images displayed by
TM-5557-22 will not replace a healthcare provider’s professional judgment or
clinical diagnosis.
22" Medical Panel Computer | TM-5557-22
Healthcare Workstation Computer

Safety and Maintenance
4
Safety and Maintenance
To avoid any damages caused by improper usage, please read the following information
carefully before you start using your medical panel PC.
Electrical and Power Source Related Hazards
●Use only the power supply and power cord included with your device.
●Ensure your electrical outlet is the same voltage and frequency as shown on the
power supply. If you are not sure what type of power supply used in the area, ask a
local power supplier.
●Do not overload your wall outlet, extension cord, power strip, or other electrical
receptacle. Ensure these are rated to handle the total current drawn by your device.
●Ensure to route the power cord properly to prevent people from stepping on the
cords.
●For your safety, avoid touching the plug if your hands are wet.
●Hold the power cord by the plug when disconnecting it from the electrical outlet.
●If the device is not going to be in use for an extended period of time, disconnect the
device from the electrical outlet.
● Allowing foreign objects or liquids to enter the device could result in re or electric
shock.
Environmental Related Hazards
●Do not use the device under the following conditions:
– In extremely hot, cold or humid environments. For more information, please
refer to page 14.
– In areas susceptible to excessive dirt, dust, fumes, or steam.
– In direct sunlight or heat generating sources.
Disposal of the Battery
● Most rechargeable lithium polymer batteries are classied as non-hazardous waste
and can be safely disposed of in accordance with normal urban waste disposal
procedures. In many areas, laws have been enacted to require the recycling of
batteries. Please conrm local regulations to ensure that rechargeable batteries can
be disposed of as normal waste. To safely discard lithium polymer batteries, protect
the battery terminals with packaging, covering, or electrical insulation tape to avoid
contact with other metals and transport without causing a re. However, lithium
polymer batteries do contain recyclable materials and can be recycled according to
22" Medical Panel Computer | TM-5557-22
Healthcare Workstation Computer

5
Safety and Maintenance
the Rechargeable Battery Recycling Corporation (RBRC) battery recycling program.
It is recommended that you visit Call2Recycle at call2recycle.org for information;
users in North America can call 1-800-BATTERY for a convenient recycling location.
Do not throw the battery into a re to avoid an explosion.
Other Hazards
●Do not block the ventilation openings on top of the device.
●Do not use the device if it has been dropped, power supply cord or plug has been
damaged, liquid has been spilled on to the device, device has been exposed to rain or
moisture, or other physical damage has occurred.
Caring for Your Device
●Turn off and unplug the power cord from the electrical outlet before cleaning the
device.
●Please use PDI detergent wipe or similar product to clean the screen/panel service.
●Do not use any acids or cleaning alkali liquids as this may cause cosmetic damage.
22" Medical Panel Computer | TM-5557-22
Healthcare Workstation Computer

Regulatory Information
6
Regulatory Information
Your medical panel PC conforms to the following regulations and standards:
Federal Communication Commission (FCC):
●PART 15B Class A
●PART 15C, BT
●PART 15C, WLAN 2.4G
●PART 15E, WLAN 5G & DFS Slave
●RF exposure
● Short-term-condentiality
●FCC ID
For users in China:
●SRRC ●CEL test and registration
●CCC
CE medical standard:
●Medical_EMC_IEC60601-1-2:2014+
●ANSI/AAMI_60601-1-2
●CAN/CSA-C22.2 No. 60601-1-2
●CB scheme for safety_IEC 60601-1:2005+AMD1:2012 CSV/COR1:2012
●USTC Q mark_safety_ANSI/AAMI ES60601-1:2005 + A1:2012, C1:2009
●A2:2010+CAN/CSA-C22.2 No. 60601-1:2014
22" Medical Panel Computer | TM-5557-22
Healthcare Workstation Computer

7
Regulatory Information
Safety
●cSGSus (60950-1) / option 2
Energy star 7.0 and CEC computer
HDMI
●HDMI Out: HDMI2.0
●HDMI In: HDMI1.4a
IP65
22" Medical Panel Computer | TM-5557-22
Healthcare Workstation Computer

Product Overview
8
Product Overview

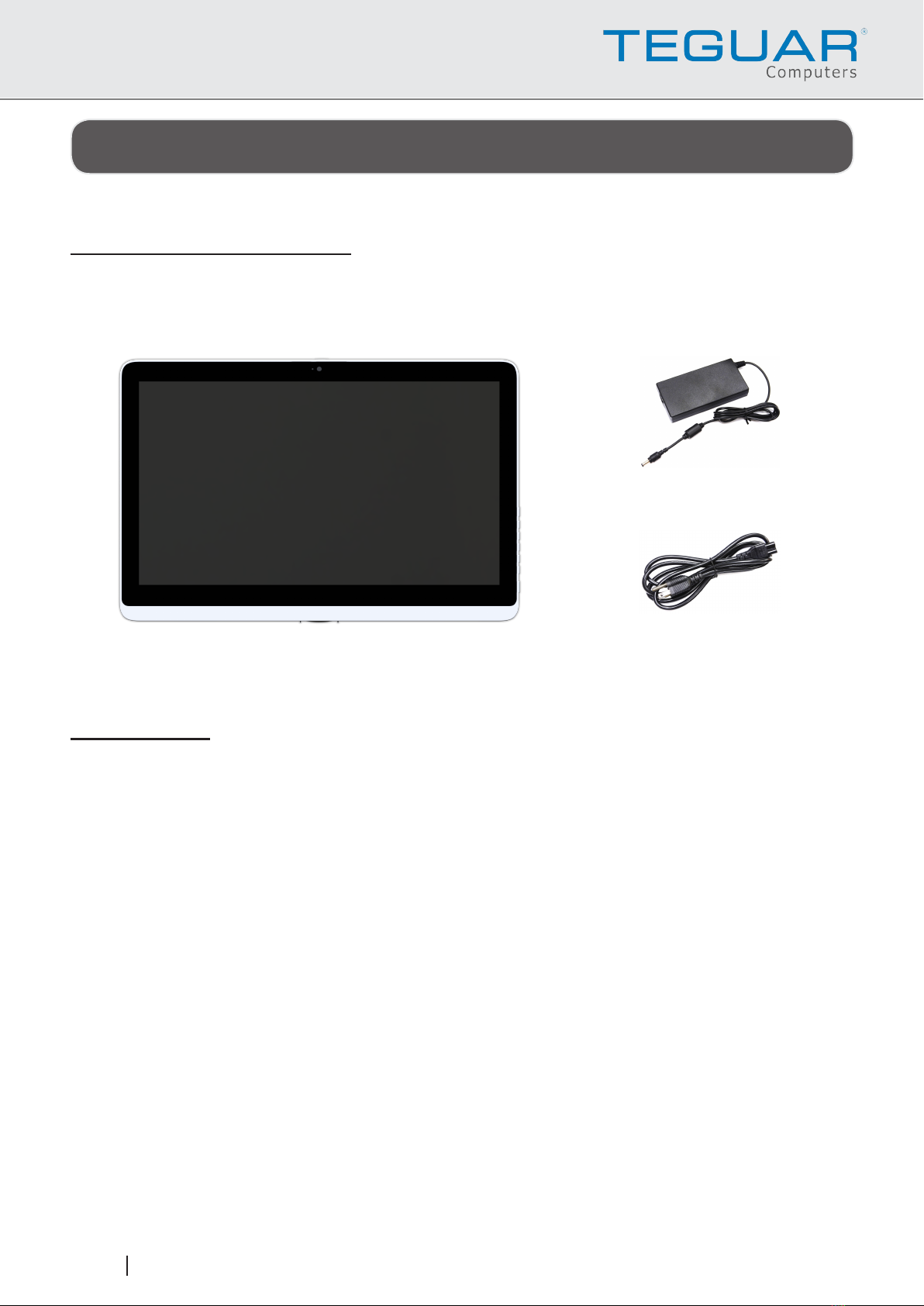

Package Contents
Before using your medical panel PC, ensure all of the following items are included in the
package. If any of the items are missing or are damaged, please contact your dealer.
AC Adapter
TM-5557-22 All-In-One Medical Panel PC Power Cord
Features
Device features include:
●Ultra slim (45 mm/1.8 in) fanless all-in-one design
●With battery 6.2kg/2.81lbs, without 5.8kg/2.63lbs.
●IP65 and antibacterial plastic housing at the front
●Up to Intel®Core™ i7 processor
●SSD M.2 as 2nd storage
●10 point projected capacitive (PCAP) multi-touch display with glove support
●Webcam with security cover and integrated microphone
●Stereo speakers
●Standard VESA mounts
●Versatile I/O interface
●Reading light
22" Medical Panel Computer | TM-5557-22
Healthcare Workstation Computer

9
Product Overview

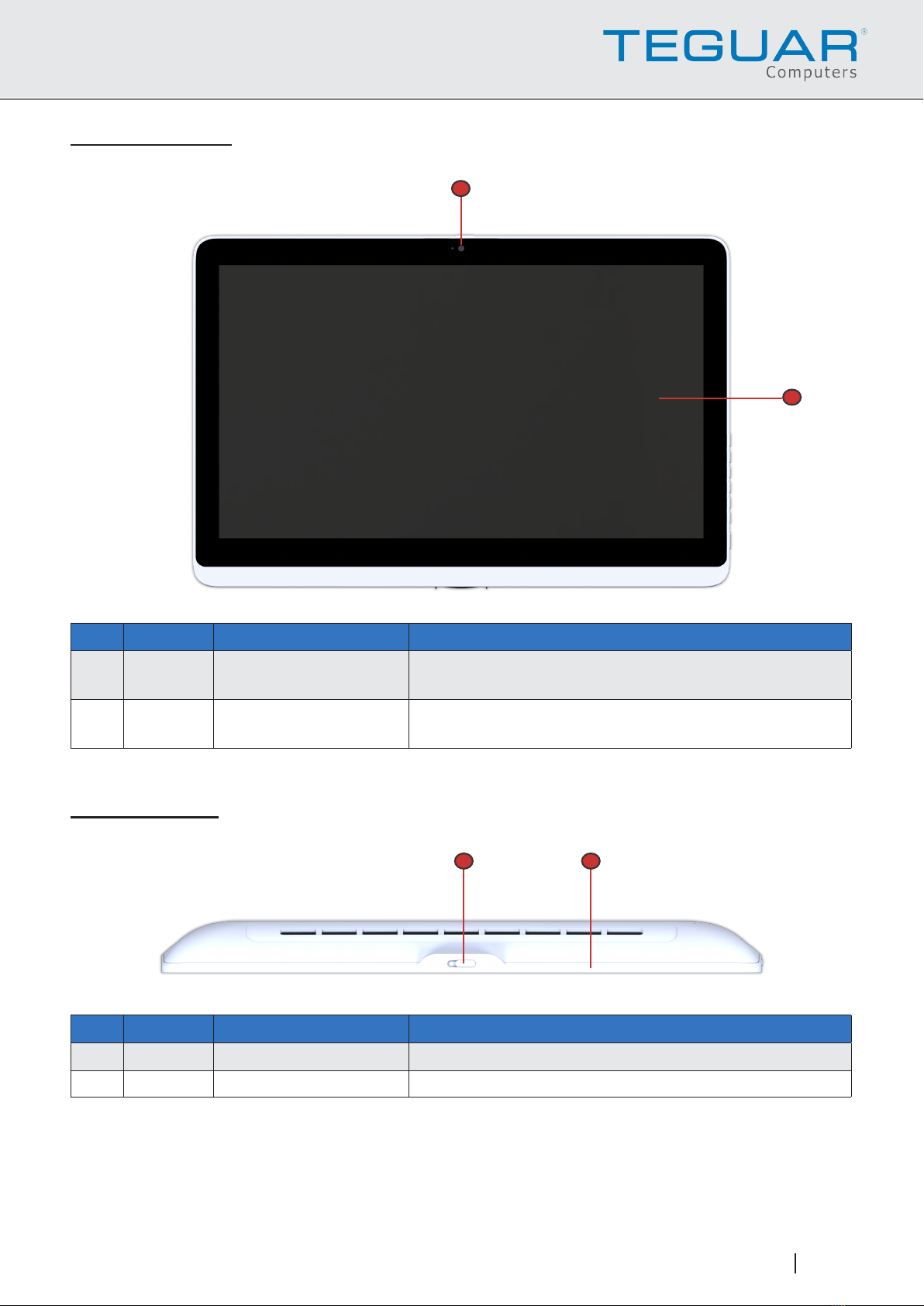

Font View
1
2
No. Icon Item Description
1 Webcam Use camera to capture images, record videos, or
hold a video conference.
2 Touchscreen 10 point projected capacitive multi-touch display
with glove support.
Top View
1 2
No. Icon Item Description
1Webcam Security Cover Slide to cover or uncover the webcam lens.
2 Antibacterial Coating Ensures a bacteria-free surface.
22" Medical Panel Computer | TM-5557-22
Healthcare Workstation Computer

Product Overview
10
Bottom View
1
3
2
45
6
7
8
9
10
11
NOTE: The bottom view is displayed with the cable management cover removed.
No. Icon Item Description
1 Speakers Stereo audio output.
2 Reading Light Helps illuminate work areas.
3Reading Light Switch Toggle reading light on/off.
4(2) USB 2.0 Ports
(optional) Connect USB 2.0 compatible devices.
5(4) Serial Ports
(optional) Connect RS-232 compatible devices.
6 DC-In Jack Power input from the supplied AC adapter.
7 (2) LAN Ports Connect to a Local Area Network (LAN).
8 HDMI In Port Auxiliary HDMI compatible audio device or video
monitor input.
9 (4) USB 3.0 Ports Connect USB 3.0 compatible devices.
10 HDMI Out port Auxiliary HDMI compatible video monitor output.
11 Audio Combo Jack External audio output.
22" Medical Panel Computer | TM-5557-22
Healthcare Workstation Computer

11
Product Overview
Left and Right Views
1
6
7
8
2
5
3
4
No. Icon Item Description
1 USB 2.0 Port
Connect USB 2.0 compatible devices.
NOTE: To use the USB port, open the port cover
rst.After using, replace the cover.
2Screen Button Toggles only the display on/off.
3Menu Button Toggles the OSD menu open/close.
4Up Button OSD menu selection and parameter adjustment.
5Power Button with
LED
●If illuminated green, toggle to enter/exit sleep
mode.
NOTE: To shut down the device, press Start
>Power > Shut down.
●Otherwise, press to power on.
6Down Button OSD menu selection and parameter adjustment.
7Enter Button Press to conrm OSD selection.
8Source Button Video input source selection allows proper device
ventilation.
22" Medical Panel Computer | TM-5557-22
Healthcare Workstation Computer

Product Overview
12
Rear View
1
2
3
4
No. Icon Item Description
1 Ventilation Slots
Allows proper ventilation of the device.
WARNING! To prevent overheating, do not
block ventilation slots.
2 Screw holes for VESA mounting installation.
3Cable Management
Cover Use for cable management.
4 Cable Guide Use for securing the AC adapter cable.
22" Medical Panel Computer | TM-5557-22
Healthcare Workstation Computer

13
Switching On the Device
Switching On the Device
To start using your medical panel PC, do the following:
1. Connect the power cord to the AC power adapter.
2. Remove the cable management cover.
3. Connect the AC adapter to the DC-in jack on the panel PC’s bottom, and secure the
cable to the cable guide as illustrated.
4. Connect the power cord to an electrical outlet.
5. Press the Power button on the right side of the device. The Power button is
illuminated green.
Your medical panel PC is ready to be used.
22" Medical Panel Computer | TM-5557-22
Healthcare Workstation Computer

Specications
14
Specications
The following table includes all the features and operational requirements regarding
your medical panel PC.
Item Description
Size / Resolution 21.5” W FHD screen
Dimension (W x H x L)
●529.8 mm x 346.7 mm x 45 mm
●20.9 in x 13.6 in x 1.8 in
NOTE: Please refer to page 15.
Weight ●5.95 kg
●13.1 lbs
Processor Intel Kabylake-U
Touch Feature 10 point PCAP multi-touch display with glove support
Graphics Integrated Intel Graphics
Memory (2) DDR4 slots, up to 32G
Network (2) Intel GbE LAN
Wireless Wi 802.11 a/b/g/n/ac + Bluetooth 4.2
Trusted Platform
Module (TPM) Yes
Audio (2) Speakers 2W
Webcam 2M webcam with digital microphone
Storage SATA 3.0, 2.5” HDD/SSD
2nd Storage M.2 SSD
Internal Battery Life 30 minutes ~ 2 hours
I/O Ports
●(4) USB 3.0 ●(1) Audio Combo
●(1) HDMI Out ●(1) USB 2.0
●(1) HDMI In ●(4) Serial Ports (optional)
●(2) LAN (RJ45) ●(2) USB 2.0 (optional)
●(1) DC-In
Adapter Input: 100-240V~1.5A 50/60Hz Output: 19V/4.7A, max. 90W
(Medical Adapter)
IP Rating IP65 front panel
On-Screen Display (OSD) Yes
Antibacterial Housing Yes
Thermal Solution Fanless housing
VESA Wall Mount 75 mm, 100 mm
Temperature ●Operational: 0°C~40°C (32°F~104°F)
●Storage: -20°C~60°C (-4°F~140°F)
Humidity 10%~90% @40°C non-condensing
22" Medical Panel Computer | TM-5557-22
Healthcare Workstation Computer

15
Specications
Item Description
Operating System Windows 10 (optional)
Safety and Certications
●IEC60601-1:2005+A1:2015
(Ed.3.1) ●ANSI/AAMI 60601-1-2
●IEC60601-1-2:2014 (Ed.4.0) ●CAN/CSA-C22.2 No.60601-1-2
●IEC60601-1-6:2010+A1:2013
(Ed.3.1)
●CAN/CSA-C22.2 No.60601-
1:14
●ANSI/AAMI ES60601-
1:2005/A1:2012 and
C1:2009/(R)2012 and
A2:2010/(R)2012
●UL60950-1
Optional Accessories
●Radio-Frequency
Identication (RFID) ●Barcode scanner
●Card reader ●Magnetic Stripe Reader (MSR)
Other Features ●Reading light
●Camera privacy latch
Dimensions
45mm
529.8mm
346.7mm
22" Medical Panel Computer | TM-5557-22
Healthcare Workstation Computer
