Tekram Technology P5m4m User manual

MAINBOARD
Installation Guide
Rev: 1.01H
Date: April - 99
∗All other product names are trademarks or copyrights of their respective
owners.
∗Specifications and information contained in this manual are subject to change
without notice.

Installation Guide
2
Table of Contents
INTRODUCTION.............................................................................. 3
Product Description ........................................................................................3
Features & Specifications................................................................................4
Package Checklist...........................................................................................5
Board Level Feature........................................................................................6
Comprehensive Mainboard View....................................................................8
INSTALLATION................................................................................ 9
Installing the CPU ..........................................................................................9
Setting the Jumpers.......................................................................................10
Connections..................................................................................................14
Installing the Memory Modules (DIMM)......................................................26
Installing the Support Drivers and Utilities...................................................27
SOFTWARE SUPPORT................................................................. 30
Mainboard BIOS...........................................................................................30
Flash BIOS Programming Utility..................................................................31
Symbios SCSI Configuration Utility..............................................................32
DMI Utility...................................................................................................32

Installation Guide 3
INTRODUCTION
Product Description
Designed as a flexible, high-performance and cost-effective solution for System
Integrators and End Users alike, this mainboard provides the power and
expandability to meet the requirements of the most advanced operating systems
and software applications.
This mainboard is designed to provide Pentium –based (FSB 100MHz) system by
utilizing the VIA Apollo MVP4 AGPset on Micro-ATX Platform. By
incorporating such advanced features as Super I/O, AC97 audio, Ultra DMA/66
Bus Mastering IDE, Universal Serial Bus (USB) and Hardware Monitoring onto
the mainboard, optimum system performance is assured and system design and
implementation is simplified.
Fully “Plug & Play” compatible via an Award BIOS, this mainboard facilitates
easy system configuration and peripheral setup. Also, the Award BIOS supports
ACPI Readiness and is compatible with the PC’98 specification. This mainboard is
the ideal foundation for high-end computer systems.

INTRODUCTION
Installation Guide
4
Features & Specifications
Processor ZIF socket 7 support AMDK6-2 / K6-3 up to 500 MHz,
INTELPentium MMX up to 233 MHz
Chipset VIA Apollo MVP4 AGPset
BIOS Award BIOS, support DMI, Green PC, Plug-and-Play, ACPI,
Boot from CD-ROM, LS-120 120MB F.D.D.., ZIP Devices
Support SymbiosSCSI BIOS
Anti-virus BIOS for prevention against boot-virus
System Memory 3×168-pin DIMM Sockets up to 768 MB SDRAM Memory
Capacity
Support 8/16/32/64/128/256 MB Memory Module
ECC Supported
On-board I/O
Features 1×Floppy Port ( LS120) 2×USB Ports
1×Parallel Port (EPP, ECP Port) 1×IrDA TX/RX Header
1×Serial Port (16550 Fast UART Compatible)
1×Serial Header (16550 Fast UART Compatible)
1×Internal Keyboard Header
1×MIDI/Game port
1×Audio Jacks: Line Out, Line In, and Mic. In
1×Video Port
Advanced
Features 1. AGP 3D Graphics and AC97 Audio on board
2. Wake-up on LAN
3. Modem Ring-in Remote Power on
4. Hardware Monitoring (Fan, Temperature, Voltage)
5. Xstore Pro IDE Bus Master Software Driver (*)
6. Anti-Virus PC-Cillin Software (*)
PCI Bus Master
IDE 2×PCI Bus Master IDE Port
UltraDMA/66 Mode up to 66MB/s transfer rate
Power
Connector 3V, 5V and 12V 20-pin ATX 20-pin Power Connector
Expansion Slots 4×32-bit PCI Slots, 1×16-bit ISA Slots
Switching VR Switching Voltage Regulator to support 1.3V to 3.5V
Form Factor Micro-ATX Size (7.7” x 9.6” or 200mm x 245mm)

INTRODUCTION
Installation Guide 5
Remark:
The XStore Pro IDE Driver enhances memory management by working with the
Windows 95/98 operating system, resulting in higher system performance by
implementing "read-ahead caching after seeking". This is especially effective with
the large block sizes of modern hard disks.
PC-cillin anti-virus software provides a powerful defense against viruses to
protect data integration.
Package Checklist
Your mainboard package should include the items listed below. Damaged or
missing items should be reported to your vendor.
þThe mainboard
þFloppy disk ribbon cable
þIDE ribbon cable
þThis Installation Guide
þBIOS, Driver & Utility Guide
þCD-ROM containing the following support software:
(The latest drivers can always be found at their respective web sites.)
§VIAPCI Bridge driver,
§VIA VxD driver,
§VIA PCI Mini-port driver
http://www.via.com.tw/drivers
§Support software for updating the FLASH BIOS
§HighPoint® XStore Pro IDE Bus Master
http://www.highpoint-tech.com
§Trend ® PC-cillin Anti-Virus software
http://www.antivirus.com

INTRODUCTION
Installation Guide
6
Board Level Feature
1. ISA slot 11. USB connectors
2. PCI slots 12. PS/2 mouse connector (top)
3. Mainboard BIOS 13. PS/2 keyboard connector (bottom)
4. AC97 codec chip 14. Power connector
5. MIDI/Game port 15. CPU socket (Socket 7)
6. Audio port 16. VIA Apollo MVP4 AGPset
7. COM2 connector 17. DIMM sockets
8. VGA connector 18. Primary IDE connector
9. Printer port connector 19. Secondary IDE connector
10. COM1 connector 20. Floppy connector
* Board Size: Micro-ATX 245 mm x 200 mm (9.6” x 7.7”)

INTRODUCTION
Installation Guide 7
1. ISA Slot: (1) 16-bit ISA slot.
2. PCI Slots: (4) 32-bit PCI slots are provided.
3. Mainboard BIOS: Award BIOS supporting “Plug and Play”, DMI, Green
PC specification, on screen setup for Enhanced IDE and Multi-I/O. The BIOS
is FLASH Upgradeable via the AWDFLASH Utility.
4. AC97 Codec Chip: AC97 audio codec chip.
5. MIDI/Game Port: 15-pin female MIDI/Joystick connector.
6. Audio Port: Three 1/8” female jacks for Line Out, Line In and MIC.
7. COM2 Connector: Connects to High-speed UART compatible serial port
bracket. COM2 can be directed to the Infrared Module for wireless connection
capability.
8. VGA Connector: 9-pin VGA connector.
9. Printer Port Connector: EPP and ECP compatible 25-pin D-Sub parallel
port.
10. COM1 Connector: High-speed UART compatible serial port.
11. USB Connectors: These connectors permit the connection of two USB
peripheral devices directly to the port without an external hub. USB is a new
technology supporting printers, fax modems and other telephony device.
12. PS/2 Mouse Connector: Supports PS/2 style mice.
13. PS/2 Keyboard Connector: Supports PS/2 style keyboards.
14. Power Connector: 20-Pin ATX Power Connector.
15. CPU Socket: ZIF Socket 7 for AMDK6-2 / K6-3 up to 450 MHz, Cyrix
up to MII-500, IntelPentium MMX up to 233 MHz.
16. VIA®Apollo MVP4 AGPset: Supports Socket 7 CPUs, UDMA66 and AGP
2x.
17. DIMM Sockets: (3) 168-pin DIMM sockets are provided to support a
maximum RAM memory capacity of 768 MB. DIMM types of 3.3 Volt true
SDRAM is supported and automatically detected by the BIOS.
18. Primary IDE Connector: Connector for first IDE channel. The on-board
PCI Bus Mastering IDE controller features support for DMA Mode 2 and PIO
Modes 3 and 4 for faster data transfer rates. (2) Connectors are provided for
support of up to (4) IDE devices on two channels. ATAPI Tape Drives and
CD-ROMs are also supported.
19. Secondary IDE Connector: Connector for second IDE channel.
20. Floppy Connector: Built-in floppy controller supports (2) 5.25" or 3.5"
(1.44MB or 2.88MB) floppy drives.

INTRODUCTION
Installation Guide
8
Comprehensive Mainboard View

Installation Guide 9
INSTALLATION
Static Precautions
Static electricity can be a serious danger to the electronic components on this mainboard. To
avoid damage caused by electrostatic discharge, observe the following precautions:
üDon’t remove the mainboard from its anti-static packaging until you are ready to install
it into a computer case. Also, handle add-in cards and modules by the edges or mounting
bracket.
üBefore you handle the mainboard in any way, touch a grounded, anti-static surface, such
as an unpainted portion of the system chassis, for a few seconds to discharge any built-
up static electricity.
Installing the CPU
üWARNING: Use of a CPU Cooling Fan is required to prevent CPU from
overheating. The Fan should be installed first before inserting the CPU into its
socket.
1. Locate the ZIF (Zero Insertion Force) Socket 7.
2. First open the socket by pulling the lever sideways, then upwards. Notice how
the lever locks in place when pressed all the way down.
3. The CPU must be inserted with the correct
orientation. One corner of the CPU has a
“Notch” and looks different that the other
three. This corner is also missing a pin unlike the
other three and is marked with a white dot on
top of the CPU. Align this corner towards the
end of the lever as shown in the figure here.
Insert the CPU, press it down, and close the
lever until it locks into place.

INSTALLATION
Installation Guide
10
Setting the Jumpers
Jumpers are used on this mainboard to select various settings and features. A 2-pin
jumper has two settings: Open and Short (or Closed). The jumper is closed by
placing the Jumper Cap across the two pins, thereby connecting them. 3-pin
jumpers can be set to pins 1-2 or 2-3 connected. Pin-1 is labeled on the circuit
board.
3-pin Jumper 2-pin Jumper
Pin 1-2
Open
Pin 2-3
Short
CPU Clock Selection Jumper (JBF0-2 and JFS0-3)
After installing the CPU, you must set the clock selection jumpers to match the
frequency of the CPU. Find the Jumper Blocks labeled JBF0-2 and JFS0-3. Set the
jumpers according to your particular CPU type (a list of current available CPU
settings is provided on the following page).

INSTALLATION
Installation Guide 11
Jumper setting for CPU:
CPU Model CPU Clock Bus Clock (JFS0-3) Ratio (JBF0-2)
AMD-K6-III-450MHz 450MHz 100MHz ×4.5
AMD-K6-III-400MHz 400MHz 100MHz ×4.0
AMD-K6-2-450MHz 450MHz 100MHz ×4.5
AMD-K6-2-400MHz 400MHz 100MHz ×4.0
AMD-K6-2-350MHz 350MHz 100MHz ×3.5
AMD-K6-2-300MHz 300MHz 100MHz ×3.0
AMD-K6-2-266MHz 250MHz 100MHz ×2.5
AMD-K6-2-380MHz 380MHz 95MHz ×4.0
AMD-K6-2-333MHz 333MHz 95MHz ×3.5
AMD-K6-300MHz 300MHz 66MHz ×4.5
AMD-K6-266MHz 266MHz 66MHz ×4.0
AMD-K6-233MHz 233MHz 66MHz x3.5
AMD-K6-200MHz 200MHz 66MHz x3.0
AMD-K6-166MHz 166MHz 66MHz x2.5
AMD-K5-PR200 66MHz x3.0
AMD-K5-PR166 66MHz x2.5
AMD-K5-PR133 66MHz ×1.5
Intel Pentium MMX-233 233MHz 66MHz x3.5
Intel Pentium MMX-200 200MHz 66MHz x3.0
Intel Pentium MMX-166 166MHz 66MHz x2.5
Intel Pentium MMX-150 150MHz 60MHz x2.5
Intel Pentium -200 200MHz 66MHz ×3.0
Intel Pentium -166 166MHz 66MHz ×2.5
Intel Pentium -150 150MHz 60MHz ×2.5
Intel Pentium -133 133MHz 66MHz ×2.0
Intel Pentium -120 120MHz 60MHz ×2.5
IDT WinChip 2-300 100MHz ×2.5
IDT WinChip 2-266 100MHz ×5.0
IDT WinChip 2-233 233MHz 66MHz ×3.5
IDT WinChip 2-200 200MHz 60MHz ×3.0
IDT C6-240 240MHz 60MHz ×4.0
IDT C6-225 225MHz 75MHz ×3.0
IDT C6-200 200MHz 66MHz ×3.0
IDT C6-180 180MHz 60MHz ×3.0
IDT C6-150 150MHz 75MHz x2.0

INSTALLATION
Installation Guide
12
RISE MP6 (PR266) 200MHz 100MHz ×2.0
RISE MP6 (PR233) 190MHz 95MHz ×2.0
RISE MP6 (PR166) 166MHz 83MHz ×2.0
•The Internal (Core) frequency corresponds to the number marked on the CPU. The
External Frequency when multiplied with the Ratio gives the CPU's internal frequency.
•This table lists the current CPU available. New settings may be available for new CPU
products. Refer to your CPU specifications for more information.
Setting the CPU Voltage Selection Jumper (JP3)
Locate Jumper JP3 on the mainboard. Set this jumper in accordance with your
specific CPU type.
*The Intel MMX CPU is an example of a dual supply chip (2.8V & 3.3V). When single
supply CPUs are used, this setting is not relevant and should be left on the default
(Refer to the CPU documentation).

INSTALLATION
Installation Guide 13

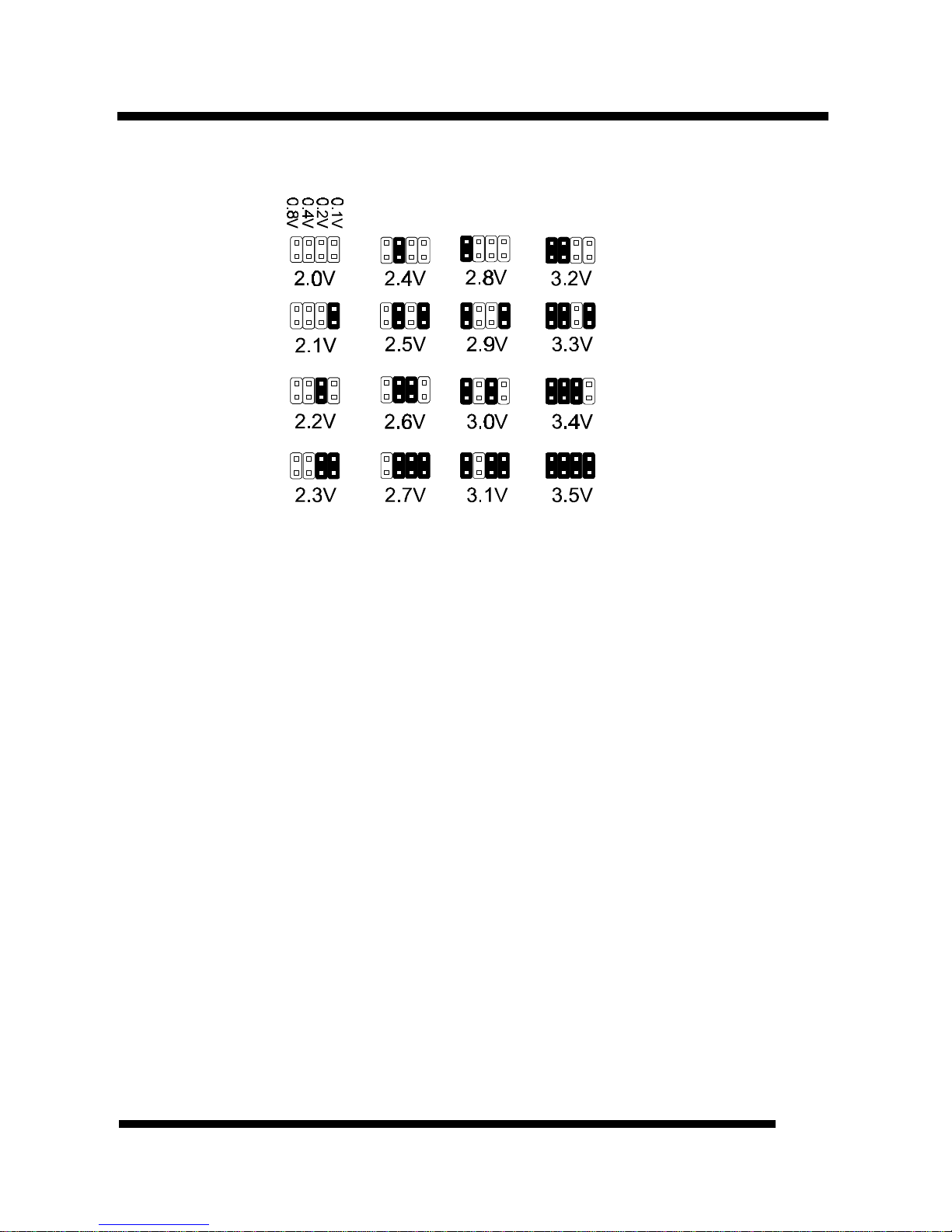

The following diagram illustrates all possible CPU Vcore Voltage Selection jumper
settings:
•If you are uncertain about the speed or voltage requirements of your particular CPU,
you should obtain Technical Documentation from the manufacturer. Such information
is available via the Intel and AMD WWW sites.

INSTALLATION
Installation Guide
14
Connections

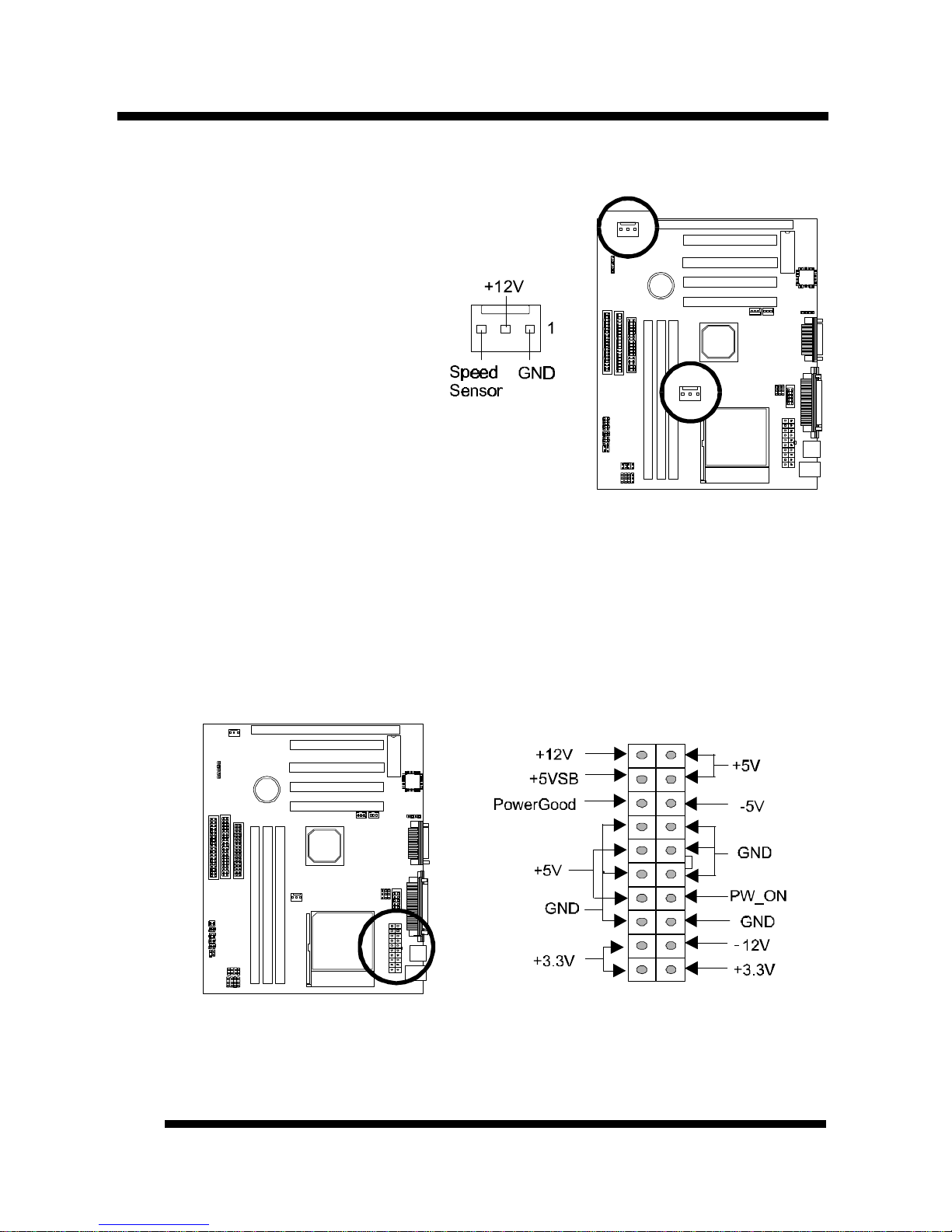

Cooling Fan (JP4 and JP5)
These connectors are small 3-pin
Header Connectors that provide
12-Volt power for CPU and
chassis cooling fans. Plug in the
fan cable to the connector. Pin-2
corresponds to the RED power
lead as shown:
Power Supply Connector
This mainboard features an ATX-style Power Supply Connector. This connector is
keyed to prevent connection in the wrong direction. Line up the locking
mechanism on the connector from the Power Supply with the tab on the mainboard
connector. Press down until the two connectors are locked.

INSTALLATION
Installation Guide 15

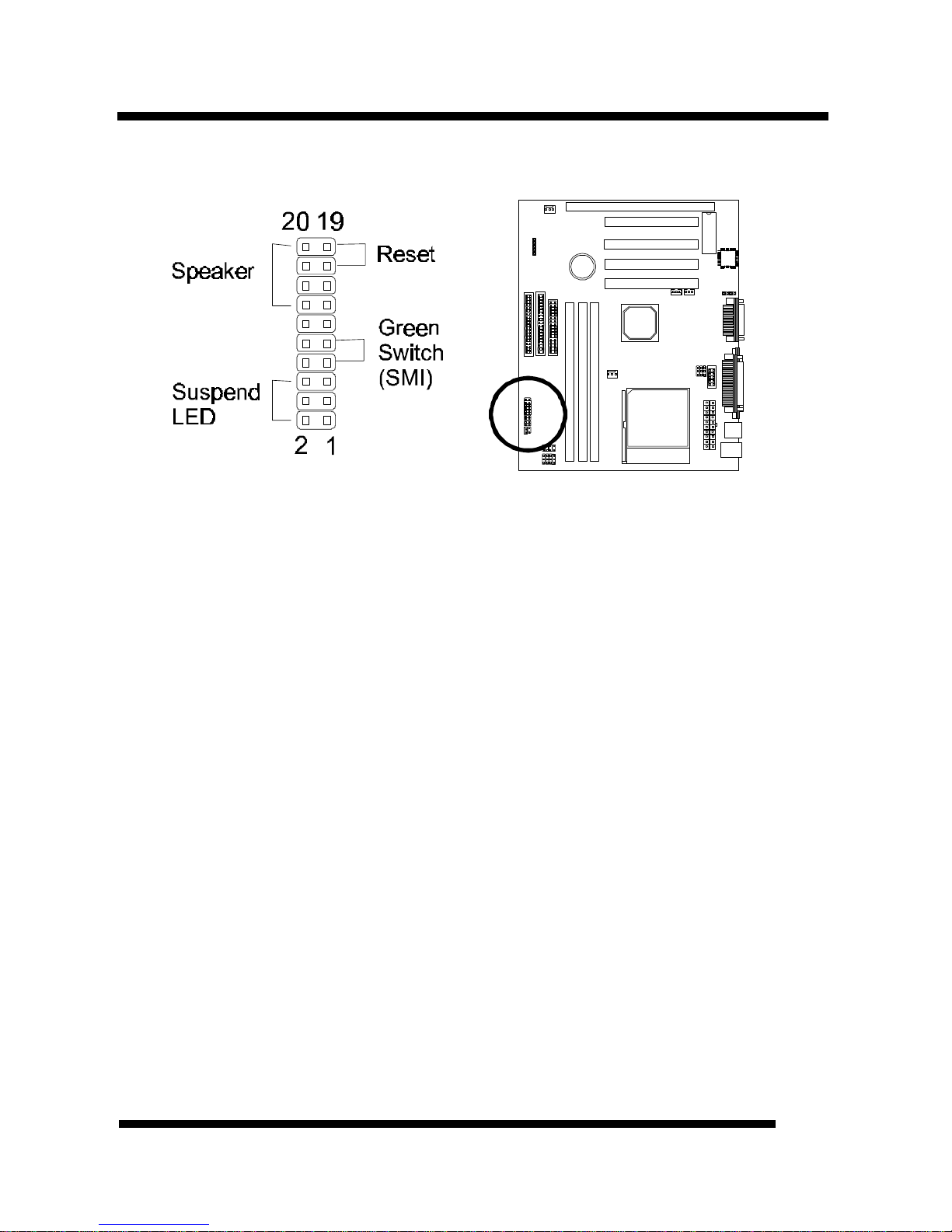

System Function Connector Block (J7)
Pins [7 & 9] SMI suspend switch lead - If your system’s case has a suspend
switch, hook the lead from the switch to pins 7 & 9. A suspend switch is used to
save electricity by putting the system into a suspend mode when the computer is
not being used. For this switch to be functional, “Suspend Mode” must first be
enabled in the Power Management Setup in the BIOS Setup utility.
Pins [17 & 19] Reset switch lead - Connects to the Reset Switch lead from the
system’s case. The reset switch is used to “cold-boot” the system without actually
turning off the power, reducing wear and tear on the power supply.
Pins [2 & 6] Suspend LED lead – Pins 2 & 6 connect to the case-mounted
Suspend LED switch.
Pins [14 & 20] Speaker connector - Connects to the Speaker lead from the
system’s case.

INSTALLATION
Installation Guide
16
IDE Activity LED (JP1)
Hook the IDE LED lead to this connector, with the RED lead corresponding to
Pin-1.
Soft Power Switch (JP2)
Connects to the Power Switch featured on ATX case designs. This switch must be
hooked up before the system can be powered on, unlike traditional “Baby-AT”
designs where the power switch is located on the Power Supply itself.
Note: Under the following two conditions, you have to press and hold the switch
for more than 4 seconds to power off your system, regardless of the “Soft-Off by
PWRBTN” setting in the Power Management Setup of the BIOS.
•Shortly after the system is powered on, when the BIOS message is not yet
appear.
•When CPU hangs.

INSTALLATION
Installation Guide 17
IrDA-Compliant Infrared Module Connector (JIR1)
The IrDA connector bracket hooks directly to this connector on the mainboard.
This connector provides support for the optional wireless transmitting and
receiving infrared module. You must first configure through the BIOS setup where
UART2 is directed, COM2 or IrDA.

INSTALLATION
Installation Guide
18

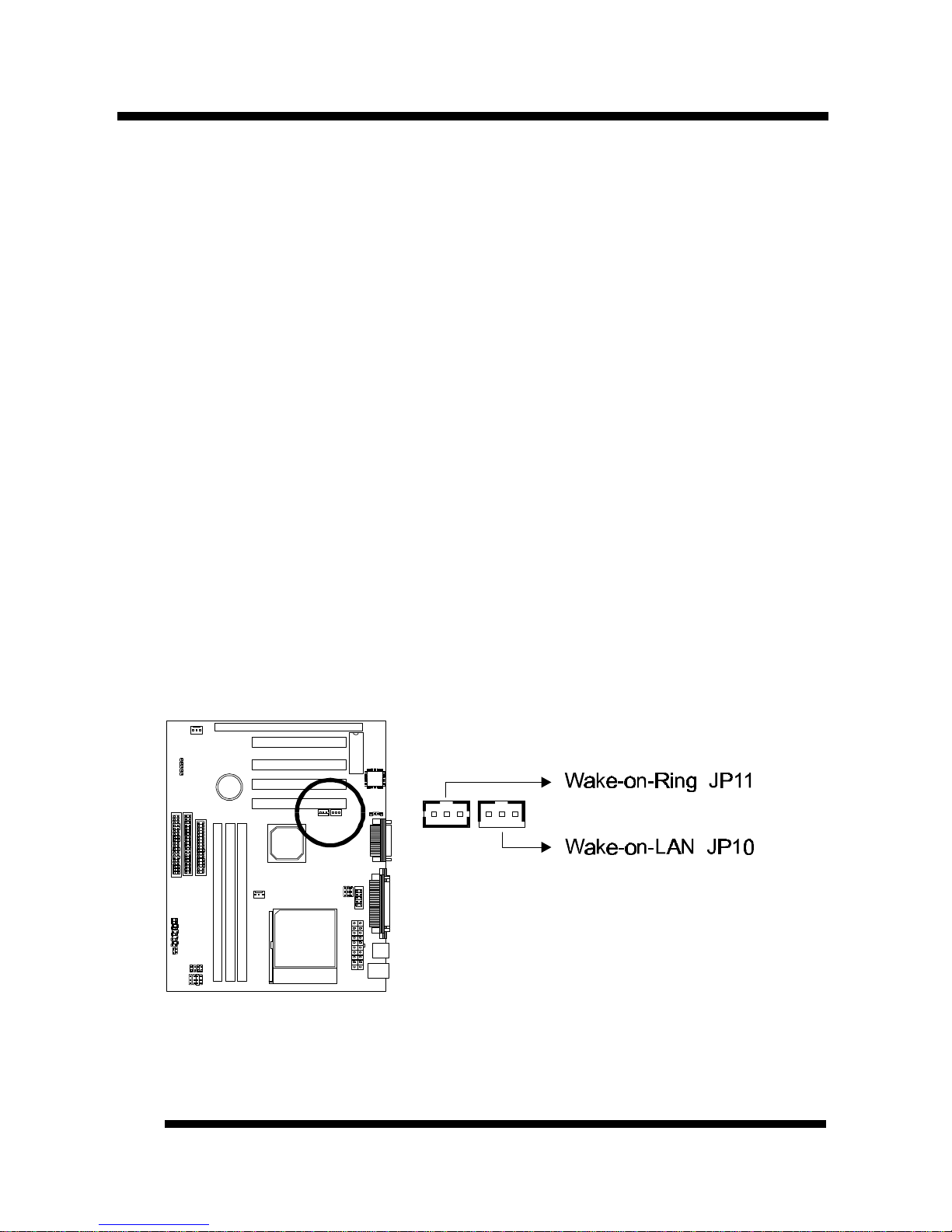

Wake-up On LAN Connector (JP10)
The Wake-up On LAN function will allow the network to wake up a Soft Power
Down (Soft-Off) PC. However, if your system is in the Suspend mode, you can
wake-up the system only through an IRQ or DMA interrupt. To use the Wake-up
On LAN function, you must enable the “Power On By Ring/LAN” field in the
Power Management Setup of the Award BIOS. Connect the cable that comes with
your LAN card to this connector on the system board. Refer to the add-in card’s
manual for details.
Note: Your LAN card must support Magic Packet in order to use the Wake-up On
LAN function.
Wake-on-Ring Function (JP11)
The Wake-on-Ring function allows the modem to remotely power on the system.
Install an external modem (normally to COM2) and enable “Power On by
Ring/LAN” function in the Power Management Setup from the BIOS.
For the function to work for an internal modem card, you must also connect the
Wake-on-Ring cable on the modem card to the Wake-on-Ring function connector
on the mainboard.

INSTALLATION
Installation Guide 19
Serial and Parallel Ports
A 25-pin D-Sub header is provided on the back panel for a multi-mode bi-
directional parallel port.
One 9-pin D-Sub headers are also provided on the back panel for Serial ports.
For the second serial port, plug the 10-pin cable of the serial port bracket to the
COM2 connector on the mainboard.
VGA Connector
This mainboard has built-in VGA features. A 9-pin connector is provided on the
back panel for connecting to the VGA connector from the monitor.

INSTALLATION
Installation Guide
20
USB Connectors
These two connectors permit connection of two USB peripheral devices directly to
the system without an external hub.
PS/2 Keyboard and Mouse Connectors
These two connectors are located on the back panel of the mainboard.
USB
PS/2
Keyboard
PS/2
Mouse
