Teledyne Lecroy PP017 User manual

PP017/PP018
Passive Probe
Instruction Manual

700 Chestnut Ridge Road
Chestnut Ridge, NY, 10977-6499
Tel: (845) 425-2000, Fax: (845) 578 5985
www.teledynelecroy.com
PP017/PP018 Passive Probe Instruction Manual
© 2012 Teledyne LeCroy Corporation. All rights reserved.
Unauthorized duplication of Teledyne LeCroy documentation materials other than for
internal sales and distribution purposes is strictly prohibited. However, clients are
encouraged to distribute and duplicate Teledyne LeCroy documentation for their own
internal educational purposes.
Teledyne LeCroy, HDO 4000 and HDO 6000 are registered trademarks of Teledyne LeCroy
Corporation. Other product or brand names are trademarks or requested trademarks of
their respective holders. Information in this publication supersedes all earlier versions.
Specifications are subject to change without notice.
Manufactured under an ISO 9000
Registered Quality Management
System. Visit
www.teledynelecroy.com to view
the certificate.
This electronic product is subject to
disposal and recycling regulations that
vary by country and region. Many
countries prohibit the disposal of waste
electronic equipment in standard waste
receptacles. For more information
about proper disposal and recycling of
yourTeledyne LeCroy product, visit
www. teledynelecroy.com/recycle.
920876-00 Rev A

Instruction Manual
920876-00 Rev A 1
Warranty
NOTE: THE WARRANTY BELOW REPLACES ALL OTHER WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY, FITNESS, OR ADEQUACY FOR ANY PARTICULAR PURPOSE OR
USE. TELEDYNE LECROY SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, WHETHER IN CONTRACT OR OTHERWISE. THE
CUSTOMER IS RESPONSIBLE FOR THE TRANSPORTATION AND INSURANCE
CHARGES FOR THE RETURN OF PRODUCTS TO THE SERVICE FACILITY. TELEDYNE
LECROY WILL RETURN ALL PRODUCTS UNDER WARRANTY WITH TRANSPORT
PREPAID.
Teledyne LeCroy warrants this oscilloscope accessory for normal use
and operation within specification for a period of one year from the
date of shipment. Spare parts, replacement parts and repairs are
warranted for 90 days.
In exercising its warranty, Teledyne LeCroy, at its option, will either
repair or replace any assembly returned within the warranty period to
the Customer Service Department of an authorized service center.
However, this will be done only if the product is determined by
Teledyne LeCroy’s examination to be defective because of workmanship
or materials, and the defect is not caused by misuse, neglect, accident,
abnormal conditions of operation; or, damaged by attempted repair or
modifications by a non-authorized service facility.
The customer will be responsible for the transportation and insurance
charges for the return of products to the service facility. Teledyne
LeCroy will return all products under warranty with transportation
charges prepaid.
This warranty replaces all other warranties, expressed or implied,
including, but not limited to, any implied warranty of merchantability,
fitness, or adequacy for any particular purposes or use. Teledyne LeCroy
shall not be liable for any special, incidental, or consequential damages,
whether in contract or otherwise.

PP017/PP018 Passive Probe
2 920876-00 Rev A
Terms and Symbols
The following terms appear in this manual:
WARNING
Warnings identify conditions or practices that could result in injury
or loss of life.
The following symbols may appear on the product:
DANGER
High Voltage
ATTENTION
Refer to Manual
DOUBLE INSULATION
PROTECTIVE (EARTH) TERMINAL
Introduction
The Teledyne LeCroy PP017 and PP018 are passive high impedance
voltage oscilloscope probes designed and calibrated for use with
general purpose oscilloscopes having an input impedance of 1 MΩ
shunted by 16 pF. However, they may be compensated for use with
instruments having an input capacitance between 10 to 30 pF. They are
compatible with oscilloscopes that automatically detect probe
attenuation and adjust their readout accordingly.
WARNING
To avoid electric shock, keep fingers behind the probe’s finger
guard during use.

Instruction Manual
920876-00 Rev A 3
Specifications
Model
Attn.
Input
Imped.
B/W
Rise
Time
Length
Compensation
Range
R (MΩ)
C(pF)
(MHz)
(ns)
(m)
(pF)
PP017
10x
10
12
250
1.4
1.3
10 - 30
PP018
10x
10
10
500
0.7
1.3
6 - 22
AttenuationRatio................................... 10x(10:1) 10:1±0.5%
Max. InputVoltage.................................600VCATIor300VCATII (DC+ peakAC)
................................................................... DeratedwithFrequency(seeDerating Curve)
PollutionDegree .................................... PollutionDegree2(asdefinedinEN61010-031)
Max. OperatingTemp........................... 0° to +50C°
Humidity.................................................. 85%RH orless (at35°C)
WARNING
To reduce risk of fire or electric shock, do not exceed the voltage or
category ratings of the probe.
Definitions:
MeasurementCategoryI (CATI)isformeasurements performedoncircuitsnot directlyconnected
to mains.
MeasurementCategoryII (CATII)is formeasurementsperformedoncircuitsdirectlyconnectedto
the lowvoltageinstallation.Examples areonhouseholdappliances,portable tools,andsimilar
equipment.
PollutionDegree2 referstoanoperationenvironmentwherenormallyonly drynon-conductive
pollutionoccurs.Temporaryconductivitycausedbycondensationmust be expected.

PP017/PP018 Passive Probe
4 920876-00 Rev A
EC Declaration of Conformity
Compliance was demonstrated to the specification as listed in the Official Journal
of the European Communities: Low Voltage Directive 2006/95/EC.
EN 61010-031/A1:2008 Safety requirements for electrical equipment for
measurement, control and laboratory use –Part 031: Safety requirements for
handheld probe assemblies for electrical measurement and test.
General Safety Information
To avoid personal injury and to prevent fire or damage to the probe or any
product connected to it, review and comply with the following safety
precautions.
Using the probe and/or the test instrument it is connected to in a manner
not specified by the manufacturer may impair the protection mechanisms.
Connect to properly grounded instruments. Use only with test instruments
having their BNC input connected to earth ground. Do not connect the probe
ground terminal to any point which is at a potential other than earth ground.
Do not disconnect the probe from instrument during measurement.
Connect the probe to the measurement instrument before connecting the
probe to the test circuit.
Do not apply to the input any potential that exceeds the maximum rating
of the probe. Use only the accessories provided with the probe.
Comply with voltage derating curve. When measuring higher frequency
signals, be sure to comply with the Voltage vs. Frequency Derating Curve.
Do not remove probe casing. Removal of the probe’s casing may expose you
to electric shock.
Do not use if any part is damaged. All maintenance should be referred to
qualified service personnel only.

Instruction Manual
920876-00 Rev A 5
Do not use in wet or explosive atmospheres.
Avoid physical injury. The probe tip is extremely sharp. Use care when
handling to prevent injury, including accidental skin puncture.
For indoor use only.
Cleaning
Use the following guidelines:
Clean only the exterior of the probe, cables, and accessories. Use a
soft cotton cloth moistened with a mild detergent and water
solution. Do not allow any portion of the probe to be submerged
at any time.
Dry the probe and accessory thoroughly before attempting to
make any voltage measurement.
Do not subject the probe to solvents or solvent fumes as these can
cause deterioration of the probe body, cables, and accessories.

PP017/PP018 Passive Probe
6 920876-00 Rev A
Probe Compensation
Proper compensation of the probe is required to assure amplitude
accuracy of the waveform being measured by matching the probe to
the oscilloscope’s input capacitance. Compensation should be adjusted
whenever the probe is connected to or transferred between
oscilloscopes.

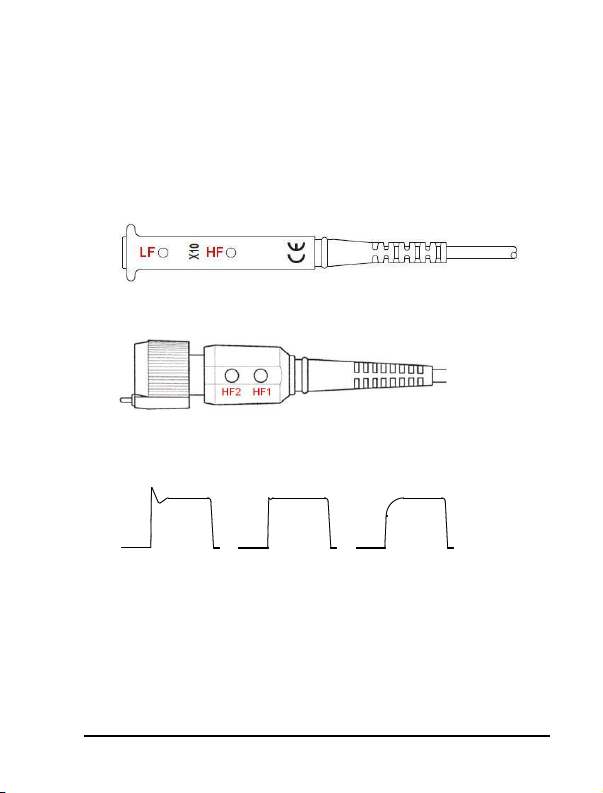

Low Frequency (LF)
1. Apply a 1 kHz square wave to the probe or connect to the
oscilloscope’s calibrator output.
2. Adjust the left trimmer (LF) located on the PP017probe body:
or the trimmer located on the PP018 BNC Box:
until you achieve a flat-topped square wave per the center
illustration in the figure below.

Instruction Manual
920876-00 Rev A 7
High Frequency (HF)
High frequency should rarely require adjustment. However, if
adjustment is required:
1. Apply a 1 MHz square wave to the probe (< 0.7 ns rise-time).
2. Adjust the right trimmer (HF) located on the PP017probe body:
or both trimmers on the PP018 BNC Box (HF2 or HF1):
until you achieve a flat-topped square wave per the center
illustration in the figure below.

PP017/PP018 Passive Probe
8 920876-00 Rev A
PP017 Input Impedance Profile
PP018 Input Impedance Profile

Instruction Manual
920876-00 Rev A 9

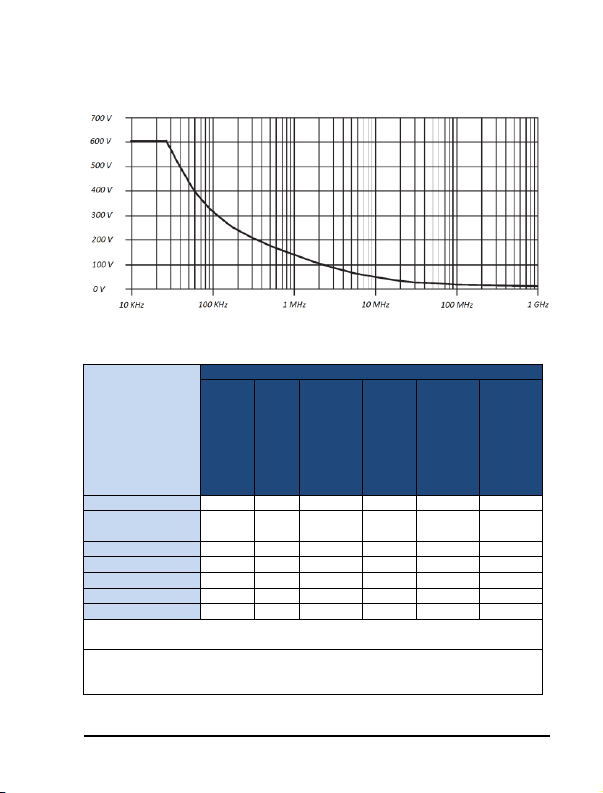

Voltage vs. Frequency Derating Curve
China RoHS Compliance
Part Name
Toxic or Hazardous Substances and Elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(Cr6+)
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
PCBAs
X
O
X
X
X
X
Mechanical
Hardware
O
O
X
O
O
O
Sheet Metal
O
O
X
O
O
O
Plastic Parts
O
O
O
O
X
X
Protective Case
O
O
O
O
X
X
Cable Assemblies
X
O
X
O
X
X
Probe Tips
X
O
X
O
X
X
O:Indicates that this toxic or hazardous substance contained in all of the homogeneous
materials for this part is below the limit requirement specified in SJ/T11363-2006.
X:Indicates that this toxic or hazardous substance contained in at least one of the
homogenous materials used for this part is above the limit requirement specified in
SJ/T11363-2006.
EFUP (Environmental Friendly Use Period): 30 Years. Use Conditions: refer to the
environmental conditions stated in the Specifications section of this Manual.

PP017/PP018 Passive Probe
10 920876-00 Rev A

Instruction Manual
920876-00 Rev A 11

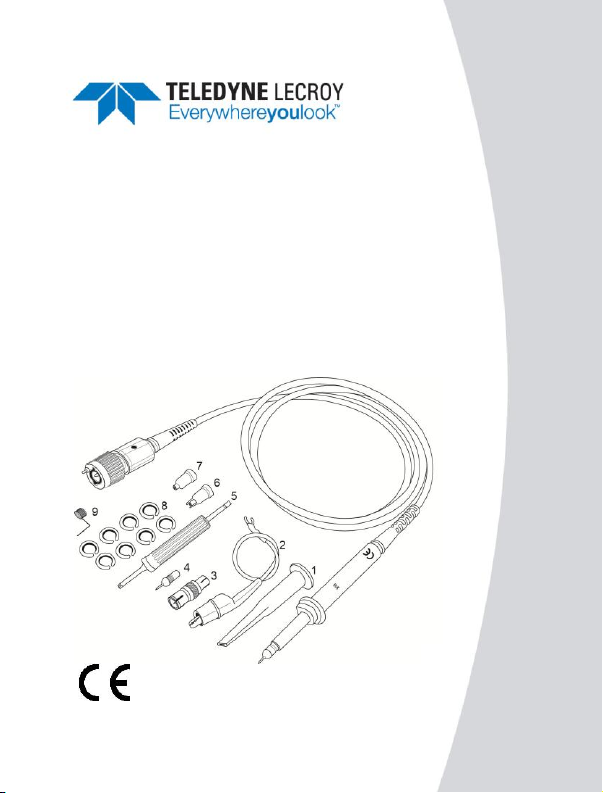

Replaceable Parts
Item
Description
Quantity
1
Sprung Hook, 5 mm, Black
1
2
GND Lead w/Alligator Clip
1
3
BNC Adapter, 5 mm
1
4
Replacement Tip, Black
1
5
Deluxe Trimmer Tool
1
6
IC Tip Insulator, 5 mm, Black
1
7
Tip Insulator, 5 mm, Black
1
8
Identifier Rings
1
9
Probe Tip GND
1
Standard Accessory Replacement Kit part number is PKIT4-5MM-101.

PP017/PP018 Passive Probe
12 920876-00 Rev A
Contact Teledyne LeCroy
Contact your local Teledyne LeCroy office for sales and support.
Teledyne LeCroy Offices World Wide
United States and Canada - World Wide Corporate Office
Teledyne LeCroy Corporation
700 Chestnut Ridge Road
Chestnut Ridge, NY, 10977-6499
Ph: 800-553-2769 (Sales 1, Applications 2, Service 3) or 845-425-2000
Fax: 845-578-5985
contact.corp@teledynelecroy.com
www.teledynelecroy.com
US Protocol Solutions Group
Teledyne LeCroy Corporation
3385 Scott Boulevard
Santa Clara, CA, 95054
Sales and Service:
Ph: 800-909-7211/408-727-6600
Fax: 408-727-0800
contact.corp@teledynelecroy.com
www.teledynelecroy.com
Support:
Ph: 800-909-7112/408-653-1260
psgsupport@teledynelecroy.com
Europe
Teledyne LeCroy Europe
4, Rue Moïse Marcinhes
Case postale 341
1217 Meyrin 1
Geneva, Switzerland
Ph: +41 22 719 2228/2323/2277
Fax: +41 22 719 2233
contact.sa@teledynelecroy.com,
applications.indirect@teledynelecroy.com
www.teledynelecroy.com/europe
Protocol Analyzers:
Ph: +44 12 765 0397 1

Instruction Manual
920876-00 Rev A 13
China
Teledyne LeCroy Beijing
Rm. 2001 Unit A, Horizon Plaza
No. 6, Zhichun Rd., Haidian Dist.
Beijing 100088, China
Ph: ++86 10 8280 0318/0319/0320
Fax: +86 10 8280 0316
www.teledynelecroy.com.cn
Service: Rm. 2002
Ph: ++86 10 8280 0245
Taiwan
LeColn Technology Co Ltd.
Far East Century Park, C3, 9F
No. 2, Chien-8th Road,
Chung-Ho Dist., New Taipei City,
Taiwan
Ph: ++ 886 2 8226 1366
Fax: ++ 886 2 8226 1368
sales_twn@teledynelecroy.com.tw
www.teledynelecroy.com.tw
Japan
Teledyne LeCroy Japan
Hobunsya Funchu Bldg, 3F
3-11-5, Midori-cho, Fuchu-Shi
Tokyo, 183-0006 Japan
Ph: ++ 81 4 2402 9400
Fax: ++ 81 4 2402 9586
www.teledynelecroy.com/japan
Korea
Teledyne LeCroy Korea
10th fl. Ildong Bldg.
968-5 Daechi-dong, Gangnam-gu
Seoul 135-280, Korea
Ph: ++82 2 3452 0400
Fax: ++82 2 3452 0490
www.teledynelecroy.com.kr
Singapore (Oscilloscopes)
Teledyne LeCroy Singapore Pte Ltd.
Blk 750C Chai Chee Road #02-08
Technopark@ChaiChee
Singapore 469003
Ph: ++ 65 64424880
Fax: ++ 65 64427811
Singapore (Protocol Analyzers)
Genetron Singapore Pte Ltd.
37 Kallang Pudding Road, #08-08
Tong Lee Building Block B
Singapore 349315
Ph: ++ 65 9760-4682
Other manuals for PP017
1
This manual suits for next models
1
Table of contents
Popular Power Tools manuals by other brands

Makita
Makita DHK180 instruction manual

Fayat
Fayat BOMAG BPR 70 Operating Instruction, Maintenance Instruction

Omer
Omer RFID.25 Use, maintenance and spare parts manual

Kemper
Kemper 1810 manual

SICAR Group
SICAR Group G3S 1500 Instruction and maintenance manual

Ingersoll-Rand
Ingersoll-Rand R140 Product information
