TelergyHD THD709QC-64-IP User manual

THD709QC-64-IP Quick Reference Guide V1.1
~ 1 ~
TelergyHD
Quick Reference Guide
Please do read this user manual before you operate the TelergyHD.

THD709QC-64-IP Quick Reference Guide V1.1
~ 2 ~
Contents
1 Safety instructions.................................................................................................. 3
2 Accessory List........................................................................................................ 3
3 Hardware ............................................................................................................... 4
4 Remote Control...................................................................................................... 5
5 System Connection................................................................................................ 7
5.1 Rear Panel Connection ................................................................................ 7
5.2 Side Panel Connection................................................................................. 8
6 Technical Specifications......................................................................................... 9
7 Troubleshooting ................................................................................................... 10
8 For more information............................................................................................ 11

THD709QC-64-IP Quick Reference Guide V1.1
~ 3 ~
1 Safety instructions
Please keep the TelergyHD in a horizontal position. Do not put any heavy stuff on the
top of the device.
Please use the provided power adapter. Do not use a damaged power cable and
plug.
Please avoid plugging in power adapter with wet hands.
Please do not disassemble the TelergyHD or tamper with it in any way to avoid
electric shock and damage to the device.
Please keep the TelergyHD away from any heat source to avoid damage to the
components. It should be kept in a well ventilate place.
Please keep the TelergyHD away from damp and dusty environment to avoid fire
and electric shock.
The TelergyHD should be switched off immediately and the power adapter should be
unplugged in case of smoke or unusual smell emitted by the device.
Please unplug the power adapter when the TelergyHD is not in use for a long time.

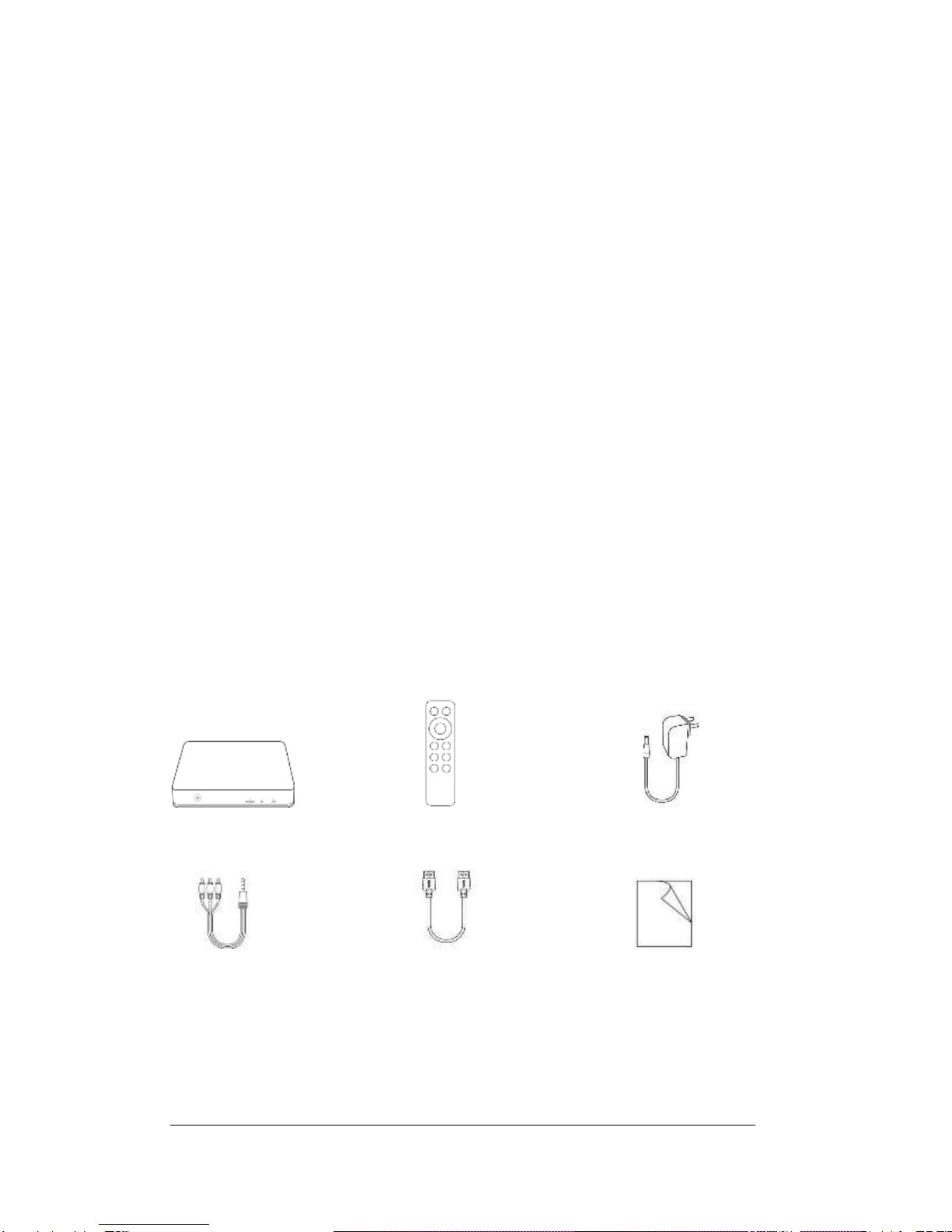

2 Accessory List
Open the gift box to check following accessories:
TelergyHD x1 Remote Control x1 Power Adapter x1
AV Cable x1 HDMI Cable x1 User Manual x1

THD709QC-64-IP Quick Reference Guide V1.1
~ 4 ~

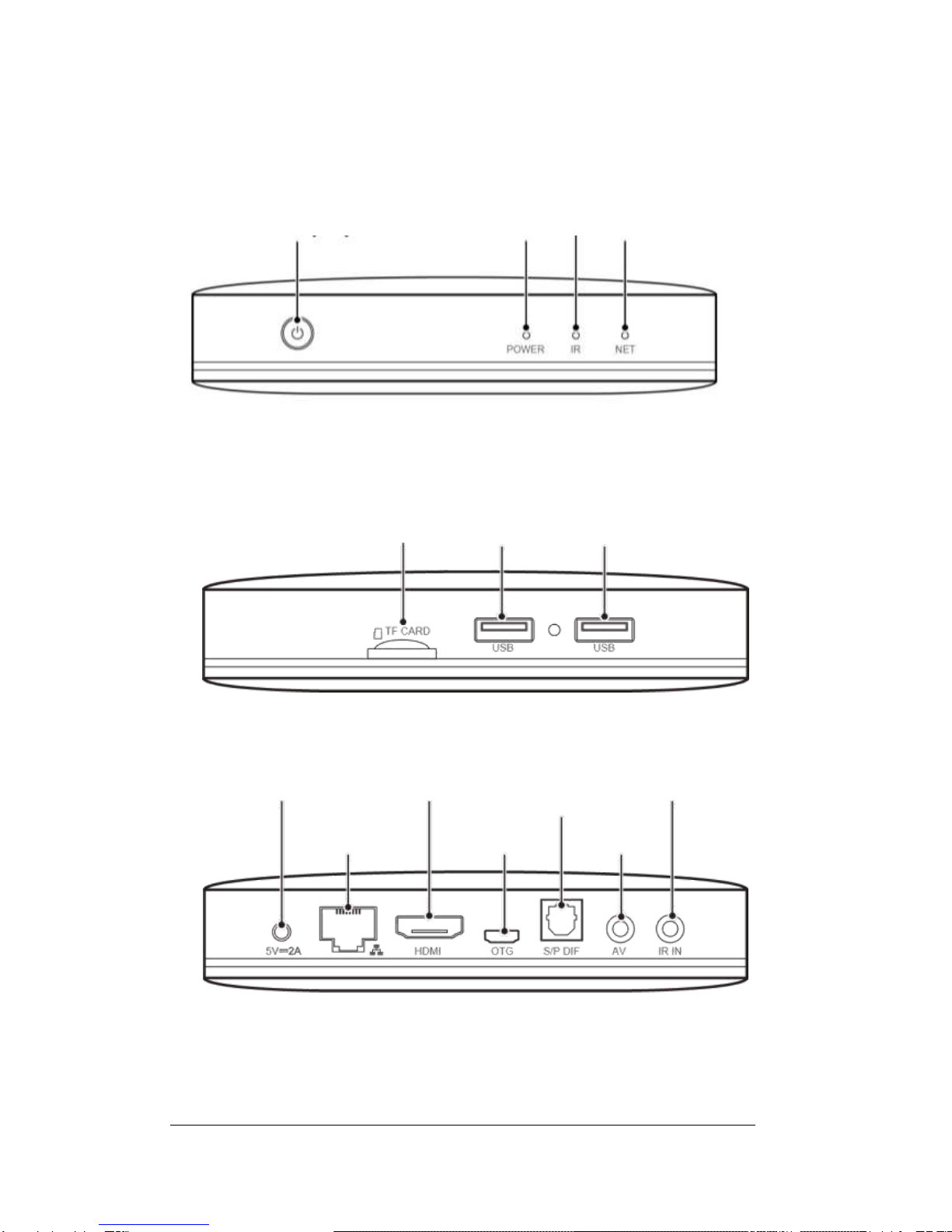

3 Hardware
Front Panel
Side Panel
Rear Panel
TF Card
HDMI output
Ethernet
USB1
DC in
Micro USB
USB2
S/P DIF
Optical output
AV output
IR in
Net led
Power led
Standby key
IR led

THD709QC-64-IP Quick Reference Guide V1.1
~ 5 ~
4 Remote Control
【Note】: Functions of the remote control maybe different for different Apps, you may
need to use an external mouse to operate it.

THD709QC-64-IP Quick Reference Guide V1.1
~ 6 ~
4 Remote Control
1
Go in and out of Standby
2
Red button. Functionality depends on the application
Green button. Functionality depends on the application
Yellow button. Functionality depends on the application
Blue button. Functionality depends on the application
3
Up/down direction key. Move up, down.
4
Menu. Enter the Main Menu of APP
5
Home. Shortcut to the Homepage.
6
Volume down
7
Mute button. Mute/Un-Mute sound
8
Shortcut to the System Setup menu
9
Enter/Confirm function
10
Left/Right direction key. Move left, right.
11
Mouse button. Turn on/off mouse mode.
12
Back/Exit
13
Volume up
14
Numeric input.
15
Multipurpose delete button.

THD709QC-64-IP Quick Reference Guide V1.1
~ 7 ~
5 System Connection
Please refer the following diagram and instructions to connect TV, Power, Network and
other devices.
Note: Before connecting please shut down all the equipment to be connected
(such as this machine and TV power)
5.1 Rear Panel Connection
Note: Before powering on, Please switch the signal input of the TV to correct
source.
Tips: The TelergyHD supports Wi-Fi, enter Settings →Network to set-up Wi-Fi.
TV
Power Input
Internet Connection
Storage Devices
IR Cable
Amplifier

THD709QC-64-IP Quick Reference Guide V1.1
~ 8 ~
5.2 Side Panel Connection
Tips:
1) Please according to the above diagram insert the TF Card in the right direction.
2) Please insert the USB device after matching interface correctly.
USB Device

THD709QC-64-IP Quick Reference Guide V1.1
~ 9 ~
6 Technical Specifications
CPU
ARM Quad 64-bit Cortex-A53 up to 1.5GHz
Android OS
Android 6.0
Video output
HDMI, AV
Audio output
Optical
Video format
H.265 10-bit 4K*2K@60fps, H.264 AVC/MVC
4K*2K@30fps, VP9, AVS+, MPEG1/2/4 ASP, WMV/VC-
1, RealVideo8/9/10 and other video formats
Audio format
MPEG1/2/4, MP3, AAC/AAC+, WMA/WMA-pro, FLAC,
OGG and other audio formats
Photo format
JPG, BMP, PNG and other photo formats
Network
Wi-Fi 2.4G 802.11b/g/n
RJ45 Interface 10M/100M adaptive
Operation temperature
0℃~40℃
Power
Input: AC100-240V 50/60Hz
Output: DC 5V/2A
Power consumption
<8W

THD709QC-64-IP Quick Reference Guide V1.1
~ 10 ~
7 Troubleshooting
Issue
Possible reason
Solution
No display on TV
after power ON
The power cord is not
connected properly or there
is no power at the electrical
socket.
Ensure the availability of the
power supply at the mains
socket. Re-insert the power plug
at the device and make sure that
it is fully inserted.
TV shows image but
no audio
Audio cable is not connected
Re-connect the Audio cable
TelergyHD is in MUTE state
Please press mute button to
restore volume
Audio setting is abnormal
Please enter the audio and
video Settings menu, select the
appropriate sound channel and
language
Volume is too low
Turn up the volume
Fail to connect the
network
Ethernet cable is not
connected properly
Please reinsert the Ethernet
cable
Wi-Fi unavailable or the
signal is too weak
Please restart the Wi-Fi router
or adjust the position of the
TelergyHD
Remote Controller
failure
Remote control is not
pointing in the correct
direction
Please aim the remote at the
front panel's 'SENSOR'
Remote control is with low
battery
Please change the batteries
Remote control is broken
Please send it to the local
maintenance station for
checking

THD709QC-64-IP Quick Reference Guide V1.1
~ 11 ~
8 For more information
Please visit http://www.telergyhd.com/

FCC Caution：
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between theequipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
