TelergyHD Striker HD User manual

TelergyStrikerHDUser’sManual Page1
TelergyStrikerHDUser’sManual


Introduction

TelergyStrikerHDisaset‐topboxthatconnectstoyourTVviaHDMIorA/Vconnectors
thatturnyourTVintoamultimediaentertainmentTV.Itcanconnectyourotherdevices
toitandbecomesaHDmediaplayer.It’strulyarevolutionaryentertainmentproduct
thatyoucanenjoyathome.


Features

720MHZDUALCOREMIPSCPU(1345DMIPS).
MAXIMUMOF512MBYTESOF1600MHZDDR3.
W3CCOMPLIANT,HTTP1.1,HTTPS,CSS2ANDSOMECSS3,HTML5,XML1.0JAVASCRIPT1.5.
USBSUPPORTFORMASSSTORAGEPLAYBACK,KEYBOARD,MOUSE.
VIDEOFOMATSUPPORT:MPEG‐1MPEG‐2MP@HL,MPEG‐4.2ASP,MPEG4.10AVC(H.264&H.263),MP
&HPTOLEVEL4.1,VC‐1AP@L3,WMV9,SD&HD,DIVX,AVI,AVS,XVID.
AUDIOFORMATSUPPORT:MPEG‐1LAYER1,2.MP3,WMA,WMAPRO,AACLC,AALC+SBRL2,AAC+L2,
AAC+L4,AAC5.1,AC3DOLBYDIGITAL&DOLBYDIGITALPLUS,3DSRSAUDIO.
TRANSPORTPROTOCOLS:MPEG‐TS,RTSP/RTPOVERUDP/IPORMMS,CONSTANT,VARIABLE,MULTIPLE
ANDADAPTIVEBITRATE(HLS).
DISPLAYNOTES:PAL,NTSC,720P,1080I,FULLHD1080P.
ASPECTRATIOS:4:3AND16:9LETTERBOXZOOMANDFULLSCREENMODES.
NETWORKCONNECTIVITY:ETHERNETANDOPTIONAL802.11N150/300MB/SECWI‐FI.
IRREMOTECONTROL



















TelergyStrikerHDUser’sManual Page2

StartUpSetupWizardGuide

Note:YouwillonlyseethisSetupWizardwhentheset‐topboxisbeingusedforthe
firsttimeorafterasuccessfulfactoryreset.Tomanuallyresettheindividualsettings
pleasegototheSettingspageonthemainmenu.

1.Welcomepage



Whenyoupress“ENTER”ontheremotecontrol,thelanguagesettingpagewillbe
loaded.


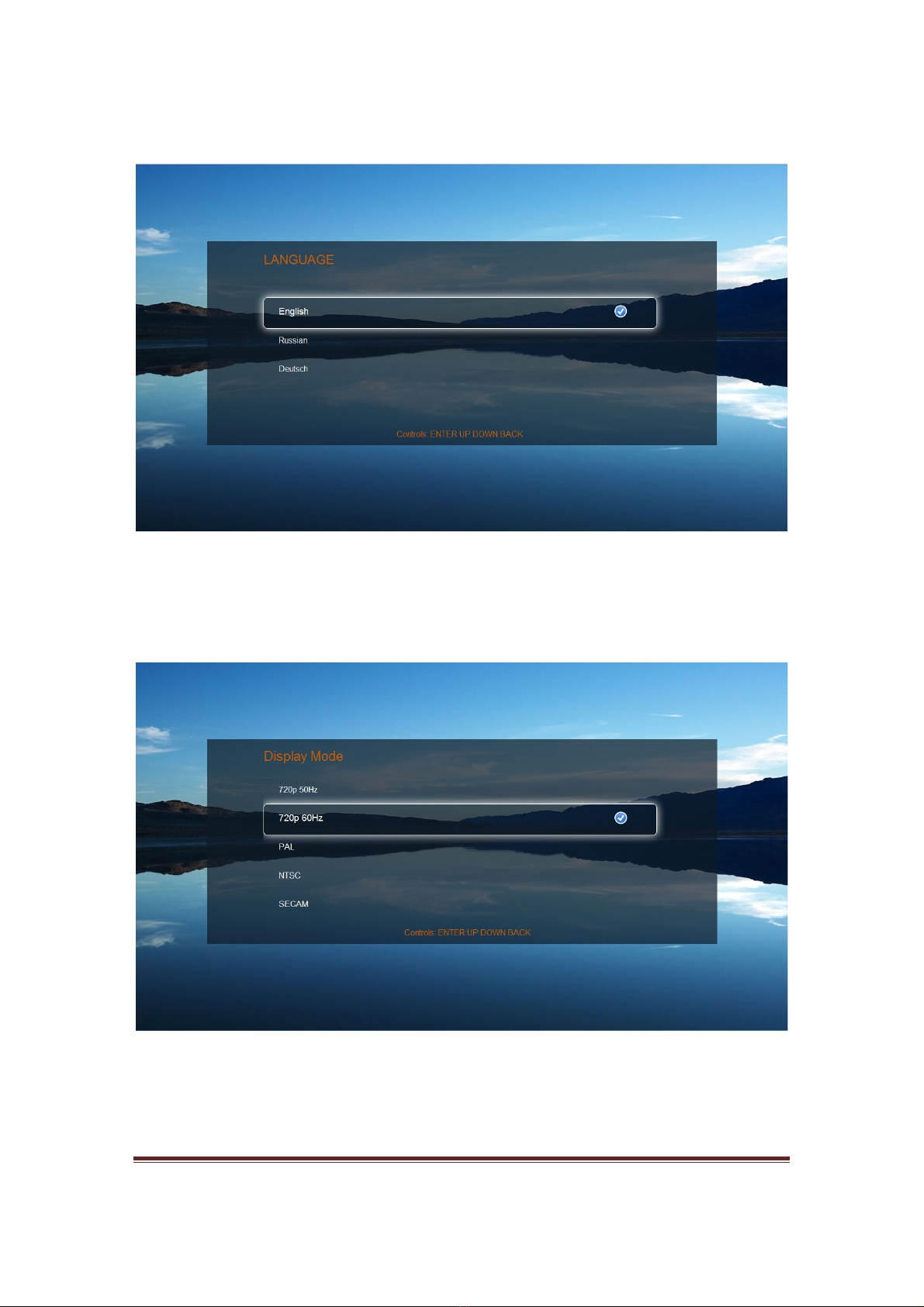

2.Languagepage

TelergyStrikerHDUser’sManual Page3


Selectoneoftheavailablelanguagesbypressingupanddownarrowkeys,thenpress
“ENTER”.Thewholeset‐topboxlanguagewillbechangedautomaticallyaccordingto
yourselection,anditwillgotothenextpage.

3.DisplayModepage


Selectoneofthedisplaymodes,thenpress“ENTER”.Aconfirmationdialogboxwillpop
up.


TelergyStrikerHDUser’sManual Page4


Ifyouselect‘No’andpress“Enter”,thedisplaymodewillbesettotheprevioussettings.
Ifyouselect‘Yes’andpress“Enter”,thedisplaymodethatyouchoseissaved,anditwill
bringyoutothenextpage.


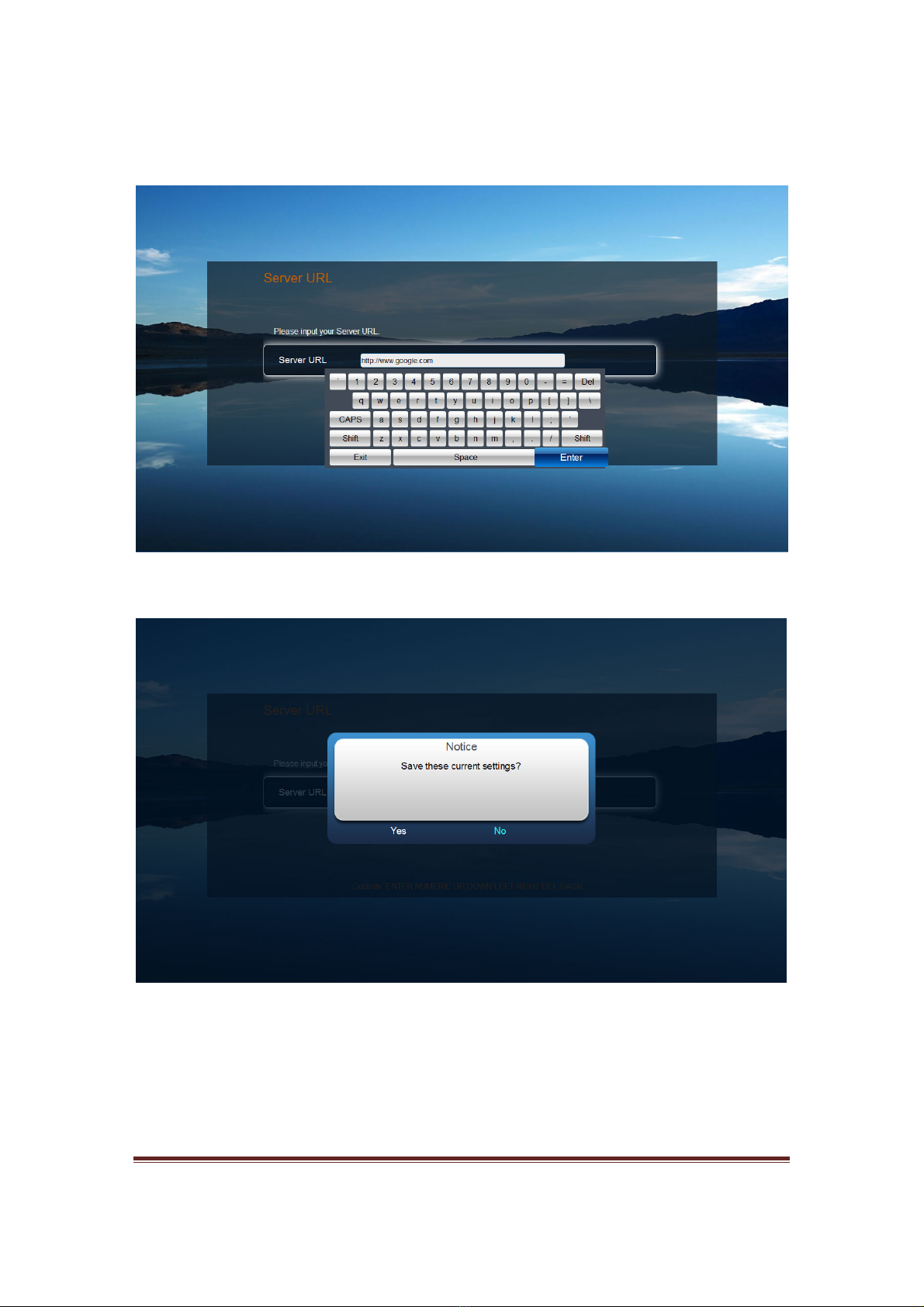

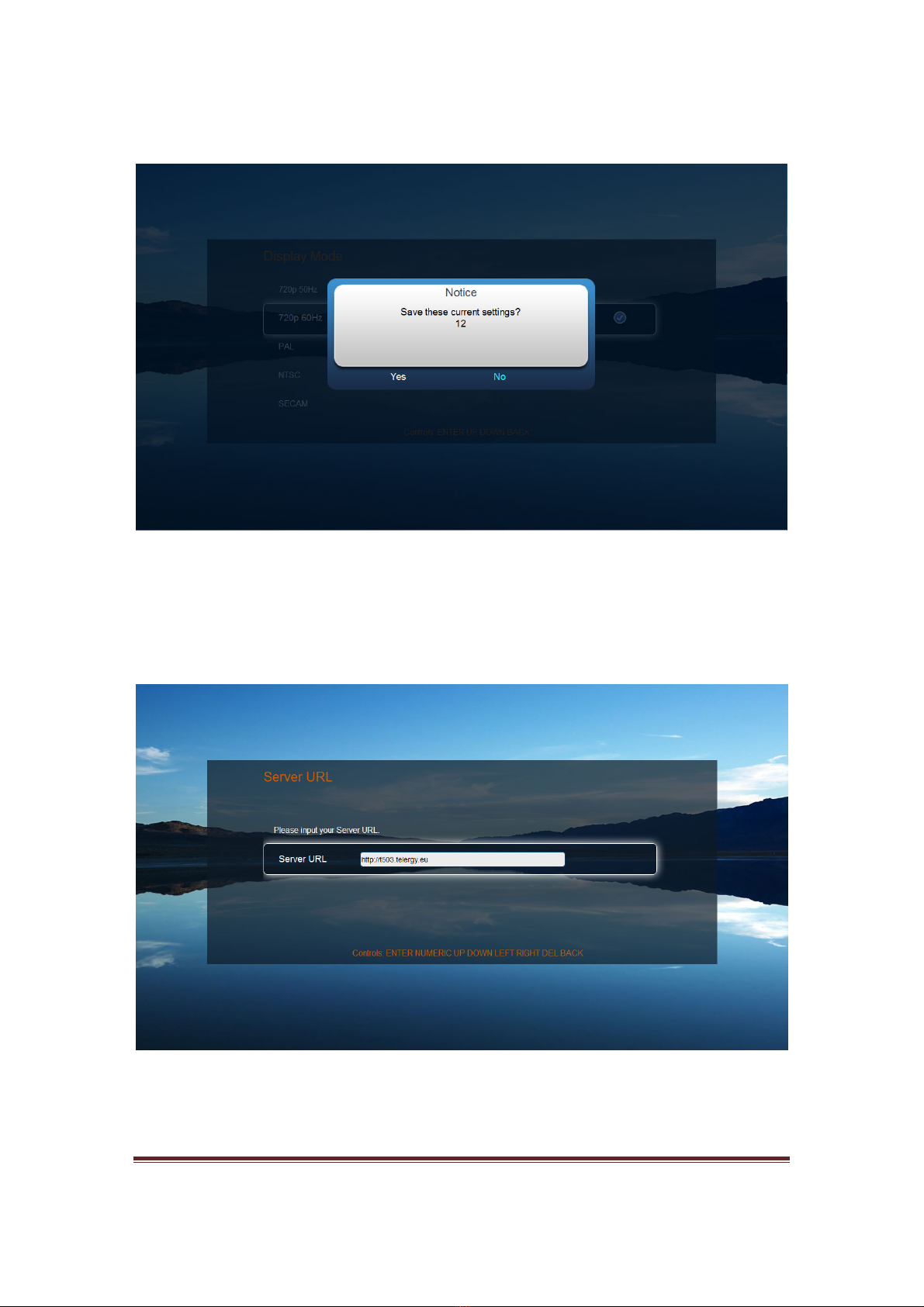

4.ServerURLpage



Pressanynumerickey(0,1,2…)toshowthe“softkeyboard”whereyoucanconveniently
inputtheURLthatyouwant(e.g.http://www.google.com).

TelergyStrikerHDUser’sManual Page5



Press“Enter”keytosave,andaconfirmationdialogboxwillpopup.



Ifyouselect‘No’andpress“Enter”,thedialogboxwilldisappear,anditwillgobackto
theServerURLsettingpage.Ifyouselect‘Yes’andpress“Enter”,itwillsavetheserver
URLthatyouinput,andthenloadthenextpage.
Note:WhenyouhavesuccessfullycompletedtheSetupWizardwithoutanyerror,the
set‐topboxwillautomaticallyredirecttothisserverURLtostartwith.


TelergyStrikerHDUser’sManual Page6

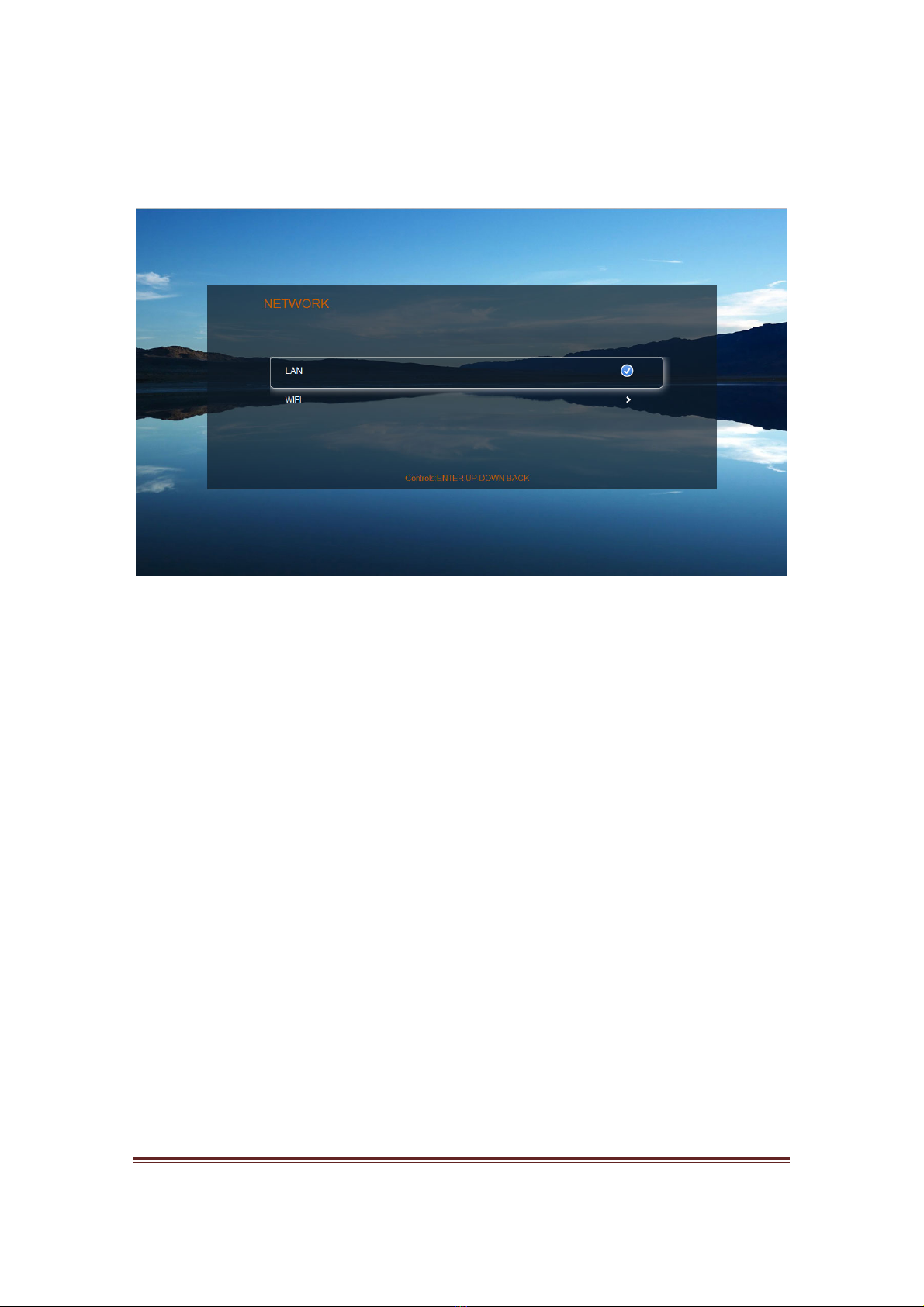

5.Networkpage


Therearetwooptionsavailableforthenetworksettings:LAN(forwiredwithaRJ‐45
networkcable)andWiFi(forawirelessconnection).Youhavetochooseappropriately
whichtypeyouwanttouse,butalsoconsideringthenetworkenvironmentthatyou
have.

IfyouchoosetouseLANconnection,thenpleasemakesureyouhavepluggedinthe
networkcablefirst.
Press“Enter”key,andanetworktestpagewillbeloadedanditwillanalyzeyourLAN
settingsautomatically.


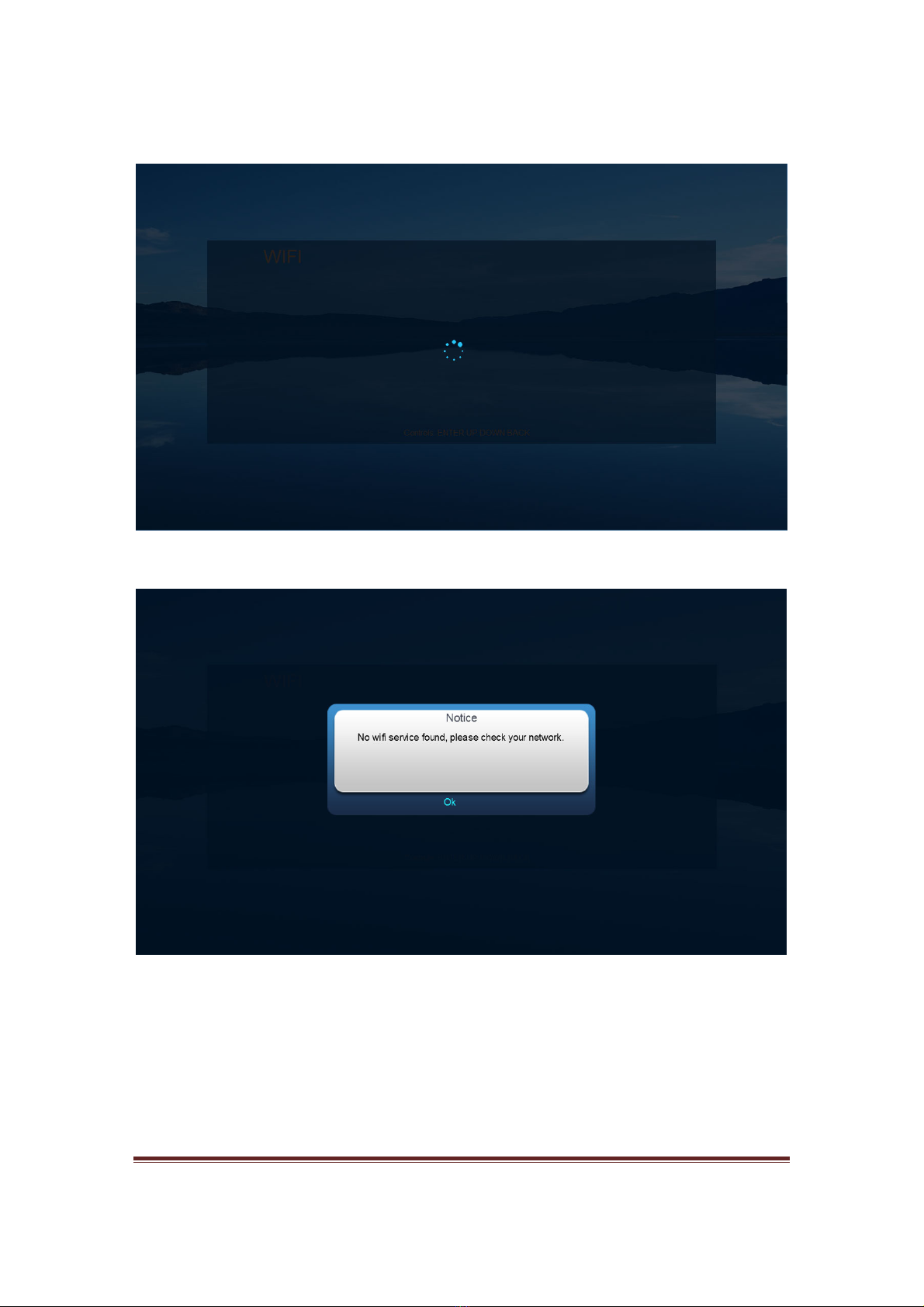

IfyouchoosetouseWiFi,thenselecttheWiFioption,andpress‘ENTER’,itwillscanthe
WiFinetworkandshowtheavailablenetworklistatonce.


TelergyStrikerHDUser’sManual Page7


Ifthescanhasfailed,pleasedoublecheckyourWiFirouter.



Ifthescanissuccessful,thentheWiFiservicelistwillbeshown.Pleaseusethe
UP/DOWNkeytoselectthenetworkthatyouwanttoconnectto.


TelergyStrikerHDUser’sManual Page8


Press“Enter”keytoconfiguretheWiFisettings.



Pleaseinputthecorrectpasswordintheappropriatefield.Ifthere’snopassword
specified,thenpleaseleaveitblank.Selectandpress‘Enter’keyonthesoftkeyboard,
anditwillconnecttothatWiFinetwork.
Note:CurrentlytheSTBcan’tverifywhetherthepasswordyou’veenterediscorrector
not,sopleasemakesureyouhaveinputthepasswordcorrectly.


TelergyStrikerHDUser’sManual Page9



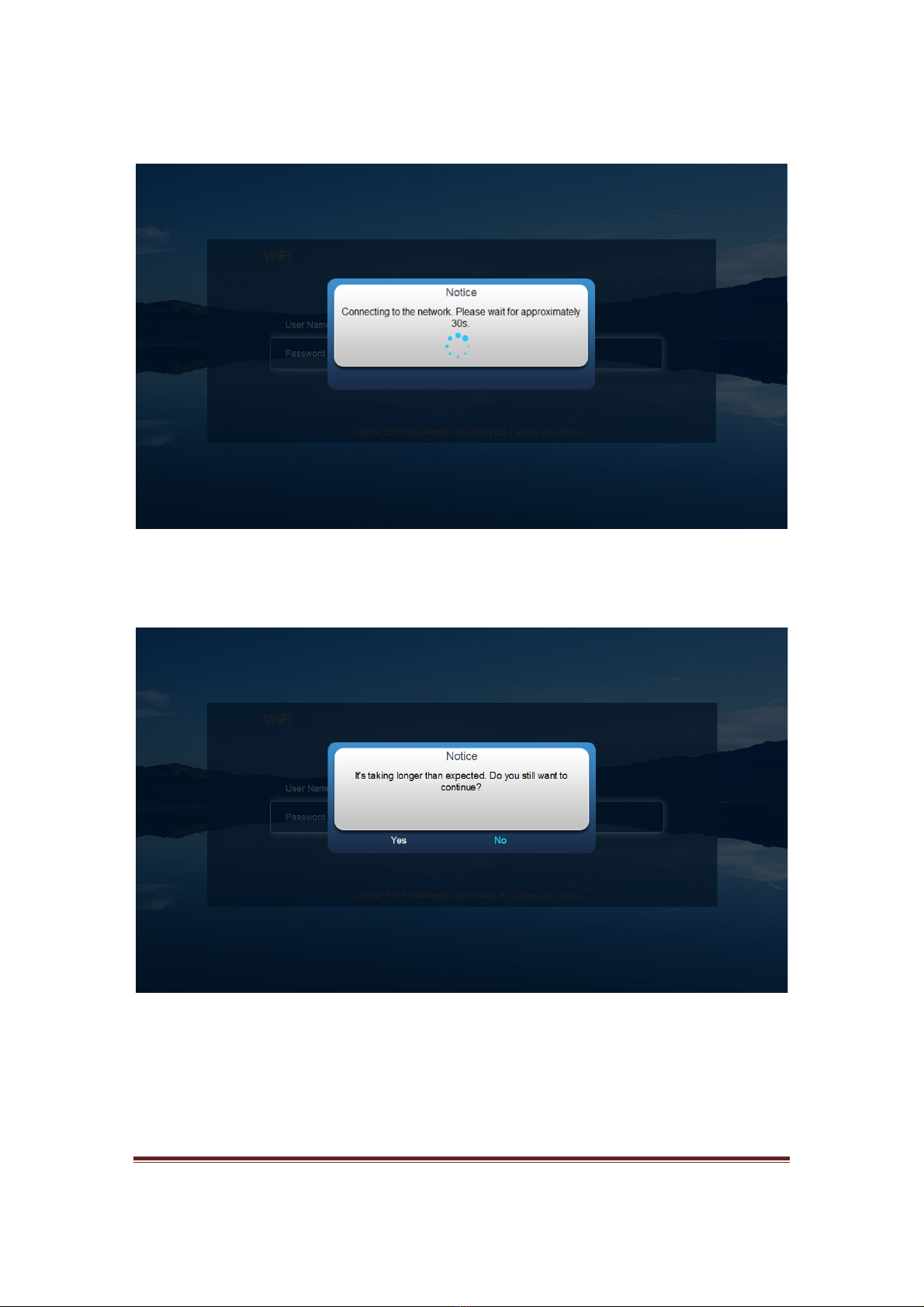

Duringthe30seconds,iftheconnectionfails,adialogboxsuchas‘It’stakinglonger
thanexpected.Doyoustillwanttocontinue?’willpopup.






Ifyouselect‘No’,thedialogboxwilldisappear.PleasecheckyourpasswordandWiFi
networkagainatthistime.
Ifyouselect‘Yes’,itwillcontinuetotryingtoconnecttothatWiFinetwork.


TelergyStrikerHDUser’sManual Page10
Ifconnectionissuccessful,anetworktestpagewillbeloadedanditwillanalyzeyour
networksettingautomatically.

6.NetworkTestpage

These3connections:LocalNetworkconnection,InternetconnectionandService
connectionwillbechecked.

LocalNetworkConnectionistocheckiftheset‐topboxisreadytousethenetwork.Ifit
fails,pleasecheckyourdevice(e.g.thenetworkcableorWiFinetwork).



IftheLocalNetworkConnectiontestissuccessful,itwillgotochecktheInternet
connectionnext.
InternetConnectionistocheckwhethertheset‐topboxcanaccesstheInternetornot.
Theset‐topboxwill“ping”aGooglehost.IfithasnoresponsefromGoogle,itwill
simplyassumeatthispointthattheset‐topboxcannotconnecttoInternetand
thereforethetesthasfailed.


TelergyStrikerHDUser’sManual Page11


IfitreceivestherightresponsefromGoogle,thenitwillassumetheconnectionismade
successfully,andthereforeitwillgotochecktheServiceconnectionnext.

ServiceConnectionistocheckthattheset‐topboxcanindeedconnecttotheServer
URLthatyou’veinputtedintheServerURLsettingpage.
Theset‐topboxwill“ping”theServerURLhost.Ifithasnoresponsefromit,thenitwill
simplyassumetheset‐topboxcannotconnecttotheServerURLthereforetheService
Connectiontesthasfailed.




TelergyStrikerHDUser’sManual Page12

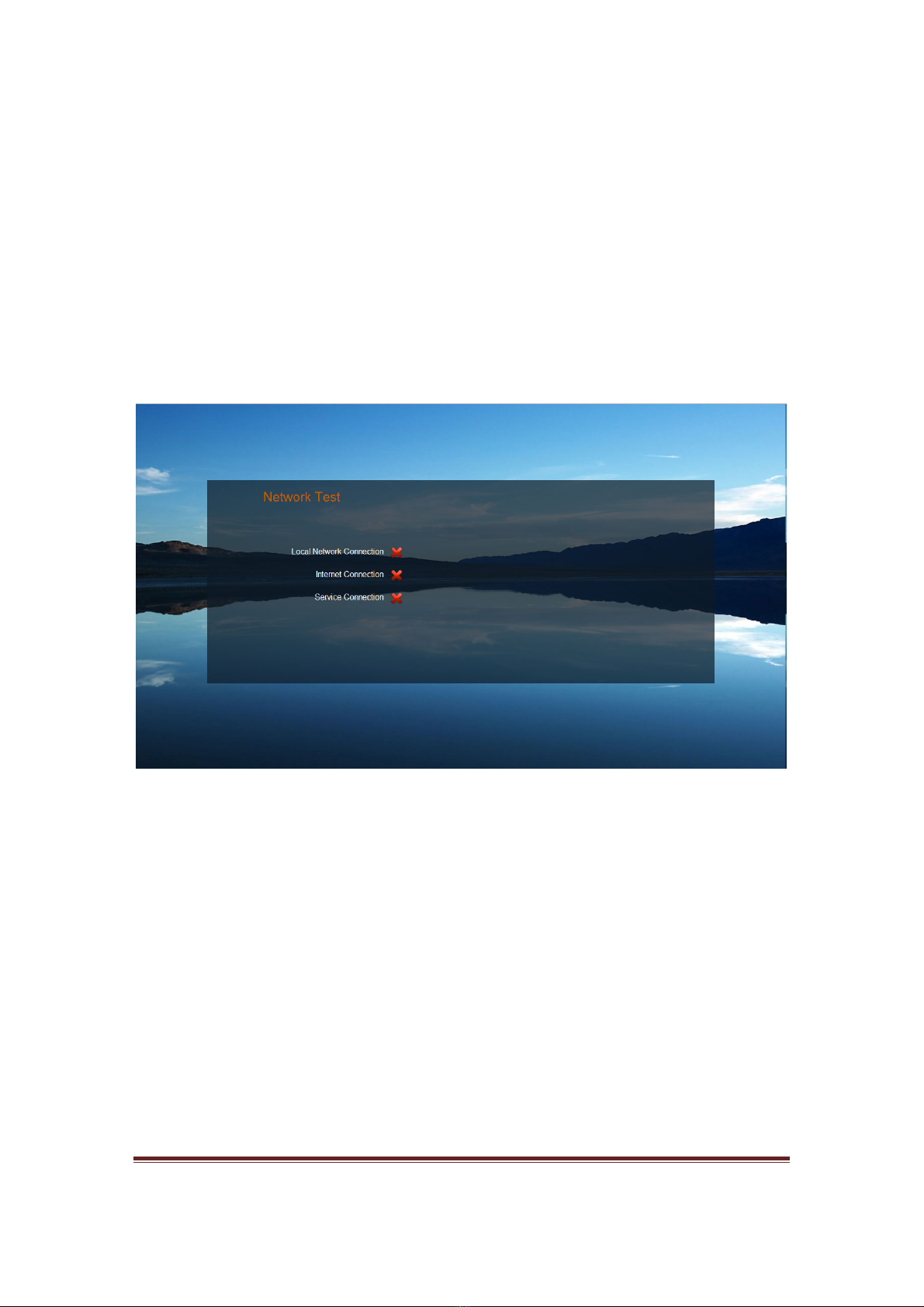

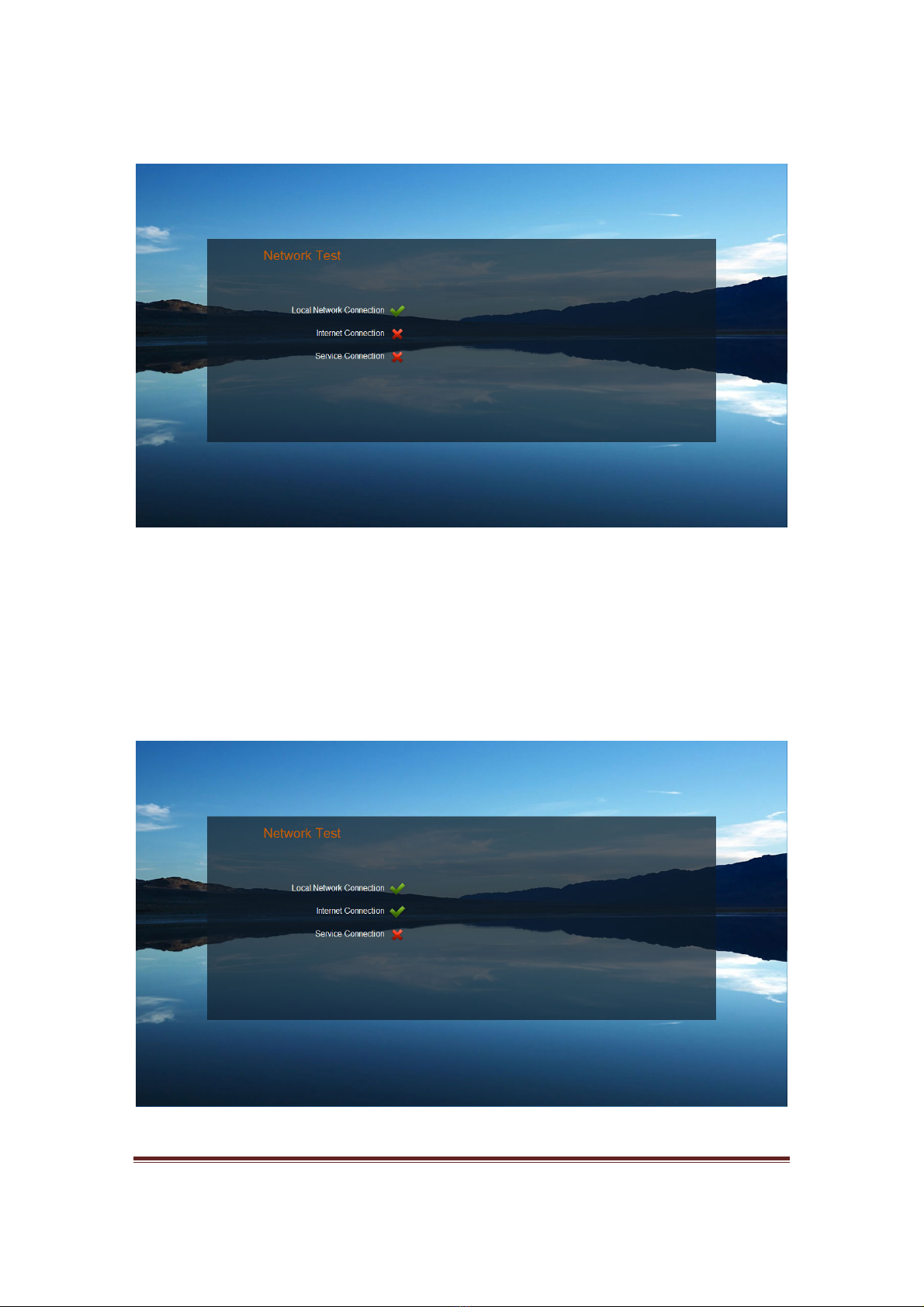

Belowishowitlookslikewhentheset‐topboxhaspassedallthetestssuccessfully,and
itwillshowthesuccessnotificationpagenext.




Ifanyoneofthetestshasfailed,itwillberedirectedtothenoticepage.


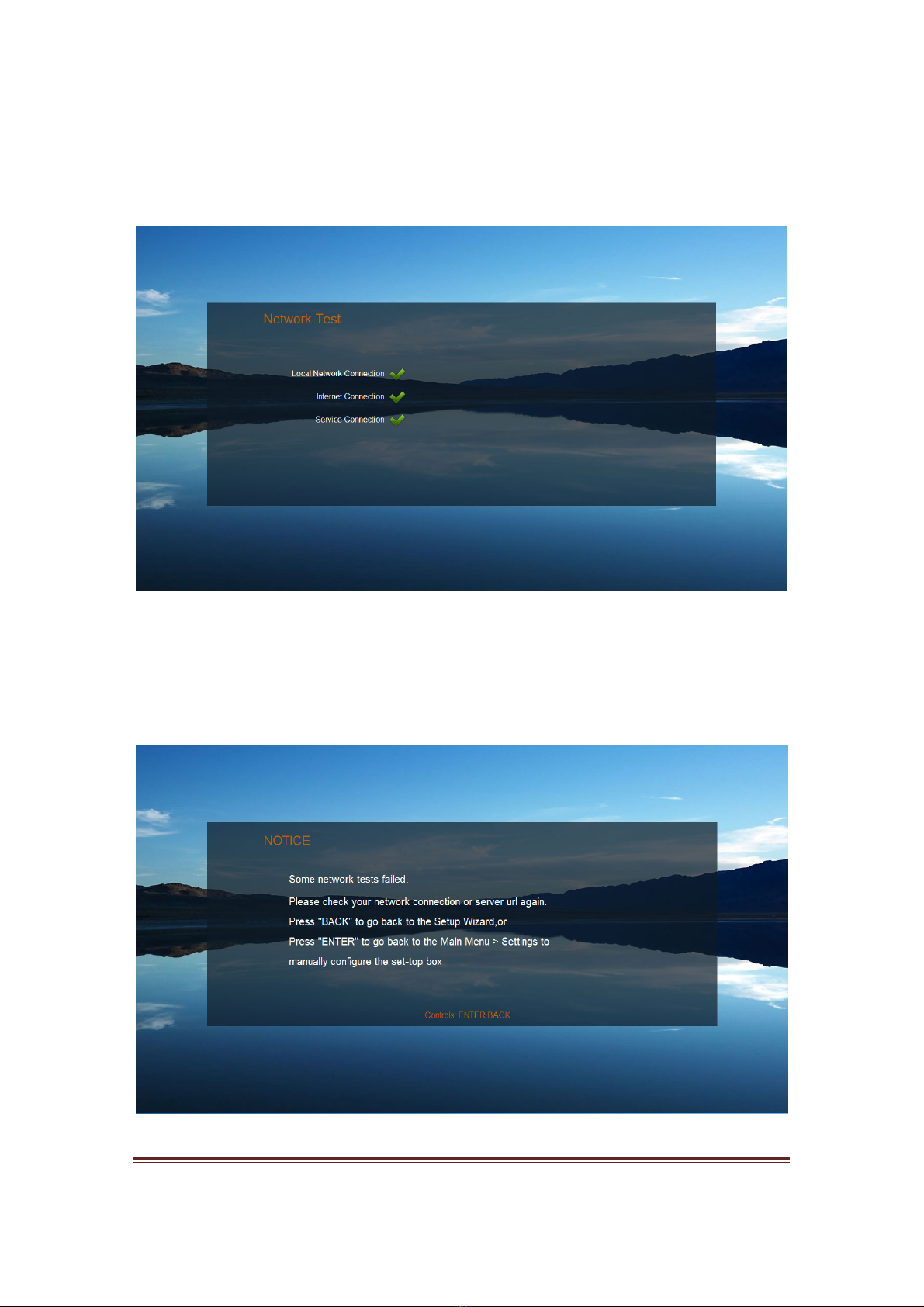

7.Noticepage

Ifthetesthasfailed,thefailednotificationpagewillbeloaded.



TelergyStrikerHDUser’sManual Page13
Press‘Back’tocheckyournetworksettingsortheServerURLsetting.Ifhoweverfor
whateverreasonyouchoosetoignorethisnotificationpage,thenpress‘Enter’key,and
themainmenupagewillbeloaded.YoucanselectSETTINGStomanuallyconfigurethe
set‐topboxlater.



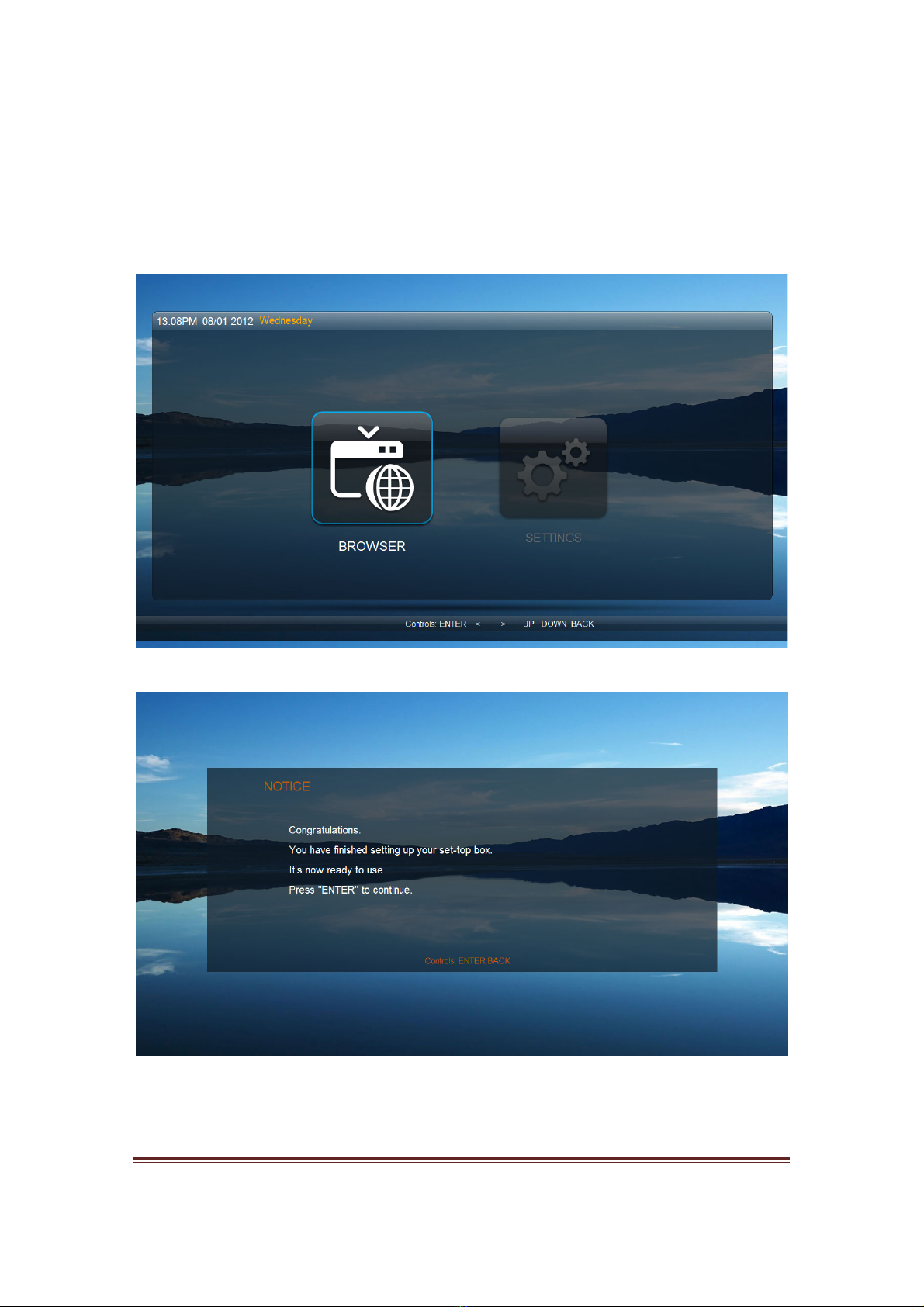

Ifalltestissuccessful,thensuccessnoticepagewillbeloadedlikebelow.






TelergyStrikerHDUser’sManual Page14
Whenyoupress‘Enter’,theset‐topboxwillredirecttotheappropriateServerURLpage.












FCCWarningStatement
Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser’sauthoritytooperatetheequipment.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital
device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide
reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This
equipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalled
andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio
communications.However,thereisnoguaranteethatinterferencewillnotoccurina
particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor
televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the
userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing
measures:
‐‐Reorientorrelocatethereceivingantenna.
‐‐Increasetheseparationbetweentheequipmentandreceiver.
‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.
‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.


FCCRadiationExposureStatement
Theantennasusedforthistransmittermustbeinstalledtoprovideaseparation
distanceofatleast20cmfromallpersonsandmustbeco‐locatedforoperatingin
conjunctionwithanyotherantennaortransmitter.
