Telpar MTP-2822 User manual

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 1
MTP Series Modular Thermal Printers
User Manual
MTP-2822 - 60 mm (2.36 in) paper width
MTP-2832 - 80 mm (3.15 in) paper width
MTP-2242 - 114 mm (4.49 in) paper width
MTP-2283 - 215.9 mm (8.5 in) paper width
Telpar, Inc.
800-872-4886
Fax: [phone]
Website: www.telpar.com
E-mail: [email protected]

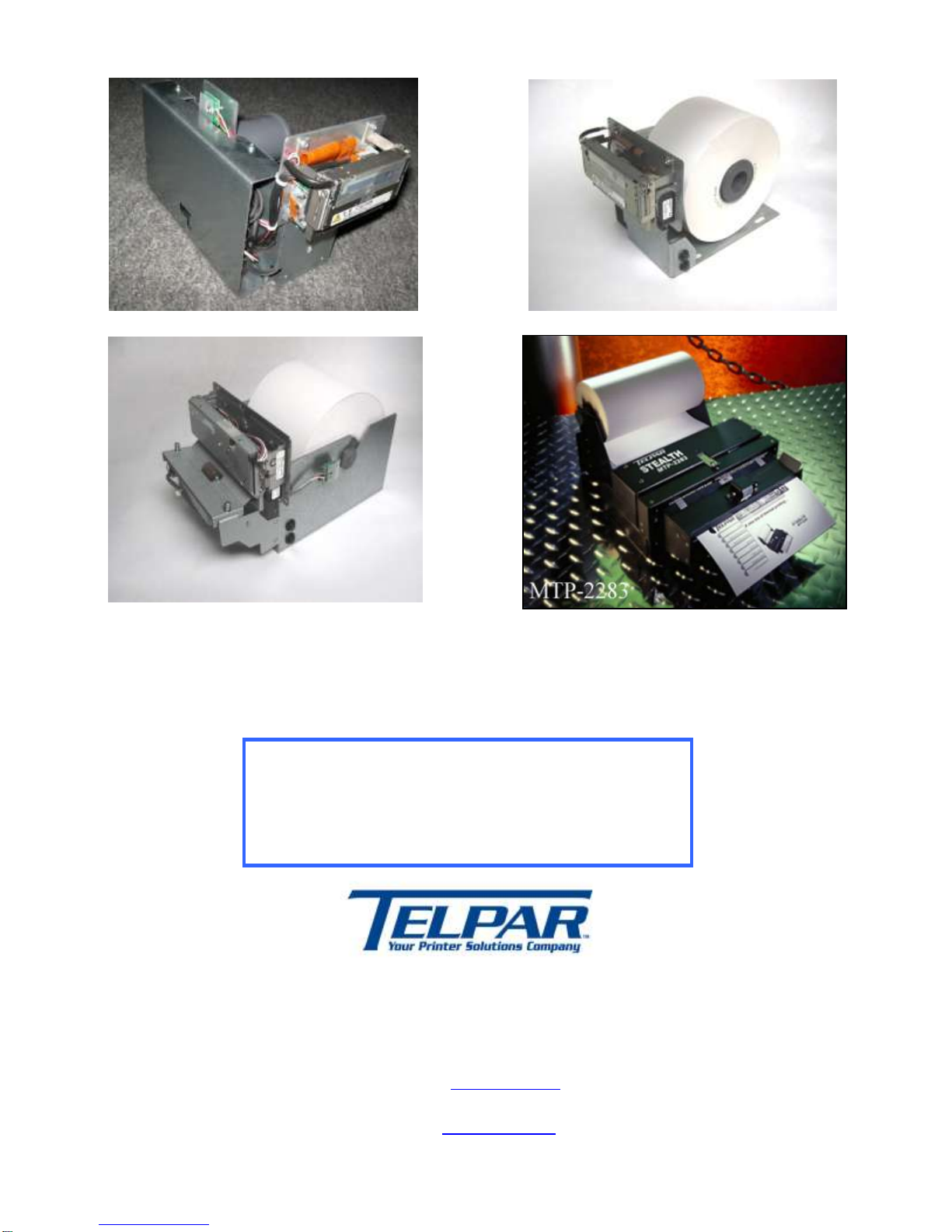

MTP-2822
MTP-2242
Shown with
Document
Presenter
MTP-2283
shown with
Document
Presenter –
CAD Model
MTP-2832

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 2
Warranty
Telpar, Inc. —Printer Limited Warranty
.WARRANTIES AND DISCLAIMERS. Products manufactured by Telpar are warranted against defects in
workmanship and materials for a period of twelve (12) months from the date of shipment to the original user,
provided the Product (a) remains unmodified, (b) is used only in the United States or Canada, (c) is operated
under normal and proper conditions, as Telpar determines in its sole discretion, and (d) Customer provides prompt
written notice Telpar of any defects as to parts and/or workmanship to. Telpar may provide an extended warranty
on certain Products or components thereof for an additional price determined solely by Telpar and such extended
warranty shall only be effective to the extent memorialized in writing by Telpar. Telpar’s sole obligation and
Customer’s exclusive remedy for defective Telpar-manufactured Products is limited to repair or replacement, as
Telpar determines in its sole discretion. The warranty described above does not include any labor or service costs
for removing or replacing parts, or any shipping charges. Any repair performed by Telpar under this warranty
does not extend the original warranty period of any Product. This warranty shall not apply to any Product which
has: (i) been repaired or altered, except by Telpar; (ii) not been maintained in accordance with all of the operating
or handling instructions supplied by Telpar, or (iii) been subjected to misuse, willful acts, abuse, tampering,
negligence or accident, unusual physical or electrical stress, as Telpar determines in its sole discretion. Customer
acknowledges that Telpar provides no warranty for any third party materials and Telpar is not responsible and will
have no liability for any items or services provided to Customer by any person or entity other than Telpar. Telpar’s
duty to perform under any warranty may be delayed, at Telpar’s sole option, until Telpar has been paid in full for
all Products purchased by Customer. No such delay shall extend the warranty period. To obtain assistance under
this limited warranty, Customer should contact the selling agency or write to: Telpar, Warranty Claims
Department, 187 Crosby Road, Dover, NH, 03820, U.S.A. Telephone: [phone] or fax: [phone]. No
person (including, without limitation, any agent, salesman, dealer or distributor) has the authority to act on behalf
of Telpar to expand Telpar’s obligation beyond the terms of this express warranty, or to state that the
performance of the Product is other than published by Telpar. For Products not manufactured by Telpar, to the
extent permitted Telpar assigns to Customer the benefits of any warranties provided to Telpar by the
manufacturer(s) of the Product. THE FOREGOING IS A LIMITED WARRANTY AND IT IS THE ONLY WARRANTY
PROVIDED BY TELPAR. TELPAR DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ALL IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND ALL WARRANTIES OR
INDEMNITIES FOR PATENT OR COPYRIGHT INFRINGEMENT. IN NO EVENT SHALL TELPAR BE LIABLE FOR ANY
INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, INCLUDING LOSS OF PROFITS, REVENUE,
DATA, OR USE, INCURRED BY CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT OR
TORT, ARISING OUT OF OR RELATED TO THIS AGREEMENT, EVEN IF TELPAR OR ANY OTHER PERSONS HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TELPAR’S LIABILITY FOR DAMAGES HEREUNDER FOR
ANY CAUSE WHATSOEVER SHALL IN NO EVENT EXCEED THE AMOUNTS RECEIVED BY TELPAR FROM THE
CUSTOMER FOR THE PRODUCTS. TELPAR SHALL NOT BE RESPONSIBLE FOR ANY LOSS, DAMAGE OR EXPENSE
OF ANY KIND CAUSED DIRECTLY OR INDIRECTLY BY THE USE OR PERFORMANCE OF THE PRODUCT PROVIDED
HEREUNDER.
Upon inspection, Telpar will make necessary repairs or replacement and return the merchandise, shipping prepaid.

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 3
Table of Contents
1 General .....................................................................................................................5
1.1 Applications .................................................................................................................5
1.2 Standard Features........................................................................................................5
1.3 Power Supply Requirements.......................................................................................6
1.3.1 External Power Supply (supplied separately)..........................................................................6
1.3.2 Voltage: 24 VDC ±5%.............................................................................................................6
1.3.3 3-Pin Hosiden Connector on Printer for Power Supply Connection........................................7
1.4 Telpar Roll Paper for MTP Series................................................................................7
1.5 Document Presenter Option........................................................................................7
2 Operator Instructions..............................................................................................8
2.1 Unpacking and Inspection...........................................................................................8

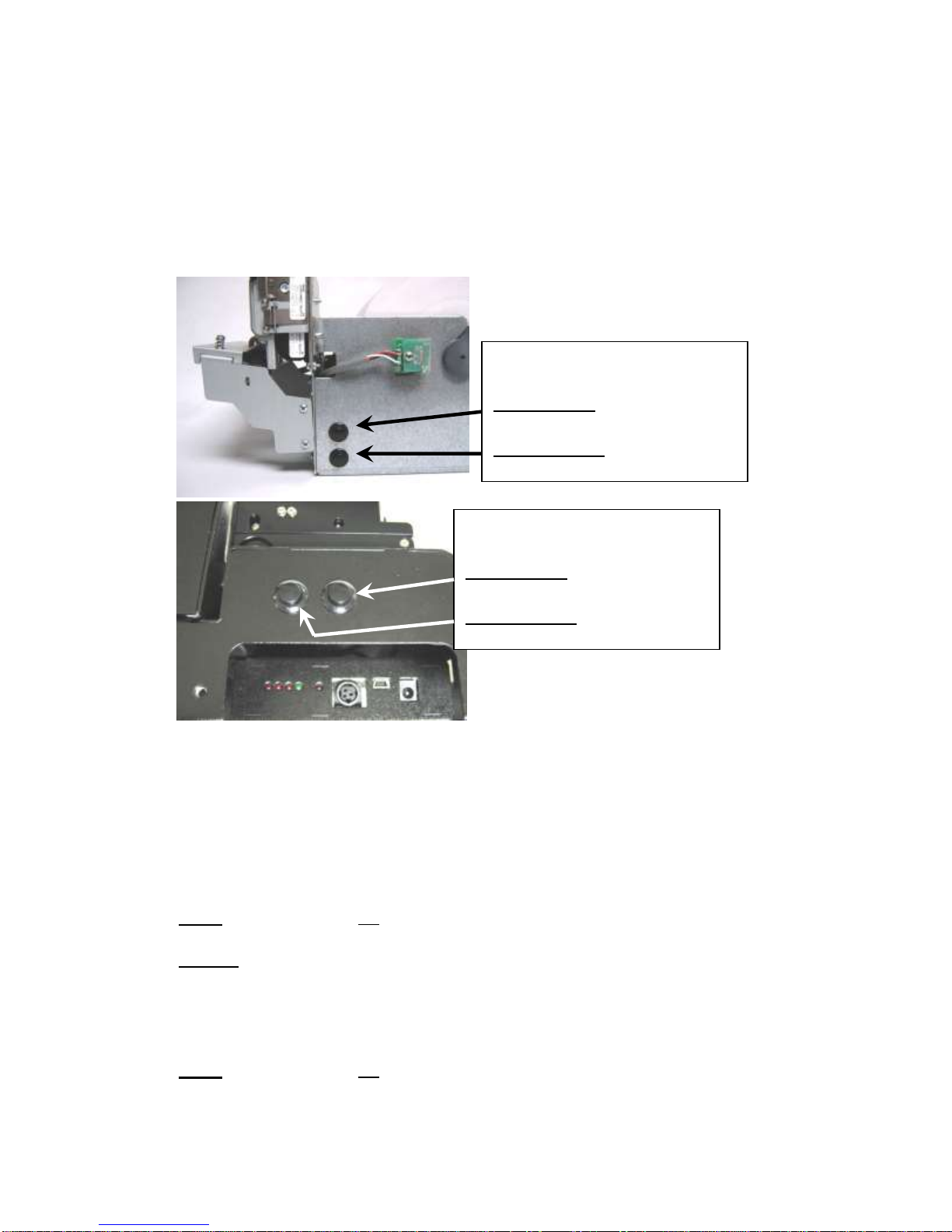

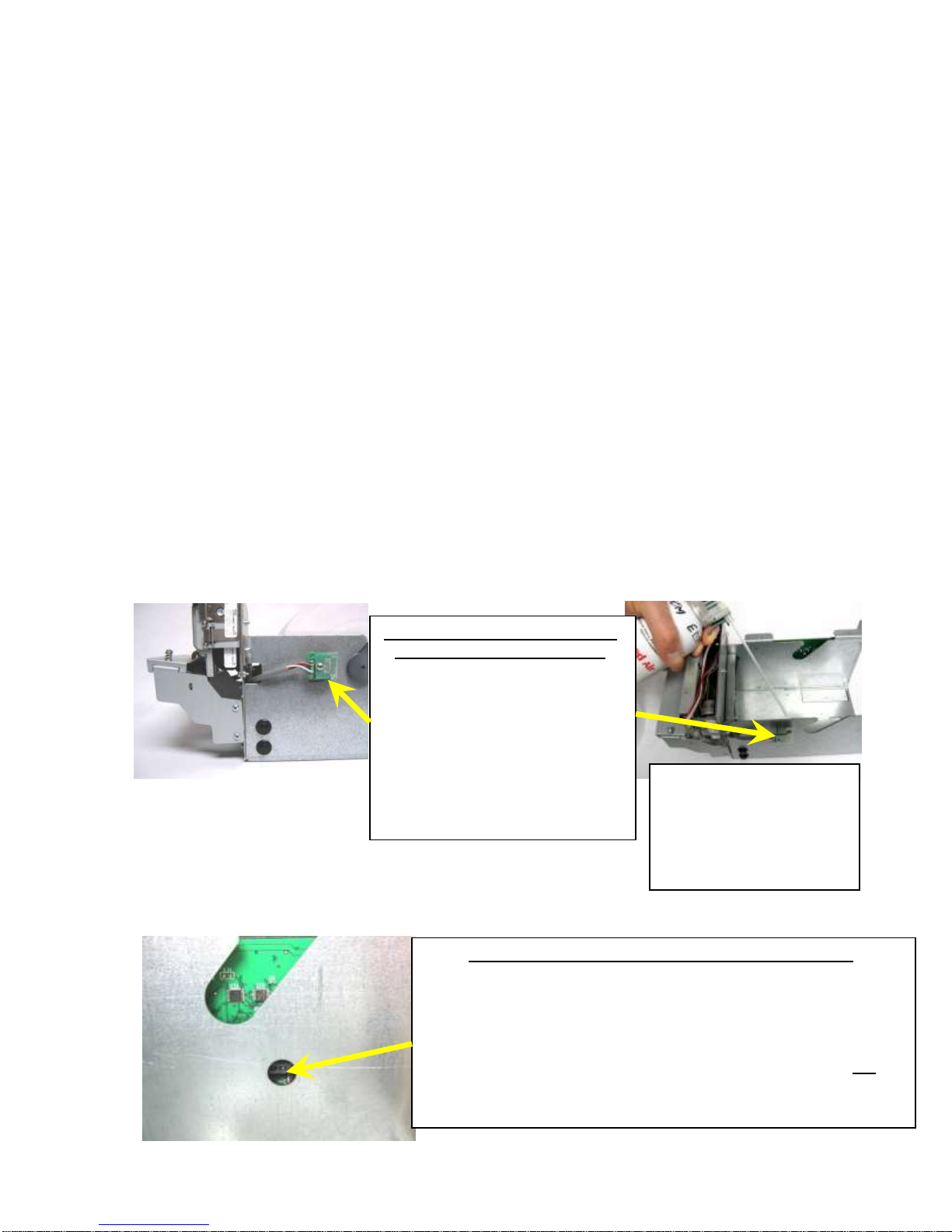

2.2 Printer Sensors............................................................................................................8
2.2.1 Sensors on the MTP-2822, MTP-2832, and the MTP-2242....................................................8
2.2.2 Sensors on the MTP-2283 ....................................................................................................10
2.3 Paper Loading............................................................................................................12
2.3.1 Side-Loading Roll..................................................................................................................12
2.3.2 Top Loading Roll...................................................................................................................12
2.4 Clearing a Paper Jam.................................................................................................13
2.4.1 Lifting the Print Head and cutter (MTP-2822, MTP-2832, MTP-2242)………………………..13
2.4.2 Lifting the Print Head of the MTP-2283…………………………………………………………..14
3 Manual Operation and General Operational Tests .............................................15
3.1 Paper Cut and Paper Feed Buttons.............................................................................15
3.2 Self Test Mode and Burn-in Mode ..............................................................................15
3.2.1 Self Test................................................................................................................................15
3.2.2 Factory Burn-in Mode............................................................................................................15
4 Printer Control…………………………………………………………………………….16
4.1 DIP Switch Settings and Print Darkness Adjustment…………………………………16
4.2 Control Codes and Control Sequences....................................................................18
4.2.1 General Usage Print Commands ..........................................................................................18
4.2.2 Descriptions of Commands...................................................................................................23
4.2.2.1 Status commands.............................................................................................................................23
4.2.2.2 Set Print Mode.................................................................................................................................24
4.2.2.3 Printer Reset………………………………………………………………………………………..24
4.2.2.4 Telpar's Window Commands...........................................................................................................24
4.2.2.5 Bit Image (BI) Graphics Mode Commands.....................................................................................25
4.2.2.6 Print Bar Code Command................................................................................................................25
4.2.2.7 Bar Code 128 definitions.................................................................................................................26

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 4
4.3 Serial (RS-232C) Interface .........................................................................................28
4.3.1 Serial (RS-232C) Interface Specification...............................................................................28
4.3.2 Serial I/O Connector..............................................................................................................28
4.3.3 Optional MTP Serial Adapter Cable ......................................................................................29
4.4 Parallel Interface (IEEE-1284)....................................................................................30
4.4.1 Parallel I/O Connector, IEEE-1284 Type C...........................................................................30
4.4.2 Optional MTP Parallel Adapter Cable……………………………………………………………..31
4.5 USB Interface .............................................................................................................32
4.6 Ethernet Interface ......................................................................................................32
4.7 Printer Drivers............................................................................................................32
5 Detailed Specifications .........................................................................................33
5.1 MTP-2822, MTP-2832, and MTP-2242 Detailed Specifications................................33
5.2 MTP-2283 Detailed Specifications………………………………………………………..34
5.3 Character Sets - Print Samples.................................................................................35
5.4 MTP-2822 Standard Printer Drawing ........................................................................40
MTP-2822 Presenter Printer Drawing.......................................................................41
5.5 MTP-2832 Standard Printer Drawing ........................................................................42
MTP-2832 Presenter Printer Drawing.......................................................................43
5.6 MTP-2242 Standard Printer Drawing ........................................................................44
MTP-2242 Presenter Printer Drawing.......................................................................45
5.7 MTP-2283 Standard Printer Drawing ........................................................................46
MTP-2822 Presenter Printer Drawing.......................................................................47
6 Troubleshooting ....................................................................................................48
6.1 General Troubleshooting………………………………………………………………………………48
6.2 LED Diagnostics and Error Detection Codes……………………………………….……………..49
6.3 LED Error Code Definitions Table……………………………………………………………………50

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 5
1 General
(For detailed specifications for each of the individual printers, please see Section 5 in this manual.)
The MTP series of modular thermal printers is designed specifically for the high performance, size and
durability requirements of cut and drop (or cut and present with optional Document Presenter) applications.
The compact size and high performance characteristic, coupled with its rugged design, makes it ideal for the
kiosk environment.
These models make up the MTP Series covered in this manual:
MTP-2822 - 60 mm (2.36 in) paper width
MTP-2832 - 80 mm (3.15 in) paper width.
MTP-2242 - 114 mm (4.49 in) paper width.
MTP-2283 - 215.9 mm (8.5 in) paper width.
All models above may be ordered with an optional Document Presenter.
1.1 Applications
Kiosks
Automated Teller Machines (ATMs)
Parking ticket dispensing
Gaming receipts
1.2 Standard Features
Direct thermal printing
Interfaces: Serial (RS-232), Parallel and USB interfaces all on the same printer
Auto Cutter: full cut/partial cut under software control is standard
All metal construction
Adjustable paper low sensor
Paper auto load function
ESC/POS
1
The commands conform to ESC/POS
LEDs visible and DIP switches accessible without removing cover
International character set: U.S.A., France, Germany, England, Denmark (2 choices), Sweden,
Italy, Spain (2 choices), Japan, Norway, Latin America and Korea
Barcode embedded symbologies: UPC-A, UPC-E, EAN 13, EAN 8, 3of 9. ITF, CODABAR, and
Code 128
Two resident font sizes
Code pages 437, 850, 858, 860, 863, 865, and WPC 1252.
Bit image mode
Reverse video mode
Black mark sensing (TOF mode)
1
ESC/POS is a registered trademark of SEIKO EPSON Corp.

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 6
1.3 Power Supply Requirements
1.3.1 External Power Supply (supplied separately)
Use a Listed/Certified Power Supply.
Follow local wiring codes for external wiring.
1.3.2 Voltage: 24 VDC ±5%
These printers operate using high speed currents at a low duty cycle. Typically, a
switching power supply rated at 24 Volts DC, 2 Amps (50 Watts) is all that is needed as
long as the power supply selected can provide the maximum peak current for the
Printing Rate as indicated in the table below.For more detailed printer specifications,
please reference Section 5 in this manual.
Power Supply Option (Telpar Part Number 103929-0401): Telpar offers a power supply
suitable for use with all of the latest MTP series printers (Not Compatible with the older,
legacy MTP printer series). This power supply‟s female plug fits the printers‟ barrel jack
connector and also provides a built-in ON/OFF switch near the connector end.
Current (A) for Printer Head
Printing Rate
Printer Model
Avg
Peak
Solid Black-out
(considered the
“worst case”
scenario)
MTP-2822
1.75
4
MTP-2832
2.25
5
MTP-2242
3
7
MTP-2283
3
10
Typical ASCII text
(considered closest
to the typical, normal
operation for most
users)
MTP-2822
1
2.5
MTP-2832
1.25
2.5
MTP-2242
1.5
3.5
MTP-2283
1.0
3

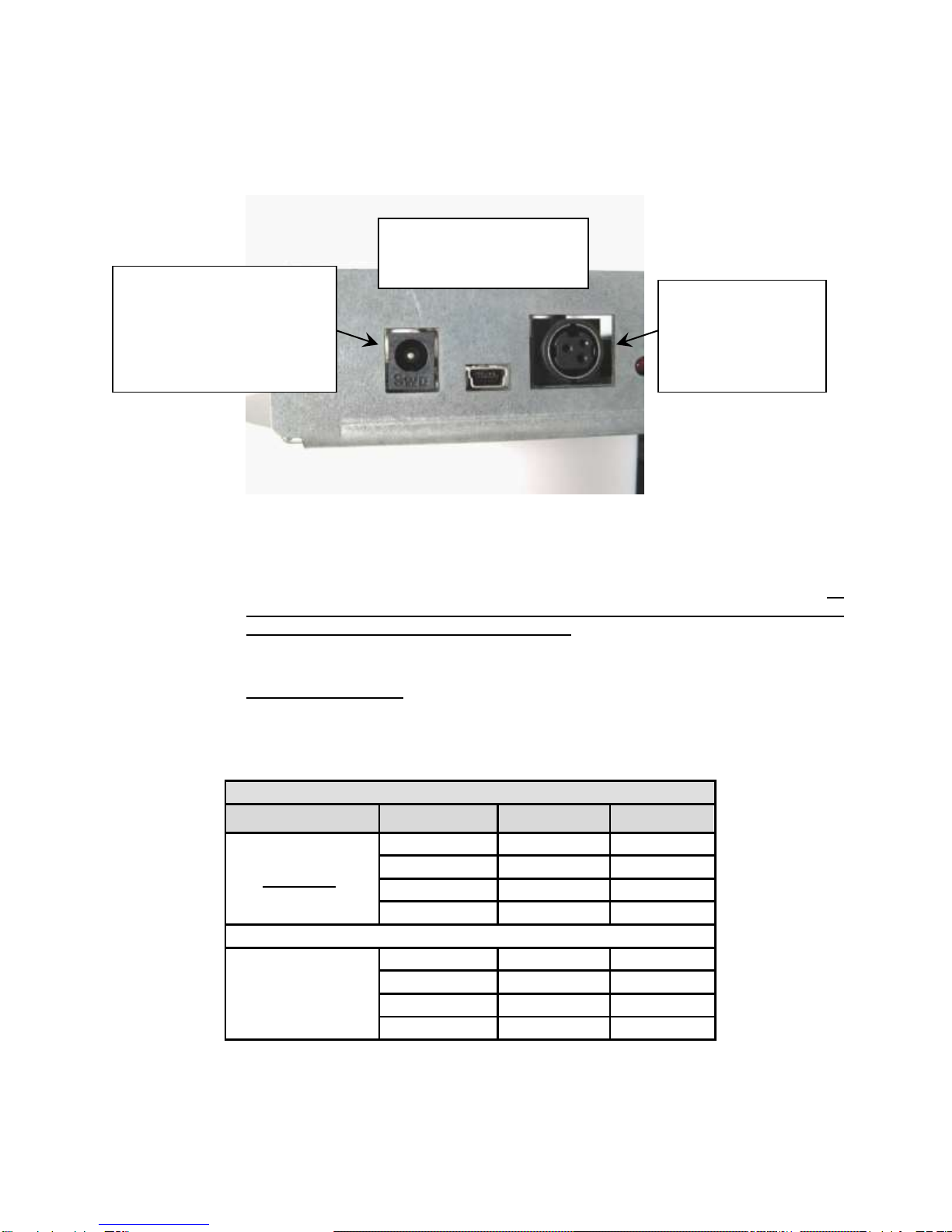

Barrel Jack Power
Connector comes
standard on all current
MTP printers
(5.5 X 2.1 X 9.5mm Male,
center positive voltage)
Hosiden Power
Connector option
for legacy
applications only
(see pinout below)
Two ways to connect
Power to the MTP
Series:

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 7

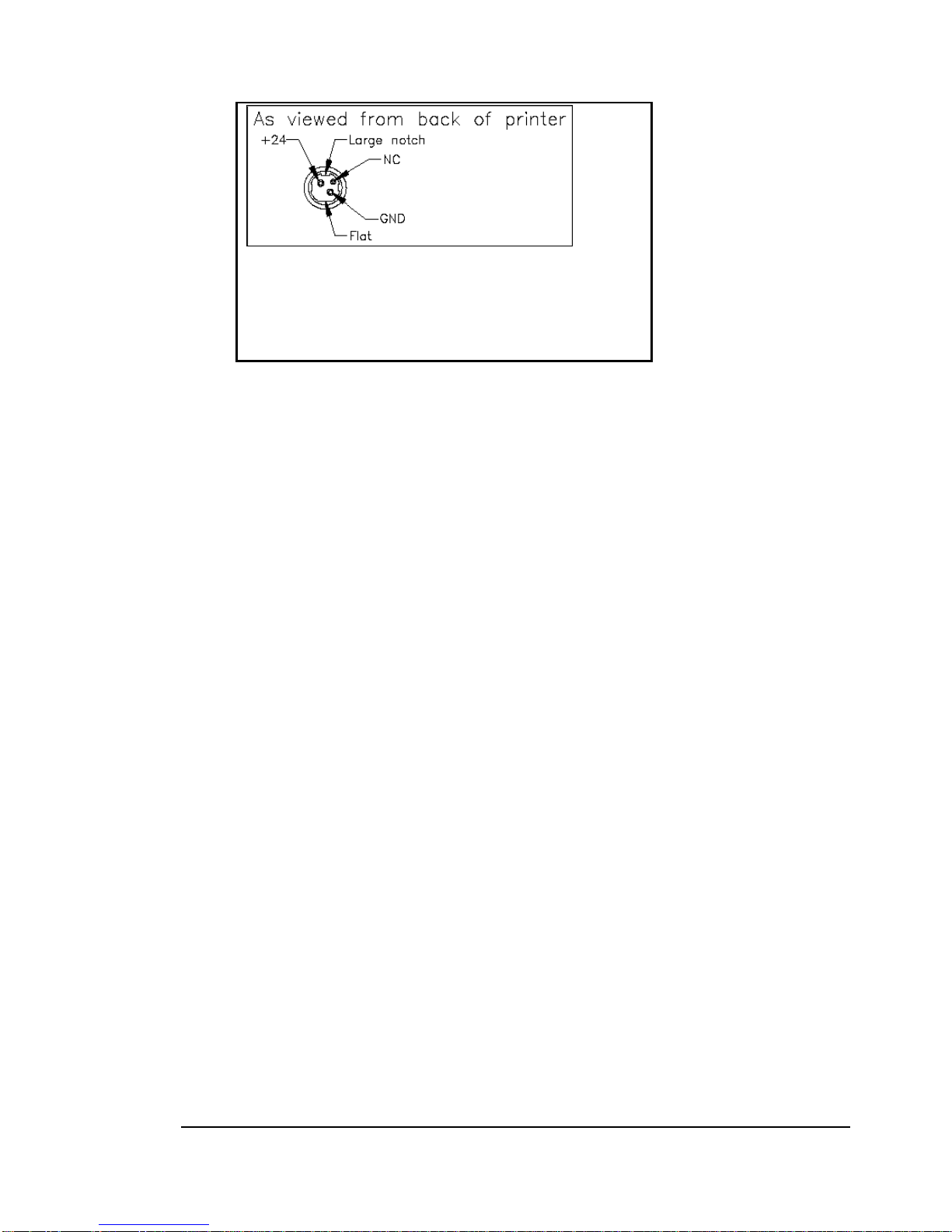

1.3.3 3-Pin Hosiden Connector on Printer for Legacy Power Supply Connection
Power Connector::
Hosiden #TCS7960-53-2010
Mating Connector:
Hosiden #TCP8927-53-1100 or
TCP8927-63-1110
3-Pin Hosiden Power Supply Connector
1.4 Telpar Roll Paper for MTP Series
Thermal sensitive coating is on the “inside” of the roll.
For MTP-2822:152 mm (6 in) outside diameter, 60 mm (2.36 in) wide, approximate
length 180 m (590 ft) Telpar P/N 251410-0602
For MTP-2832 152 mm (6 in) outside diameter, 80 mm (3.15 in) wide, approximate
length 180 m (590 ft) Telpar P/N 251103-8006
For MTP-2242 152 mm (6 in) outside diameter, 114 mm (4.49 in) wide, approximate
length 180 m (590 ft) - Telpar P/N 251410-0604
For MTP-2283 152 mm (4.5 in) outside diameter, 215.9 mm (8.5 in) wide, approximate
length 104 m (340 ft) - Telpar P/N 751221-0041
For MTP-2283 203 mm (8 in) outside diameter, 215.9 mm (8.5 in) wide, approximate
length 398 m (1,307 ft) - Telpar P/N 751221-2080
Specific to Thermal Printers: Telpar, Inc. does not warranty damages to the thermal print head as
a result of printing with thermal paper not specified or approved by Telpar, Inc.
1.5 Document Presenter Option (Presenter dimensions can be found in Section 5 –Printer Drawings)
The MTP Printer Series can be ordered with an optional document presenter which attaches to the
front of the printer (just after the cutter mechanism). The purpose of the document presenter option
is to prevent a person from making physical contact with a document until the document has been
completely printed and cut. This decreases the likelihood of someone purposely or accidentally
causing a paper jam or smearing the printed information by pulling on the exiting document before it
has finished printing. This option is especially useful when printing long documents.
Preventing human contact with a document during a printing operation is accomplished by allowing
the presenter to hold the leading edge of the document (preventing the document from exiting the
printer) while the remainder of the document is being printed. A paper loop will form below the
presenter assembly while document printing is in progress. Finally, after the completed document is
cut, the presenter ejects the document up to the trailing edge of the paper which it holds so that the
customer may take the document from the presenter exit. The printer can be configured to retract
the document if the customer has not removed it after a specified passage of time.
Check with our sales team to see if a Document Presenter would be beneficial to your application.

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 8
2 Operator Instructions
2.1 Unpacking and Inspection
Carefully unpack and inspect your printer for any damage that may have occurred in transit. Should
any damage have occurred, notify Telpar, Inc., save the shipping carton and packing materials, and
file a damage claim with the carrier. Specify the nature and the extent of the damage. Before
installing or operating the printer, check the following:
Printer mechanism and paper path are clear of all packing materials or other foreign
matter.
Paper is installed. DO NOT OPERATE the printer without paper. Refer to Section 2.3 -
Paper Loading for paper loading instructions.
2.2 Printer Sensors
The MTP series of printers use infrared, reflective sensors to detect when the paper roll is getting
low, when paper is present under the print head, and when paper has entered the document
presenter (if your printer has the document presenter option). These sensors should be periodically
cleaned from dust and other debris which will accumulate on them over time. Cleaning periodically
will help prevent intermittent, false triggering of the sensors which result in system downtime. It is
recommended that pressurized air be used to clean the sensor surfaces as shown below.
2.2.1 Sensors on the MTP-2822, MTP-2832, and the MTP-2242
MTP-2822, MTP-2832, and MTP-
2242 External Sensor Option
The External Paper Low Sensor
option, shown here, can be
physically rotated to detect various
diameter sizes via a rounded
cutout in the chassis. Printer
status feedback will indicate
whether or not the sensor detects
the roll as the roll‟s diameter
decreases with use.
The sensor surface can
be cleaned by blowing
pressurized air over the
sensor face through the
rounded slot in the
chassis as shown above.
MTP-2822, MTP-2832, and MTP-2242 Internal Sensor
The fixed, Internal Paper Low Sensor, shown here, comes standard
on these printers, and detects when the paper roll is almost depleted.
Printer status feedback will indicate whether or not the sensor
detects the roll as the roll‟s diameter decreases with use. The
sensor surface can be cleaned by blowing pressurized air over the
sensor face through the round hole in the chassis. Internal OR
External Paper Low Sensor detection can be selected via the state of
DIP Switch, position 6 on the printer‟s circuit board (Section 4).

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 9

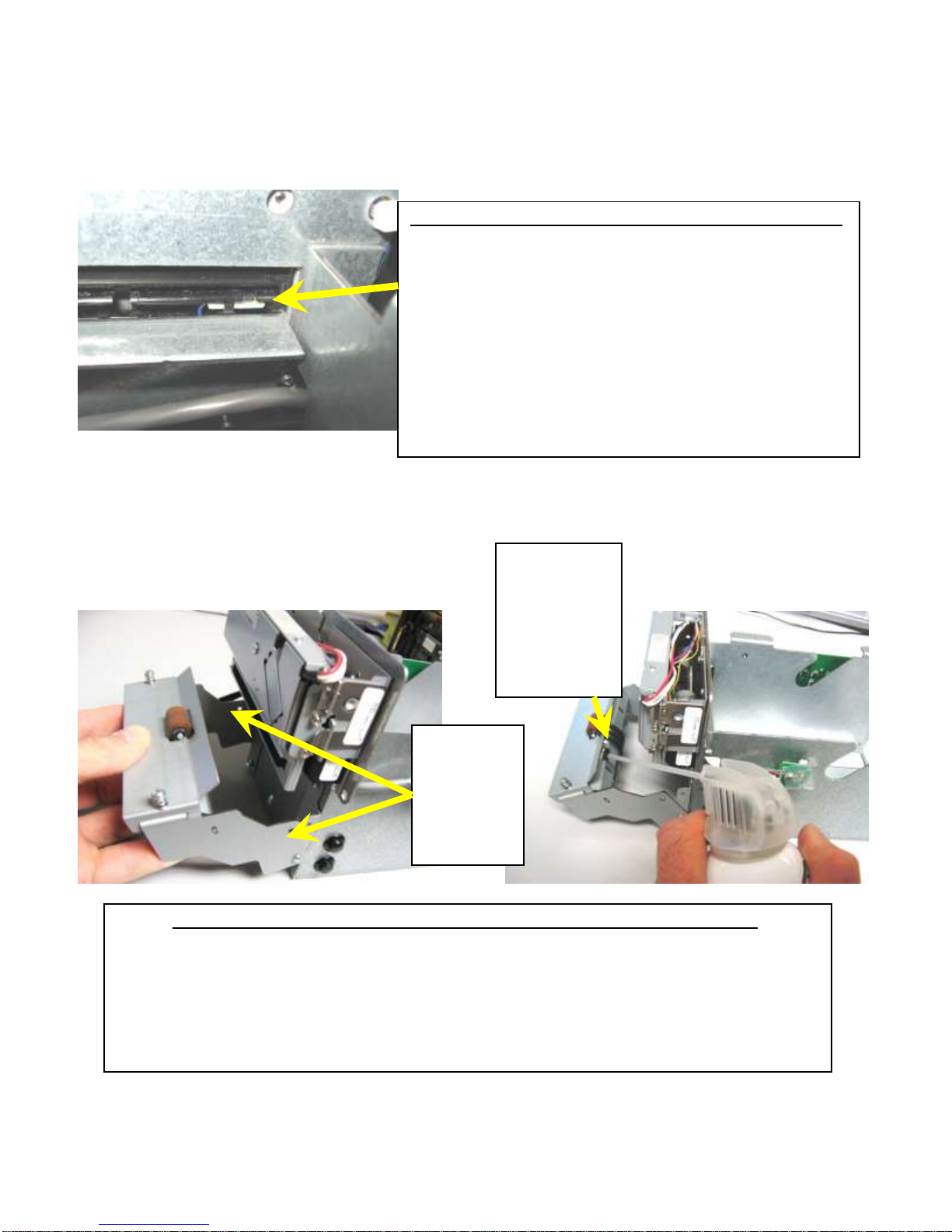

MTP-2822, MTP-2832, and MTP-2242 Paper Present Sensor
The Paper Present Sensor, shown here, is part of the print
head mechanism and is located at the front of the
mechanism‟s paper entry slot. This sensor detects if paper is
present in the print head mechanism. If there is no paper
presently in the printer, and paper is fed through the entry slot,
the printer will perform an auto feed operation. If paper is in
the printer mechanism and the paper supply runs out, the
printer will indicate an out of paper status. This sensor can be
cleaned by blowing pressurized air over the sensor face
through the paper entry slot.
DOCUMENT PRESENTER OPTION ONLY –MTP-2822, MTP-2832, and MTP-2242
The Presenter Sensor (location shown above) detects when the leading edge of the paper has
entered far enough into the presenter section to stop the presenter motor from turning and thereby
preventing the paper from being ejected until the printer prints and cuts the document. It also detects
if the document has been successfully ejected (or retracted) from the presenter section after the
document has been printed and cut. To access the Presenter Sensor, loosen the presenter‟s top two
mounting screws and pivot the presenter section down as shown above. The Presenter Sensor may
then be cleaned through the rectangular cutout in the chassis.
The Presenter
Sensor may
then be
cleaned
through this
rectangular
cutout in the
chassis.
Loosen two
top screws
and pivot the
Presenter
down to
access the
Presenter
Sensor.

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 10
2.2.2 Sensors on the MTP-2283
MTP-2283: Accessing the Paper Present Sensor
The MTP-2283 Paper Present Sensor is located under the print head mechanism and therefore the print head
must be raised to access this sensor. The MTP-2283‟s print head is raised by first lightly lifting the cutter release
latch on the center top of the printer to let the cutter mechanism pivot downward (left picture). Next, gently flex
back the two spring clips on each side of the print head until the clips just clear the spring pins (middle picture).
Finally, once both spring clips are free from the clip pins, rotate the print head up (right picture).
MTP-2283 Paper Present Sensor
The MTP-2283 Paper Present Sensor is located below
the rectangular cutout under the print head mechanism
as shown. This sensor detects if paper is present in the
print head mechanism. If there is no paper presently in
the printer, and paper is fed through the entry slot, the
printer will perform an auto feed operation. If paper is in
the printer mechanism and the paper supply runs out,
the printer will indicate an out of paper status. This
sensor can be cleaned by blowing pressurized air over
the sensor face through the Rectangular cutout in the
chassis.
MTP-2283 Paper Low Sensor
The Paper Low Sensor, shown here, is mounted on the
paper roll holder. It detects when the paper roll is almost
depleted. Printer status feedback will indicate whether or not
the sensor detects the roll as the roll‟s diameter decreases
with use. The sensor surface can be cleaned by blowing
pressurized air over the sensor face through the hole in the
roll side of the chassis.

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 11
DOCUMENT PRESENTER OPTION ONLY –MTP-2283
The Presenter Sensor (location shown below) detects when the leading edge of the paper has entered far
enough into the presenter section to stop the presenter motor from turning and thereby preventing the
paper from being ejected until the printer prints and cuts the document. It also detects if the document
has been successfully ejected (or retracted) from the presenter section after the document has been
printed and cut. To access the Presenter Sensor, remove the presenter‟s top paper guide first. To do
this, lightly flex back the spring clip on the side of the presenter until the guide‟s tabs are just fully exposed
(shown below). Then lift and remove the guide from the presenter (right picture).
To access the Presenter Sensor on the
MTP-2283, you must remove the
presenter‟s top paper guide first. To do
this, lightly flex back the spring clip on the
side of the presenter until the guide‟s tabs
are just fully exposed (shown above).
Then lift and remove the guide from the
presenter (right picture).

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 12
2.3 Paper Loading
2.3.1 Side-Loading Roll
The MTP-2822 and MTP-2832 printers are configured as side-loading units. Slide the roll of
paper over the spindle so that the paper will feed into the print mechanism from the bottom
of the roll (thermal coated side up).
To load paper, power the printer and feed the straight edge of the paper into the print
mechanism‟s paper in-feed slot. NOTE: The printer does not have an ON / OFF Switch.
Inserting paper will result in the automatic loading of paper once the leading edge of the
paper covers the Paper Present Sensor in the mechanism (Section 2.2.1). Ensure that the
paper is installed correctly and feeding properly with the thermal side facing up.
2.3.2 Top Loading Roll
The MTP-2242 and MTP-2283 printers are configured as a drop in loader (as shown
below). Load the roll of paper by placing the spindle inside the roll of paper and slide the
spindle into the slots. The paper must feed into the print mechanism from the bottom of the
roll (thermal coated side up). To load paper, power the printer and feed the straight edge
of the paper into the paper guide. NOTE: The printer does not have an ON / OFF Switch.
Inserting paper will result in the automatic loading of paper once the leading edge of the
paper covers the Paper Present Sensor in the mechanism (Section 2.2.1). Ensure that the
paper is installed correctly and feeding properly with the thermal side facing up.
MTP-2242 Paper loading
MTP-2283 Paper loading

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 13
2.4 Clearing a Paper Jam
In the event of a paper jam condition do not force paper into the unit, or try to pry the paper out of the
unit, this may damage the thermal print mechanism. Instead, lift the print head up, off the paper to
clear a jam as shown below. Caution should be exercised when working next to the cutter
mechanism, the blades are sharp and may cause serious injury! Therefore, it is recommended
to unplug the Printer before clearing a jam!
2.4.1 Lifting the Print Head and Cutter Sections of the MTP-2822, MTP-2832, and MTP-2242
The MTP-2822, MTP-2832, and MTP-2242‟s Head Up lever is located by the Paper Feed
knob as shown below. Rotating the lever to the fully down position allows the print head to
physically contact the paper while also closing an interlock switch which tells the printer it
is ready to print –you will not be able to print if the lever is up. When the lever is in the
middle position, it reduces pressure between the print head and the print platen roller for
easier manual feeding. In the fully up position, the lever lifts the print head off of the platen
roller for manually inserting paper or for clearing a paper jam. Both the middle and up
positions signal the microprocessor that the head is up so that no printing will occur.
The MTP-2822, MTP-2832 and MTP-2242 have a cutter mechanism that can easily be
rotated up away from the print head to further assist in clearing jams that occur between the
print head and the cutter. However, if the printer has a Document Presenter and a paper
jam exists between the print head and the cutter or between the cutter and the presenter,
the presenter section must be pivoted down and out of the way before the cutter section can
be raised. To do this, loosen the presenter‟s top two mounting screws and pivot the
presenter section down as shown below in the left-hand picture. The cutter section can then
be raised as shown in the right-hand picture.

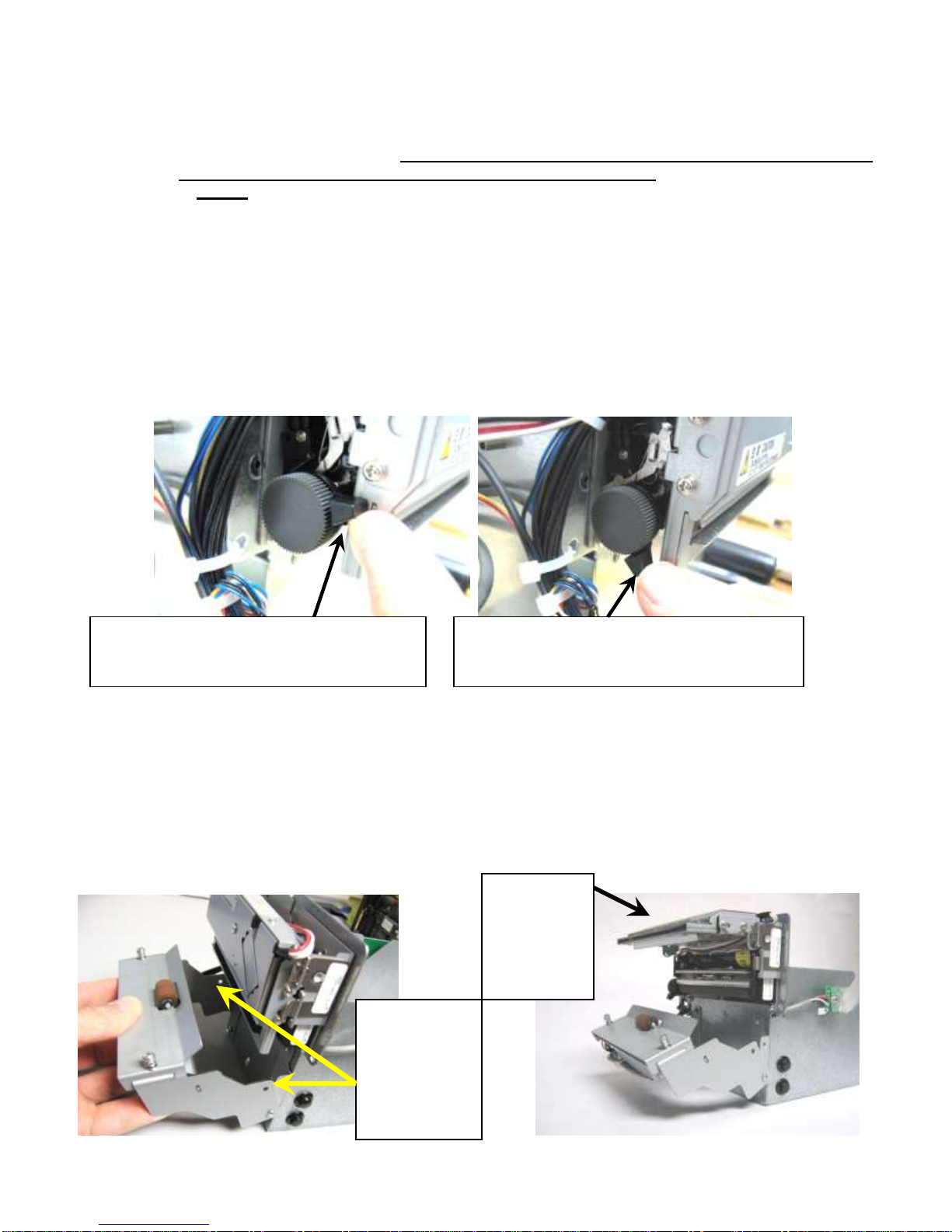

Head Up Lever shown in the “up” or open
position. Pertains to the MTP-2822, the
MTP-2832, and the MTP-2242
Head Up Lever shown in the “down” or closed
position. Pertains to the
MTP-2822, the MTP-2832, and the MTP-2242
Loosen two top
screws and
pivot the
presenter down
to access a
paper jam in
cutter section.
Once the
presenter is
out of the
way, the
cutter
section can
be raised.

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 14
2.4.2 Lifting the Print Head of the MTP-2283
The MTP-2283‟s print head is lifted via releasing three spring clips as shown below. Lifting
the head will allow you full access for clearing jams in the printing section as well as access
to the Paper Present Sensor which may need to be cleaned from paper dust from time-to-
time. When the print head of the MTP-2283 is in the up position, be careful not to physically
contact the actual print head element itself (element looks like a long, dark stripe on the
bottom of the head) as you may easily damage it. The printer will not be able to print or
automatically feed paper with the head up. When closing the print head, make sure that all
three spring clips are fully secured around their respective spring pins.
If the printer has a Document Presenter and a paper jam exists between the cutter and the
presenter, then the top section of the presenter may be removed to provide easy access to the
jam. To do this, lightly flex back the spring clip on the side of the presenter until the guide‟s tabs
are just fully exposed (shown below in left-hand picture). Then lift and remove the guide from the
presenter (right picture).
The MTP-2283‟s print head is
raised by first lightly lifting the
cutter release latch on the center
top of the printer to let the cutter
mechanism pivot downward.
Next, gently flex back the two
spring clips on each side of the
print head until the clips just
clear the spring pins as shown
below.
Finally, once both spring clips are
free from the clip pins, rotate the
print head up as shown. A paper
jam in the print head section can
now be easily cleared.
Document Presenter‟s top guide
plate can be easily removed to
allow access to paper jams in the
cutter / presenter section.

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 15
3 Manual Operation and General Operational Tests
3.1 Paper Cut and Paper Feed Buttons
The MTP series of printers have two external, momentary push-buttons that allow the operator to
manually feed and cut paper. The locations of these buttons are shown below. When the Feed
Button is pressed, the printer will feed paper until the Feed Button is released. When the Cut Button
is pressed and released, the printer will feed and cut one short section of paper.
3.2 Self Test Mode and Burn-in Mode
The MTP series has a self-test and Burn-in mode that will print and cut sample documents. All
electrical and mechanical portions of the printer are exercised and checked by this action (except for
the communication interface components). The self-test printout also shows pertinent information
pertaining to the current printer setup.
3.2.1 Self Test
NOTE: The printer does not have to be connected to a host (computer, PLC, or other controller) to
perform a Self Test. To place the unit into self-test mode: remove power from the printer, then press
and hold the FEED button (see above). Next, return power to the printer, then release the paper feed
switch after hearing one beep. The printer will print a Self Test form showing pertinent information
pertaining to the current setup and sample text and barcodes.
3.2.2 Factory Burn-in Mode
NOTE: The printer does not have to be connected to a host (computer, PLC, or other controller) to
enter the Factory Burn-in Mode. If the Feed button is held for five beeps after power is applied to the
printer, the printer will enter the Factory Burn-In Mode. Fifty shorter sheets will be printed.
MTP-2822, MTP-2832, MTP-2242
CUT BUTTON is on top
FEED BUTTON is on the bottom
MTP-2283
CUT BUTTON is on the right
FEED BUTTON is on the left

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 16
4 Printer Control
4.1 DIP Switch Settings and Print Darkness Adjustment
Note: Both the Printer‟s DIP Switch and Print Darkness Adjustment can be accessed through the cutout in the
metal chassis as shown:
DIP Switch Settings: Each Printer in the MTP series of printers has a DIP Switch located on the main circuit
board (see photo below). The DIP Switch contains a bank of eight individual switches, each of which controls
some aspect of the printer and are described in the table below. The switches can slide up into the “ON” position
or downs into the “OFF” position (the picture below shows switches 1, 2, and 3 in the “OFF” position, and switches
4, 5, 6, 7, and 8 in the “ON” position. A small tip screwdriver or even a pen tip may be used to change the position
of the switches.
The DIP Switch on each type of printer can be accessed through a cutout hole on the metal circuit board cover –
therefore, DIP Switch changes can be made without removing the cover. IMPORTANT NOTE: If you make any
changes to the DIP Switch settings, you must first cycle power to the printer in order for the changes to take place.
Print Darkness Adjustment: Control R35 on the circuit board is the Print Darkness (or Print Density) Control (see
photo below). Clockwise rotation of the control increases print darkness, but also consumes more current and
shortens the life of the print head. Therefore, it is recommended that the darkness level be increased to the point
that just meets the desired darkness level under the normal ambient operating conditions for the printer application.

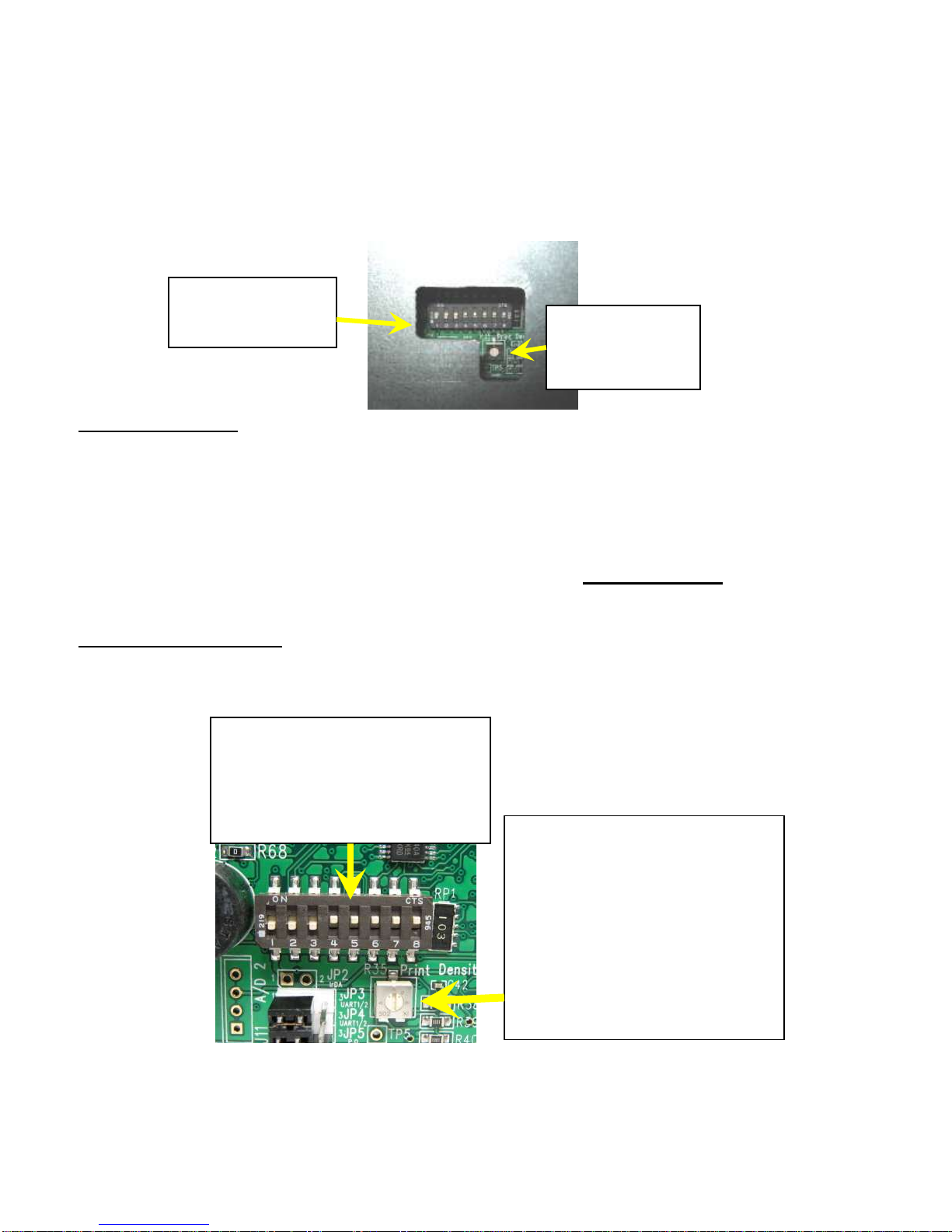

DIP Switch contains a bank of eight
individual switches with each switch
controlling some functional aspect of
the printer (see table below). Here,
positions 1-3 are shown “OFF” while
4-8 are shown “ON”.
The Print Darkness (Print Density)
adjustment is located below the DIP
Switch as shown. Rotation
clockwise increases the print
darkness, but also draws more
current and decreases the life of the
print head element. It is
recommended that the darkness
level be increased to the point that
just meets the desired darkness
level under the normal ambient
operating conditions for the printer.
application
DIP Switch Bank as
looking through the
printer‟s chassis
Print Darkness
Adjustment as
looking through
the chassis

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 17
DIP
Switch
Position
Printer Function based on State of Switch
1
OFF = Normal Print Mode (normal operating mode for printer)
ON = Flash Memory Upload Mode
2
OFF = Paper cutter disabled (will not cut paper)
ON = Paper cutter enabled (will cut paper)
3
Reserved for future use
4
OFF = Document Presenter disabled (no document presenter option on the printer)
ON = Document Presenter enabled (printer has the document presenter option)
5
This setting pertains to models with the document presenter option only
OFF = Presenter paper loop enabled (prints first, cuts second, then delivers)
ON = Presenter paper loop disabled (delivers document while printing, then cuts)
6
Paper Roll Low Sensor (MTP-2822, MTP-2832, MTP-2242) select which sensor to use:
OFF = Use Internal Paper Low Sensor on the board (standard configuration)
ON = Use External Paper Low Sensor on chassis side (optional configuration)
7
Reserved for future use
8
This setting pertains to the MTP-2283 only
OFF = Low Current Mode disabled (uses more current, faster printing)
ON = Low Current Mode enabled (uses less current, slower printing)

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 18
4.2Control Codes and Control Sequences
4.2.1 General Usage Print Commands
General Usage Print Commands
Name
Command
ASCII
Command
hex
Description
Tab
HT
09
Move the print position to the next horizontal tab
position. See ESC D. If a TAB is received and
there are no more tab positions set on the
current line, the TAB command is ignored. If the
TAB will exceed the right margin, an auto-print
is performed and the print position is set to the
start of the next line.
Line feed
LF
0A
Data on the current line is printed, paper is fed
one line based on the current line spacing, and
the print position is set to the left margin. If the
current line spacing is set to less than the
current font height then paper is fed to print the
current font height (see ESC 2, ESC 3 +n, and
ESC C +n).
Form Feed
FF
0C
Feed paper to end of page as defined by the
default page length of 11 inches or as modified
by the US C command. If TOF mode is enabled
(DIP switch 2 position 1 or ESC c 1 +n)) then
paper is fed until the next BLACK MARK is
detected. To advance to the BLACK MARK if
TOF mode is not enabled use the GS FF
command.
DLE
DLE
10
Data Link Escape Sequence Header.
Enable Auto
Status Back
DLE A +n1 +n2
10 41 +n1 +n2
+n1 and +n2 define a mask to enable the
transmission of the STATUS bytes when a user
defined event occurs. See Section 0 -
Status commands. Default = 00 00 (ASB
disabled).
Buffered STATUS
request
DLE B
10 42
The STATUS bytes are transmitted when this
command is processed out of the receive
buffer. See Section 0 -
Status commands.
Real time
STATUS request
DLE R
10 52
The STATUS bytes are transmitted when this
command is received by the printer. See
Section 0 -
Status commands.
User selected data
string
DLE U +n1
+n2
10 55 +n1 +n1
When DLE U +n1 +n2 is processed out of the
receive buffer, the printer will transmit DLE U
+n1 +n2 back to the host.
ESC
ESC
1B
ESCAPE Sequence Header.
GS
GS
1D
GROUP SEPARATOR Sequence Header.
US
US
1F
UNIT SEPARATOR Sequence Header.
Reverse Video ON
ESC RS
1B 1E
Printing is reversed to white characters on black
background. Reverse video requires more
power to print and is less readable. (Same as
GS B 01).

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 19
Name
Command
ASCII
Command
hex
Description
Reverse Video OFF
ESC US
1B 1F
Printing is set to default mode of black print
on white background. (Same as GS B 00).
Set Print mode
ESC ! +n
1B 21 +n
Set Print mode = font A or B, Double
high, Double wide.
Select Bit Image
mode
ESC +m +n1
+n2 +d1dn
1B 2A +m +n1
+n2 (data)
Select Bit Image mode. +m = ?. n2*256 + n1
= Number of DOT LINES of data to follow.
(data) = the amount of data required to
complete the sequence. Telpar does not fully
support this command. Please refer to US *
command which follows.
Underline
ESC - +n
1B 2D +n
Bit 0 of n = 0 turns underlining OFF. Bit 0 of n
= 1 turns underlining ON. Default is OFF.
Set 1/6” line spacing
ESC 2
1B 32
Set 1/6 inch line spacing.
Set Line feed pitch
ESC 3 +n
1B 33 +n
Set line spacing to n dot lines. If the n
specified is less than the height to print text
using the currently selected character set
then printing will cause enough paper feeds
to print the entire line but a print command
with no data in the buffer will cause paper to
feed by this amount. Default is 1/8 inch
Printer reset
ESC @
1B 40
Initialize. See Section 4.2.2.3
Set page length
ESC C +n
1B 43 +n
Set page length to n character lines using the
current font. Overwrites the page length
defined by US C.
Set Horizontal Tab
positions
ESC D +d1dn
NUL
1B 44 (data)
00
Set from 1 to 32 tab positions in the current
character size. Data values range from 1 to
255 in ascending order. The NUL character
(00 hex) terminates this command if less than
32 tab settings are being set. If a data value
is less than the previous data value, this
command is terminated. ESC D NUL clears
all tab positions. Default is every 8 columns.
Print after a tab starts in the column following
the tab setting specified.
Forward paper feed
for ndot lines
ESC J +n
1B 4A +n
Feed paper n dot lines. If there is data in the
buffer, it is printed and paper is fed the
difference of the +n and the amount needed
to print the data. Range = 0 to 255 dec.
Select International
character set
ESC R +n
1B 52 +n
Select international character set. Range = 0
through 15 dec. See International
Character Sets for characters affected for
each character set.
Select justification
for bar code
ESC a +n
1B 61 +n
n=00hex, left justify. n=01hex, center justify.
n=02hex, right justify. GS L, GS W, and ESC
\ will also affect the bar code justification.

Telpar, Inc. MTP Series Receipt Thermal Printer User Manual
2011 Telpar, Inc. (Rev.20110809) Page 20
Name
Command
ASCII
Command
hex
Description
Select paper type
ESC c 1 +n
1B 63 31 +n
Bit 0 = 0, Normal paper. Bit 0 = 1, TOF (Black
Mark sensor) enabled. Default is based on Dip
switch 2 position 1.
Paper sensor to
output PE signal
ESC c 3 +n
1B 63 33 +n
Command is not implemented, all four bytes will
be ignored.
Paper sensor to
stop printing
ESC c 4 +n
1B 63 34 +n
Command is not implemented, all four bytes will
be ignored.
Select CODE
PAGE
ESC t +n
1B 74 +n
n = 0, code page 437 (standard USA).
n = 2, Code page 850 (Multilingual).
n = 3, Code page 860 (Portuguese).
n = 4, Code page 863 (Canadian-French).
n = 5, Code page 865 (Nordic);
n=10 hex, WPC1252;
n=13 hex, Code page 858
(Multilingual with Euro character)
Feed to Top of
Form
GS FF
1D 0C
If TOF mode is disabled (DIP switch 2 position
1 or ESC c 1 +n) then paper is fed until the
trailing edge of the Black Mark sensor is
detected, the current page length is reached, or
the printer runs out of paper.
Select character
size
GS !
1D 21 +n
Bits 7,6,5,4 for width, Bits 3,2,1,0 for height.
Can select 1,2,4, or 8 times normal size. 0hex =
1X size, 1hex = 2X size, 2hex = 4X size, and
3hex = 8X size.
Reverse video
GS B +n
1D 42 +n
Bit 0 of n = 1 causes Reverse Video to be
printed (same as ESC RS). Bit 0 of n = 0 turns
Reverse Video off (same as ESC US).
HRI position
GS H +n
1D 48 +n
Select HRI printing position for bar codes, n =
00hex no HRI printed. n = any value other
than 00hex, HRI printed below the bar code.
Set left margin
GS L +nH +nL
1D 4C +nH
+nL
Sets the left margin to nH*256 + nL dot
positions from the left side of the print head.
Default = 0 (leftmost dot). The value being set
must be equal to or less than the right margin
minus 80 dots. If the margin is set to any invalid
value this command is ignore. Range = 0 to
Right Margin - 80.
Paper cut
GS V +n +m
1D 56 +n +m
If n = 0 (either 00hex or 30hex) a full cut is
performed and the +m byte is not needed. If n=
1 (either 01hex or 31hex) a partial cut is
performed and the +m byte is not needed. If n
is a capital A (41hex) then paper is fed for m
dot lines and then a full cut is performed. If n is
a capital B (42hex) then paper is fed for m dot
lines and then a partial cut is performed. If a
presenter is installed, only full cuts are
performed.
