Tenda W322UA User manual

Wireless Network Adapter Users’ Guide
W322UA

Wireless Network Adapter Users’ Guide
Copyright Statement
is the registered trademark of Shenzhen
Tenda Technology Co., Ltd. All the products and product
names mentioned herein are the trademarks or
registered trademarks of their respective holders.
Copyright of the whole product as integration, including
its accessories and software, belongs to Shenzhen Tenda
Technology Co., Ltd. Without the permission of Shenzhen
Tenda Technology Co., Ltd, any individual or party is not
allowed to copy, plagiarize, reproduce, or translate it into
other languages.
All the photos and product specifications mentioned in
this guide are for references only. Upgrades of software
and hardware may occur, and if there are changes, Tenda
is not responsible for notifying in advance. If you would
like to know more about our product information, please
visit our website at www.tenda.cn.




Wireless Network Adapter Users’ Guide
Contents
Chapter 1 Introduction ...................... 1
1.1 Package Contents ...................................1
1.2 LED Indicator Description .......................1
1.3 Product Features ....................................2
1.4 Product Usage ........................................2
1.5 Before Installation ..................................3
1.6 Disable other manufacturer’s wireless
network adapter ...........................................4
1.7 Product Maintenance ............................5
Chapter 2 Installation Guide .............. 6
Chapter 3 Client Utility Interface ..... 10
3.1.1 NETWORK STATUS .............................. 13
3.1.1 NETWORK STATUS .............................. 13
3.1.2 SITE SURVEY.................................... 13
3.1.3 PROFILE MANAGEMENT......................... 14
3.1.4 STATISTICS...................................... 23
3.1.6 WPS SETTING................................. 24
3.2 AP MODE........................................... 25

Wireless Network Adapter Users’ Guide
3.2.1 BASIC SETTING ................................. 26
3.2.2 SECURITY SETTING ............................. 27
3.2.3 ACCESS CONTROL .............................. 30
3.2.5 ABOUT ........................................... 32
3.2.6 AP MODE UNDER WINDOWS 7................ 32
Chapter 4 Use the System Internal
Wireless Configuration Program ...... 33
4.1 Wireless Network Connection under
Windows XP..................................... 34
4.2 Wireless Network Connection under
Windows 7 ....................................... 39
APPENDIX........................................ 40
Appendix One Acronyms and Terms. 40
Appendix Two: Product Specification42
Appendix Three:How to Set WPS ..... 43
Appendix Four FAQ .......................... 46

Wireless Network Adapter Users’ Guide
-1-
Chapter 1 Introduction
W322UA is a 11N wireless USB network adapter
with up to 300Mbps wireless transmission rate. It
complies with the latest IEEE802.11n standard, and is
compatible with 802.11b/g wireless devices. With mini
and exquisite design, it is easy to carry along. It supports
WPS encryption method to quickly implement wireless
encryption and secure network; supports WMM to better
smooth video and sound; supports Windows 7, Vista,
Windows XP, Windows 2000, MAC OS, Linux operation
systems etc.
In conclusion, W322UA is a high-performance and
cost-effective 11N wireless USB network adapter with
good signal, long transmission range etc.

ͳǤͳ
One Wireless USB network adapter
One Software CD (includes user guide)
ͳǤʹ

Wireless Network Adapter Users’ Guide
-2-
There is one status indicator on the side of this wireless
network adapter. It always remains ON when working
correctly and flashes when transferring data.
ͳǤ͵
¾Supports 300Mbps receiving and sending rate
¾Complies with IEEE 802.11n and is compatible with IEEE
802.11b/g standards
¾Provides USB2.0 port
¾Supports 20MHz/40MHz frequency width
¾Detects network and changes the transmission rate
automatically
¾Provides two work modes: Infrastructure and Ad-Hoc
¾Supports 64/128-bit WEP encryption, and WPA, WPA2
encryption methods
¾Provides WPS encryption button to easily implement
wireless encryption and secure network
¾Compatible with Windows 7, Vista, Windows XP, Windows
2000, MAC OS, Linux systems, etc.
¾Supports WMM to better smooth your sound and video
ͳǤͶ
W322UA Wireless USB Adapter offers fast, reliable and
cost- effective solution for wireless access. It is best used

Wireless Network Adapter Users’ Guide
-3-
in the following circumstances:
1. Enables staff members who require greater mobility
in the office to have access to wireless networks
anywhere inside their company.
2. Enables wireless communication for companies or
places which are not suitable for wired LAN installation
because of budget or building environment restrictions,
such as historical buildings, rentals, or places for
short-term usage.
3. Suits businesses or individual who often changes
network topology.
4. Suits company or individual who would like to avoid
using expensive cables or renting lines etc.
ͳǤͷ
1. Please peruse this user guide before you install and
use the product.
2. Please close or uninstall the configuration programs of
other manufacturers’ before you install the configuration
programs of W322UA to avoid possible UI collision.

Wireless Network Adapter Users’ Guide
-4-
3.In order to avoid possible network collision between
this Tenda network adapter and those of other
manufactures, we recommend you to first disable the
network of other manufacturer when installaing drive.
ͳǤ͸   ǯ 


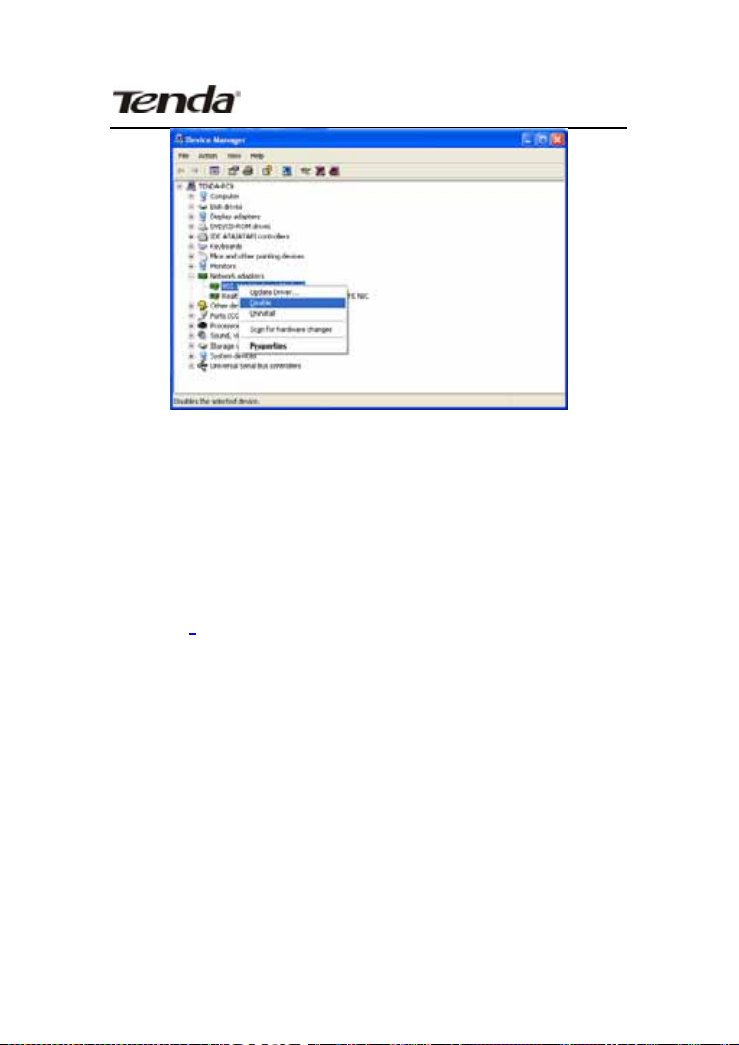

1. Right click “My Computer” and select “Properties. Then
select “Hardware” and click ĀDevice Managerā
2.Select the wireless network adapter you want to
disable then right click and selectĀDisableā

Wireless Network Adapter Users’ Guide
-5-
ͳǤ͹  
1. Please keep the product away from water and humid
environment to guarantee its normal performance
2. Protect it against other nocuous substances (such as
acid and alkali etc).
3. Please don’t keep the product directly exposed to the
sun or other object emitting great heat.
4. Please contact Tenda customer service if any
problems occur.

Wireless Network Adapter Users’ Guide
-6-
Chapter 2 Installation Guide
This chapter will assist you in installing network adapter
software packet by using the included CD. The software
packet program has integrated driver and configuration
software. So when you are installing driver the
configuration software will be automatically installed as
well.
Windows XP is used as an example to explain the
installation steps. Installation in other operation systems,
please refer to their corresponding prompts.
1. Please insert the Wireless USB Adapter into the USB
port of your computer.

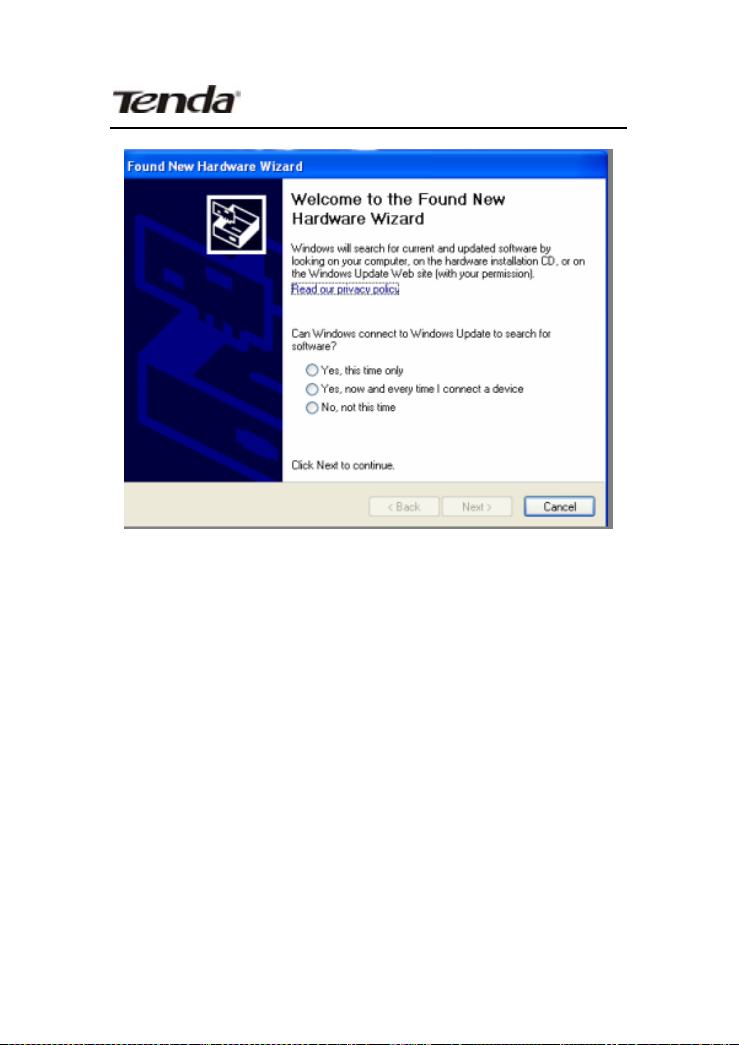

2. System will pop up a “Found New Hardware”dialogue
box. We recommend you to select “Cancel”and use the
attached quick installation CD to easily install driver and
configuration software.

Wireless Network Adapter Users’ Guide
-7-

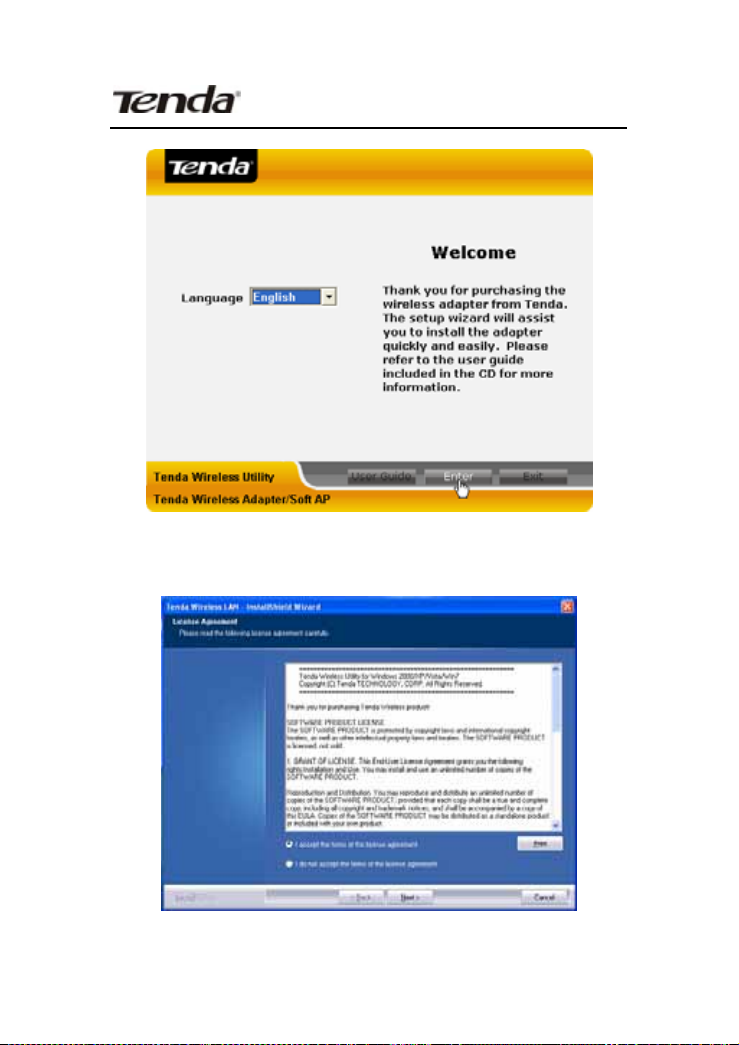

3. Insert the included CD into the CD drive of your
computer to auto-run the program. (If it doesn’t auto-run,
please double click “Tenda.exe”in the CD,). When the
welcome screen appears click ĀRunābutton.

Wireless Network Adapter Users’ Guide
-8-

4. Tick “I accept the terms of the license agreement”
and click “Next”.

Wireless Network Adapter Users’ Guide
-9-
5. There are two installation methods: one is to install
driver and Tenda WLAN Config Tool. The other is to install
driver only . We recommend you to use the default
installation method.

6. Click “Install” to install the driver and configuration
software.

Wireless Network Adapter Users’ Guide
-10-

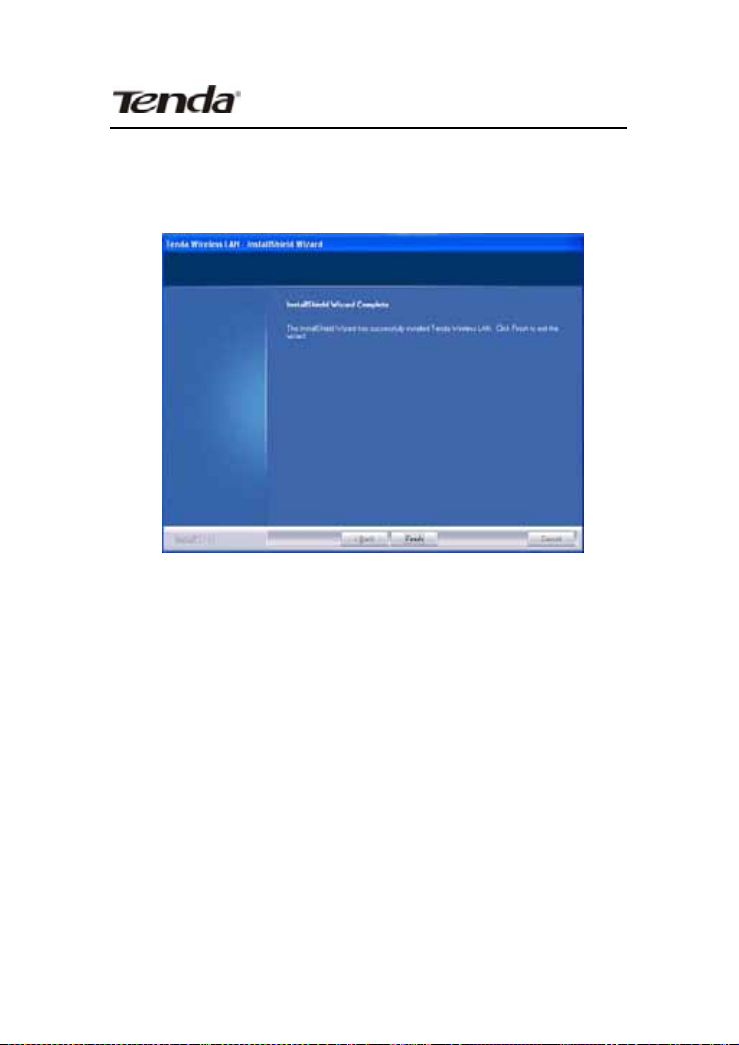

7. Click “Finish” to finish the driver and configuration
software.
Chapter 3 Client Utility Interface
This wireless USB network adapter uses Tenda client
utility interface (In the following text it is abbreviated to
UI). All functions can be configured via this software.
Select “Start”—“All Programs” —“Tenda Wireless”—
Tenda Wireless Utility”, or click the “Tenda Wireless
Utility” shortcut on your PC’s desktop to start UI.

Wireless Network Adapter Users’ Guide
-11-
Click Tenda UI on the right-down corner on the desktop to
switch Tenda UI and Zero config, and to exit UI etc.


Note:
1. In Windows 7and VISTA, there is no switch function
between Tenda UI and Zero config.
2. Operation on Tenda UI becomes impossible when
wireless is disabled or it is switched to Zero config.
3 In Windows 2000 system, you need to use Tenda UI to
conduct wireless configuration.
4.In Windows XP or Windows 2003 system, if you want to
use the system internally attached wireless configuration
program to configure the network adapter, please first
disable Tenda UI or switch UI to Zero config.
5. Client application program is “Station Mode” (Client
Mode) by default.
6. Tenda UI users must be managers, some operations
may be inaccessible to other ordinary users due to their
given restricted rights.
Client UI enables configuration of two modes Station
mode (Client Mode) and AP mode (soft AP Mode).

Wireless Network Adapter Users’ Guide
-12-
͵ǤͳȋȌ

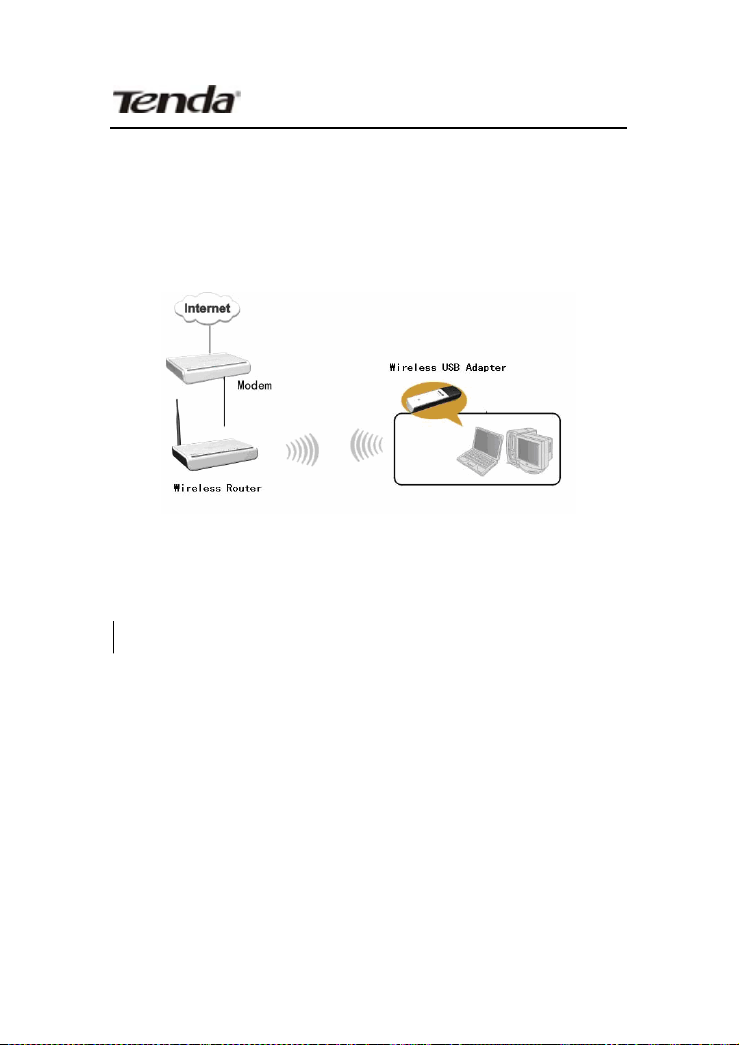

Station mode (Client Mode) Overview

This wireless network adapter is a common solution for
client signal reception.


Wireless Network Adapter Users’ Guide
-13-
͵ǤͳǤͳ
The Network Status window displays status information
regarding the wireless network as the picture below:
͵ǤͳǤʹ

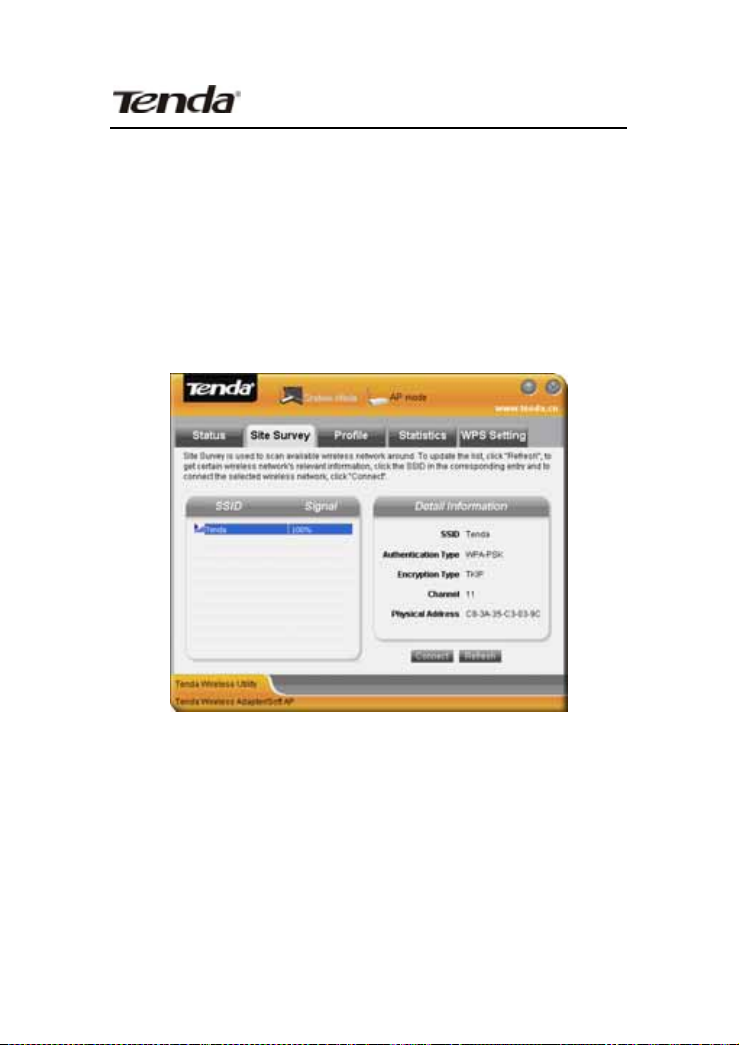

The Site Survey interface displays the available wireless
networks in the area. When you select a wireless network
name the detailed information of this selected wireless
network will be displayed.
Before you connect wireless network, please click

Wireless Network Adapter Users’ Guide
-14-
“Refresh” to update the wireless network list and select
the one you want to connect, then click “Connect” button.
When connecting wireless network, a dialogue box will
pop up. For the un-encrypted network, directly confirm
instead of changing the configuration, however for the
encrypted wireless network, configuration of key is
needed.
͵ǤͳǤ͵
This window saves the general wireless network
parameters and profiles, which helps the wireless
adapter to quickly connect to the wireless network you

Wireless Network Adapter Users’ Guide
-15-
want. Clicking a entry in the list displays the detailed
information of the selected profile. To connect to wireless
network, click “Connect” or double click wireless network
name.
Modify: To modify Site Status and Security Setting of the
existing profiles.
Delete: To delete the existing profiles.
New: To create a new profile and configure the site
status and security setting.
1. Create a new configuration file
1˅Click “New” to create a new file.

Wireless Network Adapter Users’ Guide
-16-
2˅Configure “Site Status” in the appearing dialogue box.
There are Infrastructure and Ad-Hoc two network types
and the default is Infrastructure as the below picture
shows.
