Tenda D301 User manual

Wireless Modem Router User Guide
- 1 -

Wireless Modem Router User Guide
- 2 -

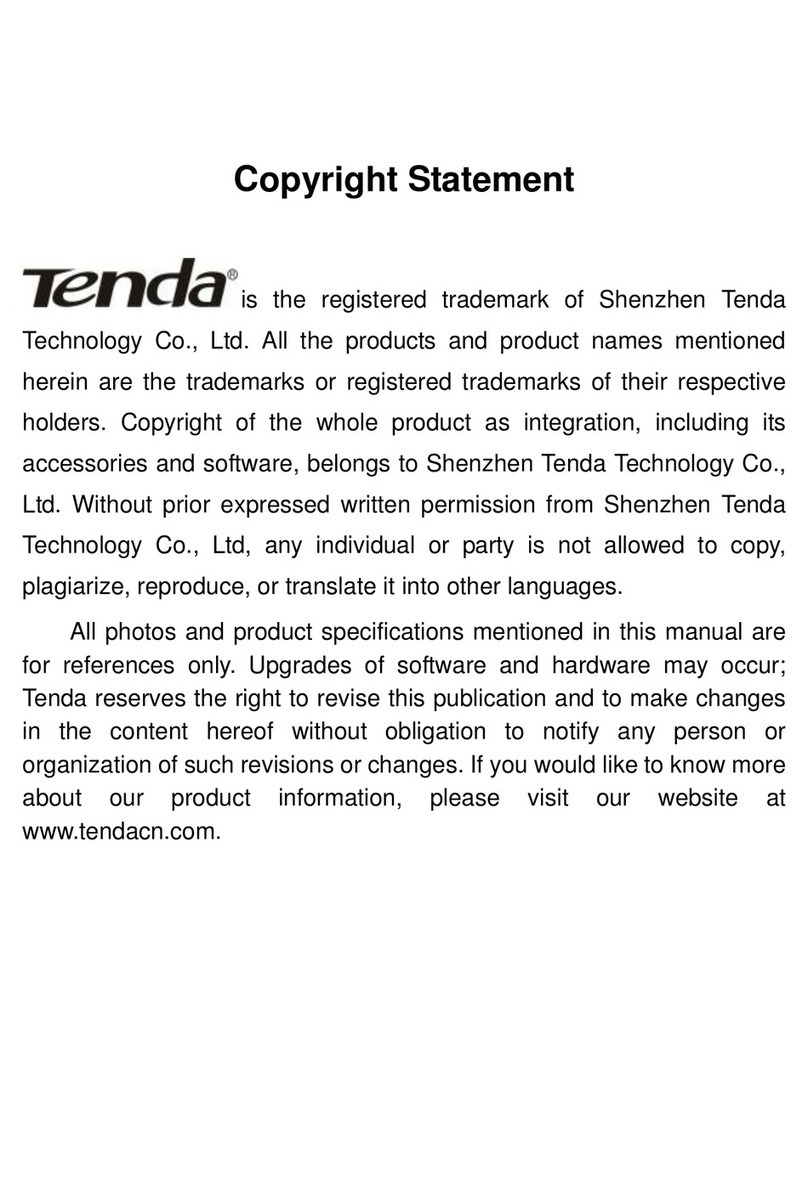

Copyright Statement
is the registered trademark of Shenzhen Tenda Technology Co., Ltd. All the products and product names
mentioned herein are the trademarks or registered trademarks of their respective holders. Copyright of the whole product
as integration, including its accessories and software, belongs to Shenzhen Tenda Technology Co., Ltd. No part of this
publication can be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means without the prior written permission of Shenzhen Tenda Technology Co., Ltd.
All photos and product specifications mentioned in this manual are for references only. Upgrades of software and
hardware may occur; Tenda reserves the right to revise this publication and to make changes in the content hereof
without obligation to notify any person or organization of such revisions or changes. If you would like to know more
about our product information, please visit our website at http://www.tendacn.com.

Wireless Modem Router User Guide
- 3 -
Table of Contents
COPYRIGHT STATEMENT........................................................................................................................................ - 2 -
ABOUT THIS MANUAL .............................................................................................................................................. - 5 -
CHAPTER1 GET TO KNOW YOUR WIRELESS ROUTER ................................................................................. - 6 -
PRODUCT FEATURES ................................................................................................................................................... - 6-
PACKAGE CONTENTS .................................................................................................................................................. - 7-
CHAPTER 2 HARDWARE INSTALL ....................................................................................................................... - 8 -
Front Panel ............................................................................................................................................................. - 8 -
Back Panel .............................................................................................................................................................. - 9 -
CHAPTER 3 QUICK INTERNET SETUP............................................................................................................... - 10 -
2.1 LOG IN TO WEB MANAGER ................................................................................................................................... - 10 -
Using Setup Wizard ............................................................................................................................................... - 10 -
Using Browser ....................................................................................................................................................... - 10 -
2.2INTERNET SETUP....................................................................................................................................................- 11 -
2.3QUICK WIRELESS SECURITY SETUP...................................................................................................................... - 13 -
CHAPTER 4 ADVANCED SETTINGS ..................................................................................................................... - 14 -
4.1 DEVICE INFO......................................................................................................................................................... - 14 -
4.2 ADVANCED SETUP................................................................................................................................................. - 17 -
4.2.1 Layer2 Interface ............................................................................................................................................ - 18 -
4.2.2 WAN Service................................................................................................................................................. - 20 -
4.2.3 LAN Setup .................................................................................................................................................... - 44 -
4.2.4 NAT............................................................................................................................................................... - 46 -
4.2.5 Security ......................................................................................................................................................... - 51 -
4.2.6 Parental Control ............................................................................................................................................ - 54 -
4.2.7 Quality of Service ......................................................................................................................................... - 56 -
4.2.8 Routing.......................................................................................................................................................... - 58 -
4.2.9 DNS............................................................................................................................................................... - 60 -
4.2.10 DSL ............................................................................................................................................................. - 62 -
4.2.11 UPnP ........................................................................................................................................................... - 63 -
4.2.12 Print Server (Available only in D301)......................................................................................................... - 64 -
4.2.13 Storage Service (Available only in D301)................................................................................................... - 64 -
4.1.14 Interface Grouping ...................................................................................................................................... - 65 -
4.1.15 IP Tunnel ..................................................................................................................................................... - 67 -
4.1.16 Certificate.................................................................................................................................................... - 68 -
4.1.17 Multicast ..................................................................................................................................................... - 70 -
4.1.18 IPTV............................................................................................................................................................ - 71 -
4.3 WIRELESS ............................................................................................................................................................. - 72 -
4.3.1 Basic.............................................................................................................................................................. - 72 -
4.3.2 Security ......................................................................................................................................................... - 73 -
4.3.3 MAC Filter.................................................................................................................................................... - 74 -
4.3.4 Wireless Bridge ............................................................................................................................................. - 75 -
4.3.5 Station Info.................................................................................................................................................... - 76 -

Wireless Modem Router User Guide
- 4 -
4.4 DIAGNOSTICS........................................................................................................................................................ - 76 -
4.5MANAGEMENT...................................................................................................................................................... - 76 -
4.5.1 Settings.......................................................................................................................................................... - 76 -
4.5.2 System Logs.................................................................................................................................................. - 78 -
4.5.3 Security Log.................................................................................................................................................. - 79 -
4.5.4 SNMP Agent ................................................................................................................................................. - 79 -
4.5.5 TR-069 Client ............................................................................................................................................... - 80 -
4.5.6 Internet Time ................................................................................................................................................. - 80 -
4.5.7 Access Control .............................................................................................................................................. - 81 -
4.5.8 Update Software............................................................................................................................................ - 82 -
4.5.9 Reboot ........................................................................................................................................................... - 83 -
APPENDIX 1 CONFIGURE YOUR PC.................................................................................................................... - 84 -
WINDOWS 7 ................................................................................................................................................................ - 84 -
MAC .......................................................................................................................................................................... - 86 -
APPENDIX 2 JOIN YOUR WIRELESS NETWORK ............................................................................................. - 88 -
WINDOWS XP............................................................................................................................................................. - 88 -
WINDOWS 7 ................................................................................................................................................................ - 89 -
MAC .......................................................................................................................................................................... - 91 -
IPHONE/IPAD............................................................................................................................................................... - 92 -
APPENDIX 3 FAQS..................................................................................................................................................... - 94 -
APPENDIX 4 VPI/VCI LIST...................................................................................................................................... - 96 -
APPENDIX 5 REGULATORY COMPLIANCE INFORMATION ................................................................... - 102 -

Wireless Modem Router User Guide
- 5 -
About This Manual
This user manual describes how to install, configure, operate, and troubleshoot the modem router in a simple and
easy-to-understand way.

Wireless Modem Router User Guide
- 6 -
Chapter1 Get to Know Your Wireless Router
This user guide applies to the following four models: D301 and D151. The D301 is used as an example throughout
this user guide.
The differences between the two products are listed below:
Model
Wireless Speed
USB Port
RJ45 Ports
D301
300M
1
4
D151
150M
none
4
_________________________________________________________________________________________________
Note:
The USB-based features of Print Server and Storage Service are unavailable in D151 that is not built with a USB port.
_________________________________________________________________________________________________
What it does
The Wireless ADSL2+ Modem Router provides you with an easy and secure way to set up a wireless home network with
fast access to the Internet over a high-speed digital subscriber line (DSL). Complete with a built-in ADSL modem, it is
compatible with all major ADSL Internet service providers. It offers wireless speeds of up to 300 Mbps needed for
demanding applications, such as large file transfers, streaming HD video, and multiplayer gaming. The unit comes with a
wide range of premium features and applications such as IPv6, TR069, SNMP, Multicast, IP tunnel, ready share USB,
IPTV service and parental controls, etc. Plus, with the router, you can access Internet via the ATM interface or Ethernet
interface.
Product Features
Wireless N speeds up to 300 Mbps for streaming HD videos and online gaming in addition to basic Internet
applications.
All-in-one device combines a Built-in ADSL2+ modem, wired router, wireless router and switch
Sharable USB lets you access and share files on an attached USB hard drive (available only in D301)
Sharable Printer lets you print from your Windows computer to a connected USB printer (available only in D301)
Advanced QoS helps prioritize media streaming and gaming applications for best entertainment experience
Parental Control keeps your kids Internet experience safe using flexible and customizable filter settings
One-touch WPS ensures a quick and secure network connection
WEP and WPA/WPA2 are supported for advanced encryptions
Compatibility: Works with all major ADSL Internet service providers (ISPs); Backward compatible with 802.11b/g

Wireless Modem Router User Guide
- 7 -
WiFi devices
Interchangeable LAN/WAN ports to schedule the Ethernet port to function either as a LAN or a WAN port
Interchangeable LAN/IPTV to schedule the Ethernet port to function either as a LAN or an IPTV port
Optional Ethernet and ADSL Uplinks: Access Internet via ADSL2+ Broadband Internet Service or an
interchangeable LAN/WAN RJ-45 port
Multiple Internet Connection Types: Bridging, PPPoE, IPoE, PPPoA, IPoA, dynamic IP and static IP
IPTV Service lets your surf Internet while watching online TV
6000V lightning－proof design fits into lightning-intensive environment
Strong driving capability up to 6.5Km transmission distance
High speed ADSL speed up to 24Mbps downstream 1Mbps upstream
Built-in firewall prevents hacker attacks
Channel auto-select for optimum performance
FDM technology enables telephoning, faxing and surfing activities to proceed simultaneously without mutual
interference
Other Advanced Features: IPv6, DDNS, virtual server, DMZ, port triggering, IP filter, MAC filter and UPnP, etc
Tenda Setup Wizard for easy and fast installation and configuration
Tenda Green: Use hardware Power On/Off and software WiFi On/Off buttons to turn on and off power and WiFi to
save energy when not in use
Package Contents
Your box should contain the following items:
Wireless Modem Router
Phone cable
Ethernet cable
ADSL2+ filter
Quick install guide
Power adapter
Resource CD
If any of the parts are incorrect, missing, or damaged, keep the carton, including the original packing materials and
contact your Tenda dealer for immediate replacement.

Wireless Modem Router User Guide
- 8 -
Chapter 2 Hardware Install
If you have not already set up your new router using the Quick Install Guide that comes in the box, this chapter walks
you through the hardware install. To set up your Internet connection, see Chapter 2 Quick Internet Setup.
Front Panel
The LEDs on the device are described below:
LED
Status
Description
Power
Solid
Power is supplied to the device.
Off
Power is not supplied to the device.
SYS
Blinking
System is functioning correctly.
Solid/Off
System is functioning incorrectly.
WLAN
Blinking
Transferring data
Off
Wireless is disabled.
Solid
Wireless is enabled.
ADSL
Slow Blink
Physical connection failure.
Fast Blink
Synchronizing...
Solid
ADSL connection is established.
LAN 1/2/3/4
Off
No connection established.
Blinking
Transferring data
Solid
Connection is established.
WPS
Solid
Client connected successfully.
Blinking
The WPS LED starts blinking if you pressed the WPS button on the device or interface.
Off
If there is no wireless clients connected, the WPS LED turns off after blinking for 2 minutes.
USB （available
only in D301）
Solid
Connection is successfully established on the USB port.
Off
Connection is not established on the USB port.

Wireless Modem Router User Guide
- 9 -
Back Panel
ON/OFF: Power switch to turn the router on or off.
_________________________________________________________________________________________________
Note:
Please use the included power adapter. Use of a power adapter with different voltage rating may damage the device.
_________________________________________________________________________________________________
WPS/RESET: Press it for 1-3 seconds to enable WPS connection or 7 seconds to restore all configurations to
factory defaults.
LAN: Ethernet RJ-45 LAN ports to cable the device to the local network devices such as computers.LAN:
Ethernet RJ-45 LAN ports to cable the device to the local network devices such as computers.
DSL: RJ-11 Asynchronous DSL (ADSL) port for connecting the device to a DSL line.
Follow the diagram below to install the device.

Wireless Modem Router User Guide
- 10 -
Chapter 3 Quick Internet Setup
This chapter instructs you to quickly set up your Internet connection.
The Quick Internet Setup applies only to ADSL Uplink mode. If you are not directly connecting to the ADSL line via a
phone cable, please click the Advanced button on the home page and then select Advanced Setup -> Layer2 Interface
-> ETH Interface. For more information, see To set up the ETH interface and To setup WAN Service for ETH
Interface.
2.1 Log in to Web Manager
You can log in to the modem router’s web manager with the Setup Wizard on the included CD automatically or using a
web browser manually. The Setup Wizard on the auto-run CD can automatically configure your PC’s TCP/IP properties
and direct you to the web login window without requiring the IP address.
Using Setup Wizard
1. Insert the included resource CD into your computer’s drive and the CD automatically runs. If the CD does not run
automatically, double click . You will see the screen below.
2. Click Run and it will automatically configure your PC’s TCP/IP properties. If your PC is successfully configured, the
login window below will display.
Using Browser
1. Set your PC to Obtain an IP address automatically. For more information, see Appendix 1 Configure Your
PC.
2. Launch a web browser and enter 192.168.1.1 to display the login window.
