Tenmars TM-901N User manual

Multi Media Cable Tester
User Manual
TM-901N/TM-902/TM-903
TENMARS ELECTRONICS CO., LTD
HB2TM9020010

Table of Contents
1 Introduction....................................................... 1
2 Safety Precaution ............................................. 1
3 The verifier does the following:......................... 2
4 Display Features............................................... 3
5 Multi Media Cable Tester Features................... 4
6 Testing Twisted Pair Cabling ............................ 5
7 Twisted Pair Test Results ................................. 6
Opens ............................................................... 6
Shorts................................................................ 7
Miswires ............................................................ 7
Split Pair............................................................ 8
8 Length measures.............................................. 9
9 SIGNALTONE measures(TM-903) ................. 10
10 Using Multiple Remote ID Locators .................11
11 Auto power on and off setting mode............... 12
12 Backlight on or off setting mode ..................... 13
13 Changing Memory Number / Default
Category /Types(UTP/STP) /Calibrating Length
Measurements Value Parameter Options....... 14
14 Checking the LCD and Software Version ....... 16
15 Battery Replacement ...................................... 17
16 Options and Accessories ................................ 17
17 End of life........................................................ 17
18 Specifications.................................................. 18

TM-901N/TM-902/TM-903
1
1 Introduction
The TM-902/TM-903 Multimedia Cable
Tester (TM-901N LAN Cable Tester)is a
hand-held test instrument that lets you verify
and troubleshoot the Lan cable of twisted
pair.
2 Safety Precaution
CAUTION
Be extremely careful for the
following conditions while measuring
zDo not operate the meter under the
environment with explosive gas (material),
combustible gas (material) steam or filled
with dust.
zIn order to avoid reading incorrect data,
please replace the battery immediately
when the symbol “ ” appears on the
LCD.
zIn order to avoid the damage caused by
contamination or static electricity, do not
touch the circuit board before you take
any adequate action.
zOperating Environment: Indoors use. This
instrument has been designed for being

TM-901N/TM-902/TM-903
2
used in an environment of pollution
degree 2.
zOperation Altitude: Up to 2000M.
zEMC: EN61326-1(2006),
IEC 61000-4-2(2008,
IEC 61000-4-3(2006) + (2007).
3 The verifier does the following:
zDetects opens, shorts, miswires and split
pairs on twisted pair cabling.
zDisplays graph wiremap , opens, shorts,
miswires, split pairs, and the remote ID
number all on one screen.
zIdentify remote ID number only one pair.
zMeasures length.
zUsing multiple remote ID up to 8 locators.
zLow battery detector “ ”.
zAuto backlight.
zAuto power off.

TM-901N/TM-902/TM-903
3
4 Display Features
1. Displays graph wiremap , opens,
shorts, miswires, split pairs.
2. Displays Length and Unit.
3. Lower battery indication.
4. Enter the SETUP mode symbol.
5. Result displays, Pass, , split.
6. Displays remote ID number.

TM-901N/TM-902/TM-903
4

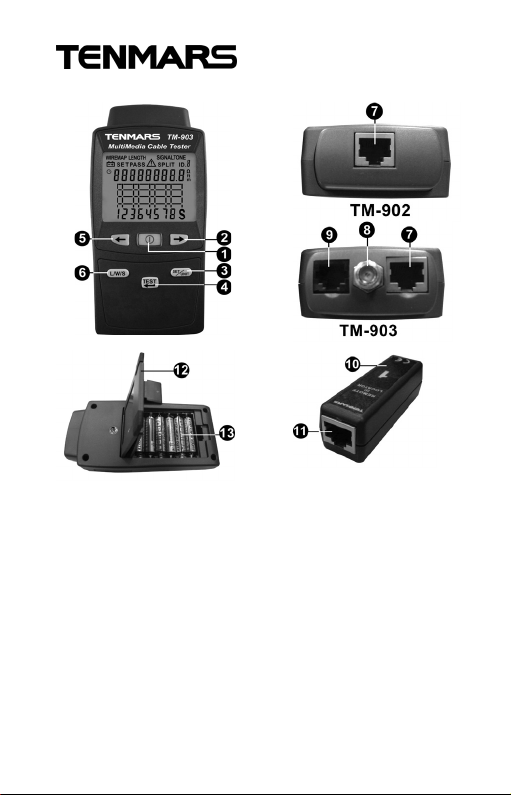

5 Multi Media Cable Tester Features
1. Power Key.
2.Setup function right
Key.
3.Setting Key and Unit
select Key
4.Test Key and Enter
Key.
5.Setup function left
Key.
6.Length and wiremap
and signal-tone
function key
7. RJ-45 connector socket.
8. F-Connector .(TM-903)
9. RJ-11 connector
socket.(TM-903)
10.Remote ID locator.
11.RJ-45 connector socket
of remote ID locator.
12.Tilt-stand.
13.Battery cover.

TM-901N/TM-902/TM-903
5

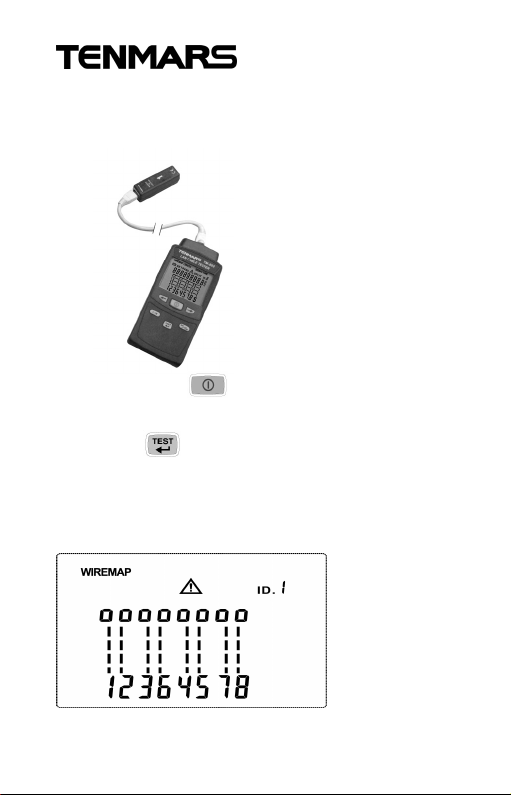

6 Testing Twisted Pair Cabling
1. Connect the meter and remote ID locator
to the cabling as shown in Figures.
2. Press the key to power on.
(TM-902/903)
3. Press key to measures wiremap and
Remote ID Locators detect.
4. Display show some testing option as
shown in Figures.

TM-901N/TM-902/TM-903
6
7 Twisted Pair Test Results
The following figures show typical test results
for twisted pair cabling. Any error occurs will
show symbol on LCD.
Opens
Figure shows an open pair wire 4 and 5.

TM-901N/TM-902/TM-903
7
Shorts
Figure shows tow short between wires 3, 4
and 5, another 1 and 8.
When shorted※occur, the verifier maybe
not show open and miswires.
Miswires
Figure shows that wires 3 and 4 are crossed.
The pin numbers order to indicate the fault.

TM-901N/TM-902/TM-903
8
Split Pair
The following figure shows a split pair on 3, 6
and 4, 5. The split pair flashes to indicate the
fault. LCD will show “SPLIT” indicate.
In a split pair, continuity from end to end is
correct, but is made with wires from different
pairs. Split pairs cause excessive crosstalk
that interferes with network operation.
※ The spilt pair detects of cable must be at
least 5 meter(15ft) in length.
※ If open, short and miswires anyone
occur, the spilt pair detects will don’t
work.

TM-901N/TM-902/TM-903
9

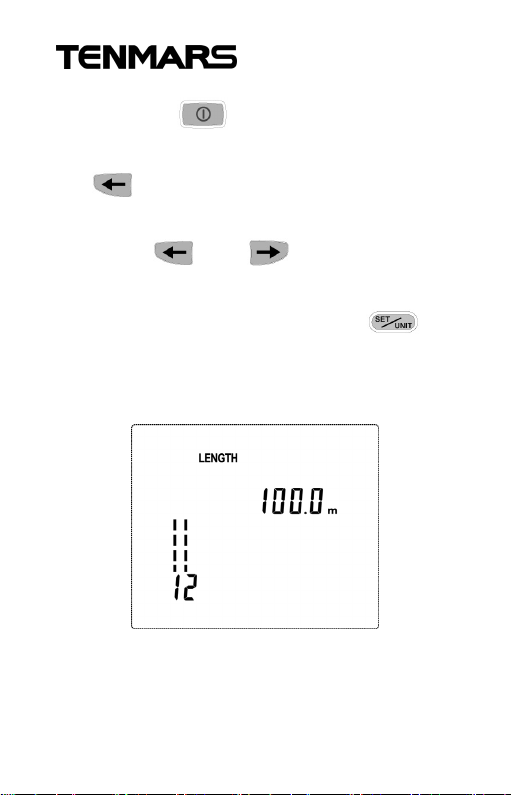

8 Length measures
1. Press the key to power on.
2. Press the L/W key(TM-901N/TM-902) or
key(TM-903) to switch to Length
(TM-903).
3. Press and Key to select
show length pairs 1~4.
4. In the display length. Press the key
to changing the length units, shown in
Figure.
.

TM-901N/TM-902/TM-903
10

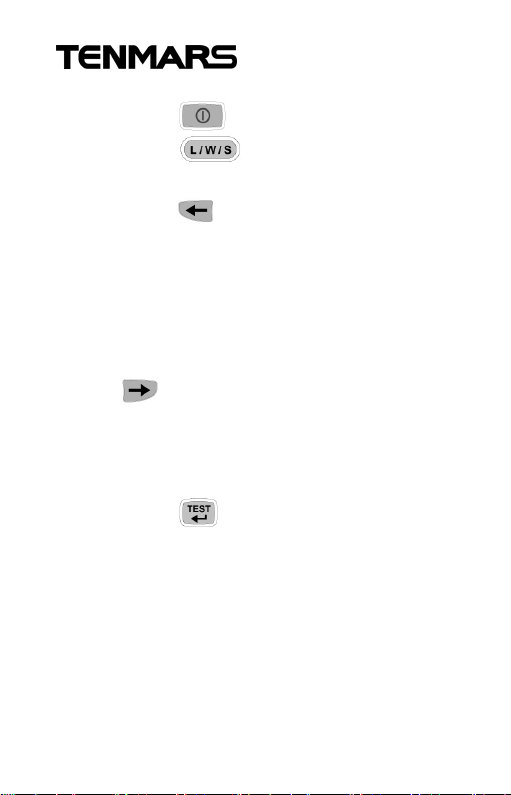

9 SIGNALTONE measures(TM-903)
1. Press the key to power on.
2. Press the key to switch to
SIGNALTONE.
3. Press the Key to select a different
tone sequence displayed as the
numbers 1~4 on LCD.
4. The function default continuity(LCD
display “C”)
5. If you want to changing, press
the Key to select continuity (LCD
display “C”) to changing one-shot(LCD
display “F”) ,you can selection numbers
1~8.
6. Press the key to enable or disable
out signal tone is cable tracing function.
Toner is cable tracing function that
assists in tracking cables hidden in walls.
Ceilings, floors
or patch panels by generating four
distinct multi-tone signals that can be

TM-901N/TM-902/TM-903
11
received by a cable tracer. To trace a
cable

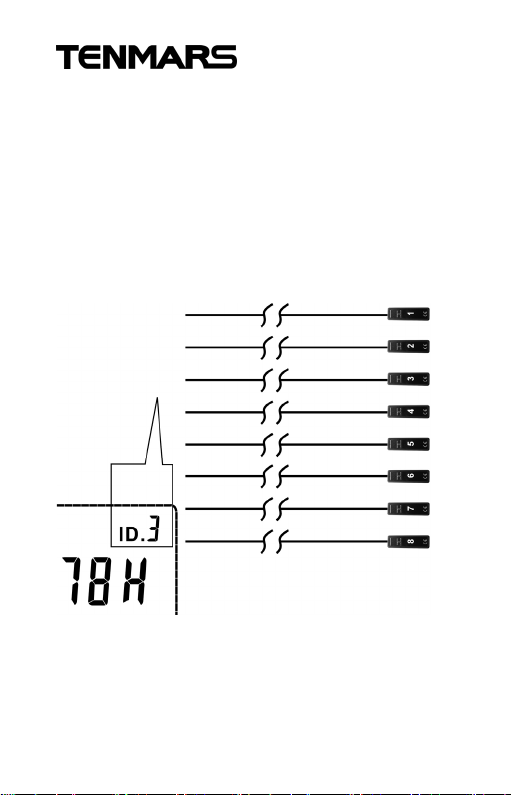

10 Using Multiple Remote ID
Locators
Using multiple remote ID locators helps you
identify multiple network cable connections,
as shown in Figure.
The display in Figure shows that the verifier
is connected to the cable terminated with
remote ID locator number 3.

TM-901N/TM-902/TM-903
12

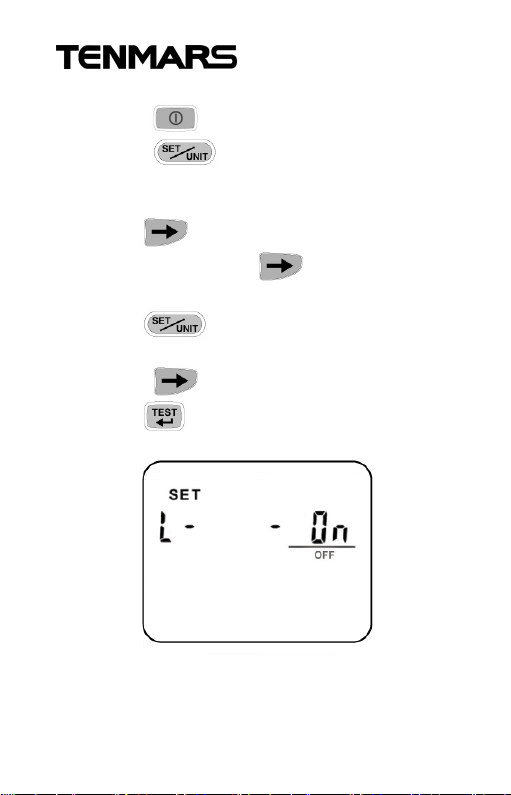

11 Auto power on and off setting
mode
1. Press the key to power on.
2. Press the key for more than 2
Second to enter Setting mode into
setting mode.
3. Press the key again to auto
power on or off setting.
4. Press the or key to change
ON or OFF.
5. Press the key to enter and exit
setting mode, shown in Figure.
.

TM-901N/TM-902/TM-903
13
12 Backlight on or off setting mode
Press the key to power on.
Press the key for more than 2
Second to enter Setting mode into setting
mode.
Press the key setting to auto power on
or off setting Press the key to backlight
set
Press the key again to backlight
setting mod
Press the key to change ON or OFF.
Press the key to enter and exit setting
mode, shown in Figure.

TM-901N/TM-902/TM-903
14

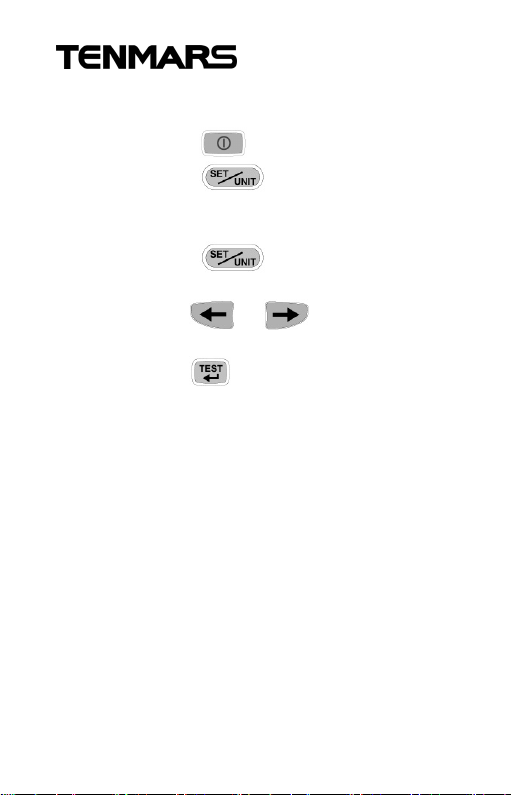

13 Changing Memory Number /
Default Category /Types(UTP/STP)
/Calibrating Length Measurements
Value Parameter Options
The meter to provide user self calibrate
memory use number 1 ~ 9. User can order
different cable type, category and length to
acquire measurements value parameter.
1. Press the key to power on.
2. Press the key more than 2
second to and setting mode.
3. Press the key setting to auto
power on or off setting Press the
key to backlight set Press and
key to select number zero from
No.0~9 . Press key again to
setting flashes number. Press and
key to select number zero from
No.0~9 . Press key to enter exit
setting mode,
4.Press key into setting flashes cable

TM-901N/TM-902/TM-903
15
category, Press and key to
setting cat 5 or cat 6 ,( RJ11,COAX.TM-903).
5. Press key again to setting
flashes cable type.
6. Press key to select UTP or STP,
Press key to enter exit setting mode
shown in Figure.
7. Press the key more than 2
second to and setting mode. Press
the key again to select setting
flashes calibrating length measurements
value parameter.
8. Press and key to select known
length measurements value parameter.

TM-901N/TM-902/TM-903
16
9. Press key to enter and exit
setting mode shown in Figure.
14 Checking the LCD and Software
Version
In the shutoff mode, Press and hold
key again press the key to turn on
meter and LCD will keep all dark continued.

TM-901N/TM-902/TM-903
17
15 Battery Replacement
Turn off the meter and disconnect all test
leads before replacing the battery.
Use only the correct type of batteries,
properly
installed in the case, to power the meter.
16 Options and Accessories
Consumers can order options and
accessories as follows：
Remote ID Locator Kit, numbers 2-8.
17 End of life
Caution: this symbol indicates
that equipment and its
accessories shall be subject to
a separate collection and
correct disposal
WARNING
If the symbol “ ” appears on the
LCD, please replace the battery
immediately
