Tentsile UNA Tree Tent User manual

It is important that all users read and understand the materials in
this manual before any installation and use of the product.
NO MORE THAN 1 MONTH CONTINUOUS USE AT ANY ONE TIME
DO NOT LEAVE OUTSIDE UNATTENDED.
UNA Tree Tent
OWNERS MANUAL

CONGRATULATIONS
YOU ARE NOW THE PROUD OWNER OF A
03: Introduction03: Introduction
04: Terms Of Use04: Terms Of Use
05: Specifications05: Specifications
06: Warnings & Disclaimers06: Warnings & Disclaimers
07-08: Layout & Alignment07-08: Layout & Alignment
09-28: Set-Up Instructions09-28: Set-Up Instructions
31: Policies31: Policies
32: The Small Print32: The Small Print
33: Using The Ratchet33: Using The Ratchet
34: 20 Trees Planted34: 20 Trees Planted
IT IS IMPORTANT THAT ALL USERS READ AND UNDERSTAND THE MATERIALS
IN THIS MANUAL BEFORE ANY INSTALLATION AND USE OF THE PRODUCT.
Tentsile UNA Tree Tent
01 02
W A R N I N GW A R N I N G
TENTSILE IS NOT A TOYTENTSILE IS NOT A TOY
RISK OF SERIOUS INJURYRISK OF SERIOUS INJURY
A VISUAL AND TACTILE INSPECTION OF YOUR TENTSILE’S FLOOR,
STRAPS AND RATCHETS SHOULD BE MADE BEFORE EACH USE.
FOR SAFETY REASONS, STRAPS AND RATCHETS SHOULD BE
REPLACED EVERY 2 YEARS.
NO MORE THAN 3 MONTHS CONTINUOUS USE AT ANY ONE TIME
DO NOT LEAVE OUTSIDE UNATTENDED FOR MORE THAN A WEEK.
THE BASE OF THE TENT IS RATED FOR 1,500 HOURS OF UV EXPOSURE.
CHECK THE HEALTH AND STRENGTH OF THE TREES
CHOSEN TO BE ANCHOR POINTS BEFORE USE.
Recommended set up height 1.2m / 4 feet
MAX LOAD 120kg / 265lbs.
DO NOT EXCEED MAXIMUM WEIGHT LOAD CAPACITY.

Introduction Terms of Use
03 04
The UNA is our first single-person Tree Tent with removable rainfly, offering you the chance to hike
into the outback even further for a whole new level of freedom.
This single person model is the lightest Tree Tent solution in the world, perfect for hikers and
backpackers so they can walk further, carry less weight and get the most comfortable night’s sleep
imaginable.
It features a tensioned hammock bed with a large pocket on each side, full no-see-um mesh top
with a fold away door and a removable rainfly for unbeatable views. The rainfly can be pegged out
towards the ground, creating a large 30ft² / 3m² covered area so you can use the ground to store
your gear beneath the UNA.
This product was created because Tentsile loves trees and believes that if we’re all hanging out in
trees, they can’t cut them down!
20 trees are planted for every Tentsile Tree Tent sold.
PLAY, CAMP, EXPLORE...
Tentsile Tree Tent should be set up only as outlined in this
manual.
NEVER jump into, onto or use it as a trampoline or
swing. It is not intended to be used for rock climbing,
cliff faces, overhangs or above or next to large drops.
DO NOT attempt to use this product for anything
another than its intended purpose, and always observe
height and weight limits.
DO NOT use walls, fences, street furniture, roof
racks, movable platforms, posts or trees less than
20cm/8inches in diameter as anchor points, as they
may not be strong enough.
DO NOT use tensioning components other than those
supplied with this product.
DO NOT set up higher than 1.2metres / 4 feet from the
ground or above hard, sharp or pointy objects.
Tactile and visual checks should be made to
ALL tent components and ALL anchor points before each
use.
Replace any damaged elements if any are found.
Keep away from fire and sharp objects.
DO NOT use after the consumption of any intoxicating
substances.
Children must be supervised by an adult at all times.
DO NOT attach to trees or branches that show signs of
structural weakness.
DO NOT adjust/open ratchets whilst tent
is occupied.
DO NOT use during lightning storms or high winds.
DO NOT use in areas of unstable ground.
Tentsile Tree Tents do not offer protection from all
animals.

Specifications Warnings & Disclaimers
Size:
2.8 x 2.8 x 1.6m / 9 x 9 x 5ft
Floor area:
2.2sqm / 24sqf
Entry Points:
x1
Height:
50cm / 1.7ft
Maximum capacity:
1 adult and their gear
Poles:
x1 8.5mm diameter
anodised aluminium alloy
Straps:
x3 4m/13ft polyester straps
Roof:
No-see-um insect mesh and YKK
zips
Rainfly:
20D coated nylon, 2,500HH
Floor:
2x layers of 20D Nylon. Uncoated.
Full pack weight:
1.99kg / 4.38lbs
DO NOT EXCEED MAXIMUM LOAD 120kg / 265lbs
05 06
Installation and use of the Tentsile Tree Tent may involve
heights, can be dangerous and may lead to injury and/
or death.
The installation must never be executed by minors, and
extreme care and caution must be taken when executed
by adults.
Do not use any other components, parts, tools or
materials other than those included in the Tentsile Tree
Tent package, recommended in this manual or in other
Tentsile literature.
A hanging and/or suspension system is only as strong
as its weakest link and all instructions and guidelines
must be followed.
The Tentsile Tree Tent must only be used in the manner
described in this manual. When assembled and
installed, the Tentsile Tree Tent places significant force
on the anchor points; great care must be exercised when
using it to decrease the risk of injury and/or death.
Overloading the Tentsile Tree Tent with more than
280lbs (120kg) increases the forces and may cause
anchor, Tree Tent and/or any parts to fail, resulting
in injury and/or death.
The manufacturer and resellers of the Tentsile Tree
Tent explicitly disclaim any and all responsibility
and liability for any death, paralysis, injury, and/
or damage to any person or property that may occur
that arises out of or is in any way related to the use
of this product.
Using any equipment that is suspended above
ground can be a dangerous activity that may result
in serious injury and/or death even when used
properly. Use at your own risk and always use
common sense.

Positioning the UNAPositioning the UNA
Tentsile Tree Tents need 3 secure and strong anchor points to suspendTentsile Tree Tents need 3 secure and strong anchor points to suspend
from. The distances are marked below. Once the location is found, lay out the UNAfrom. The distances are marked below. Once the location is found, lay out the UNA
on the ground with the corners facing your selected trees. Protective tree wraps areon the ground with the corners facing your selected trees. Protective tree wraps are
provided should you wish to use them, wrap around trunk before attaching the treeprovided should you wish to use them, wrap around trunk before attaching the tree
straps.straps.
Sight-Line-TagSight-Line-Tag
Use the Sight-Line-Tags on the side of the UNA. LookUse the Sight-Line-Tags on the side of the UNA. Look
along the tag and ensure it and the strap are inline withalong the tag and ensure it and the strap are inline with
the tree. There is a tolerance of up to 5-7 degrees, but ifthe tree. There is a tolerance of up to 5-7 degrees, but if
Sight-Line-Tags are ignored you are likely to break yourSight-Line-Tags are ignored you are likely to break your
unit.unit.
UNA BodyUNA Body
UNA RainflyUNA Rainfly
x1 Polex1 Pole
x1 Weblockx1 Weblock
x3 Strapsx3 Straps
x3 Pegsx3 Pegs
UNAUNA
Minimum setup distances:Minimum setup distances:
2.8 x 2.8 x 2.8m / 9 x 9 x 9ft2.8 x 2.8 x 2.8m / 9 x 9 x 9ft
Maximum setup distances:
8 x 8 x 8m / 26 x 26 x 26ft
Anchor point shouldAnchor point should
be less than 90 degrees frombe less than 90 degrees from
each other and should be noeach other and should be no
less than 6 inchesless than 6 inches
in diameter.in diameter.
TreeTree
TreeTree
Tree
TreeTree TreeTree
TreeTree
07 08
<90°<90°
x1 Ratchetx1 Ratchet
SIGHTLINETAGS

910
1, Find your three anchor1, Find your three anchor
points.points. 2, Feed the tail of the strap2, Feed the tail of the strap through the square ringthrough the square ring
and pull out the slack.and pull out the slack.
3, Pull tight so that the strap3, Pull tight so that the strap
stays in place on the treestays in place on the tree
when released.when released.

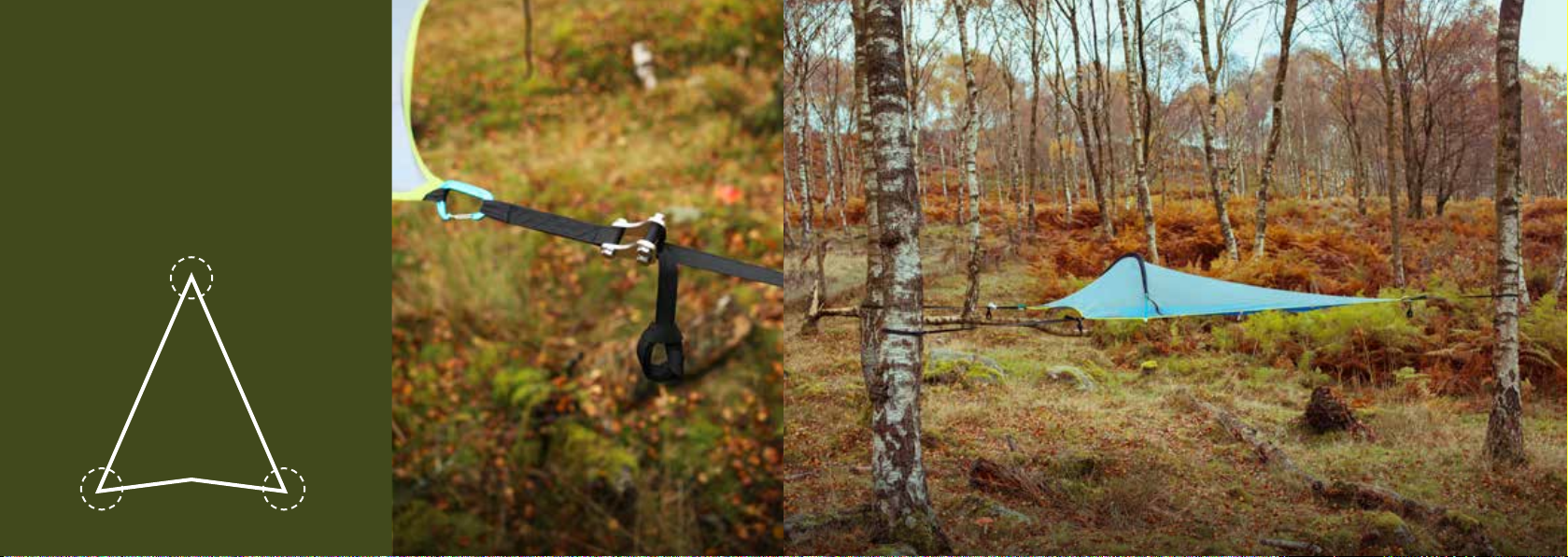

Tree StrapsTree Straps
With a location found,With a location found,
start by wrapping thestart by wrapping the
tree straps around yourtree straps around your
selected trees.selected trees.

Positioning The UNAPositioning The UNA
Take the UNA and lay it out on the groundTake the UNA and lay it out on the ground
between your selected trees.between your selected trees.
Ensure it is the right way up with the green poleEnsure it is the right way up with the green pole
sleeve facing up.sleeve facing up.
UNAUNA
FrontFront
Rear/TailRear/Tail
11 12
5, Lay out the UNA body in5, Lay out the UNA body in
position between yourposition between your
three treesthree trees
5, The tail and one of the5, The tail and one of the
front corners requirefront corners require
carabiners to be attached.carabiners to be attached.
4, Lay the body of the UNA4, Lay the body of the UNA
out inbetween your threeout inbetween your three
chosen trees.chosen trees.
6, The remaining corner6, The remaining corner
requires the weblock torequires the weblock to
be attached.be attached.

14

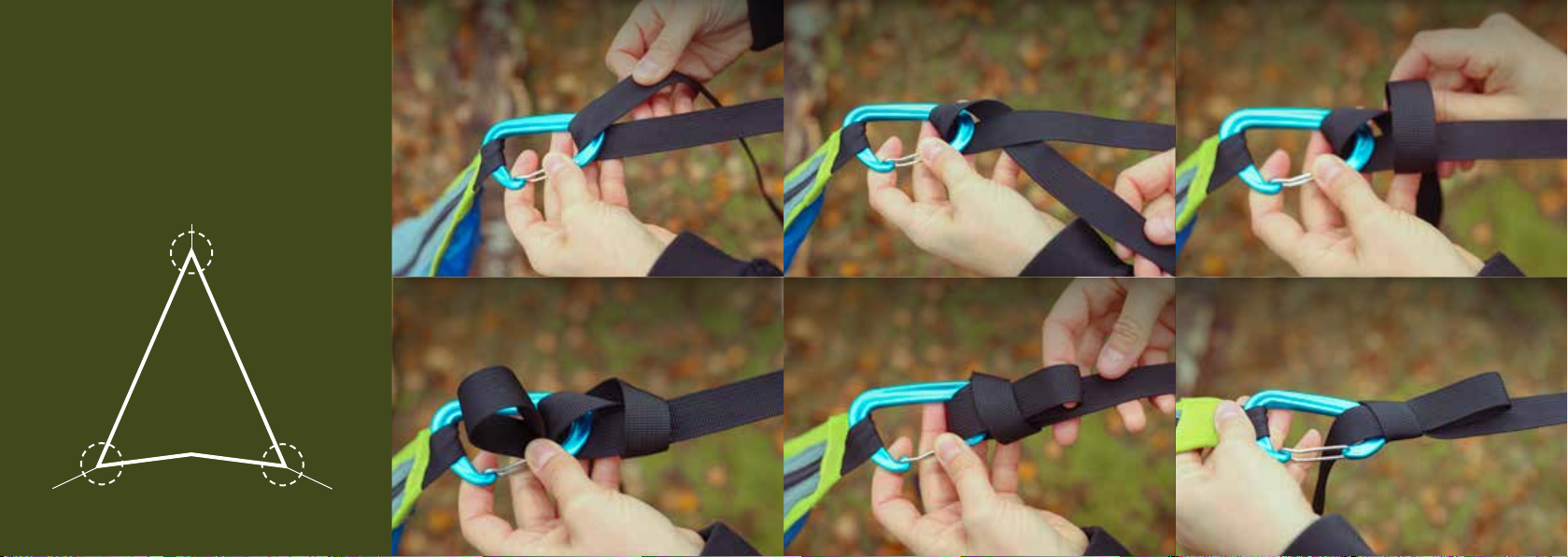

Tying The Half Windsor KnotTying The Half Windsor Knot
Two of the corners require Half Windsor knots,Two of the corners require Half Windsor knots,
one at the rear/tail and the other at either frontone at the rear/tail and the other at either front
corner. For a more tensioned set-up use optionalcorner. For a more tensioned set-up use optional
ratchet.ratchet.
13
UNAUNA
Tie Half Windsor on one side, use webTie Half Windsor on one side, use web
lock for the last corner.lock for the last corner.
Rear/Tail:Rear/Tail:
Tie Half Windsor knot.Tie Half Windsor knot.
8, Pass tail around the back.8, Pass tail around the back.7, Loop tail through the carabiner.7, Loop tail through the carabiner. 9, Loop around making sure to9, Loop around making sure to
keep the loop open.keep the loop open.
11, Pull this tail loop through11, Pull this tail loop through
the first loop, leaving athe first loop, leaving a
tail behind.tail behind.
10, Pass a folded length of10, Pass a folded length of
the strap back up through thethe strap back up through the
carabiner.carabiner.
12, Pull tight. To release pull the12, Pull tight. To release pull the
tail above the knot.tail above the knot.

Tentsile WeblockTentsile Weblock
The lightweight weblock is used to provide easyThe lightweight weblock is used to provide easy
tension through the tent.tension through the tent.
It is attached to which ever front corner you haveIt is attached to which ever front corner you have
not clipped a carabiner to.not clipped a carabiner to.
UNAUNA
FrontFront
15 16

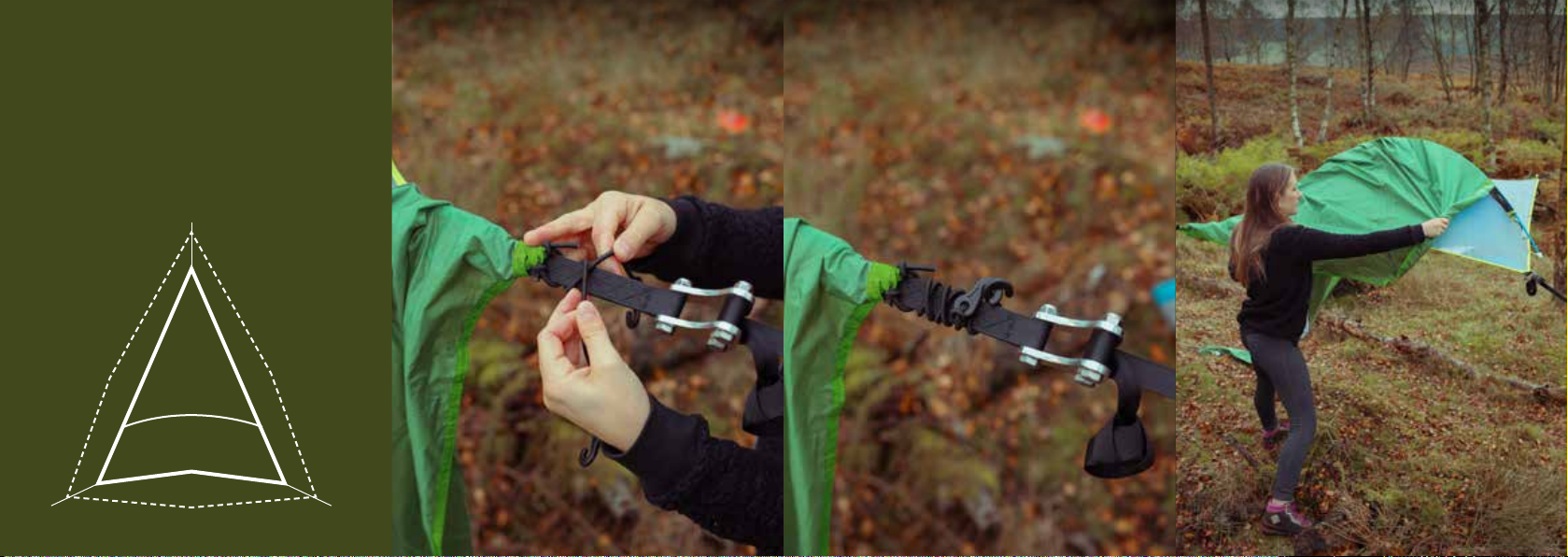

13, Feed the strap up the13, Feed the strap up the
back of the weblockback of the weblock 14, Fold the strap over the top bar14, Fold the strap over the top bar of the weblock.of the weblock. 15, Feed strap behind and under15, Feed strap behind and under lower bar, pulling slacklower bar, pulling slack
through to raise the tent bodythrough to raise the tent body
and ensuring the weblockand ensuring the weblock
holds tight.holds tight.
Always tie a knot behind theAlways tie a knot behind the
Weblock for increased safety,Weblock for increased safety,
security and stability.security and stability.

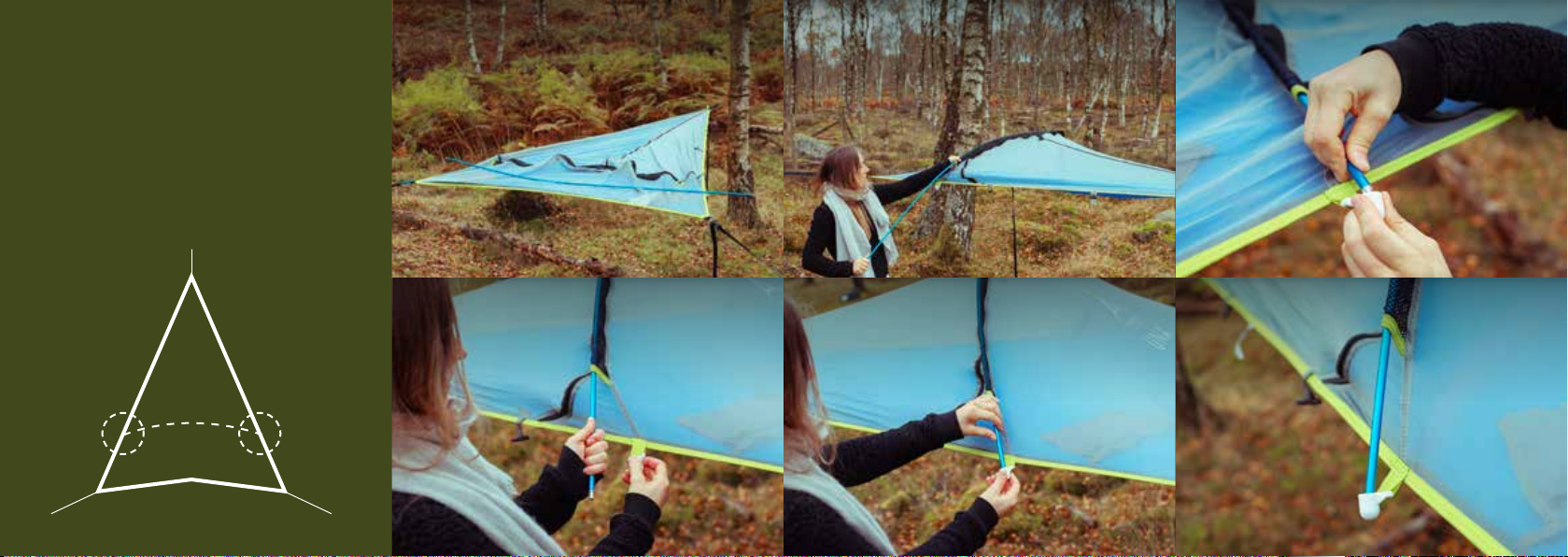

19, Remove slack until the19, Remove slack until the
strap is tight and the tentstrap is tight and the tent
is tautis taut

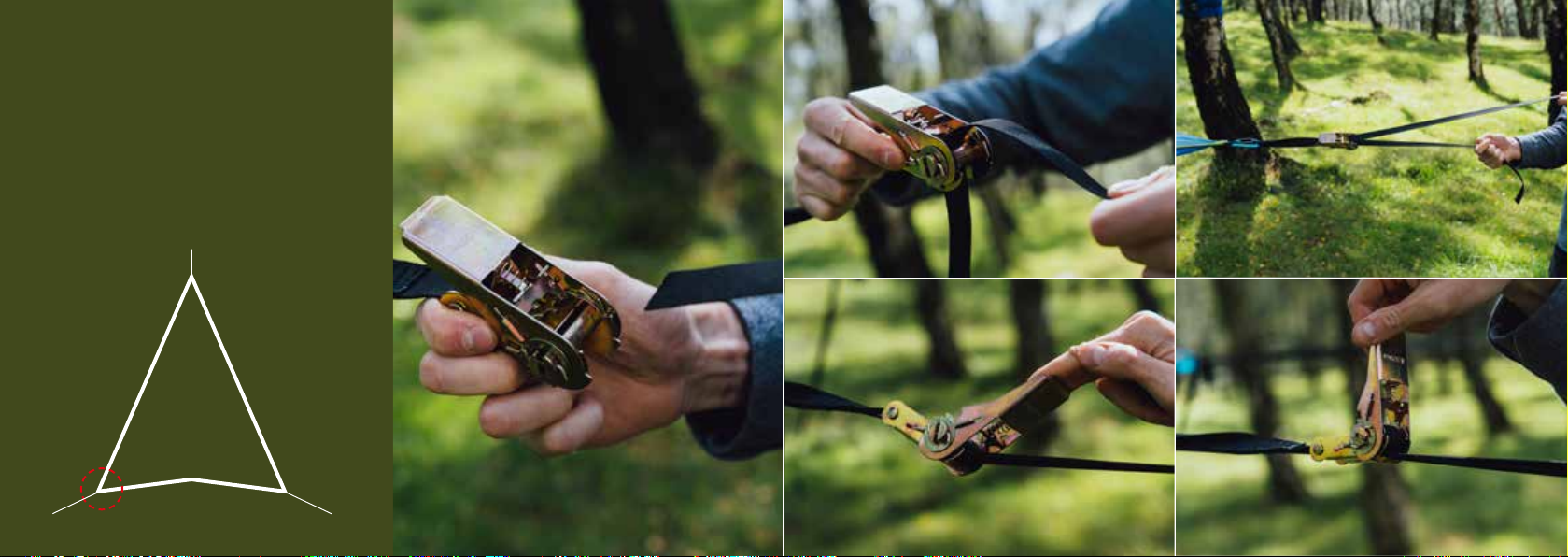

18, Using two fingers crank the18, Using two fingers crank the
ratchet back and forth.ratchet back and forth.
16, Feed the tree strap end16, Feed the tree strap end
through the slot in ratchet.through the slot in ratchet.
15, Ensuring there’s enough15, Ensuring there’s enough
length, bring the ratchetlength, bring the ratchet
strap and tree strap together.strap and tree strap together.
17, Pull through any slack17, Pull through any slack
that may be in the strap.that may be in the strap.
TThe Ratchethe Ratchet
With the knot and weblock attached, use theWith the knot and weblock attached, use the
ratchet provided to fasten and tighten theratchet provided to fasten and tighten the
remaining front corner.remaining front corner.
17 18
UNAUNA
FrontFront

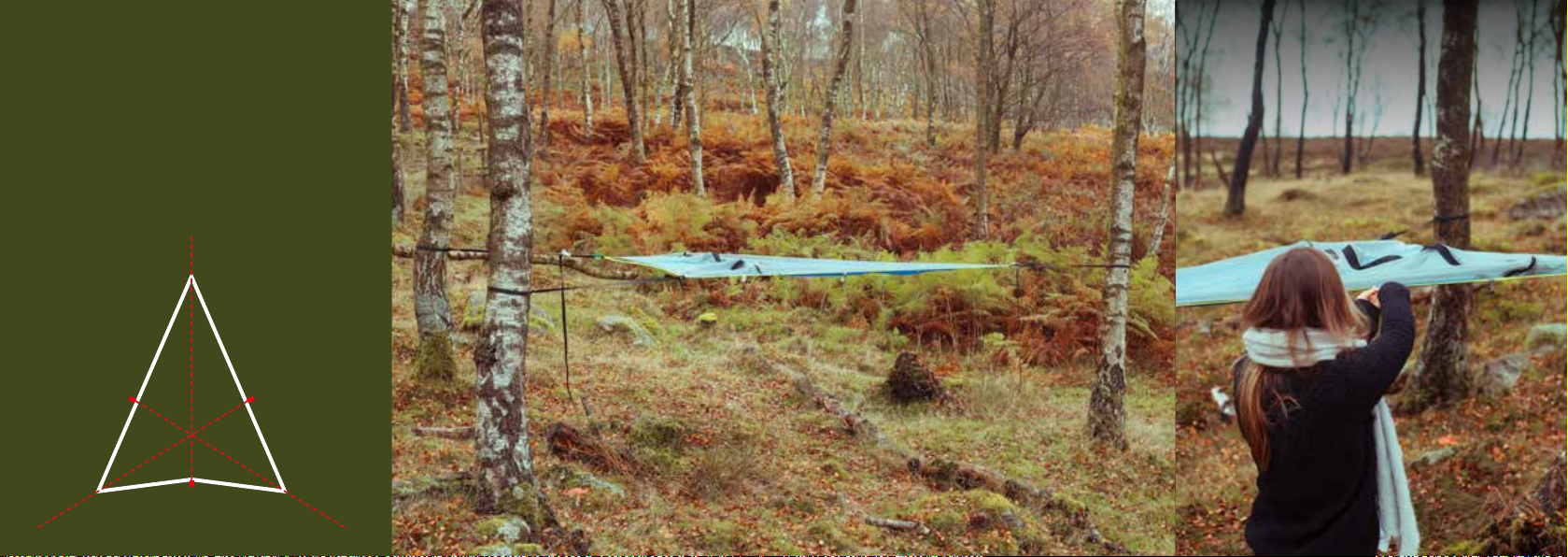

Aligning The UNAAligning The UNA
With the UNA now raised, you must ensureWith the UNA now raised, you must ensure
it is correctly aligned with the anchor points.it is correctly aligned with the anchor points.
Use the Sight-Line-Tags on both sides to ensureUse the Sight-Line-Tags on both sides to ensure
the tree straps are inline with the trees and the tag.the tree straps are inline with the trees and the tag.
There is a 5º tolerance.There is a 5º tolerance.
19
UNAUNA
FrontFront
Rear/TailRear/Tail
16, Raise the tent so all straps16, Raise the tent so all straps
are tight, making sure youare tight, making sure you
have the base level.have the base level.
20
17, Use the Sight-Line-Tags17, Use the Sight-Line-Tags
on either side of theon either side of the
body to check the strapbody to check the strap
alignment.alignment.

18, Unfold the curved pole.18, Unfold the curved pole.
21, On the opposite side, push21, On the opposite side, push
against the pole to gentlyagainst the pole to gently
raise the tent structure.raise the tent structure.
Inserting The PoleInserting The Pole
The UNA has only one pole which spans the widthThe UNA has only one pole which spans the width
and creates the arch to raiseand creates the arch to raise
the roof. Simply connect the pole sections andthe roof. Simply connect the pole sections and
feed through the green pole sleeve.feed through the green pole sleeve.
Once through, insert the pole ends intoOnce through, insert the pole ends into
the pole sockets on either side as shown.the pole sockets on either side as shown.
21
UNAUNA
FrontFront
PolePole
SocketSocket
PolePole
SocketSocket
19, Carefully feed the pole19, Carefully feed the pole
through the pole sleevethrough the pole sleeve
until even amounts areuntil even amounts are
exposed on each side.exposed on each side.
22, Fix this side of the pole22, Fix this side of the pole
into its pole socket.into its pole socket.
20, Fix one side of the pole20, Fix one side of the pole
into the pole socketinto the pole socket
23, Check both sockets to23, Check both sockets to
ensure pole is securelyensure pole is securely
in place.in place.
22

Tidying The StrapsTidying The Straps
The remaining strap can be left loose, but for bothThe remaining strap can be left loose, but for both
practical, safety, and aesthetic reasons we like topractical, safety, and aesthetic reasons we like to
roll them up and keep them neatly out the way.roll them up and keep them neatly out the way.
UNAUNA
FrontFront
Rear/TailRear/Tail
23
24, Straps can be tidied by24, Straps can be tidied by
simply rolling them upsimply rolling them up
and passing a loop ofand passing a loop of
slack around the roll.slack around the roll.
24
25, The body of the UNA25, The body of the UNA
is now complete.is now complete.

26, Starting with one corner,26, Starting with one corner,
cross the Rainfly bungeecross the Rainfly bungee
cords around the strap.cords around the strap.
Adding The RainflyAdding The Rainfly
Start at any front corner, then the rear/tail andStart at any front corner, then the rear/tail and
finally the other front corner.finally the other front corner.
Make sure the rainfly is not twisted whenMake sure the rainfly is not twisted when
attaching and that the lace at least 6” along theattaching and that the lace at least 6” along the
strap.strap.
25
UNAUNA
FrontFront
Rear/TailRear/Tail
26
27, Repeat these crosses around27, Repeat these crosses around
the strap until tight, then fastenthe strap until tight, then fasten
the hooks together.the hooks together.
28, Pull the rainfly over the tent28, Pull the rainfly over the tent
body and fasten again in thebody and fasten again in the
remaining corners.remaining corners.

29, Push or hammer the29, Push or hammer the
lightweight pegs intolightweight pegs into
the ground.the ground.
Roof Bungee & Peg OutRoof Bungee & Peg Out
To peg out, attach a bungee to each wing andTo peg out, attach a bungee to each wing and
loop to a peg. Pull until firm and push into theloop to a peg. Pull until firm and push into the
ground.ground.
TIP: On the top of the rainfly there is a loop.TIP: On the top of the rainfly there is a loop. ForFor
extra head height attach a bungee to this loopextra head height attach a bungee to this loop
and secure to a branch above.and secure to a branch above.
PegPegPegPeg
PegPeg
27
UNAUNA
28
30, Using the bungees attached to30, Using the bungees attached to
the Rainfly, hook around thethe Rainfly, hook around the
pegs to give more structure.pegs to give more structure.
31, The UNA is now complete.31, The UNA is now complete.
For extra height on theFor extra height on the
Rainfly, bungees can beRainfly, bungees can be
attached from the loops onattached from the loops on
top of the cover to branchestop of the cover to branches
or trees above.or trees above.

29 30

31
Policies
Maintenance
Visual and Tactile inspection of all components for structural damage
before every use and dry out Tentsile Tree Tent thoroughly before packing
away. Tentsile Tree Tent should be stored safely in a dry environment.
Returns
If a customer wishes to return a Tentsile product within 30 days, they need
to pack the unit clean and dry, with all components included. Retailer can
choose to resell this item or send it back to Tentsile for a credit note.
A restocking fee will be applied (charged to customer) if the tent is wet, dirty
or missing parts. Return shipping will be at customer’s expense.
Weather
The Tentsile Tree Tent is not intended to be used in severe weather. If there
is weather that creates dangerous conditions, such as storms, heavy rain,
high winds, and/or lightning, do not use or remain in the Tentsile Tree Tent
in or during those conditions. It is recommended that the Tentsile Tree Tent is
taken down and stored to avoid remaining inside and being subject to such
conditions. Leaving the Tentsile Tree Tent out and installed in bad weather
can lead to potential destruction and/or damage to it (not covered by
warranty). If the Tentsile Tree Tent is subject to such conditions, it and its
anchor/hanging system should be inspected in detail prior to any future
use. Be sure to thoroughly dry the Tentsile Tree Tent before storing.
Customer Service Charter
Quality first – We will manufacture, sell and distribute the best possible quality
Tentsuile Tree Tents in the World.
Customer focus – We will provide prompt, courteous and efficient service,
with honesty and integrity and expert, clear, and timely information to
customers and colleagues.
Tentsile Promise - We will strive for a ‘get it right first time, every time’ in all
our dealings in manufacturing, distribution, sales, and service.
This policy does not cover damage incurred by environmental conditions,
weather conditions, or apocalyptic events.
Contact us
[email protected]
*use as intended and outlined herein and no more than 3 months continuous use.
32
The small print
The Tentsile Tree Tent is designed for play, relaxation, and camping/
sleeping. Never jump into, onto or use it as a trampoline or swing. It
is not intended to be used for rock climbing, cliff faces, overhangs or
above or next to large drops. Do not attach or secure the Tentsile Tree
Tent to a movable platform or anchor; it is not intended to be used
for such recreation or activities. Do not attempt to use this product for
anything other than its intended purpose, and always observe height
and weight limits.
Warranties
Manufacturing Warranty
Tentsile will accept and replace any product with a manufacturing
warranty straight out of the box. These units should be marked as
defective and repair[email protected] should be contacted, so that we
can pick up these items and replace them.
WARRANTY DOES NOT COVER COMMERCIAL USES.
For information on commercial warranties please contact
[email protected].
Claims of Defects under 1 Year Warranty
Any damage, breakage or defect found after customer use needs to
be assessed on a case-by-case basis. Tentsile will accept any fault
considered to be manufacturer’s defect if the product is used within
Terms of Use, as set out in Owner’s Manual. Tentsile will not accept
any damage, breakage or defect caused by customer outside these
Terms of Use. This would include setting up product outside guided
Owner’s Manual instructions, recklessness, carelessness, misuse
product or misunderstanding of product set up instructions provided.
Photos of damage should be sent to [email protected] for
assessment. Our team will assess if the damage is covered by
warranty, of customer error. In cases of warranty, Tentsile will ask to
be put directly in touch with customer and we will pick up the unit and
replace it directly with them. In cases of customer damage, the retailer
can pass customer directly over to talk to our team. Tentsile will then
organise for customers to send their unit in for repair.
Please note:
All Tentsile products are fabric structures which will degrade over time
due to wear and tear. This includes environmental conditions such as
user care, storage conditions, packing conditions and UV exposure.
Tentsile products comes with care instructions including; not to be left
unattended for more than 1 week. Do not leave set up for more than
3 months at a time ( product needs to be taken down and inspected
every 3 months for damage and wear and tear to components),
Products have differing levels of UV protection. UNA – 1,500UV
hours.
Tentsile will not be held liable for environmental damage caused by
high winds, falling branches, damage made by animals or any other
environmental factors.

1) Take tail end of the long strap around your trees and
thread through the loop and away from tree, towards your
Tentsile Tree Tent.
2) Thread loop of the ratchet through the D-Ring at each
corner of your Tentsile Tree Tent and take the buckle through
the loop.
3) Take long strap tail and thread it through the ratchet buckle
spindle, pulling through all excess orange strap. Crank ratchet
until the orange strap has gone around the spindle at least
1.5 full revolutions to underlock it. This will prevent any
slippage before moving to the next corner.
4) Repeat step 3 at each corner, trying as much as possible
to keep the corners pointing towards their respective anchor
points.
5) Revisit all corners and adjust as necessary.
Use line of sight down each strap to centralise your
Tentsile Tree Tent between your chosen anchor points.
You have about a 7º degree margin of tolerance in each
direction.
6) Tighten ratchets as much as you can.
ENSURE RATCHETS ARE IN LOCKED POSITION BEFORE
ENTERING THE TENTSILE TREE TENT.
7) Roll and tidy up strap ends to avoid any
possible trip hazzards.
How to use the Ratchet
UNLOCKED LOCKED
Crank the ratchet handle back & forth 7- 9 times to increase
tension to straps.
Tree Planting Mission
For every tent purchased we make a donation to plant 20 trees with our partners:
WeForest and Eden Projects. We have planted trees in projects located across Zambia, India,
Madagascar, and Oregon.
Follow #Tentsile to keep up with our progress as we work with each of these organisations to
plant 1 million trees over the next 5 years.
Where Do We Plant Them?
Tentsile’s tree planting partners all meet a number of strict criteria; from regular updates and
tracking donations, to working with local communities, training residents, planting native species
and protecting saplings to maturity.
33 34

All rights reserved Tentsile Ltd
Patent: US D829,840 / EU 004646008-0001
www.tentsile.com
