Tentsile T-Mini Kidz User manual

It is important that all users read and understand the materials in
this manual before any installation and use of the product.
T-Mini Kidz
OWNERS MANUAL

CONGRATULATIONS
YOU ARE NOW THE PROUD OWNER OF A
03: Introduction
04: Terms of Use
05: Specications
06: Warnings & Disclaimers
07-08: Layout & Alignment
09-22: Set up instructions
23: Floor calibration
25: Policies
26: The small print
IT IS IMPORTANT THAT ALL USERS READ AND UNDERSTAND THE MATERIALS
IN THIS MANUAL BEFORE ANY INSTALLATION AND USE OF THE PRODUCT.
Tentsile T-Mini Kidz
01 02

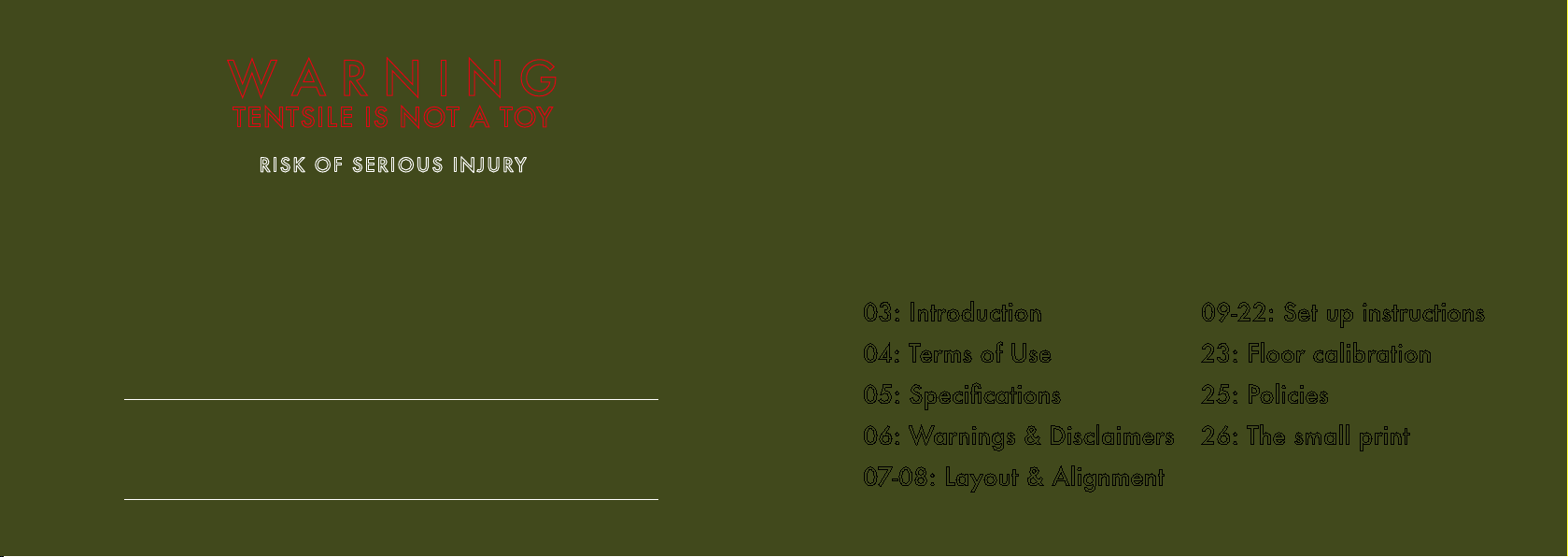

W A R N I N G
TENTSILE IS NOT A TOY
RISK OF SERIOUS INJURY
A VISUAL AND TACTILE INSPECTION OF YOUR TENTSILE’S FLOOR,
STRAPS AND BUCKLES SHOULD BE MADE BEFORE EACH USE.
FOR SAFETY REASONS, STRAPS SHOULD BE
REPLACED EVERY 2 YEARS.
DO NOT LEAVE OUTSIDE UNATTENDED FOR MORE THAN A WEEK.
CHECK THE HEALTH AND STRENGTH OF THE TREES
CHOSEN TO BE ANCHOR POINTS BEFORE USE.
Recommended set up height 1.2m / 4 feet
MAX LOAD 200kg / 440lbs.
DO NOT EXCEED MAXIMUM WEIGHT LOAD CAPACITY.

Introduction Terms of Use
03 04
The T-Mini Kidz provides a unique opportunity for you and your family to
experience the great outdoors with a whole new level of freedom and comfort.
The T-Mini comprises of a double hammock, suspended in tension above the
ground for 2 people using our new Pull-to-Tension, Press-to-Release system..
The unique design creates a comfortable base camp, irrespective of ground
conditions, as well as providing increased protection from, snakes and other
predators – if you venture somewhere more exotic.
This product was created because Tentsile loves trees and believes that if we’re
all hanging out in trees, they can’t cut them down!
18 trees are planted for every Tentsile Tree Tent sold. :)
PLAY, CAMP, EXPLORE...
Tentsile Tree Tents should be set up only as
outlined in this manual.
NEVER jump into, onto or use it as a trampoline
or swing. It is not intended to be used for rock
climbing, cliff faces, overhangs or above or next
to large drops.
DO NOT attempt to use this product for anything
another than its intended purpose, and always
observe height and weight limits.
DO NOT use walls, fences, street furniture, roof
racks, movable platforms, posts or trees less than
25cm/10inches in diameter as anchor points, as
they may not be strong enough.
DO NOT use tensioning components other than
those supplied with this product.
DO NOT set up higher than 1.2metres / 4 feet from
the ground or above hard, sharp or pointy objects.
Tactile and visual checks should be made to
ALL tent components and ALL anchor points
before each use.
Replace any damaged elements if any are found.
Keep away from re and sharp objects.
DO NOT use after the consumption of any
intoxicating substances.
Children must be supervised by an adult at all times.
DO NOT attach to trees or branches that show
signs of structural weakness.
DO NOT adjust/open ratchets whilst tent
is occupied.
DO NOT use during lightning storms or high winds.
DO NOT use in areas of unstable ground.
Tentsile Tree Tents do not offer protection from
all animals.

Specications Warnings & Disclaimers
Size:
3.25 x 3.25 x 2.7m / 10 x 10 x 8ft
Floor area:
3.75sqm / 40sqf
Bag Size:
30 x 14 x 14cm / 12 x 6 x 6”
Buckles & straps:
x3 5m/15ft polyester webbing
strap (width 25mm /1”) +2
WebLocks a non-slip adjuster.
Tent weight:
1.8kg / 4.0lbs
Maximum capacity:
2 adults.
Maximum height:
1.2m / 4ft
DO NOT EXCEED MAXIMUM LOAD 200kg / 440lbs
05 06
Installation and use of the Tentsile Tree Tent may
involve heights, can be dangerous and may lead
to injury and/or death.
The installation must never be executed by
minors, and extreme care and caution must be
taken when executed by adults.
Do not use any other components, parts, tools or
materials other than those included in the Tentsile
Tree Tent package, recommended in this manual
or in other Tentsile literature.
A hanging and/or suspension system is only as
strong as its weakest link and all instructions and
guidelines must be followed.
The Tentsile Tree Tent must only be used in
the manner described in this manual. When
assembled and installed, the Tentsile Tree Tent
places signicant force on the anchor points;
great care must be exercised when using it to
decrease the risk of injury and/or death.
Overloading the Tentsile Tree Tent with more
than 440lbs (200kg) increases the forces and
may cause anchor, Tree Tent and/or any parts
to fail, resulting in injury and/or death.
The manufacturer and resellers of the Tentsile
Tree Tent explicitly disclaim any and all
responsibility and liability for any death,
paralysis, injury, and/or damage to any
person or property that may occur that arises
out of or is in any way related to the use of
this product.
Using any equipment that is suspended above
ground can be a dangerous activity that may
result in serious injury and/or death even
when used properly. Use at your own risk and
always use common sense.

Positioning the T-Mini Kidz
Tentsile Tree Tents need 3 secure and strong anchor points to suspend
from. The distances are marked below. Once the location is found, lay out
the T-Mini Kidz on the ground with the corners facing your selected trees.
Alignment
Use the sight tag on the side of the tent.
Look along the tag and ensure it and the strap
are inline with the tree.
T-Mini Kidz Floor
x3 Straps
T-Mini Kidz
Minimum setup distances:
4 x 4 x 3m / 10 x 10 x 13ft
Maximum setup distances:
9 x 9 x 10m / 29 x 29 x 32ft
Anchor point should
be less than 90 degrees
from each other.
Tree
Tree
Tree
Tree Tree
Tree
07 08

Rear/Tail
Front
09 10
Lay Out The T-Mini Kidz
Take the T-Mini Kidz and lay it out on the
ground in the desired location between
yout selected trees. Ensure it is the correct
way up with the calibration centre strap
face down. 1, Lay the T-Mini Kidz on
the ground inbetween your
selected trees.
T-Mini Kidz

11
Rear/Tail
Front
Tree Straps
With a location found and the T-Mini Kidz
layed in position, start by wrapping the
tree straps around your selected trees.
T-Mini Kidz
12
4, Ensure the strap is
at against the tree
and not twisted.
3, Once around, thread the
strap through the loop.
2, Wrap the loop end of
each strap around your
selected trees.

6, Feed the tree strap
through the bottom of
the Weblock.
5, Begin at the bottom
of the Weblock. 7, Pull the tree strap over the top bar.
Tree Straps to Weblocks
Weblocks are quick and secure ways of
attaching the tree straps to the T-Mini Kidz.
The Weblocks are already secured to the
T-Mini Kidz front corners. Do both corners
before attaching the rear buckle.
13
8, Feed the tree strap end
inbetween the 2 bars. 9, Pull the end back around
the bottom bar.
10, Now pull the strap
towards to the tree
but not tight yet.
14
Towards Tree
BOTTOM
TOP

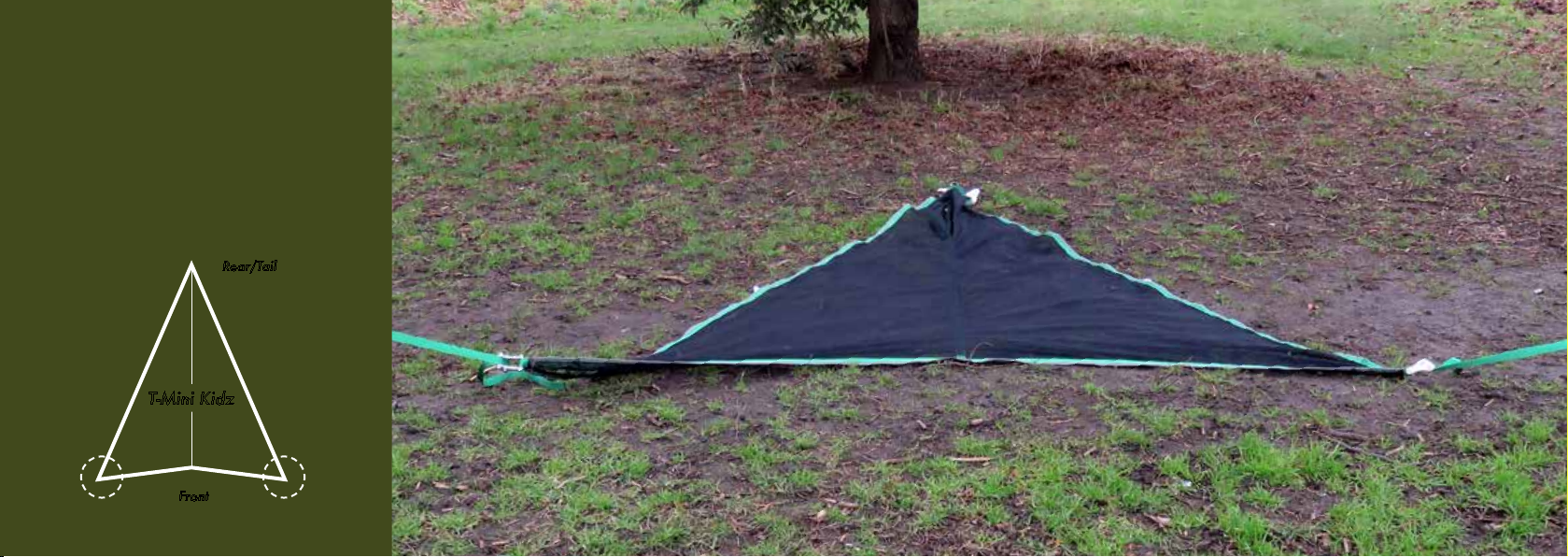

Towards Tent

Front
15 16
Keep it slacked
With both front corners attached,
keep the T-Mini Kidz slacked so the
rear buckle can be attached. 11, With both front corners
attached, ensure you have
enough slack to secure the
rear buckle.
Rear/Tail
T-Mini Kidz

13, Feed the tree strap from
behind/underneath.
14, Depressing the buckle
allows the tree strap to
be passed through.
Using the Buckle
The rear buckle is a pull-to-tension and
press-to-release system.
The tree strap is simply fed underneath the
buckle and pulled through towards the tree
to tighten. Pressing the buckle will release
the strap.
Front
Rear/Tail:
Attach to buckle
17
T-Mini Kidz
18
16, Pull it towards the tree
but not fully tight yet.
15, Pull the tree strap through
and release the buckle.
12, Take the buckle and
press/hold to open so
the tree strap can be
passed through.

17, Ensure the tree straps are
all aligned with the
selected trees before
pulling tight.

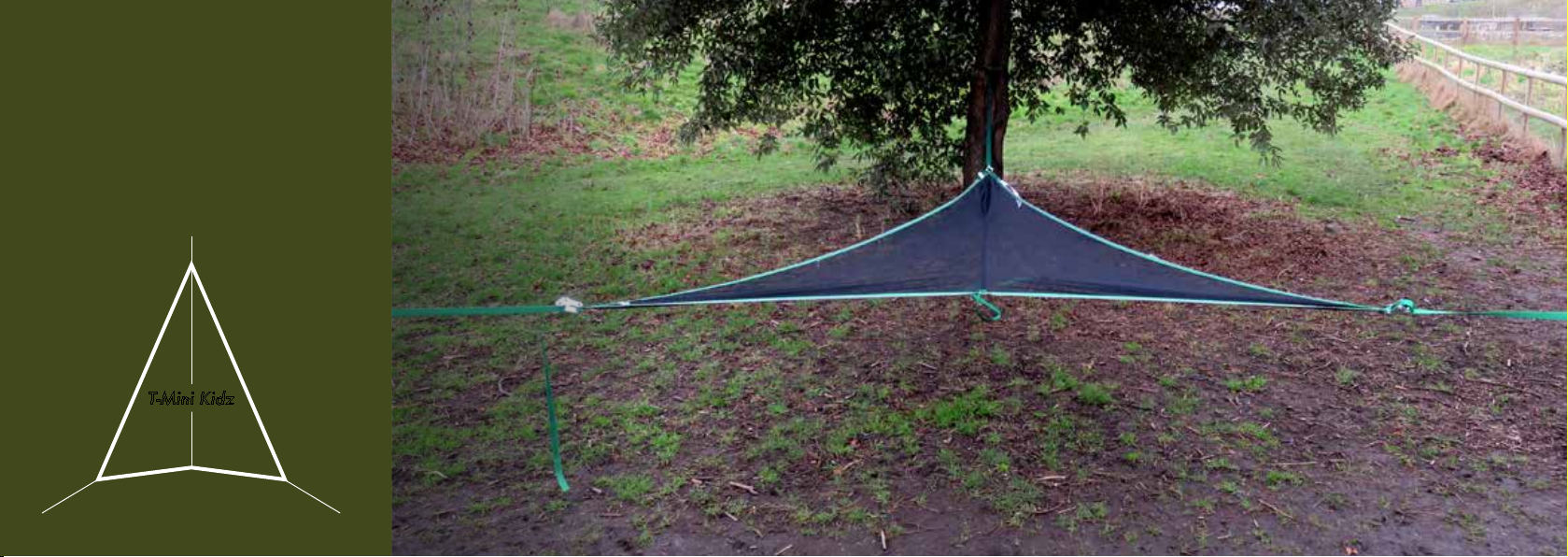

Aligning the T-Mini Kidz
With the T-Mini Kidz now raised you must
ensure it is correctly aligned with the anchor
points before pulling tight
The centre point of each side the tree straps
should line up straight.
19 20
T-Mini Kidz

18, Pull the Weblocks tight
whilst ensuring it remains
aligned. Now pull the
rear buckle tight and the
T-Mini Kidz is complete.

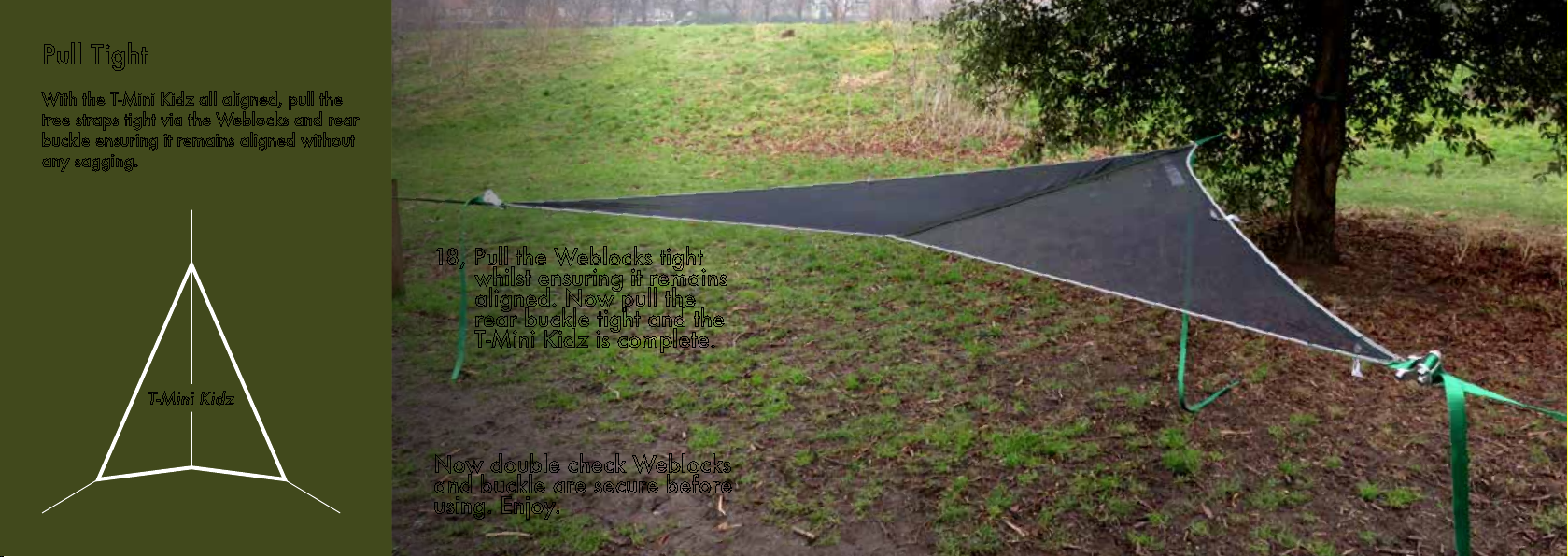

Pull Tight
With the T-Mini Kidz all aligned, pull the
tree straps tight via the Weblocks and rear
buckle ensuring it remains aligned without
any sagging.
Now double check Weblocks
and buckle are secure before
using. Enjoy.
21 22
T-Mini Kidz

Floor Strap
Calibration
23
Tentsile Trees Tents come pre-calibrated, but will
stretch over time, so you will need to loosen the
underoor strap, using the buckle every so often.
Here is how.
When the T-Mini Kidz is up, the centre (underoor)
strap should provide a clear delineation between
both hammock berths. To increase this tension
(and therefore separation between the two
hammocks) just tighten the adjuster buckle strap
on the underside.
This re-tensioning will need to take place every so
often as the materials stretch into full size over time.
If you are using the T-Mini Kidz alone, you can
slack off this strap completely and have the whole
oor as a large single hammock berth to yourself.
24

Policies The small print
25 26
Maintenance
Visual and Tactile inspection of all components for
structural damage before every use and dry out Tentsile
Tree Tent thoroughly before packing away. Tentsile Tree
Tent should be stored safely in a dry environment.
Returns
You can return this product, in a clean and dry condition,
within 4 weeks of purchase and expect a full refund or
replacement. If a manufacturing defect occurs within 1
year of reasonable* use, the product can be returned
for repair or exchange.
Weather
The Tentsile Tree Tent is not intended to be used
in severe weather. If there is weather that creates
dangerous conditions, such as storms, heavy rain,
high winds, and/or lightning, do not use or remain
in the Tentsile Tree Tent in or during those conditions.
It is recommended that the Tentsile Tree Tent is taken
down and stored to avoid remaining inside and being
subject to such conditions. Leaving the Tentsile Tree
Tent out and installed in bad weather can lead to
potential destruction and/or damage to it (not covered
by warranty). If the Tentsile Tree Tent is subject to such
conditions, it and its anchor/hanging system should be
inspected in detail prior to any future use. Be sure to
thoroughly dry the Tentsile Tree Tent before storing.
Customer Service Charter
Quality rst – We will manufacture, sell and distribute the
best possible quality Tentsuile Tree Tents in the World.
Customer focus – We will provide prompt, courteous
and efcient service, with honesty and integrity and
expert, clear, and timely information to customers and
colleagues.
Tentsile Promise - We will strive for a ‘get it right rst
time, every time’ in all our dealings in manufacturing,
distribution, sales, and service.
This policy does not cover damage incurred by
environmental conditions, weather conditions, or
apocalyptic events.
Contact us
[email protected]
*use as intended and outlined herein and no more than 3 months continuous use.
The Tentsile Tree Tent is designed for play, relaxation, and
camping/sleeping. Never jump into, onto or use it as a
trampoline or swing. It is not intended to be used for rock
climbing, cliff faces, overhangs or above or next to large
drops. Do not attach or secure the Tentsile Tree Tent to a
movable platform or anchor; it is not intended to be used
for such recreation or activities. Do not attempt to use this
product for anything other than its intended purpose, and
always observe height and weight limits.
Warranties
This one year warranty covers all manufacturing faults of
fabrics, parts and workmanship. This warranty covers the
functionality of the product for its normal, intended use as
specified in Tentsile’s consumer literature, incl. website.
It does not cover poles or malfunction of any component that
has resulted from improper or unreasonable use or neglectful
maintenance, the user’s use of undersized or unhealthy trees,
sharp objects or fire near the Tentsile Tree Tent or the use
by more than the recommended number of persons, at the
recommended set up height.
This policy does not cover damage incurred by environmental
conditions, weather conditions, or apocalyptic events.
The warranty herein will not be honoured for products that are
purchased through an unauthorised dealer or secondary reseller.
Unauthorised and/or resold products are not backed up
by the high quality standards and dependability of original
products sold by authorized dealers. By buying from an
unauthorised dealer you could get a product that is counterfeit,
stolen, or re-manufactured, and being listed as new.
To redeem any potential warranty you will need to provide
proof of purchase with the product.
Other than as described above, the manufacturer, sellers,
and resellers of this product make no other representations
and/or warranties, either express or implied, regarding the
product, including without limitation, any warranties as to
merchantability, quality, or fitness for a particular purpose.
The manufacturer, sellers, and resellers shall not be liable in
any way whatsoever for special, indirect, consequential, or
incidental damages, whether based on breach of contract,
breach of warranty, tort (including negligence), product
liability or otherwise, even if they have been advised of the
possibility of such damages. Violation of the instructions and
warnings herein operates as a waiver of claims by the user.
The Tentsile Tree Tent user agrees that his or her full remedy
against the manufacturer, sellers, and resellers for any
liability, claims, or damages, shall be limited to the purchase
price of the Tentsile Tree Tent, and irrevocably waives all
claims for any other damages that such user may have.

All rights reserved Tentsile Ltd 2015
Patent Pending
www.tentsile.com
