Terex BID-WELL 2450 User manual

1/2012 Terex Bid-Well
SERIAL NO:
When ordering parts or when consulting the
Terex Bid-Well®Service Department
ALWAYS KNOW your MACHINE SERIAL NUMBER
CANTON, SD 57013
 TEL:605-987-2603•FAX:605-987-2605
2450 Automatic Roller Paver

Terex Bid-Well 2012
TABLEOFCONTENTS
SECTION
I INTRODUCTION
1. Warranty
2. Specifications
3. Serial Plate
4. Machine Weights
5. Operator Qualification
6. Safety
7. Decals
II COMPONENTS & CONTROLS
1. Machine Frame
2. Stationary Power Unit
3. Paving Carriage
4. Paver Options
5. Manual Carriage Directional Control
6. Power Selector Control
7. Carriage Speed Control
8. Machine Travel Direction Control
9. Machine Travel Speed Control
10. Carriage On/Off Valve
11. Carriage Roller Rotation Control
12. Carrige Lift Control
13. Rota-Vibe
III SETUP - OPERATION - MAINTENANCE
1. Lifting the Machine
2. Loading the Machine
3. Towing the Machine
4. Screed Rail and Paving Forms
5. Machine Setup
6. Paving Procedures
7. Maintenance
8. Trouble Shooting
IV STANDARD PARTS BOOK
V OPTION PARTS BOOK
© 2011 Terex Corporation All Rights Reserved
Terex® is a registered trademark of Terex Corporation in the United States of America and many other countries. Products and services
listed may be trademarks, service marks, or trade names of Terex Corporation and/or its subsidiaries in the United States of America
and other countries, and all rights are reserved.
No part of this manual may be reproduced in any way without the express prior written consent of Terex Corporation.

MODEL 2450 (1/2012) SECTION I PAGE 1.1
INTRODUCTION
Model 2450 Automatic Roller Paver
1. TEREX BIDWELL WARRANTY ............................................................................................................ 1.3
2. MACHINE SPECIFICATIONS ....................................................................................................... 1.4  1.5
3. SERIAL NUMBER PLATE LOCATION ................................................................................................. 1.4
4. MACHINE WEIGHTS ...................................................................................................................... 1.6  1.9
5. OPERATOR QUALIFICATION............................................................................................................... 1.10
6. GENERAL SAFETY PRECAUTIONS....................................................................................... 1.11  1.12
7. SAFETY DECAL IDENTIFICATION.......................................................................................... 1.12  1.16
When ordering parts or when consulting the
Terex®Bid-Well Service Department
ALWAYS KNOW your Machine Serial Number
CANTON, SD 57013
 TEL:605-987-2603•FAX:605-987-2605•TollFree:1-800-843-9824
Section I

PAGE 1.2 SECTION I MODEL 2450 (1/2012)
NOTES

MODEL 2450 (1/2012) SECTION I PAGE 1.3
The Terex Bid-Well, products are warranted, to the original
owner, against defects in workmanship and materials for a
period of 1 year from delivery date. This warranty is limited to
repair or replacement of those parts found defective in material
or workmanship. All parts such as hydraulic and mechanical
components not made by Terex Bid-Well are warranted to the
extent of the original manufacturer’s warranty. Engines are not
warranted by Terex Bid-Well but are warranted by the engine
manufacturer. See the engine Owner’s Manual.
Terex Bid-Well shall have no liability for loss of use or for any
incidental or consequential damages, such as, but not limited
to, loss of profits, loss of use of other equipment, improper
performance of work, penalties of any kind, loss of services of
personnel, or any other losses which may be experienced by
the Buyer.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EX-
PRESSED OR IMPLIED (INCLUDING THOSE OF MERCHANT-
ABILITY AND FITNESS FOR A PARTICULAR PURPOSE), AND
ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART.
TEREX BID-WELL NEITHER ASSUMES NOR AUTHORIZES
ANY OTHER PERSON TO ASSUME FOR TEREX BID-WELL,
ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF
TEREX BID-WELL PRODUCTS. THERE ARE NO WARRANTIES
WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF.

PAGE 1.4 SECTION I MODEL 2450 (1/2012)
Always give the factory the Serial Number assigned to your unit when ordering parts or when re-
questing service or other information. The Serial Number is written on the front of this manual and a
stamped Serial Plate is located on the Power Unit and on the Paving Carriage.
We suggest that you write the serial number and other pertinent information in the space provided
below:
MODEL:
SERIAL NUMBER:
PRODUCTION YEAR:
• Allweldedsteelconstructionthatcreatesstrengthwithaminimumofweight.
• Crownmaybechangedatanyhingepointorattravelrailadjuster.
• Machineautomaticallymovesforward(0to12Inches)attheendofeachcarriagepass.
* Machine Width ........................................................................30Ft-(9.14M)Canbeextendedto60Ft(18.28M)
* Legs..................................................................................................................................................................... 4Inch,Heavyduty
• BogieAssembly(2WheelsperBogie) ................................... 3FtWheelCentertoWheelCenter(0.914M)
• OperatingWeight ...................................................................................................................................4800Lbs(2176.8Kg)
• PowerUnit .......................................................................................................................................................Kohler20HPGas,
• Turntablemountingtoallowforskeweddecks.
• ManualCrownAdjuster
• Independentlyadjustabledualaugers.
* Four foot long dual rollers.
• Independentrollerrotationwithautomaticrollerreversingornon-rollerreversing.
• Automaticcushionedpavingcarriagetravelreversal.
• AdjustableDragPanandTexturingDrag.
• DualpatentedRota-Vibe®
• CarriageLift
• PowerUnit ......................................................................................................................................................... Kohler20HPGas
• ExtensionInserts-15Ft(4.57M),12Ft(3.65M),6Ft(1.83M),and3Ft(0.91M)
• FourWheelDolly
• AdjustableTowingTongue
• SkewBarKit
• SwingOutLegs
• SingleSpudVibrator
• 6-WheelBogieDistributionSystem
• VarietyofBogieWheels

MODEL 2450 (1/2012) SECTION I PAGE 1.5
K
O
N
L
M
P
KEY DESCRIPTION MEASUREMENT
A Overall Machine Length 30 Ft 6 In 9.30 M
B Leg Span - Each leg moves on own dolly to accommodate 27 Ft. 3 In 8.31 M
different widths and variable width pours.
C Finishing Width 25 Ft 4 In 7.72 M
D Maximum Leg Travel - Each leg moves on its own dolly to 12 Ft 3 In 3.73 M
accommodate different widths and variable width pours.
E Maximum Frame Clearance above Screed Rail 47 In 119.38 Cm
F Minimum Frame Clearance above Screed Rail 15 In 38.10 Cm
G Frame Clearance above Finished Concrete 36 In 91.44 Cm
H Towing Tongue Extension 54 In 137.16 Cm
I Height of Top of Leg 103 In 2.62 M
J Height of Truss 24 In 60.96 Cm
K Leg Center Spacing 62 1/2 In 1.58 M
L Length of Drag Pan 33 In 83.82 Cm
M Burlap Drag Length 19 In 48.26 Cm
N Paving Roller Length 46 In 116.84 Cm
O Auger Length 32 In 81.28 Cm
P Auger Diameter 8 In 20.3 Cm
A
J
I
G
C
D
B
F
E
H

PAGE 1.6 SECTION I MODEL 2450 (1/2012)

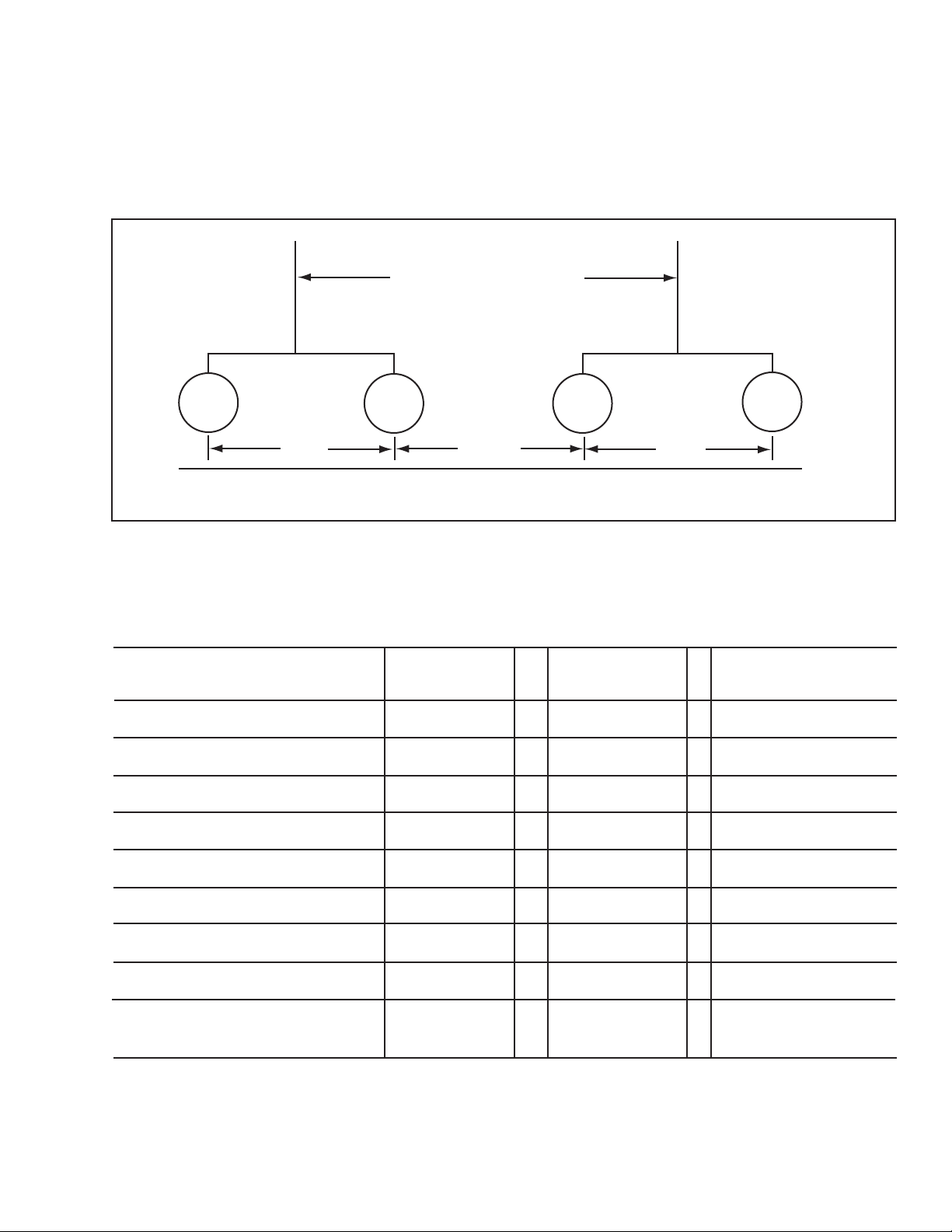

DEAD LOADS TOTAL WEIGHT IDLER END POWER UNIT END
(LBS) (LBS PER WHEEL) (LBS PER WHEEL)
BASIC MACHINE WEIGHT /8
EXTRA INSERTS /8
MACHINE ACCESSORIES /8
MACHINE TRANSFER WEIGHT -+
LIVE LOADS
BASIC CARRIAGE WEIGHT /4
CARRIAGE ACCESSORIES /4
OPERATOR WEIGHT /4
TOTAL WEIGHTS
(LBS) (LBS PER WHEEL) (LBS PER WHEEL)
EXAMPLE:
DEAD LOADS TOTAL WEIGHT IDLER END POWER UNIT END
(LBS) (LBS PER WHEEL) (LBS PER WHEEL)
 BASICMACHINEWEIGHT 3759 /8 470 470
 EXTRAINSERTS 854 /8 107 107
 MACHINEACCESSORIES 360 /8 45 45
MACHINE TRANSFER WEIGHT - 85 + 85
LIVE LOADS
 BASICCARRIAGEWEIGHT 1670 /4 418 418
 CARRIAGEACCESSORIES 900 /4 225 225
 OPERATORWEIGHT 200 /4 50 50
TOTAL WEIGHTS 7743 1230 1400
(LBS) (LBS PER WHEEL) (LBS PER WHEEL)
YOUR MACHINE:

MODEL 2450 (1/2012) SECTION I PAGE 1.7
Two(2)12FtInserts .........................................................................................................................................3759lbs(1705Kg)•
Two(2)12FtInserts&Two(2)6FtInserts ......................................................................................... 4483lbs(2033Kg)
• Two(2)12FtInserts&Two(2)3FtInserts..................................................................................4251lbs(1928Kg)
• Three(3)12FtInserts............................................................................................................................. 4965lbs(2252Kg)
• Two(2)15FtInserts..................................................................................................................................3991lbs(1810Kg)
The Basic Weight of your machine is ________lbs, assembled from ______ sections at the factory. Write
thebasicweightofyourmachineintotheTotalWeightcolumnonPage2.DividetheTotalWeightby8(the
number of machine wheels) to get the weight per wheel on the Idler End and the Power Unit End of the
machine. Write the weight per wheel of your machine in the Idler End and Power Unit End columns on
Page2.
• 3FtSection....................................................................................................................... WithLegRail=246lbs(112Kg)
• 3FtSection................................................................................................................WithoutLegRail=226lbs(103Kg)
• 6FtSection.......................................................................................................................WithLegRail=362lbs(164Kg)
• 6FtSection................................................................................................................WithoutLegRail=321lbs(146Kg)
• 12FtSection.....................................................................................................................WithLegRail=603lbs(274Kg)
• 12FtSection..............................................................................................................WithoutLegRail=515lbs(234Kg)
• 15FtSection.....................................................................................................................WithLegRail=719lbs(326Kg)
• 15FtSection.............................................................................................................. WithoutLegRail=610lbs(277Kg)
Determine the number of each length and type of insert section that are going to be added to the
basic machine. Add the weights of those sections to get the total weight of extra sections. Write
this weight in the Total Weight column. Divide the total weight of the extra inserts by the number of
wheels(8)todetermineweightperwheelontheIdlerEndandthePowerUnitEndofthemachine.
• 4InchSwingLegs(2Ends-Setof4).................................................................................................. 360lbs(163Kg)
• SixWheelBogieSystem..............................................................................................................................840lbs(381Kg)
• TowingTongue.........................................................................................................................................................97lbs(44Kg)
Determine the number of accessories being added to the basic machine. Add the additional weights
of those accessories. Write this weight in the Total Weight column. Divide the total weight of the extra
insertsbythenumberofwheels(8)todetermineweightperwheelontheIdlerEndandthePower
Unit End of the machine.

PAGE 1.8 SECTION I MODEL 2450 (1/2012)
Live Loads for 2450 Machines
The Paving Carriage, accessories and the operator are considered live loads because they move from
one end of the machine to the other. Therefore, it is necessary to figure that the entire weight of these
live loads will be carried by only one end of the machine at a time. The Basic Weight of the standard
Paving Carriage is listed below.
• 2450PavingCarriagewithDualRollers........................................................................................... 1670lbs(747Kg)
The weight Per Wheel is the Basic Weight Assembled at Factory divided by the number of wheels at each
end of the machine. Write the weight of the basic carriage into the Total Weight column. Divide the total
weightby4toobtaintheweightperwheelontheIdlerEndandthePowerUnitEndofthemachine.Write
the wheel loads of your machine into the weight per wheel columns. Example: 1295 lbs / 4 = 324 lbs PER
WHEEL.
Weight of Paving Carriage Accessories (These weights take into consideration any basic carriage
parts that the accessory replaced). Unfortunately, not all accessory weights are currently avail-
able. If your accessory is not included in the list below, contact the Bidwell Service Department.
• Rota-Vibe(11-1/2Inch) ................................................................................................................................ 230lbs(104Kg)
• SingleSpudVibrator......................................................................................................................................340lbs(154Kg)
• SkewBarKit....................................................................................................................................................... 230lbs(104Kg)
• CarriageFogger(Includestheweightof50Gallonsofwater).............................................900lbs(408Kg)
Determine the number of accessories being added to the basic carriage. Add the additional weights
of those accessories to get the total additional weight of the accessories. Example: Carriage Fogger
Weight Transfer of Power Units with Gasoline Engines
The graphs below list the additional weight that the Power Unit adds to the wheel load on the Power
Unit End of the machine. Graph A lists the weight to be deducted from the Idler End of the machine
and Graph B lists the weight to be added to the Power Unit End of the machine. The total weight of
the Power Unit is included in the basic machine weight. The longer the total length of the machine,
the more the Power Unit weight is transferred to the Power Unit End of the machine and away from
the Idler End of the machine. Consult the appropriate graph and determine the wheel loads for the
idler end and the power end of the machine. For example, using the gasoline graphs, if the distance
betweenscreedrailsis36feetthepoundsperwheelwillbeapproximately85lbsperwheelonboth
theIdlerEndandonthePowerUnitEnd.Subtract85lbsperwheelfromtheIdlerEndandadd85lbs
per wheel to the Power Unit End.
Write the wheel loads of your machine into the weight per wheel columns.
Lbs. per
Wheel
Distance between Screed Rails in Feet
80
90
100
110
120 40 60 80 100 120
GRAPH A - IDLER END
Lbs. per
Wheel
Distance between Screed Rails in Feet
120
120
110
100
90
80 40 60 80 100
GRAPH B - POWER UNIT END
WEIGHT TRANSFER - GASOLINE ENGINES

MODEL 2450 (1/2012) SECTION I PAGE 1.9
= 900 lbs.Writethisweightintothetotalweightcolumn.Dividethetotalweightby4toobtainthe
weight per wheel on the Idler End and the Power Unit End of the machine. Example: 900 lbs / 4 = 162
lbs. Write the wheel loads of your machine into the weight per wheel columns.
Theweightof200lbshasbeenusedasanestimateforatypicaloperator.Ifyouroperatorisheavier
than200lbs,entertheappropriateweight.Ifotherpeople,otherthantheoperator,arerequiredtobe
on the machine, their weights should be included. Divide the weight by the number of wheels. Write
the wheel loads of your machine into the weight per wheel columns. Example: 200 lbs / 4 = 50 lbs PER
WHEEL
EXAMPLE:
DEAD LOADS TOTAL WEIGHT IDLER END POWER UNIT END
(LBS) (LBS PER WHEEL) (LBS PER WHEEL)
 BASICMACHINEWEIGHT 3759 /8 470 470
 EXTRAINSERTS 854 /8 107 107
 MACHINEACCESSORIES 360 /8 45 45
MACHINE TRANSFER WEIGHT - 85 + 85
LIVE LOADS
 BASICCARRIAGEWEIGHT 1670 /4 418 418
 CARRIAGEACCESSORIES 900 /4 225 225
 OPERATORWEIGHT 200 /4 50 50
TOTAL WEIGHTS 7743 1230 1400
(LBS) (LBS PER WHEEL) (LBS PER WHEEL)
THE BID-WELL PAVER IS SUPPORTED BY 8 WHEELS, WITH 4 WHEELS TO EACH SIDE AS SHOWN ABOVE.
LEG CENTERS - 62-1/2"
36" 36"
26-1/2"

PAGE 1.10 SECTION I MODEL 2450 (1/2012)
Thismanualhasbeencompiledtoassisttheowner/
operator with the correct setup, operation and routine
maintenance needed for the safe and efficient use of
the Terex Bid-Well Paver. In order to maximize the
performance and efficiency of the Paver it is that the
owner/operatorandmaintenancepersonnelreadthis
manual thoroughly before operating or servicing the
machine. You should have a basic knowledge about the
handling of concrete products and should be trained and
licensed per state requirements before operating this
equipment. Always keep this manual in a convenient
place for instant reference and never attempt to make
repairsoradjustmentsthatyoudonotfullyunderstand.
If you require any additional information or service do
not hesitate to call the Terex Bid-Well Service Depart-
ment.
 Tel:605-987-2603-Fax:605-987-2605
 E-Mail:www.djjohnson@TerexBid-Well.com
Service Manager
Operation shall be limited to personnel with the fol-
lowing minimum qualifications:
1. Designated persons.
 2. Traineesunderthedirectsupervisionofa
designated person.
3. Maintenance and test personnel (when it is
necessary in the performance of their duties).
Operators shall be required by the employer to pass
a practical operating examination. Qualifications shall
be limited to the specific type of equipment for which
examined.
Operators and operator trainees shall meet the follow-
ing physical qualifications:
 1. Visionofatleast20/30Snelleninoneeye
  and20/50intheother,withorwithoutcorrec-
tive lenses.
 2. Abilitytodistinguishcolors,regardlessofposi-
tion, if color differentiation is required for opera-
tion.
3. Adequate hearing, with or without hearing aid,
for the specific operation.
Evidence of physical defects or emotional instability
which could render a hazard to the operator or others, or
which in the opinion of the examiner could interfere with
the operator’s performance, may be sufficient cause for
disqualification. In such cases, specialized clinical or
medicaljudgementsandtestsmayberequired.
Evidencethatanoperatorissubjecttoseizuresorloss
of physical control shall be sufficient reason for disquali-
fication. Specialized medical tests may be required to
determine these conditions.
Operators and operator trainees should have normal
depth perception, field of vision, reaction time, manual
dexterity, coordination and no tendencies to dizziness
or similar characteristics.
In addition to the above listed requirements, the opera-
tor shall:
1. Demonstrate the ability to comprehend and in-
terpret all labels, operator manuals, safety codes
and other information pertinent to the operation
of the paver.
 2. Possess knowledge of emergency procedures
and implementation of same.
3. Demonstrate to the employer the ability to oper-
ate the specific equipment.
 4. Befamiliarwithapplicablesafetyregulations.
 5. Understandresponsibilityformaintenancere-
quirements.
 6. Understand the operating procedures as out
lined by the manufacturer.
1. The operator shall not engage in any practice
  whichwilldiverthis/herattentionwhileactually
engaged in operating the machine.
 2. Eachoperatorshallberesponsibleforthose
operations under the operator’s direct control.
Whenever there is any doubt as to safety, the
operator shall consult with the supervisor.
3. If there is a warning sign on a switch, engine
control or paver component, the operator shall
not close the switch, start the engine or use the
component until the warning sign has been
remove or acknowledged by the appointed
person.
 4. Beforeoperatingthepaver,theoperatorshall
see that all controls are in the “off” or neutral
position and that all personnel are in the clear.
 5. InaccordancewithOSHAregulations1928.51
  and1928.52,operatinginstructionsmustbe
  providedinitiallytooperators/employeesbe
fore allowing them to operate the paver and
should be reviewed annually thereafter.
The most safety device on this equipment is a well
trainedandsafeoperator.Itishis/herresponsibility
to read and understand all safety and operating in-
structions in this manual. A person who has not read
and understood all operating and safety instructions
is not qualified to operate the paver. An untrained
operatorexposeshimself/herselfandbystandersto
possibleinjuryordeath.Allaccidentscanbeavoid-
ed!!!
modify the paver in any way without consulting the
factory. Unauthorized modification may impair func-
tionand/orsafetyandaffecttheworkinglifeofthe
equipment.

MODEL 2450 (1/2012) SECTION I PAGE 1.11
when working on machinery, they could catch
  onmovingpartscausingseriousinjury.Wear
sturdy, rough soled work shoes, safety glasses
and any other protective gear that is warranted
by the work environment.
 5. Keepworkareaorganizedandclean.Wipeup
  oilspillsofanykind.Keeptoolsandpartsoff
floor. Eliminate the possibility of a fall which
  couldresultinseriousinjury.
 6. Besuretoreinstallsafetydevices,guardsor
  shieldsafteradjustingand/orservicingthe
machine.
 7. Afterservicing,besurethatalltools,partsor
servicing equipment are removed from the
vehicle or engine.
 8. Userecommendedhandholdsandstepswith
at least three points of support when getting
  onandoffthepaver.Keepsteps,oors,hand
holds and controls clean and free of grease.
Face the machine when climbing up and down
  andneverjumpoffthepaverordismountwhile
it is in motion.
 9. Keepallpersonnelclearofaugers,rollersand
carriage frame when operating the paver.
 10. Donotpermitridersonthepaver. 
HYDRAULIC SAFETY PRECAUTIONS
1. Make sure that all components are in good
working condition. Replace any worn, cut,
abraded, flattened or crimped hoses and
metal lines.
 2. Donotattemptmakeshiftrepairsusingtape,
clamps or cements. The hydraulic system
operates under extremely high pressure and
  suchrepairscouldcauseseriousinjury.
3. Wear proper hand and eye protection when
searching for a high pressure leak. Use a
piece of wood or cardboard as a back stop
instead of hands to isolate and identify leaks.
 4. Ifinjuredbyconcentratedhighpressuresteam
or hydraulic fluid, seek medical attention imed-
iately. Serious infections or toxic reaction can
develop from hydraulic fluid penetrating the
skin.
REFUELING PRECAUTIONS.
1. When refueling, keep the hose nozzle or the
funnel and container in contact with the metal
of the fuel tank to avoid the possibility of an
electrical spark igniting the fuel.
 2. Donotoverllthefueltank-overowcreatesa
fire hazard.
 3. DONOTSMOKEwhenrefuelingandnever
refuel when engine is running.
 4. Preventresbykeepingthemachinecleanof
debris, grease and spilled fuel.
The Safety Alert Symbol identifies important safety
messages written on the paver decals, as well as, in this
manual. When you see this symbol, be alert to possible
dangerthatcouldresultinseriousinjuryordeath.
Note the use of key signal words in association with
the Safety Alert Symbol:
DANGER -An immediate and specific hazard which will
resultinseverepersonalinjuryordeathiftheproper
precautions are not taken.
WARNING - A specific hazard or unsafe practice which
couldresultinseverepersonalinjuryordeathifproper
precautions are not taken.
CAUTION - Unsafe practices which could result in per-
sonalinjuryifproperprecautionsarenottakenandas
a reminder of good safety practices.
YOU - are responsible for the safe operation and main-
tenance of your Terex Bid-Well Paver. You must ensure
that you and anyone else who is going to operate, main-
tain or work around the machine be familiar with the
operating and maintenance procedures and all related
safety information contained in this manual.
GENERAL SAFETY PRECAUTION
1. Always read and fully understand the Opera
tor’s Manual and the Safety Decals on the ma
chine before trying to operate or service this
equipment.
 2. Itiswisetohavearstaidkitavailableandto
be familiar with its contents.
 3. Keepa“charged”reextinguisherwithinreach
whenever you work in area where fire may
occur. Also, be sure you have the correct type
of extinguisher for your situation:
Type A: Wood, paper, textile and rubbish.
Type B: Flammable liquids.
Type C: Electrical equipment.
 4. Besuretowearsafeworkclothing.Itshould
be well fitted and in good repair. Do not wear
rings, wrist watches or loose fitting clothing
SAFETY ALERT SYMBOL

PAGE 1.12 SECTION I MODEL 2450 (1/2012)
STORAGE PRECAUTIONS
1. Store paver in an area away from human
activity.
 2. Donotpermitchildrentoplayonoraroundthe
stored paver.
3. Make sure the unit is stored in an area that is
firm, level and free of debris.
 4. Storethepaverinsideabuildingorcover
securely with a weatherproof tarpaulin.
SAFETY DECALS
 1. KeepSafetyDecalsandsignscleanandlegible
at all times.
 2. Replacedecalsandsignsthataremissingor
become impossible to read.
3. When replacing parts that previously displayed
a safety decal, be sure to replace the decal
as well.
 4. ObtainSafetyDecalsorsignsfromtheTerex
Bid-Well Parts and Service Department.
 5. Becomefamiliarwiththecontentandtheposi-
tion of each Safety Decal. Important informa
tion is written on the decals.
BATTERY PRECAUTIONS
 1. Keepallsparksandamesawayfrombattery,
as gas given off by electrolyte is explosive.
 2. Ifyoucomeincontactwithbatteryelectrolyte
solution wash off immediately.
3. Always disconnect the battery ground cable
before working on the electrical system.
 4. Donottipbatterymorethan45degreesto
avoid electrolyte loss.
TRANSPORT PRECAUTIONS
1. Consult the Terex Bid-Well Operator’s Manual
before attempting to lift your paver. Use ext
reme caution when lifting the machine. Make
sure that the lifting device has enough capacity
to lift the weight of the machine. Check all lift
ing cables, chains, clevises, cable clamps and
spreader beams for any damage. Use ropes
tied to the ends of the machine to prevent the
  machinefromspinning.Keepallpersonnel
away from the machine while it is being lifted.
 2. Alwayscomplywithlocalregulationsregarding
moving equipment on public roads and high-
ways.
3. Make sure that all lights and reflectors comply
with state and local regulations. Make sure that
they are clean, in good working order and can
be seen clearly by all overtaking and on-coming
traffic.
DECALS
#20-08237 - TRUSS
#20-08060 - INSERT
ATTENTION
DR-8060
INSTALL ANGLE IRON BRACING IN
ZEE ( ) CONFIGURATION ONLY.
TO AVOID STRUCTURAL FAILURE,
#20-08057 - LEG
R
A
I
S
E
M
A
C
H
I
N
E
20-08057
#20-08244 - LEG
#20-08015 (9 x 24)
#20-08013 (18 x 24)
#20-08014 (10 X 15)
MADE IN USA
Phone [phone]
CONCRETE PAVING EQUIPMENT
Canton, South Dakota
20-08639
MADE IN USA
20-08645
2450
Canton, South Dakota
Phone [phone]

MODEL 2450 (1/2012) SECTION I PAGE 1.13
DECALS
#20-08058 - LEGS
TRAVEL RAILS.
*STAND CLEAR OF MACHINE
WHILE IN MOTION.
*STAND CLEAR OF MACHINE,
WARNING
CRUSHING HAZARD
TO AVOID INJURY OR DEATH:
#**-***** - CONTROL CONSOLE
#20-08069 - CONTROL CONSOLE
#20-08069 - CONTROL CONSOLE & PAVING CARRIAGE
CANTON SD. U.S.A.
THIS EQUIPMENT IS COVERED BY ONE OR MORE
OF THE FOLLOWING PATENTS:
UNITED STATES 5,388,927 6,234,713 5,791,815
5,492,432
CANADA
20-08069
#20-08032 - CONTROL CONSOLE
ATTENTION
DO NOT PERMIT CARRIAGE
WEIGHT AND/OR MACHINE
WEIGHT TO REST ON
FINISHING ROLLERS.
20-08032
#20-08009 - CONTROL CONSOLE
POWER
20-08009
SELECTOR
PAVE
STOP
TRAVEL
#20-07012 - CONTROL CONSOLE
MACHINE TRAVEL
SPEED CONTROL
20-07012
#20-08081 #20-08218
CONTROL CONSOLE CONTROL CONSOLE
D
E
E
P
S
Y
R
O
S
S
E
C
C
A
D
E
E
P
S
L
E
V
A
R
T
E
G
A
I
R
R
A
C
10
9
8
7
6
5
4
3
2
1
0
0
1
2
3
4
5
6
7
8
9
10
20-08081
20-08218
MACHINE
TRAVEL
#20-08079 - CONTROL CONSOLE
CARRIAGE SPEED
CONTROL
ACCESSORY SPEED INCREASES
AS CARRIAGE SPEED IS DECREASED
20-08079

PAGE 1.14 SECTION I MODEL 2450 (1/2012)
DECALS
#20-08038 - CONTROL CONSOLE & PAVING CARRIAGE
AND ROLLERS WITH
DO NOT OPERATE AUGERS
BEFORE STARTING ENGINE.
SET POWER LEVER TO STOP
20-08038
WARNING
CRUSHING HAZARD
TO AVOID INJURY OR DEATH:
PERSONNEL NEAR CARRIAGE.
#20-08036 - CONTROL CONSOLE & PAVING CARRIAGE
CAUTION
SET POWER SELECTOR LEVER TO STOP
BEFORE STARTING POWER UNIT ENGINE.
BEFORE STARTING CARRIAGE ENGINE.
SET CARRIAGE POWER LEVER TO STOP
COVERS ARE IN PLACE BEFORE OPERATING.
VERIFY THAT ALL SAFETY SHIELDS AND
OF MACHINE BEFORE OPERATING.
MAKE SURE ALL PERSONNEL ARE CLEAR
CONSULT THE OWNERS MANUAL FOR PROPER
LIFTING PROCEDURE BEFORE LIFTING.
NEVER ALLOW MACHINE WEIGHT, TO
REST ON FINISHING ROLLERS.
SERVICING.
STOP ENGINES BEFORE CLEANING OR
20-08036
#20-08523- CONTROL CONSOLE
#20-08125 - ENGINE CONTROL CONSOLE
20-08125
CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of its
constituents are known to the state of
California to cause cancer, birth
defects, and other reproductive harm.
#20-08039 - FUEL TANKS
GASOLINE
FOR BEST PERFORMANCE USE ONLY UNLEADED NON-ALCOHOL FUEL
20-08039
#20-08134 - HYDRAULIC TANKS
AND UNHOOK GROUND CABLE FROM
COVERS OVER BATTERY TERMINALS
BATTERY TERMINALS. KEEP RUBBER
OR JUMPER CABLES DIRECTLY TO
20-08134
INFLAMMABLE LIQUID WILL CAUSE
EXPLOSION AND FIRE IF IGNITED
BY ELECTRIC SPARK. TO AVOID
SEVERE INJURY OR DEATH, DO
NOT CONNECT BATTERY CHARGER
CHASSIS BEFORE LOOSENING CABLE
CLAMPS AT THE BATTERY TERMINALS.
DANGER
#20-08044 - PAVING CARRIAGE
#20-08550 - POWER UNIT & PAVING CARRIAGE
FILL LEVEL
20-08550
#20-08548 - POWER UNIT - PUMP
#20-08043 - HYDRAULIC TANKS
20-08043
USE ONLY DEXTRON III AUTOMATIC TRANSMISSION FLIUD
HYDRAULIC OIL

MODEL 2450 (1/2012) SECTION I PAGE 1.15
#20-08453 - PAVING CARRIAGE
#20-08450 - PAVING CARRIAGE
CARRIAGE
LIFT
RAISE
LOWER
#20-08110 - PAVING CARRIAGE
20-08110
SERIOUS INJURY OR DEATH
RESULTS, WHEN CONTACTING
AUGERS AND ROLLERS,
WHILE IN OPERATION.
DANGER
#20-08279 - PAVING CARRIAGE
SKEW CYLINDER
20-08279
QUICKNESS.
REVERSING
HEAD SET SCREWS
FC1 & FC2 TO CHANGE
THE HYDRAULIC
ADJUST THE SOCKET
NON-REVERSING
AUTOMATIC
REVERSING
HANDLE
PAVING ROLLER
POSITION
#20-08056 - PAVING CARRIAGE
20-08056
L
O
W
E
R
R
A
I
S
E
AUGER
DECALS

PAGE 1.16 SECTION I MODEL 2450 (1/2012)
#20-08511 - POWER UNIT - GASOLINE ENGINE
20-08511
CAUTION
GREASE SPLINE OF
SEE PARTS BOOK SPEC.
BID-WELL PN: 20-20300
HEAT RESISTANT LUBRICANT
EVERY 250 HOURS OR
ENGINE DRIVE COUPLING
ANNUALLY!
HI-TEMP SILICONE SEAL
ADD BEAD OF REMOVABLE
TO PUMP MOUNTING
FLANGE ON RE-ASSEMBLY
#20-08262 - POWER UNIT FRAME
*MAINTAIN 42" HANDRAIL HEIGHT
20-08262
CAUTION
AVOID INJURY OR
MACHINE FAILURE.
WHILE OPERATING PAVER.
REQUIRED, WHILE TRANSPORTING.
*REDUCE HANDRAIL HEIGHT WHEN
#20-08458 - POWER UNIT FRAME
1. STEERING BIAS VALVES INSTALLED
20-08458
2. SLIGHTLY OPEN NEEDLE VALVE
INSTALLED IN THE BOGIE LINES
EQUALIZE TRAVEL SPEED.
TO THE FASTEST MACHINE END, TO
ATTENTION
IN CONSOLE ON 80 FT. PLUS
MACHINES FROM FACTORY.
DECALS
#20-08629 - POWER UNIT FRAME
20-08629
FOGGER
P R
20-08630
PWR WIDE
#20-08630 - POWER UNIT FRAME
20-08631
PWR CROWN
#20-08631 - POWER UNIT FRAME
20-08634
DRIVE BIAS
#20-08634 - POWER UNIT FRAME
20-08636
NO LIFT POINT
SAFETY TIE OFF
#20-08636 - POWER UNIT FRAME
20-08637
EMERGENCY
POWER
#20-08637 - POWER UNIT FRAME
20-08635
IDLER BIAS
#20-08635 - POWER UNIT FRAME
20-08628
DRIVE LEG
4
#20-08628 - POWER UNIT FRAME
20-08627
DRIVE LEG
3
#20-08627 - POWER UNIT FRAME
20-08625
IDLER LEG
1
#20-08625 - POWER UNIT FRAME
20-08626
IDLER LEG
2
#20-08626 - POWER UNIT FRAME
20-08633
SWP
P
R
#20-08633 - POWER UNIT FRAME

MODEL 2450 (1/2012) SECTION II PAGE 2.1
COMPONENTS & CONTROLS
PAVER COMPONENTS:
1. MACHINE FRAME .................................................................................................................................... 2.3
2. STATIONARY POWER UNIT................................................................................................................... 2.3
3. PAVING CARRIAGE.................................................................................................................................. 2.3
4. PAVER OPTIONS....................................................................................................................................... 2.3
PAVER CONTROLS:
1. MANUAL CARRIAGE DIRECTIONAL CONTROL.............................................................................. 2.4
2. POWER SELECTOR CONTROL............................................................................................................. 2.4
3. CARRIAGE SPEED CONTROL .............................................................................................................. 2.5
4. MACHINE TRAVEL DIRECTION CONTROL....................................................................................... 2.5
5. MACHINE TRAVEL SPEED CONTROL ............................................................................................... 2.5
6. CARRIAGE ON/OFF VALVE ................................................................................................................... 2.5
7. CARRIAGE ROLLER DIRECTION CONTROLS.................................................................................. 2.6
8. AUTOMATIC ROLLER REVERSING CONTROL ................................................................................ 2.6
9. ROTAVIBE SPEED CONTROL.............................................................................................................. 2.6
When ordering parts or when consulting the
Terex®Bid-Well Service Department
ALWAYS KNOW your Machine Serial Number
CANTON, SD 57013
 TEL:605-987-2603•FAX:605-987-2605
Section II

PAGE 2.2 SECTION II MODEL 2450 (1/2012)
NOTES
