Fifth Edition • First Printing Operator's Manual
Introduction
Part No. 1314197GT Genie®Super Hoist®1
Intr od ucti on
About this manual
Genie appreciates your choice of our machine for
your application. Our number one priority is user
safety, which is best achieved by our joint efforts.
This book is an operation and daily maintenance
manual for the user or operator of a Genie
machine.
This manual should be considered a permanent
part of your machine and should remain with the
machine at all times. If you have any questions,
contact Genie.
Product Identification

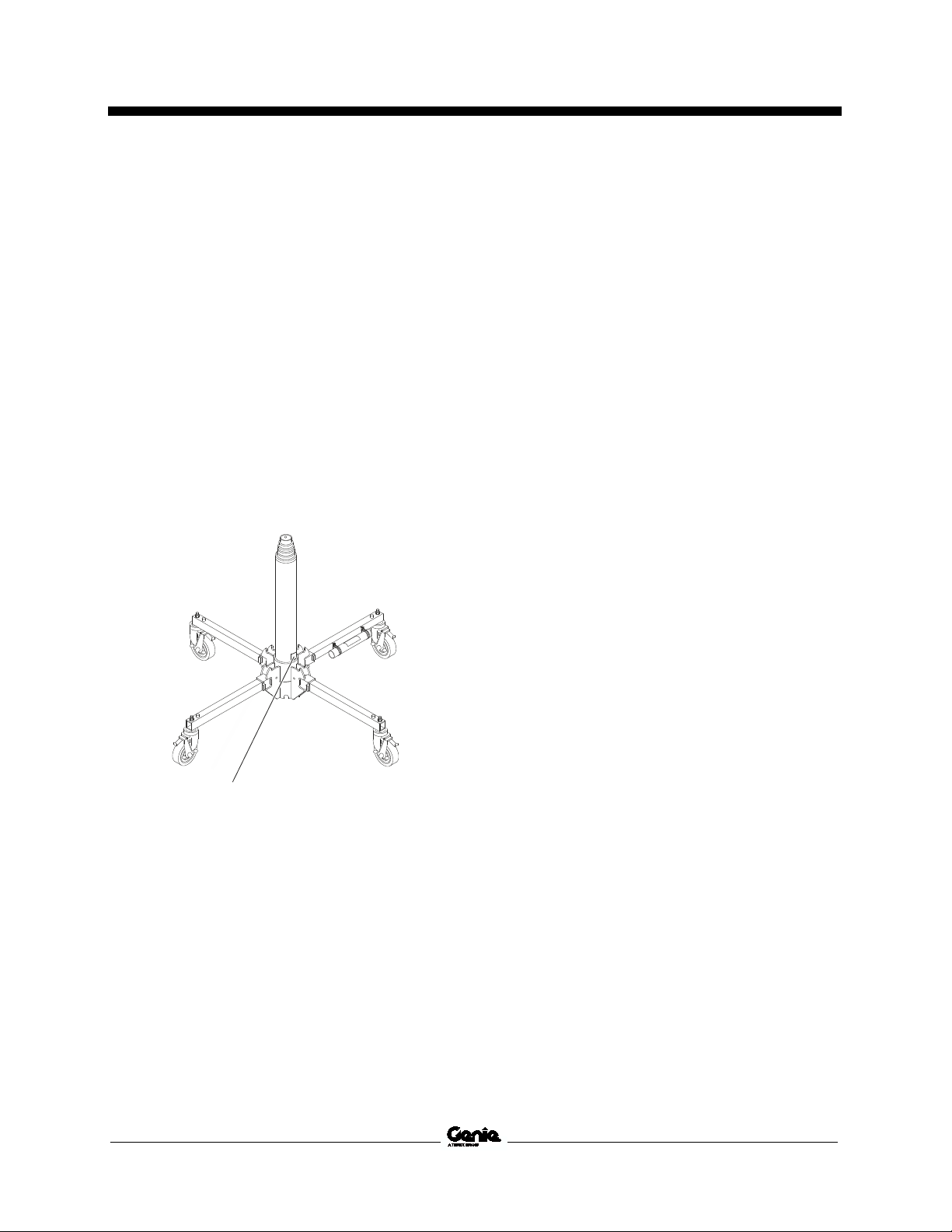

The machine serial number is located on the serial
label.
Serial label
Intended Use and Familiarization
Guide
The intended use of this machine is to lift material.
Before operating the machine, it’s the operator’s
responsibility to read and understand this
familiarization guide.
Each person must be trained to operate a
material lift.
Familiarization with the material lift must be
given to each person who is authorized,
competent and trained.
Only trained and authorized personnel should
be permitted to operate the machine.
The operator is responsible to read,
understand, and obey the manufacturer’s
instructions and safety rules provided in the
Operator’s Manual.
The Operator’s Manual is located in the
manual storage container, on the machine.
For specific product applications, see
Contacting The Manufacturer.

Operator's Manual Fifth Edition • First Printing
Introduction
2 Genie®Super Hoist®Part No. 1314197GT

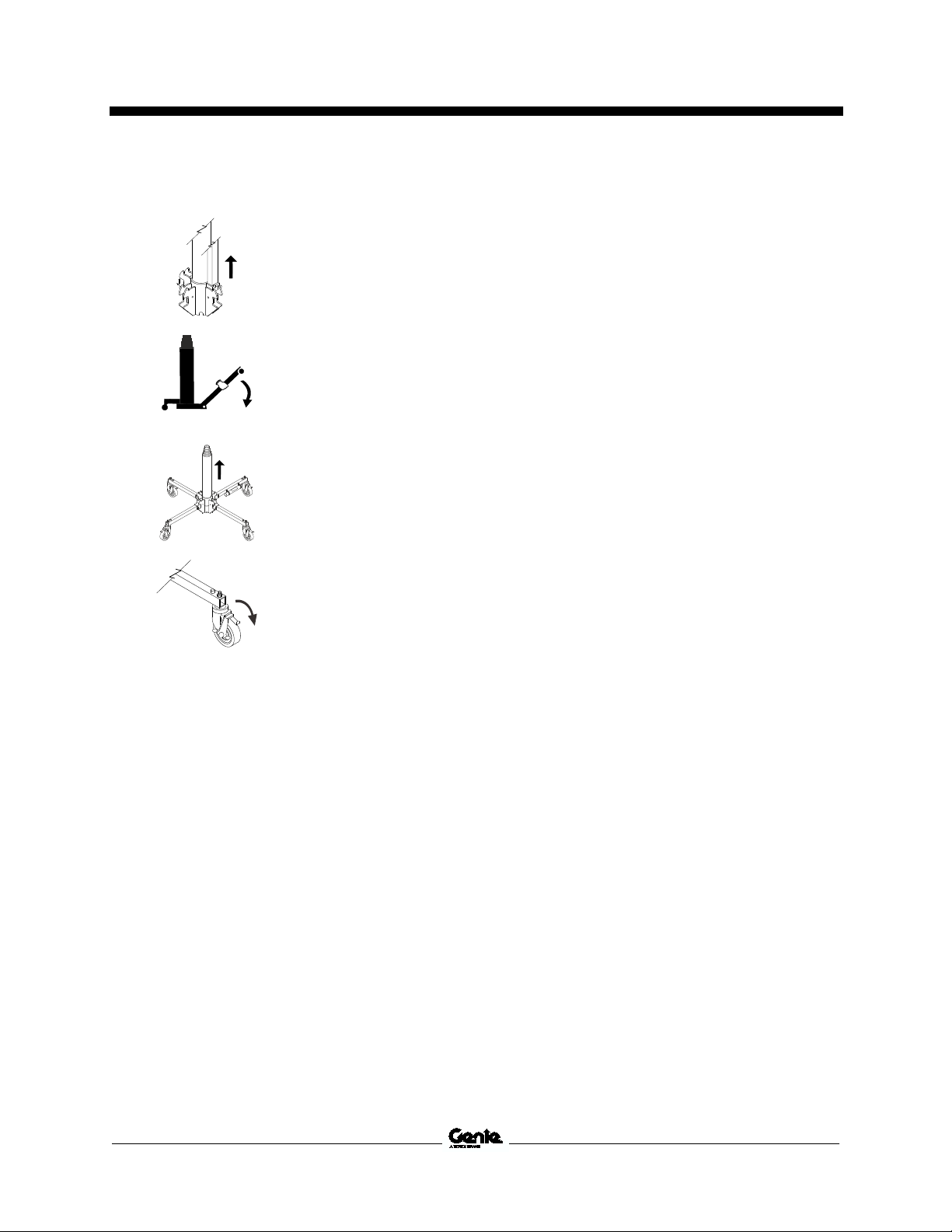

Related machine movement:
Pull
-up leg lock
Lower the leg to down
position
Lift machine to lock the
legs
Caster Brakes
Limitations of use:
•The intended use of this machine is to lift
materials to an aerial work site.
•Do not raise the carriage unless the machine is
on a firm level surface.
Stability enhancing means:
•Leg

Fifth Edition • First Printing Operator's Manual
Introduction
Part No. 1314197GT Genie®Super Hoist®3
Bulletin Distribution and
Compliance
Safety of product users is of paramount
importance to Genie. Various bulletins are used by
Genie to communicate important safety and
product information to dealers and machine
owners.
The information contained in the bulletins is tied to
specific machines using the machine model and
serial number.
Distribution of bulletins is based on the most
current owner on record along with their
associated dealer, so it is important to register
your machine and keep your contact information
up to date.
To ensure safety of personnel and the reliable
continued operation of your machine, be sure to
comply with the action indicated in a respective
bulletin.
To view any open bulletins for your machine, visit
us on the web at www.genielift.com.
Contacting the Manufacturer
At times it may be necessary to contact Genie.
When you do, be ready to supply the model
number and serial number of your machine, along
with your name and contact information. At
minimum, Genie should be contacted for:
Accident reporting
Questions regarding product applications and
safety
Standards and regulatory compliance information
Current owner updates, such as changes in
machine ownership or changes in your contact
information. See Transfer of Ownership, below.
Transfer of Machine Ownership
Taking a few minutes to update owner information
will ensure that you receive important safety,
maintenance and operating information that
applies to your machine.
Please register your machine by visiting us on the
web at www.genielift.com or by calling us toll free
at 1-800-536-1800.

Operator's Manual Fifth Edition • First Printing
Introduction
4 Genie®Super Hoist®Part No. 1314197GT
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey the
manufacturer’s instructions and safety rules—
safety and operator’s manuals and machine
decals.
You read, understand and obey employer’s
safety rules and worksite regulations.
You read, understand and obey all applicable
governmental regulations.
You are properly trained to safely operate the
machine.
Safety Sign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use
solvent-based cleaners because they may
damage the safety sign material.

Fifth Edition • First Printing Operator's Manual
Introduction
Part No. 1314197GT Genie®Super Hoist®5
Decal Legend
Genie product decals use symbols,
color coding
and signal words to identify the following:
Safety alert symbol
—used to
alert personnel to potential
personal injury hazards. Obey all
safety messages that follow this
symbol to avoid possible injury or
death.
Red
—used to indicate the
presence of an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
Orange
—used to indicate the
presence of a potentially
hazardous situation which, if not
avoided, could result in death or
ser
ious injury
Yellow with safety alert symbol
—
used to indicate the presence of
a potentially hazardous situation
which, if not avoided, may cause
minor or moderate injury.
Yellow without safety alert
symbol
—used to indicate the
presence of a potenti
ally
hazardous situation which, if not
avoided, may result in property
damage.
Green
—used to indicate
operation or maintenance
information.

Operator's Manual Fifth Edition • First Printing
Symbol and Hazard Pictorials Definitions
6 Genie®Super Hoist®Part No. 1314197GT
Symb ol and H az ar d Pi ct or i als Def ini ti ons
Read the operator’s
manual
Read the service
manual
Crush hazard No smoking Collision hazard
Tip-over hazard Tip-over hazard Tip-over hazard Electrocution hazard Tip-over hazard
Maintain required
clearance
Crush hazard Crushing hazard Move machine to
level ground
Electrocution hazard
Collision hazard Maximum capacity Release brakes

Fifth Edition • First Printing Operator's Manual
General Safety
Part No. 1314197GT Genie®Super Hoist®7
Gener al Safet y

Operator's Manual Fifth Edition • First Printing
Work Area Safety
8 Genie®Super Hoist®Part No. 1314197GT
Work Ar ea Saf ety
Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Do not operate the machine within 10 feet / 3 m of
any overhead electrical current.
Keep away from the machine if it contacts
energized power lines or becomes electrically
charged.

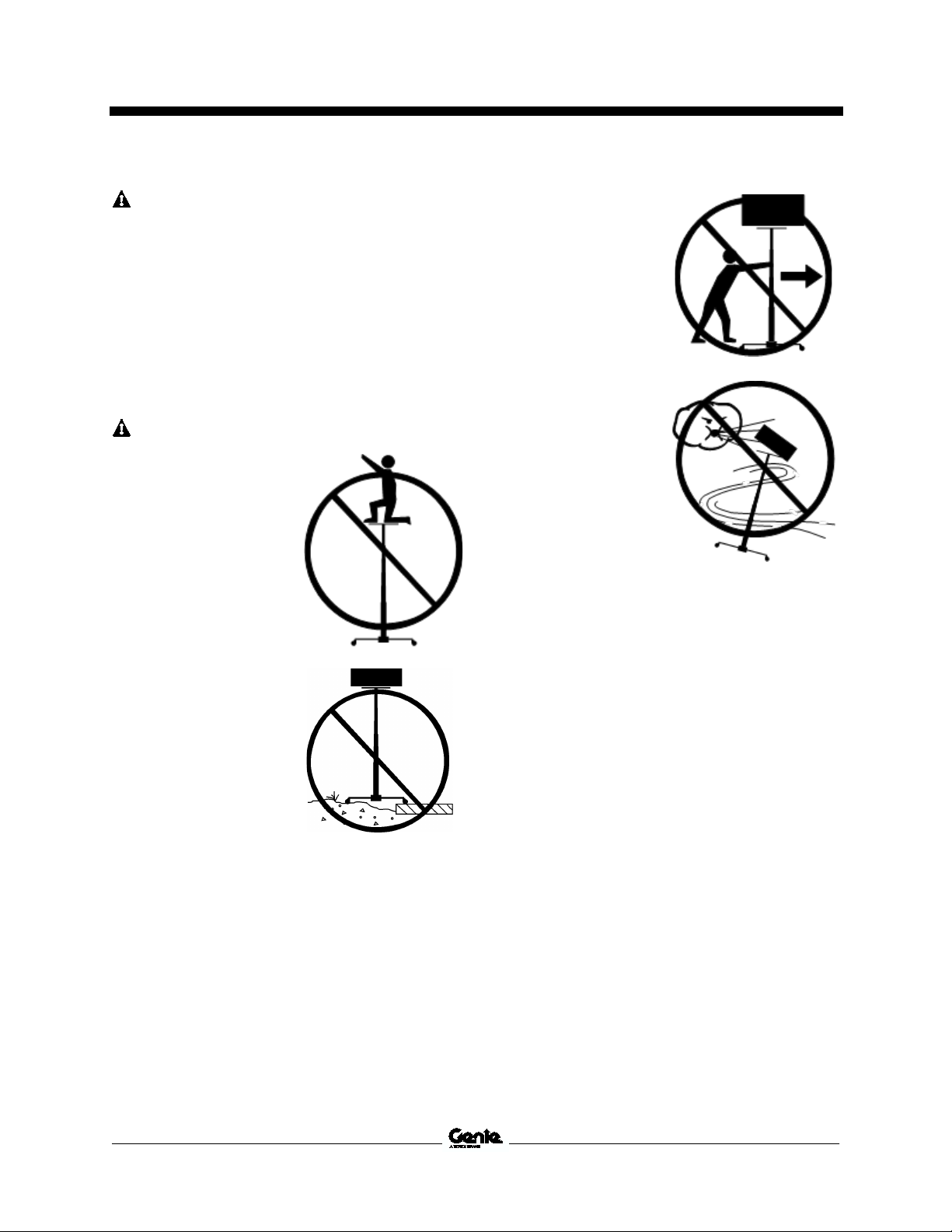

Tip-over Hazards
Do not use this machine to
lift people. This machine is
intended for lifting material
only.
Do not stand on the
platform.
Do not raise the platform
unless the machine is on a
firm, level surface.
Do not raise the platform unless all four legs are
locked into the down position and each caster
brake has been locked.
Do not raise the platform unless the load is
centered and secured with rope or straps.
Do not move the
machine while the
platform is raised.
Do not operate the
machine in strong or
gusty winds. Increasing
the load surface area will
decrease machine
stability in windy
conditions.

Fifth Edition • First Printing Operator's Manual
Work Area Safety
Part No. 1314197GT Genie®Super Hoist®9

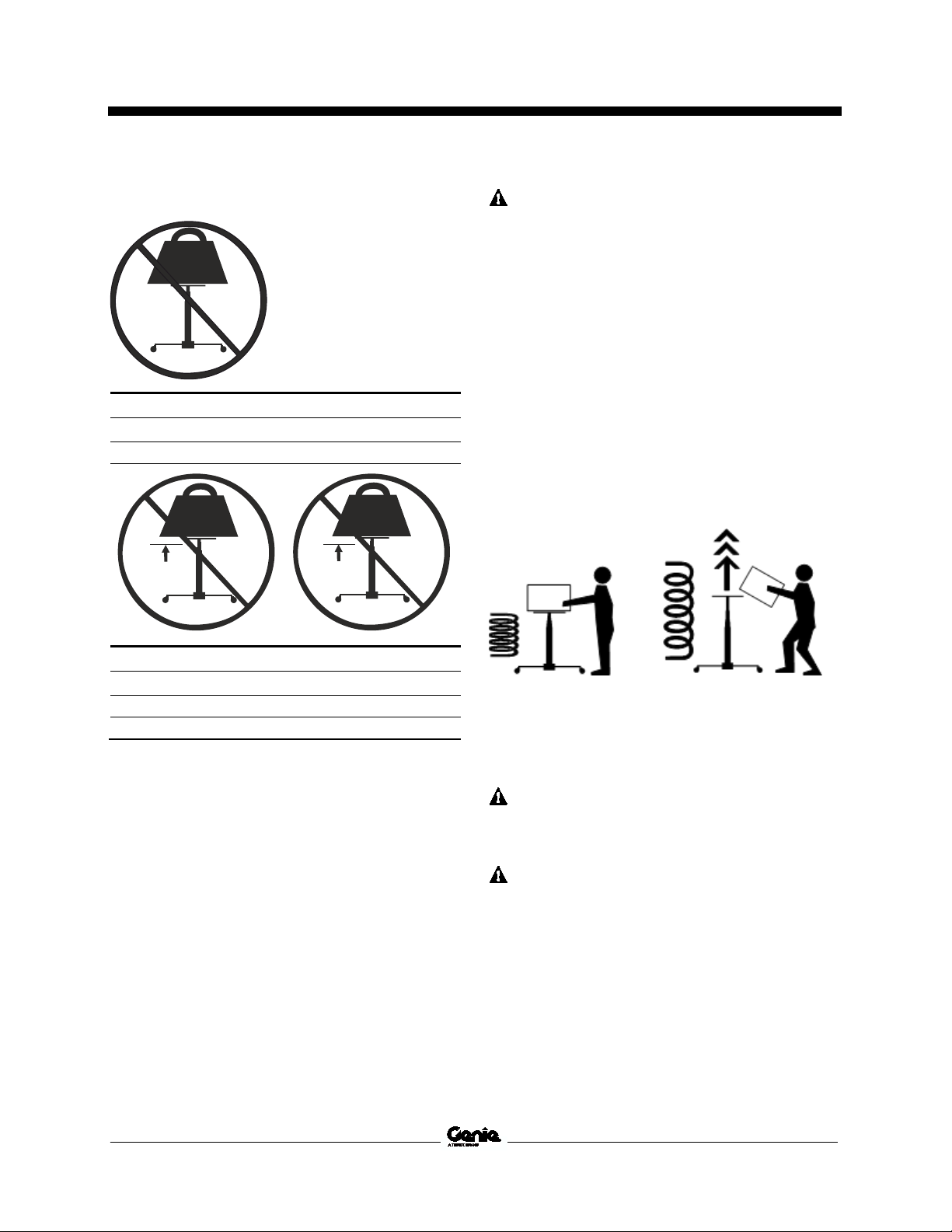

Do not exceed the maximum platform capacity.
GH
3.8
Height of platform
Maximum platform capacity
3.8 m/12 ft 5.625 in
158 kg/350 lbs
GH 5.6
Height of platform
Maximum platform capacity
3.8 m/12 ft 5.625 in
158kg/350lbs
5.6 m/18 ft 4.5 in
68kg/150lbs
Do not place ladders or scaffolding against any
part of the machine.
Do not use the machine on a moving or mobile
surface or vehicle.
Immediately lower the platform if side deflection or
bowing occurs.
Collision Hazards
Do not lower the platform unless the area below is
clear of personnel and obstructions.
Do not raise the platform unless the load is
centered and secured with rope or straps.
Do not stand under or allow personnel under the
machine when the load is raised.
Inspect the workplace to avoid overhead
obstructions or other possible hazards.
Do not use or raise the platform unless it has been
securely fastened to the mounting plug.
Do not add or remove the load while the platform
is raised. The platform will move if the load is
added or removed while raising or lowering.
Do not unplug the hose and hand control with a
load on the platform. Be aware of the position of
the hose and hand control and protect it from
puncture, crushing and severing.
Damaged Machine Hazards
Do not use a damaged or malfunctioning machine.
Improper Use Hazard
Do not leave the machine unattended. Use of this
machine by unauthorized personnel could result in
death or serious injury.
GH 3.8
159 + kg
351 + lbs
GH 5.6
159 + kg
351+ lbs
3.81 m /
12 ft 6 in
GH 5.6
69 + kg
151+ lbs
5.61 m /
18 ft 5 in

Operator's Manual Fifth Edition • First Printing

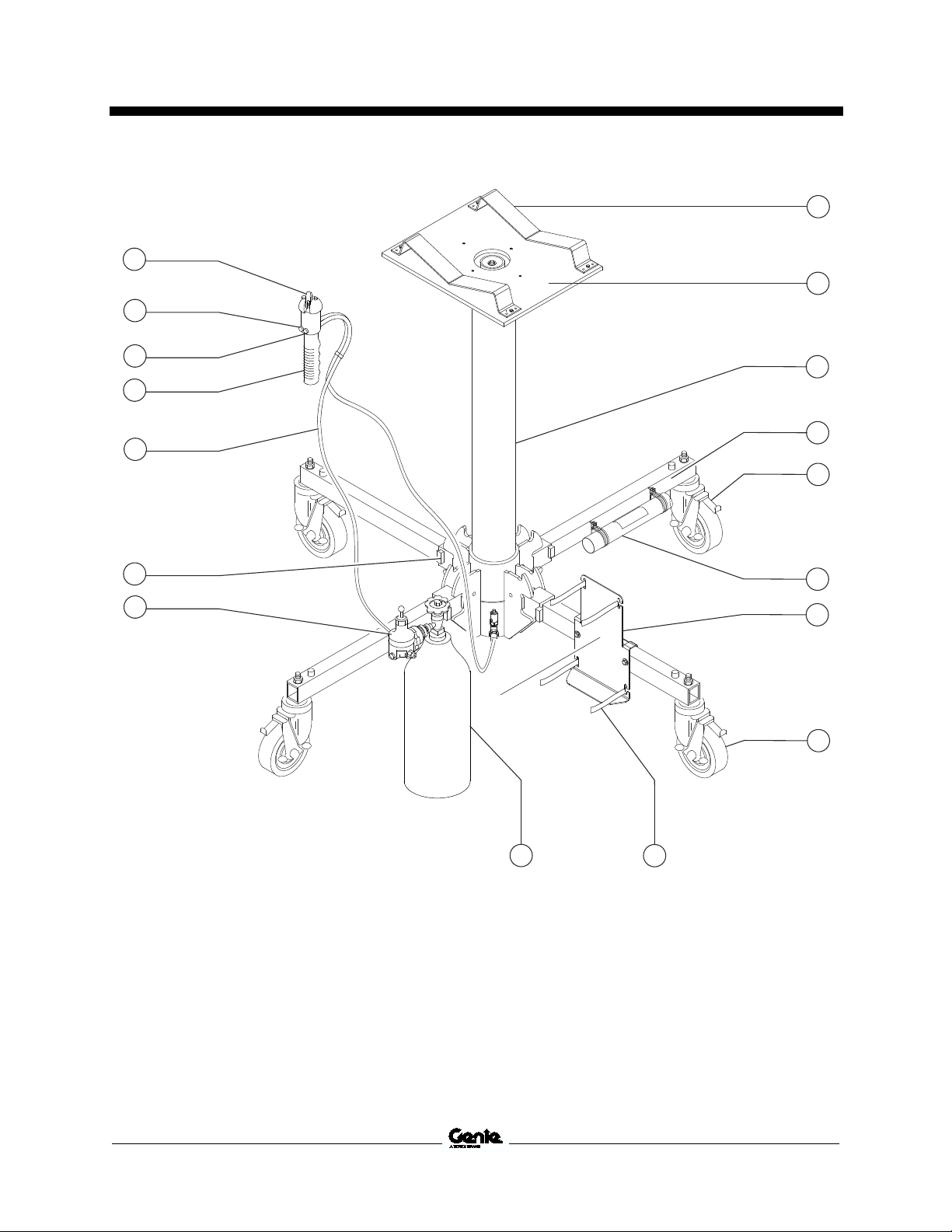

Legend
10 Genie®Super Hoist®Part No. 1314197GT
Legend
1 Pipe Cradle
2 Platform
3 Cylinder assembly
4 Leg
5 Caster brakes
6 Manual storage container
7 CO2 Tank bracket
8 Caster - 5 inch swivel
9 Straps
10 CO2 tank
11 Pressure regulator
12 Leg lock
13 Hose
14 Hand control
15 Up button
16 Down button
17 Dump valve
1
2
4
5
7
10
8
11
12
13
14
15
16
17
9
3
6

Fifth Edition • First Printing Operator's Manual
Inspections
Part No. 1314197GT Genie®Super Hoist®11
Inspe c tio ns
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
2 Always perform a pre-operation
inspection.
Know and understand the pre-operation
inspection before going on to the next
section.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Pre-operation Inspection
Fundamentals
The pre-operation inspection is a visual inspection
performed by the operator prior to each work shift.
The inspection is designed to discover if anything
is apparently wrong with a machine before the
operator performs the function tests.
Refer to the list on the next page and check each
of the items.
If damage or any unauthorized variation from
factory delivered condition is discovered, the
machine must be tagged and removed from
service.
Repairs to the machine may only be made by a
qualified service technician, according to the
manufacturer’s specifications. After repairs are
completed, the operator must perform a pre-
operation inspection again before going on to the
function tests.

Operator's Manual Fifth Edition • First Printing
Inspections
12 Genie®Super Hoist®Part No. 1314197GT
Pre-operation Inspection
Be sure that the operator’s manual is
complete, legible and available for reference.
Be sure that all decals are legible and in place.
See Decals section.
Check the following components or areas for
damage, improperly installed, or missing parts and
unauthorized modifications:
Visually inspect all machine components.
Platform and T-nut
CO2 tank, CO2 tank bracket and pressure
regulator
Hose and hand control
Cylinder assembly
Base, legs, leg locks, leg lock springs and
casters

Fifth Edition • First Printing Operator's Manual
Inspections
Part No. 1314197GT Genie®Super Hoist®13
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to
use.
Know and understand the function tests
before going on to the next section.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Function Test Fundamentals
The function tests are designed to discover any
malfunctions before the machine is put into
service. The operator must follow the step-by-step
instructions to test all machine functions.
A malfunctioning machine must never be used. If
malfunctions are discovered, the machine must be
tagged and removed from service. Repairs to the
machine may only be made by a qualified service
technician, according to the manufacturer’s
specifications.
After repairs are completed, the operator must
perform a pre-operation inspection and function
tests again before putting the machine into
service.

Operator's Manual Fifth Edition • First Printing
Inspections
14 Genie®Super Hoist®Part No. 1314197GT
Function Tests
1 Select a test area that is firm, level and free of
hazards.
Setup
2 Stand the machine up on its base. Release the
leg locks one at a time and lower each leg to
the down position.
3 Firmly grasp the cylinder assembly and lift it
enough for each leg to lock into the down
position.
Result: All four leg locks should click into the
locked position.
4 Position the platform over the mounting plug
and fasten it securely with the T-nut.
5 Set the CO2 tank bracket next to the
CO2 tank. Wrap the straps around the tank
and attach the tank tightly to the bracket. Set
the CO2 tank bracket with the tank on any one
of the hoist legs.
Note: Leave the tank on the bracket until it is
necessary to change tanks.
6 Spin the pressure regulator connecting nut
onto the CO2 tank valve stem and hand
tighten. It is not necessary to use a wrench.
Tip
-over hazard. The pressure
regulator operating pressure is
preset for the maximum load
capacity of the machine.
Modifying or using any other
pressure regulator or
compressor in excess of
60
0 kPa / 90 psi service could
result in death or serious injury.
Use only Genie approved
replacement parts.
7 Connect the hose and hand control by
inserting the hose plug end into the coupling
on the side of the pressure regulator. Connect
the hand control hose to the valve at the base
of the cylinder assembly.
8 Open the CO2 tank valve slowly by turning the
handle counterclockwise.
Component damage hazard. If
the CO
2 tank valve is opened
quickly, the pressure regulator
diaphragm could be damaged.

Fifth Edition • First Printing Operator's Manual
Inspections
Part No. 1314197GT Genie®Super Hoist®15
Platform Raise and Lower
9 Lock all four caster brakes.
10 Raise the platform by pressing the up button
on the hand control.
Result: Each tube should extend individually
and smoothly. They should not stick.
11 Lower the platform by pressing the down
button.
Result: The platform should descend at a
smooth, controlled rate.
12 Raise the platform again and then lower it by
opening the manual dump valve on top of the
hand control.
Result: The platform should descend at a
smooth, controlled rate, but more quickly.
Note: Raising and lowering the platform twice,
without a load, lubricates the columns.

Operator's Manual Fifth Edition • First Printing
Inspections
16 Genie®Super Hoist®Part No. 1314197GT
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
Know and understand the workplace
inspection before going on to the next
section.
5 Only use the machine as it was intended.
Workplace Inspection
Fundamentals
The workplace inspection helps the operator
determine if the workplace is suitable for safe
machine operation. It should be performed by the
operator prior to moving the machine to the
workplace.
It is the operator’s responsibility to read and
remember the workplace hazards, then watch for
and avoid them while moving, setting up, and
operating the machine.
Workplace Inspection Checklist
Be aware of and avoid the following hazardous
situations:
drop-offs or holes
bumps, floor obstructions, or debris
sloped surfaces
unstable or slippery surfaces
overhead obstructions and high voltage
conductors
hazardous locations
inadequate surface support to withstand all
load forces imposed by the machine
wind and weather conditions
the presence of unauthorized personnel
other possible unsafe conditions

Fifth Edition • First Printing Operator's Manual
Inspections
Part No. 1314197GT Genie®Super Hoist®17

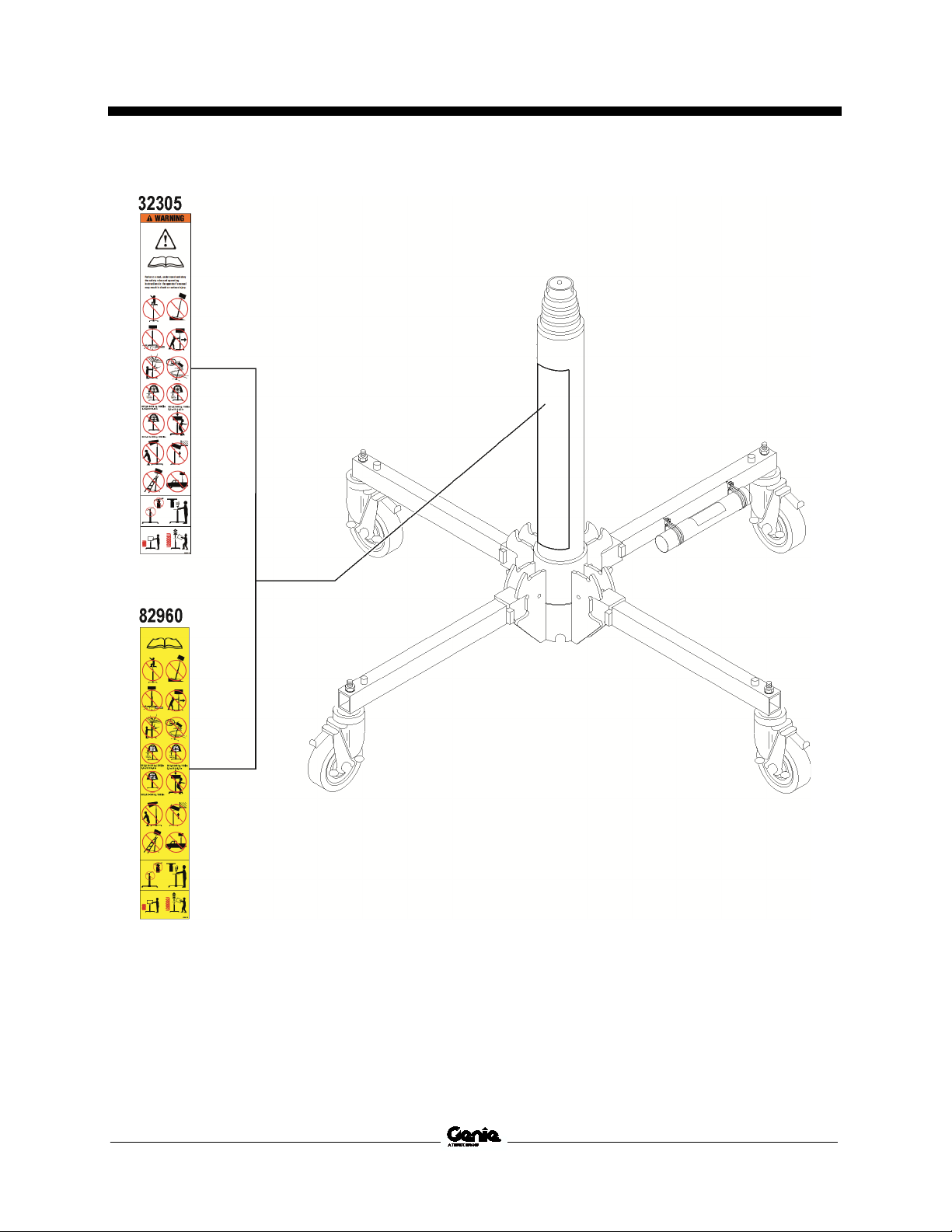

Decal Inspection
Use the pictures on this page to verify that all
decals are legible and in place. Below is a
numerical list with quantities and descriptions.
Part No. Decal Description
Qty
31072 Label - Operator's Manual Container
1
32305 Warning - Machine Safety
1
Part No. Decal Description
Qty
38149 Label – Patents
1
82960 Warning - Machine Safety
1
1272242 Label – Machine Registration
1
1280819 Label – Warning, Prop 65
1
* These decals are model, option or configuration
specific.

Operator's Manual Fifth Edition • First Printing
Inspections
18 Genie®Super Hoist®Part No. 1314197GT
38149
32305*
82960*
31072
1280819
1272242
