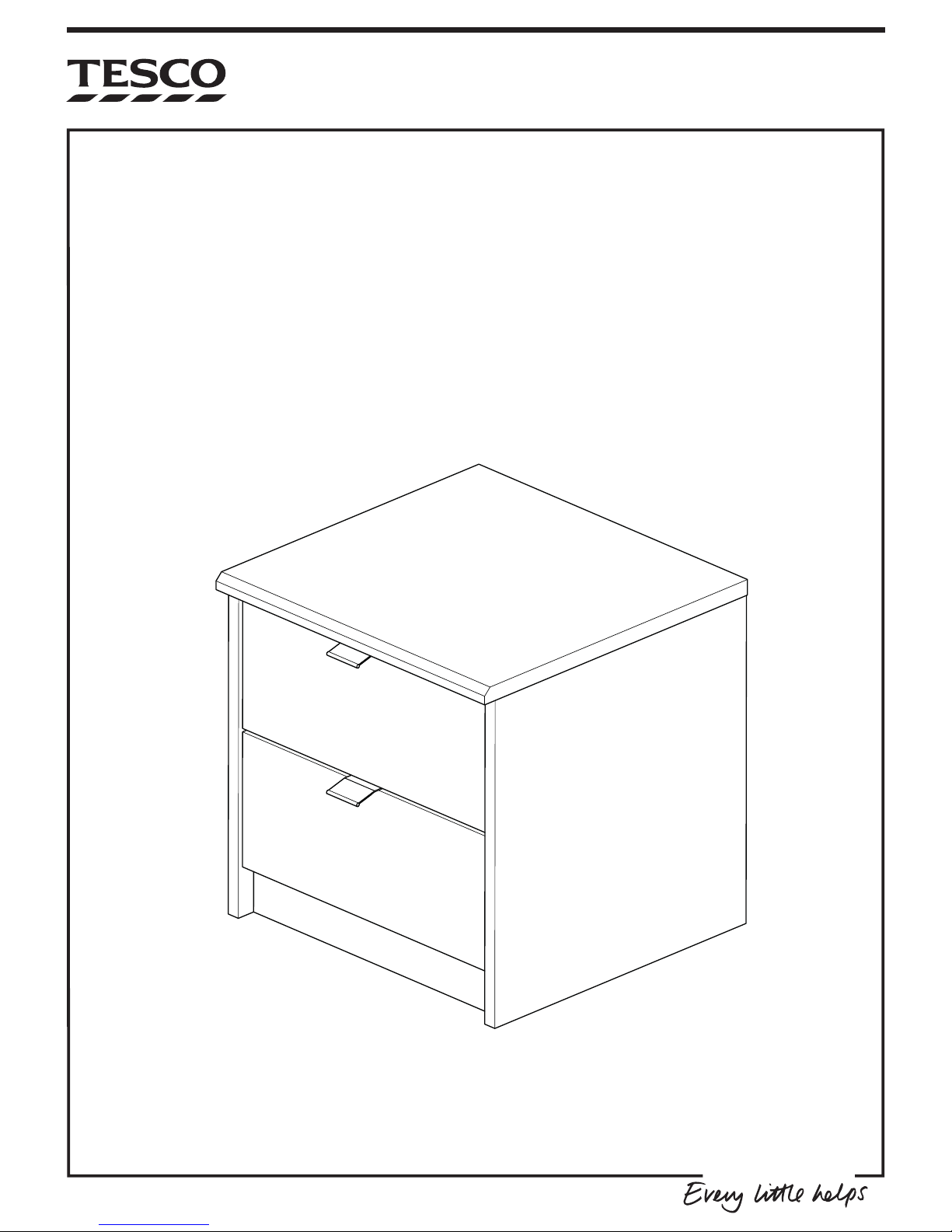

Tesco Smith 2 Drawer Bedside User manual

Produced in The Netherlands for TESCO Stores Ltd.
©Tesco 2016.
Product size:
H398 x W400 x D390mm
catalogue ref:
Smith 2 Drawer Bedside
Assembly instructions
www.tesco.com
DR825102

Warnings
Do’s
Don’ts
Approximate time to assemble
Tradesman’s tips
Tools required
IMPORTANT! RETAIN THESE
INSTRUCTIONS FOR FUTURE REFERENCE
Failure to follow the warnings could result in serious
injury.
During assembly children should be kept away from the
product due to possible risk of injury.
Ensure that this product is fully assembled as illustrated
and that all fittings are tightened properly before use
Do not use this product if parts are missing, damaged or
worn.
We recommend the use of the wall strap provided for
safety reasons. N.B. Wall fixings are not included –
please source suitable fixings for your wall type. If in
doubt please consult a qualified tradesperson. Warning:
Always ensure the area to be drilled is free from hidden
electrical wires, water and gas pipes.
Do not sit or stand on the product.
This product should only be used on firm, level ground.
Make sure the legs remain in contact with the ground.
During assembly keep small parts out of reach of
children.
Check all screws or bolts are tightened and inspect
regularly.
When you are ready to start, make sure that you have
plenty of space and a clean, dry area for assembly
Due to the size of this product we recommend that it is
assembled in the room intended for use
Unwrap all packaging materials and place the compo-
nents on top of the carton box or on a clean floor to
prevent it from scratching
Check the pack and make sure you have all the parts
listed
Do not use power tools to construct this product
To clean wipe with a sponge and warm soapy water.
Do not overtighten screws or bolts.
Do not use scourers, abrasives (including washing
powders), bleach or solvent based cleaners as they can
bleach or damage the product.
Number of people required to assemble
One person to assemble the product and two persons to
lift the product into position.
HI! Look out for me throughout this manual. Wherever
you see my picture I will have a handy tip to help you
with the assembly of your product.
My first tip is... After unpacking the product open out the
carton and lay it on the floor to protect your new product
and the floor during assembly.
2
Smith 2 Drawer Bedside
©Tesco 2016.
Produced in The Netherlands for TESCO Stores Ltd.
www.tesco.com
2 hours
not supplied not supplied not supplied
not supplied
PZ1
not supplied
PZ2
not supplied
supplied
Before you start

3
Smith 2 Drawer Bedside
To view our full furniture range please visit direct.tesco.com
©Tesco 2016.
Produced in The Netherlands for TESCO Stores Ltd.
www.tesco.com
Further help
Our Promise
We are Happy to refund or replace any Tesco product
which falls below the standard you expect. Just ask any
member of staff. This will not affect your statutory rights.
Missing parts
If you are missing any fixtures or fittings for your product
please contact 0800 323 4050 and we will be happy to
send you a replacement part free of charge.
Faulty product
If you have a fault with your product please contact our
customer service team on 0800 323 4050.
If you have had the product for 30 days or less you may
be offered a replacement, refund or for a fully trained
home service technician to visit your home to assess the
fault and repair the product where possible.
If you have had the product for more than 30 days we
may send an independent home service technician to
review and repair product where possible and recom-
mend further action.
The Furniture Ombudsman
As part of our commitment to maintaining high standards
and responsible furniture retailing, Tesco is a Full
Member of The Furniture Ombudsman. This means that
if you’re not entirely satisfied with your purchase - and we
haven’t managed to resolve the problem - you can
contact them to look into it for you. By signing up to The
Furniture Ombudsman Code of Practice we promise to
follow their decisions - ensuring that you get a fair deal.
This means that you can buy in complete confidence
when selecting your furniture from Tesco.
You should first discuss your complaint with our Custo-
mer Service team on 0800 323 4050 so that we can try to
solve any issues. After that, if you’re still not happy you
can contact The Furniture Ombudsman at
www.thefurnitureombudsman.org
You can write to us at
Tesco Stores Ltd
Welwyn Garden City
AL7 1GA,
U.K.

4
Smith 2 Drawer Bedside

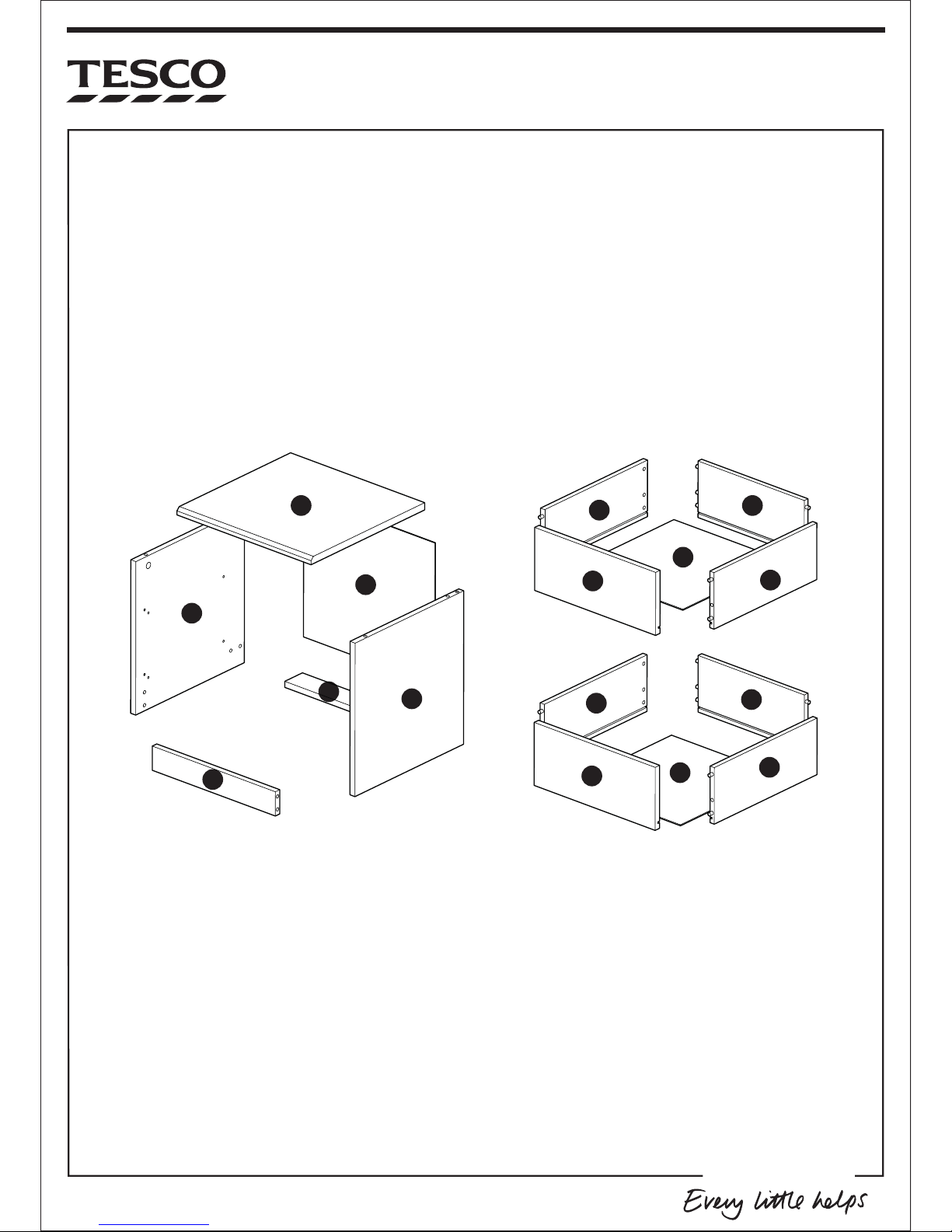

Getting to know your product
©Tesco 2016.
Produced in The Netherlands for TESCO Stores Ltd.
www.tesco.com
1
2
3
4
5
5
6
6
7
7
8
8
9
9
10
10

©Tesco 2016. 5
10
0mm
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
Smith 2 Drawer Bedside
Ref

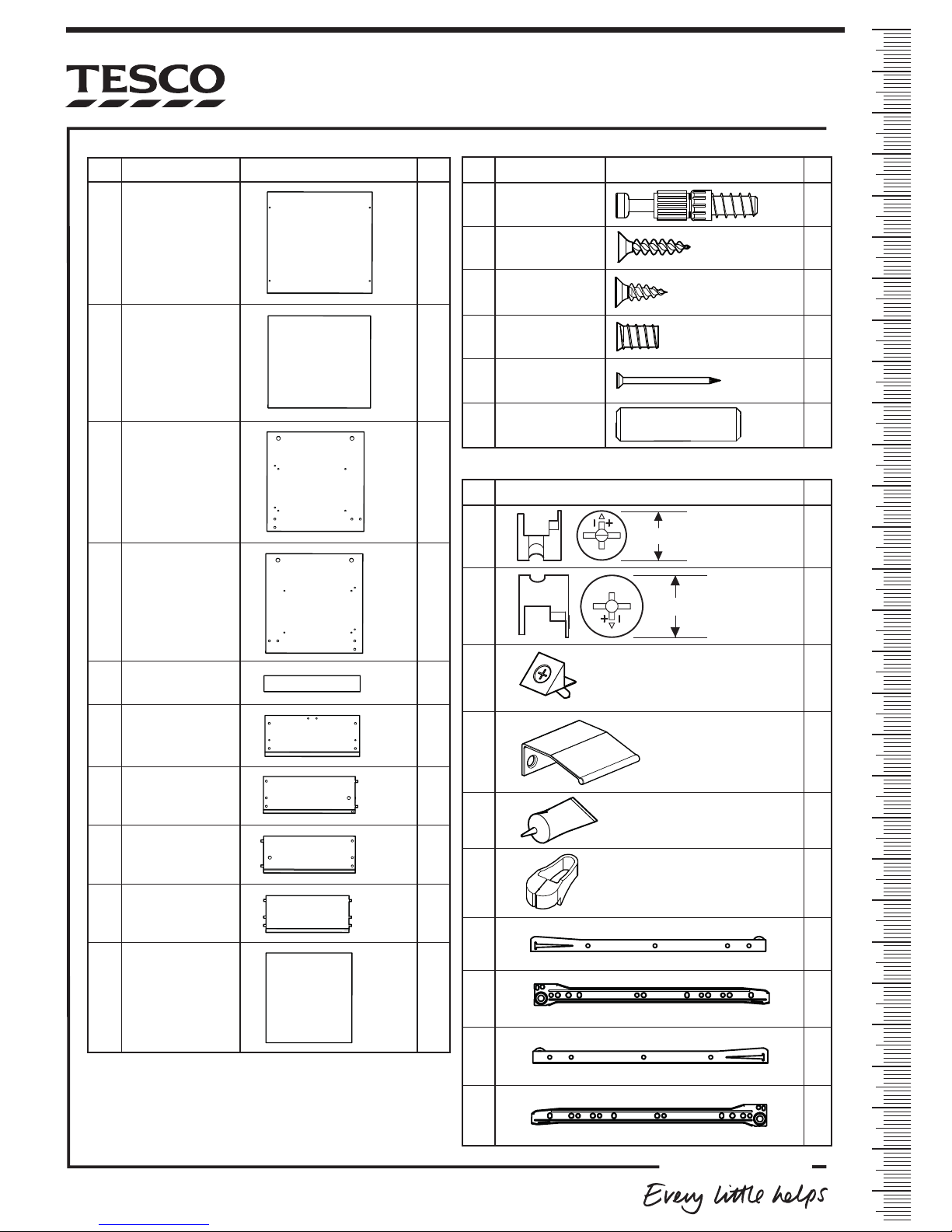

Components supplied (not actual size)
QtyVisualDimensions (mm)
1 400 x 387 x 18
2 391 x 353 x 2.5
3 380 x 370 x 15
4 380x 370 x 15
5367 x 60 x 15
6 361 x 156 x 15
7350 x 140 x 12.5
8350 x 140 x 12.5
1
1
1
1
2
2
2
2
Produced in The Netherlands for TESCO Stores Ltd.
www.tesco.com
P1832
BO3105
P2906
P2905
P7029
P4625
LA1615
LA1614
9317 x 140 x 12.5 2
LA1618
10 328 x 344 x 2.5 2
BO3607
H
I
4
J
4
K
L
M
N
O
P
4
2
2
2
2
2
1
1
A
4.0 x 12.5
1.5 x 25
D
C
E
F
G
6.3 x 10
8
8
4
30
8
5.0 x 24
8.0 x 30
Fixtures and fittings supplied (not actual size)
Ref QtyVisual
Fixtures and fittings supplied (actual size)
Ref QtyVisualDimensions (mm)
FK1011
FK1301
B
3.0 x 15 28
FK1311
FK1309
FA1515
FK1411
FK1012
FK1010
FK1250
GR1864
FA1510
FK1415
PM1517LA
PM1517LB
PM1517RA
PM1517RB
12mm
15mm

a
b
6
Smith 2 Drawer Bedside assembly instructions
1
2
©Tesco 2016.
Produced in The Netherlands for TESCO Stores Ltd.
www.tesco.com
K x1
-
not supplied
PZ2 G x4
12mm

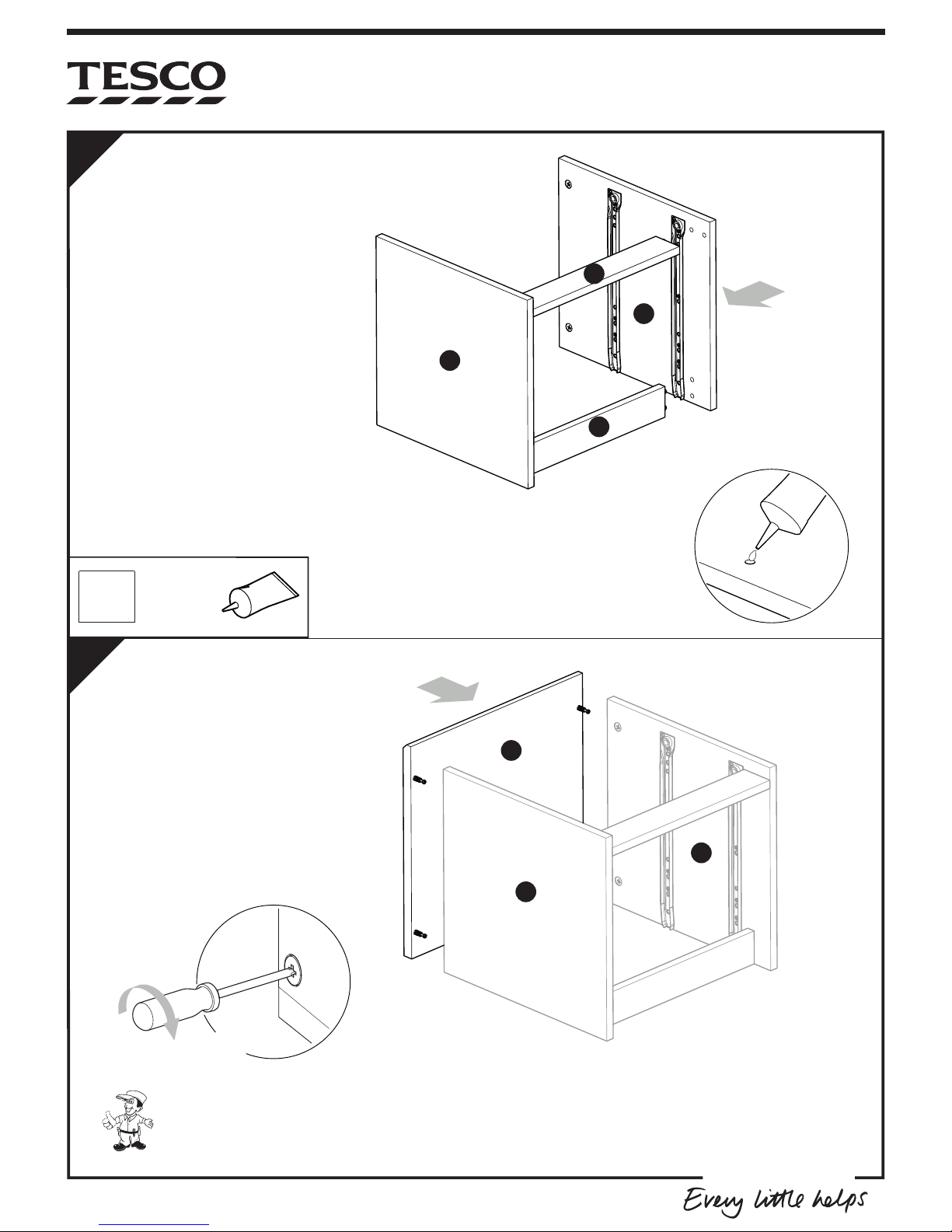

Insert the cam lock into the face of
the panel in the positions shown.
Ensure that the opening in the base
of the cam faces the hole in the edge
of the panel as shown; this allows the
head of the cam dowel to locate
properly in the cam lock.
x2
x2
7
8
Your furniture is assembled using a cam lock
and dowel system. This system combines a
quick and easy assembly with strength and a
clean finish.
G
G
8
7
9
K
G

a
7

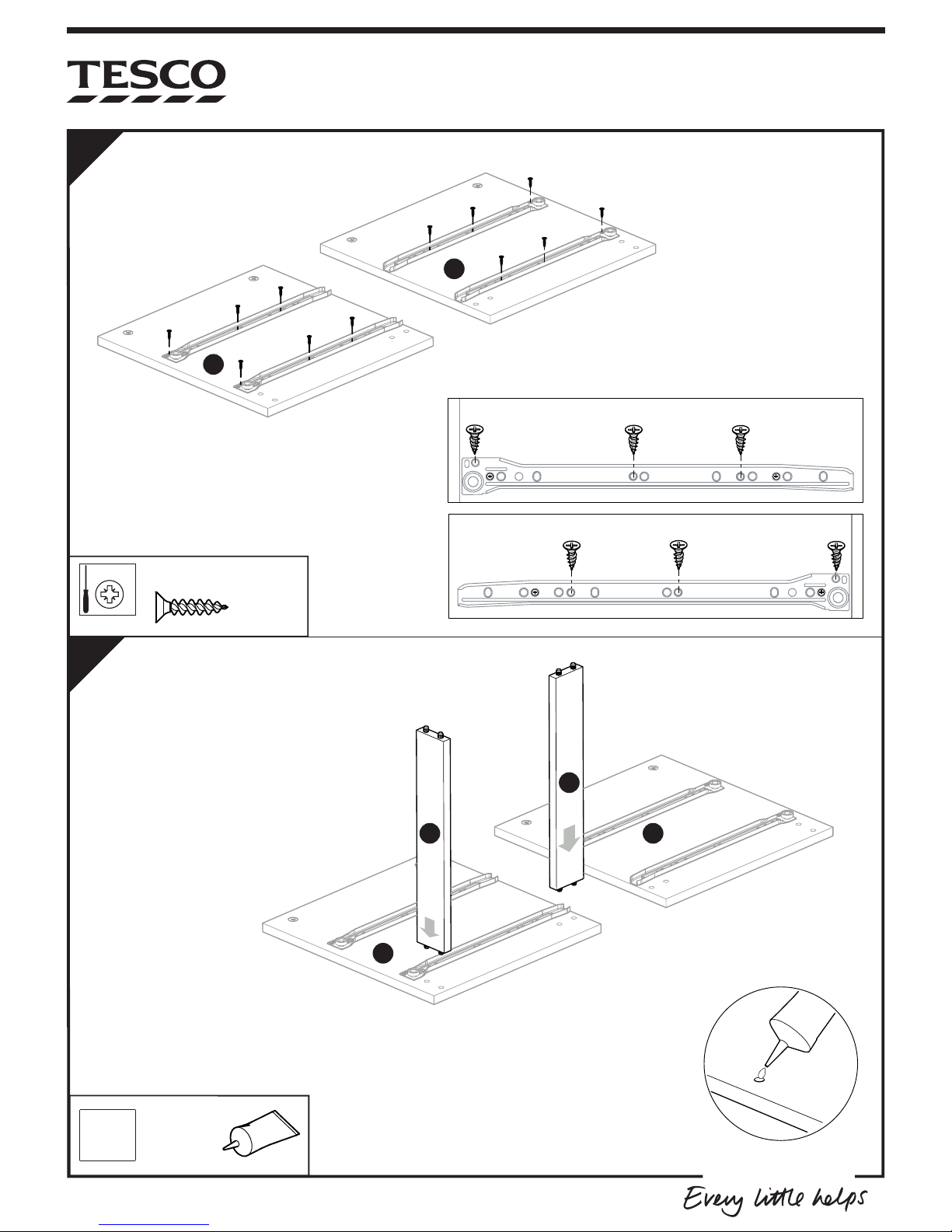

Smith 2 Drawer Bedside assembly instructions
3
4
© Tesco 2016.
Produced in The Netherlands for TESCO Stores Ltd.
www.tesco.com
A x4 5 x 24
not supplied
PZ2
x2
x2
A
10
6
A
A

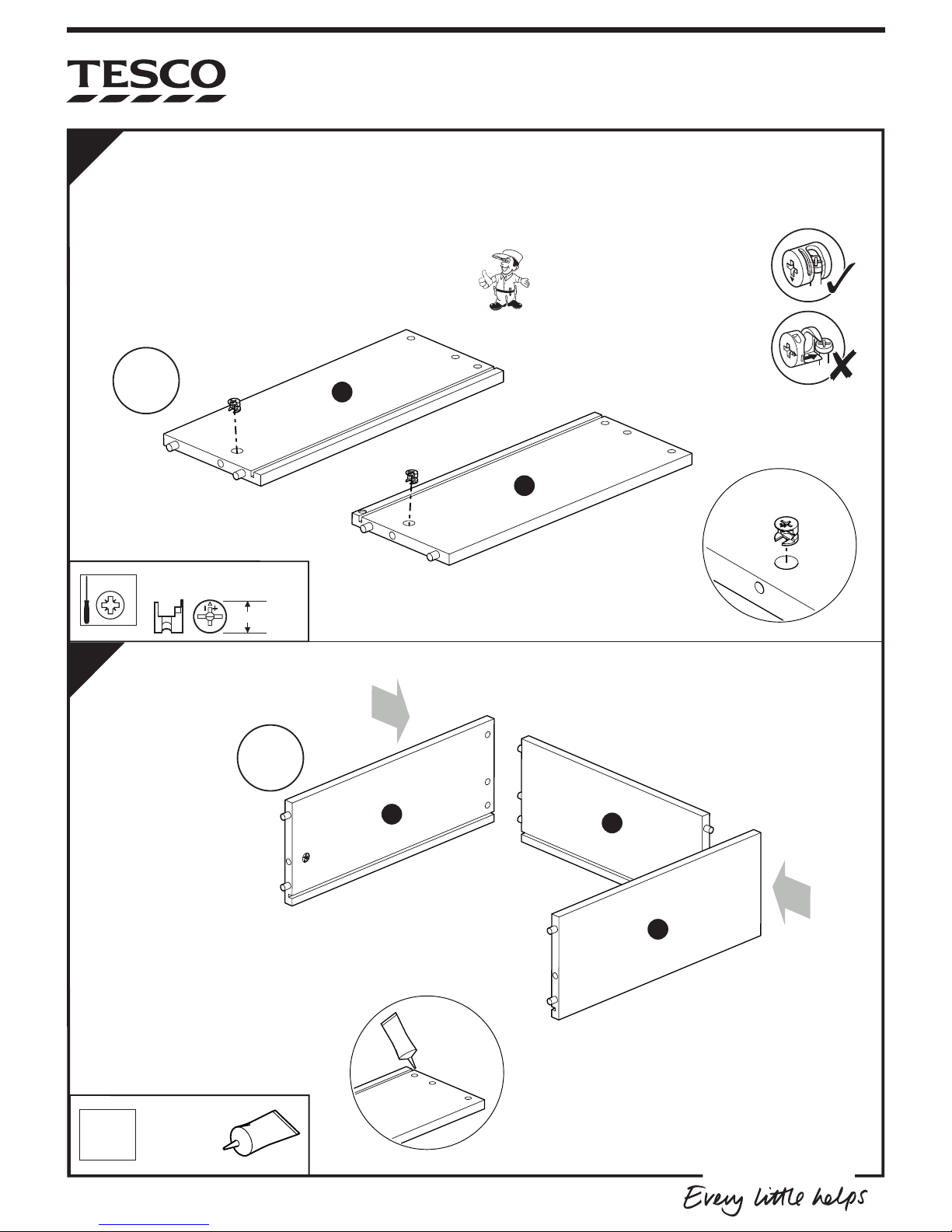

Screw the cam dowel into the panel in the
positions shown. Take care to ensure that the
dowel is straight, and is inserted the full lenght
of the threaded section

8
Smith 2 Drawer Bedside assembly instructions
5
6
©Tesco 2016.
Produced in The Netherlands for TESCO Stores Ltd.
www.tesco.com
not supplied
PZ2
I x4
x2
x2
K
6
8
7
10
I
I
I
Using a hand screwdriver, turn the cam lock
clockwise intil handtight. This will take less than
one full turn and will tighten the cam in the dowel,
pulling the panels together to create a tight joint.

9
Smith 2 Drawer Bedside assembly instructions
7
8
©Tesco 2016.
Produced in The Netherlands for TESCO Stores Ltd.
www.tesco.com

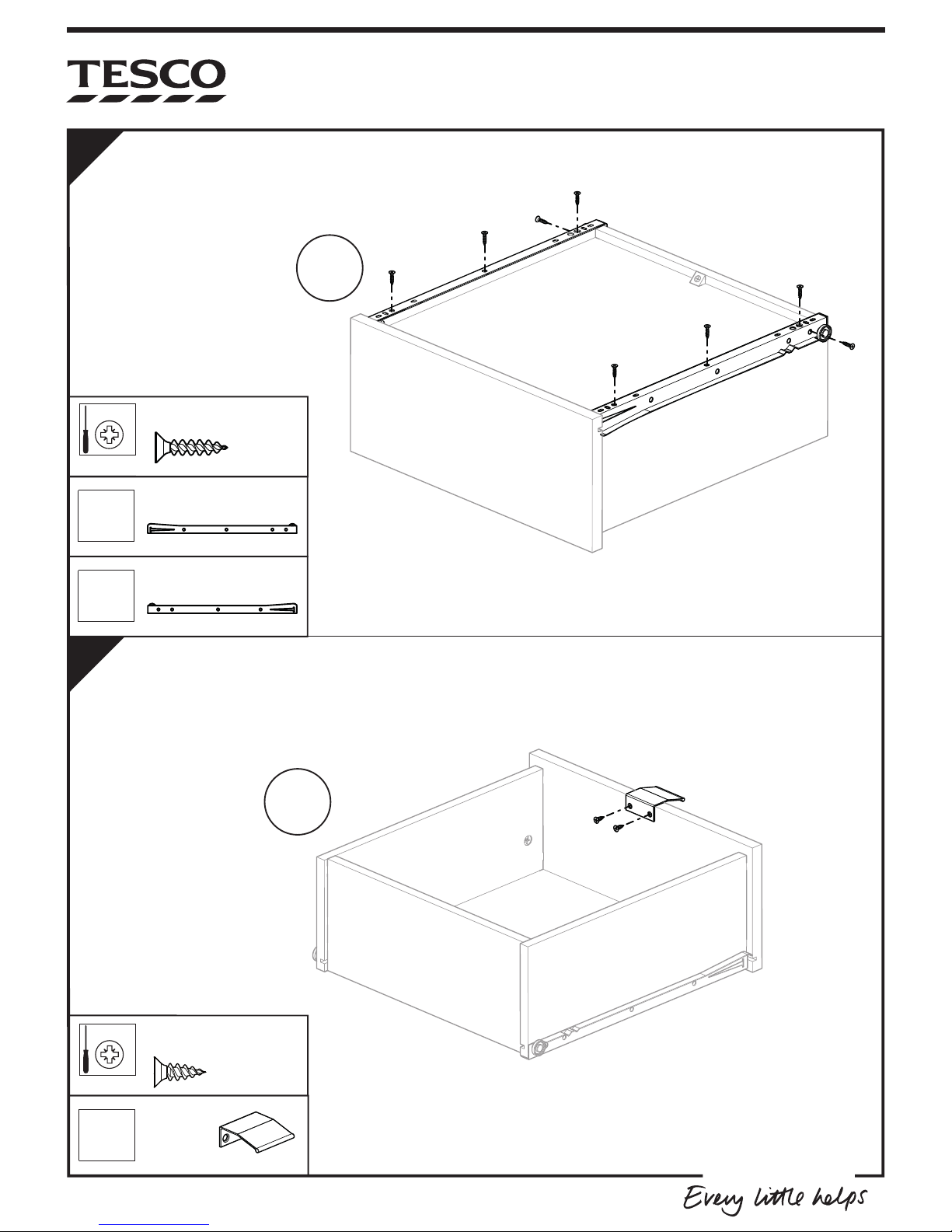

J x2
-
C x4 4 x 12.5
not supplied
PZ2
3.0 x 15
B x16
not supplied
PZ1
M x2
-
O x2
-
x2
x2
M
O
B
BB
B
B
B
B
B
J
C
C

10
Smith 2 Drawer Bedside assembly instructions
9
10
©Tesco 2016.
Produced in The Netherlands for TESCO Stores Ltd.
www.tesco.com
F x8 8 x 30
not supplied
K x1
-
A x4 5 x 24
not supplied
PZ2
x2
A
A
A
A
A
1
5
F
F
F
F
K
Screw the cam dowel into the panel in the
positions shown. Take care to ensure that the
dowel is straight, and is inserted the full lenght
of the threaded section

11
Smith 2 Drawer Bedside assembly instructions
11
12
©Tesco 2016.
Produced in The Netherlands for TESCO Stores Ltd.
www.tesco.com
Insert the cam lock into the face of
the panel in the positions shown.
Ensure that the opening in the base
of the cam faces the hole in the edge
of the panel as shown; this allows the
head of the cam dowel to locate
properly in the cam lock.
not supplied
PZ2 H x4
15mm
D x8 6.3 x 10
not supplied
PZ2
N x2
-
P x2
-
H
H
H
H
H
3
4
N
P
DD
DD
D
D
D
D
D
D
D
D
N
N
P
P
3
4

12
Smith 2 Drawer Bedside assembly instructions
13
14
©Tesco 2016.
Produced in The Netherlands for TESCO Stores Ltd.
www.tesco.com
K x1
-
3.0 x 15
B x12
not supplied
PZ1
B
BB
B
B
B
B
B
B
B
B
B
BBB
BBB
K
5
5
3
4
3
4

13
Smith 2 Drawer Bedside assembly instructions
15
16
©Tesco 2016.
Produced in The Netherlands for TESCO Stores Ltd.
www.tesco.com
K x1
-
x4
H
3
5
5
4
K
1
3
4
Using a hand screwdriver, turn the cam lock
clockwise intil handtight. This will take less than
one full turn and will tighten the cam in the dowel,
pulling the panels together to create a tight joint.

14
Smith 2 Drawer Bedside assembly instructions
17
18
©Tesco 2016.
Produced in The Netherlands for TESCO Stores Ltd.
www.tesco.com
E x30 1.5 x 25
not supplied not suppliedsupplied = L
+/- 150mm
(+/- 6 inch)
E
L
E
1
3
2

1. Bestudeer zorgvuldig de montagetekening voordat u met monteren begint.
2. Neem de onderdelen en panelen voorzichtig uit de verpakking en leg ze op volgorde en controleer of alles compleet is.
3. Leg het verpakkingsmateriaal ter bescherming onder het te monteren artikel.
4. Volg met het monteren exact het stappenplan zoals in de tekening aangegeven.
5. Begin met het monteren, wees voorzichtig, forceer niets.
6. Bewaar deze montagetekening zorgvuldig. U heeft deze misschien nodig in het geval u onderdelen wilt aanvragen.
1. Study the assembly drawing carefully before starting the assembly.
2. Carefully remove the parts and panels from the packing and place them in sequence. Check to see that nothing is missing.
3. For extra protection, place the packing material under the item to be assembled.
4. When assembling, follow the step-by-step instructions exactly as given on the drawing.
5. Start the assembly. Be careful not to force anything.
6. Take care to save the assembly drawing. It could be needed in case you need to order parts.
1. Studieren Sie die Montagezeichnung gut, bevor Sie mit der Montage beginnen.
2. Nehmen Sie die Zubehörteile und Paneelen vorsichtig aus der Verpackung, legen Sie sie in die richtige
Reihenfolge und kontrollierenSie, ob alles komplett ist.
3. Legen Sie das Verpackungsmaterial zum Schutz unter den zu montierenden Artikel.
4. Folgen Sie bei der Montage genau dem Schritteplan, wie er in der Zeichnung angegeben ist.
5. Beginnen Sie mit der Montage, seien Sie vorsichtig, übereilen Sie nichts.
6. Bewahren Sie diese Montagezeichnung gut auf. Sie benötigen diese möglicherweise zur Bestellung von Zubehörteilen.
1. Montaj i?ine ba?lamadan önce montaj resmini dikkatle inceleyiniz.
2. Parçaları ve panoları ambalajından özenle çıkartınız, sıraya koyunuz ve her?eyin tam olup olmadı?ını kontrol ediniz.
3. Monte edilecek nesnenin altına, koruma amacıyla ambalaj malzemesi seriniz.
4. Montaj sırasında resimde belirtildi?i gibi safha planını takip ediniz.
5. Montaja ba?layınız, dikkatli olunuz ve hiç bir parçayı zorlamayınız.
6. Bu montaj resmini iyice saklayınız. ?leride parça ihtiyacı sırasında gerekli olabilir.
1. Examinez soigneusement le croquis avant de procéder au montage.
2. Sortez soigneusement les pièces et les panneaux de leur emballage, placez-les dans l’ordre et assurez-vous que rien nemanque.
3. Placez le matériel d’emballage protecteur sous l’article à monter.
4. Suivez scrupuleusement les étapes de montage comme indiqué sur le croquis.
5. Commencez le montage. Soyez prudent et ne forcez pas.
6. Conservez soigneusement le croquis de montage.Vous en aurez peut-être besoin lorsque vous souhaiterez remplacer un élément.
montage tekening
assembly drawing
montagezeichnung
croquis
montaj resmini
