CONTENTS
1. SECURITY NOTE 3
2. PRODUCT INTRODUCTION 5
CONTROL PANEL 6
OTHER ITEMS IN THE PACKAGE 6
3. BEFORE USE 7
RECORD THE BEGINNING USE DATE IN THE LABEL 7
LEARNING AIR QUALITY INDICATOR 7
METHOD OF DISMOUNTING AND INSTALLATION 7
PLACEMENT SITES OF AIR PURIFIER 7
INSTALL FILTERS 8
FILTERS AND FUNCTIONS 9
4. HOW TO USE 11
THE CONTROL PANEL 11
STARTING AIR PURIFIER 11
AUTO MODE 12
SLEEP MODE 12
WIND SPEED ADJUSTMENT 12
TIMING FUNCTION 12
WIFI FUNCTION 12
UV FUNCTION (NEGATIVE ION FUNCTION) 12
RESET 13
AIR QUALITY INDICATOR 13
5. CLEANING AND MAINTENANCE CLEAN PRE-FILTER 13
CLEAN PRE-FILTER 14
CLEAN AIR PURIFIERS 14
REPLACE FILTERS 15
CLEAN AIR QUALITY SENSORS 5
TIME FOR REPLACEMENT OF FILTERS 6
6 FAULT HANDLING 7
WARRANTY AND SERVICE 17
TO ORDER PARTS OR ACCESSORIES ACCESSORIES 17
7. ADDITIONAL INFORMATION 18
8. WIFI USE GUIDE 19
PLEASE READ THIS MANUAL CAREFULLY, AND FOLLOW THIS MANUAL
STRICTLY. PLEASE KEEP IT PROPERLY AFTER READING FOR FUTURE
REFERENCE.

3
1. SECURITY NOTE
WARNING
In order to avoid possible damage to you or others or financial damages, please
be sure to pay attention to the following safety precautions.
If the machine‘s power supply cord is damaged, you must entrust the manufacturers
of the machine, maintenance service center or qualified technicians will change for
you, in case of any danger.
Don’t touch the power plug
with wet hands.
No wet hands!
Otherwise it may cause
electric shock.
It is prohibited to use beyond
power or connected devices
specified value.
Only 220V ac power allowed.
Banned!
Using universal socket or
exceed the specified value
of the equipment may cause
overheating and fire accident.
No damage on the power line
and socket.
Banned!
In the use of the machine, don‘t
bind, wires. Use the broken wire
may cause electric shock, short
circuit or fire accident.
Ban cut, modification, excessive
distortion, torsion, pull wire, or
put weight on wires or plugs.
Prohibit unauthorized apart or
modified the air purifier.
Banned take apart
Otherwise it may cause electric
shock, failure or fire accident.
Ban rod or other metals pla-
ced in the outlet or inlets.
Banned!
Otherwise it may affect the
internal parts and cause electric
shock or damage.
Before start the air purifier,
please insert the plug com-
pletely into the socket.
Failure to fully inserted into
the socket m ay cause electric
shock and overheating or fire
accident.
Please clean power plug
regularly.
Accumulation of dust on the
power plug and the moisture
can damage the insulation of
the plug part, resulting in fire
accident. Pull out the power
plug, then wipe with dry cloth
(ban using wet cloth!).
Remember to pull the power
plug if not use for a long time.
Before cleaning appliances,
please make sure have power
off.
Pull the plug!
Otherwise air purifier may run
suddenly, cause accident
getting an electric shock.

4
ATTENTION
WARNING
Any situation as below, please turn off the power of the machine.
• A switch does not work.
• A circuit breaker or fuse burned.
• The power cord or plug abnormal fever.
• Finding the burning odor or abnormal sound or vibration.
• Any other anomalies or failure.
Prohibited use solvent such as
benzene or thinner to clean air
purifier, avoid touching with
insecticide spraying.
Banned!
Otherwise air purifier can
rupture and cause damage,
even short circuit, so that cause
electric shock or fire accident.
Ban in place for being fat
particles using this air purifier.
Banned!
Such as inside the kitchen, can
reduce the service life of air
purifier filter. The air purifier
should not be used for ventilati-
on or extraction equipment.
Banned use the air purifier in
indoor with fumigation type
pesticides.
Banned!
Chemical residue could be
accumulated inside the machine,
and then release from the outlet
to harm health. After using pesti-
cides, please let
thoroughly ventilated room,
before using the air purifier.
Wet body is prohibited.
No wet!
Otherwise it may cause short
circuit, wire and cause fire or
electric shock accident or
injury.
This appliance can be used
by children aged from 8 years
and above and persons with
reducedphysical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given supervi-
sion or instruction concerning
use of the appliance in a safe
way and understand the
hazards involved.
Children shall not play with
the appliance. Cleaning and
user maintenance shall not
be made by children without
supervision.
Banned in high temperature,
damp or wet body sites using
this air purifier, such as the
bathroom.
No wet!
Air purifier may leakage
caused electric shock or fire
accident.
Do not put the volatile
substances or combustible
materials, such as tobacco or
mars to float into the
machine.
Away from the fire!
Away from the fire! Otherwise
it may cause fire accident.
Pull out the power plug,
should hold the plug, instead
of pulling wires.
Otherwise it may cause short
circuit, wire and cause fire or
electric shock accident or
injury.

5
Air outlet
Air quality
indicator
Handle
Back
cover
UV lamp
Activated
carbon
filter
Photoresistance Efficiency HEPA filter
Pre-filter
Air inlet panel
Air
Quality
Sensor
Power
cord hole
Air inlet
2. PRODUCT INTRODUCTION

6

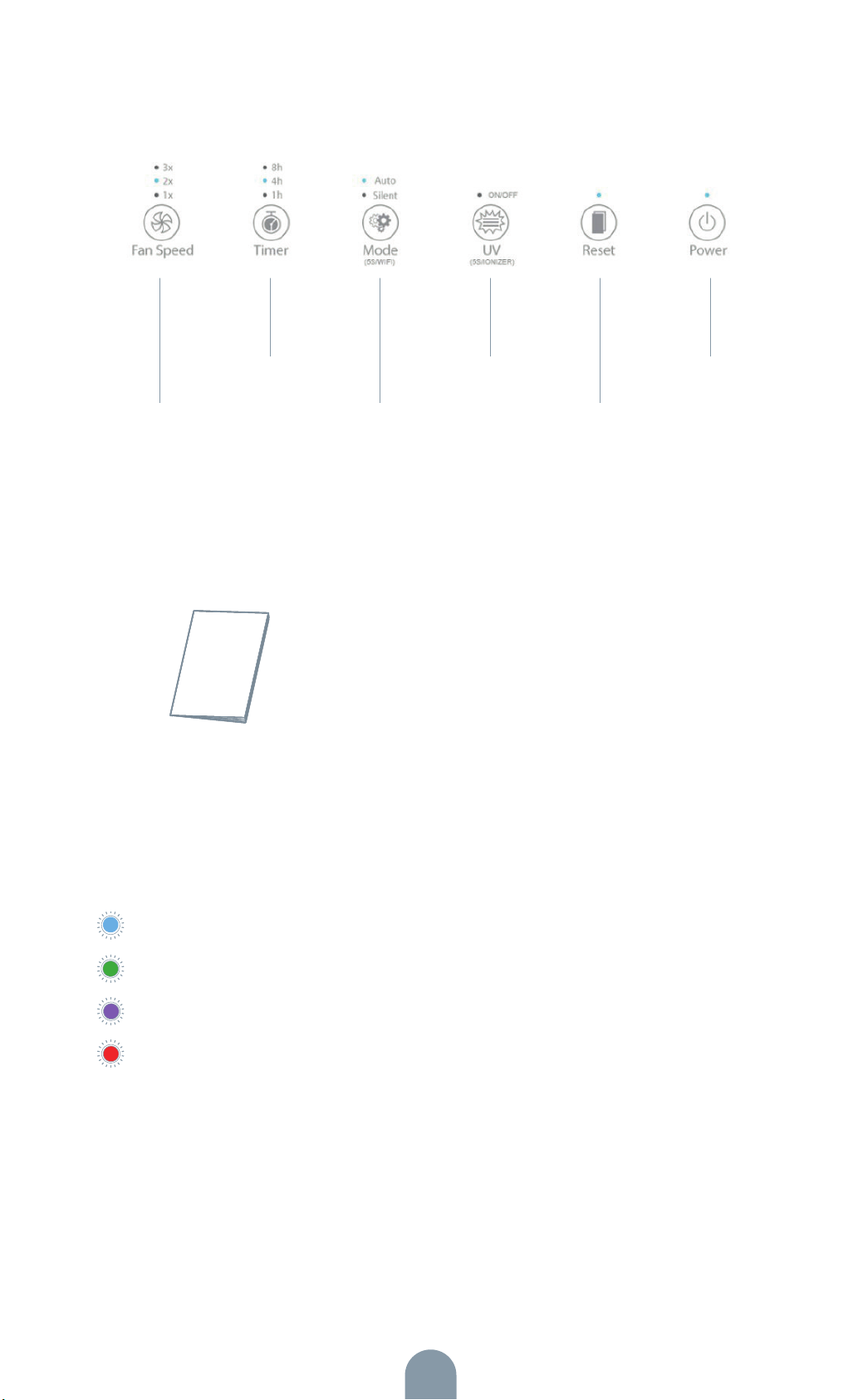

CONTROL PANEL
OTHER ITEMS IN PACKING
AIR QUALITY INDICATOR
Wind speed adjustment
operation manual
Notice: Please press the restoration button, if you want to turn off the air quality
indicator light. (PM2.5 digital display just for reference)
Blue ( PM2.5 = 0 ~ 50 ) Perfect
Green ( PM2.5 = 50~ 100 ) Good
Purple ( PM2.5 = 100-150 ) Normal
Red ( PM2.5 = 150~ ) Bad
Timing button UV button Power button
Restoration buttonModel button

7
In order to replace the filter on time, before using air purifier, please keep the date
recorded in the back of the nameplate, thus to achieve the best performance.
After removing the plastic package of each filter, the efficient HEPA filter and
activated carbon filter must be replaced once a year. Photocatalyst filter should be
replaced every three years, after a period of time, should exposure under UV for
more then 2 hours.
To know the air quality indicator
Air quality indicator can reflect the air quality conditions, please refer to the speci-
fic page 6 and page 14.
3. BEFORE USE
RECORD THE BEGINNING USE DATE IN THE LABEL
TIPS
Name plate and notes
Air quality color indicator
10cm
50cm50cm
Method of dismounting and installing the air
inlet panel
1. Method of removing the air inlet Panel.
Hold on to the groove at both sides of the air
inlet panel, then gently pull it up.
2. Method of installing the air inlet panel.
Reinstall the air inlet panel, alignment and insert
it into the fixed groove, and then gently push
it up.
Placement sites of air purifier
In order to make your room air to achieve good
effect on both sides of the cycle, to ensure the
gap between the air inlet and the wall at least
50 cm, the air outlet at least 10 cm. Please keep
1 meter away from television, radio, etc.
Please do not put the power plug together with
the television, radio and other electrical power
plug inserted into the same socket, (otherwise it
may cause screen jitter and noise generated.)
• The long-term placement in the same sites
may dirty the host walls.
• To ensure the machines have adequate
ventilation and maximum efficiency, don‘t
interfere with the air outlet and air inlet.
1 2

8
Information
Please remove all the package of all the filters in the machine before using the air
purifier, according to the below instruction.
You can put the purifier on the wall to enhance the stability when removing or
installing the filters.

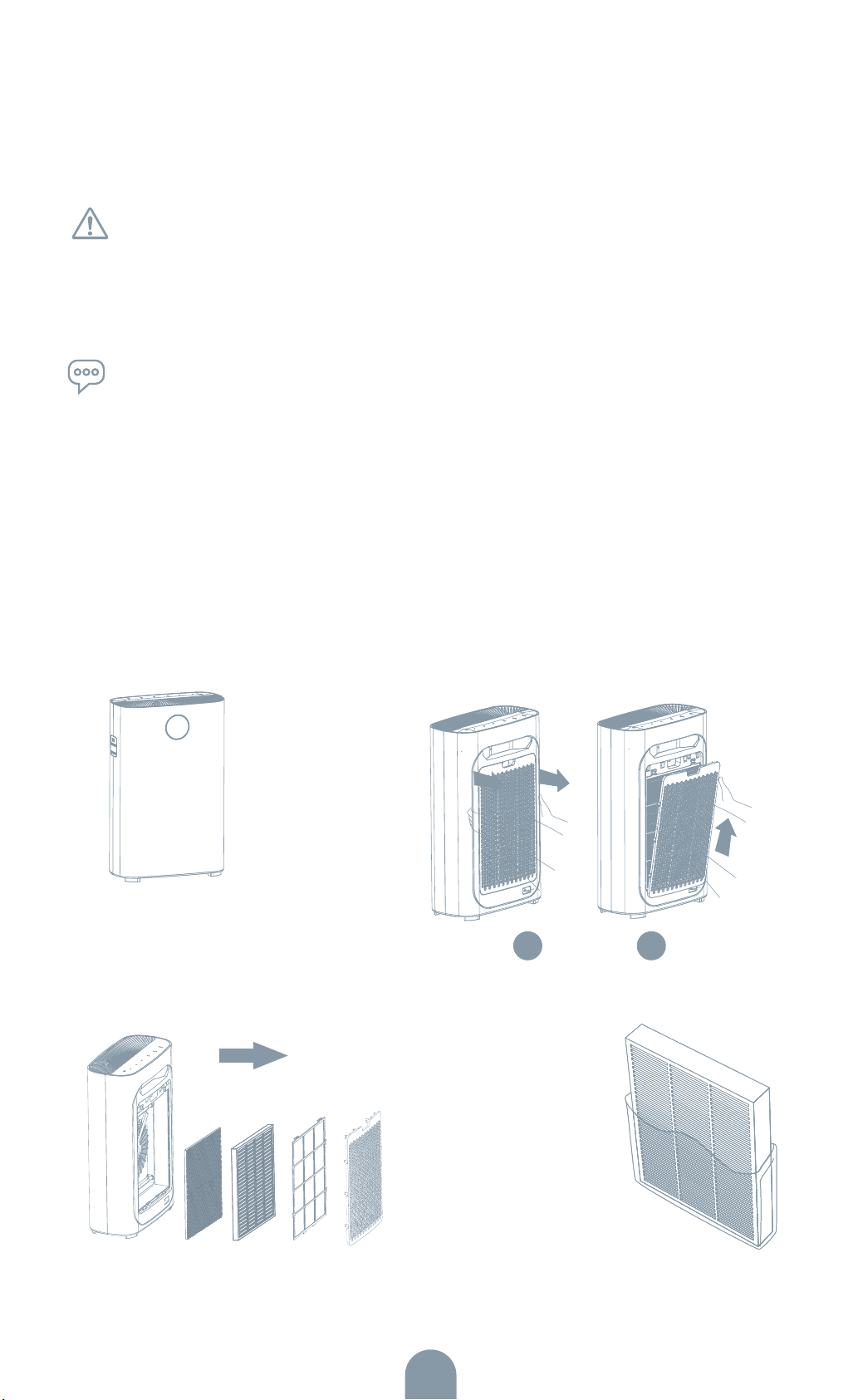

Initial use this air purifier, please install the filters correctly as below instructions.
1. Please remove the all packages
and put the purifier on the dry,
stable,horizontal ground.
3. Take out all filters from this purifier. 4. Remove all packages.
2. Hold on the grooves at both
sides of the air inlet panel, then
gently pull it up.
• Please make sure the power plugs have been put off before installation, mainte-
nance and transportation.
• Please do not operate the air purifier without the filters.
• Please remove the package of each filter before using.
INSTALL FILTER
ATTENTION
TIPS
STEPS
1 2

9
5. Install all the filters in order.
7. Install the air inlet panel again.
Align and insert it to the fixed
grooves, then gently push it.
4 points purification system, could
effectively purify the air, make life
more healthy.
One: Pre-filter
Two: Efficient HEPA filter
Three: Activated carbon filter
Four: UV lamp
ONE: PRE-FILTER
Use micron mesh filter, effectively
block 2.5mm fibrous particulate
matter, Blocking rate > 99.9%. It can
be cleaned easily by tens of thousands
times. Preventing larger particles such
as pet fur, dander and coarse dust, etc.
Can increase the life of the following
filters.
TWO: EFFICIENT HEPA FILTER
The rate of removing the minor par-
ticles small to 0.3 micron from the
airflow can up to 99.9%. Spread of
allergens and bacteria in air flow, such
as pollen, smog and viruses.
THREE: ACTIVATED CARBON
FILTER
Removing volatile organic com-
pounds, such as secondhand smoke
and kinds of polluting gases.
FOUR: UV LAMP
Effectively kill a variety of common
bacteria and viruses, inhibit the
production of bacteria and viruses.
Please be carefully when install the
air inlet panel.
Pre-filter
Efficient HEPA filter
Activated carbon filter
+ Photocatalyst filter
6. Install the pre-filter as the instruction.
TIPS
FILTERS AND FUNCTION

10
Cold cathode UV lamp trigger voltage is only 500V,will not produce ozone, can
use it safely.
TIPS
THE ALLERGEN
Coarse dus
Dust Pollen Pet fur Smoke
Dust mites Odor Chemical substances
Hair Harmful Particles Dander

11
CONTROL PANEL

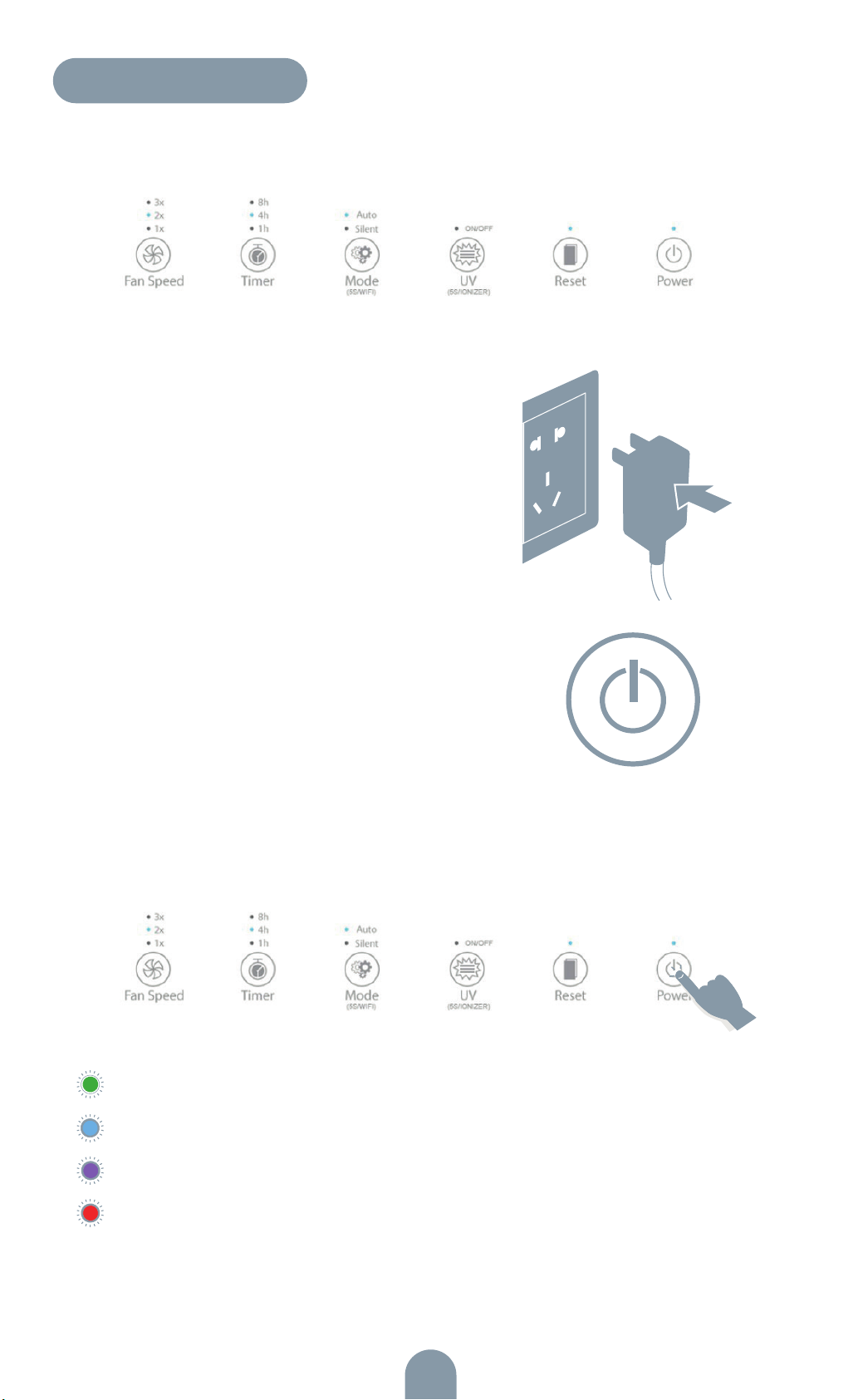

PLUG IN THE POWER
Plug in the power. The music starts and all the
lights flash 3 times continuously, then all the
lights off, leaving only the power indicator
light in red, enter the standby mode.

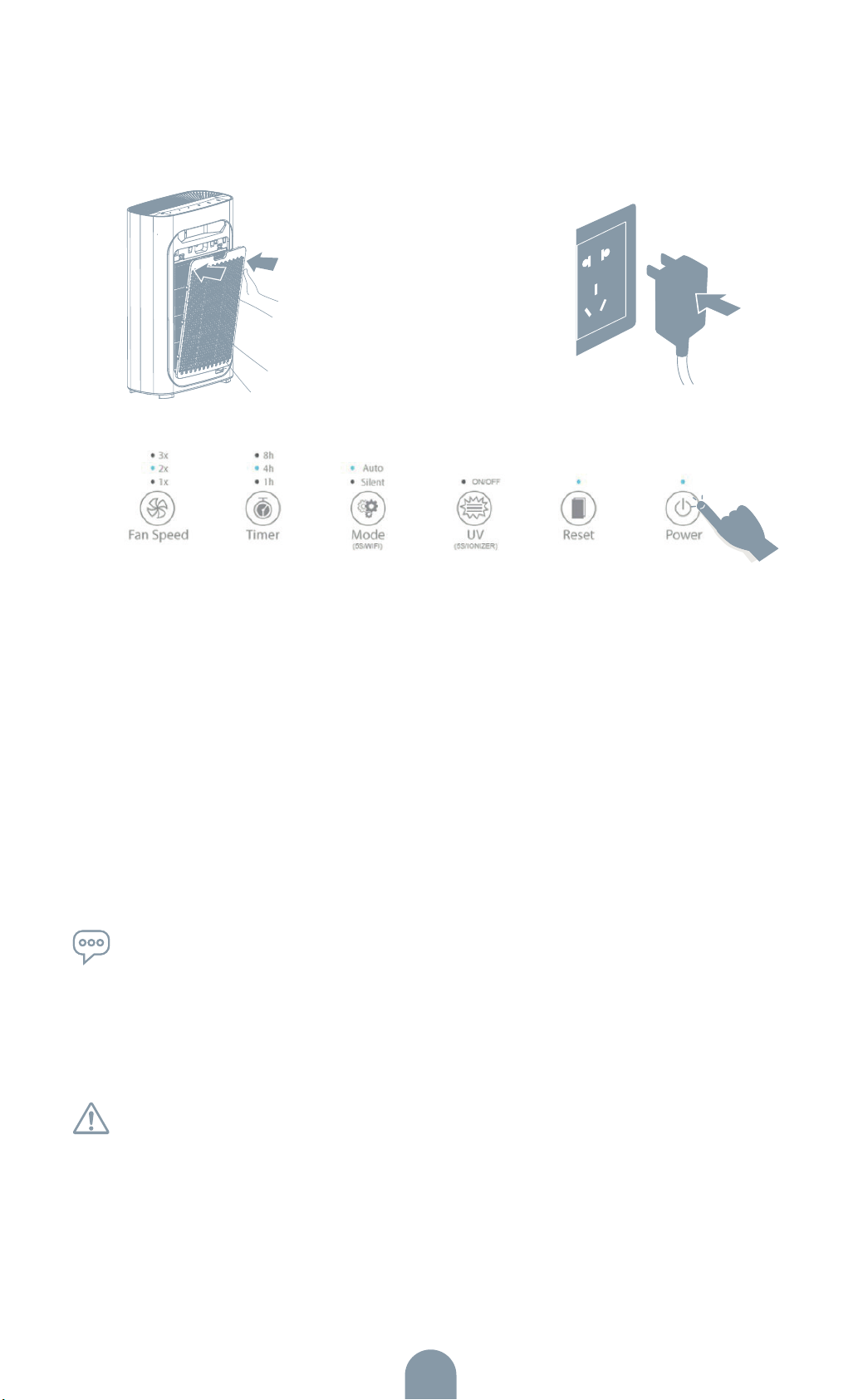

STARTING AIR PURIFIER
Press the power button to enter into auto
mode with the lights on.
When the machine start, the air quality indicator
light will be slow flashing on, it begins to detect
the air quality after preheating for 5s.
When auto mode start, it will detect the air
quality automatically.
Notice: Please press the restorationbutton, if you need to turn off the air quality
sensor light.
Green ( PM2.5 = 0 ~ 50) Excellent
Blue ( PM2.5 = 50~100) Good
Purple ( PM2.5 = 100-150) Bad
Red ( PM2.5 = 150~ ) Very Bad
4. HOW TO USE
AIR QUALITY INDICATOR

12
AUTO MODE
Turning the power on it will detect the air quality automatically. Choosing the auto
mode,will give you the most appropriate fan speed.
SLEEP MODE
Sleep mode, have built-in radial sensor, which will sense the strength of the light
,if the light intensity is under the condition of insufficient, all lights of the machine
will be dimmed, and at the same time, the machine automatically change to silent
mode of operation, do not disturb your rest at night.
WIND SPEED ADJUSTMENT
Wind speed can be selected in one,two,three grade.
TIMING FUNCTION
Tap this key to switch the timing between 1h, 4h and 8h.
WIFI FUNCTION
Press and hold for 5 seconds to turn on the Wifi function on within in 5 seconds
after turn on the machine.
UV FUNCTION (NEGATIVE ION FUNCTION)
Press the UV button to open the UV lamp.
Press and hold for 5 seconds to turn the ionizer function on or off.(the ionizer fun-
ction automatically open when the machine power is on)

13

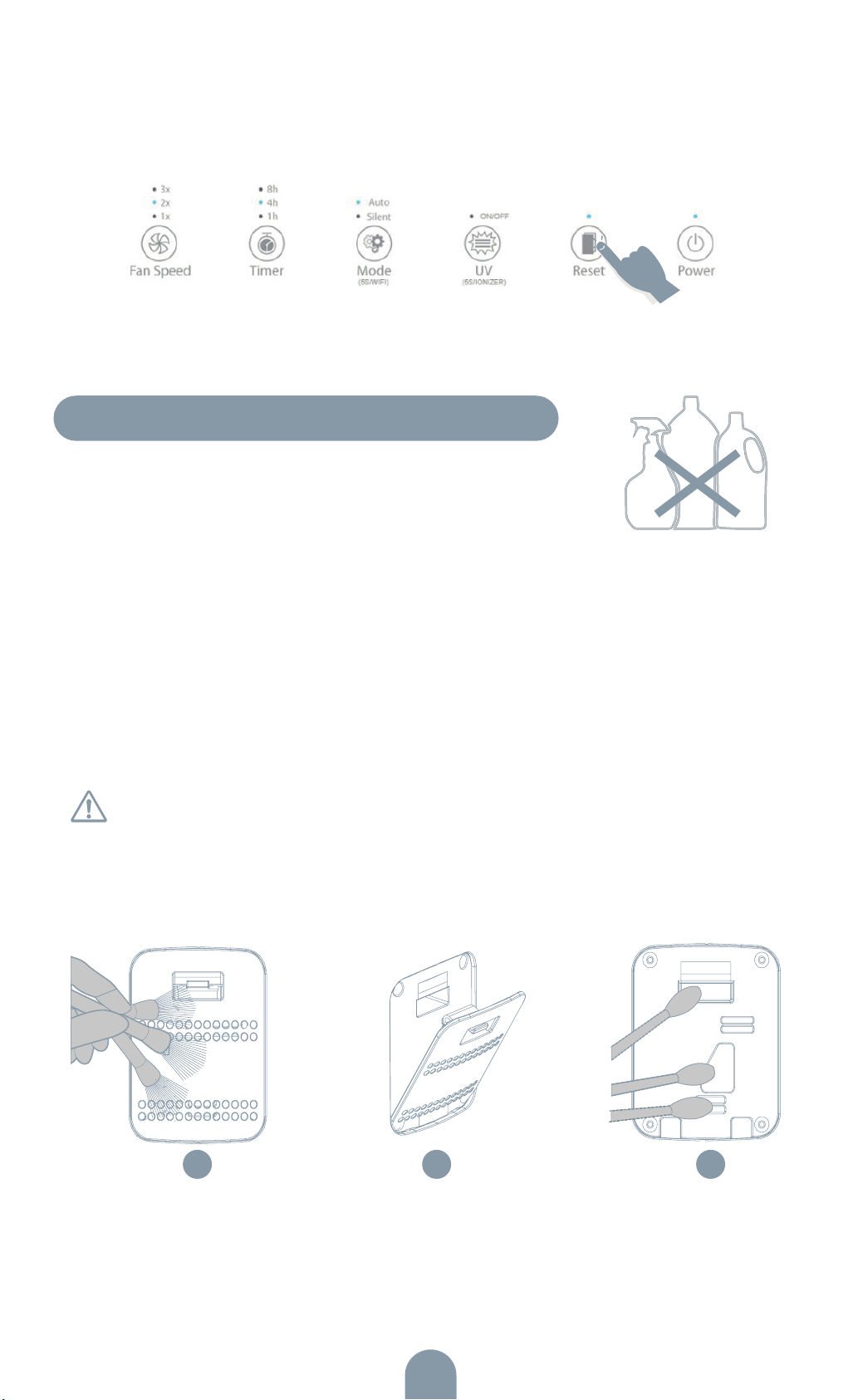

RESET
Reset the machine by pressing the button for at least five seconds,
(This function is only available after the replaacement remind of filter.).
AIR QUALITY INDICATOR
Filp this button to open/close air quality color indicator.
CLEAN AIR QUALITY SENSOR
Clean the air quality sensor every two months to make sure purifier run at the best
performance. If the purifier used in dusty environment, please clean it more often.
ATTENTION
When the indoor humidity is very high, the air quality indicator may be forming
condensate. So even if the air quality is good, air quality indicator may also
indicate poor air quality, in this case, you have to clean the air quality indicator or
use any manual speed setting.
1. Using a soft brush to clean the inlet/outlet of air quality sensor.
2. Remove the protective cover of air quality sensor.
3. Clean the air quality sensor, inlet and outlet with wet cotton swabs slightly.
4. Dry it with dry cotton swabs.
5. Remount the protective cover of air quality sensor.
CLEAN AIR PURIFIER
Clean the medial and lateral regularly to prevent dust accumulation.
1.use soft dry cloth to wipe the dust.
2.use soft dry cloth to clean inlet and outlet.
1 2 3
5. CLEANING AND MAINTENANCE
Be sure to pull out plug before cleaning. Do not put the
product into water or any other liquid. Do not use corrosive
or flammable gas (e.g. bleach or alcohol) to clean any part
of the product. Only pre- filter can be cleaned with water,
other filters can‘t.

14
CLEAN THE PRE-FILTER INFORMATION
In order to achieve the best performance, clean and maintain the Pre-filter every
two months (about 480 hours) from the beginning to use. Based on the average
8 hours a day, 7 days a week frequency, keep the machine working under the
household environment.
External maintenance : use wet cloth(or the mild detergent)to wipe the surface
to prevent the accumulation of dust. Turn off the air purifier and pull out the plug
before cleaning and maintenance.
Only the pre-filter can be cleaned, other filters can‘t.
ATTENTION
Please use the low power vacuum cleaner, preventing the filter from damage.
Before putting each filter into the machine pls remove the plastic packaging, and
ensure that the labels on the filters are outwards.

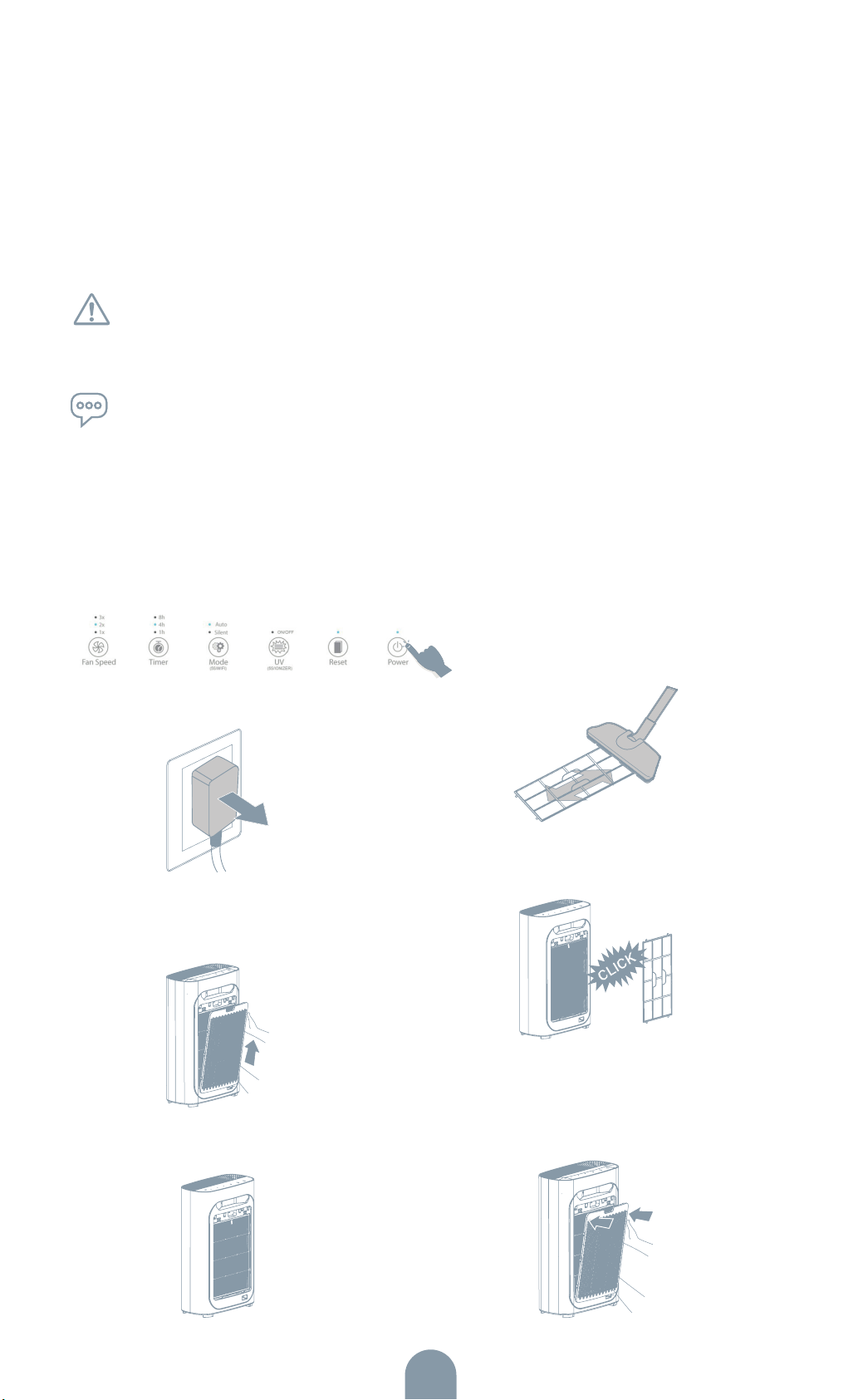

1. Turn off the power to stop the air purifier.
2. Pull out the power plug.
3. Hold on groove at both side of the
front panel and pull it outward. Then
remove it upwards.
4. Removed the protruding part of the
gauze filter before cleaning it.
6. Put back the pre-filter into the
air purifier.
7. Re-install the front plate, align
and insert into the fixed groove,
then gently pushed it up.
5. Use a soft brush or a vacuum
cleaner to remove particles,
please use water or soap water to
clean the filter, then place it into
the machine when it is completely
dry.
TIPS
OPERATION STEPS

15
8. Plug in. 9. Turn on the power and start the air
purifier.
REPLACE FILTERS
A reminding of filter replacement comes when machine in normal working for
more than 1600 hours, and the power lights flash slowly (the red lights flashing
when standby, the blue lights flashing when it is working). After the indicator light
of replacement of filter shows, the machine can still work.
ATTENTION
Please turn off the power and pull out the power plug before replacing the filter.
Remove all the plastic packaging of each filter before put into machine, To ensure
the filter label is outward.
1. Reminding to replace the filter.
2. Turn off the power, then pull out the
power plug.
3. Hold on the grooves of both side of
the front panel, then gently pull it up.
4. Take off all filters inside.
5. Remove all the plastic package
of the filters, put back into the
purifier.
6. Put back the pre-filter into the
purifier.
Flashing
TIPS
OPERATION STEPS

16
7. Re-install the front panel, keep
alignment and inserted into the fixed
groove, then gently push it up.
8. After replacing the filter, plug in
power, hold on the reset button for
5 seconds, then machine resets.
UNUSED FOR A LONG TIME
Pull out the power plug. (because the power consumption happened when it
is standby.) Thoroughly dry the inside. (otherwise it may lead to the equipment
trouble.) Store the machine in a dry ventilated place. (lay flat or place upsight
down may lead to the product trouble.)
REPLACE FILTER REFERENCE TIME
When the total machine work time reach to 1600hours, the machine will notice to
change the filter. The power indicator will flash ceaselessly(one time per second).
The red light showed when it is standby, the blue light showed when it works. But
the machine still can work when get the notice of changing the filter.
ATTENTION
Please turn off or Pull out the plug, before you change the filter.
1. Consider you and your family‘s health, please change the filter screen in time.
2. After sealing off filter, if the usage time is shorten. But suggest to change
one-time per six months.
3. After sealing off filters, the filter should be changed one time per 12 months.
TIPS

17
6. FAULT HANDLING
This chapter list the possible problems when using this product. If you can‘t solve
the problems based on the below information, please contact with our customer
center or dealers.
Condition Possible reasons Possible solution
Machine
can‘t turn on
The front panel may not be
installed.
To remove the front panel,
then install the panel again.
Power plug is not inserted
into the power source.
Pull out the power plug, then
insert into the power source.
The power plug or wire
is damaged.
Contact with our customer
center or dealers.
The fan
doesn‘t work
The machine is not turned on. Insert the power source, and
turn on the machine again.
The dynamo is damaged. Contact with our customer
center or dealers.
The machine is put on the
uneven place.
Remove the machine to the
flat place.
Loose or foreign particles
inside the machine.
Contact with our customer
center or dealers.
The motor is loose. Contact with our customer
center or dealers.
Plastic packaging of each
filter is not removed.
Before using, please remove
plastic packaging of each
filter. Please clean the
cleaning mesh filter.
Performance
is poor or
not best
purification
ability
Washable mesh filter is dirty. Replace one set of new filters.
Filter is not replaced. Replace one set of new filters.
Machine inlet or outlet was
blocked.
Contact with our customer
center or dealers.
Plastic packaging of each
filter is not removed.
Before using, please remove
plastic packaging of each
filter.
The gap round the machine is
not proper.
To ensure the machine at least
50 cm clearance on both
sides of the air inlet and the
outlet at the back of the ma-
chine at least 10 cm.
Machine filter missing or
sequence error.
To ensure that all the filters
put the correct sequence in
machine.
Exceed the expect cover
area.
To ensure the machine work
in the suitable area.

18
WARRANTY AND SERVIS
If you need to understand information or have any questions you can also contact
our customer service center or dealer.
Model: AP2006
Rated Voltage: 220V
Rated Frequency: 50Hz
Rated Power: 20W
CADR: 210 m3/h
Noise: 20-58dB(A)
Weight: 5kg
Model: AP3006
Rated Voltage: 220V
Rated Frequency: 50Hz
Rated Power: 30W
CADR: 360 m3/h
Noise: 20-60dB(A)
Weight: 7kg
Model: AP6006
Rated Voltage: 220V
Rated Frequency: 50Hz
Rated Power: 60W
CADR: 510 m3/h
Noise: 20-65dB(A)
Weight: 10kg

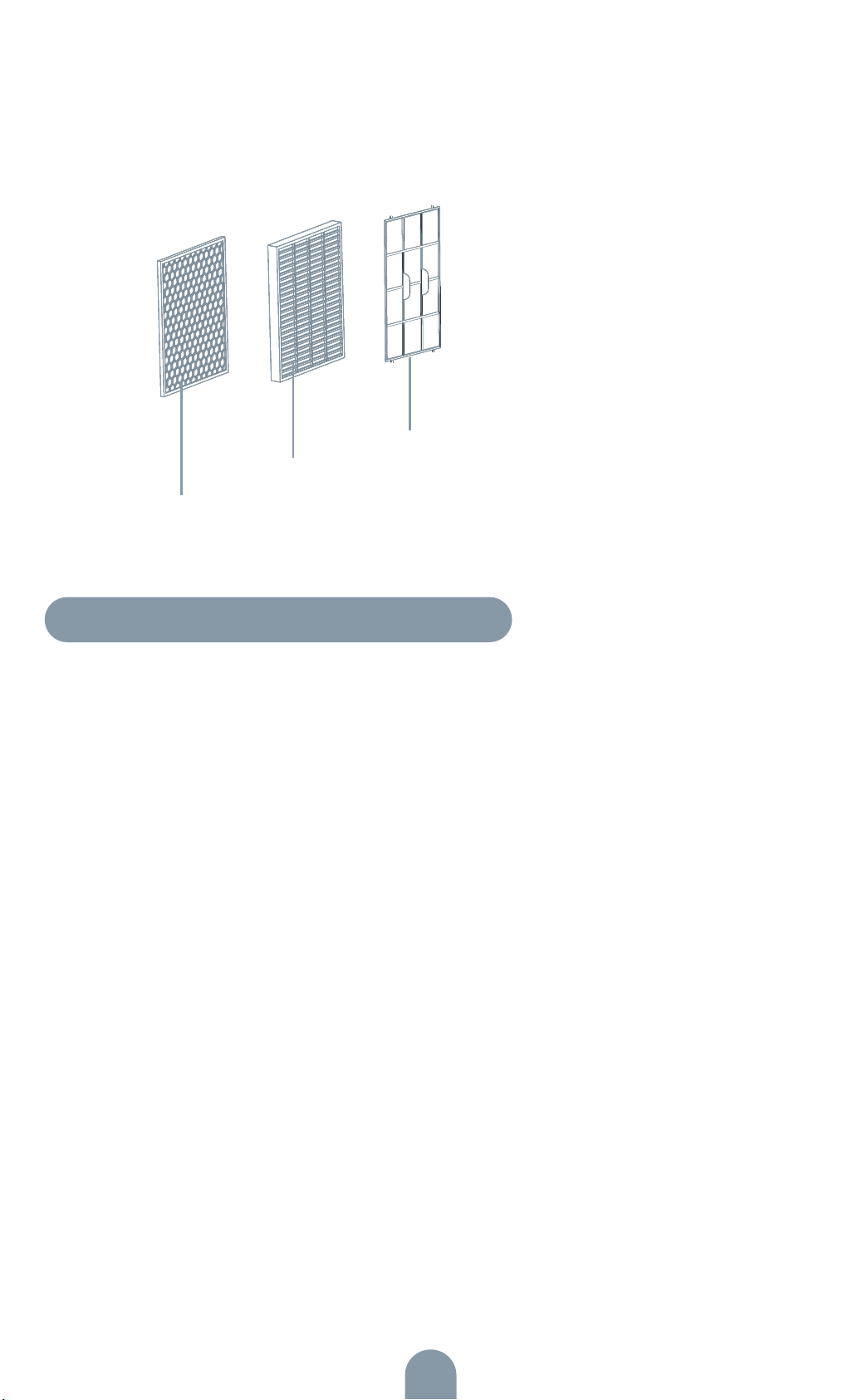

Activated carbon filter
Efficient HEPA filter
Pre-filter
7. ADDITIONAL NFORMATION
PARAMETERS

19
8. WIFI USE GUIDE

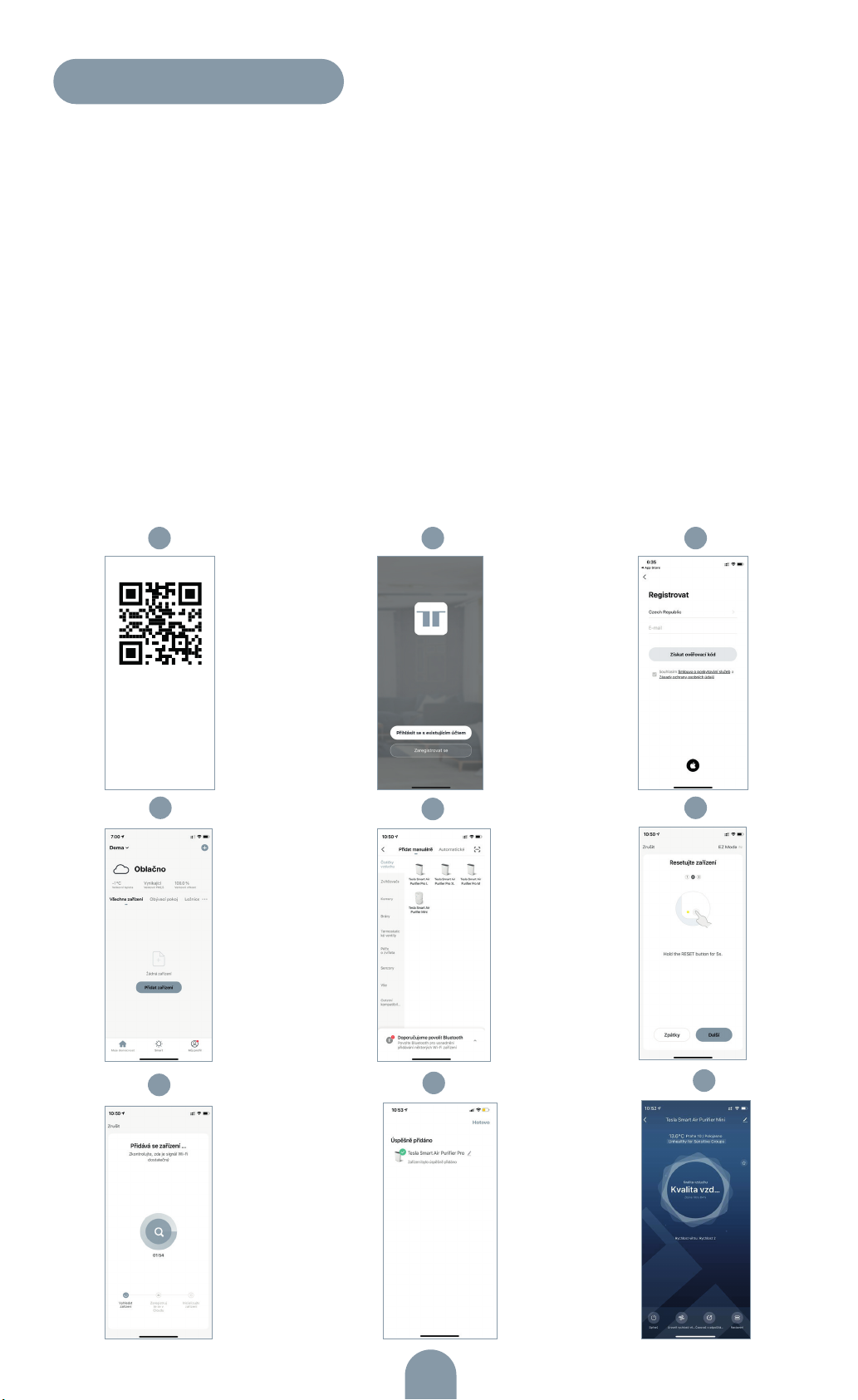

1. Scan the QR code specified above, download and install the Tesla Smart APP.
2. Open the Tesla Smart APP and choose to create a new account or log in di-
rectly.
3. Click the“+“ sign in the upper right corner to add the device.
4. Select „small home appliance- air purifier“; Turn on the air purifier, and press
„MODE“to enter the distribution network mode within five seconds, see the
WIFI indicator on.
5. Enter the WIFI password and click ok.
6. Click „Fast flashing“;
Note: please ensure that the mobile phone and air purifier are in the same
WIFI environment;
7. Wait for device connection to complete.
8. “Add device success“ appears to indicate that the device connection was suc-
cessful.
9. Click finish to enter the control interface to control the machine.
1 2 3
456
789

20
INFORMATION ABOUT DISPOSAL AND RECYCLING
This product is marked with the symbol for separate collection. The product must
be disposed of in accordance with the regulations for disposal of electrical and
electronic equipment (Directive 2012/19/EU on waste electrical and electronic
equipment). Disposal together with regular municipal waste is prohibited. Dispose
of all electrical and electronic products in accordance with all local and European
regulations at the designated collection points which hold the appropriate autho-
risation and certification in line with the local and legislative regulations. Correct
disposal and recycling help to minimise impacts on the environment and human
health. Further information regarding disposal can be obtained from the vendor,
authorised service centre or local authorities.
EU DECLARATION OF CONFORMITY
Hereby, Witty Trade s.r.o. declares that the radio equipment type AP2006,
AP3006, AP6006 is in compliance with EU directives. The full text of the
EU declaration of conformity is available at the following internet address:
teslasmart.com/declaration
Connectivity: Wi-Fi 2,4 GHz IEEE 802.11b/g/n
Frequency band: 2.400 - 2.4835 GHz
Max. radio-frequency power (EIRP): < 20 dBm
Manufacturer
Tesla Global Limited
108 Lok Shan Road, Tokwawan,
Kowloon
Hong Kong, 85200
www.teslasmart.com
