TESTO 506 User manual

Dieses Produkt erfüllt laut Konformitätsbescheinigung
die Richtlinien gemäß 89/336/EWG.
0973.5060/02/T/wh/19.10.2005
Lesen Sie bitte die nachfolgenden Sicherheitshinweise aufmerksam durch:
Elektrische Gefahren vermeiden:
Messen Sie mit dem Gerät niemals an oder in der Nähe von
spannungsführenden Teilen.
Produktsicherheit wahren:
Betreiben Sie das Gerät nur innerhalb der in den technischen Daten
vorgegebenen Parameter.
Behandeln Sie das Gerät nur sach- und bestimmungsgemäß.
Öffnen Sie das Gerät nur, wenn dies zu Wartungszwecken ausdrücklich
in der Bedienungsanleitung beschrieben ist.
Wenden Sie niemals Gewalt an!
Fachgerecht entsorgen:
Geben Sie leere Batterien an den dafür vorgesehenen Sammelstellen
ab.
Senden Sie das Gerät nach Ende der Nutzungszeit direkt an uns. Wir
sorgen für eine umweltschonende Entsorgung.
Wichtige Informationen
Besonders zu beachtende Informationen werden in dieser
Bedienungsanleitung durch ein Ausrufezeichen gekennzeichnet.
Technisch bedingt verlangsamt sich die Anzeigegeschwindigkeit von
Flüssigkristallanzeigen bei Temperaturen unter 0°C (ca 2 Sek. bei
-10°C, ca. 6 Sek. bei -20°C). Dies hat auf die Messgenauigkeit keinen
Einfluss.
Grundlegende Sicherheitshinweise
Garantie
Bestimmungsgemäße Verwendung Bedienung Bedienung
Das batteriebetriebene testo 506 dient zum Messen des positiven oder
negativen Überdrucks und Differenzdrucks von Gasen (Messbereiche siehe
Bestelldaten). testo 506 (0 ... 500 Pa) ist auch zum Messen der
Luftströmung, in Verbindung mit einem Staurohr, einsetzbar.
Durch die Robustheit und einfache Handhabung eignet es sich
insbesondere für Kundendienst und Wartungsarbeiten an Heizungs-,
Lüftungs- und Klimaanlagen.
- Schläuche an das testo 506 anschließen.
-testo 506 mit Taste
On
einschalten.
- Segmenttest wird durchgeführt.
Hinweis
Manche Segmente stehen in nicht in allen Geräte-
Varianten zur Verfügung.
- Es wird automatische Nullung durchgeführt.
- Messmodus
- zum Nullen erneut Taste
On
drücken.
- Schläuche an Drucksystem anschließen
- Messen
- Taste
On
> 5 sec drücken, Gerät schaltet aus.
Messbereichsüber- oder unterschreitung
Hinweis
Ein Druck, der größer ist als die angegebene Überlast,
zerstört die Sensorik

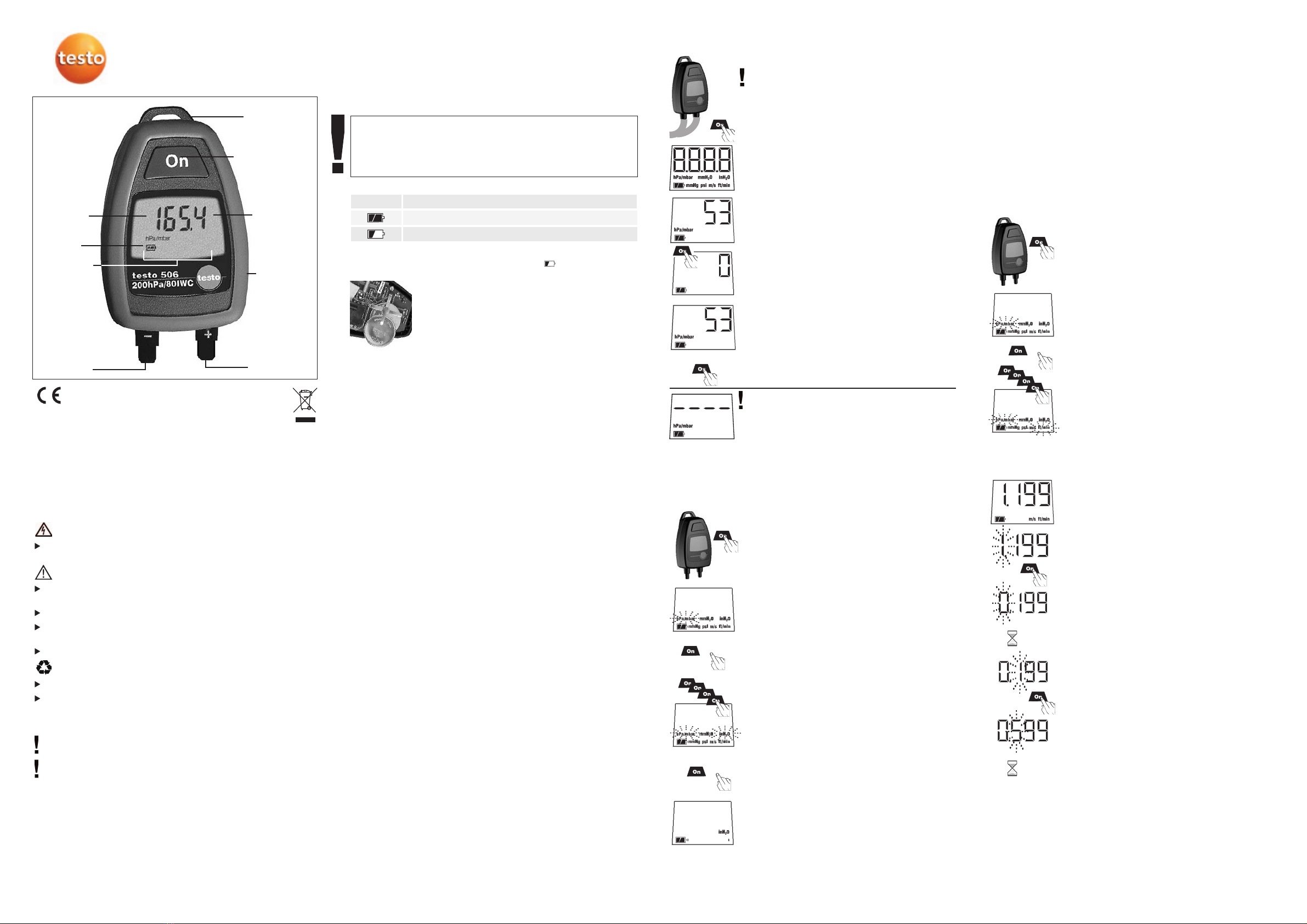

Aufhängung
Bedientaste
Display
Messwerte
Messgrößen Batteriefach
(auf der Rück-
seite)
Überdruck
Unterdruck
Batterie-
kapazität
Batteriekapazität
Symbol
10 - 100%
<10 % (Restdauer ca. 15 h)
Kapazität
Ein Batteriewechsel wird erforderlich, wenn während der Messung das
Symbol in der Anzeige erscheint.
-Gehäuse mit Hilfe eines Schraubendrehers öffnen.
-Verbrauchte Batterien aus dem Batteriehalter nehmen.
-Neue Batterien (2 Stück) in das Batteriefach einlegen.
Auf richtige Polung achten!
-Luftdichte prüfen und ggf. neu einstellen
(bei 0...500Pa; Standard1.199 kg/m3)
-Batterie-Deckel schließen.
-testo 506 ist wieder einsatzbereit.
Batteriewechsel
Staurohr (Länge 300 mm, Ø 4 mm, Edelstahl, max. 600 °C) ............0635.2245
Staurohr (Länge 350 mm, Ø 7 mm, Edelstahl, max. 600 °C) ............0635.2145
Staurohr (Länge 500 mm, Ø 7 mm, Edelstahl, max. 600 °C) ............0635.2045
Staurohr (Länge 1000 mm, Ø 7 mm, Edelstahl, max. 600 °C)............0635.2345
Anschluss-Schlauch (Länge 5 m, Silikon, max. 700 hPa) ..............0554.0440
ISO-Kalibrierzertifikat (Druck, 3 Punkte über den Messbereich verteilt) ....0520.0095
ISO-Kalibrierzertifikat (Druck, 5 Punkte über den Messbereich verteilt) ....0520.0005
Ersatzbatterie ..........................................................................0515.0028
Zubehör/Ersatzteile
Technische Daten
Gemeinsame Daten
Einheiten Druck ..........................hPa/mbar, mmH2O, mmHg, psi, inH2O
Medien ..............................................Luft bzw. alle nicht agressiven Gase
Druckanschluss..............................................4/6 mm Innendurchmesser
Anzeige ................................................................................LCD, 1-zeilig
Lagertemperatur ..................................................................-20...+70 °C
Betriebstemperatur....................................................................0...40 °C
Batterietyp....................................................2 x 3V Knopfzelle (CR 2032)
Batteriestandzeit ........................................................................ca 150 h
Auto-Off ........................................................................................16 min
Abmessungen in mm............................................................86 x 48 x 24
Gewicht..............................................................................................55 g
testo 506 (0 ... 500 Pa)
Messbereich ........................................................................0 ... 500 Pa
Genauigkeit* ............................................................................± 2,5 Pa
Auflösung ............................................1 Pa; 0,1 mmH2O; 0,001 in H2O;
................................................................................0,01 mmHg;0,001 psi
Messbereich Strömung ..........................................27 m/s; 5315 ft/min
Auflösung Strömung ....................................................0,01 m/s; 1 ft/min
Überlast ..........................................................................................4 fach
testo 506 (0 ... 10/200 hPa/mbar)
Messbereich ......................................................0 ... 10 hPa/mbar (low)
........................................................................10 ... 200 hPa/mbar (high)
Genauigkeit* ....................................± 0,03 hPa /mbar (0 ... 1 hPa/mbar)
..................................................±1,5% vom Endwert (1 ... 10 hPa/mbar)
........................±(1 hPa /mbar+ 1% vom Messwert) (10 ... 200 hPa/mbar)
Auflösung
Low: ..0,01 hPa/mbar; 0,1 mmH2O; 0,001 inH2O; 0,01 mmHg; 0,001 psi
High: ............0,1 hPa/mbar; 1 mmH2O; 0,01 inH2O; 0,1 mmHg; 0,01 psi
Überlast........................................................................................1,5 fach
* bei Nenntemperatur +22 °C
Garantie ..................................................................................24 Monate
Messen
Bei Temperaturwechsel das Gerät min. 30 Minuten
der neuen Umgebungstemperatur anpassen.
Bedienung
- beim Einschalten Taste
On
gedrückt halten.
- die zuletzt eingestellte Einheit wird blinkend angezeigt.
- Taste
On
loslassen.
- Taste
On
betätigen bis im Display die gewünschte
Einheit erscheint.
- Taste
On
loslassen.
- Gerät startet mit neuer Einheit.
- beim Einschalten Taste
On
gedrückt halten.
- die zuletzt eingestellte Einheit wird blinkend angezeigt.
- Taste
On
loslassen.
- Taste
On
betätigen, bis im Display die Einheit
m/s
(ft/min)
erscheint.
- Im Display wird der Wert 1.199 für rho in kg/m3
(Werkseinstellung) angezeigt.
- 1. Stelle blinkt
- Taste
On
betätigen bis gewünschte Ziffer er-
reicht ist.
- 2 s warten; eingestellten Wert übernehmen;
Cursor wechselt zur nächsten Stelle.
- 2. Stelle blinkt
- Taste
On
betätigen bis gewünschte Ziffer er-
reicht ist.
- 2 s warten; eingestellten Wert übernehmen;
Cursor wechselt zur nächsten Stelle.
- weiter mit den Stellen 3 und 4
HINWEIS
Dieser Wert kann zwischen 0.400 (Min-Wert) und
1.599 (Max-Wert) gewählt werden.
Beim Ein-/Ausschalten des testo 506 (0 ... 500 Pa)
bleiben die eingestellten Werte erhalten.
Einheiten umschalten
Messen der Lufgeschwindigkeit testo 506
(0 bis 500 Pa) in Verbindung mit einem Staurohr
Das testo 506 (0 ... 10/200 hPa/mbar) verfügt über
eine automatische Messbereichsumschaltung.
Das Gerät startet im oberen Messbereich und schaltet
automatisch nach 2 s in den unteren Messbereich
um.
Wird der Druck von 10 hPa/mbar überschritten, wech-
selt das Gerät automatisch in den höheren Bereich
(Auflösung 0,01 hPa/mbar ¿0,1 hPa/mbar).
Messbereichsumschaltung testo 506
<1 s
>5 s
2 s
2 s
usw.
+
+
testo 506
Bedienungsanleitung
Alle Drücke im positiven Bereich können auch im negativen Bereich ge-
messen werden (Beispiel: Bei Messbereich 0 ... 200 hPa/mbar kann das
Gerät auch Unterdruck 0 ... -200 hPa/mbar messen).Auf richtigen An-
schluss achten (Überdruck +, Unterdruck -)!
testo 506 nullt automatisch beim Einschalten.
testo 506 schaltet nach 16 min automatisch aus (Auto-off Funktion).

All pressures in the positive range can also be measured in the negative
range (Example: In the measuring range 0 to 200 hPa/mbar, the
instrument can also measure negative pressure 0 to -200 hPa/mbar).
Ensure connection is correct (positive pressure +, negative pressure -)!
testo 506 zeroises automatically when switched on.
testo 506 switches off automatically after 16 min (Auto Off function).
According to the conformity certificate, this product
fulfills the guidelines in accordance with 89/336/EEC.
testo 506
Instructions
Please read the following safety instructions with care:
Avoid electrical hazards:
Never make measurements with the instruments on or near live
components.
Preserve product safety:
Operate the instrument only within the parameters specified in the
technical data.
Handle the instrument suitably and according to its intended purpose.
Open the instrument only when this is expressly described in the
Instructions for maintenance purposes.
Never apply force.
Ensure correct disposal:
Dispose of empty batteries at the provided collection points.
Send the unit directly to us at the end of its life cycle. We will ensure
that it is disposed of in an environmentally friendly manner.
Important information
Notes and special cases in the handling of your unit are indicated by an
exclamation mark.
Due to technical reasons, the display speed of the liquid crystal
displays slow down at temperatures below 0 °C (approx. 2 s at -10 °C,
approx. 6 s at -20 °C). Measuring accuracy is not affected.
Basic safety instructions
Warranty
Use of the unit for its intended purpose Operation Operation
The battery-operated testo 506 is used to measure the positive or
negative pressure and differential pressure in gases (See Ordering data for
measuring ranges). testo 506 (0 to 500 Pa) is also used, together with a
Pitot tube, to measure air flow.
Its robustness and easy handling make it suitable for customer service and
maintenance work on heating, ventilation and air conditioning units. - Connect hoses to testo 506.
- Switch on testo 506 using
On
button.
- Segment test is carried out.
Note
Not all segments are available in all of the instrument
versions.
- Automatic initialisation is carried out.
- Measuring mode
- Press
On
button again to zeroise.
- Connect hoses to pressure system
- Measure
- Press
On
button > 5 s and instrument switches off.
Measuring range has been exceeded
Note
Pressure which is greater than the specified overload
will destroy the sensors.
Suspension
On Button
Display
Readings
Parameters Battery
compartment
(at rear)
Positive
pressure
Negative
pressure
Battery
capacity
Battery capacity
Symbol
10 - 100%
<10 % (remaining duration: approx. 15 h)
Capacity
It is necessary to change the battery if the symbol appears in the
display.
-Open housing using a screwdriver.
-Remove spent batteries from battery compartment.
-Place new battery (2 off) in the battery compart-
ment. Insert correctly (+/-)!
-Check air density and reset if necessary
(at 0 to 500Pa; standard 1.199 kg/m3)
-Close battery cover.
-testo 506 is ready for use.
Changing the battery
Pitot tube (300 mm long, Ø 4 mm, stainless steel max. 600 °C) ........0635.2245
Pitot tube (350 mm long, Ø 7 mm, stainless steel, max. 600 °C) ......0635.2145
Pitot tube (500 mm long, Ø 7 mm, stainless steel, max. 600 °C) ......0635.2045
Pitot tube (1000 mm long, Ø 7 mm, stainless steel, max. 600 °C) ....0635.2345
Connection hose (5 m long, silicone, max. 700 hPa)......................0554.0440
ISO calibration cert. (press., 3 points distributed in meas. range)............0520.0095
ISO calibration cert. (press., 5 points distributed in meas. range)............0520.0005
Spare battery ..........................................................................0515.0028
Accessories/Spare parts
Technical data
Common data
Units/Pressure ............................hPa/mbar, mmH2O, mmHg, psi, inH2O
Substances ................................................Air or all non-corrosive gases
Pressure connection ............................................4/6 mm inner diameter
Display ....................................................................................LCD, 1 line
Storage temperature ..........................................................-20 to +70 °C
Operating temperature ............................................................0 to 40 °C
Battery type..................................................2 x 3V button cell (CR 2032)
Battery life..........................................................................Approx. 150 h
Auto Off..........................................................................................16 min
Dimensions in mm ................................................................86 x 48 x 24
Weight................................................................................................55 g
testo 506 (0 to 500 Pa/2 IWC)
Measuring range ................................................0 to 500 Pa; 0 to 2 IWC
Accuracy* ..................................................................................± 2.5 Pa
Resolution ............................................1 Pa; 0,1 mmH2O; 0.001 in H2O;
................................................................................0.01 mmHg;0.001 psi
Measuring range/Velocity ........................................27 m/s; 5315 ft/min
Resolution/Velocity ......................................................0.01 m/s; 1 ft/min
Overload........................................................................................4 times
testo 506 (0 to 200 hPa/80 IWC)
Measuring range ............................0 to 10 hPa/mbar; 0 to 4 IWC (low)
....................................................10 to 200 hPa/mbar; 4 to 80 IWC (high)
Accuracy* ........................................± 0.03 hPa /mbar (0 to 1 hPa/mbar)
..............................................±1.5% of full-scale value (1 to 10 hPa/mbar)
..................±(1 hPa /mbar+ 1% of measured value) (10 to 200 hPa/mbar)
Resolution
Low: ..0.01 hPa/mbar; 0.1 mmH2O; 0.001 inH2O; 0.01 mmHg; 0.001 psi
High: ............0.1 hPa/mbar; 1 mmH2O; 0.01 inH2O; 0.1 mmHg; 0.01 psi
Overload ....................................................................................1.5 times
* at rated temperature of +22 °C
Warranty........................................................................................2 years
Measuring
If there is a change in temperature, the instrument
needs 30 minutes to adapt to the new ambient
temperature.
Operation
- Keep
On
button pressed when switching on.
- The unit last set flashes in the display.
- Let go of
On
button.
- Keep pressing
On
until the required unit appears in
the display.
- Let go of
On
button.
- Instrument will start with new unit.
- Keep
On
button pressed when switching on the
instrument.
- The unit last set flashes in the display.
- Let go of
On
button.
- Keep pressing
On
until the
m/s (ft/min)
unit appears.
- The value 1.199 for rho in kg/m3(factory setting) is
shown in the display.
- 1st position flashes
- Keep pressing
On
until required digit is reached.
- Wait 2 s; value is set;
cursor changes to the next position.
- 2nd position flashes.
- Keep
On
button pressed until required digit is
reached.
- Wait 2 s; value is set;
cursor changes to next position.
- Continue to do the same for positions 3 and 4
NOTE
This value can be selected between 0.400 (min value)
and 1.599 (max. value).
The set values are retained when testo 506 (0 to 500
Pa) is switched on or off.
Switching units
Measuring air flow using testo 506
(0 to 500 Pa) and a Pitot tube
testo 506 (0 to 10/200 hPa/mbar) has an automatic
measuring range switchover function.
The instrument starts in the top measuring range and
switches automatically to the lower measuring range
after 2 s.
If a pressure of 10 hPa/mbar is exceeded, the
instrument changes automatically to the higher range
(resolution: 0.01 hPa/mbar ¿0.1 hPa/mbar).
Switching measuring ranges in testo 506
<1 s
>5 s
2 s
2 s
etc.
+
+

En accord avec le certificat de conformité,
ce produit répond aux éxigences de la norme
européenne 89/336/EEC.
testo 506
Mode d’emploi
0973.5060/02/T/wh/19.10.2005
Lire attentivement les informations de sécurité suivantes :
Eviter les risques de chocs électriques
Ne jamais mesurer des éléments sous tension.
Préserver la sécurité de l’appareil
Utiliser l’appareil seulement dans les paramètres spécifiés dans les
caractéristiques techniques.
Utiliser l’appareil correctement et toujours dans le cadre des
applications prévues.
N’ouvrir l’appareil que dans les cas décrits dans le mode d’emploi et
uniquement à des fins de maintenance.
Ne jamais forcer l’appareil.
Recyclage:
Jeter les piles vides dans les points de collectes prévus à cet effet.
Renvoyer l’appareil en fin de vie, chez Testo, qui lui assurera un
traitement respectant vers l’environnement.
Informations importantes
Les précautions spéciales pour le maniement de l’appareil sont
indiquées par un point d’exclamation.
Pour des raisons techniques, la vitesse d’affichage est ralentie lorsque
la température passe en dessous de 0 °C (approx. 2 s à -10 °C,
approx. 6 s à -20 °C).
La précision de la mesure reste, quand à elle, optimale.
Informations générales de sécurité
Garantie
Applications d’utilisation de l’appareil Utilisation Utilisation
Le testo 506 a pour but de mesurer la pression positive, négative et
différentielle. (Voir Réf. de commande pour les étendues de mesures). Le
testo 506 (0 à 500 Pa) associé à un tube de Pitot peut également
mesurer une vitesse d’air.
Sa robustesse et sa maniabilité conviennent au travail de maintenance sur
chaudières, en ventilation ainsi qu’en traitement d’air.
Toutes les pressions dans les étendues de mesure positives peuvent être
également mesurées dans les étendues négatives. (Ex.: dans l’étendue de
0 à 200 hPa/mbar, l’appareil peut également mesurer une pression
négative de 0 à -200 hPa/mbar). S’assurer que la connexion est bonne
(pression positive +, pression négative -)!
Remise à zéro à chaque mise en route.
Le testo 506 s’éteint automatiquement après 16mn de non
fonctionnement (Fonction Auto Off).
- Connecter les tuyauteries au testo 506.
- Allumer le testo 506 en appuyant longuement sur le
bouton
On
.
- Test segment effectué.
Note
Tous les segments ne sont pas disponibles selon la
version de l’appareil.
- Initialisation automatique effectuée.
- Mode mesure.
- Appuyer sur le bouton
On
pour initialiser.
- Connecter les câbles au système de pression.
- Mesure.
- Appuyer sur le bouton
On
> 5 s et l’appareil s’éteint.
L’étendue de mesure a été dépassée.
Note
Une trop haute pression peut endommager voir
détruire les capteurs.
Anse de
suspension
Bouton “ON”
Affichage
Valeurs
Unités Compartiment
piles
(à l’arrière)
Pression
positive
Pression
négative
Autonomie
piles
Autonomie des piles
Symboles
10 - 100%
<10 % (il reste environ 15h d’autonomie)
Capacité
Quand le symbole apparaît à l’écran, il est nécessaire de changer
les piles.
- Ouvrir le boîtier à l’aide d’un tournevis.
- Retirer les piles vides du compartiment.
- Replacer des piles neuves (2 pièces) en veillant à la
polarité (+/-)!
- Vérifier la densité et éventuellemnt l’ajuster
(version 0...500Pa; d’origine à1.199 kg/m3)
- Fermer le couvercle.
- Le testo 506 est de nouveau prêt à fonctionner.
Remplacement des piles
Tube de Pitot (300 mm long, Ø 4 mm, acier inoxydable max. 600 °C) ....0635.2245
Tube de Pitot (350 mm long, Ø 7 mm, acier inoxydable, max. 600 °C)....0635.2145
Tube de Pitot (500 mm long, Ø 7 mm, acier inoxydable, max. 600 °C)....0635.2045
Tube de Pitot (1000 mm long, Ø 7 mm, acier inoxydable, max. 600 °C) ....0635.2345
Câble de connexion (5 m long, silicone, max. 700 hPa) ......................0554.0440
Cert. étalonnage ISO (pression, 3 points) ............................................0520.0095
Cert. étalonnage ISO (pression, 5 points )............................................0520.0005
Pile de rechange ....................................................................0515.0028
Accessoires/Pièces détachées
Caractéristiques techniques
Caractéristiques communes
Unités/Pression ........................hPa/mbar, mmH2O, mmHg, psi, en H2O
Milieu à mesurer ..................................................Air ou gaz non corrosif
Raccordement ........................................................4/6 mm diam. interne
Affichage ..............................................................................LCD, 1 ligne
Température de stockage ..................................................-20 à +70 °C
Température d’utilisation ..........................................................0 à 40 °C
Type piles ......................................................................2 x 3V (CR 2032)
Autonomie..........................................................................Approx. 150 h
Fonction Auto Off ..........................................................................16 min
Dimensions en mm ..............................................................86 x 48 x 24
Poids..................................................................................................55 g
testo 506 (0 à 500 Pa)
Etendue de mesure ..............................................................0 à 500 Pa
Précision* ..................................................................................± 2.5 Pa
Résolution ............................................1 Pa; 0,1 mmH2O; 0.001 in H2O;
................................................................................0.01 mmHg;0.001 psi
Etendue de mesure/Vitesse ....................................27 m/s; 5315 ft/min
Résolution/Vitesse ......................................................0.01 m/s; 1 ft/min
Surcharge ........................................................................................4 fois
testo 506 (0 à 10/200 hPa/mbar)
Etendue de mesure ........................................0 à 10 hPa/mbar (basse)
........................................................................10 à 200 hPa/mbar (haute)
Précision* ........................................± 0.03 hPa /mbar (0 à 1 hPa/mbar)
..................................................±1.5% à échelle pleine (1 à10 hPa/mbar)
..............±(1 hPa /mbar+ 1% des valeurs mesurées) (10 à 200 hPa/mbar)
Résolution
Basse : ..0.01 hPa/mbar; 0.1 mmH2O; 0.001 inH2O; 0.01 mmHg; 0.001 psi
Haute :..........0.1 hPa/mbar; 1 mmH2O; 0.01 inH2O; 0.1 mmHg; 0.01 psi
Surcharge......................................................................................1.5 fois
* à +22 °C
Garantie............................................................................................2 ans
Mesures
En cas de variation de température, l’appareil
nécessite un temps d’adaptation à la nouvelle
température ambiante de 30mn.
Utilisation
- Laisser le doigt appuyé sur le bouton
On
pour allumer
l’appareil
- Le dernier set de l’unité clignote à l’écran.
- Relâcher le bouton
On
.
- Appuyer sur le bouton
On
jusqu’à ce que l’unité
désirée apparaisse à l’écran.
- Relâcher le bouton
On
.
- L’appareil fonctionne alors avec l’unité sélectionnée.
- Allumer le testo 506 en appuyant longuement sur le
bouton
On
.
- Le dernier set de l’unité clignote à l’écran.
- Relâcher le bouton
On
.
- Appuyer sur
On
jusqu’à ce que l’unité
m/s (ft/min)
apparaisse.
- La valeur 1.199 pour rho en kg/m3(Réglage usine)
apparaît à l’écran.
- Le premier chiffre clignote.
- Appuyer sur on
On
jusqu’à avoir atteint le chiffre
désiré.
- Attendre 2 s; La valeur se règle;
le curseur se déplace vers le deuxième chiffre.
- Le deuxième chiffre clignote.
- Appuyer sur on
On
jusqu’à avoir atteint le chiffre
désiré.
- Attendre 2 s; La valeur se règle;
le curseur se déplace vers le troisième chiffre.
- Faire la même opération pour le troisième et le
quatrième chiffre.
NOTE
Cette valeur peut être sélectionnée entre 0.400 (Valeur
min.) et 1.599 (Valeur max.).
Les réglages sont conservés quand le testo 506
(0 à 500 Pa) est éteint.
Fonction d’allumage et d’extinction
Mesure de vitresse d’air avec testo 506
(0 à 500 Pa) et un tube de Pitot.
testo 506 (0 à 10/200 hPa/mbar) possède une fonction
de sélection automatique de l’étendue de mesure.
L’appareil commence par l’étendue de mesure la plus
haute et permute avec l’étendue de mesure la plus
basse après 2 secondes.
Si on excède 10 hPa/mbar de pression, l’appareil se
rend automatiquement à l’étendue de mesure
supérieure. (résolution: 0.01 hPa/mbar ¿0.1 hPa/mbar).
Changer l’étendue de mesure sur le testo 506
<1 s
>5 s
2 s
2 s
etc.
+
+

El certificado de conformidad confirma
que este producto cumple las directrices
de acuerdo con 89/336/EEC.
testo 506
Instrucciones
Por favor, lea atentamente las siguientes instrucciones de seguridad:
Evitar electricidad:
No utilizar nunca el instrumento para medir en o cerca de partes con
carga eléctrica.
Seguridad del producto:
El instrumento sólo puede utilizarse dentro del rango de parámetros
especificado en los datos técnicos.
Por favor, manipule con cuidado el instrumento.
El instrumento sólo puede abrirse si así está explicitamente descrito en
el manual de instrucciones para su mantenimiento.
No debe forzarse nunca.
Eliminación:
Por favor, deposite las pilas agotadas en los contenedores adecuados.
Envíenos el logger cuando ya no quiera utilizarlo más. Nosotros nos
encargaremos de su eliminación.
Información importante
El signo de exclamación indica las notas y los casos especiales de
manejo del instrumento.
Por motivos técnicos, la velocidad del visualizador de cristal líquido
disminuye cuando las temperaturas son inferiores a 0 °C (aprox. 2 s a
-10 °C, aprox. 6 s a -20 °C). No afecta a la exactitud de la
medición.
Instrucciones básicas de seguridad
Garantía
Utilización del instrumento para su finalidad Funcionamiento Funcionamiento
El testo 506 se utiliza para medir presión positiva o negativa y presión
diferencial en gases (Ver datos de pedido para los rangos de medición). El
testo 506 (0 a 500 Pa) también sirve para medir la velocidad del aire con
un tubo Pitot.
Gracias a su resistencia y fácil manejo, es ideal para mantenimiento y
reparación de máquinas de calefacción, ventilación y aire acondicionado.
Todas las presiones en el rango postivo también pueden medirse en el
rango negativo (ejemplo: en el rango 0 a 200 hPa/mbar, el instrumento
también puede medir presión negativa 0 a -200 hPa/mbar). Compruebe que la
conexión es correcta (presión positiva +, presión negativa -)!
El testo 506 se ajusta automáticamente a cero cuando se conecta.
El testo 506 se desconecta automáticamente después de 16 min (función
Auto Off).
- Conectar los tubos al testo 506.
- Poner en funcionamiento el testo 506 con la tecla
On
.
- Se realiza un test de segmentos.
Nota
No todos los segmentos están disponibles en todas
las versiones del instrumento.
- Inicialización automática.
- Modo medición.
- Presionar
On
de nuevo para hacer el cero.
- Conectar los tubos a presión.
- Medir
- Presionar
On
> 5 s para desconectar el instrumento.
Se ha superado el rango
Nota
Si la presión es mayor que la sobrepresión
especificada, se destruirán los sensores.
Fijación
Tecla On
Visualizador
Lecturas
Parámetros Departamento
de pilas
(detrás)
Presión
positiva
Presión
negativa
Capacidad
de la pila
Capacidad de la pila
Símbolo
10 - 100%
<10 % (duración restante: aprox. 15 h)
Capacidad
Es necesario cambiar la pila cuando aparece el símbolo en el
visualizador.
- Abrir el departamento con un destornillador.
- Sacar las pilas agotadas de su departamento.
- Colocar las pilas nuevas (2 unid.) en su lugar.
¡Verificar la polaridad (+/-)!
- Chequear la densidad del aire y si es necesario
resetear (a 0 a 500Pa; estándard 1.199 kg/m3)
- Cerrar el departamento.
- El testo 506 ya está listo para su uso.
Cambio de pila
Tubo Pitot (300 mm long, Ø 4 mm, acero inox. max. 600 °C) ..........0635.2245
Tubo Pitot (350 mm long, Ø 7 mm, acero inoxl, max. 600 °C) ..........0635.2145
Tubo Pitot (500 mm long, Ø 7 mm, acero inox, max. 600 °C) ..........0635.2045
Tubo Pitot (1000 mm long, Ø 7 mm, acero inox, max. 600 °C) ........0635.2345
Tubo de conexión (5 m long, silicona, max. 700 hPa) ....................0554.0440
Cert. calibración ISO (pres., 3 puntos distribuidos en el rango med.) ......0520.0095
Cert. calibración ISO (pres., 5 puntos distribuidos en el rango med.) ......0520.0005
Repuesto pila ..........................................................................0515.0028
Accesorios/Repuestos
Datos técnicos
Datos comunes
Unidades/Presión ......................hPa/mbar, mmH2O, mmHg, psi, inH2O
Media ..............................................Aire o todos los gases no corrosivos
Conexión presión ..............................................4/6 mm diámetro interno
Visualizador ..........................................................................LCD, 1 línea
Temperatura almacenamiento ............................................-20 a +70 °C
Temperatura funcionamiento ..................................................0 a 40 °C
Tipo de pila ..................................................2 x 3V pila botón (CR 2032)
Vida de la pila ......................................................................Aprox. 150 h
Dimensiones en mm ............................................................86 x 48 x 24
Peso ..................................................................................................55 g
testo 506 (0 a 500 Pa)
Rango ....................................................................................0 a 500 Pa
Exactitud* ..................................................................................± 2.5 Pa
Resolución ........................................1 Pa; 0,1 mmH2O; 0.001 en H2O;
................................................................................0.01 mmHg;0.001 psi
Rango/Velocidad ......................................................27 m/s; 5315 ft/min
Resolución /Velocidad ................................................0.01 m/s; 1 ft/min
Sobrepresión................................................................................4 veces
testo 506 (0 a 10/200 hPa/mbar)
Rango ..................................................................0 a 10 hPa/mbar (baja)
..........................................................................10 a 200 hPa/mbar (alta)
Exactitud* ........................................± 0.03 hPa /mbar (0 a 1 hPa/mbar)
..........................................±1.5% del fondo de escala (1 a 10 hPa/mbar)
......................±(1 hPa /mbar+ 1% del valor medido) (10 a 200 hPa/mbar)
Resolución
Baja: 0.01 hPa/mbar; 0.1 mmH2O; 0.001 enH2O; 0.01 mmHg; 0.001 psi
Alta: ............0.1 hPa/mbar; 1 mmH2O; 0.01 enH2O; 0.1 mmHg; 0.01 psi
Sobrepresión ............................................................................1.5 veces
* a temperatura de referencia + 22 °C
Garantía..........................................................................................2 años
Medición
Si la temperatura varía, el instrumento necesita 30
minutos para adaptarse a la nueva temperatura
ambiente.
Funcionamiento
- Mantener presionada la tecla
On
cuando se pone en
funcionamiento el instrumento.
- La última unidad seleccionada parpadea en el
visualizador.
- Dejar de presionar la tecla
On
.
- Mantener presionada la tecla
On
hasta que aparezca
la unidad deseada en el visualizador.
- Dejar de presionar la tecla
On
.
- El instrumento se iniciará con la nueva unidad.
- Mantener presionada la tecla
On
cuando se pone en
funcionamiento el instrumento.
- La última unidad seleccionada parpadea en el
visualizador.
- Dejar de presionar la tecla
On
.
Mantener presionada la tecla
On
hasta que aparezca
la unidad
m/s (ft/min)
.
- Aparece en el visualizador el valor 1.199 para
densidad en kg/m3(ajuste de fábrica).
- Parpadea la primera posición.
- Mantener presionada la tecla
On
hasta que aparezca
el número deseado.
- Esperar 2 s; se ajusta el valor;
el cursor cambia a la siguiente posición.
- Parpadea la segunda posición.
- Mantener presionada la tecla
On
hasta que aparezca
el número deseado.
- Esperar 2 s; se ajusta el valor;
el cursor cambia a la siguiente posición.
- Hacer lo mismo para las posiciones 3 y 4
NOTA
Este valor puede seleccionarse entre 0,400 (valor min) y
1,599 (valor max.).
Los valores ajustados se conservan cuando el testo 506
(0 a 500 Pa) se conecta o apaga.
Cambio de unidades
Medición de velocidad de aire con el testo 506
(0 a 500 Pa) y un tubo Pitot
El testo 506 (0 a 10/200 hPa/mbar) tiene una función
de cambio automático del rango de medición.
El instrumento comienza con el rango superior y cambia
automáticamente al rango inferior después de 2 s.
Si se excede la presión de 10 hPa/mbar, el instrumento
cambia automáticamente al rango superior (resolución:
0.01 hPa/mbar ¿0.1 hPa/mbar).
Cambio de rango en el testo 506
<1 s
>5 s
2 s
2 s
etc.
+
+

La pressione nel campo positivo può essere misurata anche nel campo
negativo (Esempio: Nel campo di misura da 0 a 200 hPa/mbar, lo
strumento può misurare anche la pressione negativa da 0 a -200
hPa/mbar). Assicurarsi che il collegamento sia corretto (pressione positiva
+, pressione negativa -)!
testo 506 si azzera automaticamente al momento dell’accensione.
testo 506 si spegne automatic. dopo 16 min. (Funzione Auto Off ).
Il certificato di conformità attesta che questo
prodotto rispetta interamente i requisiti della
normativa 89/336/EEC.
testo 506
Manuale di istruzioni
0973.5060/02/T/wh/19.10.2005
Prima di utilizzare lo strumento, leggere attentamente le seguenti istruzioni:
Pericolo di scosse elettriche:
Non effettuare misure in prossimità di componenti sotto tensione.
Preservare la sicurezza del prodotto:
Utilizzare lo strumento rispettando i parametri riportati nei dati tecnici.
Maneggiare lo strumento con cura, effettuando solo le misure previste
alla voce “Utilizzo dello strumento di misura”.
Aprire lo strumento solo nei casi espressamente specificati all’interno di
questo Manuale.
Evitare di forzare lo strumento.
Istruzioni per un corretto smaltimento:
Collocare le batterie scariche negli appositi contenitori di raccolta.
Quando non utilizzerete più lo strumento, non gettatelo via! Rispeditelo
alla Testo, provvederemo noi allo smaltimento.
Informazioni importanti
Note e specifiche riguardanti l’utilizzo dello strumento di misura sono
indicate da un punto esclamativo.
Per motivi di carattere tecnico, la velocità di visualizzazione del display
a cristalli liquidi diminuisce quando la temperatura è inferiore a 0 °C
(circa 2 s a -10 °C, circa 6 s a -20 °C). Questo fenomeno non ha
nessuna ripercussione sulla precisione di misura.
Istruzioni per un uso sicuro
Garanzia
Utilizzo dello strumento di misura Funzionamento Funzionamento
testo 506, con funzionamento a batterie, è ideale per misurare la pressione
positiva o negativa e la pressione differenziale nei gas (V. “Dati per l’ordine”
alle voci “Campo di misura”). testo 506 (da 0 a 500 Pa) è anche adatto,
abbinato a un tubo di Pitot, alla misura della portata d’aria.
La robustezza e la facilità d’uso lo rendono lo strumento ideale per la
manutenzione di impianti di riscaldamento, ventilazione e condizionamento. - Collegare i tubetti flessibili al testo 506.
- Accendere il testo 506 premendo il tasto
On
.
- Viene effettuata la verifica dei segmenti.
Nota
Non tutti i segmenti sono disponibili nelle varie versioni
dello strumento.
- Viene effettuata l’inizializzazione automatica.
- Modalità di misura
- Ripremere il tasto
On
per azzerare.
- Collegare i tubetti flessibili per effettuare la misura.
- Misura
- Per spegnere lo strumento premere il tasto
On
> 5 s.
Il campo di misura è stato superato
Nota
Una pressione maggiore al sovraccarico specificato
distruggerà i sensori.
Asola di
fissaggio
Tasto On
Display
Letture
Unità di
misura Vano batteria
(sul retro)
Pressione
positiva
Pressione
negativa
Capacità
batteria
Capacità della batteria
Simbolo
10 - 100%
<10 % (durata residua: circa 15 h)
Capacità
Quando il simbolo appare sul display, è necessario sostituire la batteria,
seguendo le seguenti istruzioni:
-Aprire il vano batterie con l’aiuto di un cacciavite.
-Rimuovere le batterie scariche.
-Posizionare in modo corretto (+/-) le nuove batterie (
2 pz.
)
-
Controllare la densità dell’aria e reimpostare se necessario
(da 0 a 500Pa; standard1,199 kg/m3)
-Richiudere.
-testo 506 è pronto per essere utilizzato.
Sostituzione della batteria
Tubo di Pitot (lungo 300 mm, Ø 4 mm, acciaio inox max. 600 °C) ....0635.2245
Tubo di Pitot (lungo 350 mm, Ø 7 mm, acciaio inox, max. 600 °C) ..0635.2145
Tubo di Pitot (lungo 500 mm, Ø 7 mm, acciaio inox, max. 600 °C) ..0635.2045
Tubo di Pitot (lungo 1000 mm, Ø 7 mm, acciaio inox, max. 600 °C) ..0635.2345
Tubo di collegamento (lungo 5 m, silicone, max. 700 hPa) ............0554.0440
Cert. di taratura ISO (press., 3 punti distribuiti nel campo di misura) ........0520.0095
Cert. di taratura ISO (press., 5 punti distribuiti nel campo di misura) ........0520.0005
Batteria di ricambio ................................................................0515.0028
Accessori/Pezzi di ricambio
Dati tecnici
Dati comuni
Unità/Pressione ..........................hPa/mbar, mmH2O, mmHg, psi, inH2O
Sostanze ..............................................Aria o qualsiasi gas non corrosivo
Collegamento pressione ..................................4/6 mm diametro interno
Display ..................................................................................LCD, 1 linea
Temperatura di stoccaggio ............................................da -20 a +70 °C
Temperatura di lavoro..........................................................da 0 a 40 °C
Tipo di batteria ................................................2 x 3V rotonda (CR 2032)
Durata batteria ......................................................................Circa 150 h
Autospegnimento ..........................................................................16 min
Dimensioni in mm ................................................................86 x 48 x 24
Peso ..................................................................................................55 g
testo 506 (da 0 a 500 Pa)
Campo di misura ..............................................................da 0 a 500 Pa
Precisione* ................................................................................± 2,5 Pa
Risoluzione ..........................................1 Pa; 0,1 mmH2O; 0,001 in H2O;
................................................................................0,01 mmHg;0,001 psi
Campo di misura/Velocità ......................................27 m/s; 5315 ft/min
Risoluzione/Velocità ....................................................0,01 m/s; 1 ft/min
Sovraccarico ..................................................................................4 volte
testo 506 (da 0 a 10/200 hPa/mbar)
Campo di misura ........................................da 0 a 10 hPa/mbar (basso)
......................................................................da 10 a 200 hPa/mbar (alto)
Precisione* ..................................± 0,03 hPa /mbar (da 0 a 1 hPa/mbar)
..............................±1,5% del valore di fondo scala (da 1 a 10 hPa/mbar)
..............................±(1 hPa /mbar+ 1% del v.m.) (da 10 a 200 hPa/mbar)
Risoluzione
Bassa: 0,01 hPa/mbar; 0,1 mmH2O; 0,001 inH2O; 0,01 mmHg; 0,001 psi
Alta: ..............0,1 hPa/mbar; 1 mmH2O; 0,01 inH2O; 0,1 mmHg; 0,01 psi
Sovraccarico ..............................................................................1,5 volte
* a una temperatura nominale di +22 °C
Garanzia ..........................................................................................2 anni
Come effettuare una misura
Qualora si verifichino variazioni di temperatura, lo
strumento impiegherà 30 minuti per adattarsi alla
nuova temperatura di lavoro.
Funzionamento
- All’accensione dello strumento, tenere premuto il tasto
On
.
- L’ultima unità impostata lampeggia sul display.
- Rilasciare il tasto
On
.
- Tenere premuto il tasto
On
finché sul display non
apparirà l’unità desiderata.
- Rilasciare il tasto
On
.
- Lo strumento inizierà a misurare con la nuova unità.
- All’accensione dello strumento, tenere premuto il tasto
On
.
- L’ultima unità impostata lampeggia sul display.
- Rilasciare il tasto
On
.
- Tenere premuto il tasto
On
finché sul display non
apparirà l’unità
m/s (ft/min)
.
- Sul display verrà visualizzato il valore 1.199 per rho in
kg/m3(impostazione di fabbrica).
- La 1a posizione lampeggia
- Tenere premuto il tasto
On
finché non sarà raggiunta
la cifra desiderata.
- Attendere 2 s; il valore è ora impostato;
il cursore passa alla posizione successiva.
- La 2a posizione lampeggia.
- Tenere premuto il tasto
On
finché non sarà raggiunta
la cifra desiderata.
- Attendere 2 s; il valore è ora impostato;
il cursore passa alla posizione successiva.
- Ripetere la stessa operazione per le posizioni 3 e 4
NOTA
Tale valore può essere selezionato tra 0.400 (valore
minimo) e 1.599 (valore massimo).
Al momento dell’accensione o dello spegnimento del
testo 506 (da 0 a 500 Pa) i valori impostati restano
memorizzati.
Come cambiare unità
Misura della portata d’aria con il testo 506
(da 0 a 500 Pa) e un tubo di Pitot
testo 506 (da 0 a 10/200 hPa/mbar) dispone di una
funzione di commutazione automatica del campo di
misura.
Lo strumento comincia col campo di misura massimo
per poi passare a quello minimo dopo 2 secondi.
Quando viene superata una pressione di 10 hPa/mbar,
lo strumento passa automaticamente al campo max.
(risoluzione: 0,01 hPa/mbar ¿0,1 hPa/mbar).
Come cambiare campo di misura nel testo 506
<1 s
>5 s
2 s
2 s
ecc.
+
+

De acordo com o certificado de conformidade,
o instrumento cumpre a norma 89/336/EEC.
Funcionamento Funcionamento
- Ligar os tubos ao testo 506.
- Ligar o testo 506 com a tecla
On
.
- Realiza-se um teste de segmentos.
Nota
Nem todos os segmentos estão disponíveis em todas
as versões do instrumento.
- Inicio automático.
- Modo de medição
- Pressionar a tecla
On
novamente para ajustar a zero.
- Ligar os tubos ao sistema de pressão.
- Medir
- Pressionar a tecla
On
para desligar o instrumento.
Excedeu a gama de medição
Nota
Uma pressão maior que a sobrecarga especificada
destruirá os sensores.
Medição
No caso de alteração da temperatura, o instrumento
precisa 30 minutos para se adaptar à nova
temperatura ambiente.
Funcionamento
- Pressionar a tecla
On
quando ligar o instrumento.
- A última unidade seleccionada cintila no visor.
- Deixar de pressionar a tecla
On
.
- Pressionar
On
até ver a unidade requerida no visor.
- Deixar de pressionar a tecla
On
.
- O instrumento começará com a nova unidade.
- Pressionar
On
ao mesmo tempo que liga o
instrumento.
- A última unidade seleccionada cintila no visor.
- Deixar de pressionar a tecla
On
.
- Pressionar
On
até ver a unidade
m/s (ft/min)
.
- Amostra-se no visor 1.199 para rho em kg/m3(ajuste
de fábrica).
- Cintila a primeira posição.
- Pressionar
On
até alcançãr o digito requerido.
- Esperar 2 s; estabelecer o valor;
o cursor muda à seguinte posição.
- Cintila a segunda posição.
- Pressionar
On
até alcançãr o digito requerido.
- Esperar 2 s; estabelecer o valor;
o cursor muda à seguinte posição.
- Seguir os mesmos passos para as posições 3 e 4
NOTA
Pode seleccionar este valor entre 0,400 (valor min) e
1,599 (valor max.).
Os valores estabelecidos mantêm-se mesmo com o
testo 506 (0 a 500 Pa) ligado ou desligado.
Alterar as unidades de medida
Medir o caudal de ar com o testo 506
(0 a 500 Pa) e um tubo Pitot
O testo 506 (0 a 10/200 hPa/mbar) possui uma função
de desligar automático da gama de medição.
O instrumento inicia-se na gama de medição máxima e
muda automâticamente a uma gama de medição inferior
após 2 s.
No caso de exceder a pressão de 10 hPa/mbar, o
instrumento muda automaticamente a uma gama
superior (resolução: 0.01 hPa/mbar ¿0.1 hPa/mbar).
Mudar a gama de medição no testo 506
<1 s
>5 s
2 s
2 s
etc.
testo 506
Instruções
Por favor, leia atentamente as instruções de segurança:
Evite perigos eléctricos:
Não usar o instrumento num meio explosivo.
Preserve a segurança do produto:
Respeitar os parâmetros especificados nos dados técnicos.
Utilizar o instrumento adequadamente e para a sua finalidade.
Abrir o instrumento só se estiver específicamente indicado no manual
de instruções.
Não forçar o instrumento.
Para uma eliminação correcta:
Deposite as pilhas gastas nos pontos de recolha aconselhados.
Envie-nos directamente o instrumento uma vez finalizado o seu uso.
Nós o eliminaremos de um modo não agresivo para o meio ambiente.
Informação importante
As advertências e os casos especiais de utilização do instrumento
indicam-se com uma exclamação.
Devido a motivos técnicos, com temperaturas inferiores a 0 °C, a
velocidade do cristal líquido do visor reduz-se (aprox. 2 s a -10 °C,
aprox. 6 s a -20 °C). Não afecta a precisão da medição.
Instruções básicas de segurança
Garantia
Utilização do instrumento e sua finalidade
O testo 506 emprega-se para medir pressão positiva ou negativa e
pressão diferencial em gases (Ver dados de encomenda para gamas de
medição). O testo 506 (0 a 500 Pa) também pode medir, com um tubo
Pitot, o caudal do ar.
Graças a sua robustez e fácil funcionamento este instrumento é adequado
para serviço de atenção ao cliente e manutenção de aquecimento,
ventilação e ar condicionado.
Todas as pressões positivas também podem medir-se na gama negativa
(Exemplo: na gama de medição de 0 a 200 hPa/mbar, o instrumento
também pode medir pressão negativa de 0 a -200 hPa/mbar). Verifique
uma ligação correcta (pressão positiva +, pressão negativa -)!
Otesto 506 ajusta-se o zero automâticamente ao ligar.
Otesto 506 desliga-se automaticamente após 16 min (função AutoOff).
Suspensão
Tecla On
Visor
Leituras
Parâmetros
Compartimento
da pilha
(posterior)
Pressão
positiva
Pressão
negativa
Capacidade
da pilha
Capacidade da pilha
Simbolo
10 - 100%
<10 % (duração restante: aprox. 15 h)
Capacidade
É necessário mudar a pilha quando aparecer o simbolo no visor.
-Abrir a caixa com uma chave de fendas.
-Retirar as pilhas gastas do compartimento de pilhas.
-Colocar as pilhas novas (2 unid) no compartimento
de pilhas. Assegure a polaridade correta (+/-)!
- Examinar densidade do ar e se é necessário
resetear (a 0 a 500Pa; padrão 1.199 kg/m3)
-Fechar o compartimento.
-O testo 506 já está pronto.
Mudar a pilha
Tubo Pitot (300 mm long, Ø 4 mm, aço inox. max. 600 °C)..............0635.2245
Tubo Pitot (350 mm long, Ø 7 mm, aço inox., max. 600 °C) ............0635.2145
Tubo Pitot (500 mm long, Ø 7 mm, aço inox., max. 600 °C) ............0635.2045
Tubo Pitot (1000 mm long, Ø 7 mm, aço inox., max. 600 °C) ..........0635.2345
Tubo de ligação (5 m long, silicone, max. 700 hPa) ......................0554.0440
Cert. de calibração ISO (press., 3 pontos distribuidos na gama med.)....0520.0095
Cert. de calibração ISO (press., 5 pontos distribuidos na gama med.)....0520.0005
Peça de reposição da pilha....................................................0515.0028
Acessórios/Reposições
Dados técnicos
Dados comuns
Unidades/Pressão ......................hPa/mbar, mmH2O, mmHg, psi, inH2O
Substâncias ..................................................Ar ou gases não corrosivos
Ligação de pressão ..........................................4/6 mm diâmetro interno
Visor ......................................................................................LCD, 1 linha
Temperatura armazenamento ............................................-20 a +70 °C
Temperatura funcionamento ....................................................0 a 40 °C
Tipo de pilha........................................................2 x 3V botão (CR 2032)
Vida da pilha ........................................................................Aprox. 150 h
Auto Off..........................................................................................16 min
Dimensões em mm ..............................................................86 x 48 x 24
Peso ..................................................................................................55 g
testo 506 (0 a 500 Pa)
Gama de medição ................................................................0 to 500 Pa
Precisão* ..................................................................................± 2.5 Pa
Resolução ............................................1 Pa; 0,1 mmH2O; 0.001 in H2O;
................................................................................0.01 mmHg;0.001 psi
Gama de medição/Velocidade ................................27 m/s; 5315 ft/min
Resolução/Velocidade ................................................0.01 m/s; 1 ft/min
Sobrecarga ..................................................................................4 vezes
testo 506 (0 a 10/200 hPa/mbar)
Gama de medição ..............................................0 a 10 hPa/mbar (low)
..........................................................................10 a 200 hPa/mbar (high)
Precisão* ..........................................± 0.03 hPa /mbar (0 a 1 hPa/mbar)
..................................±1.5% valor do fundo da escala (1 a 10 hPa/mbar)
......................±(1 hPa /mbar+ 1% do valor medido) (10 a 200 hPa/mbar)
Resolução
Baixa: 0.01 hPa/mbar; 0.1 mmH2O; 0.001 inH2O; 0.01 mmHg; 0.001 psi
Alta: ..............0.1 hPa/mbar; 1 mmH2O; 0.01 inH2O; 0.1 mmHg; 0.01 psi
Sobrecarga ................................................................................1.5 vezes
* a uma temperatura de +22 °C
Garantia..........................................................................................2 anos
+
+
Table of contents
Languages:
Other TESTO Measuring Instrument manuals
Popular Measuring Instrument manuals by other brands

Keysight Technologies
Keysight Technologies M9710A Configuration and Measurement Instructions

Spirax Sarco
Spirax Sarco MTI10 Insertion Installation and maintenance instructions

Exotek Instruments
Exotek Instruments BDD mini user manual

T3 Motion
T3 Motion MotionTrak 330 4CH user guide

Xylem
Xylem SENSUS PolluFlow quick guide

Rae
Rae DoseRAE 2 user guide
