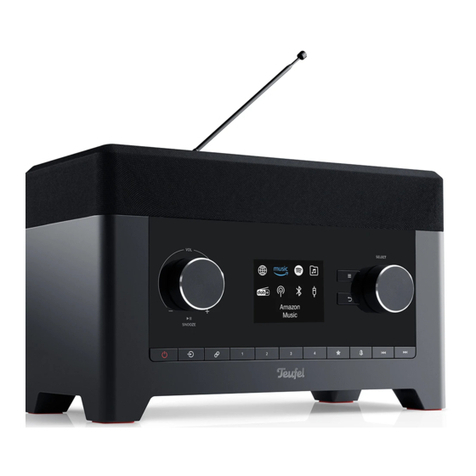

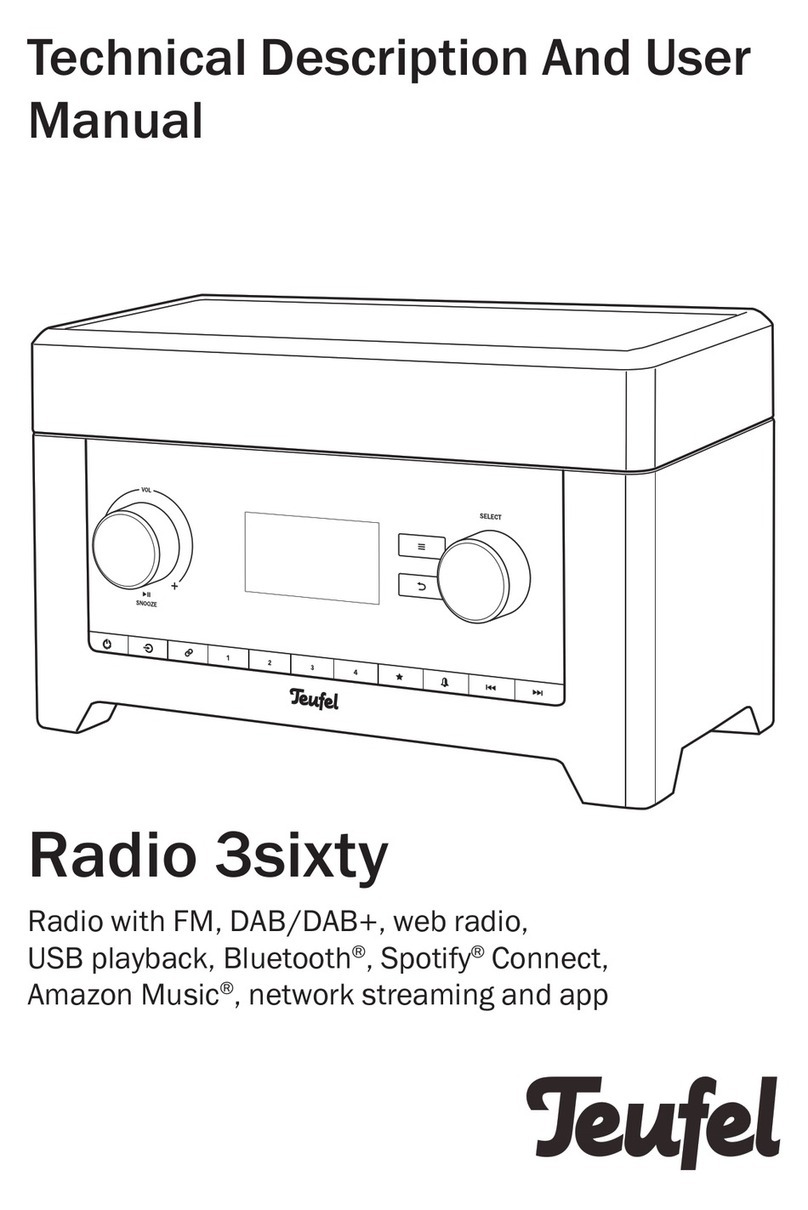

RADIO 3SIXTY
Radio with FM, DAB/DAB+, Internet radio, USB
playback, Bluetooth®, Spotify®Connect, Amazon
Music®and app
Technical Description And User
Manual

2• RADIO 3SIXTY
Contents
General Notes And Information....3
Contact .......................................... 4
For Your Safety ..............................5
Proper use ..................................... 5
Safety notes .................................. 5
Explanation of symbols ................ 8
Disposal......................................... 9
Overview ......................................10
Package contents .......................10
Operational Controls And
Connections ................................11
Remote control............................14
Set up/Connection......................16
Location tips................................ 16
Protective film .............................16
Power supply ............................... 17
Activating and deactivating ........ 17
Setup Assistant...........................18
Operation.....................................20
Selecting a source ......................20
Overview of the source
submenu .................................21
Adjusting the volume ..................22
Mute ............................................22
Sound ..........................................22
The Menu .....................................23
“Source” menu............................26
Standby timer .........................26
Alarms .....................................26
“System settings” menu............. 27
Equalizer ................................. 27
Streaming quality ................... 27
Network................................... 27
Time/Date...............................28
Language ................................28
Factory reset...........................28
Software update .....................28
Service ....................................28
Setup Assistant ......................28
Info ..........................................28
Data privacy ............................29
Backlight .................................29
The Teufel Remote App ...............30
Internet radio and podcasts.......31
Radio Mode..................................33
DAB/DAB+...................................33
FM (USW).....................................35
Saving and accessing
stations........................................36
Station buttons ...........................36
USB media player........................37
Bluetooth®Mode .........................40
Bluetooth®options......................40
Pairing..........................................40
Playback ...................................... 41
Interruption of connection.......... 42
Terminating the connection........42
Amazon Music®............................42
Spotify Connect®.........................43
AUX Input .....................................43
Care And Cleaning.......................44
Troubleshooting ..........................45
Declaration Of Conformity..........46
Technical Data.............................47

3• RADIO 3SIXTY
General Notes And Information
Notice
The information in this document
may change without prior notice and
in no way constitutes any liability
on the part of Lautsprecher Teufel
GmbH.
No part of this user manual may
be reproduced in any form or be
broadcasted in any way electroni-
cally, mechanically, by photocopy or
recording without the written permis-
sion of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 5.0, April 2022
Trademarks
® All trademarks are the property of
their respective owners.
The Bluetooth®
word mark and
Bluetooth®symbol are registered
trademarks of Bluetooth SIG, Inc.
and any use by Lautsprecher Teufel is
licensed.
The Spotify®soft-
ware is subject to
third-party licences, which are listed
here:
www.spotify.com/connect/
third-party-licenses
Amazon and all related logos and
motion marks are trademarks of
Amazon, Inc. or its affiliates.
Original packaging
If you wish to exercise your right of
return, we ask that you be absolutely
sure to hold on to the packaging. We
can only accept product returns with
the ORIGINAL PACKAGING.
Empty boxes are not available!
Complaints
In case of a complaint we will need
the following information to process
your enquiry:
1. Invoice number
Can be found on the sales slip
(enclosed with the product) or on the
order confirmation received as a PDF
document.
2. Serial number
Located on the back of the device.
Thank you for your support!

4• RADIO 3SIXTY
Contact
Please contact our customer service
department with any questions,
suggestions, or complaints:
Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Straße 44
10787 Berlin (Germany)
Telephone (freephone):
[phone]
Online support:
www.teufelaudio.com/service
Contact form:
www.teufelaudio.com/contact
Before operating the product
for the first time, please read
the safety notes and user
manual carefully. Only in this way,
can you ensure that all functions are
used in a safe and reliable manner.
Store the user manual in a safe place
and also be sure to pass it on to any
subsequent owner.
NOTICE
Check that all items have
been delivered and that
nothing is damaged. If you
find any damage, do not
operate the device; instead
contact our customer service
department.

5• RADIO 3SIXTY
For Your Safety
Proper use
The device is designed for the play-
back of music and speech from radio
and Internet stations.
Only use the device as described in
this user manual. Any other use will
be deemed as not in accordance
with the instructions and may lead to
damage of property or even persons.
The manufacturer accepts no liability
for damage caused by improper use.
The device is intended for private use
only.
Explanation of terms
You can find the following signal
terms in this user manual:
WARNING
This signal term indicates a
moderate risk, which, if not
avoided, may result in severe
injury.
CAUTION
This signal term indicates a
low risk, which, if not avoided,
may result in minor or
moderate injury.
NOTICE
This signal term warns you of
potential damage.
Safety notes
This chapter contains general safety
notes which you should always
observe to protect yourself and third
parties. Also observe the warning
notes in each chapter of this user
manual.

6• RADIO 3SIXTY
WARNING
Touching live parts can result in
severe injury or death.
• When connecting the mains adapter,
make sure that the correct voltage is
present. You can find more informa-
tion about this on the rating plate.
• Regularly check the device and the
mains adapter for damage.
Disconnect the mains adapter
immediately from the socket and
do not use the device if its housing
or the housing of the mains
adapter is defective or if there is
other visible damage.
• This device is disconnected from
the mains by pulling the mains
adapter. Therefore, make sure that
the mains adapter is always easily
accessible.
• If the device or the mains adapter
emits smoke, smells burnt or
produces unusual sounds, immedi-
ately disconnect it from the mains
and do not operate it further.
• Never open the housing of the
device or mains adapter.
Repairs may only be carried out by
an authorised specialist workshop.
Only parts that match the original
specifications may be used.
• Only use the accessory products
specified by the manufacturer.
• Never modify the device. Unauthor-
ised modifications may affect the
safety and functionality.
• Never touch the mains adapter
with wet hands.
WARNING
An unsuitable setup location may
result in injury and damage.
• Never use the device unmounted
in vehicles, in unstable locations,
on wobbly tripods or furniture, on
insufficiently dimensioned brackets
etc. The device could tip or fall
down and cause injury to persons
or be damaged itself.
• Arrange the device so that it cannot
be knocked over accidentally and
make sure that the cables do not
pose a tripping hazard.
• Do not place the device and the
mains adapter near heat sources
(e.g. heaters, ovens, other heat
generating equipment such as
amplifiers).
• Do not use the device in environ-
ments where there is a risk of
explosion.
• Only use the wireless functions
(Bluetooth®, Wi-Fi) in locations
where wireless radio transmission
is allowed.
WARNING
Children can become trapped in
the plastic wrapping when playing
and suffocate.
• Do not allow children to play with
the device or the plastic wrapping.
There is a danger of suffocation.
• Never allow children to operate
electrical equipment unsupervised.

7• RADIO 3SIXTY
WARNING
Swallowing a product battery may
result in severe internal injury or
even death.
• Store both new and used batteries
so that they are not accessible to
children.
• If it is no longer possible to safely
close the battery compartment,
stop using the remote control and
store it so that it is not accessible
for children.
• If you suspect that a battery has
been swallowed or otherwise
incorporated, promptly consult a
physician.
CAUTION
Leaking battery acid may lead to
chemical burns.
• Do not allow battery acid to come
into contact with skin, eyes or
mucous membranes. In the event
of contact with acid, immediately
flush the applicable areas with
plenty of clean water and consult a
physician if necessary.
CAUTION
Extended listening at high volumes
may lead to hearing loss.
To avoid damage to health, avoid
extended listening at high volumes.
• When the volume is set high,
always keep a certain distance
from the device and never place
your ears directly on the speaker.
• If your RADIO 3SIXTY is set to full
volume, it may produce very high
sound pressure. This may have
psychological consequences and
also cause physical injury. Children
and pets are particularly at risk. Set
your signal source device volume
to a low setting before turning on
the power.
CAUTION
This product contains magnetic
material.
• If necessary, consult your physician
and ask about effects on implants
such as pacemakers or defibrillators.
CAUTION
Improper use may lead to damage
or fire.
• Do not place open flames such as
burning candles or similar on the
device.
• Ensure sufficient ventilation.
• Do not expose the device to direct
sunlight.
• Only use the device indoors.
• Do not operate the device in wet
rooms and protect it from dripping
and splashing water.
Make sure that no vases or other
liquid-filled objects are located on or
near the device in order to prevent
liquid from penetrating the housing.
If water or other debris have infil-
trated the device, immediately pull
the mains adapter out of the socket.
Then send the device to our service
address.

8• RADIO 3SIXTY
Explanation of symbols
Protection class II
Dual insulation
Only use the device
indoors.
Risk of electrical shock –
do not open the housing.
Disconnect the mains cord
before changing a fuse.
NOTICE
The isolation pads can produce
discolouration on sensitive
surfaces.
• On parquet, varnished wood and
similar surfaces, you should stick
felt gliders to the rubber feet of the
device or put a blanket under it.
This will prevent discolouration of
the floor over the long term.

9• RADIO 3SIXTY
Disposal
Old devices must not be
disposed of with household
waste!
If the RADIO 3SIXTY is no longer oper-
ational, every consumer is required
by law to dispose of used devices
separately from household waste, for
example, at a collection point run by
the communal authority. This ensures
that old devices are recycled in a
professional manner and also rules
out negative consequences for the
environment.
For this reason, electrical equipment
is marked with the adjacent symbol.
Batteries and rechargeable
batteries do not belong in
the household garbage!
Every consumer is required by law to
bring all batteries and rechargeable
batteries, regardless whether they
contain harmful substances* or
not, to a collection point run by the
communal authority/borough or to a
retailer, so that they can be disposed
of in an environmentally friendly
manner.
Please only turn in batteries and
rechargeable batteries which are
empty!
*) labelled with:
Cd = cadmium, Hg = mercury,
Pb = lead

10 • RADIO 3SIXTY
(1)
(2)
(3)
Overview
Unpacking
• Carefully open the box and care-
fully lift the device out of the box.
Package contents
(1) 1× RADIO 3SIXTY
(2) 1× mains adapter
(3) 1× remote control
RADIO 3SIXTY RC
Optional
Teufel Remote App for Android and
IOS (see page 30).
Checking the package
contents
• Check that all items have been
delivered and that nothing is
damaged.
• If the delivery is incomplete or
exhibits damage from transport,
please contact our service team
(see page 4).
• Do not in any case operate the
device if it is damaged.
SELECTBACK

11• RADIO 3SIXTY
Front side
(9)(10)(11)(13)(14)(15)
(8)
(12)
(6) (7)(4) (5)
Operational Controls And Connections
(4) VOL – turn: adjust the volume,
push: play/pause, mute,
snooze (alarm clock)
(5) Display panel
(6) – show previous menu item,
back
(7) – access the menu
(8) SELECT – turn: select
push: confirm
(9) / – brief push: skip
forward/backward, change
radio station,
long push: fast forward/rewind,
station scan
(10) – set the alarm time and end
the alarm
(11) – brief push: access favour-
ites, long push: save favourites
(12) 1–4 – favourite station
memory
(13) – brief push: Select Blue-
tooth®as the source,
long push: start pairing, termi-
nate existing connection
(14) – select a source
(15) – switch the device on and to
standby mode

12 • RADIO 3SIXTY
Back side
(19) (17) (16)(18)
(16) POWER – connector jack for
the mains adapter (2)
(17) USB port for playing back music
files and for the power supply of
playback devices (5V, 1.5A).
(18) AUX IN – input jack for
analogue audio source device
(19) Telescopic antenna

13• RADIO 3SIXTY
The display panel
The date and time are displayed in
standby. If enabled, the set alarm
time(s) are also displayed here. The
Wi-Fi symbol indicates that there is a
connection to the local network.
1 7 / 1 0 / 2 0 2 1
7:00 pm
6:36pm
During playback, the display panel is
divided into three sections: At the top,
it shows the source and time, in the
middle playback information and at
the bottom, the status of the alarm
times, source and wireless connec-
tions.
FM
Station name
Radio text
6:36 p.m.
4
Symbols on the display panel
Radio: Stereo
Radio: Signal strength
Radio: RDS reception
Wi-Fi active, flashing:
Connection being estab-
lished
Bluetooth®active, flashing:
Connection being estab-
lished
Mute
Playback: Stop
Playback: Pause
Repeat
Random playback
Alarm time active
Favourites 1–30
15 Sleep timer (15 min.)
Network error
(see page 45)

14 • RADIO 3SIXTY
Remote control
(20) – mute speaker (mute)
(21) – increase the volume, navi-
gate through the menu
(22) – confirm menu, control
Bluetooth®device and USB/
network: start/pause playback,
deactivate alarm
(23) – decrease the volume, navi-
gate through the menu
(24) – access the menu
(25) – brief push: access station
memory, long push: save
station
(26) 1–4 – favourite station
memory
(27) – select a source
(28) – brief push: Select Blue-
tooth®as the source,
long push: start pairing, termi-
nate existing connection
(29) / – brief push: skip
forward/backward, switch radio
station,
switch back one menu with ,
long push: fast forward/rewind,
station scan
(30) – switch the device on and to
standby mode
SELECTBACK
(20)
(21)
(23)
(24)
(25)
(26)
(27)
(28)
(29)
(30)
(22)

15• RADIO 3SIXTY
CAUTION
Leaking battery acid may lead
to chemical burns.
– Do not allow battery acid
to come into contact with
skin, eyes or mucous
membranes. In the event
of contact with acid, imme-
diately flush the applicable
areas with plenty of clean
water and consult a physi-
cian if necessary.
Batteries (particularly lithium
batteries) can explode if used
improperly.
– Never attempt to recharge
batteries.
– Only use batteries of the
same or equivalent type.
– You must not heat or
short circuit batteries and
rechargeable batteries or
dispose of them in fire.
– Do not expose batteries and
rechargeable batteries to
direct sunlight.
Battery
In order to operate the remote
control, you will need a battery of type
CR 2032. When delivered, the battery
has already been inserted.
– Pull the plastic strip out of the
remote control. The remote control
is now ready for use.
You should change the battery if the
remote control stops working properly
or after 2 years at the latest:
1. To open the battery compartment,
gently push on the ribbed surface
of the cover and slide the cover
down.
2. If applicable, remove the old
battery and dispose of it in an envi-
ronmentally-friendly manner (see
page 9).
3. Place the new battery into the
battery compartment so that the
positive pole (+) is pointing up.
4. Push the cover back into a closed
position–it will lock into place
with an audible click.

16 • RADIO 3SIXTY
Set up/Connection
NOTICE
If the device is subjected
to warm temperatures after
being cold (e.g. after trans-
port), condensation may occur
inside of it.
– In this case, wait approx.
2hours before you connect
and activate it.
Location tips
• Select a stable, level base.
• Make sure that the environment is
clean and free from dust.
• Select a location away from heat
sources and direct sunlight.
• Do not place any heavy objects on
the cables or the device.
CAUTION
Risk of injury/damage!
– Lay the cables so that they
do not pose a tripping
hazard.
Protective film
Upon delivery, the display panel is
protected with a film, which also acts
as a quick guide.
You can pull the protective film off:
1. Switch the RADIO 3SIXTY off.
2. Take hold of the film by the red tab
on the top left and slowly pull the
film off diagonally downwards.

17• RADIO 3SIXTY
Power supply
1. Insert the small plug of the
enclosed mains adapter (2) in the
POWER jack (16).
(2)
(16)
2. Connect the mains adapter to a
mains power socket.
The lettering “TEUFEL” will appear
briefly on the display panel (5).
(5)
3. When you switch on the device for
the first time, the setup wizard will
start (see the next page).
Activating and
deactivating
– Use the button (15)/(30) to
switch the RADIO 3SIXTY on or to
standby.
• After switching the device on,
the last active audio source and
volume will be set.
• If the RADIO 3SIXTY does not
receive an audio signal for
20minutes, it will automatically
switch to standby.
(5)(15)
SELECTBACK
(30)

18 • RADIO 3SIXTY
Setup Assistant
The first time it is turned on or after
being reset to the factory default
settings, the RADIO 3SIXTY requires
some network information. You
will provide this information in the
Teufel Remote App (see page 30)
or in the setup assistant:
– To select menu items and set
the parameters, turn the control
SELECT(8) or use the buttons
+(21) and –(23).
– To confirm, push the control
SELECT (8) or the button (22).
– You can go back one step with the
button (6) or (29).
1. Turn the RADIO 3SIXTY on.
2. Select the display language:
Deutsch or English.
3. Data protection information will
appear on the display panel(5).
You can access the privacy policy
using this link:
www.frontiersmart.com/privacy/
4. The setup assistant will start and
ask “Start setup now?”. Select
“YES” with the control SELECT(8)
and push the control.
5. Next, you decide whether to do the
setup in the Teufel Remote App or
with the device.
• Select “APP” if you would like to
do the setup conveniently with
the Teufel Remote App on your
(5)
(6)
(8)
SELECTBACK
(29)
(21)
(23)
(22)
smartphone or tablet. Follow the
instructions on the screen and
on page 30.
• Otherwise, select “DEVICE” and
proceed as follows:
6. Set the display format for the
time: 12 hours (with AM/PM) or
24hours.

19• RADIO 3SIXTY
7. Select how the time should be set:
• via DAB radio;
• via FM radio (RDS);
• via the Internet – select the time
zone and turn summer time “On”
or “Off” here in the next step;
• no update – enter the date and
time here.
8. With the setting “Network
standby”, you can set whether the
RADIO 3SIXTY switches Wi-Fi off
(“NO”) or leaves it on (“YES”) in
standby so that it can be switched
on via the network.
9. The RADIO 3SIXTY will search for
available Wi-Fi networks and display
them as a list after a short time:
• [WPS] – displays networks with
WiFi protected setup. It is very
easy to establish a connection
with them with the push of a
button or by entering the PIN.
• [Rescan] – starts a new search.
• [Manual config.] – with this
menu item, you enter all data
yourself – only intended for
special applications.
10. Select your Wi-Fi network from
the list.
11. You can now select the type of
connection to be established:
– With password (WPA/WPA2):
Key:
01 2 3 4 5 6
7 8 9 . _ @
, a b c d e
f g h i j k l
m n o p q r s
CANCEL
OK
BKSP
Enter the password:
– Use the control SELECT (8)
or the buttons
+ (21) (up),
– (23) (down),
/ (29) (left/right)
to select a character.
– By pushing the control SELECT (8)
or the button (22), you enter
the character at the top of the input
line.
[BKSP] deletes the last character,
[OK] ends input,
[CANCEL] aborts the process.
– With WPS:
Here, you can choose from three
options:
• Push a button – start estab-
lishing a connection for your
Wi-Fi access (router) and push
the control SELECT(8) within
2minutes on the RADIO 3SIXTY.
• PIN – the RADIO 3SIXTY displays
a code. Enter this code on your
Wi-Fi access (router).
• Skip WPS – with this, you enter
the password as described
previously.
The RADIO 3SIXTY will now connect
to Wi-Fi and then briefly return the
message “Connected”.
– Finish by pushing the control
SELECT(8).
The setup assistant is now complete.
The RADIO 3SIXTY displays the main
menu.

20 • RADIO 3SIXTY
Operation
You can control all important
functions of the RADIO 3SIXTY
with the Teufel Remote App (see
page30).
Selecting a source
– With the button (14)/(27), you
can access the source menu: Here,
the sources are shown as symbols
on the display panel (5).
– Select the desired source with the
control SELECT(8) and briefly push
the control.
– On the remote control, select the
source with the buttons
/ (29), access the source
with the button (22).
Internet radio: Reception of
global radio stations, only
possible with an existing
Internet connection (see
page 31)
Podcasts: international
media content (e.g. news,
recordings of radio broad-
casts, music programmes,
etc.) that can be accessed
at any time on the
Internet, irrespective of
broadcasting times (see
page31)
Amazon Music®: a music
streaming service (see
page42)
Spotify®: a music streaming
service (see page 43)
USB music player: play-
back from USB storage
devices (see page37)
DAB radio: digital radio
reception (see page33)
FM radio: analogue radio
reception (see page35)
Bluetooth®: digital source
via wireless connection
(see page 40)
Aux In: analogue source via
the AUX IN jack(18) (see
page 43)
The selected source will appear on
the display panel (5).
– You can also select the source in
the “Source” menu.
(5)
(14)
(8)
SELECTBACK
(21)
(23)
(22)
(27)
