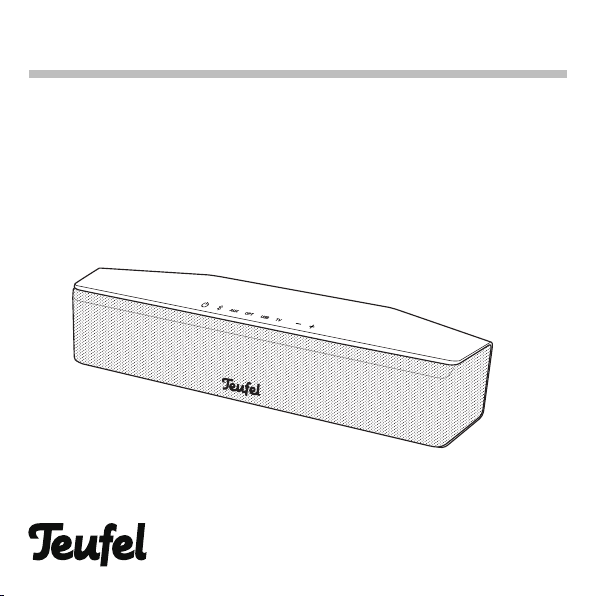

Teufel Cinebar One User manual

User Manual
Cinebar One
Ultra-compact 2.0 soundbar with subwoofer connection and USB
sound card function

2
Table of contents
General Information 3
Notice 3
Original packaging 3
Complaints 4
For Your Safety 5
Proper Use 5
Safety notes 6
Explanation of terms 6
Explanation of symbols 12
Trademarks 14
1. What's in the box 15
1.1 Unpacking 15
1.2 Package contents 16
1.3 Checking the product contents 16
2. Product overview 17
2.1 Controls And Connections 17
2.2 Remote Control 20
2.3 Inserting/changing the batteries 22
3. Connecting 23
3.1 TV set 23
3.2 Analogue source 23
3.3 Optical-digital source 23
3.4 PC sound card 24
3.5 Power supply 24
3.6 Power control 24
3.7 Selecting a source 25
3.8 Adjusting the volume 25
3.9 Mute 26
3.10 Bass and Treble 26
3.11 Sound Modes 26
3.12 Dynamore 26
4. Wireless Subwoofer 27
5. Bluetooth® Mode 28
5.1 Bluetooth® options 28
5.2 Pairing and connecting 29
6. USB Sound Card 31
6.1 Playback 31
6.2 Mac OS X 31
6.3 Windows 7, 8 and 10 33
7. Care And Cleaning 34
8. Troubleshooting 35
9. Technical Data 38
10. Declaration Of Conformity 39

3
English
General Information
Notice
The information in this document is subject to change without prior notice and
in no way constitutes any liability on the part of Lautsprecher Teufel GmbH.
No part of this user manual may be reproduced in any form or be broadcasted in
any way electronically, mechanically, by photocopying or recording without the
written permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0 August 2020
Original packaging
If you wish to exercise your eightweek right of return, we ask that you be
absolutely sure to hold onto the packaging. We can only accept product returns
with the ORIGINAL PACKAGING.
Empty boxes are not available!

4
Complaints
In case of a complaint we will need the following information to process your
enquiry:
1. Invoice number
Can be found on the sales slip (enclosed with the product) or on the order
conrmation received as a PDF document, e.g. 4322543
2. Serial number or batch number
Located on the back side of the device, e.g. serial no.: KB20240129A-123.
Thank you for your support!

5
English
Proper Use
The speaker is designed for the playback of music and speech from an external
player. Only use the speaker as described in this user manual. Any other use will
be deemed as not in accordance with the instructions and may lead to damage
of property or even persons. The manufacturer accepts no liability for damage
caused by improper use. The speaker is intended for private use.
Before operating the product for the rst time, please read the safety
notes and user manual carefully. Only in this way, can you ensure that
all functions are used in a safe and reliable manner. Store the user
manual in a safe place and also be sure to pass it on to any subsequent
owner.
For Your Safety

6
This chapter contains general safety notes which you should always observe
to protect yourself and third parties. Also observe the warning notes in each
chapter of this user manual.
Explanation of terms
You can nd the following signal terms in this user manual:
CAUTION
This signal term indicates a low risk, which, if not avoided, may result in minor or
moderate injury.
NOTICE
This signal term warns you of potential damage.
This symbol advises of useful additional information.
Safety notes

7
English
Touching live parts can result in severe injury or death.
xWhen connecting the mains adapter, make sure that the correct voltage is
present. You can nd more information about this on the rating plate.
xCheck the device regularly for damage. Immediately disconnect the mains
plug and do not operate the device if its housing, mains adapter or mains
cord is defective or exhibits other visible damages.
xThis device is disconnected from the grid by pulling the mains plug. Thus,
make sure that the mains plug is always easily accessible.
xIf the device emits smoke, smells burnt or produces unusual sounds,
immediately disconnect it from the mains and do not operate it further.
xNever open the device housing. Repairs may only be carried out by
an authorised specialist workshop. Only parts that match the original
specications may be used.
xOnly use the accessory products specied by the manufacturer.
xOnly use the device indoors.
xDo not operate the device in wet rooms and protect it from dripping and
splashing water. Make sure that no vases or other liquid-lled objects are
located on or near the device in order to prevent liquid from penetrating
the housing. If water or other debris ends up penetrating the housing,
immediately pull the mains plug and, if applicable, take out any batteries.

8
Then send the device to our service address.
xNever modify the device. Unauthorised modications may affect the safety
and functionality.
xNever touch the mains plug with wet hands.
An unsuitable setup location may result in injury and damage.
xNever use the device unmounted in vehicles, in unstable locations, on
wobbly tripods or furniture, on insuciently dimensioned brackets etc. The
speakers could tip or fall down and cause injury to persons or be damaged
itself.
xArrange the device so that it cannot be knocked over accidentally and make
sure that the cables do not pose a trip hazard.
xDo not place the device and the mains adapter near heat sources (e.g.
heaters, ovens, other heat generating equipment such as ampliers etc.).
xDo not use the device in environments where there is a risk of explosion.
xOnly use the wireless function (Bluetooth®, wireless subwoofer) in locations
where wireless radio transmission is allowed.

9
English
Children can become trapped in the plastic wrapping when playing and
suffocate.
xDo not allow children to play with the device or the plastic wrapping. There
is a danger of suffocation.
xNever allow children to operate electrical equipment unsupervised.
Swallowing a product battery may result in severe internal injury or
even death.
xStore both new and used batteries so that they are not accessible to
children.
xIf it is no longer possible to safely close the battery compartment, stop using
the remote control and store it so that it is not accessible for children.
xIf you suspect that a battery has been swallowed or otherwise incorporated,
promptly consult a physician.
Leaking battery acid may lead to chemical burns.
xDo not allow battery acid to come into contact with skin, eyes or mucous
membranes. In the event of contact with acid, immediately ush the
applicable areas with plenty of clean water and consult a physician if
necessary.

10
Batteries (particularly lithium batteries) can explode if used improperly.
xNever attempt to recharge batteries.
xOnly use batteries of the same or equivalent type.
xYou must not heat or short circuit batteries and rechargeable batteries or
dispose of them in re.
xDo not expose batteries and rechargeable batteries to direct sunlight.
Extended listening at high volumes may lead to hearing loss.
To avoid damage to health, avoid extended listening at high volumes.
xWhen the volume is set high, always keep a certain distance from the device
and never place your ear directly on the speaker.
xIf the volume control of the device is set to maximum volume, it
may produce very high sound pressure. This may have psychological
consequences and also cause physical injury. Children and pets are
particularly at risk. Set the volume control to a lower level if you experience
hearing malfunctions like ear ringing or intermediate loss of hearing.

11
English
This product contains magnetic material.
xIf necessary, consult your physician and ask for effects on implants such as
pacemakers or debrillators.
Improper use may lead to damage or re.
xDo not place open ames such as burning candles or similar on the device.
xEnsure sucient ventilation.
xDo not place the device in direct sunlight.
xOnly use the device indoors.
xDo not operate the device in wet rooms and protect it from dripping and
splashing water. Make sure that no vases or other liquid-lled objects are
located on or near the device in order to prevent liquid from penetrating the
housing.
The isolation pads can produce discolouration on sensitive surfaces.
xOn parquet, varnished wood and similar surfaces, you should stick felt gliders
to the rubber feet of the device or put a blanket under it. This will prevent
discolouration of the oor over the long term.

12
Protection class II Dual insulation
May only be used indoors
Risk of electrical shock – do not open the housing. Disconnect the mains
cord before changing a fuse.
Polarity of the round connector: outside (–), inside (+)
Explanation of symbols

13
English
Old devices must not be disposed of with household waste!
Electrical equipment contains harmful substances and valuable resources.
Every consumer is required by law to bring all old electrical devices to an
authorised collection or return point so that they can be disposed of in a
manner that is environmentally friendly and which preserves resources. You
can hand old electrical devices over to the local reusable materials/recycling
centre. Please contact your vendor directly for more information about this
topic.
Batteries and rechargeable batteries do not belong in the household
garbage!
Every consumer is required by law to bring all batteries and rechargeable
batteries, regardless whether they contain harmful substances* or not, to a
collection point run by the communal authority or borough or to a retailer, so
that they can be disposed of in an environmentally friendly manner.
Please only turn in batteries and rechargeable batteries which are empty!
* labelled with: Cd = cadmium, Hg = mercury, Pb = lead

14
© All trademarks and trade names are the property of their respective owners.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro
Logic, and the double-D symbol are trademarks of Dolby Laboratories.
The Bluetooth®word mark and logos are registered trademarks owned by the
Bluetooth SIG, Inc. and any use of such marks by Lautsprecher Teufel is under
license.
Qualcomm aptX is a product of Qualcomm Technologies International, Ltd.
Qualcomm is a trademark of Qualcomm Incorporated, which is registered in
the USA and other countries; its use has been approved. aptX is a trademark of
Qualcomm Technologies International, Ltd., which is registered in the USA and
other countries; its use has been approved.
Trademarks

15
English
1.1 Unpacking
xCarefully open the box, take out the EPE foam half-shell and carefully lift the
device out of the box.
BASS TREBLE
MOVIE MUSIC VOICE
AUX OPT USB
TV
(1) (2)
(3) (4)
(5)
1. What's in the box

16
1.2 Package contents
(1) 1× Soundbar Cinebar One
(2) 1× Remote control Cinebar One RC
(3) 1× Mains adapter for the Soundbar
(4) 1× Mains cord for the mains adapter
(5) 2× AAA batteries for the remote control
1.3 Checking the product contents
xCheck that all items have been delivered and that nothing is damaged.
xIf the delivery is incomplete or exhibits transport damages, please contact
our service team (see page40).
xDo not in any case operate the device if it is damaged.

17
English
2.1 Controls And Connections
(1) (3) (5) (7)
(2) (4) (6)
(1) Switch on the device and to standby
(2) Select Bluetooth as source
(3) Select analogue source AUX
(4) Select digital source OPTICAL
(5) Select USB as source
(6) Select TV as source
(7) Adjust the volume
2. Product overview

18
4A12V
HDMI TV OPTICAL
OFF ON
AUTO ON SUB PAIRING DIGITAL IN AUX IN USB POWER
(8) (9) (10) (11) (12) (13) (14)
(8) Auto on switch
(9) SUB PAIRING Button (Hold for 5s to start pairing)
(10) HDMI connection for the TV set
(11) OPTICAL – input jack for digital audio source device (TOSLINK)
(12) AUX IN – input jack for analogue audio source device (3.5 mm)
(13) USB port for the PC for sound card functions and software updates (micro
USB)
(14) POWER – connector jack for the mains adapter

19
English
LED feedback has the following meanings:
Red Standby
Blue Bluetooth® selected as source
AUX White AUX selected as source
OPTICAL White OPTICAL selected as source
USB White USB selected as source
TV White TV selected as source
Blue, slow pulsing Waiting for a Bluetooth® connection
Blue, fast blinking Waiting for Bluetooth® pairing
7 white LED's (left to right) Volume Level
7 white LED's (from/to the middle) Dynamore on/off

20
2.2 Remote Control
(1) Switch on the device and to standby
(2) Mute speaker
(3) Select Bluetooth as source
(4) Select TV as source
(5) Adjust the volume
(6) Playback/Pause
(7) Forward/Backward
(8) Adjust low tones (bass)
(9) Adjust high tones (treble)
(10) Activate Dynamore
(11) Adjust the Sound Mode: MOVIE, VOICE,
MUSIC
(12) Select analogue source AUX
(13) Select digital source OPTICAL
(14) Select USB as source
BASS TREBLE
MOVIE MUSIC VOICE
AUX OPT USB
TV
(1)
(3)
(7)
(8)
(12)
(11)
(6)
(5)
(2)
(4)
(7)
(9)
(14)
(10)
(13)
(5)
