User's Guide
SLAU241A–June 2008–Revised March 2010
DAC5668/88/89EVM
1 Overview
1.1 Purpose
The DAC5668/88/89EVM provides a platform for evaluating the DAC5668, DAC5688, and DAC5689
digital-to-analog (DAC) converter under various signal, reference, and supply conditions. All three DACs
are dual channel, 800MSPS interpolating DACs with DAC5668 being a 12-bit DAC and
DAC5688/DAC5689 being 16-bit DACs. Also, both the DAC5668 and the DAC5688 have internal
PLL/VCO, which is useful when a high-rate clock is not available at the system level. The table below
summarizes the comparisons among the DAC family. The evaluation module also allows designers to
analyze either a transformer-coupled output from the DAC or an RF-modulated output using Texas
Instruments (TI) TRF3703 analog quadrature modulator. Use this document with the EVM schematic
diagram and the corresponding device datasheet.
Table 1. Device Comparisons
12-Bit 16-Bit PLL/VCO EVM Software
DAC5668 X X DAC5688
DAC5688 X X DAC5688
DAC5689 X DAC5689
1.2 EVM Basic Functions
Digital inputs to the DAC can be provided with CMOS-level signals up to 250 MSPS through two 34-pin
headers. The analog outputs from the DAC are available via SMA connectors. Because of its flexible
design, the analog outputs of the DAC device can be configured to drive a 50-Ωterminated cable using a
4:1 or 1:1 impedance ratio transformer, or single-ended referred to AVDD. The EVM also allows for an
option to use TI’s TRF3703 analog quadrature modulator to mix the DAC outputs to RF.
The EVM also includes a TI CDCM7005 clock distribution device to clock the system. The CDCM7005 can
be used with an onboard VCXO for full PLL functionality or with an external signal source, in which case
the CDCM7005 functions as a buffer.
Power connections to the EVM are via banana jack sockets. In addition to the internal bandgap reference
provided by the DAC device, the EVM allows an external reference to be provided to the DAC.
The DAC5668/88/89EVM allows the user to program the DAC and CDCM7005 registers through a USB
port. The interface allows read and write access to all the DAC5668/88/89 registers and write-only access
to the CDCM7005 registers.
1.3 Power Requirements
The DAC5668/88/89EVM requires 1.8-Vdc and 3.3-Vdc supplies for normal operation. An additional 5-Vdc
supply is required to power up the TRF3703 for RF measurements.
1
SLAU241A–June 2008–Revised March 2010 DAC5668/88/89EVM
Submit Documentation Feedback Copyright © 2008–2010, Texas Instruments Incorporated

Software Installation www.ti.com
1.3.1 Voltage Limits
CAUTION
Exceeding the maximum input voltages can damage EVM components.
Undervoltage may cause improper operation of some or all of the EVM
components.
2 Software Installation
The DAC5668/88/89EVM comes with a software package that allows the user to configure the DAC and
CDCM7005 registers, save and load register settings to/from text files, and visualize the data path through
the DAC. Communication with the EVM is achieved through a USB port on the host PC. The DAC5668
and the DAC5688 shares the same EVM software since both DACs have internal PLL/VCO. The
DAC5689 has a stand-alone EVM software.
2.1 Minimum Requirements
Before installing the software, verify that the PC meets the following requirements:
• Microsoft Windows™ 2000 or later operating system
• 1024 × 768 screen resolution for optimal viewing
• USB 1.1 or later compatible input port
Other configurations may work; however, they remain untested.
2.2 Installing the EVM Control Software
Double-click the setup.exe file located on the installation CD. The EVM Installation Wizard opens.
Figure 1. DAC5668/88/89/89EVM Install Screen
2DAC5668/88/89EVM SLAU241A–June 2008–Revised March 2010
Submit Documentation Feedback
Copyright © 2008–2010, Texas Instruments Incorporated

www.ti.com Software Installation
2.3 Installing the DAC5668/88/89EVM Instrument Drivers
As part of the installation Wizard, the EVM instrument drivers are installed automatically. Because the
USB device driver is unsigned by Windows, the warning in Figure 2 appears. Press Continue Anyway to
complete the installation.
Figure 2. Windows USB Driver Warning
To finalize the installation, the installation Wizard asks the user to restart the computer. The system must
be rebooted prior to running the software.
2.4 Installing the DAC5668/88/89EVM Hardware
After installing the EVM control software and drivers, connect the DAC5668/88/89EVM to a spare USB
port of the host PC. If this is the first time connecting to the device, the Windows Found New Hardware
Wizard guides you through the final setup steps. If the Hardware Wizard does not start, ensure that the
cable is connected properly.
Instruct the Hardware Wizard to find the software automatically. If Windows is unable to find the drivers
automatically, point it to the EVM program folder. The default folder for DAC5668/DAC5688 EVM software
is C:\Program Files\Texas Instruments\DAC5688\DAC5688 Drivers. The default folder for DAC5689 EVM
software is C:\Program Files\Texas Instruments\DAC5689\DAC5689 Drivers. A warning indicating that the
drivers are unsigned by Windows appears. Press Continue Anyway to complete the setup.
To verify a complete installation, open Windows Hardware Device Manager and observe that the
DAC5668/88/89EVM should be listed under the USB controllers list as shown in Figure 3.
3
SLAU241A–June 2008–Revised March 2010 DAC5668/88/89EVM
Submit Documentation Feedback Copyright © 2008–2010, Texas Instruments Incorporated

DAC5668/88/89EVM Description www.ti.com
Figure 3. Hardware Device Manager
3 DAC5668/88/89EVM Description
The DAC5668/88/89EVM provides a robust and flexible evaluation system for the 800-MSPS interpolating
DAC5668, DAC5688, and DAC5689 DAC family. In addition to the DAC5668/88/89, the EVM includes a
CDCM7005 for clock distribution and a TRF3703 analog quadrature modulator path for RF
measurements. For a complete hardware description, consult the schematics and layout sections at the
end of this guide. See the DAC5668, DAC5688, DAC5689, CDCM7005, and TRF3703 data sheets for
more information on each device.
3.1 Texas Instruments Components on the DAC5668/88/89EVM
A basic radio system block diagram is shown in Figure 4. The dashed-line box illustrates where the EVM
fits in the system.
Figure 4. Basic Radio System
The block diagram of the EVM is shown in Figure 5. As illustrated on the block diagram, the
DAC5668/88/89EVM includes three Texas Instruments components that make the entire solution an
excellent choice for radio systems.
4DAC5668/88/89EVM SLAU241A–June 2008–Revised March 2010
Submit Documentation Feedback
Copyright © 2008–2010, Texas Instruments Incorporated

DAC5688
CLK2 CLK1
www.ti.com DAC5668/88/89 Hardware Description
Figure 5. EVM Block Diagram
3.1.1 DAC5668/88/89
The DAC5668/88/89 are dual-channel, 800-MSPS interpolating DACs with dual CMOS digital data bus,
integrated 2x-8x interpolation filters, a fine frequency mixer with 32-bit complex numerically controlled
oscillator (NCO), IQ compensation, and internal voltage reference. Different modes of operation enable or
bypass various signal processing blocks. The DAC5668 and the DAC5688 also include an internal 2x-32x
clock multiplying PLL/VCO. This feature is useful when a high-rate clock is not available at the system
level.
The DAC5668/88/89 dual-CMOS data bus provides 250-MSPS input data transfer per DAC channel.
Several input data options are available: dual-bus data, single-bus interleaved data, even and odd
multiplexing at half-rate, and an input FIFO with either external or internal clock to ease interface timing.
Input data can be interpolated 2x, 4x, or 8x by onboard digital interpolating FIR filters with over 80 dB of
stop-band attenuation.
The DAC5668/88/89 allows both complex and real output. An optional 32-bit NCO/mixer in complex mode
provides frequency upconversion and the dual DAC output produces a complex Hilbert Transform pair. A
digital inverse sinc filter compensates for natural DAC Sin(X)/X frequency rolloff. The digital Quadrature
Modulator Correction (QMC) feature allows IQ compensation of phase, gain, and offset to maximize
sideband rejection and minimize LO feedthrough of an external quadrature modulator performing the final
single-sideband RF upconversion.
3.1.2 CDCM7005
The CDCM7005 is a high-performance, low-phase noise and low-skew clock synchronizer that
synchronizes a VCXO (voltage-controlled crystal oscillator) or VCO (voltage-controlled oscillator)
frequency to a reference clock. The CDCM7005 is used to generate and synchronize the clock outputs to
the system. The device has five outputs which can be configured to LVPECL or LVCMOS levels and can
be divided down by 1, 2, 3, 4, 6, 8, and 16. The divide by 16 can be replaced with a divide by 4 or 8 with a
90 degree phase shift.
3.1.3 TRF3703
The TRF3703 is a very-low-noise direct quadrature modulator, capable of converting complex modulated
signals from baseband or IF directly up to RF based on the LO frequency.
4 DAC5668/88/89 Hardware Description
The DAC5668/88/89EVM can be set up in a variety of configurations to accommodate a specific mode of
operation. Before starting evaluation, the user should decide on the configuration and make the
appropriate connections or changes. The demonstration board comes with the following factory-set
configuration:
5
SLAU241A–June 2008–Revised March 2010 DAC5668/88/89EVM
Submit Documentation Feedback Copyright © 2008–2010, Texas Instruments Incorporated

DAC5668/88/89 Hardware Description www.ti.com
• No VCXO installed. CDCM7005 in buffer mode which requires an input single-ended clock signal to
SMA connector J20.
• The DAC outputs are set by default to drive the TRF3703.
• The converter is set to operate with internal reference. Jumper J5 EXTLO is installed between pins 1
and 2.
• Full-scale output current set to 20 mA through RBIAS resistor R91.
4.1 Jumper Settings
The DAC5668/88/89EVM has onboard jumpers that allow the user to modify the board configuration.
Table 2 explains the functionality of the jumpers.
Table 2. Jumper List
JUMPER LABEL FUNCTION DEFAULT SETTING
CONDITION
SW1 BRD_RESET Resets the DAC and CDCM7005 devices
JP1 REF_CLK Chooses internal 10-MHz ref or external ref Internal Ref Pin 2-3
J1 VCXO_EN VCXO power down Disabled Unpopulated
JP2 VCXOB Chooses internal VCXO or external source External source Pin 2-3
JP3 VCXO Chooses internal VCXO or external source External source Pin 2-3
JP4 CLK1/CLKOUT Selects between CLK1 input to DAC or CLKOUT DAC CLKOUT Pin 2-3
output
JP5 CLK1C/LOCK Selects between CLK1C input to DAC or LOCK LOCK Pin 2-3
indicator DAC output
JP6 VFUSE Factory use only. Connect to 1.8VDD for normal 1.8 VDD Pin 1-2
operation.
J5 EXTLO Internal (GND) or external (3.3V) voltage reference Internal Reference Pin 1-2
CDC_PD Active-low power down of CDCM7005 Active CDCM7005 Pin 2-3
RESET DAC RESET Signal Unpopulated
CLKOUT_EN Active-low enable of CLKOUT signal buffer Enabled Buffer Pin 1-2
SYNC DAC SYNC Signal GND Pin 1-2
TX_ENABLE DAC TX_ENABLE Signal 3.3V Pin 2-3
4.2 Input/Output Connectors
Table 3 lists the input and output connectors on the DAC5668/88/89EVM.
Table 3. Input and Output Connections
REFERENCE LABEL CONNECTOR DESCRIPTION
DESIGNATOR TYPE
J2 34-pin Header A-bus input data to the DAC.
J3 IOUTB1 SMA Optional IOUTB1 output.
J4 IOUTB2 SMA DACB transformer output. Optional IOUTB2 output.
J6 RFOUT SMA RF output from TRF3703.
J7 34-pin Header B-bus input data to the DAC.
J8 IOUTA1 SMA Optional IOUTA1 output.
J9 IOUTA2 SMA DACA transformer output. Optional IOUTA2 output.
J10/J11 +5V Banana Plug +5-V connection pair. Required only for RF measurements.
J12 USB_CONN USB USB connector for software communication.
J13/J14 +1.8V Banana Plug +1.8-V connection pair.
J15/J16 3.3V Banana Plug +3.3-V connection pair.
J17 OUTCLK2 Y3A SMA Optional CDCM7005 clock output.
J18 OUTCLK2 Y4A SMA Optional CDCM7005 clock output.
6DAC5668/88/89EVM SLAU241A–June 2008–Revised March 2010
Submit Documentation Feedback
Copyright © 2008–2010, Texas Instruments Incorporated

www.ti.com DAC5668/88/89 Hardware Description
Table 3. Input and Output Connections (continued)
REFERENCE LABEL CONNECTOR DESCRIPTION
DESIGNATOR TYPE
J19 OUTCLK1 Y4B SMA Optional CDCM7005 clock output.
J20 EXT_VCXO SMA External main clock input.
J21 DAC CLKOUT SMA CLKOUT output from DAC.
J22 EXT_REF_CLK SMA External reference clock input.
J23 RF_LO_IN SMA TRF3703 LO source input.
4.3 USB Interface
The DAC5668/88/89EVM contains a USB connector to interface to a USB 1.1 or later compliant USB port.
Programming of the CDCM7005 and DAC is accomplished through this port.
4.4 Power Management
The DAC5668/88/89EVM requires 1.8-V and 3.3-V supplies for normal operation. An additional 5-V supply
is required to power up the TRF3703 for RF measurements.
4.5 Input Data
The DAC5668/88/89EVM can accept 1.8-V or 3.3-V CMOS logic levels data inputs through the 34-pin
headers J2 and J7 per Table 4 and Table 5. The board provides series dampening resistors to minimize
digital ringing and switching noise. The DAC logic level is selected through software.
Table 4. Input Data Connector J2 – Data A Bus
Pin Description Pin Description
1 CMOS data bit 15 (MSB) 18 GND
2 GND 19 CMOS data bit 6
3 CMOS data bit 14 20 GND
4 GND 21 CMOS data bit 5
5 CMOS data bit 13 22 GND
6 GND 23 CMOS data bit 4
7 CMOS data bit 12 24 GND
8 GND 25 CMOS data bit 3
9 CMOS data bit 11 26 GND
10 GND 27 CMOS data bit 2
11 CMOS data bit 10 28 GND
12 GND 29 CMOS data bit 1
13 CMOS data bit 9 30 GND
14 GND 31 CMOS data bit 0 (LSB)
15 CMOS data bit 8 32 GND
16 GND 33 SYNC
17 CMOS data bit 7 34 GND
Table 5. Input Data Connector J7 – Data B Bus
Pin Description Pin Description
1 CMOS data bit 0 (LSB) 18 GND
2 GND 19 CMOS data bit 9
3 CMOS data bit 1 20 GND
4 GND 21 CMOS data bit 10
5 CMOS data bit 2 22 GND
7
SLAU241A–June 2008–Revised March 2010 DAC5668/88/89EVM
Submit Documentation Feedback Copyright © 2008–2010, Texas Instruments Incorporated

DAC5668/88/89 Hardware Description www.ti.com
Table 5. Input Data Connector J7 – Data B Bus (continued)
Pin Description Pin Description
6 GND 23 CMOS data bit 11
7 CMOS data bit 3 24 GND
8 GND 25 CMOS data bit 12
9 CMOS data bit 4 26 GND
10 GND 27 CMOS data bit 13
11 CMOS data bit 5 28 GND
12 GND 29 CMOS data bit 14
13 CMOS data bit 6 30 GND
14 GND 31 CMOS data bit 15 (LSB)
15 CMOS data bit 7 32 GND
16 GND 33 TX_ENABLE
17 CMOS data bit 8 34 GND
4.6 Clock Configuration
The CDCM7005 requires a VCXO or external clock source to derive its output clock signals.
4.6.1 Buffer Mode
The DAC5668/88/89EVM does not come populated with a VCXO and requires an external sine wave
source with a 1-Vrms, 0-V offset on SMA J20. Under this setup, the CDCM7005 operates as a buffer. To
select this mode, the following changes need to be made:
1. JP2 and JP3 need to be set in position 2-3.
2. If a VCXO is installed, it is recommended to disable it by removing jumper J1.
4.6.2 PLL Mode
A VCXO can be installed in U6 to operate the CDCM7005 as a PLL. The following changes need to be
made:
1. JP2 and JP3 need to be in the 1-2 position.
2. Install jumper J1.
3. A frequency reference (internal or external) needs to be provided.
4.6.3 DAC Clock Options
In both CDCM7005 configurations, the Y1A/Y1B outputs are used to drive the DAC5668/88/89
CLK2/CLK2C inputs. The DAC5668/88/89 can also be operated in dual-clock mode, in which case a
second clock needs to be provided to the device. This clock may be single ended (CLK1) or differential
(CLK1/CLK1C). The CDCM7005 Y2A/Y2B outputs may be used to provide this clock. To do this, the
following changes need to be made:
1. If the clock is single ended, connect jumper JP4 in the 1-2 position.
2. If the clock is differential, connect jumpers JP4 and JP5 in the 1-2 position.
As an output, the CLK1 signal provides a clock at the data rate frequency. The data rate clock is used to
drive a buffer and is accessible through SMA connector J21. This signal can be used to clock the data
source to the DAC. To enable this output, the following changes need to be done to the board:
1. Connect jumper JP4 to position 2-3.
2. Jumper J5 /CLKOUT_EN must be in the 1-2 position.
If the device is not in dual-clock mode, the CLK1 pin can be configured as an output. The CLK1C pin can
be configured as a PLL lock indicator. The PLL lock indicator is connected to LED D4 (JP5 must be in
position 2-3). The DAC5689 does not have the internal PLL feature thus the PLL lock indicator is not
functional.
8DAC5668/88/89EVM SLAU241A–June 2008–Revised March 2010
Submit Documentation Feedback
Copyright © 2008–2010, Texas Instruments Incorporated

www.ti.com DAC5668/88/89 Hardware Description
4.7 Output Configuration
The DAC5668/88/89EVM has a resistor network that can be configured such that the DAC outputs are
routed to the TRF3703 for an RF measurement or routed to the transformer path for a DAC measurement.
The default setup on the board is for RF output.
4.7.1 DAC Outputs
To configure the DAC5668/88/89EVM to evaluate the DAC outputs, the following changes need to be
done to the board:
1. R46, R56, R58, and R69 need to be uninstalled
2. R45, R55, R57, and R68 need to be installed
If the board is configured for DAC outputs, the TRF3703 modulator is not used and the 5-Vdc supply is
unnecessary. The DAC outputs in this setup are in J4 and J9.
The DAC outputs can be configured to drive a doubly terminated 50-Ωcable or to provide unbuffered
differential outputs.
4.7.1.1 Transformer-Coupled Signal Output
The factory-set configuration of the EVM provides the user with single-ended DAC output signals at SMA
connectors J4 and J9. The DAC outputs are configured to drive a doubly terminated 50-Ωcable using a
4:1 impedance ratio transformer with the center tap of the transformers connected to +3.3 Vdc.
4.7.1.2 Unbuffered Differential Output
To provide unbuffered differential outputs, the EVM must be configured as follows:
1. Remove T1 and T2.
2. Install R36 (24.9 Ω), R37 (24.9 Ω), R74 (24.9 Ω), R75 (24.9 Ω), R34, R41, R42, R71, R72, and R77.
With a 20-mA, full-scale output current, this configuration provides a 0.5-Vpp output.
4.7.2 RF Output
To configure the DAC5668/88/89EVM to evaluate the RF output (default setup), the following changes
need to be done to the board:
1. R46, R56, R58 and R69 need to be installed
2. R45, R55, R57, and R68 need to be uninstalled
If the board is configured for RF output, the 5-Vdc must be applied to power up the modulator. The output
in this setup is in J6.
4.7.2.1 TRF3703 LO Source
The DAC5668/88/89EVM requires an external local oscillator (LO) source to drive the onboard TRF3703
modulator. This external LO input needs to be connected to the SMA connector J23. The signal level of
the LO source must comply with the requirements in the TRF3703 data sheet (SLWS184), but typically an
LO power around 0-to-3 dBm is adequate.
4.7.2.2 DAC-to-Modulator Interface
The TRF3703 quadrature modulator requires a common-mode dc voltage of approximately 3.3 V. In order
to use the dc-offset adjustment capabilities of the DAC5668/88/89 for carrier suppression, it is imperative
to maintain a dc path from the DAC output to the modulator input. The common-mode voltage for the
modulator is maintained with a passive resistor network that is designed to provide the proper operation
point for the DAC and the TRF3703 modulator.

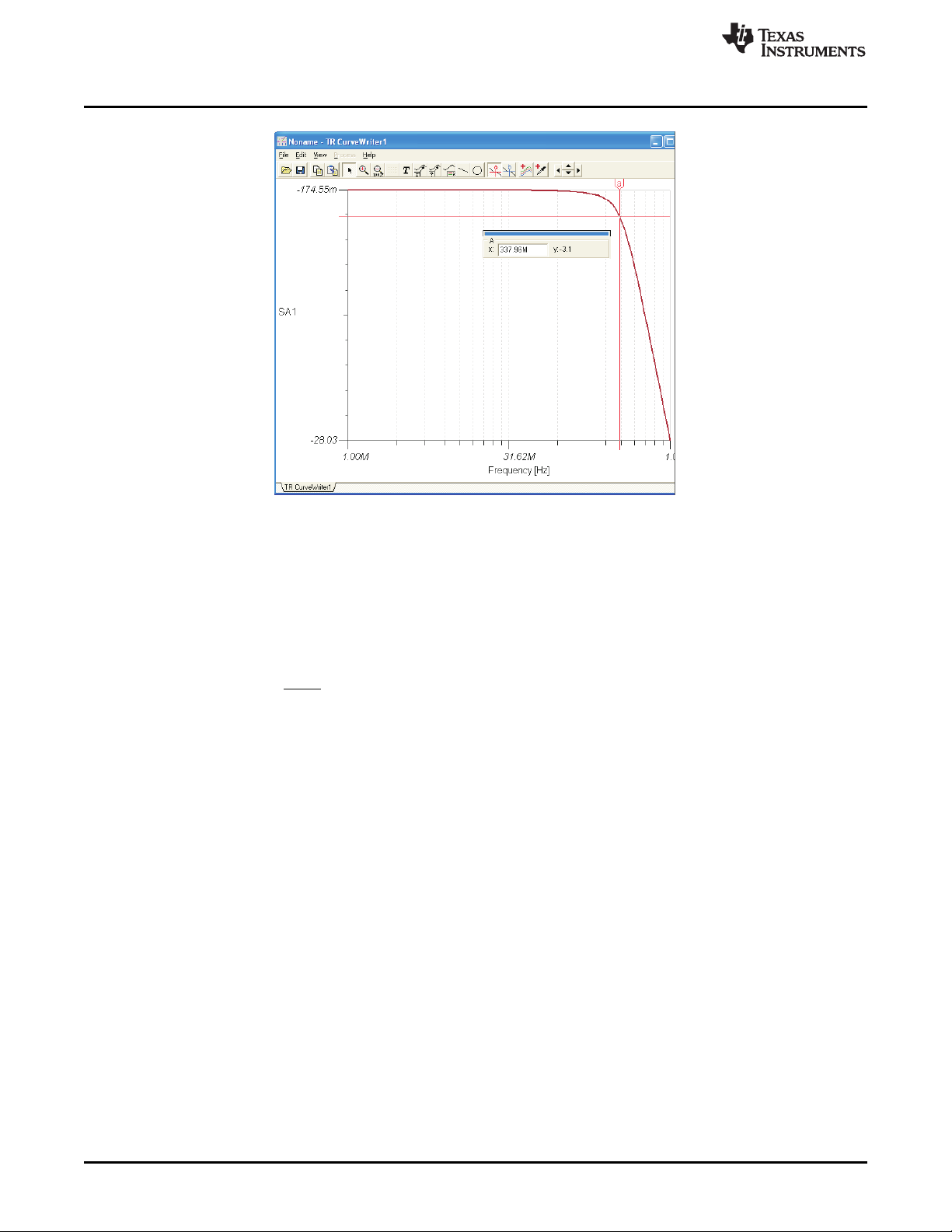

The DAC5668/88/89EVM is configured with enough pads to provide a specific fifth-order differential
passive LC filter. By default, it is only populated with a simple LC low-pass filter to attenuate the higher
clock harmonics. The 3-dB corner of this filter is approximately 300 MHz.
9
SLAU241A–June 2008–Revised March 2010 DAC5668/88/89EVM
Submit Documentation Feedback Copyright © 2008–2010, Texas Instruments Incorporated

EXTIO
FS
V
IOUT = 16
R91
æ ö
´ç ÷
è ø
DAC5668/88/89 EVM Software www.ti.com
The DAC5668/88/89EVM also includes a pi pad network on the modulator output to provide some
matching or filtering, if desired. In its default state, the pad is not used and a series capacitor is used on
the RF output.
4.8 Reference Operation
The DAC full-scale output current is set by applying an external resistor (R91) between the BIASJ pin of
the device and ground. The full-scale output current can be adjusted from 20 mA down to 2 mA by varying
this resistor. The full-scale output current, IOUTFS, is defined as follows:
(1)
where VEXTIO is the voltage at pin EXTIO. This voltage is 1.2 V when using the internally provided bandgap
reference voltage source. The internal reference can be disabled and overridden by an external reference
by connecting a voltage source to EXTIO and connecting EXTLO to +3.3 Vdc (J5 EXTLO connected
between pins 2 and 3). The specified range for external reference voltages must be observed.
5 DAC5668/88/89 EVM Software
The EVM Control Software is started by accessing the Windows Start →All Programs →Texas
Instruments DACs cascading menus. The DAC5668 and the DAC5688 share the same EVM software,
and the DAC5689 has a stand-alone EVM software.
The DAC EVM application allows users to:
• Configure the DAC and CDCM7005 registers.
• Save and load register settings using text files.
• Visualize the data path through the DAC.
5.1 Software Description
The software has five main settings that allow you to modify the functionality of the active panels. You can
switch between these settings by selecting one of the Menu items described in Table 6.
10 DAC5668/88/89EVM SLAU241A–June 2008–Revised March 2010
Submit Documentation Feedback
Copyright © 2008–2010, Texas Instruments Incorporated

www.ti.com DAC5668/88/89 EVM Software
Table 6. Software Main Settings
SETTING FUNCTION
EVM Home EVM and DAC serial information. EVM communication status
DAC Registers DAC register settings (See the DAC data sheet for detailed information on each register)
CDCM7005 Registers CDCM7005 register settings (See the CDCM7005 data sheet for detailed information on each register)
DAC Diagram DAC data path under current register settings
Help Displays a short description of each DAC setting
5.1.1 General Controls
Reset USB Port:
Begins a new USB session. Click this button if a status error message occurs.
Readback Enabled/Disabled:
Enable or disables the DAC register reads. When Readback is disabled, the software enters simulation
mode. If communicating with the DAC is a problem, the software enters into simulation mode
automatically.
Save Settings:
Saves the DAC and CDCM7005 register configurations to a text file for future use.
Load Settings:
Loads a DAC and CDCM7005 register configuration from a text file and updates the GUI.
11
SLAU241A–June 2008–Revised March 2010 DAC5668/88/89EVM
Submit Documentation Feedback Copyright © 2008–2010, Texas Instruments Incorporated

DAC5668/88/89 EVM Software www.ti.com
5.1.2 DAC5688 Specific Controls
Tab Control (Input, Digital, Clock, etc.):
Switches between the diffferent DAC registers.
Auto-Sync:
Synchronizes all the digital blocks on the DAC using the soft-sync register.
Send All:
Sends the current front panel registers to the device. This is generally only used when the EVM power
has recycled, or the device has been reset and the user wants to load the displayed settings to the
device.
Read All:
Reads the current registers on the DAC. This is used to verify settings on the front panel.
FDAC(MHz):
Enters the DAC frequency in MHz for NCO calculation.
NCO IF (MHz):
Desired mixing frequency in MHz when using the DAC mixer.
Update mixer:
Used to update the NCO DDS register value.
12 DAC5668/88/89EVM SLAU241A–June 2008–Revised March 2010
Submit Documentation Feedback
Copyright © 2008–2010, Texas Instruments Incorporated

www.ti.com DAC5668/88/89EVM Initial Power Up and Test

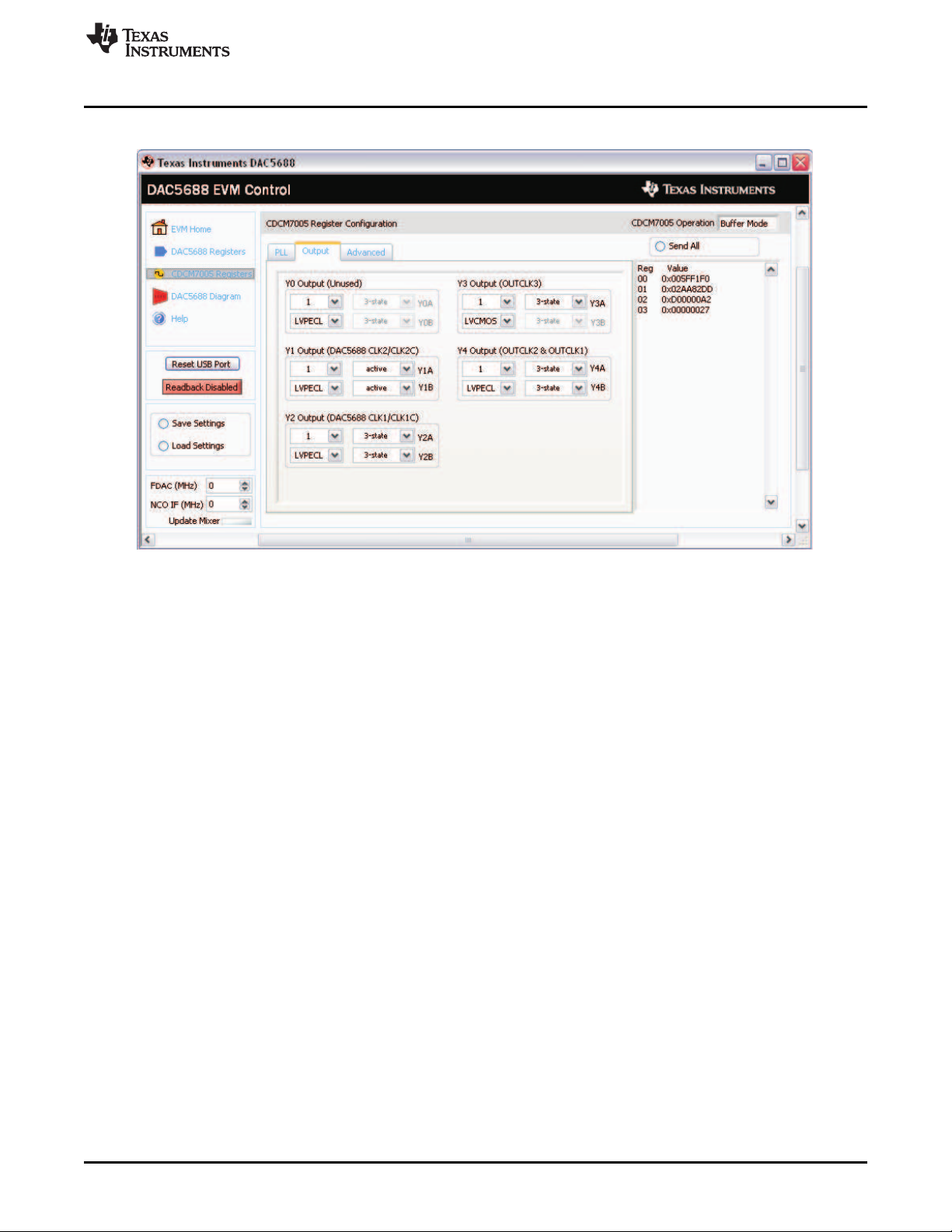

5.1.3 CDCM7005 Specific Controls
Tab Control (PLL, Output, Advanced):
Switches between the different CDCM7005 registers.
CDCM7005 Operation:
Select Buffer Mode when no VCXO is installed or the VCXO is disabled. In this case, the CDCM7005
operates as a buffer. Select PLL Mode when a VCXO is being used by the CDCM7005.
Send All:
Sends the current front panel registers to the device. This is generally only used when the EVM power
has recycled, or the device has been reset and the user wants to load the displayed settings to the
device.
6 DAC5668/88/89EVM Initial Power Up and Test
The steps described in this section show how to connect and configure the DAC5668/88/89EVM for
evaluation under the default settings.
1. Connect the DAC5668/88/89EVM digital connector (J2 and J7) to a digital test pattern generator
capable of providing 3.3-V or 1.8-V CMOS logic level inputs such as Texas Instruments TSW3100.
2. Use the DAC5668/88/89 EVM DAC_CLKOUT (J21) SMA connector to trigger the pattern generator. In
the case of the TSW3100 pattern generator, the trigger input is CMOS CLK (J73) SMA connector.
3. Connect the 1.8-V (J13/J14), 3.3-V (J15/J16) and 5-V (J10/J11) power supplies. Ensure that each
supply is not drawing more than 1 A of current. Turn on the power supplies. Press SW1 to reset the
board.
4. Provide a single-ended, 1-Vrms, 0-V, offset sine-wave signal to the DAC5668/88/89 EXT_VCXO (J20)
SMA connector. LED D3 should illuminate indicating that a signal has been detected. If not, verify that
the correct signal is being provided.
5. Connect a 0-dBm LO signal to the RF_LO_IN (J23) SMA connector.
6. Connect one end of the supplied USB cable to an available USB port on the host PC. Connect the
other end of the cable to J1 on the DAC5668/88/89EVM.
13
SLAU241A–June 2008–Revised March 2010 DAC5668/88/89EVM
Submit Documentation Feedback Copyright © 2008–2010, Texas Instruments Incorporated

Bill of Materials and Schematics www.ti.com
7. Open the EVM Software. The DAC software detects if the USB port is active and if it is capable of
reading the EVM serial number. Read the Status Messages to determine if the communication is
successful.
8. Program the CDCM7005 and DAC registers as necessary. An example configuration file example.txt is
included under the installation folder: C:\Program Files\Texas Instruments\DAC5688/89\DAC5688/89
Configuration Files\
9. Program and run the pattern generator. If using the TSW3100, see the user’s guide for more
information on how to set up a digital pattern.
10. The DAC5668/88/89EVM RF output can be monitored using SMA connector J6 (RFOUT).
7 Bill of Materials and Schematics
This section contains the bill of materials, printed-circuit board layout, and schematics of the
DAC5668/88/89EVM.
7.1 Bill of Materials
Qty Part Reference Value PCB Footprint Mfr_Name Mfr_Part_Number Note
42 C1 C6-C8 C14 1mF 0402 Panasonic ECJ-0EB1C104K
C15 C18 C21
C24 C28 C29
C32 C52
C61-C65
C67-C75
C77-C79 C82
C87 C88 C91
C92 C98
C100-C104
C107
1 C2 0.47mF 0603 Murata GRM188R71C474KA88D
6 C3 C55 C66 C85 1000pF 0402 Panasonic ECJ-0EB1E102K
C89 C113
1 C4 22mF tant_a Kemet T494A226M010AS
8 C5 C34 1mF 0603 Panasonic ECJ-1V41E105M
C42-C46 C111
5 C9 C10 C60 C97 0.01mF 0402 Panasonic ECJ-0EB1E103K
C99
12 C11 C33 C56 10mF tant_a Kermet T494A106M016AS
C57 C76 C81
C84 C90 C108
C112 C115
C126
0 C12 C13 C30 4.7pF 0603 Panasonic ECJ-1VC1H047C_DNI DNI
C31
0 C16 C26 2.2pF 0603 AVX 06035A2R2CAT2A_DNI DNI
2 C17 C27 2.7pF 0603 AVX 06035A2R7CAT2A
2 C19 C25 22pF 0402 Panasonic ECJ-0EC1H220J
2 C20 C80 100pF 0402 Panasonic ECJ-0EB1E101K
0 C22 C23 DNI 0402 Panasonic ECJ-0EB1E103K_DNI DNI
7 C35 C47-C51 47mF tant_b Kemet T494B476M010AS
C110
8 C36-C41 C54 0.01mF 0603 Panasonic ECJ-1VB1C103K
C109
3 C53 C83 C86 4.7mF tant_a AVX TAJA475K020R
1 C58 560pF 0402 Panasonic ECJ-0EB1H561K
1 C59 0.01mF 0603 Kemet C0603C103K1RACTU
1 C93 330pF 0402 Panasonic ECJ-0EB1E331K
2 C94 C96 3.3pF 0402 Murata GRM1555C1H3R3CZ01D
1 C95 0.033mF 0402 AVX 0402ZC333KAT2A
2 C105 C106 47pF 0603 Panasonic ECJ-1VC1H470J
4 D1-D4 LED Green LED_0805 Panasonic LNJ306G5UUX
14 DAC5668/88/89EVM SLAU241A–June 2008–Revised March 2010
Submit Documentation Feedback
Copyright © 2008–2010, Texas Instruments Incorporated

www.ti.com Bill of Materials and Schematics
Qty Part Reference Value PCB Footprint Mfr_Name Mfr_Part_Number Note
3 D5-D7 MBRB2515L DIODE_MBRB2515L Semiconductor MBRB2515LT4G
12 FB1-FB12 68 Ωat 100MHz 1206 Panasonic EXC-ML32A680U
1 J1 Header_1x2_100_230L HDR_THVT_1x2_100_M Samtec TSW-103-07-L-S
2 J2 J7 TSM-117-01-S-DV-LC SAMTEC_TSM_117_01_S_DV_ Samtec TSM-117-01-S-DV-LC
LC
0 J3 J8 SMA_PCB_THVT SMA_THVT_312x312 Johnson 142-0701-201_DNI DNI
Components
2 J4 J9 SMA_PCB_THVT SMA_THVT_312x312 Johnson 142-0701-201
Components
1 J5 HMTSW-107-07-G-T HDR_THVT_3x7_100_M Samtec HMTSW-107-07-G-T See Note
8 J6 J17-J23 SMA_END_RND SMA_SMEL_218x247_096 Johnson 142-0761-801
Components
3 J10 J14 J16 BANANA_JACK_BLK JACK_THVT_BANANA_250dia Alectron ST-351B BLK
3 J11 J13 J15 BANANA_JACK_RED JACK_THVT_BANANA_250dia Alectron ST-351A RED
1 J12 USB_B_S_F_B_TH CON_THRT_USB_B_F Samtec USB-B-S-F-B-TH
5 JP1-JP5 HEADER_1x3_100_430L HDR_THVT_1x3_100_M Samtec HMTSW-103-07-G-S-.240 (SHUNT 2-3)
0 JP6 HEADER_1x3_100_430L HDR_THVT_1x3_100_M Samtec HMTSW-103-07-G-S-.240 DNI
0 L1 L10 56nH ind_0603 Panasonic ELJ-RE56NJF3_DNI DNI
4 L2 L3 L8 L9 10nH 0603 Coilcraft 0603CS-10NXLU
4 L4-L7 68nH 0603 Coilcraft 0603CS-68NXJL
3 R1 R3 R84 1K 0402 Panasonic ERJ-2RKF1001X
13 R2 R27 R79 R88 22.1 0402 Panasonic ERJ-2RKF22R1X
R89 R96
R98-R104
0 R4 1K 0402 Panasonic ERJ-2RKF1001X_DNI DNI
1 R5 162 0402 Panasonic ERJ-2RKF1620X
7 R6 R7 R80 R81 10K 0402 Panasonic ERJ-2RKF1002X
R108 R112
R113
1 R8 4.75K 0402 Panasonic ERJ-2RKF4751X
4 R9 R15 R29 R93 750 0402 Panasonic ERJ-2RKF7500X
8 R10 R13 R16 82.5 0402 Panasonic ERJ-2RKF82R5X
R20 R30-R33
8 R11 R12 R17 130 0402 Panasonic ERJ-2RKF1300X
R19 R23-R26
5 R14 R18 R78 0 0402 Panasonic ERJ-2GE0R00X
R85 R95
3 R21 R22 R28 150 0402 Panasonic ERJ-2RKF1500X
0 R34 R41 R42 0 0603 Panasonic ERJ-3GEY0R00V_DNI DNI
R46 R56 R58
R69 R71 R72
R77
0 R35 R39 R73 60.4 0603 Yageo RC0603FR-0760R4L_DNI DNI
R76
11 R36 R37 R44 100 0402 Panasonic ERJ-2RKF1000X
R74 R75 R92
R105 R107
R109-R111
0 R38 R43 R86 130 0402 Panasonic ERJ-2RKF1300X_DNI DNI
R87
2 R40 R70 90.9 0603 Panasonic ERJ-3EKF90R9V
9 R45 R50 R51 0 0603 Panasonic ERJ-3GEY0R00V
R55 R57 R63
R64 R68 R94
4 R47 R53 R59 115 0603 Yageo RC0603FR-07115RL
R66
4 R48 R54 R60 634 0603 Yageo RC0603FR-07634RL
R67
4 R49 R52 R61 60.4 0603 Yageo RC0603FR-0760R4L
R65
1 R62 49.9 0402 Panasonic ERJ-2RKF49R9X
15
SLAU241A–June 2008–Revised March 2010 DAC5668/88/89EVM
Submit Documentation Feedback Copyright © 2008–2010, Texas Instruments Incorporated

Bill of Materials and Schematics www.ti.com
Qty Part Reference Value PCB Footprint Mfr_Name Mfr_Part_Number Note
0 R82 221 0603 Panasonic ERJ-3EKF2210V_DNI DNI
0 R83 110 0603 Panasonic ERJ-3EKF1100V_DNI DNI
1 R90 93.1 0402 Panasonic ERJ-2RKF93R1X
1 R91 953 0402 Panasonic ERJ-2RKF9530X
4 RN1-RN4 4816P-001-220 RNET_16_225x445_50 Bourns 4816P-001-220
1 SW1 SW RESET switch_reset C&K KT11P3JM
2 T1 T2 ADT4-1T TFMR_6_250x340_100_custom Mini-Circuits ADT4-1T
6 TP1 TP2 TP4 Blk TP_THVT_100_RND Keystone 5001
TP6 TP8 TP10 Electronics Corp.
3 TP3 TP5 TP7 Testloop_Red TP_THVT_060_RND Keystone 5000
Electronics Corp.
1 U1 DAC5688/89 QFN_64_360x360_0p50mm_pwr Texas Instruments DAC5688/89RGC
pad
2 U2 U8 SN74LVC1G125DBVR SOT_5_120x69_57 Texas Instruments SN74LVC1G125DBVR
0 U3 614.4MHZ VCXO_6_CUSTOM Toyocom TCO-2111-491.52_DNI DNI
1 U4 CDCM7005 QFN48 Texas Instruments CDCM7005RGZT
1 U5 TRF3703-33 QFN24 Texas Instruments TRF3703-33IRGET
1 U6 OSC-VECTRON OSC_4_SM_460x386 VECTRON VTD3-J0BC-10M00
0 U7 OSC-VECTRON XTAL_4_SM_203x132 VECTRON VTC4_DNI DNI
1 U9 FT245RL ssop_28_413x220_26 FTDI Chip FT245RL
1 U10 SN74AHC541PW tssop_20_260x177_26 Texas Instruments SN74AHC541PW
1 U11 SN74HC241PW tssop_20_260x177_26 Texas Instruments SN74HC241PW
10 Z_SH-H1-Z_SH- SHUNT-HEADER Keltron MJ-5.97-G Shunt for
H10 header
6 X_SCREW1- SCREW PANHEAD 4-40 x Building Fasteners PMS 440 0038 PH
X_SCREW6 3/8
4 X_STANDOFF1- STANDOFF ALUM HEX 4-40 Keystone 2203
X_STANDOFF4 x .500
16 DAC5668/88/89EVM SLAU241A–June 2008–Revised March 2010
Submit Documentation Feedback
Copyright © 2008–2010, Texas Instruments Incorporated

www.ti.com Bill of Materials and Schematics
7.2 Printed-Circuit Board Layout
The following illustrations present the layers of the DAC5668/88/89EVM board.
17
SLAU241A–June 2008–Revised March 2010 DAC5668/88/89EVM
Submit Documentation Feedback Copyright © 2008–2010, Texas Instruments Incorporated

Bill of Materials and Schematics www.ti.com
Figure 6. Top Silk Screen
18 DAC5668/88/89EVM SLAU241A–June 2008–Revised March 2010
Submit Documentation Feedback
Copyright © 2008–2010, Texas Instruments Incorporated

www.ti.com Bill of Materials and Schematics
Figure 7. Layer 2, GND
19
SLAU241A–June 2008–Revised March 2010 DAC5668/88/89EVM
Submit Documentation Feedback Copyright © 2008–2010, Texas Instruments Incorporated

Bill of Materials and Schematics www.ti.com
Figure 8. Layer 3, GND
20 DAC5668/88/89EVM SLAU241A–June 2008–Revised March 2010
Submit Documentation Feedback
Copyright © 2008–2010, Texas Instruments Incorporated
