INA4180-INA4181 Evaluation Module User's Guide
User's Guide
SBOU189–November 2017
INA4180-INA4181 Evaluation Module User's Guide
This user’s guide describes the characteristics, operation, and use of the INA4180-4181EVM (evaluation
module). This EVM is designed to evaluate the performance of the INA4180A1, INA4180A2, INA4180A3,
INA4180A4, INA4181A1, INA4181A2, INA4181A3, INA4181A4 voltage output current-shunt monitors in a
variety of configurations. This document includes a schematic, reference printed-circuit board (PCB)
layouts, and a complete bill of materials.
All manuals and user guides at all-guides.com

www.ti.com
2SBOU189–November 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
INA4180-INA4181 Evaluation Module User's Guide

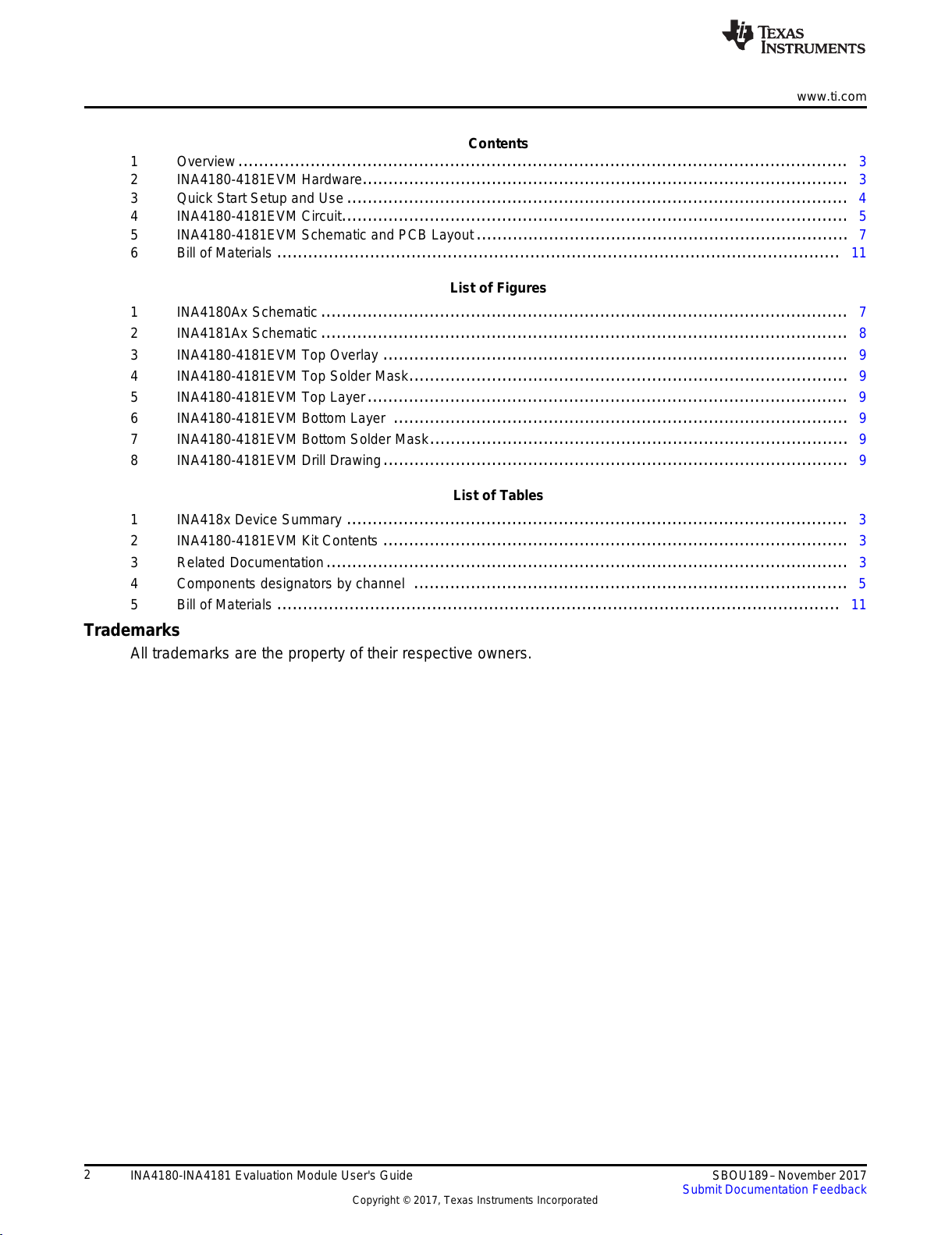

Contents
1 Overview...................................................................................................................... 3
2 INA4180-4181EVM Hardware.............................................................................................. 3
3 Quick Start Setup and Use ................................................................................................. 4
4 INA4180-4181EVM Circuit.................................................................................................. 5
5 INA4180-4181EVM Schematic and PCB Layout........................................................................ 7
6 Bill of Materials ............................................................................................................. 11
List of Figures
1 INA4180Ax Schematic ...................................................................................................... 7
2 INA4181Ax Schematic ...................................................................................................... 8
3 INA4180-4181EVM Top Overlay .......................................................................................... 9
4 INA4180-4181EVM Top Solder Mask..................................................................................... 9
5 INA4180-4181EVM Top Layer............................................................................................. 9
6 INA4180-4181EVM Bottom Layer ........................................................................................ 9
7 INA4180-4181EVM Bottom Solder Mask................................................................................. 9
8 INA4180-4181EVM Drill Drawing.......................................................................................... 9
List of Tables
1 INA418x Device Summary ................................................................................................. 3
2 INA4180-4181EVM Kit Contents .......................................................................................... 3
3 Related Documentation..................................................................................................... 3
4 Components designators by channel .................................................................................... 5
5 Bill of Materials ............................................................................................................. 11
Trademarks
All trademarks are the property of their respective owners.
All manuals and user guides at all-guides.com

www.ti.com Overview
3
SBOU189–November 2017
Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated
INA4180-INA4181 Evaluation Module User's Guide
1 Overview
The INA4180 family of current-shunt monitors (also called current-sense amplifiers) can sense drops
across shunts at common-mode voltages from –0.2 V to +26 V, independent of the supply voltage. Four
fixed gains are available: 20 V/V, 50 V/V, 100 V/V, and 200 V/V. The INA4181 family has the same
capabilities as the INA4180 family but with the addition of reference pins on each channel that enables
bidirectional current measurements. These devices operate from a single 2.7-V to 5.5-V power supply,
drawing a maximum of 260 μA of supply current per amplifier channel.
The INA4180 devices are currently available in a TSSOP(14) and the INA4181 devices are available in a
TSSOP(20) surface-mount packages. Table 1 lists the available gain options.
Table 1. INA418x Device Summary
PRODUCT GAIN
INA4180A1, INA4181A1 20
INA4180A2, INA4181A2 50
INA4180A3, INA4181A3 100
INA4180A4, INA4181A4 200
1.1 INA4180-4181EVM Kit Contents
Table 2 lists the contents of the INA4180-4181EVM kit. Contact the nearest Texas Instruments Product
Information Center if any component is missing. TI highly recommends checking the INA4180 family
product folders on the TI website at www.ti.com for further information regarding these products.
Table 2. INA4180-4181EVM Kit Contents
ITEM QUANTITY
INA4180-4181EVM Test Board 1
1.2 Related Documentation From Texas Instruments
This user guide provides information regarding TI's integrated circuits used in the assembly of the
INA4180-4181EVM. See also the device data sheets:
Table 3. Related Documentation
DOCUMENT LITERATURE NUMBER
INA4180 Product data sheet SBOS741
INA4181 Product data sheet SBOS793
2 INA4180-4181EVM Hardware
The INA4180 is a current sense integration solution that provides ease of use and high performance. The
INA4181 has the same capabilities as the INA4180 but with the addition of reference pins that enable
bidirectional current measurements. The INA4180-4181EVM is intended to provide basic functional
evaluation of this device family. The fixture layout is not intended to be a model for the target circuit, nor is
it laid out for electromagnetic compatibility (EMC) testing. The INA4180-4181EVM consists of one PCB
with an option to snap apart eight individual PCBs — one for each of the eight devices (INA4180A1,
INA4180A2, INA4180A3, INA4180A4, INA4181A1, INA4181A2, INA4181A3 and INA4181A4).
All manuals and user guides at all-guides.com

INA4180-4181EVM Hardware www.ti.com
4SBOU189–November 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
INA4180-INA4181 Evaluation Module User's Guide

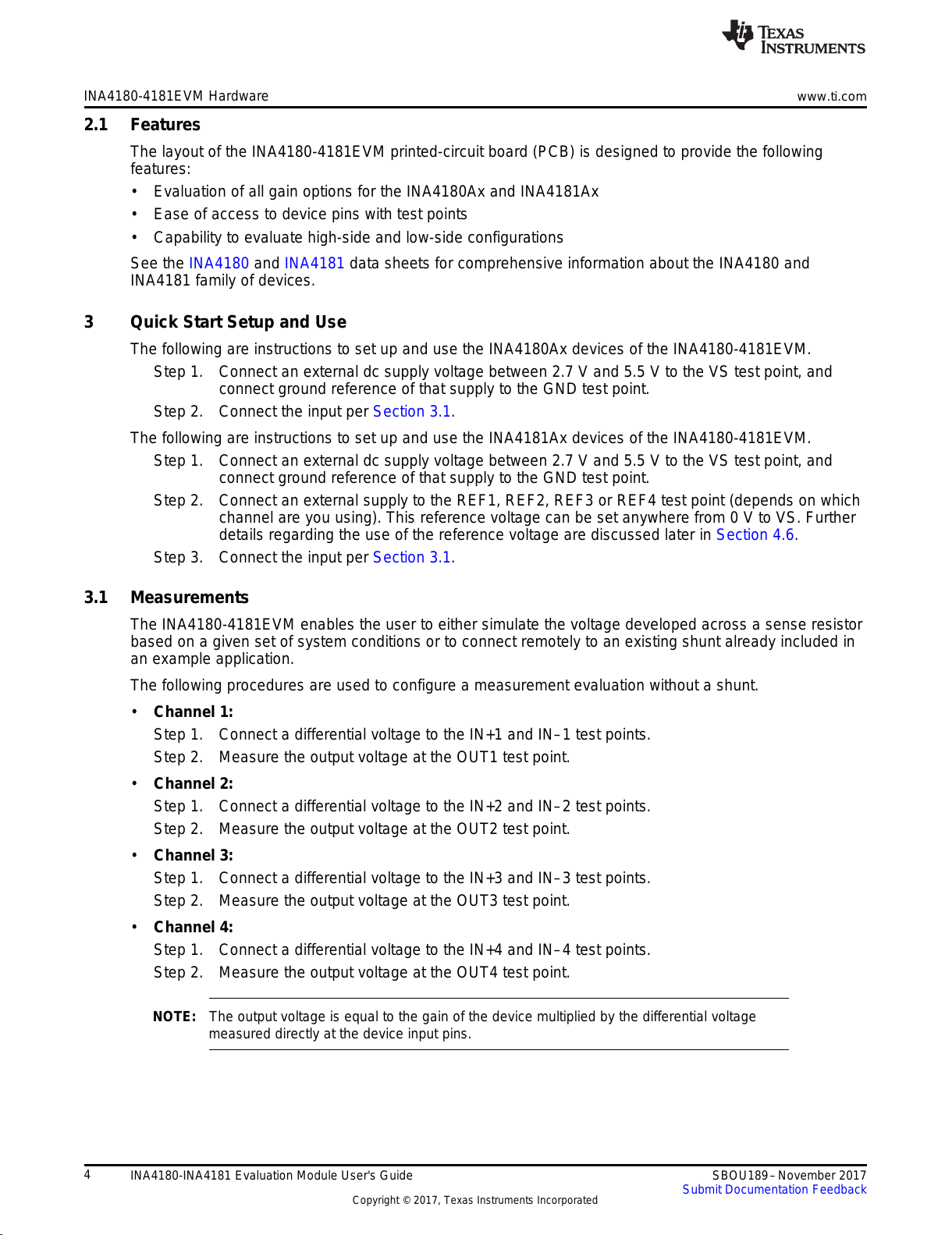

2.1 Features
The layout of the INA4180-4181EVM printed-circuit board (PCB) is designed to provide the following
features:
• Evaluation of all gain options for the INA4180Ax and INA4181Ax
• Ease of access to device pins with test points
• Capability to evaluate high-side and low-side configurations
See the INA4180 and INA4181 data sheets for comprehensive information about the INA4180 and
INA4181 family of devices.
3 Quick Start Setup and Use
The following are instructions to set up and use the INA4180Ax devices of the INA4180-4181EVM.
Step 1. Connect an external dc supply voltage between 2.7 V and 5.5 V to the VS test point, and
connect ground reference of that supply to the GND test point.
Step 2. Connect the input per Section 3.1.
The following are instructions to set up and use the INA4181Ax devices of the INA4180-4181EVM.
Step 1. Connect an external dc supply voltage between 2.7 V and 5.5 V to the VS test point, and
connect ground reference of that supply to the GND test point.
Step 2. Connect an external supply to the REF1, REF2, REF3 or REF4 test point (depends on which
channel are you using). This reference voltage can be set anywhere from 0 V to VS. Further
details regarding the use of the reference voltage are discussed later in Section 4.6.
Step 3. Connect the input per Section 3.1.
3.1 Measurements
The INA4180-4181EVM enables the user to either simulate the voltage developed across a sense resistor
based on a given set of system conditions or to connect remotely to an existing shunt already included in
an example application.
The following procedures are used to configure a measurement evaluation without a shunt.
•Channel 1:
Step 1. Connect a differential voltage to the IN+1 and IN–1 test points.
Step 2. Measure the output voltage at the OUT1 test point.
•Channel 2:
Step 1. Connect a differential voltage to the IN+2 and IN–2 test points.
Step 2. Measure the output voltage at the OUT2 test point.
•Channel 3:
Step 1. Connect a differential voltage to the IN+3 and IN–3 test points.
Step 2. Measure the output voltage at the OUT3 test point.
•Channel 4:
Step 1. Connect a differential voltage to the IN+4 and IN–4 test points.
Step 2. Measure the output voltage at the OUT4 test point.
NOTE: The output voltage is equal to the gain of the device multiplied by the differential voltage
measured directly at the device input pins.
All manuals and user guides at all-guides.com

www.ti.com INA4180-4181EVM Circuit
5
SBOU189–November 2017
Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated
INA4180-INA4181 Evaluation Module User's Guide

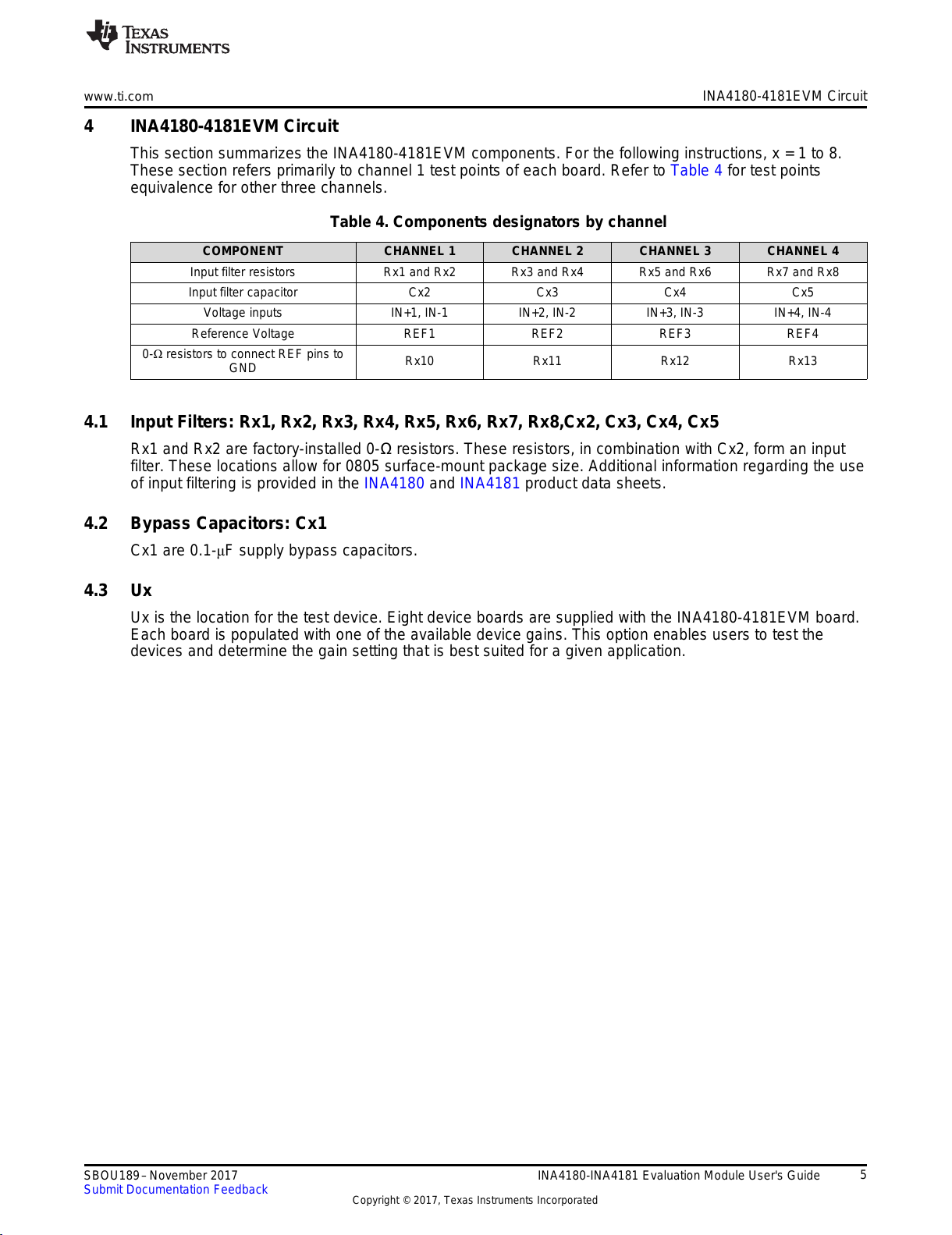

4 INA4180-4181EVM Circuit
This section summarizes the INA4180-4181EVM components. For the following instructions, x = 1 to 8.
These section refers primarily to channel 1 test points of each board. Refer to Table 4 for test points
equivalence for other three channels.
Table 4. Components designators by channel
COMPONENT CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4
Input filter resistors Rx1 and Rx2 Rx3 and Rx4 Rx5 and Rx6 Rx7 and Rx8
Input filter capacitor Cx2 Cx3 Cx4 Cx5
Voltage inputs IN+1, IN-1 IN+2, IN-2 IN+3, IN-3 IN+4, IN-4
Reference Voltage REF1 REF2 REF3 REF4
0-Ωresistors to connect REF pins to
GND Rx10 Rx11 Rx12 Rx13
4.1 Input Filters: Rx1, Rx2, Rx3, Rx4, Rx5, Rx6, Rx7, Rx8,Cx2, Cx3, Cx4, Cx5
Rx1 and Rx2 are factory-installed 0-Ωresistors. These resistors, in combination with Cx2, form an input
filter. These locations allow for 0805 surface-mount package size. Additional information regarding the use
of input filtering is provided in the INA4180 and INA4181 product data sheets.
4.2 Bypass Capacitors: Cx1
Cx1 are 0.1-μF supply bypass capacitors.
4.3 Ux
Ux is the location for the test device. Eight device boards are supplied with the INA4180-4181EVM board.
Each board is populated with one of the available device gains. This option enables users to test the
devices and determine the gain setting that is best suited for a given application.
All manuals and user guides at all-guides.com

INA4180-4181EVM Circuit www.ti.com
6SBOU189–November 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
INA4180-INA4181 Evaluation Module User's Guide
The following is a list of the factors involved in selecting the appropriate device:
• The INA4180A1-A4 devices are identical with the exception of different gain settings. The INA4181A1-
A4 devices have the same device gain options of the INA4180 but with the addition of the reference
pin that enables bidirectional current measurements.
• Select INA4180 for unidirectional applications only, and select INA4181 for unidirectional or
bidirectional applications.
• The differential input voltage is applied across the inputs, or developed based on the load current that
flows through the shunt resistor.
• A significant limiting factor that requires attention to be given to device selection is the output voltage.
• The selected device must allow the output voltage to remain within the acceptable range after the input
voltage is amplified by the device gain. The output voltage must remain within the range of 10 mV
above ground to 100 mV below the supply voltage.
• An output below the minimum allowable output requires the selection of a device with a higher gain.
Likewise, an output above the maximum allowable output requires the selection of a device with a
lower gain.
4.4 Voltages Inputs(IN+1, IN–1, IN+2, IN–2, IN+3, IN-3, IN+4, IN-4)
The IN+1 and IN–1 inputs accept a differential voltage that is amplified by the selected device gain and is
presented at the OUT1 test point. These inputs can also be used to connect the differential voltage
developed across an external shunt in an existing circuit. The acceptable differential input voltage range
and polarity are determined by the supply voltage, reference voltage, and gain of the selected device.
4.5 Reference Voltage pins (REF1, REF2, REF3, REF4)
REF1 test points enables the user to configure the INA4181A1-A4 device boards for either unidirectional
or bidirectional operation. Refer to Section 4.6 for more information.
4.6 Reference Voltage Setup
The INA4181A1-A4 devices enable the use of an external reference, REF1. This reference determines
how the output responds to certain input conditions. The reference also enables these devices to be used
in unidirectional and bidirectional applications. The REF1 pin can also be connected to supply (VS) to
enable unidirectional measurement in the negative direction.
4.6.1 Rx10, Rx11, Rx12 and Rx13
Rx10 resistors locations are not populated. If a 0-Ωresistor is populated, the REF1 pin will be connected
to GND, and the INA4181 can be used for unidirectional measurements. These locations allow for 0805
surface-mount package size.
4.6.2 Unidirectional Mode
Unidirectional refers to a load current that flows in only one direction.
The INA4180A1-A4 devices are able to measure unidirectional currents only. The INA4181A1-A4 devices
measure unidirectional and bidirectional currents. For unidirectional measurements, connect the REF1 pin
to GND. You can connect the REF1 pin to GND through a 0-Ωresistor (Rx10) or ground it directly with the
test point.
4.6.3 Bidirectional Mode
Bidirectional refers to a load current that flows in both directions.
All manuals and user guides at all-guides.com

www.ti.com INA4180-4181EVM Schematic and PCB Layout
7
SBOU189–November 2017
Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated
INA4180-INA4181 Evaluation Module User's Guide
The INA4181A1-A4 are able to measure bidirectional currents. The ability to measure this current flowing
in both directions is enabled by applying a voltage to the REF1 pin. The voltage applied to REF1 sets the
output state that corresponds to the zero-input level state. The output then responds by increasing above
REF1 for positive differential signals (relative to the IN–1 pin) and responds by decreasing below REF1 for
negative differential signals. This reference voltage applied to the REF1 pin can be set anywhere from 0 V
to VS. For bidirectional applications, REF1 is typically set at mid-scale for equal signal range in both
current directions. In some cases, however, REF1 is set at a voltage other than mid-scale when it is
unnecessary that the bidirectional current and corresponding output signal be symmetrical.
5 INA4180-4181EVM Schematic and PCB Layout
NOTE: Board layouts are not to scale. These figures are intended to show how the board is laid out.
The figures are not intended to be used for manufacturing INA4180-181EVM PCBs.
5.1 Schematics
Figure 1 shows the schematic for the INA4180Ax section of the INA4180-4181EVM PCB, and Figure 2
shows the schematic for the INA4181Ax section of the INA4180-4181EVM PCB.
Figure 1. INA4180Ax Schematic
All manuals and user guides at all-guides.com

INA4180-4181EVM Schematic and PCB Layout www.ti.com
8SBOU189–November 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
INA4180-INA4181 Evaluation Module User's Guide
Figure 2. INA4181Ax Schematic
All manuals and user guides at all-guides.com

www.ti.com INA4180-4181EVM Schematic and PCB Layout
9
SBOU189–November 2017
Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated
INA4180-INA4181 Evaluation Module User's Guide
5.2 PCB Layout
Figure 3 through Figure 8 illustrate the PCB layout for the INA4180-4181EVM.
Figure 3. INA4180-4181EVM Top Overlay Figure 4. INA4180-4181EVM Top Solder Mask
Figure 5. INA4180-4181EVM Top Layer Figure 6. INA4180-4181EVM Bottom Layer
All manuals and user guides at all-guides.com

INA4180-4181EVM Schematic and PCB Layout www.ti.com
10 SBOU189–November 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
INA4180-INA4181 Evaluation Module User's Guide

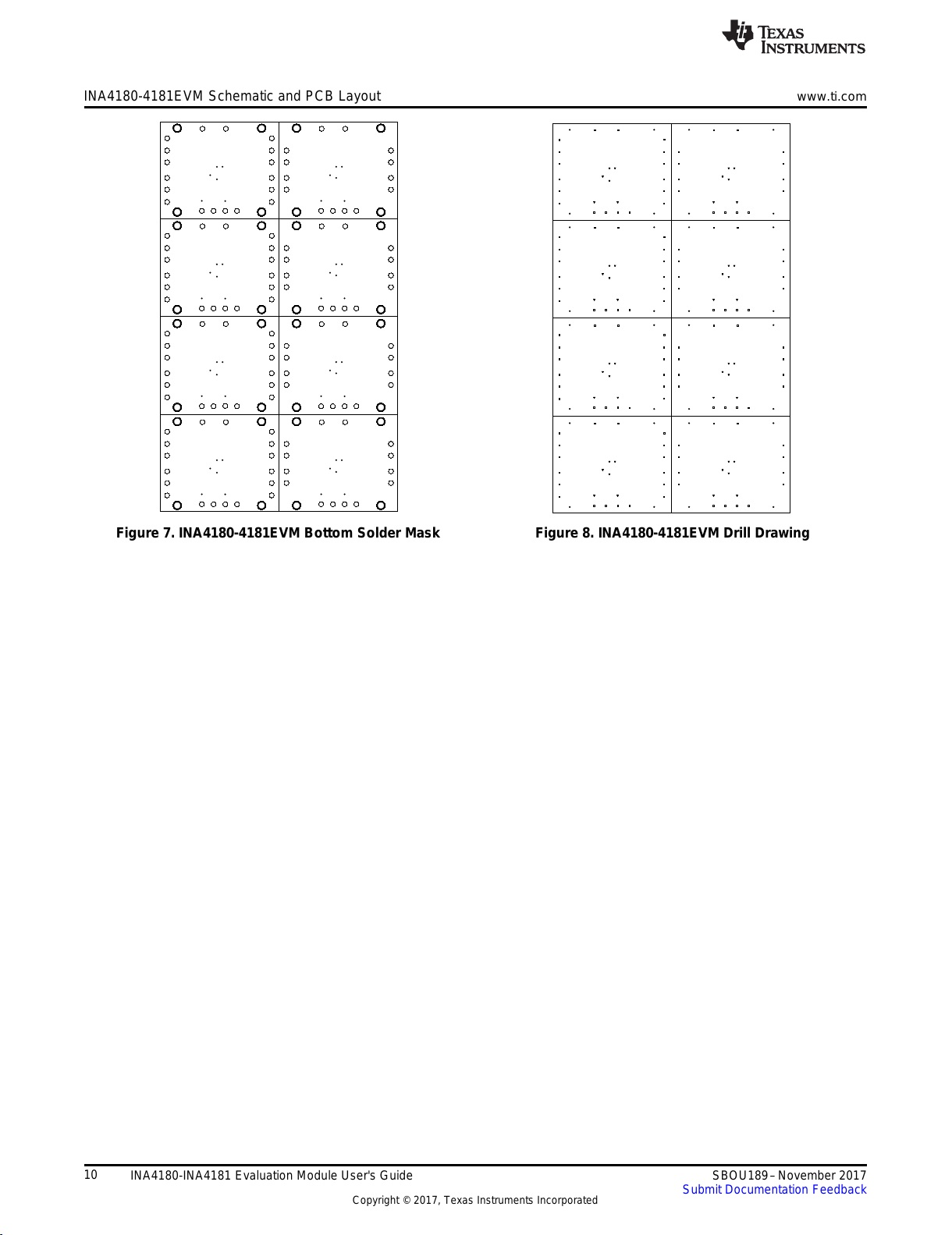

Figure 7. INA4180-4181EVM Bottom Solder Mask Figure 8. INA4180-4181EVM Drill Drawing
All manuals and user guides at all-guides.com

www.ti.com Bill of Materials
11
SBOU189–November 2017
Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated
INA4180-INA4181 Evaluation Module User's Guide

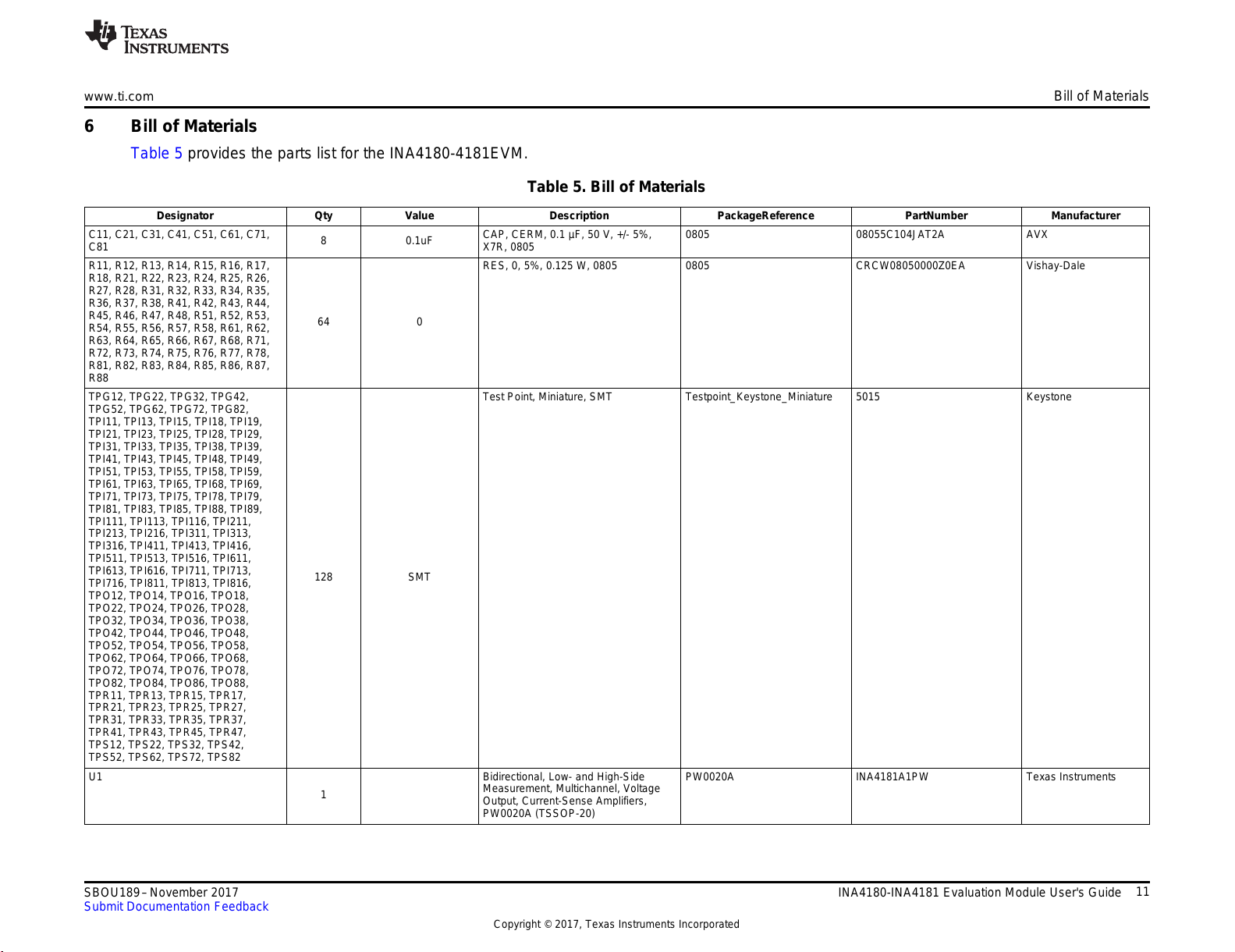

6 Bill of Materials
Table 5 provides the parts list for the INA4180-4181EVM.
Table 5. Bill of Materials
Designator Qty Value Description PackageReference PartNumber Manufacturer
C11, C21, C31, C41, C51, C61, C71,
C81 8 0.1uF CAP, CERM, 0.1 µF, 50 V, +/- 5%, X7R, 0805 0805 08055C104JAT2A AVX
R11, R12, R13, R14, R15, R16, R17,
R18, R21, R22, R23, R24, R25, R26,
R27, R28, R31, R32, R33, R34, R35,
R36, R37, R38, R41, R42, R43, R44,
R45, R46, R47, R48, R51, R52, R53,
R54, R55, R56, R57, R58, R61, R62,
R63, R64, R65, R66, R67, R68, R71,
R72, R73, R74, R75, R76, R77, R78,
R81, R82, R83, R84, R85, R86, R87,
R88
64 0
RES, 0, 5%, 0.125 W, 0805 0805 CRCW08050000Z0EA Vishay-Dale
TPG12, TPG22, TPG32, TPG42,
TPG52, TPG62, TPG72, TPG82,
TPI11, TPI13, TPI15, TPI18, TPI19,
TPI21, TPI23, TPI25, TPI28, TPI29,
TPI31, TPI33, TPI35, TPI38, TPI39,
TPI41, TPI43, TPI45, TPI48, TPI49,
TPI51, TPI53, TPI55, TPI58, TPI59,
TPI61, TPI63, TPI65, TPI68, TPI69,
TPI71, TPI73, TPI75, TPI78, TPI79,
TPI81, TPI83, TPI85, TPI88, TPI89,
TPI111, TPI113, TPI116, TPI211,
TPI213, TPI216, TPI311, TPI313,
TPI316, TPI411, TPI413, TPI416,
TPI511, TPI513, TPI516, TPI611,
TPI613, TPI616, TPI711, TPI713,
TPI716, TPI811, TPI813, TPI816,
TPO12, TPO14, TPO16, TPO18,
TPO22, TPO24, TPO26, TPO28,
TPO32, TPO34, TPO36, TPO38,
TPO42, TPO44, TPO46, TPO48,
TPO52, TPO54, TPO56, TPO58,
TPO62, TPO64, TPO66, TPO68,
TPO72, TPO74, TPO76, TPO78,
TPO82, TPO84, TPO86, TPO88,
TPR11, TPR13, TPR15, TPR17,
TPR21, TPR23, TPR25, TPR27,
TPR31, TPR33, TPR35, TPR37,
TPR41, TPR43, TPR45, TPR47,
TPS12, TPS22, TPS32, TPS42,
TPS52, TPS62, TPS72, TPS82
128 SMT
Test Point, Miniature, SMT Testpoint_Keystone_Miniature 5015 Keystone
U1
1
Bidirectional, Low- and High-Side
Measurement, Multichannel, Voltage
Output, Current-Sense Amplifiers,
PW0020A (TSSOP-20)
PW0020A INA4181A1PW Texas Instruments
All manuals and user guides at all-guides.com

Bill of Materials www.ti.com
12 SBOU189–November 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
INA4180-INA4181 Evaluation Module User's Guide
Table 5. Bill of Materials (continued)
U2
1
Bidirectional, Low- and High-Side
Measurement, Multichannel, Voltage
Output, Current-Sense Amplifiers,
PW0020A (TSSOP-20)
PW0020A INA4181A2PW Texas Instruments
U3
1
Bidirectional, Low- and High-Side
Measurement, Multichannel, Voltage
Output, Current-Sense Amplifiers,
PW0020A (TSSOP-20)
PW0020A INA4181A3PW Texas Instruments
U4
1
Bidirectional, Low- and High-Side
Measurement, Multichannel, Voltage
Output, Current-Sense Amplifiers,
PW0020A (TSSOP-20)
PW0020A INA4181A4PW Texas Instruments
U5
1
Bidirectional, Low- and High-Side
Measurement, Multichannel, Voltage
Output, Current-Sense Amplifiers,
PW0014A (TSSOP-14)
PW0014A INA4180A1PW Texas Instruments
U6
1
Bidirectional, Low- and High-Side
Measurement, Multichannel, Voltage
Output, Current-Sense Amplifiers,
PW0014A (TSSOP-14)
PW0014A INA4180A2PW Texas Instruments
U7
1
Bidirectional, Low- and High-Side
Measurement, Multichannel, Voltage
Output, Current-Sense Amplifiers,
PW0014A (TSSOP-14)
PW0014A INA4180A3PW Texas Instruments
U8
1
Bidirectional, Low- and High-Side
Measurement, Multichannel, Voltage
Output, Current-Sense Amplifiers,
PW0014A (TSSOP-14)
PW0014A INA4180A4PW Texas Instruments
All manuals and user guides at all-guides.com

STANDARD TERMS FOR EVALUATION MODULES
1. Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or
documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance
with the terms set forth herein. User's acceptance of the EVM is expressly subject to the following terms.
1.1 EVMs are intended solely for product or software developers for use in a research and development setting to facilitate feasibility
evaluation, experimentation, or scientific analysis of TI semiconductors products. EVMs have no direct function and are not
finished products. EVMs shall not be directly or indirectly assembled as a part or subassembly in any finished product. For
clarification, any software or software tools provided with the EVM (“Software”) shall not be subject to the terms and conditions
set forth herein but rather shall be subject to the applicable terms that accompany such Software
1.2 EVMs are not intended for consumer or household use. EVMs may not be sold, sublicensed, leased, rented, loaned, assigned,
or otherwise distributed for commercial purposes by Users, in whole or in part, or used in any finished product or production
system.
2Limited Warranty and Related Remedies/Disclaimers:
2.1 These terms do not apply to Software. The warranty, if any, for Software is covered in the applicable Software License
Agreement.
2.2 TI warrants that the TI EVM will conform to TI's published specifications for ninety (90) days after the date TI delivers such EVM
to User. Notwithstanding the foregoing, TI shall not be liable for a nonconforming EVM if (a) the nonconformity was caused by
neglect, misuse or mistreatment by an entity other than TI, including improper installation or testing, or for any EVMs that have
been altered or modified in any way by an entity other than TI, (b) the nonconformity resulted from User's design, specifications
or instructions for such EVMs or improper system design, or (c) User has not paid on time. Testing and other quality control
techniques are used to the extent TI deems necessary. TI does not test all parameters of each EVM.
User's claims against TI under this Section 2 are void if User fails to notify TI of any apparent defects in the EVMs within ten (10)
business days after delivery, or of any hidden defects with ten (10) business days after the defect has been detected.
2.3 TI's sole liability shall be at its option to repair or replace EVMs that fail to conform to the warranty set forth above, or credit
User's account for such EVM. TI's liability under this warranty shall be limited to EVMs that are returned during the warranty
period to the address designated by TI and that are determined by TI not to conform to such warranty. If TI elects to repair or
replace such EVM, TI shall have a reasonable time to repair such EVM or provide replacements. Repaired EVMs shall be
warranted for the remainder of the original warranty period. Replaced EVMs shall be warranted for a new full ninety (90) day
warranty period.
3Regulatory Notices:
3.1 United States
3.1.1 Notice applicable to EVMs not FCC-Approved:
FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software
associated with the kit to determine whether to incorporate such items in a finished product and software developers to write
software applications for use with the end product. This kit is not a finished product and when assembled may not be resold or
otherwise marketed unless all required FCC equipment authorizations are first obtained. Operation is subject to the condition
that this product not cause harmful interference to licensed radio stations and that this product accept harmful interference.
Unless the assembled kit is designed to operate under part 15, part 18 or part 95 of this chapter, the operator of the kit must
operate under the authority of an FCC license holder or must secure an experimental authorization under part 5 of this chapter.
3.1.2 For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant:
CAUTION
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
FCC Interference Statement for Class A EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
All manuals and user guides at all-guides.com

FCC Interference Statement for Class B EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
3.2 Canada
3.2.1 For EVMs issued with an Industry Canada Certificate of Conformance to RSS-210 or RSS-247
Concerning EVMs Including Radio Transmitters:
This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Concernant les EVMs avec appareils radio:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Concerning EVMs Including Detachable Antennas:
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser)
gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication. This radio transmitter has been approved by Industry Canada to operate with the antenna types
listed in the user guide with the maximum permissible gain and required antenna impedance for each antenna type indicated.
Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited
for use with this device.
Concernant les EVMs avec antennes détachables
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et
d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le
présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le
manuel d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne
non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de
l'émetteur
3.3 Japan
3.3.1 Notice for EVMs delivered in Japan: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page 日本国内に
輸入される評価用キット、ボードについては、次のところをご覧ください。
http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page
3.3.2 Notice for Users of EVMs Considered “Radio Frequency Products” in Japan: EVMs entering Japan may not be certified
by TI as conforming to Technical Regulations of Radio Law of Japan.
If User uses EVMs in Japan, not certified to Technical Regulations of Radio Law of Japan, User is required to follow the
instructions set forth by Radio Law of Japan, which includes, but is not limited to, the instructions below with respect to EVMs
(which for the avoidance of doubt are stated strictly for convenience and should be verified by User):
1. Use EVMs in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal
Affairs and Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for
Enforcement of Radio Law of Japan,
2. Use EVMs only after User obtains the license of Test Radio Station as provided in Radio Law of Japan with respect to
EVMs, or
3. Use of EVMs only after User obtains the Technical Regulations Conformity Certification as provided in Radio Law of Japan
with respect to EVMs. Also, do not transfer EVMs, unless User gives the same notice above to the transferee. Please note
that if User does not follow the instructions above, User will be subject to penalties of Radio Law of Japan.
All manuals and user guides at all-guides.com

【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて
いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの
措置を取っていただく必要がありますのでご注意ください。
1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用
いただく。
2. 実験局の免許を取得後ご使用いただく。
3. 技術基準適合証明を取得後ご使用いただく。
なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。
上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ
ンスツルメンツ株式会社
東京都新宿区西新宿６丁目２４番１号
西新宿三井ビル
3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/
/www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
3.4 European Union
3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive):
This is a class A product intended for use in environments other than domestic environments that are connected to a
low-voltage power-supply network that supplies buildings used for domestic purposes. In a domestic environment this
product may cause radio interference in which case the user may be required to take adequate measures.
4EVM Use Restrictions and Warnings:
4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT
LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling
or using the EVM, including without limitation any warning or restriction notices. The notices contain important safety information
related to, for example, temperatures and voltages.
4.3 Safety-Related Warnings and Restrictions:
4.3.1 User shall operate the EVM within TI’s recommended specifications and environmental considerations stated in the user
guide, other available documentation provided by TI, and any other applicable requirements and employ reasonable and
customary safeguards. Exceeding the specified performance ratings and specifications (including but not limited to input
and output voltage, current, power, and environmental ranges) for the EVM may cause personal injury or death, or
property damage. If there are questions concerning performance ratings and specifications, User should contact a TI
field representative prior to connecting interface electronics including input power and intended loads. Any loads applied
outside of the specified output range may also result in unintended and/or inaccurate operation and/or possible
permanent damage to the EVM and/or interface electronics. Please consult the EVM user guide prior to connecting any
load to the EVM output. If there is uncertainty as to the load specification, please contact a TI field representative.
During normal operation, even with the inputs and outputs kept within the specified allowable ranges, some circuit
components may have elevated case temperatures. These components include but are not limited to linear regulators,
switching transistors, pass transistors, current sense resistors, and heat sinks, which can be identified using the
information in the associated documentation. When working with the EVM, please be aware that the EVM may become
very warm.
4.3.2 EVMs are intended solely for use by technically qualified, professional electronics experts who are familiar with the
dangers and application risks associated with handling electrical mechanical components, systems, and subsystems.
User assumes all responsibility and liability for proper and safe handling and use of the EVM by User or its employees,
affiliates, contractors or designees. User assumes all responsibility and liability to ensure that any interfaces (electronic
and/or mechanical) between the EVM and any human body are designed with suitable isolation and means to safely
limit accessible leakage currents to minimize the risk of electrical shock hazard. User assumes all responsibility and
liability for any improper or unsafe handling or use of the EVM by User or its employees, affiliates, contractors or
designees.
4.4 User assumes all responsibility and liability to determine whether the EVM is subject to any applicable international, federal,
state, or local laws and regulations related to User’s handling and use of the EVM and, if applicable, User assumes all
responsibility and liability for compliance in all respects with such laws and regulations. User assumes all responsibility and
liability for proper disposal and recycling of the EVM consistent with all applicable international, federal, state, and local
requirements.
5. Accuracy of Information: To the extent TI provides information on the availability and function of EVMs, TI attempts to be as accurate
as possible. However, TI does not warrant the accuracy of EVM descriptions, EVM availability or other information on its websites as
accurate, complete, reliable, current, or error-free.
All manuals and user guides at all-guides.com

6. Disclaimers:
6.1 EXCEPT AS SET FORTH ABOVE, EVMS AND ANY MATERIALS PROVIDED WITH THE EVM (INCLUDING, BUT NOT
LIMITED TO, REFERENCE DESIGNS AND THE DESIGN OF THE EVM ITSELF) ARE PROVIDED "AS IS" AND "WITH ALL
FAULTS." TI DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING SUCH ITEMS, INCLUDING BUT
NOT LIMITED TO ANY EPIDEMIC FAILURE WARRANTY OR IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF ANY THIRD PARTY PATENTS, COPYRIGHTS, TRADE
SECRETS OR OTHER INTELLECTUAL PROPERTY RIGHTS.
6.2 EXCEPT FOR THE LIMITED RIGHT TO USE THE EVM SET FORTH HEREIN, NOTHING IN THESE TERMS SHALL BE
CONSTRUED AS GRANTING OR CONFERRING ANY RIGHTS BY LICENSE, PATENT, OR ANY OTHER INDUSTRIAL OR
INTELLECTUAL PROPERTY RIGHT OF TI, ITS SUPPLIERS/LICENSORS OR ANY OTHER THIRD PARTY, TO USE THE
EVM IN ANY FINISHED END-USER OR READY-TO-USE FINAL PRODUCT, OR FOR ANY INVENTION, DISCOVERY OR
IMPROVEMENT, REGARDLESS OF WHEN MADE, CONCEIVED OR ACQUIRED.
7. USER'S INDEMNITY OBLIGATIONS AND REPRESENTATIONS. USER WILL DEFEND, INDEMNIFY AND HOLD TI, ITS
LICENSORS AND THEIR REPRESENTATIVES HARMLESS FROM AND AGAINST ANY AND ALL CLAIMS, DAMAGES, LOSSES,
EXPENSES, COSTS AND LIABILITIES (COLLECTIVELY, "CLAIMS") ARISING OUT OF OR IN CONNECTION WITH ANY
HANDLING OR USE OF THE EVM THAT IS NOT IN ACCORDANCE WITH THESE TERMS. THIS OBLIGATION SHALL APPLY
WHETHER CLAIMS ARISE UNDER STATUTE, REGULATION, OR THE LAW OF TORT, CONTRACT OR ANY OTHER LEGAL
THEORY, AND EVEN IF THE EVM FAILS TO PERFORM AS DESCRIBED OR EXPECTED.
8. Limitations on Damages and Liability:
8.1 General Limitations. IN NO EVENT SHALL TI BE LIABLE FOR ANY SPECIAL, COLLATERAL, INDIRECT, PUNITIVE,
INCIDENTAL, CONSEQUENTIAL, OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF THESE
TERMS OR THE USE OF THE EVMS , REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. EXCLUDED DAMAGES INCLUDE, BUT ARE NOT LIMITED TO, COST OF REMOVAL OR
REINSTALLATION, ANCILLARY COSTS TO THE PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, RETESTING,
OUTSIDE COMPUTER TIME, LABOR COSTS, LOSS OF GOODWILL, LOSS OF PROFITS, LOSS OF SAVINGS, LOSS OF
USE, LOSS OF DATA, OR BUSINESS INTERRUPTION. NO CLAIM, SUIT OR ACTION SHALL BE BROUGHT AGAINST TI
MORE THAN TWELVE (12) MONTHS AFTER THE EVENT THAT GAVE RISE TO THE CAUSE OF ACTION HAS
OCCURRED.
8.2 Specific Limitations. IN NO EVENT SHALL TI'S AGGREGATE LIABILITY FROM ANY USE OF AN EVM PROVIDED
HEREUNDER, INCLUDING FROM ANY WARRANTY, INDEMITY OR OTHER OBLIGATION ARISING OUT OF OR IN
CONNECTION WITH THESE TERMS, , EXCEED THE TOTAL AMOUNT PAID TO TI BY USER FOR THE PARTICULAR
EVM(S) AT ISSUE DURING THE PRIOR TWELVE (12) MONTHS WITH RESPECT TO WHICH LOSSES OR DAMAGES ARE
CLAIMED. THE EXISTENCE OF MORE THAN ONE CLAIM SHALL NOT ENLARGE OR EXTEND THIS LIMIT.
9. Return Policy. Except as otherwise provided, TI does not offer any refunds, returns, or exchanges. Furthermore, no return of EVM(s)
will be accepted if the package has been opened and no return of the EVM(s) will be accepted if they are damaged or otherwise not in
a resalable condition. If User feels it has been incorrectly charged for the EVM(s) it ordered or that delivery violates the applicable
order, User should contact TI. All refunds will be made in full within thirty (30) working days from the return of the components(s),
excluding any postage or packaging costs.
10. Governing Law: These terms and conditions shall be governed by and interpreted in accordance with the laws of the State of Texas,
without reference to conflict-of-laws principles. User agrees that non-exclusive jurisdiction for any dispute arising out of or relating to
these terms and conditions lies within courts located in the State of Texas and consents to venue in Dallas County, Texas.
Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief
in any United States or foreign court.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2017, Texas Instruments Incorporated
All manuals and user guides at all-guides.com

IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES
Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to,
reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are
developing applications that incorporate TI products; by downloading, accessing or using any particular TI Resource in any way, you
(individually or, if you are acting on behalf of a company, your company) agree to use it solely for this purpose and subject to the terms of
this Notice.
TI’s provision of TI Resources does not expand or otherwise alter TI’s applicable published warranties or warranty disclaimers for TI
products, and no additional obligations or liabilities arise from TI providing such TI Resources. TI reserves the right to make corrections,
enhancements, improvements and other changes to its TI Resources.
You understand and agree that you remain responsible for using your independent analysis, evaluation and judgment in designing your
applications and that you have full and exclusive responsibility to assure the safety of your applications and compliance of your applications
(and of all TI products used in or for your applications) with all applicable regulations, laws and other applicable requirements. You
represent that, with respect to your applications, you have all the necessary expertise to create and implement safeguards that (1)
anticipate dangerous consequences of failures, (2) monitor failures and their consequences, and (3) lessen the likelihood of failures that
might cause harm and take appropriate actions. You agree that prior to using or distributing any applications that include TI products, you
will thoroughly test such applications and the functionality of such TI products as used in such applications. TI has not conducted any
testing other than that specifically described in the published documentation for a particular TI Resource.
You are authorized to use, copy and modify any individual TI Resource only in connection with the development of applications that include
the TI product(s) identified in such TI Resource. NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE TO
ANY OTHER TI INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY TECHNOLOGY OR INTELLECTUAL PROPERTY
RIGHT OF TI OR ANY THIRD PARTY IS GRANTED HEREIN, including but not limited to any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
regarding or referencing third-party products or services does not constitute a license to use such products or services, or a warranty or
endorsement thereof. Use of TI Resources may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
TI RESOURCES ARE PROVIDED “AS IS” AND WITH ALL FAULTS. TI DISCLAIMS ALL OTHER WARRANTIES OR
REPRESENTATIONS, EXPRESS OR IMPLIED, REGARDING TI RESOURCES OR USE THEREOF, INCLUDING BUT NOT LIMITED TO
ACCURACY OR COMPLETENESS, TITLE, ANY EPIDEMIC FAILURE WARRANTY AND ANY IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL
PROPERTY RIGHTS.
TI SHALL NOT BE LIABLE FOR AND SHALL NOT DEFEND OR INDEMNIFY YOU AGAINST ANY CLAIM, INCLUDING BUT NOT
LIMITED TO ANY INFRINGEMENT CLAIM THAT RELATES TO OR IS BASED ON ANY COMBINATION OF PRODUCTS EVEN IF
DESCRIBED IN TI RESOURCES OR OTHERWISE. IN NO EVENT SHALL TI BE LIABLE FOR ANY ACTUAL, DIRECT, SPECIAL,
COLLATERAL, INDIRECT, PUNITIVE, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY DAMAGES IN CONNECTION WITH OR
ARISING OUT OF TI RESOURCES OR USE THEREOF, AND REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
You agree to fully indemnify TI and its representatives against any damages, costs, losses, and/or liabilities arising out of your non-
compliance with the terms and provisions of this Notice.
This Notice applies to TI Resources. Additional terms apply to the use and purchase of certain types of materials, TI products and services.
These include; without limitation, TI’s standard terms for semiconductor products http://www.ti.com/sc/docs/stdterms.htm), evaluation
modules, and samples (http://www.ti.com/sc/docs/sampterms.htm).
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2017, Texas Instruments Incorporated
All manuals and user guides at all-guides.com

Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Texas Instruments:
INA4180-4181EVM
All manuals and user guides at all-guides.com
