This user guide describes how to set up and operate the LMK00101 evaluation board kit (EVK). The
LMK00101 is a high performance, low noise, low voltage CMOS fanout buffer. The core voltage can be
2.5 or 3.3 volts, while the power supply for the outputs can be selected from: 1.5 V, 1.8 V, 2.5 V, or 3.3 V,
provided that it does not exceed the core supply voltage .
Contents
1 Introduction ................................................................................................................... 2
2 Quick Start.................................................................................................................... 2
2.1 Quick Start Description............................................................................................. 3
3 Signal Path and Control Switches......................................................................................... 3
4 Power Supplies .............................................................................................................. 4
5 Clock Inputs .................................................................................................................. 4
5.1 Crystal Oscillator Interface......................................................................................... 4
5.2 Configuring OSCin for a Crystal Mode........................................................................... 4
6 Clock Outputs ................................................................................................................ 4
7 Schematics ................................................................................................................... 5
8 PCB Layout................................................................................................................... 7
9 Bill of Materials............................................................................................................... 9
List of Figures
1 LMK00101 Quick Start Setup.............................................................................................. 2
2 Schematic Sheet 1 .......................................................................................................... 5
3 Schematic Sheet 2 .......................................................................................................... 6
4 PCB Top ...................................................................................................................... 7
5 Bottom Side (Layer Inverted, Not to Scale) .............................................................................. 8
List of Tables
1 Part Description.............................................................................................................. 2
2 Default Clock Output Modes / Interfaces................................................................................. 3
3 Input Selection (0=SW OFF, 1=SW ON) ................................................................................. 3
4 Output Enable Selection (0=OFF, 1=ON) ................................................................................ 3
5 Power Supply Configuration................................................................................................ 4
6 Bill of Materials............................................................................................................... 9
Trademarks
All trademarks are the property of their respective owners.

Output
Power Supply
Core
Power Supply
CLKin0
DifferentialSingle Ended
Oscillator Input
CLKin1
Differential
Input Select
DIP Switches
CLKout0-
CLKout5
CLKout6-
CLKout9
Introduction www.ti.com
2SNLU098A–March 2012–Revised July 2019
Submit Documentation Feedback
Copyright © 2012–2019, Texas Instruments Incorporated
LMK00101 User’s Guide
1 Introduction
This user guide describes how to set up and operate the LMK00101 evaluation board kit (EVK). The
LMK00101 is a high performance, low noise, low voltage CMOS fanout buffer. The core voltage can be
2.5 or 3.3 volts, while the power supply for the outputs can be selected from: 1.5 V, 1.8 V, 2.5 V, or 3.3 V,
provided that it does not exceed the core supply voltage .
Table 1. Part Description
BUFFER IC PACKAGE
U1 LMK00101 LLP-32
2 Quick Start

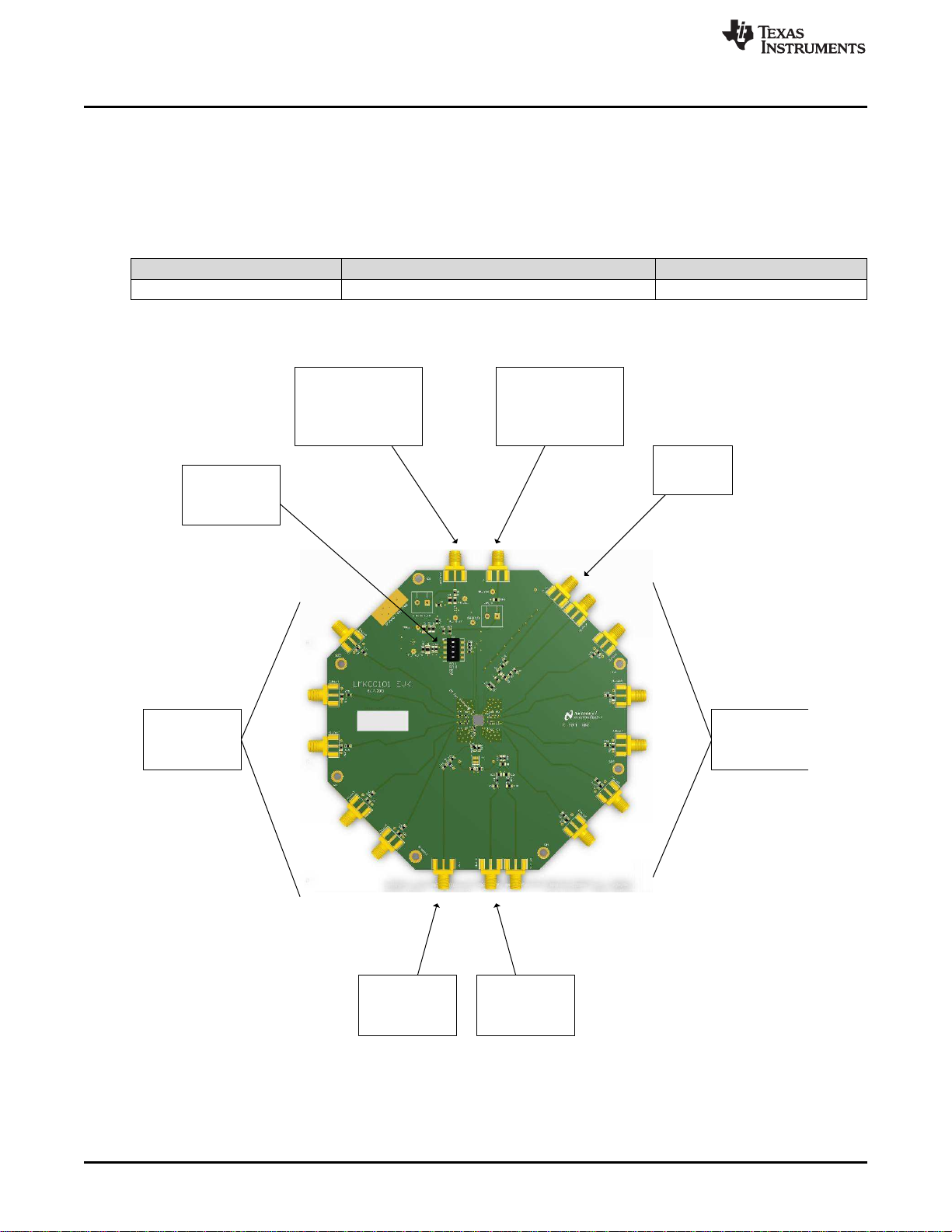

Figure 1. LMK00101 Quick Start Setup

www.ti.com Quick Start
3
SNLU098A–March 2012–Revised July 2019
Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated
LMK00101 User’s Guide
2.1 Quick Start Description
The LMK00101 EVK allows full verification of the device functionality and performance specifications. To
quickly set up and operate the board with basic equipment, refer to the quick start procedure below and
test setup shown in Figure 1.
1. Verify the output mode control switches, S1[1:4], match the states shown in Table 2 to reflect the
default output clock interfaces configured on the EVK.
Table 2. Default Clock Output Modes / Interfaces
SW POSITION/NAME SW STATE
S1[1] / SEL1 0 (OFF)
S1[2] / SEL0 1 (ON)
S1[3] / OE 1 (OFF)
S1[4] / NC Unused
2. Connect the Vdd SMA from the board to a 3.3 V source. This powers the non-output portions of the
LMK00101.
3. Connect the Vdd CLKout SMA from the board to a 3.3 V source. This powers the output drivers of the
LMK00101.
4. Set the desired clock input using the input selection control switches, S1[1:2], per Table 3. A
differential clock source can be connected to SMAs CLKin0/0* or CLKin1/1*.
Note: CLKin0/0* and CLKin1/1* paths are configured by default to receive a differential clock as the
input. The SMA inputs are DC coupled to the device inputs and terminated with 100 Ωdifferential.
Refer to the Clock Inputs section to configure the EVK for a single-ended input.
Table 3. Input Selection (0=SW OFF, 1=SW ON)
SELECTED INPUT DEFAULT INPUT MODE S1[1]CLKin_Sel0 State S1[2] CLKin_Sel1 State
CLKin0/0* Differential clock 0 0
CLKin1/1* Differential clock 0 1
OSCin Select OSCin 1 Don't Care
5. Connect and measure any clock output SMA labeled CLKoutX to an oscilloscope or other test
instrument using SMA cable(s). The output clock will be level-translated/buffered copy of the selected
clock input or crystal oscillator. Note: All output clocks are AC-coupled to the SMA connectors to
ensure safe use with RF instruments.
Note: Switching noise from one or more un-terminated outputs may impair the signal quality of the
measured output(s). To minimize switching noise and EMI, properly terminate any unused output path
using an SMA load or the component options near the SMA outputs, or alternatively, remove the 0 Ω
series resistor nearest the unused output pin.
3 Signal Path and Control Switches
The LMK00101 supports single-ended or differential clocks on CLKin0 and CLKin1. A third input, OSCin,
has an integrated crystal oscillator interface that supports a fundamental mode, AT-cut crystal or an
external single-ended clock. The three-input multiplexer is pin-controlled. To achieve the maximum
operating frequency and lowest additive jitter, it is recommended to use a differential clock with high input
slew rate (>1 V/ns) and DC-coupling to either CLKin0 or CLKin1 port.
All control pins are configured with the control switch, S3. The output enable logic is shown in Table 4.
Table 4. Output Enable Selection (0=OFF, 1=ON)
CLKout ENABLE MODE S1[3]-OE
Disabled/Hi-Z 0
Enabled 1

Power Supplies www.ti.com
4SNLU098A–March 2012–Revised July 2019
Submit Documentation Feedback
Copyright © 2012–2019, Texas Instruments Incorporated
LMK00101 User’s Guide
4 Power Supplies
By default, Vdd and VddCLKout are supplied by two external power supplies. To modify the EVK with a
different power supply configuration, populate the resistor options as shown in Table 5.Then, apply the
appropriate voltage(s) to the EVK power input(s).
Decoupling capacitors and 0 Ωresistor footprints, which can accommodate ferrite beads, can be used to
isolate the EVK power input(s) from the device power pins. Do not disconnect or ground any of the
VddCLKout pins as they are all internally connected inside the device.
Table 5. Power Supply Configuration
DUAL EXTERNAL INPUTS (DEFAULT) SINGLE EXTERNAL INPUT 3.3 V
Vdd input Apply 3.3 V Apply 3.3 V ± 5%
VddCLKout input Apply Voltage ≤Vdd Not used
R38 0 ΩDNP
R39 0 Ω0Ω
R43 DNP 0 Ω
5 Clock Inputs
The SMA inputs labeled CLKin0 & CLKin0* and CLKin1 & CLKin1* are configured to receive a differential
clock or single ended clock. Best performance is achieved with DC-coupled differential input clock.
5.1 Crystal Oscillator Interface
The LMK00101 has an integrated crystal oscillator interface (OSCin/OSCout) that supports a fundamental
mode, AT-cut crystal. If the crystal input is selected, an optional onboard crystal on either footprint Y1 or
Y2 will start-up and the oscillator clock can be measured on any enabled output.
A crystal with the HC49 footprint can be populated on the bottom side of the PCB. Alternatively, a 3.2 x
2.5 mm crystal can be populated on Y2, located on the top side. Only one crystal footprint should be used
at a time.
The values of C42 and C25(CEXT) depend on the load capacitance (CL) specified for the crystal. The OSC
input capacitance (CIN) of the device is 1 pF differential, and the trace capacitance (CTRACE) of OSCin and
OSCout is around 1 pF. If the selected crystal is specified for CLof 18 pF, the CEXT is calculated as
follows:
CEXT= (CL–CIN–CTRACE/2) * 2 (1)
CEXT= (18 pF –1 pF –1 pF/2) * 2 (2)
CEXT= 33 pF (3)
5.2 Configuring OSCin for a Crystal Mode
To configure the board to use crystal mode remove C26 to disconnect the OSCin Port. Install 0 Ωresistors
on R33 and R34. Install a crystal in either footprint (Y1 or Y2) and install the proper load capacitors in C24
and C25.
6 Clock Outputs
All clock outputs are LVCMOS. In the case that not all outputs are used, any unused outputs should be
left floating.

1 1
2 2
3 3
4 4
5 5
6 6
DD CC
BB AA
1 2
