Texas Instruments Peripheral Explorer Kit User manual

Quick Start GuideSPRUGM2 – January 2009

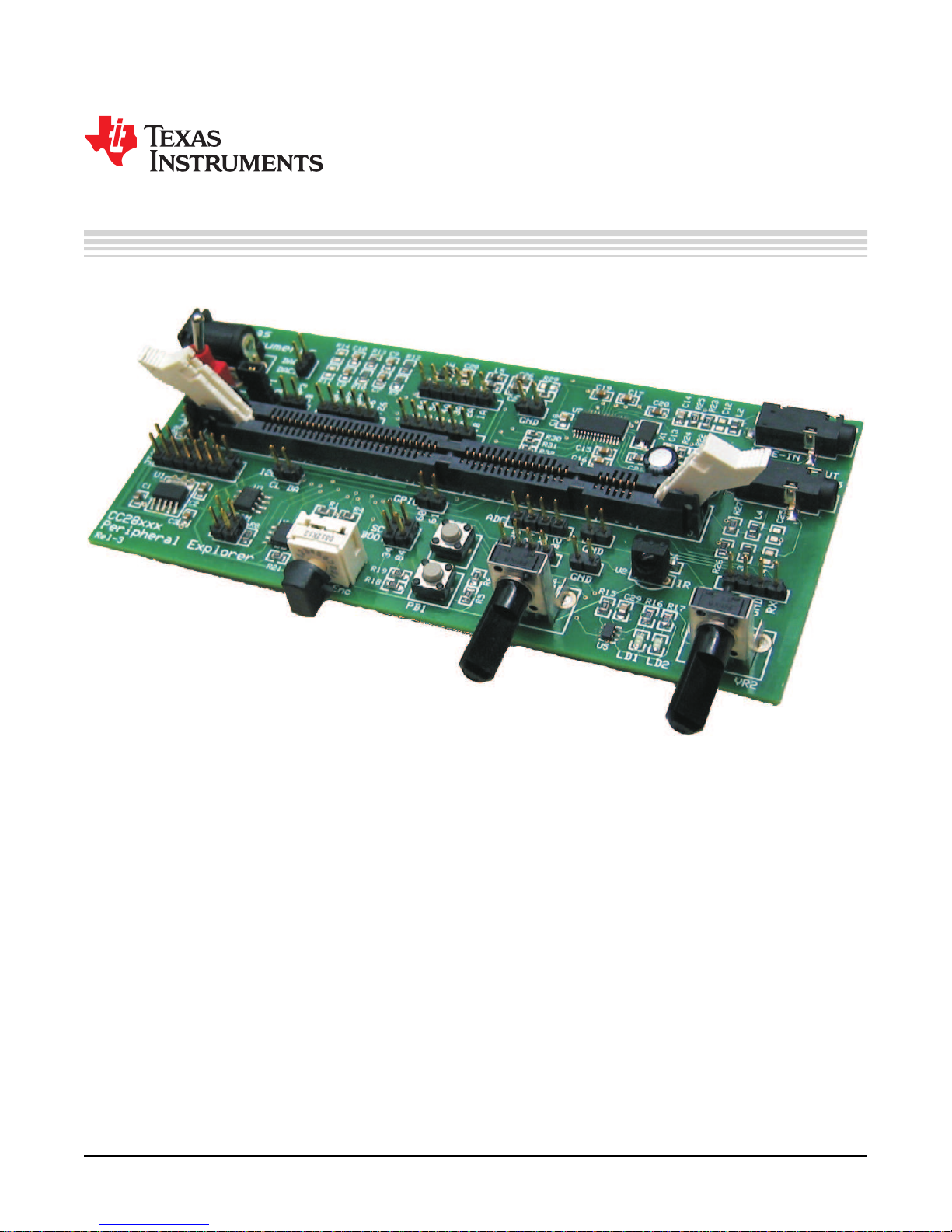

Peripheral Explorer Kit Overview
The Peripheral Explorer Kit is an evaluation board designed to allow experimentation with many of theperipherals available in the C2000™ F28x family of microprocessors. The board is designed to accept anyof controlCARD and contains all hardware (controlCARD socket, power supply) required for normal usage.The kit is self-contained and contains multiple experiments in which external equipment, such asoscilloscopes, are not required. In the majority of these examples, one peripheral reads the output of adifferent peripheral, confirming the operation of both.
SPRUGM2 – January 2009 Peripheral Explorer Kit Overview 1Submit Documentation Feedback

www.ti.com
Features of the Peripheral Explorer Kit include:•Multiple peripheral-based examples– EPWM-based sinusoidal output based on a sine table– DAC via filtered ePWM signal read by the on-chip ADC– eCAP-based IR receiver reading– SPI-based EEPROM interaction– UART communications header available for host control– Potentiomers for ADC evaluation– GPIO-based components such as pushbuttons, hex encoder, and LEDs– McBSP/DMA-based AIC23 codec software and hardware (F28335 only)– I2C header for external use– CAN header for external use•Quick Start GUI, a friendly way to control / demo the application, based on opensource C# freeware•Hardware Developer’s Package is available and includes full hardwaredocumentation such as schematics, bill of materials, and Gerber files.
Peripheral Explorer Kit Overview2 SPRUGM2 – January 2009Submit Documentation Feedback

1 Hardware Overview
Potentiometers (ADC)
LEDs (GPIO)
CAN
JTAG
Main Power
(SW1)
+5V Power In
EEPROM
(SPI) Hex Encoder
(GPIO)
SCI Boot Pins
EPWM to ECAP
loopback enable
DAC output
(EPWM)
ADC Pins Audio-In
(McBSP)
Headphone-
Out
IR Receiver
(ECAP)
Comms (SCI)
Emulator
Power Jumper
www.ti.com Hardware Overview
The Peripheral Explorer Kit consists of multiple peripheral based components. Figure 1 shows a diagramof the Peripheral Explorer board and some of its key features.
Figure 1. Key Features of EVM Board
SPRUGM2 – January 2009 Peripheral Explorer Kit Overview 3Submit Documentation Feedback

Hardware Overview www.ti.com
Table 1. Hardware Components
Component Description
+5V Power In DC power supply from plug pack (5-V supply may be used as well)Main Pwr SW1 - Master power switch for entire EVMEmulator Power Jumper Sets the voltage sent to power the emulator. No jumper means no power will be sent to an emulator, ajumper at “5V” will power the emulator with 5 V, and a jumper at “3V3” will power the emulator with 3.3V.JTAG Connector for external JTAG emulatorCAN External pins available for connection to two parallel CAN devicesEEPROM 256K SPI-based EEPROMHex Encoder 4-bit hex encoder which sets the values of GPIOs 12-15SCI Boot Pins Controls how the controlCARD bootsIf no jumpers are placed the target boots from flashIf a jumper is placed at “34”, a F2808 controlCARD boots from SCIIf a jumper is placed at “84”, a F28335 controlCARD boots from SCIPotentiometers Divide a 3.3-V input into a voltage value to be read by ADC-A0 and ADC-A1LEDs LED1 and LED2 controlled by GPIO-09 and GPIO-11Comms Serial communications UART (connects to the Quick Start GUI)IR Receiver Uses the eCAP module to read signals sent by a IR transmitter. The software included with this kit isconfigured to work with the Sharp TV protocol, for the included Philips universal remote this is code0509.Headphone-Out Output from the TI AIC23B codec that is controlled by the F28x MCU (headphones not included in thispackage)Audio-In Input to the TI AIC23B codec (line-in audio cable not included in this package)ADC pins Spare ADC pins available to be connected as desiredDAC output Output of a filtered ePWM. The ePWM output is connected to a second-order passive filter thenconnected to these pinsEPWM to ECAP Connecting a jumper across these headers allows for an experiment to be done where the eCAPloopback enable module reads the duty cycle and period of the ePWM output
Peripheral Explorer Kit Overview4 SPRUGM2 – January 2009Submit Documentation Feedback

2 Hardware Set Up
2.1 Test drive with GUI – (skip if you need only emulation support)
2.2 Code Composer Studio Software Development Platform Emulation - Additional Steps
www.ti.com Hardware Set Up
All the hardware needed to get started (except the emulator) is included in this package (suggestedemulators are listed near the end of this document). The application specific motherboard provided in thiskit can be used in one of two ways:1. Test Drive – Using the provided GUI application, the user does not require Code Composer Studio™or emulation tools. This provides a great way to run or demo the application code quickly and see whatfunctionality the hardware offers. Note: The same functionality can be achieved by using the CodeComposer Studio Watch Window and slider features during emulation in the second mode.2. Code Composer Studio Software Development Platform – With the project code provided, theapplication can be modified, compiled, loaded, and run in a development environment. CodeComposer Studio and Emulation HW tools are required for this.
Follow these steps to set up the hardware for either the GUI or Software Development PlatformStep 1. Unpack the DIMM style controlCARD.Step 2. Spread open the winged retaining clips on connector J2.Step 3. Sit the DIMM card loosely in the connector slot. Make sure to align the 2 keyed notches andposition the card bottom corners inside the retaining clips (see picture below).Step 4. Push vertically down using even pressure from both ends of the card until the clips snap andlock. (note: to remove or eject the card spread open the retaining clips with thumbs).Step 5. Ensure switch 1 (SW1) is in the off position and connect the included power supply to thepower jack .
Step 1. Plug in the serial cable provided to connector J4 making sure the red wire aligns with the “Rx”pin on EVM.Step 2. Inserted a jumper in position 84 on boot pins.Step 3. Plug the DB9 connector into your PC using either a serial port or a serial-to-USB converterdongle.Step 4. Turn on the power once you are done with the TI Software download, see Software SetupGUI-TestDrive.
Step 1. Depending on your emulator type, place the jumper at J2 to either the 3.3V or 5V positionStep 2. Connect the JTAG emulator cable to connector J1Step 3. Turn on power once you are done with the TI Software download, see Software Setup CodeComposer Studio-Development.
Note: For full details (schematics, pin-out table) of the hardware see the Hardware Developer'sPackage, PeripheralExplorer-HWdevPkg. See Software Setup for download location.
SPRUGM2 – January 2009 Peripheral Explorer Kit Overview 5Submit Documentation Feedback

3 Software Set Up
Software Set Up www.ti.com
The Peripheral Explorer Kit application software example, GUI, step-by-step lab style documentation, andother useful soft collateral can all be found on the TI website. If you already have your own softwareproject and do not require this collateral, skip this section. As explained in the HW setup section, thetarget mother board can be run either with the GUI or Code Composer Studio. The GUI executable file isfound as part of the main software download. Follow the steps below for either case.
To run any of the application specific software in Code Composer Studio, you must first install the baselinecode which contains the header files, libraries, etc. If you already have the base-line software installed,skip the baseline install steps and go to the Peripheral Explorer Kit section.
To download the free TI soft collateral follow these steps:Step 1. Baseline soft collateral and hardware documents (skip this if you already have this softwareinstalled)
a. On an Internet browser type: http://www.ti.com/f28xkitsb. At the C2000 DSP collateral page, choose the Experimenter’s Kit download linkc. When prompted, fill in the TI customer registration details and click okd. Save the .zip file to the directory of your choicee. Unzip the file and run the install program Baseline Software Set Upf. The installer will create the following default directories:
C:\TI_F28xxx_SysSW
~Docs
~GeneralPurposeGUI
~SupportFiles
FlashingLeds
C:\TI_F28xxx_SysHW
CC280xxHWdevPkg
CC2833xHWdevPkg
DockingStnHWdevPkg
Step 2. Peripheral Explorer Kit soft collateral and hardware documentsa. On an Internet browser type: http://www.ti.com/f28xkitsb. Then choose the Peripheral Explorer Kit link.c. When prompted, fill in the TI customer registration details and click ok.d. Save the .zip file to the directory of your choice.e. Unzip the file and run the install program Peripheral Explorer Software Set Up.f. The installer will create the following default directories:
C:\TI_F28xxx_SysSW
PeripheralExplorer
~Docs
~GUI
C:\TI_F28xxx_SysHW
PeripheralExplorer-HWdevPkg
6Peripheral Explorer Kit Overview SPRUGM2 – January 2009Submit Documentation Feedback

4 Running the Application
5 Emulators
6 References
Trademarks
www.ti.com Running the Application
To run the application specific hardware, choose either “TestDrive-GUI” or “Code ComposerStudio-Development” options below and follow the appropriate steps.Step 1. TestDrive-GUI
a. Open the GUI Quick Start Guide, QSG-PeripheralExplorer-GUI.pdf, found in:C:\TI_F28xxx_SysSW\PeripheralExplorer\~Docs
b. Browse to the directory: C:\TI_F28xxx_SysSW\PeripheralExplorer\~GUI
c. Open PeripheralExplorer-GUI.exe
d. Follow the step-by step instructions found in the GUI Quick Start GuideStep 2. Code Composer Studio-Development
a. If you have emulation tools and Code Composer Studio already installed and active, loadthe project file "PeripheralExplorer.pjt" found in:C:\TI_F28xxx_SysSW\PeripheralExplorer\
b. See the PeripheralExplorer.pdf for a step-by-step walk through of how to compile and runthe various labs. This document can be found in:C:\TI_F28xxx_SysSW\PeripheralExplorer\~Docs\
The following companies provide low cost, full featured emulators designed specifically for C2000™controllers:
Blackhawk™ USB2000 Controller (part number $299http://www.blackhawk-dsp.com TMDSEMU2000U)Spectrum Digital XDS510LC JTAG Emulator (part number $249http://www.spectrumdigital.com 701902)
For more information, see the following guides:•PeripheralExplorer – provides detailed information on the Peripheral Explorer C/asm projectC:\TI_F28xxx_SysSW\PeripheralExplorer\~Docs\PeripheralExplorer.pdf
•QSG-PeripheralExplorer-GUI – gives an overview on how to quickly demo the PeripheralExplorerproject using an intuitive GUI interface.C:\TI_F28xxx_SysSW\PeripheralExplorer\~Docs\QSG-PeripheralExplorer-GUI.pdf
•PeripheralExplorer-HWdevPkg – a folder containing various files related to the hardware on thePeripheral Explorer board (schematics, bill of materials, Gerber files, PCB layout, etc). All schematicsand PCB files were created with the freeware ExpressPCB package.C:\TI_F28xxx_SysHW\PeripheralExplorer-HWdevPkg\
•System Framework Overview Guide – presents more information on the system framework found inF28xxx EVM projects.C:\TI_F28xxx_SysSW\~Docs\SystemFrameworkOverview.pdf
•F28xxx User’s Guideshttp://www.ti.com/f28xuserguides
C2000, Code Composer Studio are trademarks of Texas Instruments.
