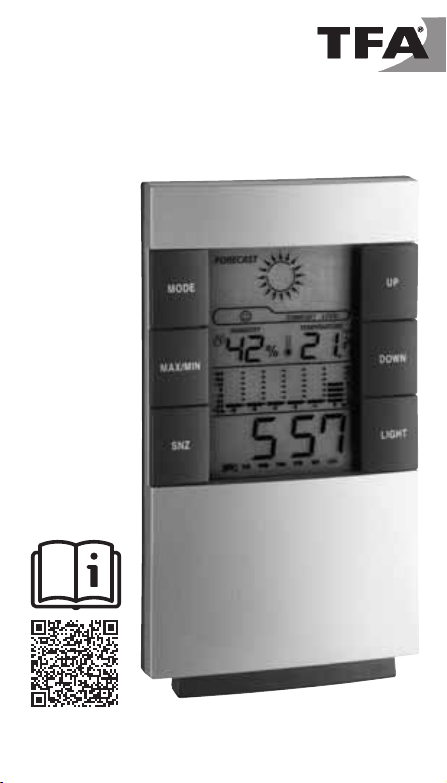

TFA 35.1087 User manual

Bedienungsanleitung
Instruction manual
Mode d’emploi
Istruzioni per l'uso
Gebruiksaanwijzing
Instrucciones de uso
Návod na použitie
Instruction manuals
www.tfa-dostmann.de/en/service/downloads/instruction-manuals
Kat. Nr. 35.1087
TFA_No_35.1087_Anl_01_23 02.01.2023 15:01 Uhr Seite 1

Indoor weather station

• Small parts can be swallowed by children (under three years
old).
• Batteries contain harmful acids and may be hazardous if swal-
lowed. If a battery is swallowed, this can lead to serious internal
burns and death within two hours. If you suspect a battery could
have been swallowed or otherwise caught in the body, seek
medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken
apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent
damage caused by leaking.
• Never use a combination of old and new batteries together, nor
batteries of different types.
• Avoid contact with skin, eyes and mucous membranes when
handling leaking batteries. In case of contact, immediately rinse
the affected areas with water and consult a doctor.
 Important information on product safety!
• Do not expose the device to extreme temperatures, vibrations
or shocks.
• Protect it from moisture.
4. Elements Fig. 1
LCD
A1: Weather symbol
A2: Indoor temperature and humidity with comfort level indicator
A3: Bar graph indication of temperature for the last 12 hours
A4: Time with weekday
Buttons
B1: “MODE“ button B2: “MAX/MIN“ button
B3: “SNZ” button B4: “UP” button
B5: “DOWN“ button B6: “LIGHT” button
Housing
C1: Wall Mount Hole C2: Battery compartment
C3: Stand (removable)
Indoor weather station

Thank you for choosing this instrument from TFA.
1. Before you use this product
•Please make sure you read the instruction manual carefully.
•Following and respecting the instructions in your manual will
prevent damage to your instrument and loss of your statu-
tory rights arising from defects due to incorrect use.
•We shall not be liable for any damage occurring as a result
of non-following of these instructions. Likewise, we take no
responsibility for any incorrect readings or for any conse-
quences resulting from them.
•Please pay particular attention to the safety notices!
•Please keep this instruction manual safe for future re-
ference.
2. Field of operation and all of the benefits of your new instru-
ment at a glance
• Indoor temperature
• Indoor humidity
• Comfort level indicator of indoor climate
• Maximum and minimum values with auto reset
• Bar graph indication of temperature for the last
12 hours
• Weather symbol (based on the changes of humidity values)
• Clock with calendar
• Backlight
• Alarm with snooze function
3. For your safety
• The product is exclusively intended for the field of application
described above. The product should only be used as
described within this instruction.
• Unauthorised repairs, modifications or changes to the product
are prohibited.
Caution!
 Risk of injury:
• Keep this device and the batteries out of reach of children.
– 10 – – 11 –
TFA_No_35.1087_Anl_01_23 02.01.2023 15:01 Uhr Seite 6

Indoor weather station

• Small parts can be swallowed by children (under three years
old).
• Batteries contain harmful acids and may be hazardous if swal-
lowed. If a battery is swallowed, this can lead to serious internal
burns and death within two hours. If you suspect a battery could
have been swallowed or otherwise caught in the body, seek
medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken
apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent
damage caused by leaking.
• Never use a combination of old and new batteries together, nor
batteries of different types.
• Avoid contact with skin, eyes and mucous membranes when
handling leaking batteries. In case of contact, immediately rinse
the affected areas with water and consult a doctor.
 Important information on product safety!
• Do not expose the device to extreme temperatures, vibrations
or shocks.
• Protect it from moisture.
4. Elements Fig. 1
LCD
A1: Weather symbol
A2: Indoor temperature and humidity with comfort level indicator
A3: Bar graph indication of temperature for the last 12 hours
A4: Time with weekday
Buttons
B1: “MODE“ button B2: “MAX/MIN“ button
B3: “SNZ” button B4: “UP” button
B5: “DOWN“ button B6: “LIGHT” button
Housing
C1: Wall Mount Hole C2: Battery compartment
C3: Stand (removable)
Indoor weather station

Thank you for choosing this instrument from TFA.
1. Before you use this product
•Please make sure you read the instruction manual carefully.
•Following and respecting the instructions in your manual will
prevent damage to your instrument and loss of your statu-
tory rights arising from defects due to incorrect use.
•We shall not be liable for any damage occurring as a result
of non-following of these instructions. Likewise, we take no
responsibility for any incorrect readings or for any conse-
quences resulting from them.
•Please pay particular attention to the safety notices!
•Please keep this instruction manual safe for future re-
ference.
2. Field of operation and all of the benefits of your new instru-
ment at a glance
• Indoor temperature
• Indoor humidity
• Comfort level indicator of indoor climate
• Maximum and minimum values with auto reset
• Bar graph indication of temperature for the last
12 hours
• Weather symbol (based on the changes of humidity values)
• Clock with calendar
• Backlight
• Alarm with snooze function
3. For your safety
• The product is exclusively intended for the field of application
described above. The product should only be used as
described within this instruction.
• Unauthorised repairs, modifications or changes to the product
are prohibited.
Caution!
 Risk of injury:
• Keep this device and the batteries out of reach of children.
– 10 – – 11 –
TFA_No_35.1087_Anl_01_23 02.01.2023 15:01 Uhr Seite 6

Indoor weather station

C. Setting of Alarm
Press 2 x MODE button
Enter Alarm mode
Press MODE button (2 sec.)
Select Alarm time Hours by pressing UP/DOWN button
Press MODE button
Select Alarm time Minutes by pressing UP/DOWN button
Press MODE button (twice)
Exit setting mode
7. Activate/turn off Alarm
• To activate/turn off the alarm function, press UP button in alarm
mode. The alarm symbol appears or disappears on the current
time display.
• Press any button to stop the alarm.
8. Snooze function
• Once the alarm starts to ring (backlight turns on briefly), you
can activate the snooze function by pressing the SNZ button.
The alarm symbol flashes and the alarm will be interrupted.
9. MAX/MIN values:
• Press the MAX/MIN button and the highest temperature and
humidity values are displayed (MAX).
• Press the MAX/MIN button again, the display shows the lowest
values.
• There is an automatic daily reset of maximum and minimum val-
ues (midnight 0:00).
10. Weather symbol
• The instrument has no atmospheric pressure sensor. The
weather symbol is based on the changes of humidity values.
There are 5 different coloured weather symbols (sunny, slightly
cloudy, cloudy, rainy, strong rain).
11. Comfort level
• On the display appears a smiling or sad face icon to indicate the
comfort level of indoor climate.
Indoor weather station

5. Operation
• Open the battery compartment and insert two batteries 1.5 V
AAA, polarity as illustrated. A short beep will sound and all LCD
segments will light up for about 2 seconds.
• The unit is now ready to use.
• By pressing the DOWN button the temperature unit can be
changed from °C to °F.
• To enter calendar mode, press MODE button. The date is dis-
played.
• To enter alarm mode, press 2 x MODE button. The alarm time is
displayed.
6. Setting Mode
• Press MODE button for 2 sec. to enter the respective setting
mode and select all settings one after the other.
• When the digits are flashing set the desired time by pressing the
UP or DOWN button. Hold and press the button for a fast count.
• The instrument will quit the setting mode, if there is no button
used within 10 seconds.
A. Setting of Time
Press MODE button (2 sec.)
Select Time Hours by pressing UP/DOWN button
Press MODE button
Select Time Minutes by pressing UP/DOWN button
Press MODE button
Exit setting mode
B. Setting of Calendar
Press MODE button
Enter Calendar mode
Press MODE button (2 sec.)
Select Date Year by pressing UP/DOWN button
Press MODE button
Select Date Month by pressing UP/DOWN button
Press MODE button
Select Date Year by pressing UP/DOWN button
Press MODE button (twice)
Exit setting mode
– 12 – – 13 –
TFA_No_35.1087_Anl_01_23 02.01.2023 15:01 Uhr Seite 7

Indoor weather station

C. Setting of Alarm
Press 2 x MODE button
Enter Alarm mode
Press MODE button (2 sec.)
Select Alarm time Hours by pressing UP/DOWN button
Press MODE button
Select Alarm time Minutes by pressing UP/DOWN button
Press MODE button (twice)
Exit setting mode
7. Activate/turn off Alarm
• To activate/turn off the alarm function, press UP button in alarm
mode. The alarm symbol appears or disappears on the current
time display.
• Press any button to stop the alarm.
8. Snooze function
• Once the alarm starts to ring (backlight turns on briefly), you
can activate the snooze function by pressing the SNZ button.
The alarm symbol flashes and the alarm will be interrupted.
9. MAX/MIN values:
• Press the MAX/MIN button and the highest temperature and
humidity values are displayed (MAX).
• Press the MAX/MIN button again, the display shows the lowest
values.
• There is an automatic daily reset of maximum and minimum val-
ues (midnight 0:00).
10. Weather symbol
• The instrument has no atmospheric pressure sensor. The
weather symbol is based on the changes of humidity values.
There are 5 different coloured weather symbols (sunny, slightly
cloudy, cloudy, rainy, strong rain).
11. Comfort level
• On the display appears a smiling or sad face icon to indicate the
comfort level of indoor climate.
Indoor weather station

5. Operation
• Open the battery compartment and insert two batteries 1.5 V
AAA, polarity as illustrated. A short beep will sound and all LCD
segments will light up for about 2 seconds.
• The unit is now ready to use.
• By pressing the DOWN button the temperature unit can be
changed from °C to °F.
• To enter calendar mode, press MODE button. The date is dis-
played.
• To enter alarm mode, press 2 x MODE button. The alarm time is
displayed.
6. Setting Mode
• Press MODE button for 2 sec. to enter the respective setting
mode and select all settings one after the other.
• When the digits are flashing set the desired time by pressing the
UP or DOWN button. Hold and press the button for a fast count.
• The instrument will quit the setting mode, if there is no button
used within 10 seconds.
A. Setting of Time
Press MODE button (2 sec.)
Select Time Hours by pressing UP/DOWN button
Press MODE button
Select Time Minutes by pressing UP/DOWN button
Press MODE button
Exit setting mode
B. Setting of Calendar
Press MODE button
Enter Calendar mode
Press MODE button (2 sec.)
Select Date Year by pressing UP/DOWN button
Press MODE button
Select Date Month by pressing UP/DOWN button
Press MODE button
Select Date Year by pressing UP/DOWN button
Press MODE button (twice)
Exit setting mode
– 12 – – 13 –
TFA_No_35.1087_Anl_01_23 02.01.2023 15:01 Uhr Seite 7

Indoor weather station

This product is labelled in accordance with the EU Waste
Electrical and Electronic Equipment Directive (WEEE).
This product must not be disposed of in ordinary house-
hold waste. As a consumer, you are required to take end-
of-life devices to a designated collection point for the dis-
posal of electrical and electronic equipment, in order to
ensure environmentally-compatible disposal. The return
service is free of charge. Observe the current regulations
in place!
Disposal of the batteries
Never dispose of empty batteries and rechargeable bat-
teries with ordinary household waste. They contain pollu-
tants which, if improperly disposed of, can harm the envi-
ronment and human health. As a consumer, you are
required by law to take them to your retail store or to an
appropriate collection site depending on national or local
regulations in order to protect the environment. The return
service is free of charge.
The symbols for the contained heavy metals are:
Cd=cadmium, Hg=mercury, Pb=lead.
17. Specifications
Measuring range indoor
Temperature: 0 °C… +50 °C (+32°...+122 °F)
Humidity: 20 %rH ... 95 %rH
Power consumption: 2 x 1.5 V AAA (not included)
Dimensions: 80 x 20 (39) x 135 (141) mm
Weight: 104 g (instrument only)
TFA Dostmann GmbH & Co.KG
Zum Ottersberg 12, 97877 Wertheim, Germany
No part of this manual may be reproduced without written consent of
TFA Dostmann. The technical data are correct at the time of going to
print and may change without prior notice.The latest technical data and
information about this product can be found in our homepage by simply
entering the product number in the search box.
www.tfa-dostmann.de 01/23
Indoor weather station

12. Backlight
• Press the LIGHT button to light up the display for 8 seconds.
13. Positioning and fixing
• With the detachable stand the instrument can be placed onto any
flat surface or wall mounted at the desired location by the hang-
ing hole at the back of the unit.
14. Care and maintenance
• Clean the instrument with a soft damp cloth. Do not use solvents
or scouring agents.
• Remove the batteries if you do not use the product for a long
period of time.
• Keep the instrument in a dry place.
14.1 Battery replacement
• Replace the batteries when the display becomes weak.
15. Troubleshooting
Problems Solution
No indication ➜ Ensure batteries polarities
are correct
➜ Change the batteries
Incorrect display ➜Change the batteries
If your device fails to work despite these measures contact the
supplier from whom you purchased it.
16. Waste disposal
This product and its packaging have been manufactured using
high-grade materials and components which can be recycled and
reused. This reduces waste and protects the environment.
Dispose of the packaging in an environmentally friendly manner
using the collection systems that have been set up.
Disposal of the electrical device
Remove non-permanently installed batteries and re-
chargeable batteries from the device and dispose of
them separately.
– 14 – – 15 –
TFA_No_35.1087_Anl_01_23 02.01.2023 15:01 Uhr Seite 8

Indoor weather station

This product is labelled in accordance with the EU Waste
Electrical and Electronic Equipment Directive (WEEE).
This product must not be disposed of in ordinary house-
hold waste. As a consumer, you are required to take end-
of-life devices to a designated collection point for the dis-
posal of electrical and electronic equipment, in order to
ensure environmentally-compatible disposal. The return
service is free of charge. Observe the current regulations
in place!
Disposal of the batteries
Never dispose of empty batteries and rechargeable bat-
teries with ordinary household waste. They contain pollu-
tants which, if improperly disposed of, can harm the envi-
ronment and human health. As a consumer, you are
required by law to take them to your retail store or to an
appropriate collection site depending on national or local
regulations in order to protect the environment. The return
service is free of charge.
The symbols for the contained heavy metals are:
Cd=cadmium, Hg=mercury, Pb=lead.
17. Specifications
Measuring range indoor
Temperature: 0 °C… +50 °C (+32°...+122 °F)
Humidity: 20 %rH ... 95 %rH
Power consumption: 2 x 1.5 V AAA (not included)
Dimensions: 80 x 20 (39) x 135 (141) mm
Weight: 104 g (instrument only)
TFA Dostmann GmbH & Co.KG
Zum Ottersberg 12, 97877 Wertheim, Germany
No part of this manual may be reproduced without written consent of
TFA Dostmann. The technical data are correct at the time of going to
print and may change without prior notice.The latest technical data and
information about this product can be found in our homepage by simply
entering the product number in the search box.
www.tfa-dostmann.de 01/23
Indoor weather station

12. Backlight
• Press the LIGHT button to light up the display for 8 seconds.
13. Positioning and fixing
• With the detachable stand the instrument can be placed onto any
flat surface or wall mounted at the desired location by the hang-
ing hole at the back of the unit.
14. Care and maintenance
• Clean the instrument with a soft damp cloth. Do not use solvents
or scouring agents.
• Remove the batteries if you do not use the product for a long
period of time.
• Keep the instrument in a dry place.
14.1 Battery replacement
• Replace the batteries when the display becomes weak.
15. Troubleshooting
Problems Solution
No indication ➜ Ensure batteries polarities
are correct
➜ Change the batteries
Incorrect display ➜Change the batteries
If your device fails to work despite these measures contact the
supplier from whom you purchased it.
16. Waste disposal
This product and its packaging have been manufactured using
high-grade materials and components which can be recycled and
reused. This reduces waste and protects the environment.
Dispose of the packaging in an environmentally friendly manner
using the collection systems that have been set up.
Disposal of the electrical device
Remove non-permanently installed batteries and re-
chargeable batteries from the device and dispose of
them separately.
– 14 – – 15 –
TFA_No_35.1087_Anl_01_23 02.01.2023 15:01 Uhr Seite 8
