THE SHOWER LAB VIEW 25 User manual

03/2021 V 1.0
VIEW 25 Illustration - View 25
H1 Handle
Right Hand
Neo Angle Enclosure

03/2021 V 1.0
VIEW 25
IMPORTANT
•This shower screen / enclosure must be installed by suitably qualified individuals. We
recommend a minimum of two people for safe assembly of certain sections of this screen.
•Ensure all appropriate safety equipment, especially protective footwear, safety glasses
and gloves are used.
•When drilling holes in ceramic tiles, use masking tape to prevent the drill from slipping:
DO NOT use hammer action as this will crack the tiles. Use a high quality drill bit to ensure
a clean, precise hole.
Tighten hinges and brackets to the recommended 15.6N.
•
•
Please leave these instructions with the customer following installation.
PRIOR TO INSTALLATION
•Before disposing of the packaging and prior to commencing assembly, please check all
the components to ensure that they have been supplied correctly and are undamaged.
Subsequent claims for missing or damaged pieces will not be accepted once the
packaging has been disposed of and installation commenced.
•In the event of any queries please contact your supplier quoting the relevant model
information.
•The Tray / Tiled floor on which this screen is to be installed must be level on all sides.
•It may be necessary to use alternate fixings to those supplied, depending on the properties
of the walls to be fixed to.
•Use the protective corners supplied at all times until the glass is moved to its final position.
•Ensure that the glass is installed correctly, taking care to avoid installing the glass upside
down. On certain panels an easy clean coating is applied to one side only, this is clearly
marked with a sticker on the non-coated side. The coated surface is to be fitted inwards
towards the inside (wet side) of the screen.
•Ensure that all surfaces to be sealed are clean and dry prior to applying the silicone
sealant. Use a high grade fungal resistant sealant.
•Allow a minimum of 24 hours after application of the silicone sealant prior to using the
screen.
TOOLS & MATERIALS REQUIRED
Junior Hacksaw
Straight Edge (Steel
Rule)
Fine Tooth File
Set or Roofing
Square
Masking Tape
Modelling Knife
Spirit Level
Pencil
Silicone Gun
Power Drill
Ø6mm Masonry Drill Bit
2x Suction Glass Lifters
High Quality Silicone Sealant
Tape Measure
Pozi-drive
Screwdrivers, PZ1&2
Safety Glasses and
Gloves
CARE AND MAINTENANCE
(please ensure that these instructions are left with the installed unit)
•We recommend routine cleaning of your screen / enclosure with hot water using a soft
cloth, then drying with a dry soft cloth or chamois leather.
Ritec Aftercare for Shower Glass is recomended for best results.
•All glass has been treated with EASY CLEAN glass finish and care must be taken to avoid
any abrasive cleaning products that may damage the special surface protection.
•DO NOT use acidic based de-scaler products or products containing bleaches or solvents.
Digital Torque Wrench

03/2021 V 1.0
VIEW 25

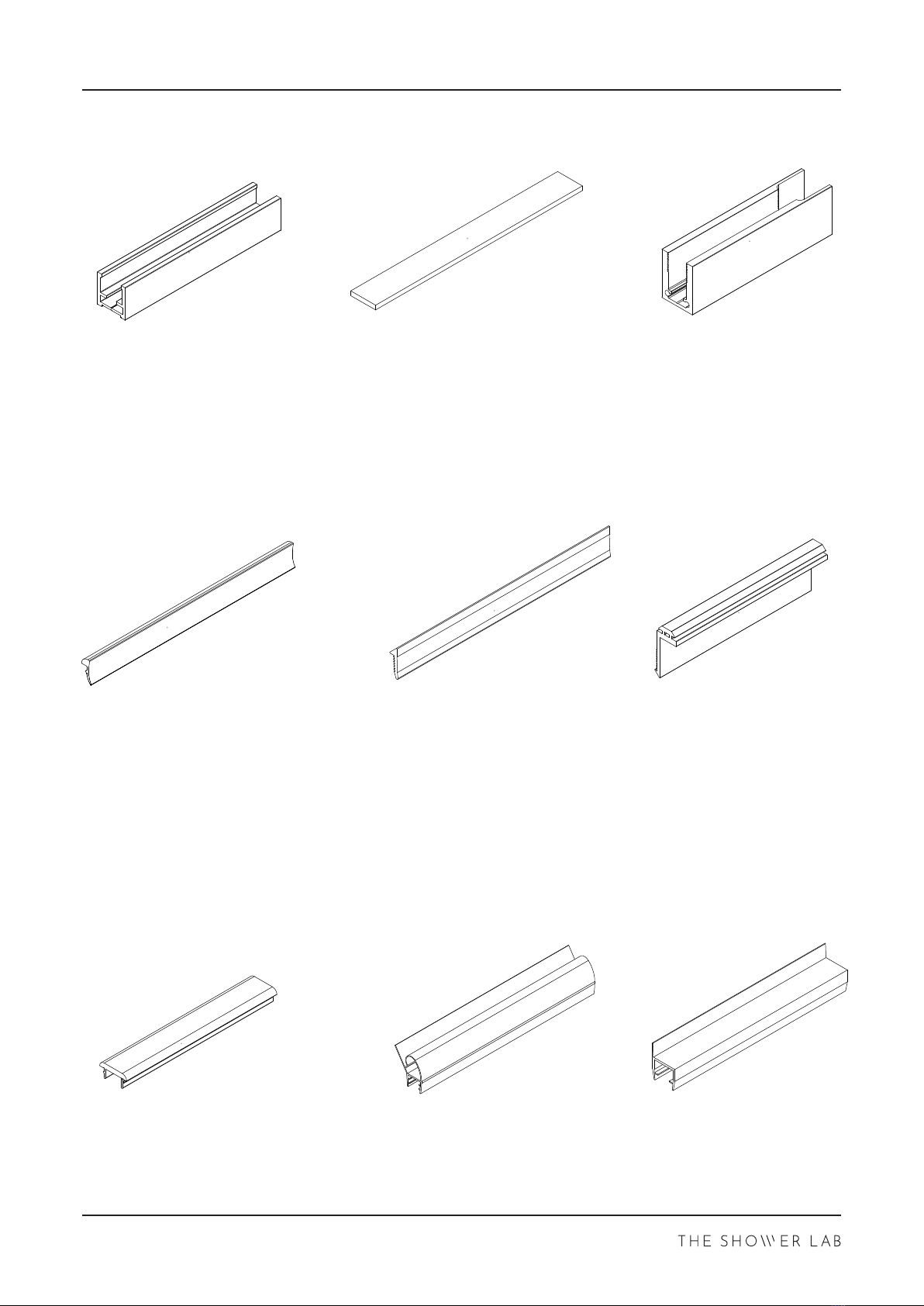

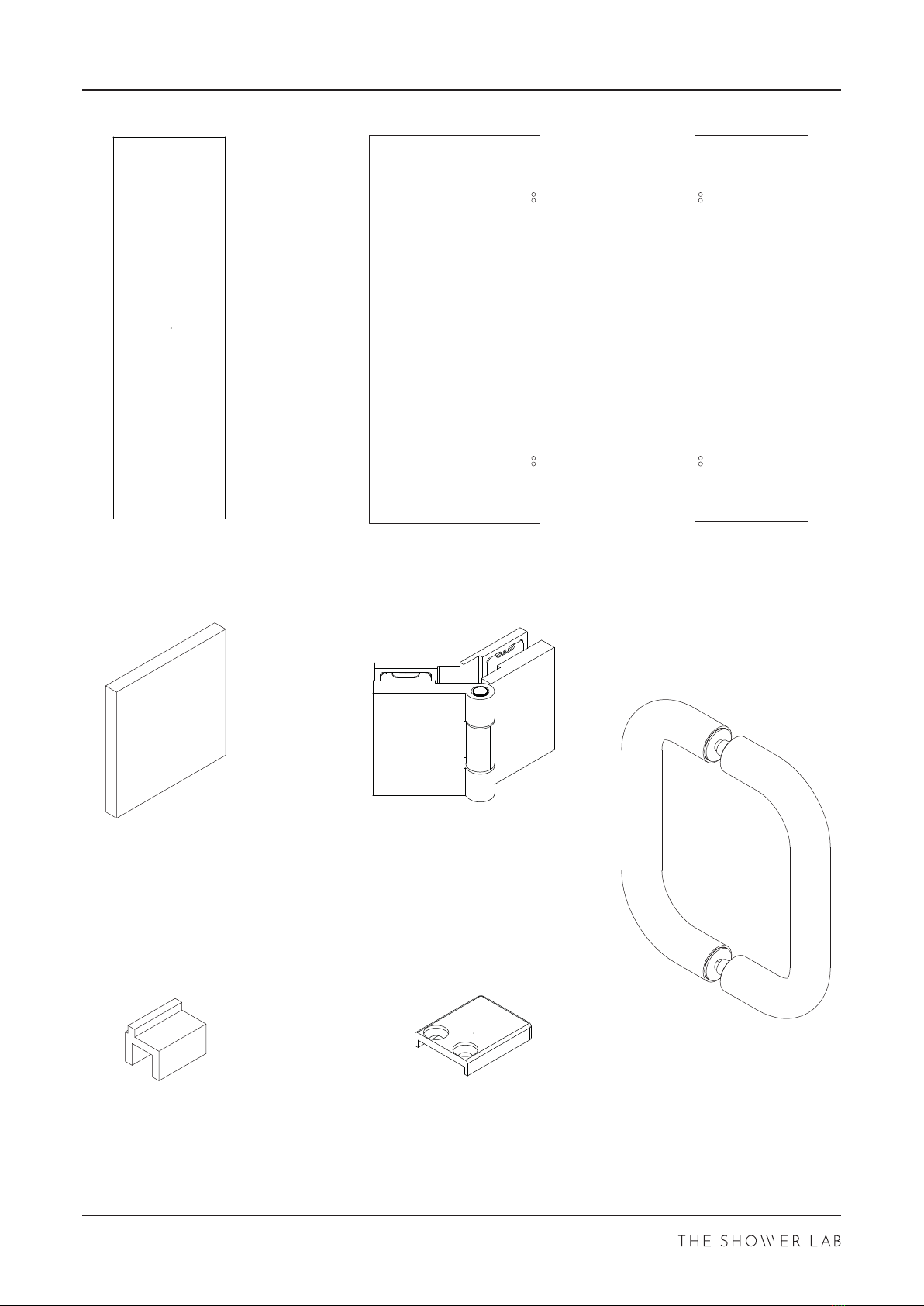

Supplied Parts
Hinged Side Fixed Panel
x1
Door
x1
Nylon Block
x1
Glass Support
x2
Handle Side Fixed Panel
x1
135°Glass to Glass Hinge
x2
Wall Prole End Cap
x2
Door Handle
(Option dependant)
x1

03/2021 V 1.0
VIEW 25
Supplied Parts
Underframe Wedge Gasket
x4
Underframe
x3
Underframe Gasket
x2
Wall Prole
x2
Wall Prole Soft Seal
x2
Wall Prole Rigid Seal
x2
Underframe Top
x1
135°Return Panel to Door Bubble Seal
x1
Glass to Glass Seal
x1

03/2021 V 1.0
VIEW 25
Supplied Parts
Bottom Door Seal
x1
Spacers
Underframe 135°Connector
x2
Packers

03/2021 V 1.0
VIEW 25
Supplied Parts
Please use this page to nd which stay bar your enclosure has been supplied with.
SB5 - With Glass Clamps

03/2021 V 1.0
VIEW 25
These instructions are for the View 25. An SB5 Stay Bar is used for this illustration.
The following instructions are valid for both the 20mm and 30mm proles. The 30mm prole is
used in the following instructions.
Please use the below diagram to reference the list of parts.
A
B
I
C
H
D
F
E
G
Handle Side Fixed Panel
Door Panel
Hinge Side Fixed Panel
Wall Prole End Cap
Wall Prole Soft Seal
Wall Prole Rigid Seal
Underframe Wedge Gasket
Underframe
JUnderframe Gasket
Wall Prole
N
M
K
L
Bottom Door Seal
Underframe Top
Underframe 135°Connector
Glass to Glass Hinge
OGlass to Glass Return Seal
PGlass to Glass Bubble Seal
QHandle (H1 Shown)
RStay Bar (SB5 Shown)
R
D
J
C
P
H
N
Q
A
F
B
E
O
M
I
LK
G

03/2021 V 1.0
VIEW 25
01/12
Posion the Underframe parallel to
tray edge.
Reference the measurement sheet to
find lip distance.
Use tape to mark this dimension.
Repeat for the Return Underframe
Profiles.
Measure the distance from the tape
edge to the ling and take note of this
distance.
Repeat for the Return Underframe.
R =
Check the dimensions are within the
allowed adjustments by referencing the
aached measurement sheet.
Subtract 10mm from the Return
Underframe dimension. This is the
Return Profile width. Mark this
measurement on both Return
Underframes.
Cut both Return Underframes squarely
using a chop saw.
Use a fine toothed file to remove any
burrs, be careful not to damage the
surface finish.
Lip Distance
Shower Tray
x - 10mm
R
01 02
03 04

03/2021 V 1.0
VIEW 25
02/12

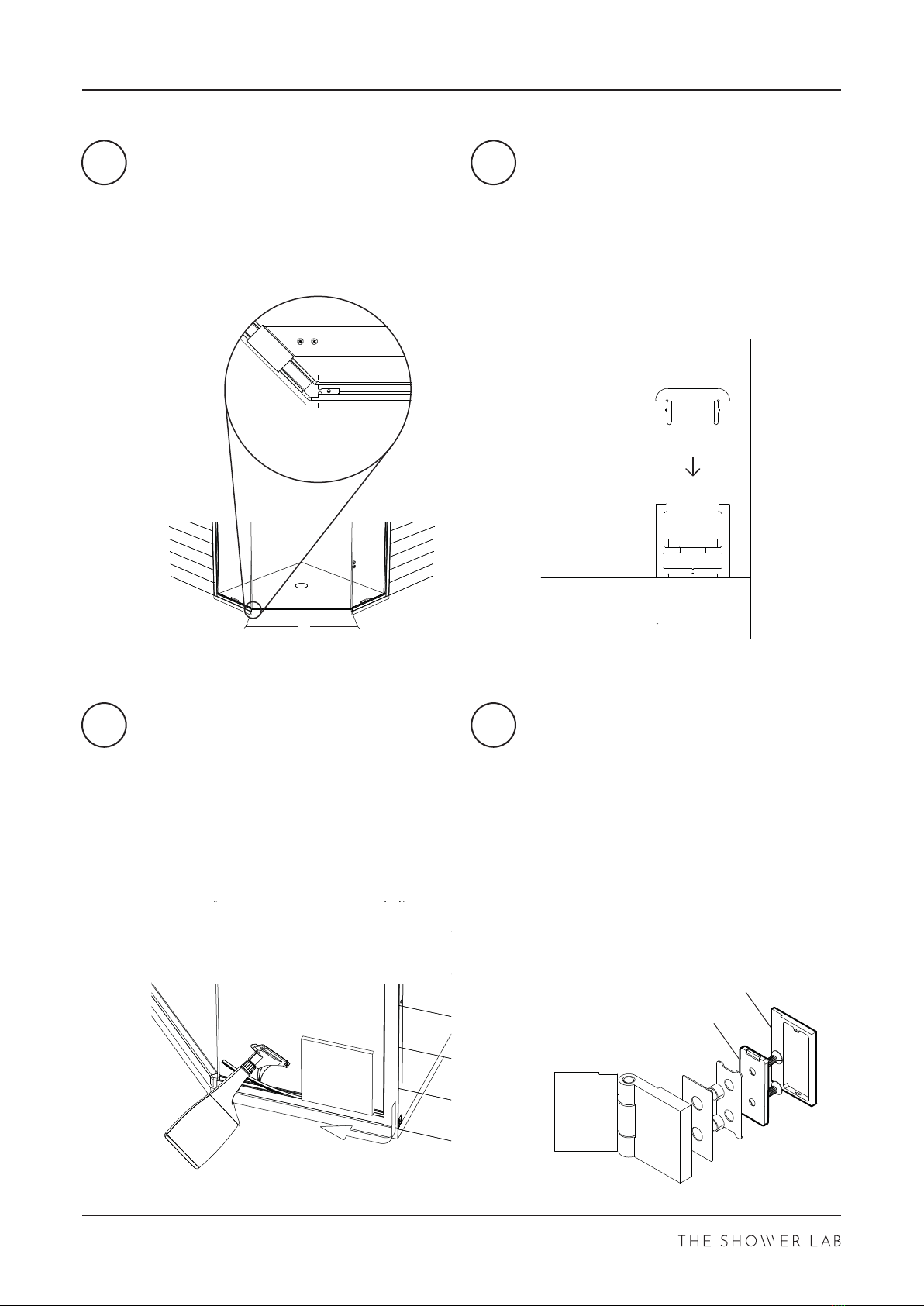

Connect the Underframe Profiles
together using the Underframe 135°
Connectors and supplied screws.
Remove the backing strips from the self
adhesive and fix firmly to the tray.
Place the Underframe Gaskets where
the glass will sit into the Underframe
and bu up against the wall.
Place the Wall Profiles over the
Underframe and up against the wall.
Ensure the Wall Profiles are vercal by
using a spirit level. Mark the posions
of the pre-drilled holes.
05 06
07 08

03/2021 V 1.0
VIEW 25
03/12

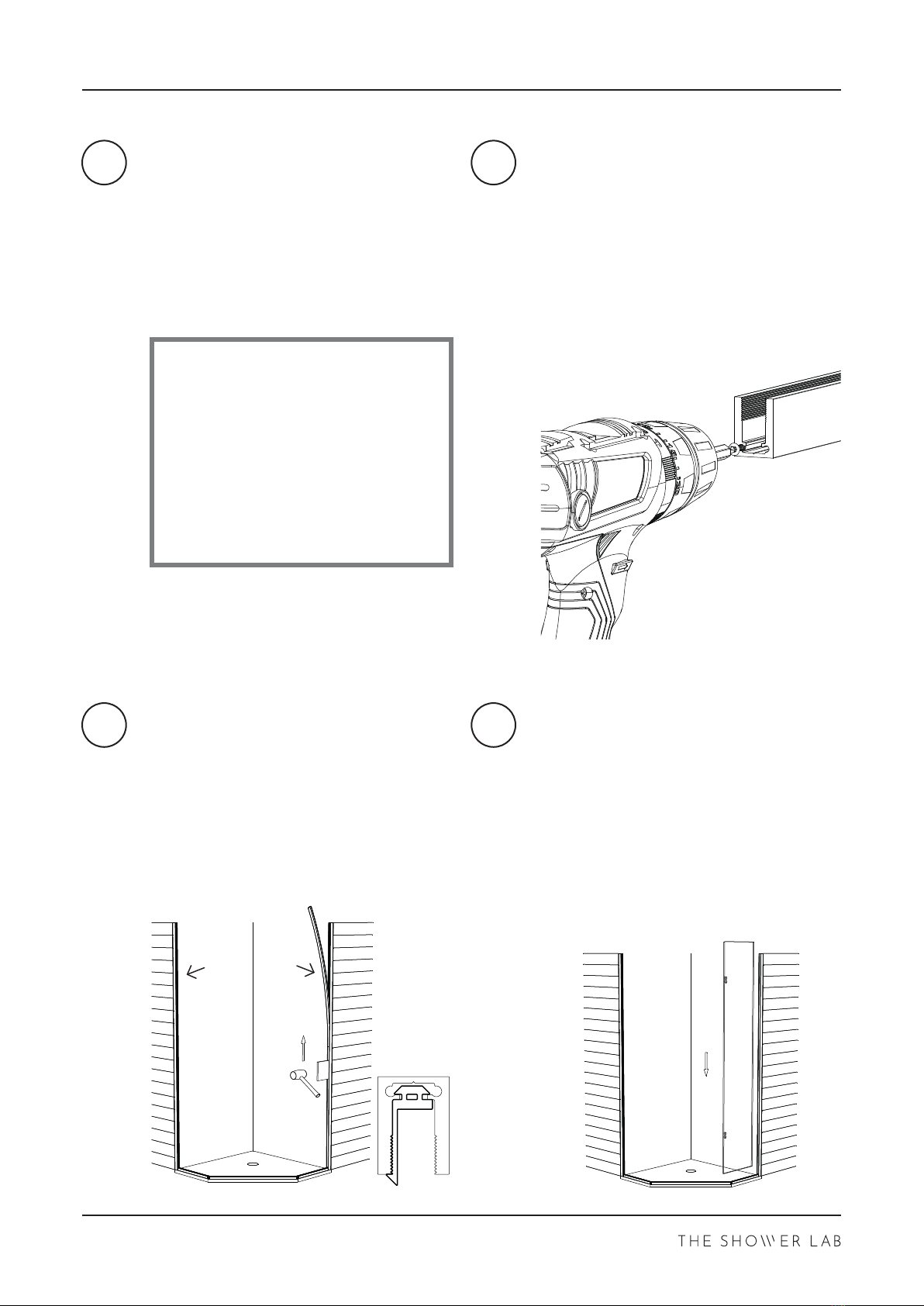

Remove the Wall Profiles and drill holes
on each wall with a 6mm high quality
drill bit for a clean and precise hole.
Fully insert the wall plugs.
Pre drill the screws in to the Wall
Profiles to create the thread to ease
later steps.
Remove screws aer drilling.
Fix the Wall Profiles in place.
Take the Wall Profile So Seal and push
the seal into place on each Wall Profile
to cover the screws.
Ensure the fin is on the inside (wet
side).
Use the Nylon Block to help.
Using purpose built "Glass Liers",
posion and sit the Fixed Glass Panels
on to the Underframe Gasket and push
against the Wall Profile.
Note the orientaon and posion of
the Panel, this can be determined by
any holes or aached labels.
Wet Side
Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.
09 10
11 12

03/2021 V 1.0
VIEW 25
Glass Panel
135°Connector
Flush
04/12
Remove and replace the Panels adding
or subtracng spacers as necessary to
level the Panels (to a maximum height
of 5mm inside the Underframe).
Check the Panels are level using a Spirit
Level.
Align the Fixed Panels so the Panels are
bued up against the 135° Connector
of the Underframe.
If the Wall Profiles are flush with the
Fixed Panels, move on to step 18.
If the Wall Profiles are not flush with
the top of the Glass Panels, mark the
Wall Profile. Using a straight edge,
mark where the wall channel needs to
be trimmed.
To protect the channel finish, it is
recommended to mark on masking
tape.
Remove the Panels, Wall Profile So
Seals, and the Wall Profiles.
Trim the Wall Profile.
Use a fine file to remove any burrs. Be
careful not to damage the channel
finish.
Re drill the screws in to the Wall Profile
and remove aer drilling.
13 14
15 16

03/2021 V 1.0
VIEW 25
05/12
Reinstall the Wall Profiles, Wall Profile
So Seals, and Glass Panels.
Ensure there is adequate glass in both
the Wall Profiles. (6mm is
recommended)
To centre the panels, add 1mm Packers
on both sides of Inline Panels in the
Underframe.
Apply the Rigid Seals to the dry side of
the Wall Profiles starng from the
archway of the Wall Profile up to the
top.
Flush
6mm min
Wall ProleGlass Panel
Rigid Seal
Glass Panel
WARNING
The glass is heavy and may
damage the oor or underframe if
handled incorrectly. It is advisable
to use a suitable non-slip
protective mat or piece of carpet.
Never rest the glass across the
underframe as this may cause
damage.
17 18
19 20

03/2021 V 1.0
VIEW 25
06/12
Gently tap the Wall Profile Rigid Seals
into place using a rubber mallet with
the Nylon Block to protect the Glass
and the Wall Profile.
Trim both of the Wall Profile seals at
the top face of each Wall Profile using a
blade.
21 22

03/2021 V 1.0
VIEW 25
07/12
Assemble the SB5 Stay Bar and fit to
the two Fixed Panels using the grub
screws provided.
Ensure the Glass is fully inserted into
the grooves of the Clamps.
STAY BAR CONFIGURATION A - SB5
A1

x
Outside of
enclosure
03/2021 V 1.0
VIEW 25
Cover Plate
Clamping
Plate
Measure to
this face
08/12
Measure the distance between the two
Underframe 135° Connectors.
Mark and cut the Underframe Top.
Snap the Underframe Top on to the
Underframe.
Remove Packers and feed the
Underframe Wedge Gasket into the
archway gap of the Fixed Panel and
trace along the Glass on both sides.
Spray water on Glass Panel and use
Nylon Block to help feed Gasket.
Trim the Wedge Gasket where it meets
the Underframe Top.
Repeat for the opposite Fixed Panel.
Aach the Glass to Glass Hinges to the
Fixed Panel. Ensure you have the
correct orientaon.
Evenly ghten the screws unl the
Gaskets are just “nipping” the Glass.
Tighten all screws.
You should hear a creaking sound.
DO NOT fit the Cover Plates yet.
23 24
25 26

03/2021 V 1.0
VIEW 25
Wet Side
Glass Supports
Inside Enclosure
(Wet Side)

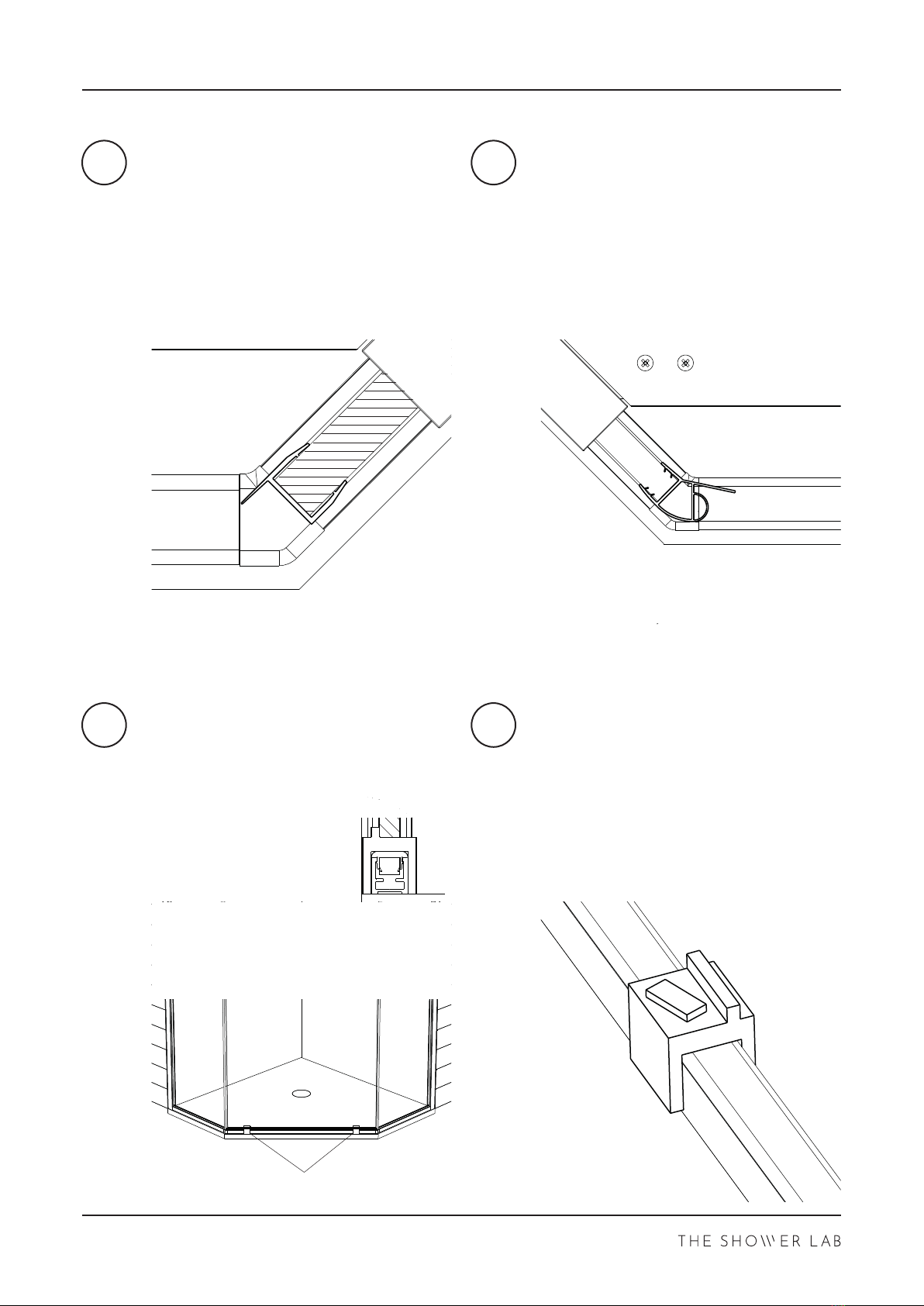

09/12
Aach the Glass to Glass “h” Seal to the
Hinged Fixed Panel.
Check the orientaon is correct.
Leave the Seal oversized. This will be
trimmed later.
Aach the 135 Bubble Seal to the
Return Panel on the handle side.
Check the orientaon.
Leave the Seal oversized, this will be
trimmed later.
Place the Glass Supports over the
Underframe as shown. With one
person inside the enclosure, posion
the Door onto the supports.
Add Spacers to the Glass Supports in
order to level the Door.
With someone inside, carefully replace
the Door onto the Supports.
Check all Panels are level and square
and that the Seals touch fully.
27 28
29 30

03/2021 V 1.0
VIEW 25
10/12
Aach the Glass to Glass Hinges and
ghten.
Evenly ghten the screws unl the
gaskets are just “nipped”. Tighten all
screws evenly, start with one full turn.
You should hear a creaking sound.
Check the orientaon of the Cover
Plates. Adjust Clamping Plate to Suit.
DO NOT fit the Cover Plates yet.
Measure the width of the Door (glass
width). Cut the Boom Door Seal
accordingly.
Trim the outside edges on both ends to
allow the two vercal Seals to touch
the Glass.
Aach the Seal ensuring the Seal is
correctly oriented.
Push both Vercal Seals down as far as
they can go.

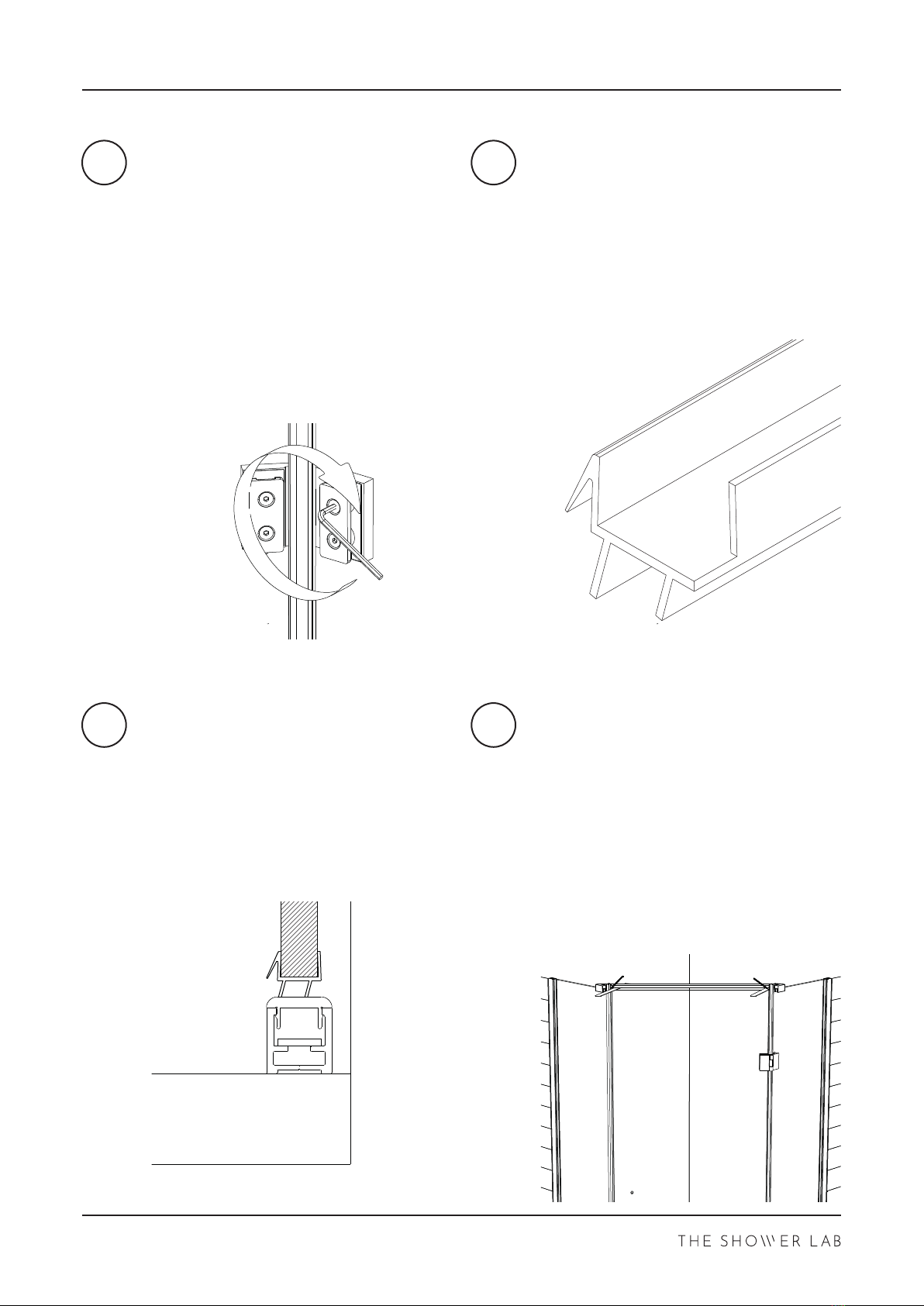

With a straight edge, mark where the
Seals will be trimmed. Remove the
Seals and trim with a fine toothed
junior hacksaw so they are flush with
the tops of the Glass Panels.
Replace the seals.
Outside of
enclosure
31 32
33 34

03/2021 V 1.0
VIEW 25
11/12
Aach the Handle if included. Secure in
place with the grub screws provided.
The Handle should be oriented so that
the grub screws are not visible when
looking down on the handle.
Using a sharp modelling knife, trim any
excess gasket material from the Hinges
that may have squeezed out when
ghtening.
Take care not to scratch the glass
surface.
Tighten all screws.
Fit all Cover Plates to the Hinges.
Apply the Wall Profile End Caps to the
top of the Wall Profiles and fix in place
using self tapping screws.
35 36
37 38
Trim

03/2021 V 1.0
VIEW 25
Silicone
Silicone
Silicone
Underframe
Wall Channel
Silicone
12/12

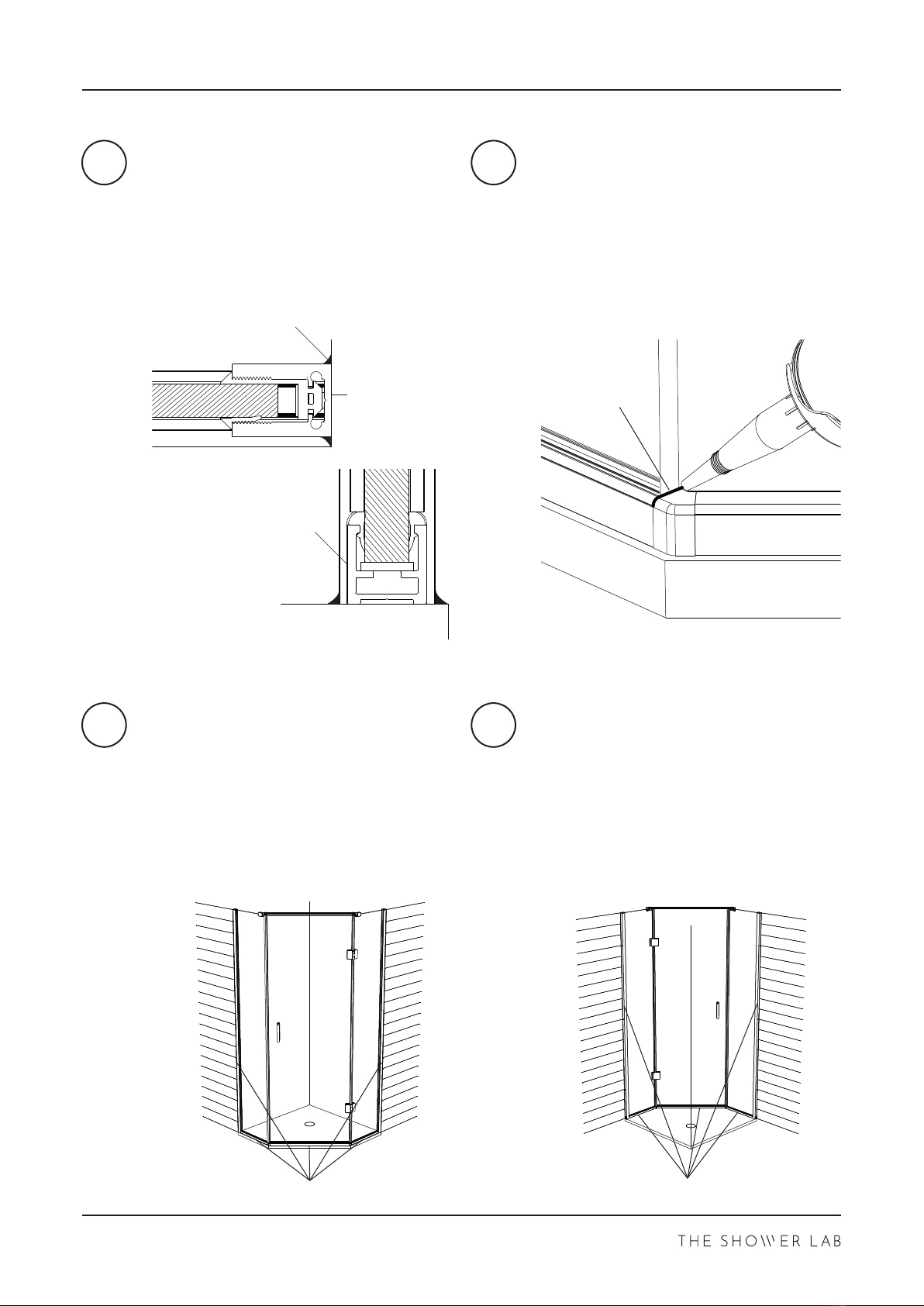

Apply silicone to the edge of the
Underframe Top where it meets the
two Fixed Panels.
Apply silicone to the edge of the
Underframe Top where it meets the
two Fixed Panels.
Check silicone has been applied to all
the below outside areas.
Check silicone has been applied to all
the below inside areas.
Let the silicone sealant cure for 24
hours.
39 40
41 42
